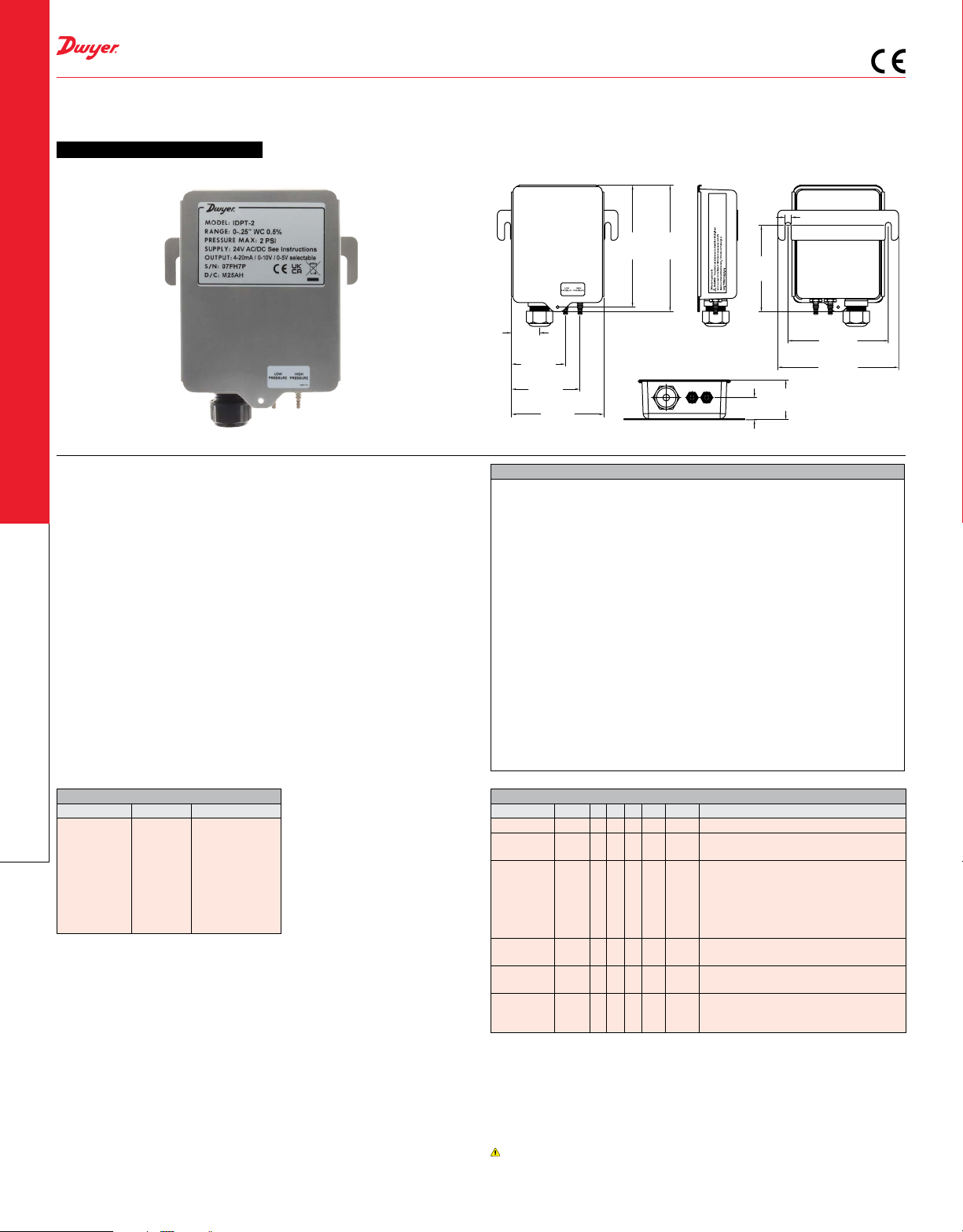

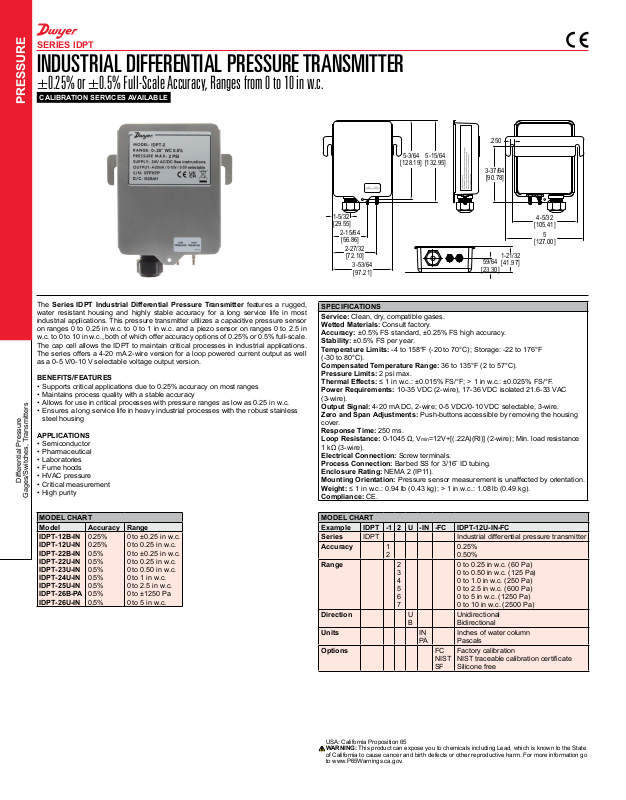

SERIES IDPT
INDUSTRIAL DIFFERENTIAL PRESSURE TRANSMITTER
±0.25% or ±0.5% Full-Scale Accuracy, Ranges from 0 to 10 in w.c.
CALIBRATION SERVICES AVAILABLE
PRESSURE
5-3/64
[128.19]
5-15/64
[132.95]
.250
3-37/64
[90.78]
The Series IDPT Industrial Differential Pressure Transmitter features a rugged,
water resistant housing and highly stable accuracy for a long service life in most
industrial applications. This pressure transmitter utilizes a capacitive pressure sensor
on ranges 0 to 0.25 in w.c. to 0 to 1 in w.c. and a piezo sensor on ranges 0 to 2.5 in
w.c. to 0 to 10 in w.c., both of which offer accuracy options of 0.25% or 0.5% full-scale.
The cap cell allows the IDPT to maintain critical processes in industrial applications.
The series offers a 4-20 mA 2-wire version for a loop powered current output as well
as a 0-5 V/0-10 V selectable voltage output version.
BENEFITS/FEATURES
• Supports critical applications due to 0.25% accuracy on most ranges
• Maintains process quality with a stable accuracy
• Allows for use in critical processes with pressure ranges as low as 0.25 in w.c.
• Ensures a long service life in heavy industrial processes with the robust stainless
steel housing
APPLICATIONS
• Semiconductor
• Pharmaceutical
• Laboratories
• Fume hoods
• HVAC pressure
Differential Pressure
• Critical measurement
• High purity
Gages/Switches, Transmitters
1-5/32
[29.55]
2-15/64
[56.86]
2-27/32
[72.10]
3-53/64
[97.21]
SPECIFICATIONS
Service: Clean, dry, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS standard, ±0.25% FS high accuracy.
Stability: ±0.5% FS per year.
Temperature Limits: -4 to 158°F (-20 to 70°C); Storage: -22 to 176°F
(-30 to 80°C).
Compensated Temperature Range: 36 to 135°F (2 to 57°C).
Pressure Limits: 2 psi max.
Thermal Effects: ≤ 1 in w.c.: ±0.015% FS/°F; > 1 in w.c.: ±0.025% FS/°F.
Power Requirements: 10-35 VDC (2-wire), 17-36 VDC isolated 21.6-33 VAC
(3-wire).
Output Signal: 4-20 mA DC, 2-wire; 0-5 VDC/0-10 VDC selectable, 3-wire.
Zero and Span Adjustments: Push-buttons accessible by removing the housing
cover.
Response Time: 250 ms.
Loop Resistance: 0-1045 Ω, V
1 kΩ (3-wire).
Electrical Connection: Screw terminals.
Process Connection: Barbed SS for 3/16˝ ID tubing.
Enclosure Rating: NEMA 2 (IP11).
Mounting Orientation: Pressure sensor measurement is unaffected by orientation.
Weight: ≤ 1 in w.c.: 0.94 lb (0.43 kg); > 1 in w.c.: 1.08 lb (0.49 kg).
Compliance: CE.
min=12V+[(.22A)(Rl)] (2-wire); Min. load resistance
59/64
[23.30]
1-21/32
[41.97]
4-5/32
[105.41]
5
[127.00]
MODEL CHART
Model Accuracy Range
IDPT-12B-IN
IDPT-12U-IN
IDPT-22B-IN
IDPT-22U-IN
IDPT-23U-IN
IDPT-24U-IN
IDPT-25U-IN
IDPT-26B-PA
IDPT-26U-IN
0.25%
0.25%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0 to ±0.25 in w.c.
0 to 0.25 in w.c.
0 to ±0.25 in w.c.
0 to 0.25 in w.c.
0 to 0.50 in w.c.
0 to 1 in w.c.
0 to 2.5 in w.c.
0 to ±1250 Pa
0 to 5 in w.c.
MODEL CHART
Example IDPT -1 2 U -IN -FC IDPT-12U-IN-FC
Series IDPT Industrial differential pressure transmitter
Accuracy 1
Range 2
Direction U
Units IN
Options FC
USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
2
3
4
5
6
7
B
PA
0.25%
0.50%
0 to 0.25 in w.c. (60 Pa)
0 to 0.50 in w.c. (125 Pa)
0 to 1.0 in w.c. (250 Pa)
0 to 2.5 in w.c. (600 Pa)
0 to 5 in w.c. (1250 Pa)
0 to 10 in w.c. (2500 Pa)
Unidirectional
Bidirectional
Inches of water column
Pascals
Factory calibration
NIST
NIST traceable calibration certicate
SF
Silicone free
