Page 1

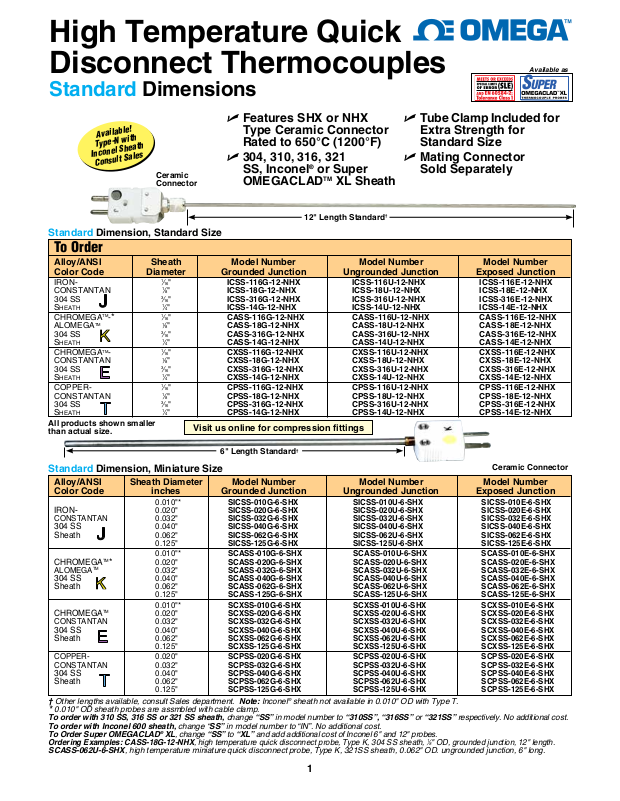

High Temperature Quick Disconnect Thermocouples

Available as

Standard Dimensions

U Features SHX or NHX

Available!

Type-N with

Inconel Sheath

Consult Sales

Ceramic Connector

Standard Dimension, Standard Size

Type Ceramic Connector Rated to 650°C (1200°F)

U 304, 310, 316, 321

SS, Inconel

or Super

OMEGACLADTM XL Sheath

12" Length Standard

To Order

Alloy/ANSI Sheath Model Number Model Number Model Number Color Code Diameter Grounded Junction Ungrounded Junction Exposed Junction

IRON CONSTANTAN 304 SS SheATh

ChROMeGATM-* ALOMeGATM 304 SS SheATh

ChROMeGATM CONSTANTAN 304 SS SheATh

COPPeR CONSTANTAN 304 SS SheATh

All products shown smaller than actual size.

Standard Dimension, Miniature Size

Alloy/ANSI Sheath Diameter Model Number Model Number Model Number Color Code inches Grounded Junction Ungrounded Junction Exposed Junction

0.010"* SICSS-010G-6-SHX SICSS-010U-6-SHX SICSS-010E-6-SHX IRON- 0.020" SICSS-020G-6-SHX SICSS-020U-6-SHX SICSS-020E-6-SHX CONSTANTAN 0.032" SICSS-032G-6-SHX SICSS-032U-6-SHX SICSS-032E-6-SHX 304 SS 0.040" SICSS-040G-6-SHX SICSS-040U-6-SHX SICSS-040E-6-SHX Sheath 0.062" SICSS-062G-6-SHX SICSS-062U-6-SHX SICSS-062E-6-SHX

0.125" SICSS-125G-6-SHX SICSS-125U-6-SHX SICSS-125E-6-SHX

0.010"* SCASS-010G-6-SHX SCASS-010U-6-SHX SCASS-010E-6-SHX CHROMEGA ALOMEGATM 0.032" SCASS-032G-6-SHX SCASS-032U-6-SHX SCASS-032E-6-SHX 304 SS 0.040" SCASS-040G-6-SHX SCASS-040U-6-SHX SCASS-040E-6-SHX Sheath 0.062" SCASS-062G-6-SHX SCASS-062U-6-SHX SCASS-062E-6-SHX

0.125" SCASS-125G-6-SHX SCASS-125U-6-SHX SCASS-125E-6-SHX

0.010"* SCXSS-010G-6-SHX SCXSS-010U-6-SHX SCXSS-010E-6-SHX CHROMEGATM 0.020" SCXSS-020G-6-SHX SCXSS-020U-6-SHX SCXSS-020E-6-SHX CONSTANTAN 0.032" SCXSS-032G-6-SHX SCXSS-032U-6-SHX SCXSS-032E-6-SHX 304 SS 0.040" SCXSS-040G-6-SHX SCXSS-040U-6-SHX SCXSS-040E-6-SHX Sheath 0.062" SCXSS-062G-6-SHX SCXSS-062U-6-SHX SCXSS-062E-6-SHX

0.125" SCXSS-125G-6-SHX SCXSS-125U-6-SHX SCXSS-125E-6-SHX COPPER- 0.020" SCPSS-020G-6-SHX SCPSS-020U-6-SHX SCPSS-020E-6-SHX

CONSTANTAN 0.032" SCPSS-032G-6-SHX SCPSS-032U-6-SHX SCPSS-032E-6-SHX 304 SS 0.040" SCPSS-040G-6-SHX SCPSS-040U-6-SHX SCPSS-040E-6-SHX Sheath 0.062" SCPSS-062G-6-SHX SCPSS-062U-6-SHX SCPSS-062E-6-SHX

0.125" SCPSS-125G-6-SHX SCPSS-125U-6-SHX SCPSS-125E-6-SHX

† Other lengths available, consult Sales department. Note: Inconel® sheath not available in 0.010" OD with Type T.

0.010" OD sheath probes are assmbled with cable clamp.

To order with 310 SS, 316 SS or 321 SS sheath, change “SS” in model number to “310SS”, “316SS” or “321SS” respectively. No additional cost. To order with Inconel 600 sheath, change “SS” in model number to “IN”. No additional cost. To Order Super OMEGACLAD® XL, change “SS” to “XL” and add additional cost of Inconel 6" and 12" probes. Ordering Examples: CASS-18G-12-NHX, high temperature quick disconnect probe, Type K, 304 SS sheath, 1⁄8" OD, grounded junction, 12" length. SCASS-062U-6-SHX, high temperature miniature quick disconnect probe, Type K, 321SS sheath, 0.062" OD. ungrounded junction, 6" long.

* 0.020" SCASS-020G-6-SHX SCASS-020U-6-SHX SCASS-020E-6-SHX

⁄16" ICSS-116G-12-NHX ICSS-116U-12-NHX ICSS-116E-12-NHX

⁄8" ICSS-18G-12-NHX ICSS-18U-12-NHX ICSS-18E-12-NHX

⁄16" ICSS-316G-12-NHX ICSS-316U-12-NHX ICSS-316E-12-NHX

⁄4" ICSS-14G-12-NHX ICSS-14U-12-NHX ICSS-14E-12-NHX

⁄16" CASS-116G-12-NHX CASS-116U-12-NHX CASS-116E-12-NHX

⁄8" CASS-18G-12-NHX CASS-18U-12-NHX CASS-18E-12-NHX

⁄16" CASS-316G-12-NHX CASS-316U-12-NHX CASS-316E-12-NHX

⁄4" CASS-14G-12-NHX CASS-14U-12-NHX CASS-14E-12-NHX

⁄16" CXSS-116G-12-NHX CXSS-116U-12-NHX CXSS-116E-12-NHX

⁄8" CXSS-18G-12-NHX CXSS-18U-12-NHX CXSS-18E-12-NHX

⁄16" CXSS-316G-12-NHX CXSS-316U-12-NHX CXSS-316E-12-NHX

⁄4" CXSS-14G-12-NHX CXSS-14U-12-NHX CXSS-14E-12-NHX

⁄16" CPSS-116G-12-NHX CPSS-116U-12-NHX CPSS-116E-12-NHX

⁄8" CPSS-18G-12-NHX CPSS-18U-12-NHX CPSS-18E-12-NHX

⁄16" CPSS-316G-12-NHX CPSS-316U-12-NHX CPSS-316E-12-NHX

⁄4" CPSS-14G-12-NHX CPSS-14U-12-NHX CPSS-14E-12-NHX

Visit us online for compression fittings

6" Length Standard

†

U Tube Clamp Included for

Extra Strength for Standard Size

U Mating Connector

Sold Separately

†

Ceramic Connector

Page 2

High Temperature Quick Disconnect Thermocouples

Available as

Metric Dimensions

Available!

Type-N with

Inconel Sheath

Consult Sales

Ceramic Connector

U Features SHX or NHX

Type Ceramic Connector Rated to 650°C (1200°F)

U 304, 310, 316, 321

SS, Inconel

or Super

OMEGACLADTM XL Sheath

12" Length Standard

Metric Dimension, Standard Size

To Order

Alloy/ANSI Sheath Diameter Model Number Model Number Model Number Color Code inches Grounded Junction Ungrounded Junction Exposed Junction

IRON- 1.5 ICSS-M15G-300-NHX ICSS-M15U-300-NHX ICSS-M15E-300-NHX CONSTANTAN 3.0 ICSS-M30G-300-NHX ICSS-M30U-300-NHX ICSS-M30E-300-NHX 304 SS 4.5 ICSS-M45G-300-NHX ICSS-M45U-300-NHX ICSS-M45E-300-NHX SheATh 6.0 ICSS-M60G-300-NHX ICSS-M60U-300-NHX ICSS-M60E-300-NHX

CHROMEGA ALOMEGA 304 SS 4.5 CASS-M45G-300-NHX CASS-M45U-300-NHX CASS-M45E-300-NHX SheATh 6.0 CASS-M60G-12-NHX CASS-M60U-300-NHX CASS-M60E-300-NHX

CHROMEGA CONSTANTAN 3.0 CXSS-M30G-300-NHX CXSS-M30U-300-NHX CXSS-M30E-300-NHX 304 SS 4.5 CXSS-M45G-300-NHX CXSS-M45U-300-NHX CXSS-M45E-300-NHX SheATh 6.0 CXSS-M60G-300-NHX CXSS-M60U-300-NHX CXSS-M60E-300-NHX

COPPER- 1.5 CPSS-M15G-300-NHX CPSS-M15U-300-NHX CPSS-M15E-300-NHX CONSTANTAN 3.0 CPSS-M30G-300-NHX CPSS-M30U-300-NHX CPSS-M30E-300-NHX 304 SS 4.5 CPSS-M45G-300-NHX CPSS-M45U-300-NHX CPSS-M45E-300-NHX

SheATh 6.0 CPSS-M60G-300-NHX CPSS-M60U-300-NHX CPSS-M60E-300-NHX

All products shown smaller than actual size.

Metric Dimension, Miniature Size

Alloy/ANSI Sheath Diameter Model Number Model Number Model Number Color Code inches Grounded Junction Ungrounded Junction Exposed Junction

0.25* SICSS-M025G-150-SHX SICSS-M025U-150-SHX SICSS-M025E-150-SHX IRON- 0.50 SICSS-M050G-150-SHX SICSS-M050U-150-SHX SICSS-M050E-150-SHX CONSTANTAN 0.75 SICSS-M075G-150-SHX SICSS-M075U-150-SHX SICSS-M075E-150-SHX 304 SS 1.0 SICSS-M100G-150-SHX SICSS-M100U-150-SHX SICSS-M100E-150-SHX Sheath 1.5 SICSS-M150G-150-SHX SICSS-M150U-150-SHX SICSS-M150E-150-SHX

3.0 SICSS-M300G-150-SHX SICSS-M300U-150-SHX SICSS-M300E-150-SHX

0.25* SCASS-M025G-150-SHX SCASS-M025U-150-SHX SCASS-M025E-150-SHX CHROMEGA ALOMEGA 304 SS 1.0 SCASS-M100G-150-SHX SCASS-M100U-150-SHX SCASS-M100E-150-SHX Sheath 1.5 SCASS-M150G-150-SHX SCASS-M150U-150-SHX SCASS-M150E-150-SHX

3.0 SCASS-M300G-150-SHX SCASS-M300U-150-SHX SCASS-M300E-150-SHX

0.25* SCXSS-M025G-150-SHX SCXSS-M025U-150-SHX SCXSS-M025E-150-SHX CHROMEGA CONSTANTAN 0.75 SCXSS-M075G-150-SHX SCXSS-M075U-150-SHX SCXSS-M075E-150-SHX 304 SS 1.0 SCXSS-M100G-150-SHX SCXSS-M100U-150-SHX SCXSS-M100E-150-SHX Sheath 1.5 SCXSS-M150G-150-SHX SCXSS-M150U-150-SHX SCXSS-M150E-150-SHX

3.0 SCXSS-M300G-150-SHX SCXSS-M300U-150-SHX SCXSS-M300E-150-SHX COPPER- 0.50 SCPSS-M050G-150-SHX SCPSS-M050U-150-SHX SCPSS-M050E-150-SHX

CONSTANTAN 0.75 SCPSS-M075G-150-SHX SCPSS-M075U-150-SHX SCPSS-M075E-150-SHX 304 SS 1.0 SCPSS-M100G-150-SHX SCPSS-M100U-150-SHX SCPSS-M100E-150-SHX Sheath 1.5 SCPSS-M150G-150-SHX SCPSS-M150U-150-SHX SCPSS-M150E-150-SHX

3.0 SCPSS-M300G-150-SHX SCPSS-M300U-150-SHX SCPSS-M300E-150-SHX

† Other lengths available, consult Sales Department. Note: Inconel sheath not available in 0.25 mm OD with Type T.

0.25 mm OD sheath probes are assmbled with cable clamp.

To order with 310 SS, 316 SS or 321 SS sheath, change “SS” in model number to “310SS”, “316SS” or “321SS” respectively. No add’l cost. To order with Inconel 600 sheath, change “SS” in model number to “IN”, No additional cost. To Order Super OMEGACLADTM XL change “SS” to “XL” for additional cost to price of Inconel 150 and 300 mm probes. Ordering Examples: CASS-M300G-300-NHX, high temperature quick disconnect probe, Type K, 304 SS sheath, 3 mm OD, grounded junction,

300 mm length. SCASS-M150U-150-SHX, high temperature miniature quick disconnect probe, Type K, 321SS sheath, 1.5 mm OD, ungrounded junction, 150 mm long.

- 1.5 CASS-M15G-300-NHX CASS-M15U-300-NHX CASS-M15E-300-NHX

* 3.0 CASS-M30G-300-NHX CASS-M30U-300-NHX CASS-M30E-300-NHX

- 1.5 CXSS-M15G-300-NHX CXSS-M15U-300-NHX CXSS-M15E-300-NHX

Visit us online for compression fittings

6" Length Standard

- 0.50 SCASS-M050G-150-SHX SCASS-M050U-150-SHX SCASS-M050E-150-SHX

* 0.75 SCASS-M075G-150-SHX SCASS-M075U-150-SHX SCASS-M075E-150-SHX

- 0.50 SCXSS-M050G-150-SHX SCXSS-M050U-150-SHX SCXSS-M050E-150-SHX

†

U Tube Clamp Included for

Extra Strength for Standard Size

U Mating Connector

Sold Separately

†

Ceramic Connector

Page 3

Standard, Standard Size

Alloy/ANSI Color Code

IRONCONSTANTAN 304 SS Sheath

CHROMEGA ALOMEGA

304 SS Sheath

CHROMEGATMCONSTANTAN 304 SS Sheath

COPPERCONSTANTAN 304 SS Sheath

Grounded Junction

Model No.

ICSS-116G-12-NHX ICSS-18G-12-NHX ICSS-316G-12-NHX ICSS-14G-12-NHX

CASS-116G-12-NHX

CASS-18G-12-NHX CASS-316G-12-NHX CASS-14G-12-NHX

CXSS-116G-12-NHX CXSS-18G-12-NHX CXSS-316G-12-NHX CXSS-14G-12-NHX

CPSS-116G-12-NHX CPSS-18G-12-NHX CPSS-316G-12-NHX CPSS-14G-12-NHX

Ungrounded

Junction

Model No.

ICSS-116U-12-NHX ICSS-18U-12-NHX ICSS-316U-12-NHX ICSS-14U-12-NHX

CASS-116U-12-NHX CASS-18U-12-NHX CASS-316U-12-NHX CASS-14U-12-NHX

CXSS-116U-12-NHX CXSS-18U-12-NHX CXSS-316U-12-NHX CXSS-14U-12-NHX

CPSS-116U-12-NHX CPSS-18U-12-NHX CPSS-316U-12-NHX CPSS-14U-12-NHX

Exposed Junction

Model No.

ICSS-116E-12-NHX ICSS-18E-12-NHX ICSS-316E-12-NHX ICSS-14E-12-NHX

CASS-116E-12-NHX CASS-18E-12-NHX CASS-316E-12-NHX CASS-14E-12-NHX

CXSS-116E-12-NHX CXSS-18E-12-NHX CXSS-316E-12-NHX CXSS-14E-12-NHX

CPSS-116E-12-NHX CPSS-18E-12-NHX CPSS-316E-12-NHX CPSS-14E-12-NHX

Mating

Connector

Model No.

NHX-J-F

NHX-K-F

NHX-E-F

NHX-T-F

Cable

Clamp

Model No.

Safety

Clip

Model No.

PCLM-NHX HTCL

Standard, Miniature Size

Alloy/ANSI

Grounded Junction

Color Code

IRONCONSTANTAN 304 SS Sheath

SICSS-010G-6-SHX SICSS-020G-6-SHX SICSS-032G-6-SHX SICSS-040G-6-SHX SICSS-062G-6-SHX SICSS-125G-6-SHX

CHROMEGA ALOMEGA 304 SS Sheath

SCASS-010G-6-SHX

SCASS-020G-6-SHX SCASS-032G-6-SHX SCASS-040G-6-SHX SCASS-062G-6-SHX SCASS-125G-6-SHX

CHROMEGA CONSTANTAN 304 SS Sheath

SCXSS-010G-6-SHX

SCXSS-020G-6-SHX SCXSS-032G-6-SHX SCXSS-040G-6-SHX SCXSS-062G-6-SHX SCXSS-125G-6-SHX

COPPERCONSTANTAN 304 SS Sheath

SCPSS-020G-6-SHX SCPSS-032G-6-SHX SCPSS-040G-6-SHX SCPSS-062G-6-SHX SCPSS-125G-6-SHX

All Accessories Sold Seperately.

0.010” OD sheath probes are assmbled with cable clamp.

Model No.

SICSS-010U-6-SHX SICSS-020U-6-SHX SICSS-032U-6-SHX SICSS-040U-6-SHX SICSS-062U-6-SHX SICSS-125U-6-SHX

SCASS-010U-6-SHX SCASS-020U-6-SHX SCASS-032U-6-SHX SCASS-040U-6-SHX SCASS-062U-6-SHX SCASS-125U-6-SHX

SCXSS-010U-6-SHX SCXSS-020U-6-SHX SCXSS-032U-6-SHX SCXSS-040U-6-SHX SCXSS-062U-6-SHX SCXSS-125U-6-SHX

SCPSS-020U-6-SHX SCPSS-032U-6-SHX SCPSS-040U-6-SHX SCPSS-062U-6-SHX SCPSS-125U-6-SHX

Ungrounded

Junction

Model No.

SICSS-010E-6-SHX SICSS-020E-6-SHX SICSS-032E-6-SHX SICSS-040E-6-SHX SICSS-062E-6-SHX SICSS-125E-6-SHX

SCASS-010E-6-SHX SCASS-020E-6-SHX SCASS-032E-6-SHX SCASS-040E-6-SHX SCASS-062E-6-SHX SCASS-125E-6-SHX

SCXSS-010E-6-SHX SCXSS-020E-6-SHX SCXSS-032E-6-SHX SCXSS-040E-6-SHX SCXSS-062E-6-SHX SCXSS-125E-6-SHX

SCPSS-020E-6-SHX SCPSS-032E-6-SHX SCPSS-040E-6-SHX SCPSS-062E-6-SHX SCPSS-125E-6-SHX

Exposed Junction

Mating

Connector

Model No.

SHX-J-F

SHX-K-F

SHX-E-F

SHX-T-F

Cable

Clamp

Model No.

PCLM-SHX

Page 4

Metric, Standard Size

Alloy/ANSI Color Code

IRONCONSTANTAN 304 SS Sheath

CHROMEGA ALOMEGA

304 SS Sheath

CHROMEGATMCONSTANTAN 304 SS Sheath

COPPERCONSTANTAN 304 SS Sheath

Grounded Junction

ICSS-M15G-300-NHX ICSS-M30G-300-NHX ICSS-M45G-300-NHX ICSS-M60G-300-NHX

CASS-M15G-300-NHX

CASS-M30G-300-NHX CASS-M45G-300-NHX CASS-M60G-12-NHX

CXSS-M15G-300-NHX CXSS-M30G-300-NHX CXSS-M45G-300-NHX CXSS-M60G-300-NHX

CPSS-M15G-300-NHX CPSS-M30G-300-NHX CPSS-M45G-300-NHX CPSS-M60G-300-NHX

Model No.

Ungrounded

Junction

Model No.

ICSS-M15U-300-NHX ICSS-M30U-300-NHX ICSS-M45U-300-NHX ICSS-M60U-300-NHX

CASS-M15U-300-NHX CASS-M30U-300-NHX CASS-M45U-300-NHX CASS-M60U-300-NHX

CXSS-M15U-300-NHX CXSS-M30U-300-NHX CXSS-M45U-300-NHX CXSS-M60U-300-NHX

CPSS-M15U-300-NHX CPSS-M30U-300-NHX CPSS-M45U-300-NHX CPSS-M60U-300-NHX

Exposed Junction

Model No.

ICSS-M15E-300-NHX ICSS-M30E-300-NHX ICSS-M45E-300-NHX ICSS-M60E-300-NHX

CASS-M15E-300-NHX CASS-M30E-300-NHX CASS-M45E-300-NHX CASS-M60E-300-NHX

CXSS-M15E-300-NHX CXSS-M30E-300-NHX CXSS-M45E-300-NHX CXSS-M60E-300-NHX

CPSS-M15E-300-NHX CPSS-M30E-300-NHX CPSS-M45E-300-NHX CPSS-M60E-300-NHX

Mating

Connector

Model No.

NHX-J-F

NHX-K-F

NHX-E-F

NHX-T-F

Cable

Clamp

Model No.

Safety

Clip

Model No.

PCLM-NHX HTCL

Metric, Miniature Size

Alloy/ANSI

Grounded Junction

Color Code

IRONCONSTANTAN 304 SS Sheath

SICSS-M025G-150-SHX SICSS-M050G-150-SHX SICSS-M075G-150-SHX SICSS-M100G-150-SHX SICSS-M150G-150-SHX SICSS-M300G-150-SHX

CHROMEGA-

-* ALOMEGA 304 SS Sheath

SCASS-M025G-150-SHX SCASS-M050G-150-SHX

SCASS-M075G-150-SHX SCASS-M100G-150-SHX SCASS-M150G-150-SHX SCASS-M300G-150-SHX

CHROMEGA-

CONSTANTAN 304 SS Sheath

SCXSS-M025G-150-SHX SCXSS-M050G-150-SHX SCXSS-M075G-150-SHX SCXSS-M100G-150-SHX SCXSS-M150G-150-SHX SCXSS-M300G-150-SHX

COPPERCONSTANTAN 304 SS Sheath

SCPSS-M050G-150-SHX SCPSS-M075G-150-SHX SCPSS-M100G-150-SHX SCPSS-M150G-150-SHX SCPSS-M300G-150-SHX

All Accessories Sold Seperately. * 0.25 mm OD sheath probes are assmbled with cable clamp.

Model No.

SICSS-M025U-150-SHX SICSS-M050U-150-SHX SICSS-M075U-150-SHX SICSS-M100U-150-SHX SICSS-M150U-150-SHX SICSS-M300U-150-SHX

SCASS-M025U-150-SHX SCASS-M050U-150-SHX SCASS-M075U-150-SHX SCASS-M100U-150-SHX SCASS-M150U-150-SHX SCASS-M300U-150-SHX

SCXSS-M025U-150-SHX SCXSS-M050U-150-SHX SCXSS-M075U-150-SHX SCXSS-M100U-150-SHX SCXSS-M150U-150-SHX SCXSS-M300U-150-SHX

SCPSS-M050U-150-SHX SCPSS-M075U-150-SHX SCPSS-M100U-150-SHX SCPSS-M150U-150-SHX SCPSS-M300U-150-SHX

Ungrounded

Junction

Model No.

Exposed Junction

Model No.

SICSS-M025E-150-SHX SICSS-M050E-150-SHX SICSS-M075E-150-SHX SICSS-M100E-150-SHX SICSS-M150E-150-SHX SICSS-M300E-150-SHX

SCASS-M025E-150-SHX SCASS-M050E-150-SHX SCASS-M075E-150-SHX SCASS-M100E-150-SHX SCASS-M150E-150-SHX SCASS-M300E-150-SHX

SCXSS-M025E-150-SHX SCXSS-M050E-150-SHX SCXSS-M075E-150-SHX SCXSS-M100E-150-SHX SCXSS-M150E-150-SHX SCXSS-M300E-150-SHX

SCPSS-M050E-150-SHX SCPSS-M075E-150-SHX SCPSS-M100E-150-SHX SCPSS-M150E-150-SHX SCPSS-M300E-150-SHX

Mating

Connector

Model No.

SHX-J-F

SHX-K-F

SHX-E-F

SHX-T-F

Cable

Clamp

Model No.

PCLM-SHX
