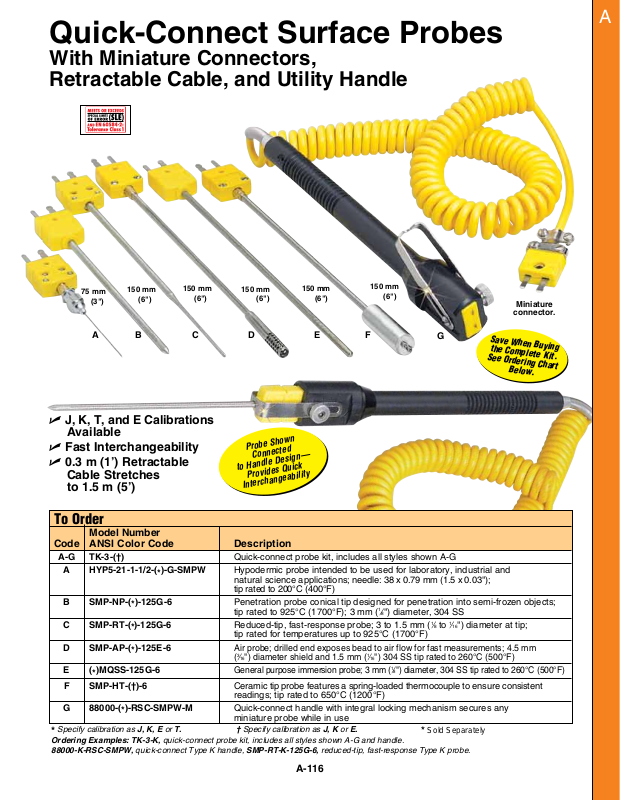

Quick-Connect Surface Probes
With Miniature Connectors,
Retractable Cable, and Utility Handle
A
75 mm
(3")
A B C D E F
150 mm
(6")
150 mm
(6")
150 mm
(6")
150 mm
(6")
150 mm
(6")
Miniature
connector.
G
Save When Buying
the Complete Kit.
See Ordering Chart
Below.
U J, K, T, and E Calibrations
Available
U Fast Interchangeability
U 0.3 m (1’) Retractable
Cable Stretches
to 1.5 m (5’)
Probe Shown
Connected
to Handle Design—
Provides Quick
Interchangeability
To Order
Model Number
Code ANSI Color Code Description
A-G TK-3-(†) Quick-connect probe kit, includes all styles shown A-G
A HYP5-21-1-1/2-(*)-G-SMPW Hypodermic probe intended to be used for laboratory, industrial and
B SMP-NP-(*)-125G-6 Penetration probe conical tip designed for penetration into semi-frozen objects;
C SMP-RT-(*)-125G-6 Reduced-tip, fast-response probe; 3 to 1.5 mm (
D SMP-AP-(*)-125E-6
E (*)MQSS-125G-6
F SMP-HT-(†)-6 Ceramic tip probe features a spring-loaded thermocouple to ensure consistent
G 88000-(*)-RSC-SMPW-M Quick-connect handle with integral locking mechanism secures any
Specify calibration as J, K, E or T. † Specify calibration as J, K or E.
*
Ordering Examples: TK-3-K, quick-connect probe kit, includes all styles shown A-G and handle.
88000-K-RSC-SMPW, quick-connect Type K handle, SMP-RT-K-125G-6, reduced-tip, fast-response Type K probe.
natural science applications; needle: 38 x 0.79 mm (1.5 x 0.03");
tip rated to 200°C (400°F)
tip rated to 925°C (1700°F); 3 mm (
tip rated for temperatures up to 925°C (1700°F)
Air probe; drilled end exposes bead to air flow for fast measurements; 4.5 mm
(3⁄16") diameter shield and 1.5 mm (1⁄16") 304 SS tip rated to 260°C (500°F)
General purpose immersion probe; 3 mm (1⁄8") diameter, 304 SS tip rated to 260°C (500°F)
readings; tip rated to 650°C (1200°F)
miniature probe while in use
1
⁄8") diameter, 304 SS
1
⁄8 to 1⁄16") diameter at tip;
* Sold Separately
A-116
