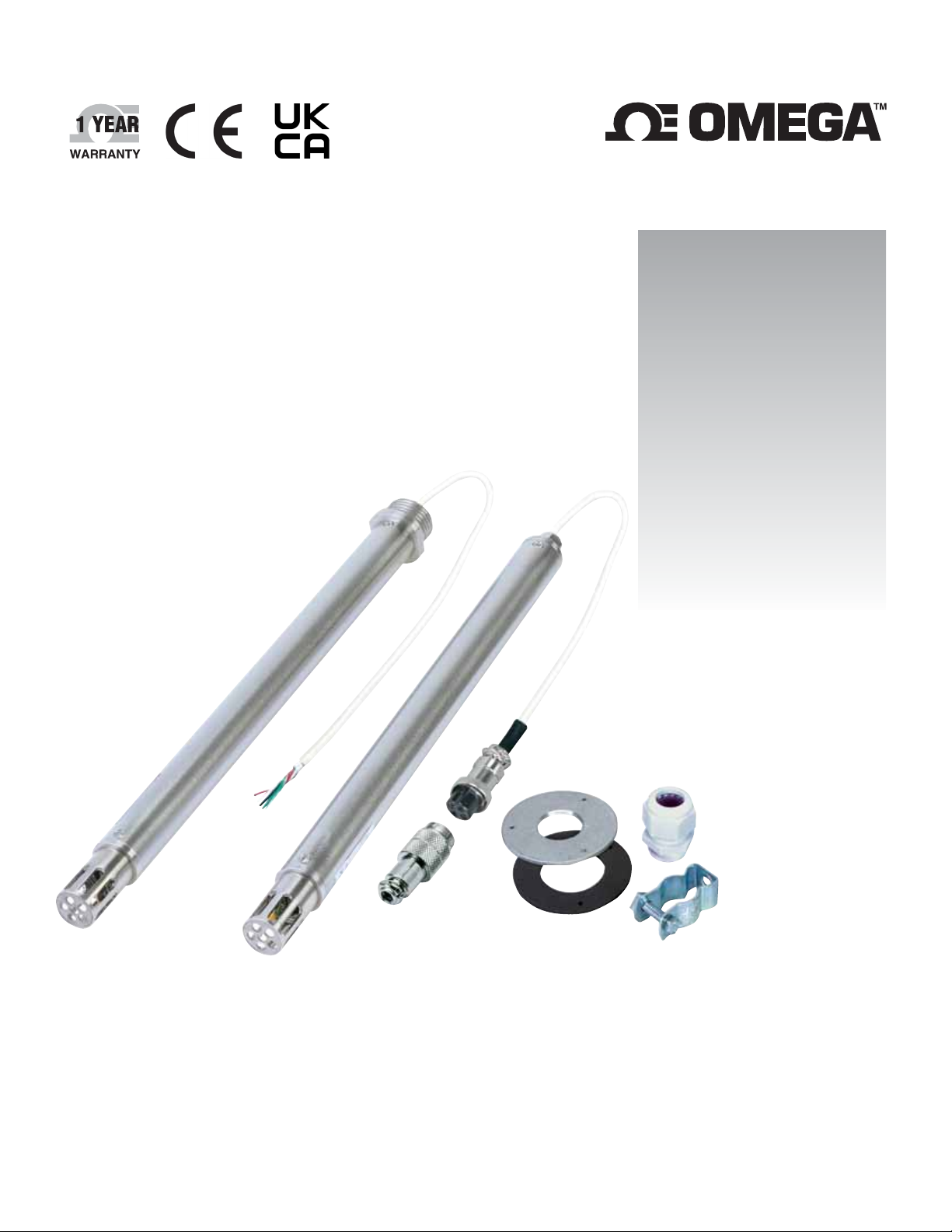

Section 1 - Introduction
The OMEGA® HX94B Series Temperature/Relative Humidity Transmitter provides a linearized and temperature compensated output signal of 4 to 20mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc for both temperature/relative humidity measurement, depending upon the model selected. The output signals have been calibrated and scaled to 0ºC to 100ºC for temperature and 0 to 100% for relative humidity. The digital temperature and relative humidity sensor is protected by a stainless steel cap that is easily removed for cleaning. The NEMA-4 stainless steel enclosure and IP68-rated cable gland (non-NPT versions only) provide weather tight protection. All units include a 6-foot shielded cable. The cable end terminates in either stripped leads or a 4-pin connector.
Introduction
1
1-1
Page 6
2
Unpacking
Section 2 - Unpacking
Remove the packing list and verify that you have received all of the intended equipment. If you have any questions about the shipment, please call our Customer Service Department at:
1-800-622-2378 or 203-359-1660. On the web you can find us at: omega.com e-mail: [email protected]
When you receive the shipment, inspect the container and equipment for any signs of damage. Note any evidence of rough handling in transit. Immediately report any damage to the shipping agent.
The carrier will not honor any damage claims unless all shipping material is saved for inspection. After examining and removing contents, save packing material and carton in the event reshipment is necessary.
The following items are supplied in the box with your HX94B transmitter.
• Quick Start Manual, # MQS5495 (1 ea.)
• Wall/Duct Mounting Kit (1 ea.)
• 4-Pin Mating Connector; with connector models only (1 ea.)
• Dewpoint Card (1 ea.)
The following table lists all the HX94B series models and descriptions:
Model No. Description
HX94BC RH/Temperature Transmitter (4 to 20 mA Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland, terminated in a 4 Pin Connector.
HX94BV0 RH/Temperature Transmitter (0 - 1 Vdc Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland, terminated in a 4 Pin Connector.
HX94BV1 RH/Temperature Transmitter (0 - 5 Vdc Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland, terminated in a 4 Pin Connector. HX94BV2 RH/Temperature Transmitter (0 - 10 Vdc Output) with 4 Pin Connector. HX94BCW RH/Temperature Transmitter (4 to 20 mA Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland. HX94BV0W RH/Temperature Transmitter (0 - 1 Vdc Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland. HX94BV1W RH/Temperature Transmitter (0 - 5 Vdc Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland. HX94BV2W RH/Temperature Transmitter (0 - 10 Vdc Output) with 1.8 m (6ft) lead wires
through a liquid tight cable gland. HX94BCNPT RH/Temperature Transmitter (4 to 20 mA Output) with 1/2in male NPT fitting
and 1.8 m (6ft) lead wires. HX94BV0NPT RH/Temperature Transmitter (0 - 1 Vdc Output) with 1/2in male NPT fitting
and 1.8 m (6ft) lead wires. HX94BV1NPT RH/Temperature Transmitter (0 - 5 Vdc Output) with 1/2in male NPT fitting
and 1.8 m (6ft) lead wires. HX94BV2NPT RH/Temperature Transmitter (0 - 10 Vdc Output) with 1/2in male NPT fitting
and 1.8 m (6ft) lead wires.
2-1
Page 7
Section 3 - Operation
The HX94B series terminates to a 6-foot shielded cable. The cable end is either stripped leads or terminates to a 4-pin connector. Figures 3-1 and 3-2 illustrate these termination options and how they are to be connected.
HX94B
Operation
3
BLACK WIRE RED WIRE
GREEN WIRE
WHITE WIRE SHIELD
+
+
+
POWER SUPPLY 9-30Vdc
–
(12-30Vdc FOR
–
0-10Vdc OUTPUT)
–
HUMIDITY
OUTPUT
4-20mA
0-1Vdc 0-5Vdc
0-10Vdc

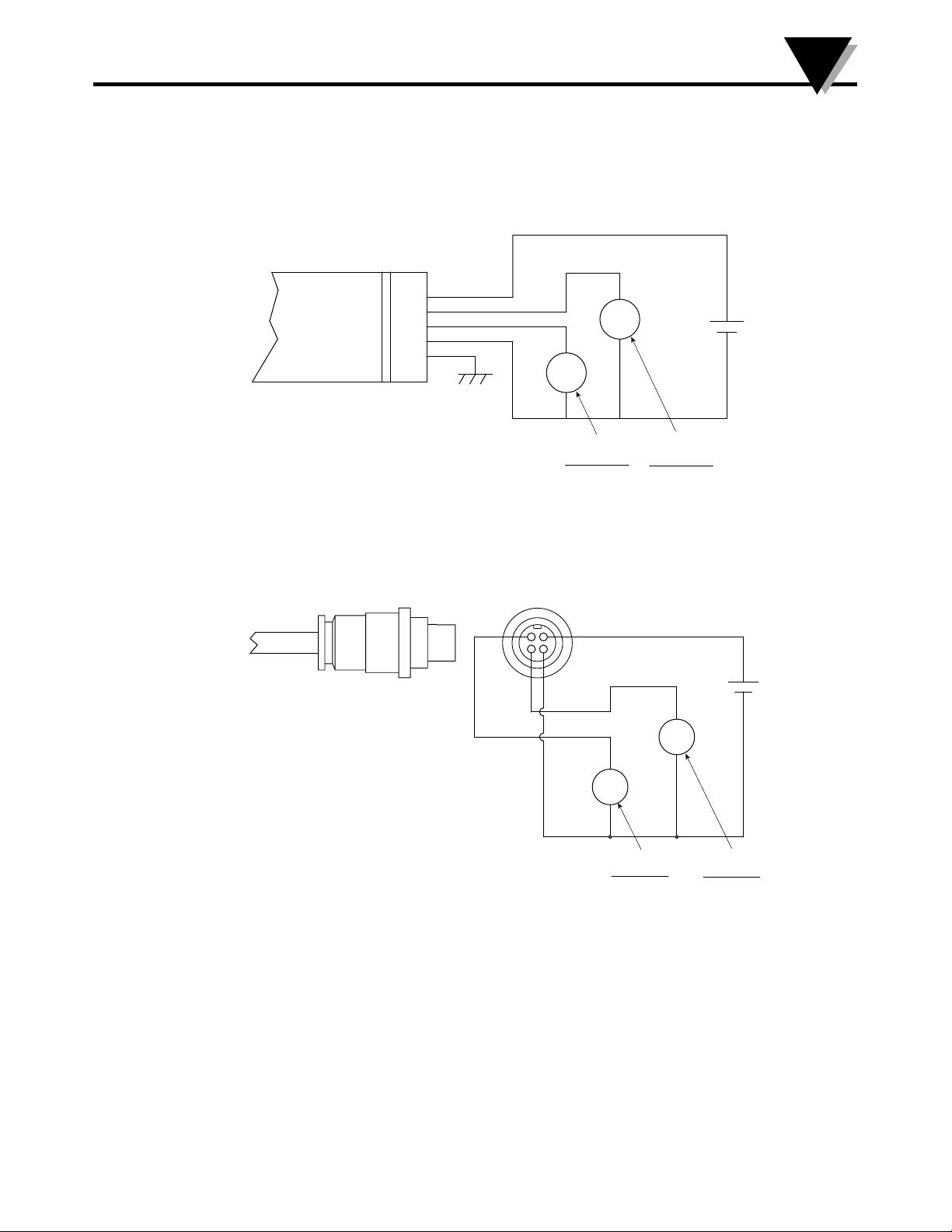

Figure 3-1. Electrical Connection With Stripped Leads Termination
PIN 4
1234
PIN 3
PIN 2
PIN 1
TEMPERATURE
OUTPUT
4-20mA
0-1Vdc 0-5Vdc
0-10Vdc
+
+
POWER SUPPLY 9-30Vdc
–
(12-30Vdc FOR 0-10Vdc OUTPUT)
+
–
–
HUMIDITY
OUTPUT
4-20mA
0-1Vdc 0-5Vdc
0-10Vdc
Figure 3-2. Electrical Connection With 4-Pin Connector Termination
TEMPERATURE
OUTPUT
4-20mA
0-1Vdc 0-5Vdc
0-10Vdc
3-1
Page 8
4
Mounting
Section 4 - Mounting
OMEGA’s HX94B transmitters are designed for either wall or duct mounting. A wall/duct mounting kit is included with each unit.
4-PIN
CONNECTOR
1.8 m (6 Ft.)
CABLE
MOUNTING SCREW
MOUNTING BUSHING
HX94B
258 (10.15)
25 TO 214 (1 TO 8.44)
Ø19 (Ø0.75)
VARIABLE DEPTH FLANGE

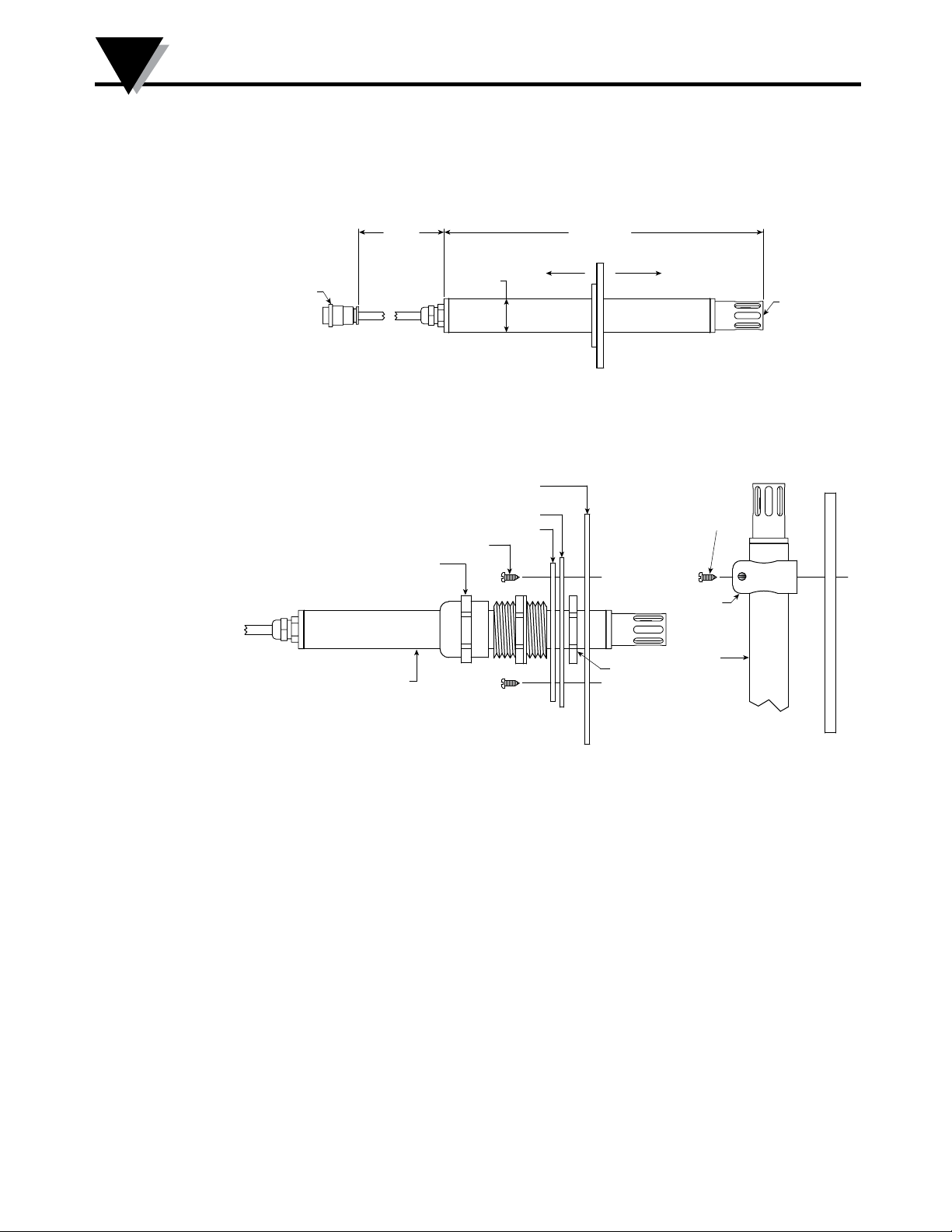

Figure 4-1. General Dimensions
DUCT WALL
MOUNTING GASKET
MOUNTING PLATE
MOUNTING NUT
REMOVABLE STAINLESS STEEL COVER
DIMENSIONS: mm (in)
MOUNTING
SCREW
CLAMP
HX94B
4-1
Figure 4-2. HX94B Mounting Hardware
Page 9
Analog Output Calculations
Section 5 - Analog Output Calculations
To calculate the temperature by measuring the current or voltage output, use the following formulas:
a) To calculate temperature from 4 to 20 mA current output:
Temperature in °C = (Output current in milliamps – 4) / 0.16 (0 to 100 ºC Range)
Temperature in °F = [(Output current in milliamps – 4) / 0.0888] + 32
(32 to 212 ºF Range)
b) To calculate temperature from 0 to 1 volt output:
Temperature in °C = Output voltage in volts / 0.01
(0 to 100 ºC Range)
Temperature in °F = [Output voltage in volts / 0.00555] + 32
(32 to 212 ºF Range)
c) To calculate temperature from 0 to 5 volts output:
Temperature in °C = Output voltage in volts / 0.05
(0 to 100 ºC Range)
5
Temperature in °F = [Output voltage in volts / 0.02775] + 32
(32 to 212 ºF Range)
d) To calculate temperature from 0 to 10 volts output:
Temperature in °C = Output voltage in volts / 0.1
(0 to 100 ºC Range)
Temperature in °F = [Output voltage in volts / 0.0555] + 32
(32 to 212 ºF Range)
To calculate the relative humidity by measuring the current or voltage output, use the following formulas:
a) To calculate humidity from 4 to 20 mA current output:
Humidity in %RH = (Output current in milliamps – 4) / 0.16
b) To calculate humidity from 0 to 1 volt output:
Humidity in %RH = Output voltage in volts / 0.01
c) To calculate humidity from 0 to 5 volts output:
Humidity in %RH = Output voltage in volts / 0.05
d) To calculate humidity from 0 to 10 volts output:
Humidity in %RH = Output voltage in volts / 0.1
5-1
Page 10
6
Calibration
Section 6 - Calibration
While at our factory, your transmitter has been digitally calibrated and tested to meet or exceed the specifications outlined in this manual. The transmitter must be sent back to Omega Engineering, Inc. for any re-calibration request.
6-1
Page 11
Section 7 - Maintenance
If your Humidity transmitter will be used in a dusty environment, the protective cap, if clogged, may be removed for cleaning. Unscrew the protective cover and gently blow compressed air into the cap and around the sensor area.
If the sensor is subjected to 100% condensation, it must be dried to obtain correct readings. There will be no permanent damage or calibration shift to the unit.
Units should not be exposed to high concentrations of ammonia or alcohol vapors.
Maintenance
7
7-1
Page 12
8
Specifications
Section 8 - Specifications
TEMPERATURE Measuring Range: 0 to 100ºC (32 ºF to 212ºF)
Accuracy: ±0.6ºC from 0 to 50ºC (32 to 122ºF)
±1.25ºC from 50 to 100ºC (122 to 212ºF)
Repeatability: ±0.2ºC (0.4ºF)
Response Time: 5 Seconds min., 30 seconds max.
Sample Rate: 1 Sample every 4 seconds
RELATIVE HUMIDITY Measuring Range: 0 to 100%RH
Accuracy: ±2.5 % from 20 to 80% RH
±3.5% from 5 to 20% and 80 to 95% RH ±4% from 0 to 5% and 95 to 100% RH
Hysteresis: ±1%RH
Repeatability: ±0.1%RH
Response Time: 8 Seconds typical
Sample Rate: 1 Sample every 4 seconds
Operating Temperature Range: 0 to 100ºC
Analog Outputs Temperature: 4-20mA, 0-1V, 0-5V, 0-10V Humidity: 4-20mA, 0-1V, 0-5V, 0-10V
Input Power Supply: 9 to 30 Vdc @ 100mA: 4 to 20mA, 0-1V, 0-5V
output 12 to 30 Vdc @ 100mA: 0 to 10V output
Max Current Loop Resistance: Ohms = [(V supply - 4V) /0.02A)] -50 200 Ohms @ 9V supply or
1250 Ohms @ 30V supply
Max Load Resistance: 1.25 K (For all voltage outputs)
Sensor Type: Digital Sensor
Enclosure Housing: 316 Stainless Steel, NEMA 4; non-NPT version
includes IP68-rated cable gland
8-1
Electrical Connections HX94B**W, HX94B**NPT: 1.8m (6ft) 4 conductor Teflon shielded cable
with stripped leads termination HX94B**: 1.8m (6ft) 4 conductor Teflon shielded cable
with a 4-pin connector termination. A 4-pin mating connector is included that accepts 18 to 26 AWG wire
Dimensions: 258mm L x ø19mm OD
(10.15in L x ø0.75in OD)
Weight: 200g (7 oz) with mounting kit
Page 13
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:
1. Purchase Order number under which the product was PURCHASED,
2. Model and serial number of the product under warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.
OMEGA is a trademark of OMEGA ENGINEERING, INC. © Copyright 2019 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS, OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems relative to the product.
consult
Page 14
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU Communications-Based Acquisition Systems MU Data Logging Systems MU Wireless Sensors, Transmitters, & Receivers MU Signal Conditioners MU Data Acquisition Software
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
