Mounting hole for DIN clip
Air flow
Axial fan
Label
Label
105 (4.1)
68 (2.6)
32 (1.3)
119 (4.7)
ø4.2 (0.16)
25 (1)
22 (0.8)
18 (0.7)
72 (3)
Mounting hole for DIN clip
68 (2.7)
32 (1.3)
80 (3.2)
Axial fan
ø4.2 (0.16)
25 (1)
22 (0.8)
18 (0.7)

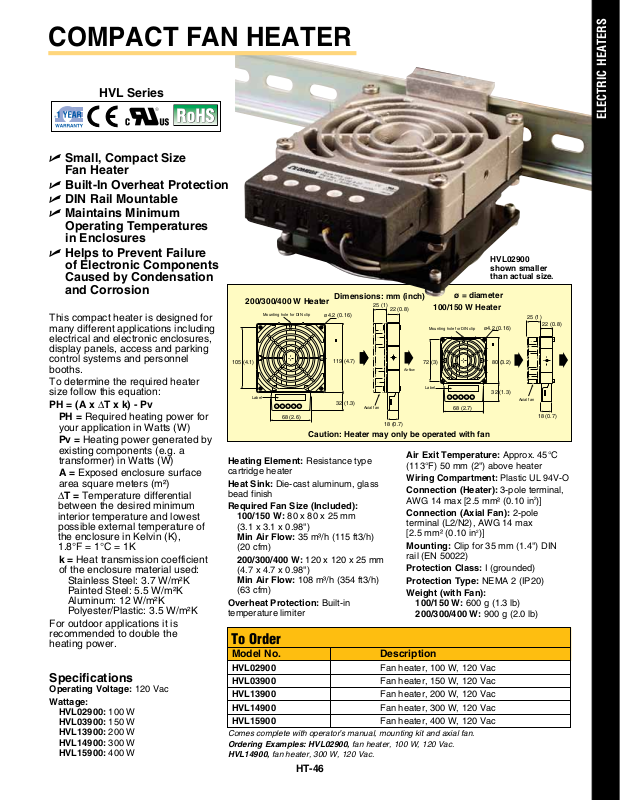

COMPACT FAN HEATER
HVL Series
U Small, Compact Size
Fan Heater
U Built-In Overheat Protection
U DIN Rail Mountable
U Maintains Minimum
Operating Temperatures
in Enclosures
U Helps to Prevent Failure
of Electronic Components
Caused by Condensation
and Corrosion
200/300/400 W Heater
This compact heater is designed for
many different applications including
electrical and electronic enclosures,
display panels, access and parking
control systems and personnel
booths.
To determine the required heater
size follow this equation:
PH = (A x ∆T x k) - Pv
PH = Required heating power for
your application in Watts (W)
Pv = Heating power generated by
existing components (e.g. a
transformer) in Watts (W)
A = Exposed enclosure surface
area square meters (m²)
∆T = Temperature differential
between the desired minimum
interior temperature and lowest
possible external temperature of
the enclosure in Kelvin (K),
1.8°F = 1°C = 1K
k = Heat transmission coefficient
of the enclosure material used:
Stainless Steel: 3.7 W/m²K
Painted Steel: 5.5 W/m²K
Aluminum: 12 W/m²K
Polyester/Plastic: 3.5 W/m²K
For outdoor applications it is
recommended to double the
heating power.
Specifications
Operating Voltage: 120 Vac
Wattage:
HVL02900: 100 W
HVL03900: 150 W
HVL13900: 200 W
HVL14900: 300 W
HVL15900: 400 W
Heating Element: Resistance type
cartridge heater
Heat Sink: Die-cast aluminum, glass
bead finish
Required Fan Size (Included):
100/150 W: 80 x 80 x 25 mm
(3.1 x 3.1 x 0.98")
Min Air Flow: 35 m³/h (115 ft3/h)
(20 cfm)
200/300/400 W: 120 x 120 x 25 mm
(4.7 x 4.7 x 0.98")
Min Air Flow: 108 m³/h (354 ft3/h)
(63 cfm)
Overheat Protection: Built-in
temperature limiter
To Order
Model No. Description
HVL02900 Fan heater, 100 W, 120 Vac
HVL03900 Fan heater, 150 W, 120 Vac
HVL13900 Fan heater, 200 W, 120 Vac
HVL14900 Fan heater, 300 W, 120 Vac
HVL15900 Fan heater, 400 W, 120 Vac
Comes complete with operator’s manual, mounting kit and axial fan.
Ordering Examples: HVL02900, fan heater, 100 W, 120 Vac.
HVL14900, fan heater, 300 W, 120 Vac.
HT-46
Dimensions: mm (inch)
Caution: Heater may only be operated with fan
ø = diameter
100/150 W Heater
Air Exit Temperature: Approx. 45°C
(113°F) 50 mm (2") above heater
Wiring Compartment: Plastic UL 94V-O
Connection (Heater): 3-pole terminal,
AWG 14 max [2.5 mm² (0.10 in
Connection (Axial Fan): 2-pole
terminal (L2/N2), AWG 14 max
[2.5 mm² (0.10 in
2
)]
Mounting: Clip for 35 mm (1.4") DIN
rail (EN 50022)
Protection Class: I (grounded)
Protection Type: NEMA 2 (IP20)
Weight (with Fan):
100/150 W: 600 g (1.3 lb)
200/300/400 W: 900 g (2.0 lb)

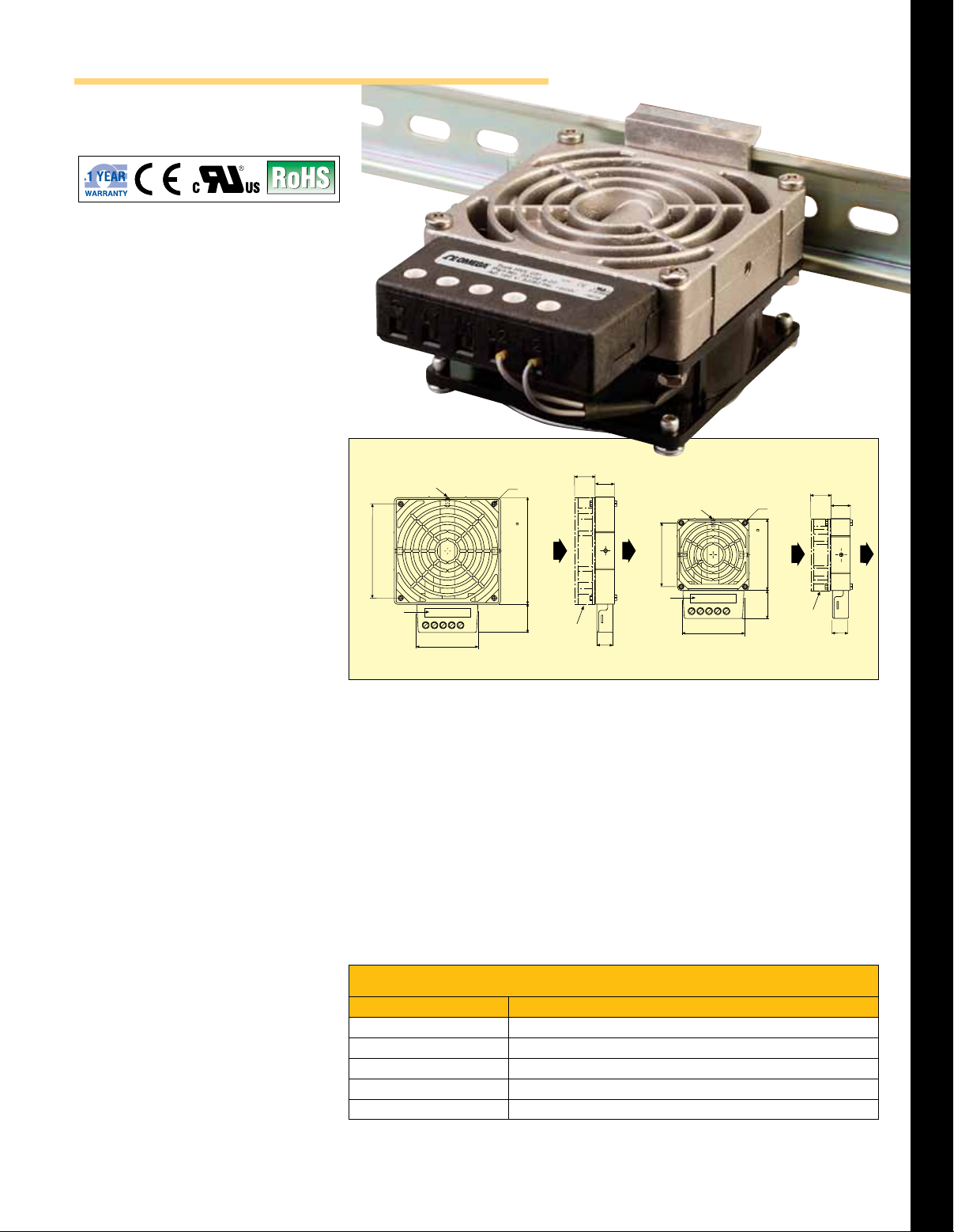

HVL02900
shown smaller
than actual size.
2
)]
