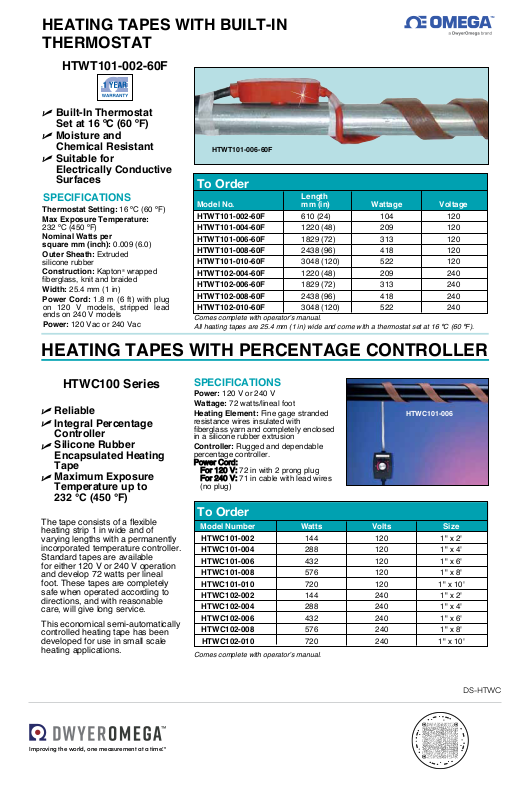

HEATING TAPES WITH BUILT-IN
THERMOSTAT
HTWT101-002-60F
tatsomrehT nI-tliuB
Set at 16 ºC (60 ºF)
dna erutsioM
Chemical Resistant
Suitable for
Electrically Conductive
Surfaces
SPECIFICATIONS
Thermostat Setting: 16 ºC (60 ºF)
Max Exposure Temperature:
232 ºC (450 ºF)
Nominal Watts per
square mm (inch): 0.009 (6.0)
Outer Sheath: Extruded
silicone rubber
Construction: Kapton
fiberglass, knit and braided
Width: 25.4 mm (1 in)
Power Cord: 1.8 m (6 ft) with plug
on 120 V models, stripped lead
ends on 240 V models
Power: 120 Vac or 240 Vac
®
wrapped
HTWT101-006-60F
To Order
Model No. mm (in) Wattage Voltage
HTWT101-002-60F 610 (24) 104 120
HTWT101-004-60F 1220 (48) 209 120
HTWT101-006-60F 1829 (72) 313 120
HTWT101-008-60F 2438 (96) 418 120
HTWT101-010-60F 3048 (120) 522 120
HTWT102-004-60F 1220 (48) 209 240
HTWT102-006-60F 1829 (72) 313 240
HTWT102-008-60F 2438 (96) 418 240
HTWT102-010-60F 3048 (120) 522 240
Comes complete with operator’s manual.
All heating tapes are 25.4 mm (1 in) wide and come with a thermostat set at 16 ºC (60 ºF).
Length
HEATING TAPES WITH PERCENTAGE CONTROLLER
HTWC100 Series
Reliable
Integral Percentage
Controller
Silicone Rubber
Encapsulated Heating
Tape
Maximum Exposure
Temperature up to
232 °C (450 °F)
The tape consists of a flexible
heating strip 1 in wide and of
varying lengths with a permanently
incorporated temperature controller.
Standard tapes are available
for either 120 V or 240 V operation
and develop 72 watts per lineal
foot. These tapes are completely
safe when operated according to
directions, and with reasonable
care, will give long service.
This economical semi-automatically
controlled heating tape has been
developed for use in small scale
heating applications.
SPECIFICATIONS
Power: 120 V or 240 V
Wattage: 72 watts/lineal foot
Heating Element: Fine gage stranded
resistance wires insul
fiberglass yarn and completely enclosed
in a silicone rubber extrusion
Controller: Rugged and dependable
percentage controller.
Power Cord:
For 120 V: 72 in with 2 prong plug
For 240 V: 71 in cable with lead wires
(no plug)
ated with
HTWC101-006
To Order
Model Number Watts Volts Size
HTWC101-002 144 120 1" x 2'
HTWC101-004 288 120 1" x 4'
HTWC101-006 432 120 1" x 6'
HTWC101-008 576 120 1" x 8'
HTWC101-010 720 120 1" x 10'
HTWC102-002 144 240 1" x 2'
HTWC102-004 288 240 1" x 4'
HTWC102-006 432 240 1" x 6'
HTWC102-008 576 240 1" x 8'
HTWC102-010 720 240 1" x 10'
Comes complete with operator’s manual.
