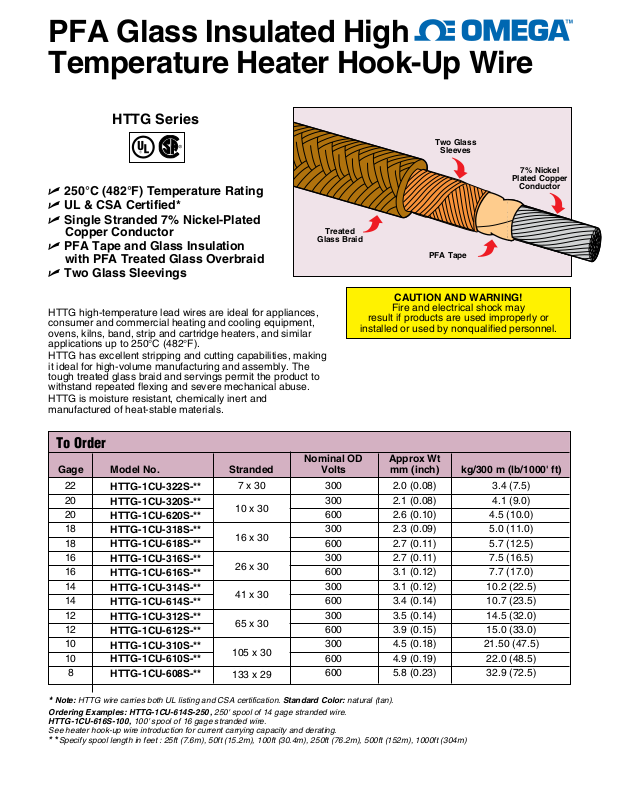

Page 1
PFA Glass Insulated High
Temperature Heater Hook-Up Wire
HTTG Series
Two Glass
Sleeves
7% Nickel
Plated Copper
U 250°C (482°F) Temperature Rating
U UL & CSA Certified*
U Single Stranded 7% Nickel-Plated
Copper Conductor
Glass Braid
U PFA Tape and Glass Insulation
with PFA Treated Glass Overbraid
U Two Glass Sleevings
HTTG high-temperature lead wires are ideal for appliances,
consumer and commercial heating and cooling equipment,
ovens, kilns, band, strip and cartridge heaters, and similar
applications up to 250°C (482°F).
HTTG has excellent stripping and cutting capabilities, making
it ideal for high-volume manufacturing and assembly. The
tough treated glass braid and servings permit the product to
withstand repeated flexing and severe mechanical abuse.
HTTG is moisture resistant, chemically inert and
manufactured of heat-stable materials.
Treated
PFA Tape
CAUTION AND WARNING!
Fire and electrical shock may
result if products are used improperly or
installed or used by nonqualified personnel.
Conductor
To Order
Nominal OD Approx Wt
Gage Model No. Stranded Volts mm (inch) kg/300 m (lb/1000' ft)
22
20
20
18
18
16
16
14
14
12
12
10
10
8
Note:
HTTG wire carries both UL listing and CSA certification. Standard Color: natural (tan).
*
Ordering Examples: HTTG-1CU-614S-250 , 250' spool of 14 gage stranded wire.
HTTG-1CU-616S-100 , 100' spool of 16 gage stranded wire.
See heater hook-up wire introduction for current carrying capacity and derating.
* *Specify spool length in feet : 25ft (7.6m), 50ft (15.2m), 100ft (30.4m), 250ft (76.2m), 500ft (152m), 1000ft (304m)
HTTG-1CU-322S-**
HTTG-1CU-320S-**
HTTG-1CU-620S-**
HTTG-1CU-318S-**
HTTG-1CU-618S-**
HTTG-1CU-316S-**
HTTG-1CU-616S-**
HTTG-1CU-314S-**
HTTG-1CU-614S-**
HTTG-1CU-312S-**
HTTG-1CU-612S-**
HTTG-1CU-310S-**
HTTG-1CU-610S-**
HTTG-1CU-608S-**
7 x 30
7 x 30
10 x 30
7 x.0121 600 2.6 (0.10) 4.5 (10.0)
16 x 30
19 x.0092 600 2.7 (0.11) 5.7 (12.5)
26 x 30
26 x 30 600 3.1 (0.12) 7.7 (17.0)
41 x 30
41 x 30 600 3.4 (0.14) 10.7 (23.5)
65 x 30
65 x 30 600 3.9 (0.15) 15.0 (33.0)
105 x 30
105 x 30 600 4.9 (0.19) 22.0 (48.5)
133 x 29 600 5.8 (0.23) 32.9 (72.5)
133 x 29
300 2.0 (0.08) 3.4 (7.5)
300 2.1 (0.08) 4.1 (9.0)
300 2.3 (0.09) 5.0 (11.0)
300 2.7 (0.11) 7.5 (16.5)
300 3.1 (0.12) 10.2 (22.5)
300 3.5 (0.14) 14.5 (32.0)
300 4.5 (0.18) 21.50 (47.5)
