Page 1

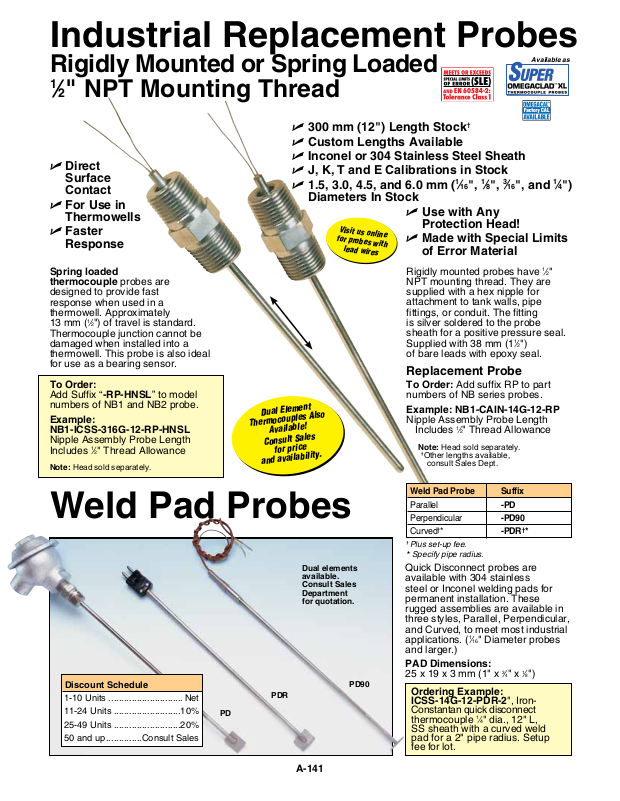

Industrial Replacement Probes
Rigidly Mounted or Spring Loaded
1
⁄2" NPT Mounting Thread
Available as
U Direct
Surface
Contact
U For Use in
Thermowells
U Faster
Response
Spring loaded
thermocouple probes are
designed to provide fast
response when used in a
thermowell. Approximately
13 mm (
Thermocouple junction cannot be
damaged when installed into a
thermowell. This probe is also ideal
for use as a bearing sensor.
To Order:
Add Suffix “-RP-HNSL” to model
numbers of NB1 and NB2 probe.
Example:
NB1-ICSS-316G-12-RP-HNSL
Nipple Assembly Probe Length
Includes 1⁄2" Thread Allowance
Note: Head sold separately.
1
⁄2") of travel is standard.
U 300 mm (12") Length Stock
U Custom Lengths Available
U Inconel or 304 Stainless Steel Sheath
U J, K, T and E Calibrations in Stock
U 1.5, 3.0, 4.5, and 6.0 mm (
Diameters In Stock
U Use with Any
Protection Head!
U Made with Special Limits
of Error Material
Dual Element
Thermocouples Also
Available!
Consult Sales
for price
and availability.
Visit us online
for probes with
lead wires
†
1
⁄16", 1⁄8", 3⁄16", and 1⁄4")

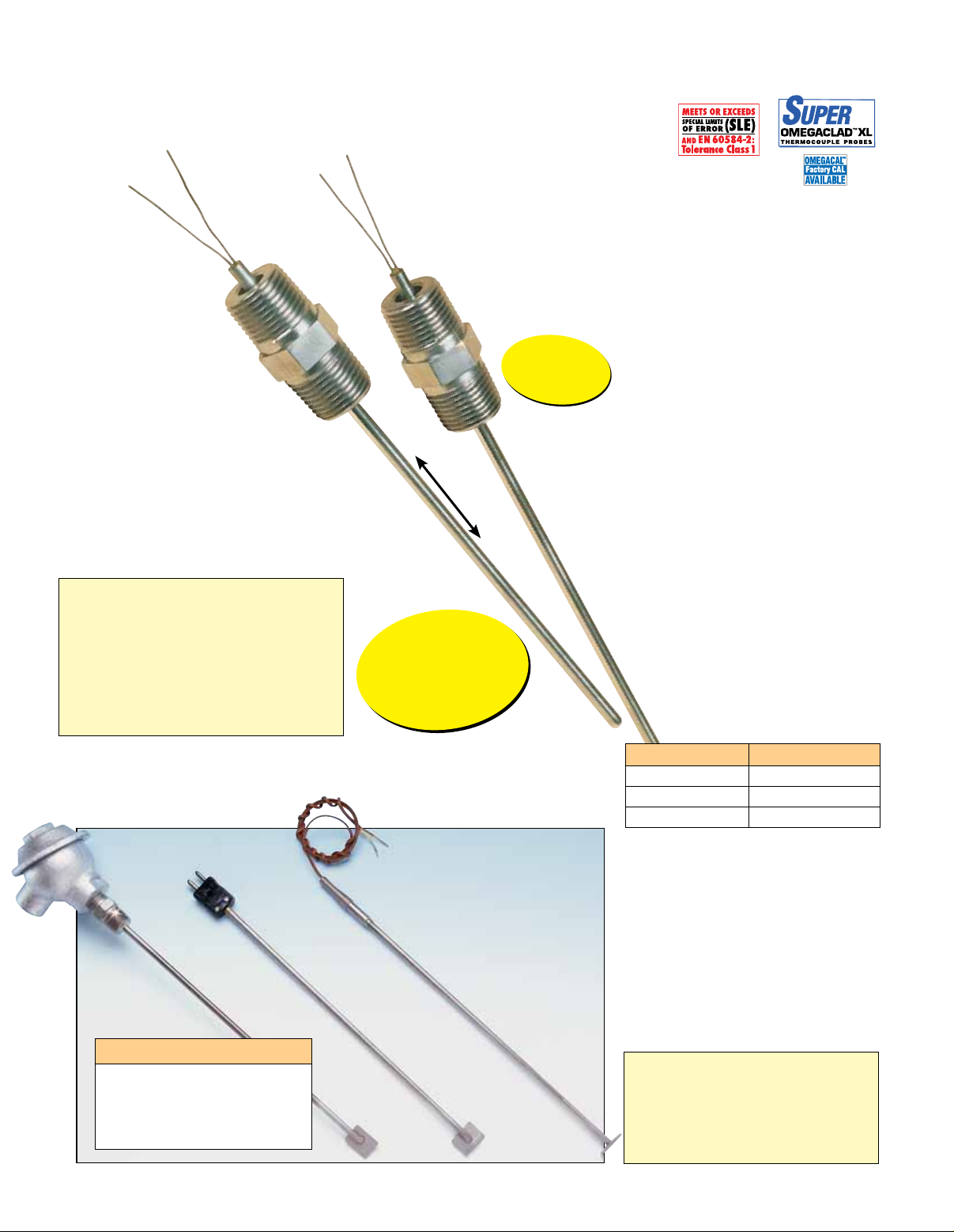

Rigidly mounted probes have 1⁄2"
NPT mounting thread. They are
supplied with a hex nipple for
attachment to tank walls, pipe
fittings, or conduit. The fitting
is silver soldered to the probe
sheath for a positive pressure seal.
Supplied with 38 mm (11⁄2")
of bare leads with epoxy seal.
Replacement Probe
To Order: Add suffix RP to part
numbers of NB series probes.
Example: NB1-CAIN-14G-12-RP
Nipple Assembly Probe Length
Includes 1⁄2" Thread Allowance
Note: Head sold separately.
†
Other lengths available,
consult Sales Dept.
Weld Pad Probes
Dual elements
available.
Consult Sales
Department
for quotation.
Discount Schedule
1-10 Units ............................. Net
11-24 Units ..........................10%
25-49 Units ..........................20%
50 and up ..............Consult Sales
PD
PDR
A-141
PD90
Weld Pad Probe Suffix
Parallel -PD
Perpendicular -PD90
Curved
†
* Specify pipe radius.
Quick Disconnect probes are
available with 304 stainless
steel or Inconel welding pads for
permanent installation. These
rugged assemblies are available in
three styles, Parallel, Perpendicular,
and Curved, to meet most industrial
applications. (1⁄16" Diameter probes
and larger.)
PAD Dimensions:
25 x 19 x 3 mm (1" x 3⁄4" x 1⁄8")
†
* -PDR†*
Plus set-up fee.
Ordering Example:
ICSS-14G-12-PDR-2", Iron-
Constantan quick disconnect
thermocouple 1⁄4" dia., 12" L,
SS sheath with a curved weld
pad for a 2" pipe radius. Setup
fee for lot.
Page 2
Specialty Thermocouple Probes

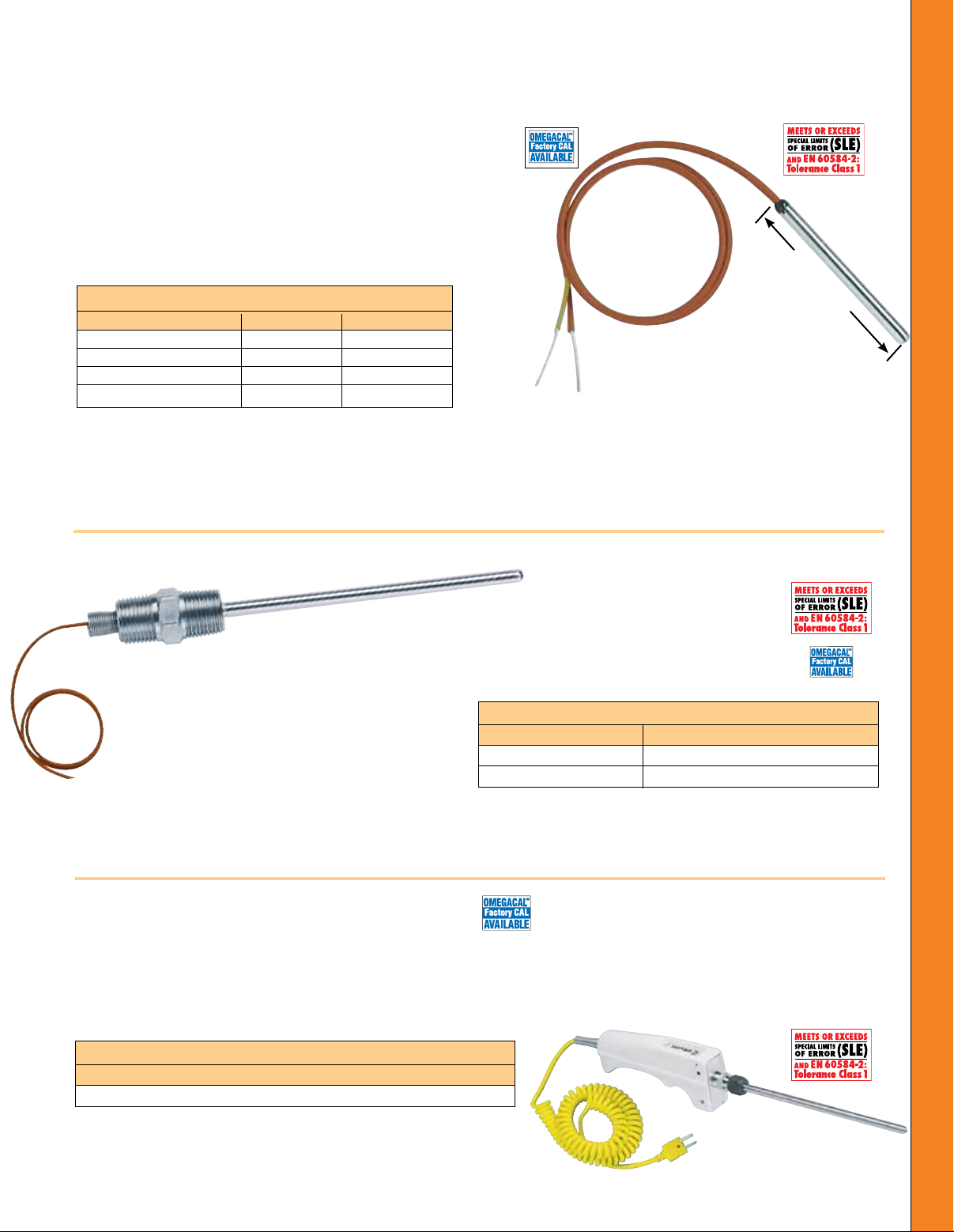

Low-Cost Hollow-Tube Thermocouple Probe
A
U 1 m (40") PFA-Insulated
Lead Wire Epoxy Potted
into a 304 SS Sheath
U Probe Rated Up to 450°F
U Probe Diameters of 1.5,
3.0, 4.5, and 6.0 mm
(1⁄16", 1⁄8", 3⁄16", and 1⁄4")
U J, K, T, E, and N
U Glass-Insulated Leads
Available for Higher
Temperatures
(Up to 900°F)
U Made with Special Limits
of Error Wire
U Grounded Junction
Shown smaller
than actual size.
Calibrations
To Order
Model Number
HTTC36-(*)-116G-(**) 1.5 mm (1⁄16") 30 Solid
HTTC36-(*)-18G-(**) 3.0 mm (1⁄8") 24 Stranded
HTTC36-(*)-316G-(**) 4.5 mm (3⁄16") 20 Stranded
HTTC36-(*)-14G-(**) 6.0 mm (1⁄4") 20 Stranded
* Specify calibration type: J, K, T, E, or N. ** Specify probe length in inches 1
Over 150 mm (6"), for additional cost per inch. 32 mm (1.25") minimum; 1.2 m (48") maximum. Over 1.2 m (48") consult
Custom Engineering Department. Over 1 m (40") leads, for additonal cost per foot, and modify model number. Add suffix: “GG”
for fiberglass insulated lead wire. [Does not include 1.5 mm ( 1⁄16") diameter.]
Ordering Example: HTTC36-K-18G-6-GG, hollow tube thermocouple Type K calibration, 3 mm (1⁄8") diameter, 150 mm (6")
probe length, 1 m (40") glass insulated leads.
Options: Modify model number to meet your specific needs. For connector terminations add suffix “-OSTW-M” or “-SMPW-M”
for an additional cost. For ungrounded probe change "G" in part number to "U" and for an additional cost.
Probe Dia.
Lead AWG
This alternative to our TJ style probe offers a more
compact size at a lower cost. It meets the requirements
of limited-space applications, without the metal transition
fitting or strain relief spring.
1
⁄2 to 6" (38 to 150 mm).
NB1 Replacement Probe With Lead Wire
150 mm (6")
U Wide Variety of Wire Types Available
U J, K, T, E, and N Calibration Types
Shown smaller
than actual size.
U User-Selectable Diameter and Length
U Made with Special Limits of Error Wire
U 1 m (40") Long Leads, Standard; Other Lengths Available
This flexible lead-wire replacement probe is ideal for
field installation with existing protection heads or for
extending leads to remote locations. Flexible leads
prevent breakage in hard-to-wire situations. These
probes have 20 AWG stranded lead wire and a 1⁄2 x 1⁄2
NPT hex fitting. Probe length includes 13 mm (1⁄2") of
hex fitting threads.
Over 1 m (40") leads, modify model number, for additional cost per foot. TT-SB: PFA with SS overbraiding, GG-SB: fiberglass with SB
overbraiding and length in inches, for an additional cost. Over 1 m (40") leads, modify model number, for additional cost per foot.
Ordering Example: NB1-CASS-14G-12RP-TT36, Type K “replacement probe”, 300 mm (12") long, 6 mm (
1 m (40") PFA leads (for other diameters and configurations, contact Sales).
To Order
Model Number Description
NB1-(*)SS-14G-(**)-RP-† Up to 300 mm (12") probe length
NB1-(*)SS-14U-(**)-RP-† Up to 300 mm (12") probe length
* Specify calibration type: CA, IC, CP, CX, NN. ** Probe length in inches.
†
Wire insulation type. TT: PFA, GG: fiberglass and length in inches.
1
⁄4") diameter, grounded junction with
The MHP handle probe picks up where the HPS
Metal Handle Probe
1
U 1.5, 3.0, 4.5, and 6.0 mm (
U 300 mm (1') of Retractable Cable Expands to 1.5 m (5')
U Probe Leads Terminate in a Male SMP Miniature Connector
U Heavy-Duty Aluminum Handle
U Bendable Probe
⁄16, 1⁄8, 3⁄16, and 1⁄4") Diameters
handle probes leave off, offering unparalleled
durability and no probe length limitations.
A compression fitting rigidly secures the probe
to the cast-aluminum handle and provides
the rugged construction and stability that long
probes and heavy-duty applications require.
Shown smaller than actual size.
U Variations Available—Contact the Quotations Department
To Order
Model Number
MHP-(*)SS-14G-(**)-SMP
* Specify calibration type: CA, IC, CP, CX, NN for K, J, T, E and N.
** Specify probe length in inches.
Ordering Example: MHP-CASS-14G-12-SMP, metal handle probe,
Type K calibration, 6 mm (1⁄4") diameter, 300 mm (12") length, SMP connector
(for other diameters and configurations, contact Sales).
A-142A-142
Molded Miniature
Connector Standard
