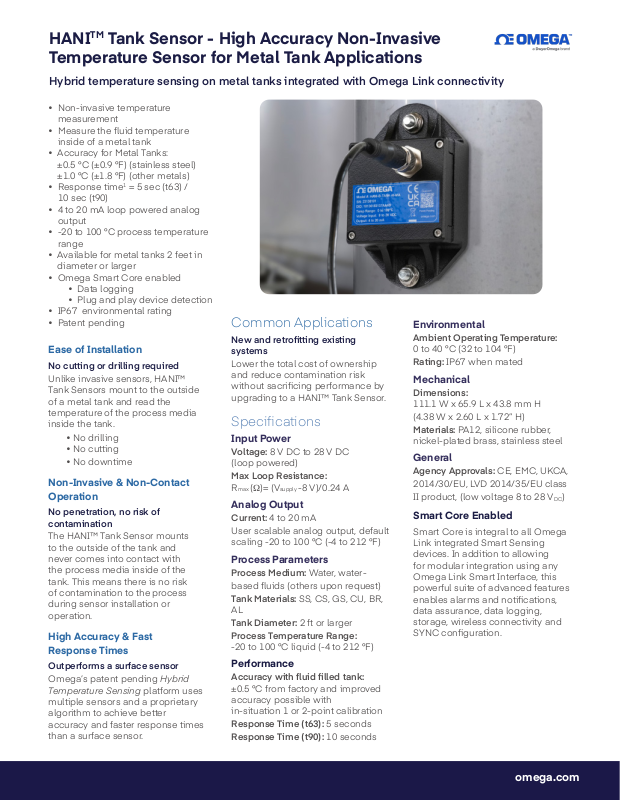

HANITM Tank Sensor - High Accuracy Non-Invasive
Temperature Sensor for Metal Tank Applications
Hybrid temperature sensing on metal tanks integrated with Omega Link connectivity
• Non-invasive temperature
measurement
• Measure the uid temperature
inside of a metal tank
• Accuracy for Metal Tanks:
±0.5 °C (±0.9 °F) (stainless steel)
±1.0 °C (±1.8 °F) (other metals)
• Response time1 = 5 sec (t63) /
10 sec (t90)
• 4 to 20 mA loop powered analog
output
• -20 to 100 °C process temperature
range
• Available for metal tanks 2 feet in
diameter or larger
• Omega Smart Core enabled
• Data logging
• Plug and play device detection
• IP67 environmental rating
• Patent pending
Ease of Installation
No cutting or drilling required

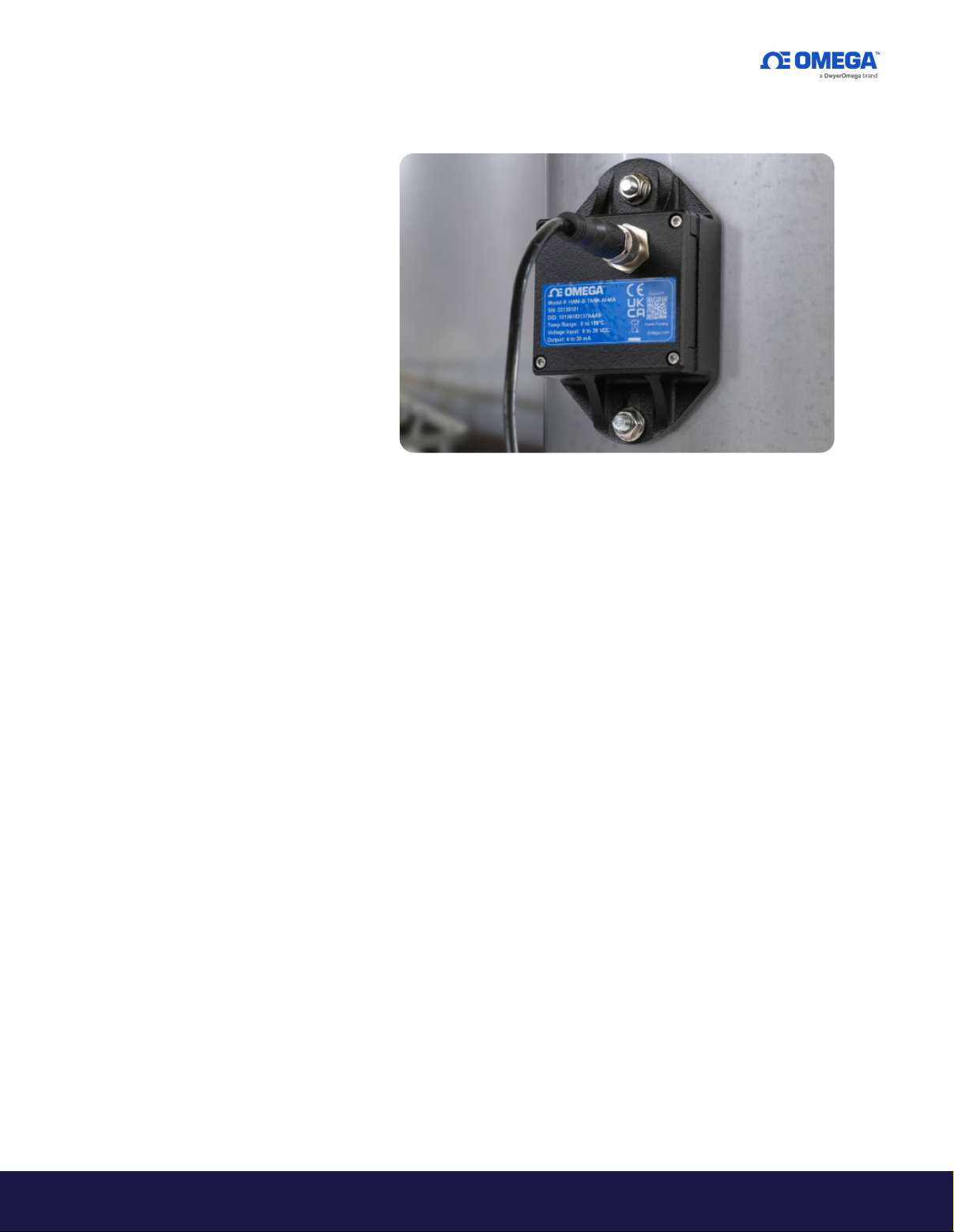

Unlike invasive sensors, HANI™
Tank Sensors mount to the outside
of a metal tank and read the
temperature of the process media
inside the tank.
• No drilling
• No cutting
• No downtime
Non-Invasive & Non-Contact
Operation
No penetration, no risk of
contamination
The HANI™ Tank Sensor mounts
to the outside of the tank and
never comes into contact with
the process media inside of the
tank. This means there is no risk
of contamination to the process
during sensor installation or
operation.
High Accuracy & Fast
Response Times
Outperforms a surface sensor
Omega’s patent pending Hybrid
Temperature Sensing platform uses
multiple sensors and a proprietary
algorithm to achieve better
accuracy and faster response times
than a surface sensor.
Common Applications
New and retrotting existing
systems
Lower the total cost of ownership
and reduce contamination risk
without sacricing performance by
upgrading to a HANI™ Tank Sensor.
Specications
Input Power
Voltage: 8 V DC to 28 V DC
(loop powered)
Max Loop Resistance:
R
max
(Ω)= (V
-8 V)/0.24 A
supply
Analog Output
Current: 4 to 20 mA
User scalable analog output, default
scaling -20 to 100 °C (-4 to 212 °F)
Process Parameters
Process Medium: Water, waterbased uids (others upon request)
Tank Materials: SS, CS, GS, CU, BR,
AL
Tank Diameter: 2 ft or larger
Process Temperature Range:
-20 to 100 °C liquid (-4 to 212 °F)
Performance
Accuracy with uid lled tank:
±0.5 °C from factory and improved
accuracy possible with
in-situation 1 or 2-point calibration
Response Time (t63): 5 seconds
Response Time (t90): 10 seconds
Environmental
Ambient Operating Temperature:
0 to 40 °C (32 to 104 °F)
Rating: IP67 when mated
Mechanical

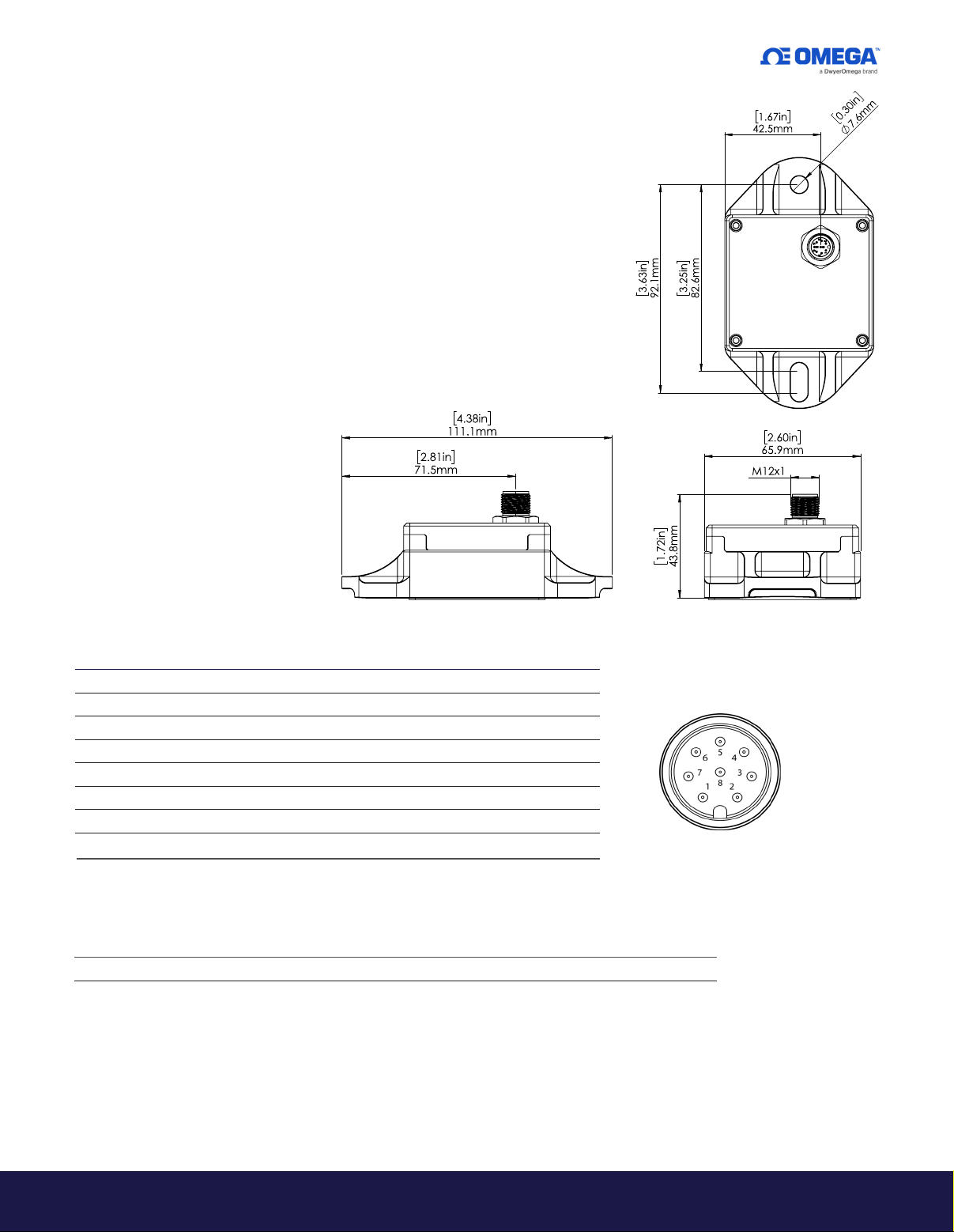

Dimensions:
111.1 W x 65.9 L x 43.8 mm H
(4.38 W x 2.60 L x 1.72” H)
Materials: PA12, silicone rubber,
nickel-plated brass, stainless steel
General
Agency Approvals: CE, EMC, UKCA,
2014/30/EU, LVD 2014/35/EU class
II product, (low voltage 8 to 28 VDC)
Smart Core Enabled
Smart Core is integral to all Omega
Link integrated Smart Sensing
devices. In addition to allowing
for modular integration using any
Omega Link Smart Interface, this
powerful suite of advanced features
enables alarms and notications,
data assurance, data logging,
storage, wireless connectivity and
SYNC conguration.
omega.com
Page 2
Frequently Asked
Questions
How can a HANI™ temperature
sensor have faster response times
and better accuracy than a surface
sensor?
Omega’s innovative HANI™ Tank
Sensor includes multiple sensors
along with a proprietary algorithm
to achieve faster response times
and better accuracy than a surface
sensor.
Will ambient temperature affect the
reading of the HANI™ Tank Sensor?
Ambient temperature will not affect
the reading of the HANI™ Tank
Sensor. Operating temperature for
the tank sensor is 0 to 40 °C
(32 to 104 °F).
How should the sensor be oriented
on the pipe?
The sensor can be mounted on any
tank with a diameter of 2 feet or
larger. It is suggested to mount the
tank sensor with the studs oriented
vertically.
How can I improve the accuracy
of the tank sensor in my tank
application?
An in-situation user calibration can
be done to improve the accuracy
for your specic application. Use
the free Omega Sync software to do
a 1 or 2-point calibration with the
HANI™ Tank Sensor and an in place
immersion sensor. See the user
manual for additional details.
Other than water-based process
mediums, can other liquids and
viscosities be measured?
Yes, please contact us to discuss
your specic application.
M12 8-Pin Wiring
Pin Name Function Wiring
Pin 1 Loop - 4 to 20 mA Return 4 to 20 mA
Pin 2 INTR Interrupt Signal Omega Link
Pin 3 SCL I2C Clock Signal Omega Link
Pin 4 SDA I2C Data Signal Omega Link
Pin 5 Shield Shield Ground Omega Link
Pin 6 Loop + 4 to 20 mA Source 4 to 20 mA
Pin 7 GND Power Ground Omega Link
Pin 8 3.3VDD Power Supply Omega Link
HANI™ Bolt-On Temperature Sensor for Metal Tank
Model Number Process Temp Range Tank Diameter
HANI-B-TANK-M-MA -20 ° to 100 °C (-4 ° to 212°F) ≥ 2 ft
omega.com
Page 3
Omega Link Smart Interface
Omega Link Smart Sensing devices require an Omega Link Smart Interface to operate and connect to your Omega Link
Ecosystem. There are both wired and wireless options. Omega Sync software is free and enables you to read the uid
temperature digitally in just a few seconds.
Model Number Description
IF-001 USB Smart Interface
IF-002 RS485/Modbus Smart Interface
IF-006-1-NA Wireless Interface 915 MHZ (for North America)
IF-006-1-EU Wireless Interface 868 MHZ (for Europe)
Omega Link Gateway
An Omega Link Gateway is required to connect the Smart Interface and sensing device to the Omega Link ecosystem.
Model Number Description
GW-001-0
GW-001-2-NA
GW-001-2-EU
GW-001-3-NA
GW-001-3-EU
GW-002-1-LTE
Wired IIoT Gateway, Standard, Ethernet connectivity, Modbus RTU RS232/RS485
and Modbus TCP
Wireless IIoT Gateway Standard, Ethernet connectivity, connects up to 100
Omega Link Smart Sensors - 915 MHz
Wireless IIoT Gateway Standard, Ethernet connectivity, connects up to 100
Omega Link Smart Sensors - 868 MHz
Wireless IIoT Gateway Standard, Ethernet connectivity, connects up to 100
Omega Link Smart Sensors - 915 MHz
Wireless IIoT Gateway Standard, Ethernet connectivity, connects up to 100
Omega Link Smart Sensors - 868 MHz
Wireless LTE IIoT Gateway Pro connects up to 40 Omega Link Smart Sensors,
Modbus RTU RS232/RS485 and Modbus TCP, 1x RJ45 port, 1x USB port - 915 MHz
Accessories
Model Number Description
M12.8-T-SPLIT Smart Probe M12-8 pin shielded T-splitter — enables access to I/O pins
M12.8-S-F-FM M12-8 pin female straight plug eld install connector with screw terminals
DM12CAB-8-1-RA 1 m (3.3 ’) cable dual M12-8 connector, right angle terminator
DM12CAB-8-3-RA 3 m (9.8 ’) cable dual M12-8 connector, right angle terminator
DM12CAB-8-5-RA 5 m (16.4 ’) cable dual M12-8 connector, right angle terminator
DM12CAB-8-1 1 m (3.3 ’) cable dual M12-8 straight connector
DM12CAB-8-3 3 m (9.8 ’) cable dual M12-8 straight connector
DM12CAB-8-5 5 m (16.4 ’) cable dual M12-8 straight connector
