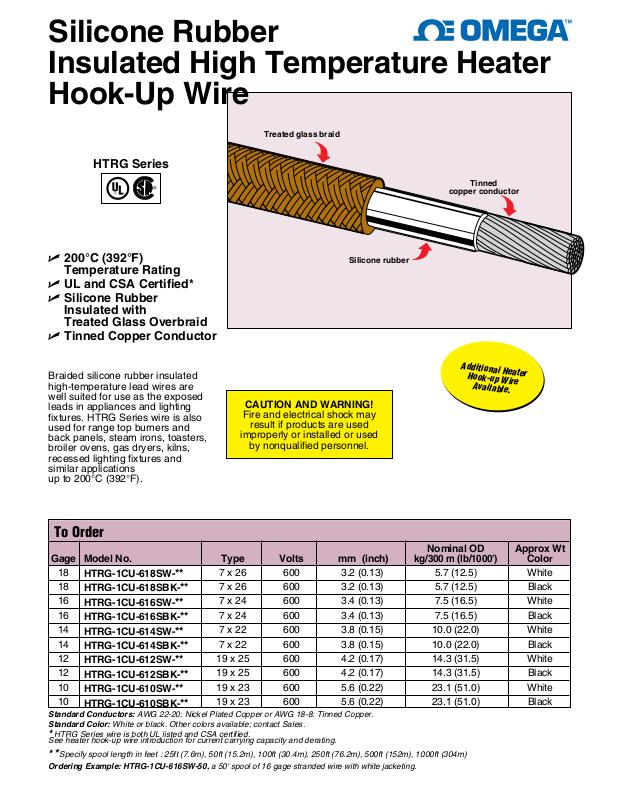

Silicone Rubber
Insulated High Temperature Heater
Hook-Up Wire
Treated glass braid
HTRG Series
Tinned
copper conductor
U 200°C (392°F)
Silicone rubber
Temperature Rating
U UL and CSA Certified*
U Silicone Rubber
Insulated with
Treated Glass Overbraid
U Tinned Copper Conductor
Additional Heater
Braided silicone rubber insulated
high-temperature lead wires are
well suited for use as the exposed
leads in appliances and lighting
fixtures. HTRG Series wire is also
used for range top burners and
back panels, steam irons, toasters,
broiler ovens, gas dryers, kilns,
recessed lighting fixtures and
similar applications
up to 200°C (392°F).
CAUTION AND WARNING!
Fire and electrical shock may
result if products are used
improperly or installed or used
by nonqualified personnel.
To Order
Nominal OD Approx Wt
Gage Model No. Type Volts mm (inch)
18
HTRG-1CU-618SW-**
18
16
16
14
14
12
12
10
10
Standard Conductors: AWG 22-20: Nickel Plated Copper or AWG 18-8: Tinned Copper.
Standard Color: White or black. Other colors available; contact Sales.
* HTRG Series wire is both UL listed and CSA certified.
See heater hook-up wire introduction for current carrying capacity and derating.
* *Specify spool length in feet : 25ft (7.6m), 50ft (15.2m), 100ft (30.4m), 250ft (76.2m), 500ft (152m), 1000ft (304m)
Ordering Example: HTRG-1CU-616SW-50, a 50' spool of 16 gage stranded wire with white jacketing.
HTRG-1CU-618SBK-**
HTRG-1CU-616SW-**
HTRG-1CU-616SBK-**
HTRG-1CU-614SW-**
HTRG-1CU-614SBK-**
HTRG-1CU-612SW-**
HTRG-1CU-612SBK-**
HTRG-1CU-610SW-**
HTRG-1CU-610SBK-**
7 x 26 600 3.2 (0.13) 5.7 (12.5) White
7 x 26 600 3.2 (0.13) 5.7 (12.5) Black
7 x 24 600 3.4 (0.13) 7.5 (16.5) White
7 x 24 600 3.4 (0.13) 7.5 (16.5) Black
7 x 22 600 3.8 (0.15) 10.0 (22.0) White
7 x 22 600 3.8 (0.15) 10.0 (22.0) Black
19 x 25 600 4.2 (0.17) 14.3 (31.5) White
19 x 25 600 4.2 (0.17) 14.3 (31.5) Black
19 x 23 600 5.6 (0.22) 23.1 (51.0) White
19 x 23 600 5.6 (0.22) 23.1 (51.0) Black
kg/300 m (lb/1000')
Hook-up Wire
Available.
