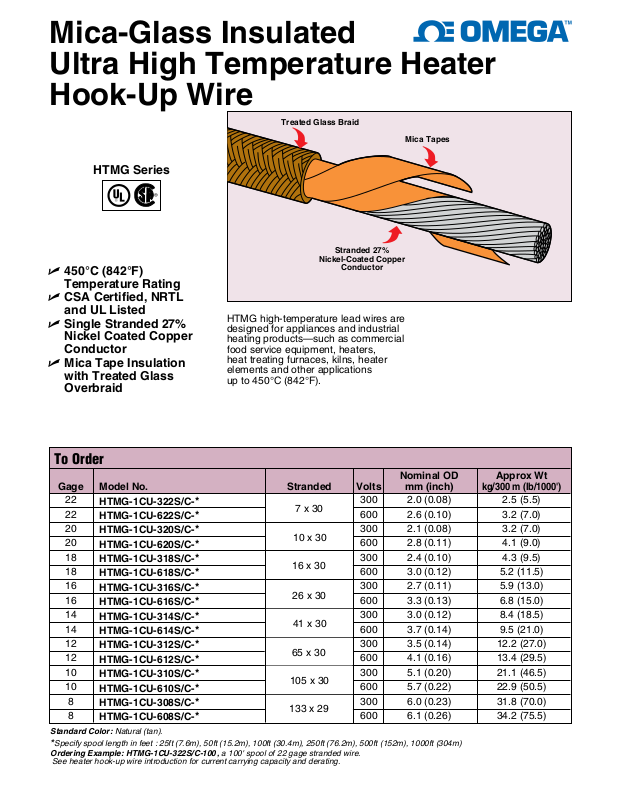

Mica-Glass Insulated
Ultra High Temperature Heater
Hook-Up Wire
Treated Glass Braid
Mica Tapes
HTMG Series
Stranded 27%
Nickel-Coated Copper
U 450°C (842°F)
Temperature Rating
U CSA Certified, NRTL
and UL Listed
U Single Stranded 27%
Nickel Coated Copper
Conductor

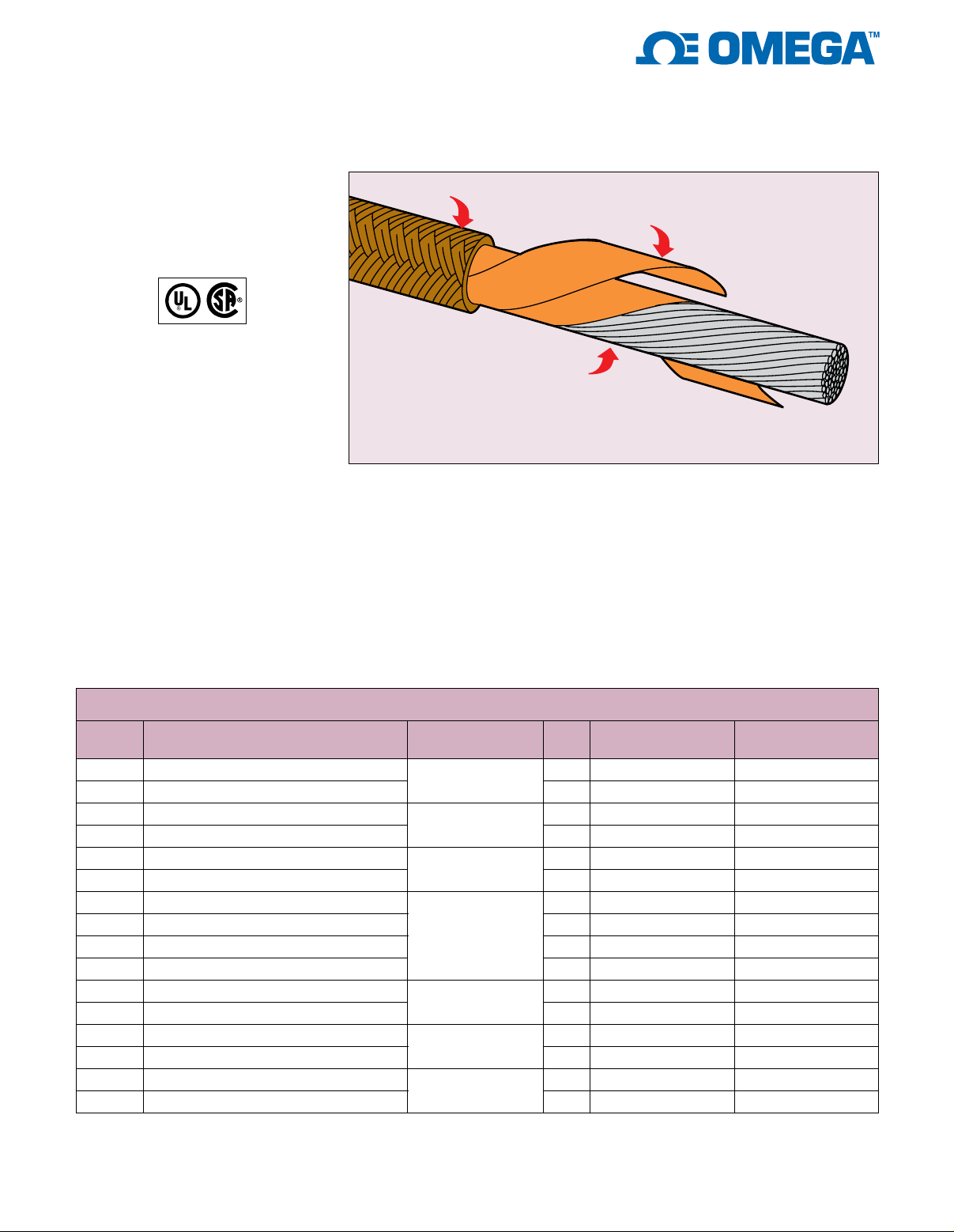

U Mica Tape Insulation
with Treated Glass
Overbraid
HTMG high-temperature lead wires are
designed for appliances and industrial
heating products—such as commercial
food service equipment, heaters,
heat treating furnaces, kilns, heater
elements and other applications
up to 450°C (842°F).
Conductor
To Order
Nominal OD Approx Wt
Gage Model No. Stranded Volts mm (inch)
22
22
20
20
18
18
16
16
14
14
12
12
10
10
8
8
Standard Color: Natural (tan).
*Specify spool length in feet : 25ft (7.6m), 50ft (15.2m), 100ft (30.4m), 250ft (76.2m), 500ft (152m), 1000ft (304m)
Ordering Example: HTMG-1CU-322S/C-100 , a 100' spool of 22 gage stranded wire.
See heater hook-up wire introduction for current carrying capacity and derating.
HTMG-1CU-322S/C-*
HTMG-1CU-622S/C-*
HTMG-1CU-320S/C-*
HTMG-1CU-620S/C-*
HTMG-1CU-318S/C-*
HTMG-1CU-618S/C-*
HTMG-1CU-316S/C-*
HTMG-1CU-616S/C-*
HTMG-1CU-314S/C-*
HTMG-1CU-614S/C-*
HTMG-1CU-312S/C-*
HTMG-1CU-612S/C-*
HTMG-1CU-310S/C-*
HTMG-1CU-610S/C-*
HTMG-1CU-308S/C-*
HTMG-1CU-608S/C-*
7 x 30
7 x 30
600 2.6 (0.10) 3.2 (7.0)
10 x 30
10 x 30
600 2.8 (0.11) 4.1 (9.0)
16 x 30
16 x 30
600 3.0 (0.12) 5.2 (11.5)
26 x 30
26 x 30
600 3.3 (0.13) 6.8 (15.0)
41 x 30
41 x 30
600 3.7 (0.14) 9.5 (21.0)
65 x 30
65 x 30
600 4.1 (0.16) 13.4 (29.5)
105 x 30
105 x 30
600 5.7 (0.22) 22.9 (50.5)
133 x 29
133 x 29
600 6.1 (0.26) 34.2 (75.5)
300 2.0 (0.08) 2.5 (5.5)
300 2.1 (0.08) 3.2 (7.0)
300 2.4 (0.10) 4.3 (9.5)
300 2.7 (0.11) 5.9 (13.0)
300 3.0 (0.12) 8.4 (18.5)
300 3.5 (0.14) 12.2 (27.0)
300 5.1 (0.20) 21.1 (46.5)
300 6.0 (0.23) 31.8 (70.0)
kg/300 m (lb/1000')
