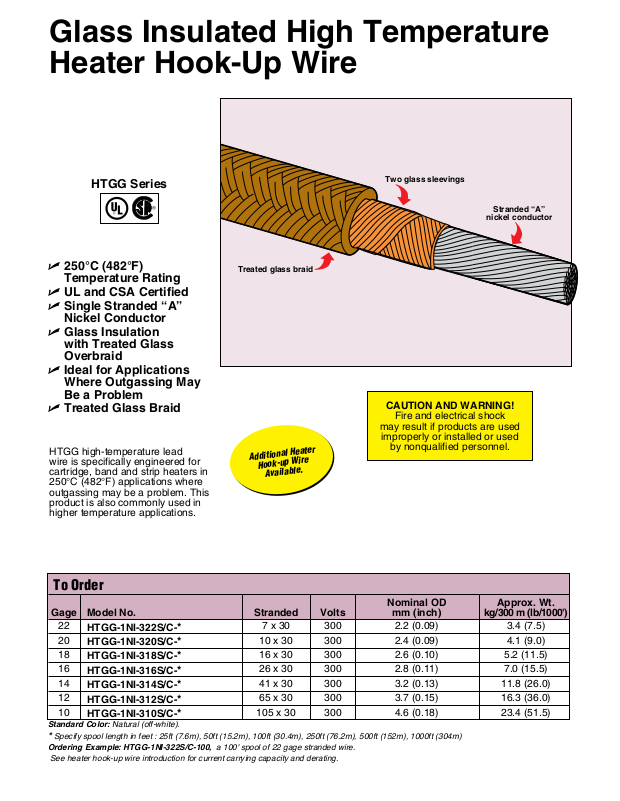

Glass Insulated High Temperature
Heater Hook-Up Wire
HTGG Series
U 250°C (482°F)
Temperature Rating
U UL and CSA Certified
U Single Stranded “A”
Nickel Conductor
U Glass Insulation
with Treated Glass
Overbraid
U Ideal for Applications
Where Outgassing May
Be a Problem
U Treated Glass Braid
HTGG high-temperature lead
wire is specifically engineered for
cartridge, band and strip heaters in
250°C (482°F) applications where
outgassing may be a problem. This
product is also commonly used in
higher temperature applications.
Treated glass braid
Additional Heater
Hook-up Wire
Available.
Two glass sleevings
Stranded “A”
Stranded “A”
Stranded “A”
nickel conductor
CAUTION AND WARNING!
Fire and electrical shock
may result if products are used
improperly or installed or used
by nonqualified personnel.
To Order
Nominal OD Approx. Wt.
Gage Model No. Stranded Volts mm (inch) kg/300 m (lb/1000')
22
Standard Color: Natural (off-white).
* Specify spool length in feet : 25ft (7.6m), 50ft (15.2m), 100ft (30.4m), 250ft (76.2m), 500ft (152m), 1000ft (304m)
Ordering Example: HTGG-1NI-322S/C-100, a 100' spool of 22 gage stranded wire.
See heater hook-up wire introduction for current carrying capacity and derating.
HTGG-1NI-322S/C-*
20
HTGG-1NI-320S/C-*
18
HTGG-1NI-318S/C-*
16
HTGG-1NI-316S/C-*
14
HTGG-1NI-314S/C-*
12
HTGG-1NI-312S/C-*
10
HTGG-1NI-310S/C-*
7 x 30 300 2.2 (0.09) 3.4 (7.5)
10 x 30 300 2.4 (0.09) 4.1 (9.0)
16 x 30 300 2.6 (0.10) 5.2 (11.5)
26 x 30 300 2.8 (0.11) 7.0 (15.5)
41 x 30 300 3.2 (0.13) 11.8 (26.0)
65 x 30 300 3.7 (0.15) 16.3 (36.0)
105 x 30 300 4.6 (0.18) 23.4 (51.5)
