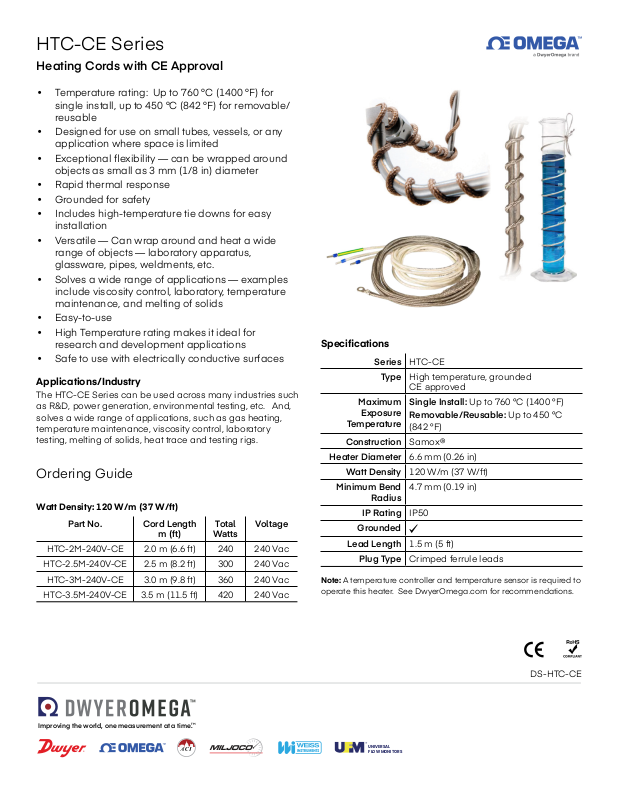

HTC-CE Series
®
Heating Cords with CE Approval
• Temperature rating: Up to 760 °C (1400 °F) for
single install, up to 450 °C (842 °F) for removable/
reusable
• Designed for use on small tubes, vessels, or any
application where space is limited
• Exceptional exibility — can be wrapped around
objects as small as 3 mm (1/8 in) diameter
• Rapid thermal response
• Grounded for safety
• Includes high-temperature tie downs for easy
installation
• Versatile — Can wrap around and heat a wide
range of objects — laboratory apparatus,
glassware, pipes, weldments, etc.
• Solves a wide range of applications — examples
include viscosity control, laboratory, temperature
maintenance, and melting of solids
• Easy-to-use
• High Temperature rating makes it ideal for
research and development applications
• Safe to use with electrically conductive surfaces
Applications/Industry
The HTC-CE Series can be used across many industries such
as R&D, power generation, environmental testing, etc. And,
solves a wide range of applications, such as gas heating,
temperature maintenance, viscosity control, laboratory
testing, melting of solids, heat trace and testing rigs.
Ordering Guide
Watt Density: 120 W/m (37 W/ft)
Part No. Cord Length
m (ft)
HTC-2M-240V-CE 2.0 m (6.6 ft) 240 240 Vac
HTC-2.5M-240V-CE 2.5 m (8.2 ft) 300 240 Vac
HTC-3M-240V-CE 3.0 m (9.8 ft) 360 240 Vac
HTC-3.5M-240V-CE 3.5 m (11.5 ft) 420 240 Vac
Total
Watts
Voltage
Specications
Series
Maximum
Exposure
Temperature
Construction
Heater Diameter
Watt Density
Minimum Bend
Radius
IP Rating
Grounded
Lead Length
Plug Type
Note: A temperature controller and temperature sensor is required to
operate this heater. See DwyerOmega.com for recommendations.
HTC-CE
High temperature, grounded
Type
CE approved
Single Install: Up to 760 °C (1400 °F)
Removable/Reusable: Up to 450 °C
(842 °F)
Samox®
6.6 mm (0.26 in)
120 W/m (37 W/ft)
4.7 mm (0.19 in)
IP50
✔
1.5 m (5 ft)
Crimped ferrule leads
DS-HTC-CE
