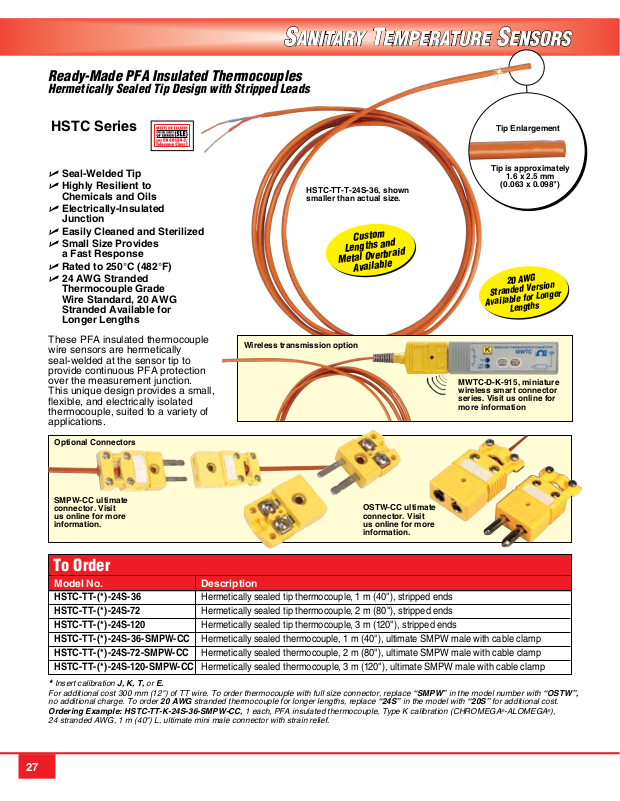

Ready-Made PFA Insulated Thermocouples
Hermetically Sealed Tip Design with Stripped Leads
HSTC Series
U Seal-Welded Tip
U Highly Resilient to
Chemicals and Oils
U Electrically-Insulated
Junction
U Easily Cleaned and Sterilized
U Small Size Provides
a Fast Response
U Rated to 250°C (482°F)
U 24 AWG Stranded
Thermocouple Grade
Wire Standard, 20 AWG
Stranded Available for
Longer Lengths
These PFA insulated thermocouple
wire sensors are hermetically
seal-welded at the sensor tip to
provide continuous PFA protection
over the measurement junction.
This unique design provides a small,
flexible, and electrically isolated
thermocouple, suited to a variety of
applications.

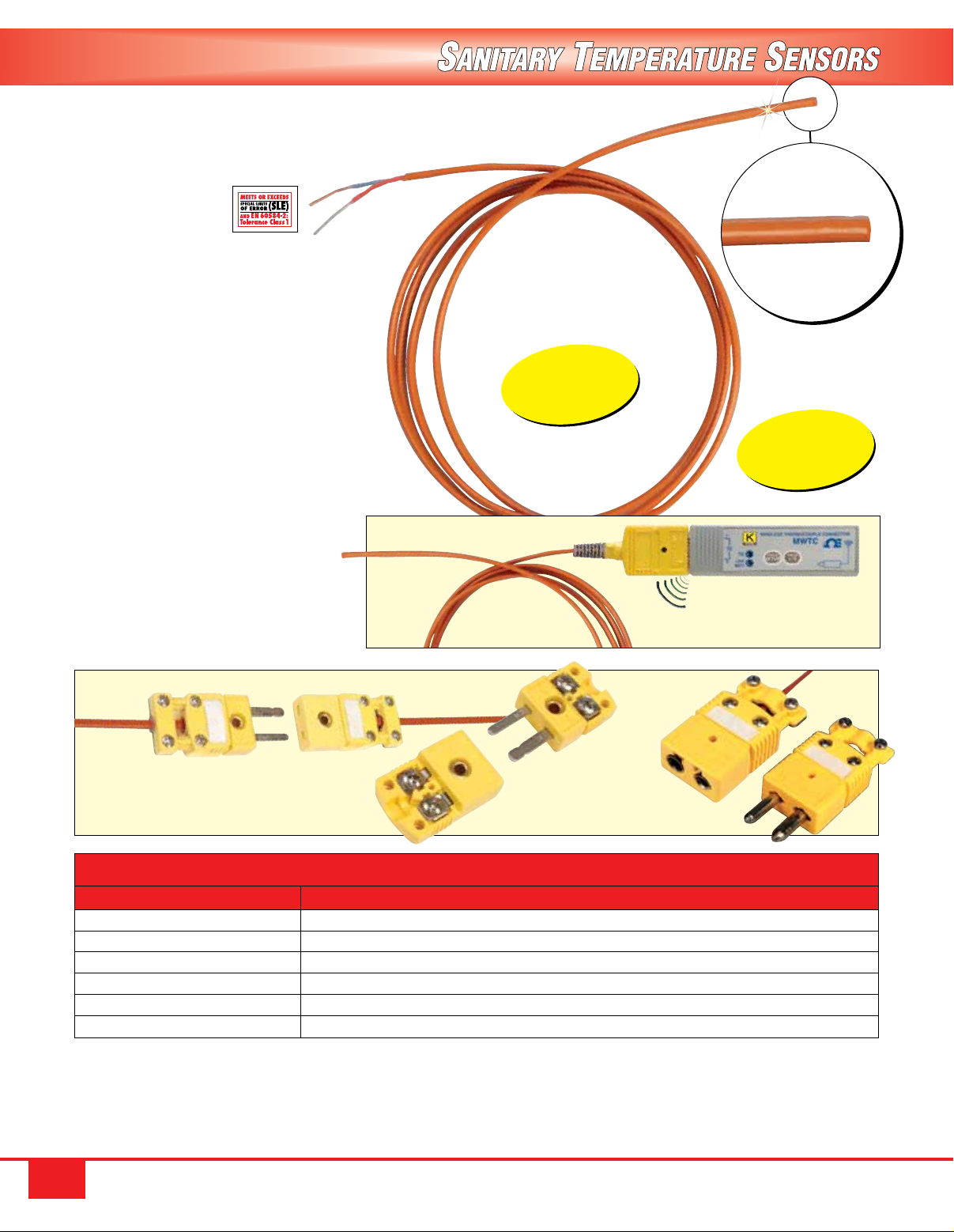

HSTC-TT-T-24S-36, shown
smaller than actual size.
Lengths and
Metal Overbraid
Wireless transmission option
Custom
Available
Tip Enlargement
Tip is approximately
1.6 x 2.5 mm
(0.063 x 0.098")
20 AWG
Stranded Version
Available for Longer
Lengths
MWTC-D-K-915, miniature
wireless smart connector
series. Visit us online for
more information
Optional Connectors
SMPW-CC ultimate
connector. Visit
us online for more
information.
OSTW-CC ultimate
connector. Visit
us online for more
information.
To Order
Model No. Description
HSTC-TT-(*) -24S-36 Hermetically sealed tip thermocouple, 1 m (40"), stripped ends
HSTC-TT-(*) -24S-72 Hermetically sealed tip thermocouple, 2 m (80"), stripped ends
HSTC-TT-(*) -24S-120 Hermetically sealed tip thermocouple, 3 m (120"), stripped ends
HSTC-TT-(*)-24S-36-SMPW-CC Hermetically sealed thermocouple, 1 m (40"), ultimate SMPW male with cable clamp
HSTC-TT-(*)-24S-72-SMPW-CC Hermetically sealed thermocouple, 2 m (80"), ultimate SMPW male with cable clamp
HSTC-TT-(*)-24S-120-SMPW-CC Hermetically sealed thermocouple, 3 m (120"), ultimate SMPW male with cable clamp
Insert calibration J, K, T, or E.
*
For additional cost 300 mm (12") of TT wire. To order thermocouple with full size connector, replace “SMPW” in the model number with “OSTW”,
no additional charge. To order 20 AWG stranded thermocouple for longer lengths, replace “24S” in the model with “20S” for additional cost.
Ordering Example: HSTC-TT-K-24S-36-SMPW-CC, 1 each, PFA insulated thermocouple, Type K calibration (CHROMEGA®-ALOMEGA®),
24 stranded AWG, 1 m (40") L, ultimate mini male connector with strain relief.
