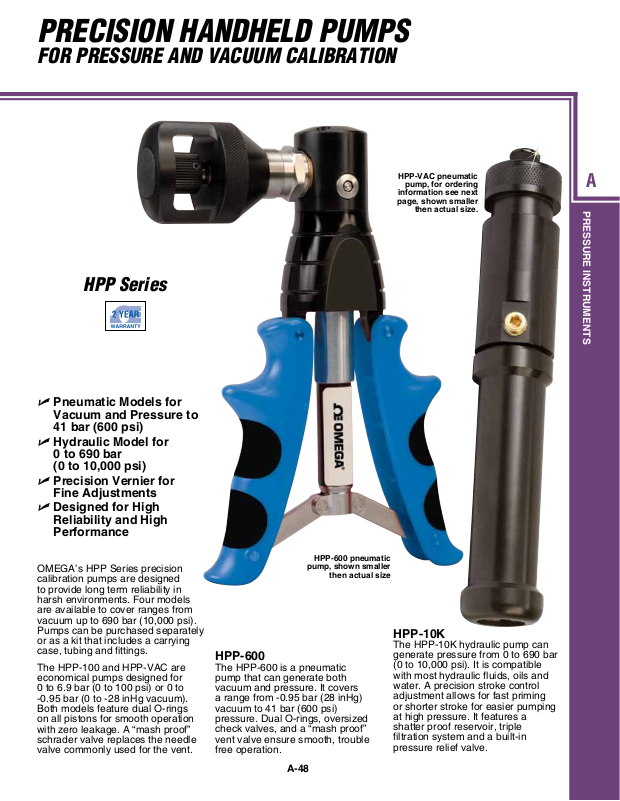

Page 1
PRECISION HANDHELD PUMPS
FOR PRESSURE AND VACUUM CALIBRATION
HPP Series
U Pneumatic Models for
Vacuum and Pressure to
41 bar (600 psi)
U Hydraulic Model for
0 to 690 bar
(0 to 10,000 psi)
U Precision Vernier for
Fine Adjustments
U Designed for High
Reliability and High
Performance
HPP-VAC pneumatic
pump, for ordering
information see next
page, shown smaller
then actual size.
A
PRESSURE INSTRUMENTS
OMEGA’s HPP Series precision
calibration pumps are designed
to provide long term reliability in
harsh environments. Four models
are available to cover ranges from
vacuum up to 690 bar (10,000 psi).
Pumps can be purchased separately
or as a kit that includes a carrying
case, tubing and fittings.
The HPP-100 and HPP-VAC are
economical pumps designed for
0 to 6.9 bar (0 to 100 psi) or 0 to
-0.95 bar (0 to -28 inHg vacuum).
Both models feature dual O-rings
on all pistons for smooth operation
with zero leakage. A “mash proof”
schrader valve replaces the needle
valve commonly used for the vent.
HPP-600 pneumatic
pump, shown smaller
then actual size
HPP-600
The HPP-600 is a pneumatic
pump that can generate both
vacuum and pressure. It covers
a range from -0.95 bar (28 inHg)
vacuum to 41 bar (600 psi)
pressure. Dual O-rings, oversized
check valves, and a “mash proof”
vent valve ensure smooth, trouble
free operation.
A-48
HPP-10K
The HPP-10K hydraulic pump can
generate pressure from 0 to 690 bar
(0 to 10,000 psi). It is compatible
with most hydraulic fluids, oils and
water. A precision stroke control
adjustment allows for fast priming
or shorter stroke for easier pumping
at high pressure. It features a
shatter proof reservoir, triple
filtration system and a built-in
pressure relief valve.
Page 2
PRECISION HANDHELD PUMPS
SPECIFICATIONS
(HPP-100/HPP-VAC)
Range:
HPP-100: 0 to 6.9 bar (0 to 100 psi)
HPP-VAC: 0 to -0.95 bar
(0 to -28 inHg vacuum)
Connections: (2)
Size: 229 L x 38 mm Dia (9 x 1.5")
Weight: 680 g (1.5 lb)
SPECIFICATIONS
(HPP-600)
Range: -0.95 to 41 bar
(-28 inHg to 600 psi)
Connections: Top
1
side
⁄8 BSP female (NPT adaptors
included)
Weight: 907 g (2 lb)
SPECIFICATIONS
(HPP-10K)
Range: 0 to 690 bar (0 to 10,000 psi)
Connections: Top
side 1⁄4 BSP female (1⁄4 NPT
adaptors included)
Recommended Fluids: Distilled
water or mineral based hydraulic oil
Wetted Parts: Stainless steel,
polyurethane, PTFE and nitrile
Weight: 1.4 kg (3 lb)
1
⁄8 NPT female ports
1
⁄4 BSP female,
3
⁄8 BSP female,
HPP-10K-KIT includes a carrying
case, tubing with fittings, and
a fluid bottle.
HPP-10K-KIT
hydraulic pump kit,
shown smaller
then actual size.
To Order
PUMPS ONLY
MODEL NO. DESCRIPTION
HPP-100
HPP-VAC
HPP-600
HPP-10K
PUMP KITS (Kits include pump, carrying case, tubing with fittings)
HPP-100-KIT
HPP-VAC-KIT
HPP-600-KIT
HPP-10K-KIT
ACCESSORIES (Additional Cost)
MODEL NO. DESCRIPTION
HPP-HOSE
HPP-600-HOSE
HPP-10K-HOSE
HPP-10K-FW
Comes complete with operator’s manual. Units with BSP fittings also include NPT adaptors.
Ordering Examples: HPP-100, handheld pressure pump, 0 to 6.9 bar (0 to 100 psi).
HPP-600-KIT, vacuum to 41 bar (600 psi) pump kit with carrying case, tubing and fittings.
Handheld pneumatic pressure pump, 0 to 6.9 bar (0 to 100 psi)
Handheld pneumatic vacuum pump, 0 to -0.95 bar (0 to -28 inHg vacuum)
Handheld pneumatic vacuum/pressure pump, -0.95 to 41 bar (-28 inHg to 600 psi)
Handheld hydraulic pressure pump, 0 to 690 bar (0 to 10,000 psi)
HPP-100 pump, carrying case, HPP-HOSE and 64 mm (21⁄2") gauge
1
HPP-VAC pump, carrying case, HPP-HOSE and 64 mm (2
⁄2") gauge
HPP-600 pump, carrying case and HPP-600-HOSE
HPP-10K pump, carrying case, fluid bottle and HPP-10K-HOSE
0.6 m (2') tubing with 1⁄8 NPT fittings for HPP-100 or HPP-VAC
1
0.6 m (2') tubing with
0.9 m (3') high pressure tubing for HPP-10K with (2)
⁄8 NPT fittings for HPP-600
1
⁄4 BSPM self sealing test point adaptors
Replacement filters and washers for HPP-10K
A-49
