Grounded Exposed

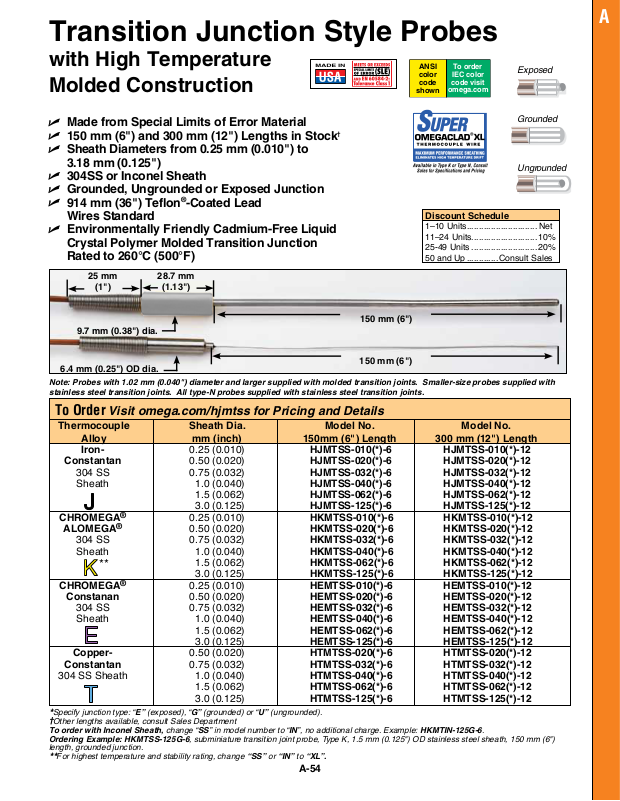

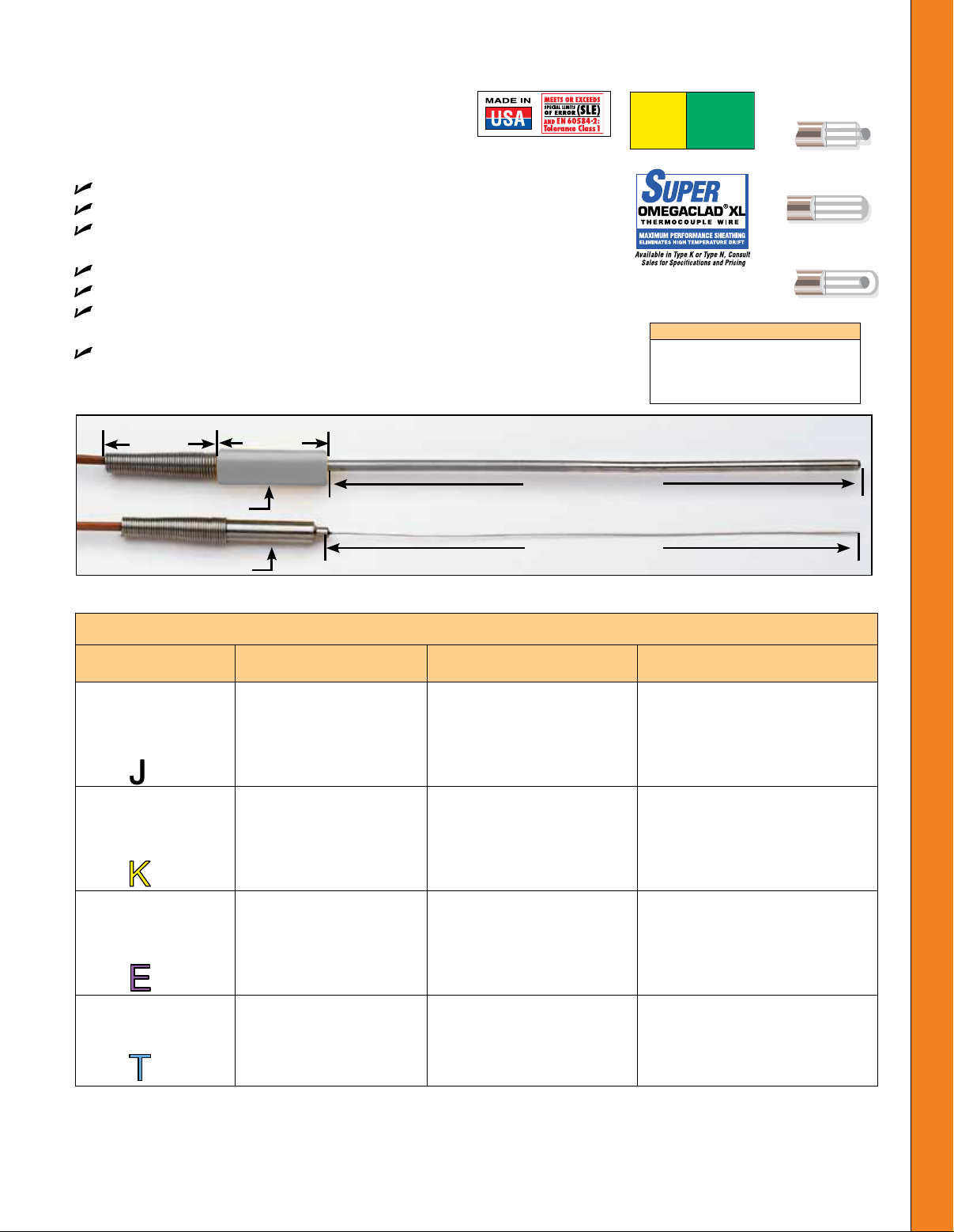

Transition Junction Style Probes
A
with High Temperature
Molded Construction
Made from Special Limits of Error Material
150 mm (6") and 300 mm (12") Lengths in Stock
Sheath Diameters from 0.25 mm (0.010") to
3.18 mm (0.125")
ANSI
color
code
shown
†
To order
IEC color
code visit
omega.com
Exposed
Grounded
.
Ungrounded
304SS or Inconel Sheath
Grounded, Ungrounded or Exposed Junction
914 mm (36") Teflon
Wires Standard
Environmentally Friendly Cadmium-Free Liquid
Crystal Polymer Molded Transition Junction
Rated to 260°C (500°F)
25 mm
(1")
9.7 mm (0.38") dia.
6.4 mm (0.25") OD dia.
Note: Probes with 1.02 mm (0.040") diameter and larger supplied with molded transition joints. Smaller-size probes supplied with
stainless steel transition joints. All type-N probes supplied with stainless steel transition joints.
®
-Coated Lead
28.7 mm
(1.13")
Discount Schedule
1–10 Units............................. Net
11–24 Units........................... 10%
25-49 Units ........................... 20%
50 and Up ............. Consult Sales
150 mm (6")
150 mm (6")
To Order Visit omega.com/hjmtss for Pricing and Details
Thermocouple Sheath Dia. Model No. Model No.
Alloy mm (inch) 150mm (6") Length 300 mm (12") Length
Iron- 0.25 (0.010) HJMTSS-010(*)-6 HJMTSS-010(*)-12
Constantan 0.50 (0.020) HJMTSS-020(*)-6 HJMTSS-020(*)-12
304 SS 0.75 (0.032) HJMTSS-032(*)-6 HJMTSS-032(*)-12
Sheath 1.0 (0.040) HJMTSS-040(*)-6 HJMTSS-040(*)-12
1.5 (0.062) HJMTSS-062(*)-6 HJMTSS-062(*)-12
3.0 (0.125) HJMTSS-125(*)-6 HJMTSS-125(*)-12
CHROMEGA® 0.25 (0.010) HKMTSS-010(*)-6 HKMTSS-010(*)-12
ALOMEGA® 0.50 (0.020) HKMTSS-020(*)-6 HKMTSS-020(*)-12
304 SS 0.75 (0.032) HKMTSS-032(*)-6 HKMTSS-032(*)-12
Sheath 1.0 (0.040) HKMTSS-040(*)-6 HKMTSS-040(*)-12
1.5 (0.062) HKMTSS-062(*)-6 HKMTSS-062(*)-12
3.0 (0.125) HKMTSS-125(*)-6 HKMTSS-125(*)-12
CHROMEGA® 0.25 (0.010) HEMTSS-010(*)-6 HEMTSS-010(*)-12
Constanan 0.50 (0.020) HEMTSS-020(*)-6 HEMTSS-020(*)-12
304 SS 0.75 (0.032) HEMTSS-032(*)-6 HEMTSS-032(*)-12
Sheath 1.0 (0.040) HEMTSS-040(*)-6 HEMTSS-040(*)-12
1.5 (0.062) HEMTSS-062(*)-6 HEMTSS-062(*)-12
3.0 (0.125) HEMTSS-125(*)-6 HEMTSS-125(*)-12
Copper- 0.50 (0.020) HTMTSS-020(*)-6 HTMTSS-020(*)-12
Constantan 0.75 (0.032) HTMTSS-032(*)-6 HTMTSS-032(*)-12
304 SS Sheath 1.0 (0.040) HTMTSS-040(*)-6 HTMTSS-040(*)-12
1.5 (0.062) HTMTSS-062(*)-6 HTMTSS-062(*)-12
3.0 (0.125) HTMTSS-125(*)-6 HTMTSS-125(*)-12
Specify junction type: “E” (exposed), “G” (grounded) or “U” (ungrounded).
*
†
Other lengths available, consult Sales Department
To order with Inconel Sheath, change “SS” in model number to “IN”, no additional charge. Example: HKMTIN-125G-6.
Ordering Example: HKMTSS-125G-6, subminiature transition joint probe, Type K, 1.5 mm (0.125") OD stainless steel sheath, 150 mm (6")
length, grounded junction.
For highest temperature and stability rating, change “SS” or “IN” to “XL”.
**
**
