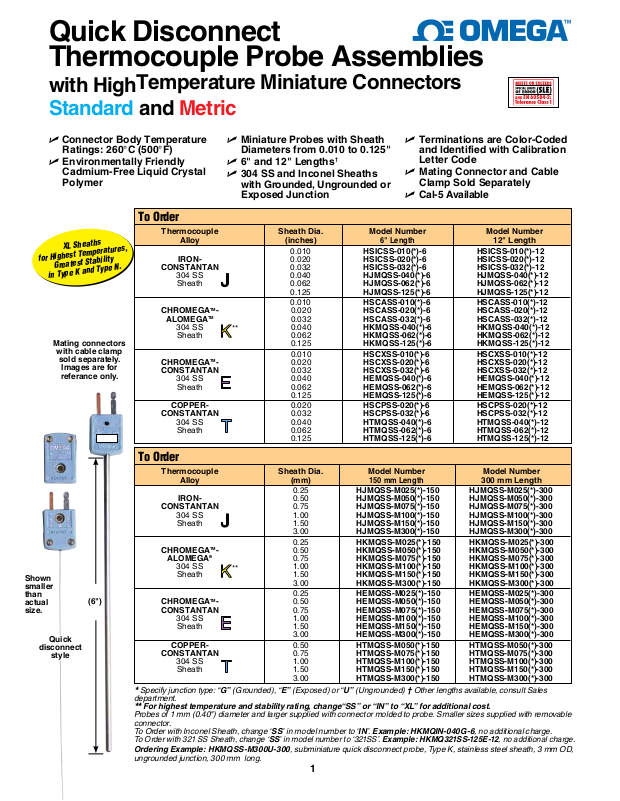

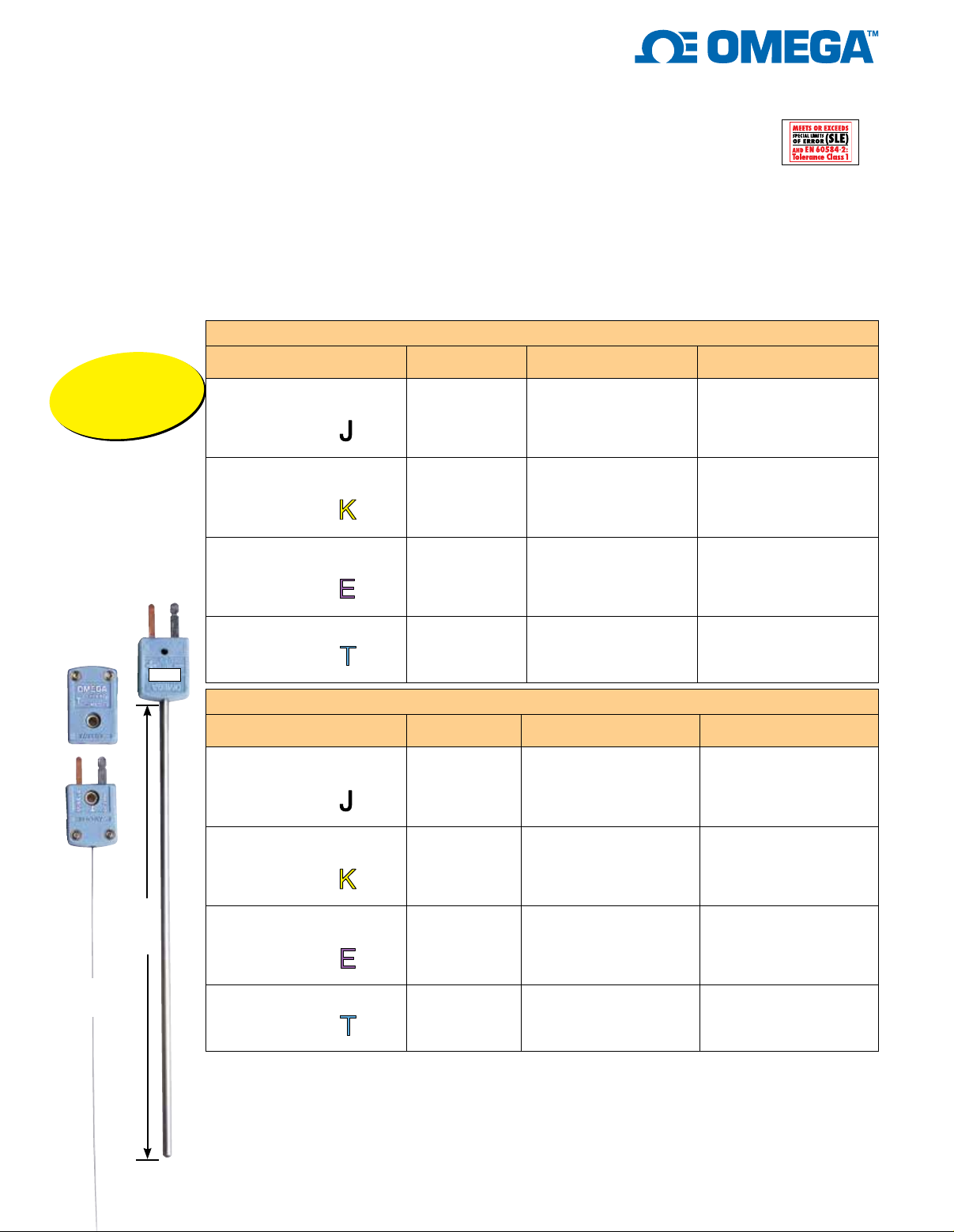

Page 1
Quick Disconnect
Thermocouple Probe Assemblies
with High
Standard and Metric
U Connector Body Temperature
Ratings: 260°C (500°F)
U Environmentally Friendly
Cadmium-Free Liquid Crystal
Polymer
XL Sheaths
for Highest Temperatures,
Greatest Stability
in Type K and Type N.
Mating connectors
with cable clamp
sold separately.
Images are for
referance only.
Temperature Miniature Connectors
U Miniature Probes with Sheath
Diameters from 0.010 to 0.125"
U 6" and 12" Lengths
†
U 304 SS and Inconel Sheaths
with Grounded, Ungrounded or
Exposed Junction
To Order
Thermocouple Sheath Dia. Model Number Model Number
Alloy (inches)
IRON- 0.020 HSICSS-020(*)-6 HSICSS-020(*)-12
CONSTANTAN 0.032 HSICSS-032(*)-6 HSICSS-032(*)-12
304 SS 0.040 HJMQSS-040(*)-6 HJMQSS-040(*)-12
Sheath 0.062 HJMQSS-062(*)-6 HJMQSS-062(*)-12
0.125 HJMQSS-125(*)-6 HJMQSS-125(*)-12
0.010 HSCASS-010(*)-6 HSCASS-010(*)-12
CHROMEGA
ALOMEGATM 0.032 HSCASS-032(*)-6 HSCASS-032(*)-12
304 SS 0.040 HKMQSS-040(*)-6 HKMQSS-040(*)-12
Sheath 0.062 HKMQSS-062(*)-6 HKMQSS-062(*)-12
0.125 HKMQSS-125(*)-6 HKMQSS-125(*)-12
0.010 HSCXSS-010(*)-6 HSCXSS-010(*)-12
CHROMEGATM- 0.020 HSCXSS-020(*)-6 HSCXSS-020(*)-12
CONSTANTAN 0.032 HSCXSS-032(*)-6 HSCXSS-032(*)-12
304 SS 0.040 HEMQSS-040(*)-6 HEMQSS-040(*)-12
Sheath 0.062 HEMQSS-062(*)-6 HEMQSS-062(*)-12
0.125 HEMQSS-125(*)-6 HEMQSS-125(*)-12
COPPER- 0.020 HSCPSS-020(*)-6 HSCPSS-020(*)-12
CONSTANTAN 0.032 HSCPSS-032(*)-6 HSCPSS-032(*)-12
304 SS 0.040 HTMQSS-040(*)-6 HTMQSS-040(*)-12
Sheath 0.062 HTMQSS-062(*)-6 HTMQSS-062(*)-12
0.125 HTMQSS-125(*)-6 HTMQSS-125(*)-12
TM
- 0.020 HSCASS-020(*)-6 HSCASS-020(*)-12
**
0.010 HSICSS-010(*)-6 HSICSS-010(*)-12
U Terminations are Color-Coded
and Identified with Calibration
Letter Code
U Mating Connector and Cable
Clamp Sold Separately
U Cal-5 Available
6" Length
12" Length
Shown
smaller
than
actual
size.
disconnect
Quick
style
(6")
To Order
Thermocouple Sheath Dia. Model Number Model Number
Alloy (mm)
IRON- 0.50 HJMQSS-M050(*)-150 HJMQSS-M050(*)-300
CONSTANTAN 0.75 HJMQSS-M075(*)-150 HJMQSS-M075(*)-300
304 SS 1.00 HJMQSS-M100(*)-150 HJMQSS-M100(*)-300
Sheath 1.50 HJMQSS-M150(*)-150 HJMQSS-M150(*)-300
3.00 HJMQSS-M300(*)-150 HJMQSS-M300(*)-300
0.25 HKMQSS-M025(*)-150 HKMQSS-M025(*)-300
CHROMEGA
ALOMEGA® 0.75 HKMQSS-M075(*)-150 HKMQSS-M075(*)-300
304 SS 1.00 HKMQSS-M100(*)-150 HKMQSS-M100(*)-300
Sheath 1.50 HKMQSS-M150(*)-150 HKMQSS-M150(*)-300
3.00 HKMQSS-M300(*)-150 HKMQSS-M300(*)-300
0.25 HEMQSS-M025(*)-150 HEMQSS-M025(*)-300
CHROMEGATM- 0.50 HEMQSS-M050(*)-150 HEMQSS-M050(*)-300
CONSTANTAN 0.75 HEMQSS-M075(*)-150 HEMQSS-M075(*)-300
304 SS 1.00 HEMQSS-M100(*)-150 HEMQSS-M100(*)-300
Sheath 1.50 HEMQSS-M150(*)-150 HEMQSS-M150(*)-300
3.00 HEMQSS-M300(*)-150 HEMQSS-M300(*)-300
COPPER- 0.50 HTMQSS-M050(*)-150 HTMQSS-M050(*)-300
CONSTANTAN 0.75 HTMQSS-M075(*)-150 HTMQSS-M075(*)-300
304 SS 1.00 HTMQSS-M100(*)-150 HTMQSS-M100(*)-300
Sheath 1.50 HTMQSS-M150(*)-150 HTMQSS-M150(*)-300
3.00 HTMQSS-M300(*)-150 HTMQSS-M300(*)-300
Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded) † Other lengths available, consult Sales
*
department.
For highest temperature and stability rating, change“SS” or “IN” to “XL” for additional cost.
**
Probes of 1 mm (0.40") diameter and larger supplied with connector molded to probe. Smaller sizes supplied with removable
connector.
To Order with Inconel Sheath, change ‘SS’ in model number to ‘IN’. Example: HKMQIN-040G-6, no additional charge.
To Order with 321 SS Sheath, change ‘SS’ in model number to ‘321SS’. Example: HKMQ321SS-125E-12, no additional charge.
Ordering Example: HKMQSS-M300U-300, subminiature quick disconnect probe, Type K, stainless steel sheath, 3 mm OD,
ungrounded junction, 300 mm long.
TM
- 0.50 HKMQSS-M050(*)-150 HKMQSS-M050(*)-300
**
0.25 HJMQSS-M025(*)-150 HJMQSS-M025(*)-300
1
150 mm Length
300 mm Length
Page 2
Standard Accessories
Thermocouple
Alloy
IRONCONSTANTAN
304 SS
Sheath
CHROMEGA
ALOMEGA
304 SS
Sheath
CHROMEGA
TM
-
TM
**
TM
CONSTANTAN
304 SS
Sheath
COPPERCONSTANTAN
304 SS
Sheath
All Accessories Sold Seperately.
* Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded) † Other lengths available, consult Sales department.
** For highest temperature and stability rating, change“SS” or “IN” to “XL” for additional cost.
Model Number
6" Length
HSICSS-010(*)-6
HSICSS-020(*)-6
HSICSS-032(*)-6
HJMQSS-040(*)-6
HJMQSS-062(*)-6
HJMQSS-125(*)-6
HSCASS-010(*)-6
HSCASS-020(*)-6
HSCASS-032(*)-6
HKMQSS-040(*)-6
HKMQSS-062(*)-6
HKMQSS-125(*)-6
HSCXSS-010(*)-6
HSCXSS-020(*)-6
HSCXSS-032(*)-6
HEMQSS-040(*)-6
HEMQSS-062(*)-6
HEMQSS-125(*)-6
HSCPSS-020(*)-6
HSCPSS-032(*)-6
HTMQSS-040(*)-6
HTMQSS-062(*)-6
HTMQSS-125(*)-6
Model Number
12" Length
HSICSS-010(*)-12
HSICSS-020(*)-12
HSICSS-032(*)-12
HJMQSS-040(*)-12
HJMQSS-062(*)-12
HJMQSS-125(*)-12
HSCASS-010(*)-12
HSCASS-020(*)-12
HSCASS-032(*)-12
HKMQSS-040(*)-12
HKMQSS-062(*)-12
HKMQSS-125(*)-12
HSCXSS-010(*)-12
HSCXSS-020(*)-12
HSCXSS-032(*)-12
HEMQSS-040(*)-12
HEMQSS-062(*)-12
HEMQSS-125(*)-12
HSCPSS-020(*)-12
HSCPSS-032(*)-12
HTMQSS-040(*)-12
HTMQSS-062(*)-12
HTMQSS-125(*)-12
Mating Connector
Model No.
HMPW-J-F
HMPW-K-F
HMPW-E-F
HMPW-T-F
Cable Clamp
Model No.
PCLM SMCL
Safety Clip
Model No.
METRIC Accessories
Thermocouple
Alloy
IRONCONSTANTAN
304 SS
Sheath
CHROMEGA
ALOMEGA
304 SS
Sheath
CHROMEGA
TM
-
TM
**
TM
CONSTANTAN
304 SS
Sheath
COPPERCONSTANTAN
304 SS
Sheath
All Accessories Sold Seperately.
* Specify junction type: “G” (Grounded), “E” (Exposed) or “U” (Ungrounded) † Other lengths available, consult Sales department.
** For highest temperature and stability rating, change“SS” or “IN” to “XL” for additional cost.
Model Number
150 mm Length
HJMQSS-M025(*)-150
HJMQSS-M050(*)-150
HJMQSS-M075(*)-150
HJMQSS-M100(*)-150
HJMQSS-M150(*)-150
HJMQSS-M300(*)-150
HKMQSS-M025(*)-150
HKMQSS-M050(*)-150
HKMQSS-M075(*)-150
HKMQSS-M100(*)-150
HKMQSS-M150(*)-150
HKMQSS-M300(*)-150
HEMQSS-M025(*)-150
HEMQSS-M050(*)-150
HEMQSS-M075(*)-150
HEMQSS-M100(*)-150
HEMQSS-M150(*)-150
HEMQSS-M300(*)-150
HTMQSS-M050(*)-150
HTMQSS-M075(*)-150
HTMQSS-M100(*)-150
HTMQSS-M150(*)-150
HTMQSS-M300(*)-150
Model Number
300 mm Length
HJMQSS-M025(*)-300
HJMQSS-M050(*)-300
HJMQSS-M075(*)-300
HJMQSS-M100(*)-300
HJMQSS-M150(*)-300
HJMQSS-M300(*)-300
HKMQSS-M025(*)-300
HKMQSS-M050(*)-300
HKMQSS-M075(*)-300
HKMQSS-M100(*)-300
HKMQSS-M150(*)-300
HKMQSS-M300(*)-300
HEMQSS-M025(*)-300
HEMQSS-M050(*)-300
HEMQSS-M075(*)-300
HEMQSS-M100(*)-300
HEMQSS-M150(*)-300
HEMQSS-M300(*)-300
HTMQSS-M050(*)-300
HTMQSS-M075(*)-300
HTMQSS-M100(*)-300
HTMQSS-M150(*)-300
HTMQSS-M300(*)-300
Mating Connector
Model No.
HMPW-J-F
HMPW-K-F
HMPW-E-F
HMPW-T-F
Cable Clamp
Model No.
PCLM SMCL
Safety Clip
Model No.
