Omega HHUV254SD User guide

®

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

®

MADE IN TAIWAN

HHUV254SD

UVA and UVC Light Meter

With Data Logging SD Card

®

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

ISO 9001 Certified

Stamford, CT 06907-0047
Toll-Free: 1-800-826-6342 Tel: [phone]
FAX: [phone] e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec), H7L 5A1 Canada
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

Customer Service: 1-800-622-2378/1-800-622-BEST
Engineering Service: 1-800-872-9436/1-800-USA-WHEN

Mexico En Español: 001 [phone] FAX: [phone]
Latin America [email protected] e-mail: [email protected]

®

®

®

Servicing Europe:

Benelux: Managed by the United Kingdom Office

Czech Republic: Frystatska 184

France: Managed by the United Kingdom Office

Germany/Austria: Daimlerstrasse 26

United Kingdom: OMEGA Engineering Ltd.

ISO 9001 Certified

Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [email protected]

733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

D-75392 Deckenpfronn, Germany
Toll-Free: 0800 6397678 TEL: [phone]
FAX: [phone] e-mail: [email protected]

One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD United Kingdom
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone] e-mail: [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . 4 –9

What’s in the case . . . . . . . . . . . . . . . . . . . . . . . 4

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 –6

Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . 7

Holding and Storing Measurements. . . . . . . . . . 8

Automatic vs. Manual Datalogging . . . . . . . 8 –9

Transferring Data from the SD Card

to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Maintenance & Troubleshooting Tips . . . . . . . . 10 – 11

Replacement Parts & Optional Accessories . . . . . . . 11

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . 11

Return for Repair Policy . . . . . . . . . . . . . . . . . . . . . . 11

2

INTRODUCTION

Thank you for purchasing General Tools & Instruments’ HHUV254SD UVA and UVC Light
Meter

with Datalogging SD Card. Please read this user’s manual carefully and thoroughly

before

using the instrument.

Many industrial and commercial applications require or can benefit from measurement of
the intensity of UVA and/or UVC light. Among them are welding (to minimize exposure to
“blue light” radiation), UV
electri

cally programmable read-only memory (EPROM) chips, production of graphic arts

products, exposure of photoresists, and curing of inks, adhesives and coatings.
The HHUV254SD has the performance and features needed to satisfy the most demanding

aspects of these applications. For example, it combines the capabilities of UVA (black light
in the long-wa
in on

e instrument. The meter also can measure surface temperature, if mated with a Type K

ve 365-nm band) and UVC (short waves in the 254-nm band) measurement

or Type J thermocouple. A UVA probe and a UVC probe are supplied with the instrument.
Because it is microprocessor-based, the HHUV254SD can make full use of the portability,

reliability and large storage capacities that SD memory cards offer. Measuremen
inten

sity or temperature can be made automatically at any of 11 sampling rates between
one second and one hour. After time-stamping and storing the measurements on an SD
card plugged into the instrument (a process called datalogging), the user can remove the
card and transfer the measurements to a laptop or desktop computer either directly or via a
USB card reader.

The HHUV254SD has a backlit 2-1/2
batteri

es or an optional 9-VDC AC adapter.

sterilization of food, photochemical matching, erasure of

ts of light

in. diagonal display and is powered by six “AA” Alkaline

KEY FEATURES

• Includes UVA and UVC probes

• Measures light intensity within two automatically switched full-scale ranges:

2 mW/cm

• Displays maximum and minimum readings

• Performs real-time automatic datalogging at sampling time settable from

1 second to 1 hour

• Also supports manual logging and changing of card storage location

• Comes with 2 GB SD memory card, but works with cards up t

• Bi

g (2.5 in. diagonal) front-panel green backlit LCD is easy to read

• Auto power off function

• Powered by six “AA” batteries or 9V AC/DC adapter

2

and 20 mW/cm

2

o 16 GB

3

OPERATING INSTRUCTIONS

WHAT’S IN THE CASE

The HHUV254SD comes fully assembled in a carrying case along with a UVA probe, a UVC
probe, a 2 GB SD memory card and this user’s manual.

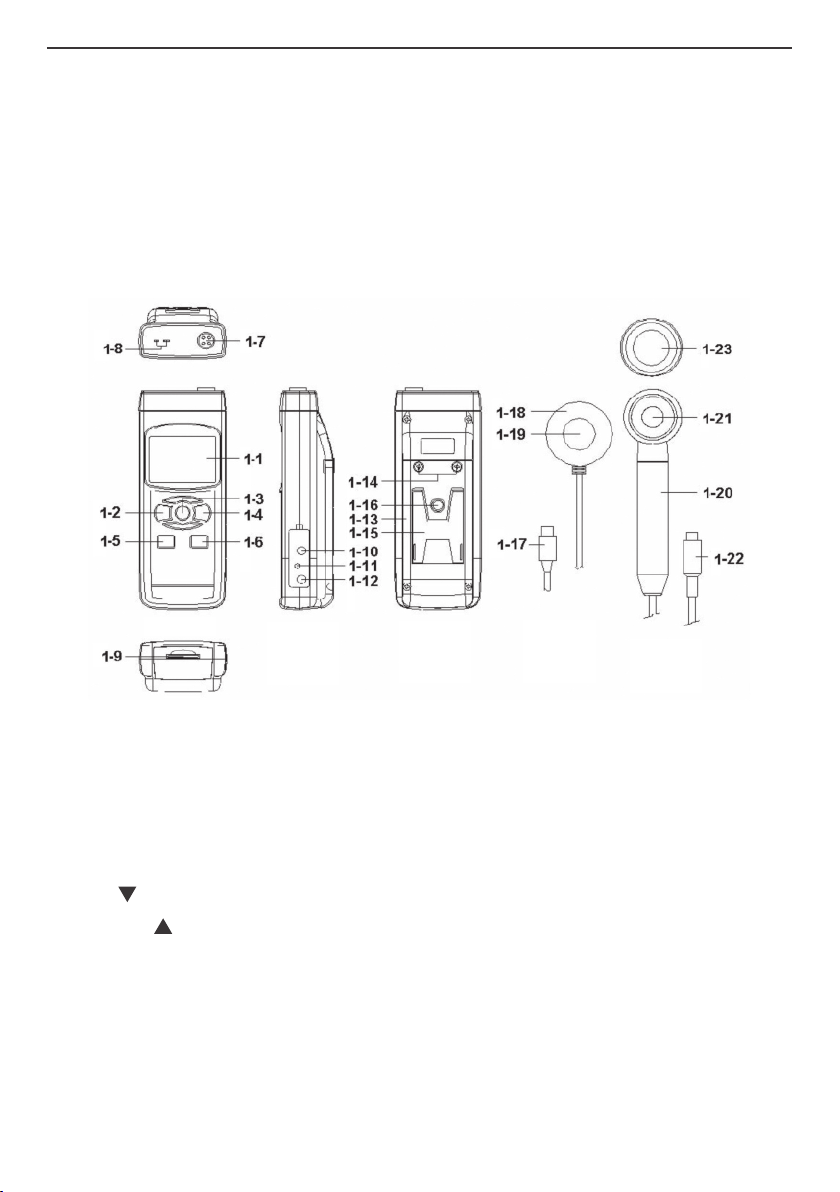

Figure 1 shows all of the controls and indicators on the front, back, top, bottom and right

side of the HHUV254SD. It also shows the main components of the supplied UVA and UVC

probes. Familiarize yourself with their positions and functions before moving on to the setup
procedure.

TOP

FRONT

BOTTOM

RIGHT

SIDE

Fig. 1. The controls and indicators and

two supplied probes

1-1 Liquid-crystal display
1-2 POWER/ESC button
1-3 FUNC./HOLD/NEXT button
1-4 REC/ENTER button
1-5 SET
1-6 LOGGER

button

button
1-7 Socket for UVA and UVC probes
1-8 Socket for Type K or Type J

thermocouple
1-9 SD card socket
1-10 RS232 output jack
1-11 RESET button

4

BACK

othe

r physical features of the HHUV254SD and its

UVC

PROBE

UVA

PROBE

1-12 Socket for 9VDC AC adapter
1-13 Battery compartment cover
1-14 Battery compartment cover screws
1-15 Kickstand
1-16 Tripod attachment nut
1-17 UVC probe plug
1-18 UVC sensor housing
1-19 UVC sensor
1-20 UVA probe handle
1-21 UVA sensor
1-22 UVA probe
1-

23 UVA sensor cap

plug

SETUP

1. Choose the power source. Before using the HHUV254SD, be sure it is powered by

batteries or an optional 9VDC AC adapter plugged into the bottom jack on its right

fresh

(callout 1-12).

side

To remove the battery compartment cover, remove the two screws holding it in place
(callout 1-14). Then install six “AA” batteries in the correct orientation, using the polarity
marks on the inside of the compartment as a guide. Replace the cover by replacing the

rews.

two sc

2. Install an SD card. To prepare for setup, also install the supplied 2 GB SD memory card

or another card with a capacity from 1 GB to 16 GB in the socket on the bottom of the
HHUV254SD (callout 1-9). When installing the card, make sure its gold contacts are

facing front and push the card into the socket until you hear a click. To remove the card,

ntil you hear a click and the card pops out.

in u

h it

pus

Now power on the instrument by pressing the POWER/ESC button (callout 1-2) to generate
a short beep. (To power off the HHUV254SD, press the POWER/ESC button and hold it until
the instrument responds with a long beep.)

When the meter powers on, a series of transient startup screens will briefly appear. Once
the display has stabilized, perform the following e

3. S

et the date and time. Press the SET

ight setup steps in the order presented.

button (callout 1-5) and hold it for at least five
seconds, until “SEt dAtE” appears on the display. Quickly (within three seconds) press
the REC/ENTER button. The word “dAtE” will appear in the center of the display, along
with the flashing value “00.00.00” at the lower left, above “yy.mm.dd”.

(If you press buttons too slowly in setup mode, the screen will revert to the normal display.
To return to t
to

the next field in the sequence or to the next parameter, press the FUNC./HOLD/NEXT

button

Set the current year by pressing the SET

he setup sequence, press and hold the SET

(callout 1-3).)

or LOGGER button repeatedly until the

button again. To move ahead

correct value appears above “yy”. Quickly (within three seconds), press the REC/ENTER
button to store the setting. The next screen that appears will have the value above “mm”
flashing. Use the SET

or LOGGER button to navigate to the current month and press
the REC/ENTER button to store the setting. When the next screen flashes the value above
“dd”, again use the SET

or LOGGER button to navigate to the current day and press

the REC/ENTER button to store the setting.
Once you have set the date, the display will prompt you to set the hour, minute and second

of the current time. Again use the SET

or LOGGER buttons to navigate to the correct

values, and the REC/ENTER button to store the settings.

4. Choose a period or a comma to represent the decimal division between integers and

fractions (for example, American-style 20.88 vs. European-style 20,88). Press the SET

button to make “bASIC” (American style) or “Euro” appear in the upper display, as

desired. Press the REC/ENTER button to store the selection.

5

5. Enable or disable auto power off. Once the format of decimal divisions has been set
and stored, the display will show the word “yES’ over the term “PoFF”. Press the SET

button until the desired automatic power off management scheme (“yES” for enable;
“no” for disable) is displayed. Press the REC/ENTER button to store the selection. If
enabled, the power off function shuts off the HHUV254SD after a period of inactivity of
ten

minutes.

6. Enable or disable the beeper. Once the desired power management function has been
set and stored, the display will show the word “yES” over th
SET

button until the desired setting (“yES” or “no”) is displayed, and then press the

e word “bEEP”. Press the

REC/ENTER button to store the selection.

7. Select the thermocouple type. Once the beeper has been enabled or disabled, the
display will show the word “Set” over the word “type”. Press the SET

button until
your optional thermocouple’s type (K or J) appears on the right side of the display. Then
press the REC/ENTER button to store the selection.

8. Select the temperature unit. Once the thermocouple type has been set and stored, the
lower part of the display will show the term “t-CF”. Press the SET

or LOGGER
button until the unit you prefer (“F” for Fahrenheit, “C” for Celsius”) is displayed. Then
press the REC/ENTER button to store the selection as the default.

9. Set the datalogging sampling time. Once the thermocouple type has been selected
and stored, the display will show a value above the letters “SP-t”. Press the SET
LOGGER

button to decrease or increase the value until the desired sampling time

or

appears above “SP-t”. The options are 0, 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800 and
3600 seconds (0 seconds to 1 hour).

10. Format the SD card. Once the sampling time has been set and stored, the term “Sd-F”
will appear in the lower half of the display. Press the REC/ENTER button.

Pressing the REC/ENTER button causes the word “n
“Sd-F”

. Press the

button to make a selection. Choose “yES” whenever a new SD card is

o” or “yES” to appear over the term

being used, or when a used card is being repurposed (from use with another SD card
instrument or a camera, for example) and all data on it is to be erased. Choose “no” to
preserve any data on a card previously used with this instrument.

If you choose “yES”, after you press the REC/ENTER button the instrument will prompt you
to confirm t
beeps

hat decision by displaying the term “Ent” below “yES” and sounding three

. To confirm that you want to begin the erasure/formatting procedure, press the
REC/ENTER button. “Ent” will then flash several times and the instrument will sound
another three beeps to confirm that the SD card has been erased and formatted.

Once the SD card has been formatted (or not), the display will either return to the
eigh

t steps in the setup sequence—setting the current date and time—or show the term

first of the

“ESC”. If “ESC” appears, press the POWER/ESC button to exit the setup procedure and
enter normal operating mode.

6

NORMAL OPERATION

The UV254SD can measure and store three different kinds of values:

2

• The intensity (in mW/cm

• The intensity (in mW/cm

) of UVA light

2

) of UVC light

• Temperature (in ºF or ºC), as sensed by a Type K or Type J thermocouple

Pressing and holding the FUNC./HOLD/NEXT button will bring up, in order, three blank
five-digit displays above the terms “A” (for UVA light), “C” (for UVC light) and
temperatu

re). Each display also automatically shows the correct unit for the parameter.

“tP” (for

1. To select the measurement mode, release the FUNC./HOLD/NEXT button when the

desired parameter appears. This becomes the meter’s default measurement mode until
you change it.

Whenever the HHUV254SD is in measurement mode, you can turn off the backlight (which

on by default) by briefly pressing (but not holding)

is

the

klight, briefly press the button again.

bac

the POWER/ESC button. To reactivate

Whenever the meter is in measurement mode, you also can check the current date and
time by briefly pressing the SET

button. Doing so causes both values to appear briefly

at the lower left of the display.

2. To measure the intensity of UVA light, seat the UVA probe (with its cap on) in the

socket at the top of the UV254SD (callout 1-7) and use the FUNC.HOLD/NEXT button to
select UVA measurement mode. If the display shows a value other than zero, press the
LOGGER

button (which has the word “Zero” stenciled above it) and hold it for at least

three seconds until you hear a beep. Then remove the cap from the probe.

Holding the probe by its handle, point the sensor at its end directly at the light source. The
display will read out the intensity of the source’s UVA light component in units of mW/cm

3. To measure the intensity of UVC light, seat the UVC probe (with its cap on) in the

socket a

t the top of the UV254SD and use the FUNC.HOLD/NEXT button to select UVC
measurement mode. If the display shows a value other than zero, press the LOGGER
button (which has the word “Zero” stenciled above it) and hold it for at least three
seconds until you hear a beep. Then remove the cap from the probe.

Holding the probe by its handle, point the sensor at its end directly at the light source. The
display will read out the intensity of the source’s UVC light component in units of mW/cm

4. To measure temperature, first make sure neither the UVA nor the UVC probe is plugged
into th

e instrument. Then use the FUNC.HOLD/NEXT button to select temperature

measurement mode.

Obtain a Type K or Type J thermocouple and seat it in the socket (callout 1-8) on the top of
the HHUV254SD. The display will read out the sensed temperature in degrees F or C,
(depending on the setting chosen during setup), along with the type of thermocouple it is
configured for.

To change the un

it of measurement, press the SET

button to enter setup mode and
perform Step 8 of the setup procedure. To configure the meter for use with a Type J
thermocouple (Type K is the default), press the SET

button to enter setup mode and

perform Step 7 of the setup procedure.

2

.

2

.

7

HOLDING AND STORING MEASUREMENTS

1. To hold a measured value of light intensity or temperature, press the FUNC./HOLD/NEXT

button during the measurement. Doing so will cause the word “HOLD” to appear at the
top of the display. Pressing the FUNC./HOLD/NEXT button again releases the hold.

2. To record and recall readings, press the REC/ENTER button while making

measurements. This will make the term “REC” a

C/ENTER button again, briefly, will make the term “MAX” appear to the right of

the RE

ppear at the top of the display. Pressing

“REC” and switch the display to the maximum value stored in memory during the last
recording session. Pressing the REC/ENTER button again, briefly, will make the term
“MIN” appear to the right of “REC” and switch the display to the minimum value stored
during the last session.

. To exit recording mode, pres

3

s and hold the REC/ENTER button for at least three
seconds, until the term “REC” disappears from the top line of the display. The display will
then revert to showing the current reading.

AUTOMATIC VS. MANUAL DATALOGGING

The HHUV254SD can automatically log data using any of 11 sampling times from 1 second

1 hour. To view the sampling time for which the instrument was set up, pres

to
LOGGER
setup

button once. To change the sampling time, press the SET button to enter
and perform Step 9 of the setup procedure.

mode

s the

1. To start automatic datalogging, press the REC/ENTER button once. The top line of the
display will then show the term “REC”. Pressing the LOGGER

button at this point will
make REC flash and add the flashing term “LOGGER” at the top right of the display. This
indicates that the instrument is currently storing measured values and their time stamps
in memory.

2. To pause automatic datalogging, press the LOGGER

button once; this action makes
the flashing term LOGGER disappear from the top right of the display and changes the
term “REC” from flashing to constant. Pressing the LOGGER

button again resumes

automatic datalogging.

3. To end automatic datalogging, press the REC/ENTER button and hold it for at least
two seconds. This action causes the “REC” message to disappear.

4. To log data manually, set the sampling time to zero using Step 9 of the setup
procedure. Then press the REC/ENTER button once. The display will show the term “REC”
on the top line, a value in the middle, and b
from 1 to 99

on the same line to the right. The number indicates the position on the SD

elow it the letter “P” on the left and a number

card that will be used to store manually logged data.

Now press the LOGGER

button. This will cause the beeper to sound and the term
“LOGGER” to briefly appear at the upper right of the display. As in automatic datalogging
mode, in this mode the instrument is storing measurements and their time stamps on the
SD card.

In manual datalogging mode, however, measurements are being stored continuously
(with a sampling time of zero), and their locations on the card can be changed.

8

5. To change the storage location of manually logged data, press the SET button

once; this causes the “P” to disappear from the left side of the display and the value on
its line to begin flashing. Once the flashing begins, you can use the SET

and LOGGER

buttons to change the flashing value to any number between 1 and 99. Once you have
chosen the storage location, press the REC/ENTER button to save the setting. This causes
the value to stop flashing and the “P” to return.

6. To end manual datalogging, press the REC/ENTER button and hold it for at least three
seconds. This action causes the “REC” message to disappear from the top line of the
display.

NSFERRING

TRA
DAT

A FROM THE
SD CARD TO A
COMPUTER

After automatic or
manual datalogging of
measurements, remove
the SD card from the

HHUV254SD and plug it

into your computer
either directly (if it has
an SD card port) or
through an SD card
reader.

Because the files
containing the time-

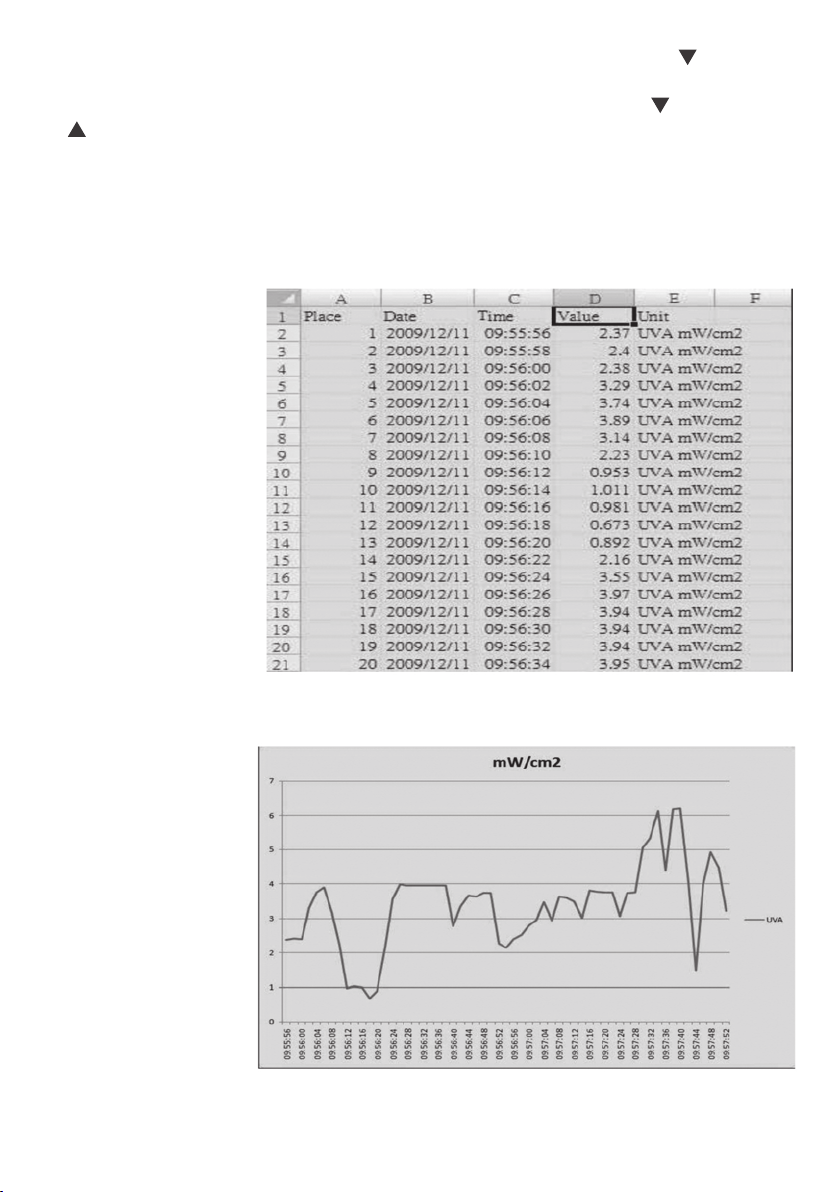

Fig. 2. Typical Excel data-only screen

stamped data logs
have the extension .xls,
they open in Microsoft’s
Excel application.
Figures 2 and 3 show
two kinds of Excel
presentations: a
data-only s
a grap

creen and

hics-only screen.

Fig. 3. Typical Excel graphics-only screen

9

SPECIFICATIONS

Embedded microcontroller Custom one-chip LSI device

Display type Liquid-crystal with green backlight

Display size 2.05 x 1.5 in. (52 x 38mm)

UV light types measured UVA, UVC

Measurement range 240nm to 390nm

Measurement accuracy ±4% of full-scale reading + 2 digits

Full-scale autoranges 2 mW/cm2and 20 mW/ cm

Stored readings Maximum, minimum

Datalogging sampling times 1 second to 1 hour (automatic mode)

SD card capacity 1 GB to 16 GB

Settable parameters Date, time, auto power off, beep sound, temperature unit

(ºF or ºC), sampling time, thermocouple type (K or J),
decimal point or comma

Operating temperature 32º to 122ºF (0º to 50ºC)

Operating relative humidity 0 to 85%

Power source 6 Alkaline “AA” batteries or optional 9-VDC AC adapter

Power consumption 6.5 mADC (normal operation, with backlight off and SD

card not saving data; 30 mADC with backlight on)

Dimensions of meter 6.97 x 2.68 x 1.77 in. (177 x 68 x 45mm)

Weight of meter 12.38 oz. (351g)

Dimensions of UVA probe head 1.77 in. (diagonal) x 1.26 in. (L) (45 x 32mm)

Dimensions of UVA probe handle 0.94 in. (diagonal) x 4.92 in. (L) (24 x 125mm)

Weight of UVA probe 3.53 oz. (100g)

Dimensions of UVC probe 1.50 (diagonal) x 0.98 in. (L) (38 x 25mm)

Weight of UVC probe 3.63 oz. (103g)

2

MAINTENANCE & TROUBLESHOOTING TIPS

Keep the UV light probes clean and their sensors under their protective covers when not in use.

When the icon appears in the left corner of the display, it’s time to replace the six
“AA” batteries that power the instrument (although measurements will remain valid for
several hours after the low-battery indicator first appears). Replacing the batteries requires
removing the two screws that hold the battery compartment cover in place, as explained in
Step 1of the setup procedure on page 5. After inserting fresh batteries in the correct
orientation, tighten the screws to secure the cover.

10

If the meter “freezes” (like a computer) and buttons become unresponsive, try resetting the
instrument by pushing the RESET button on its right side (callout 1-11 of Fig. 1) with the
end of a paper clip.

Remove the batteries when storing this product for an extended period of time.
Do not drop or disassemble the instrument or immerse it in water.

11

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and
workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds
an additional one (1) month grace period to the normal one (1) year product warranty to
cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of the purchaser, including but not limited to mishandling, improper
interfacing, operation outside of design limits, improper repair, or unauthorized modification.
This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows
evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture
or vibration; improper specification; misapplication; misuse or other operating conditions
outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of
defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY
KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL
IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total
liability of OMEGA with respect to this order, whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise, shall not exceed the
purchase price of the component upon which liability is based. In no event shall
OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1)
as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or
activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on humans, or misused in
any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from
any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.

RETURN REQUESTS/INQUIRIES

BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to
prevent breakage in transit.

FOR WARRANTY
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which
the product was PURCHASED,

2. Model and serial number of the product
under warranty, and

3. Repair instructions and/or specific
problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.
This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2011 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.

RETURNS, please have

FOR NON-WARRANTY REPAIRS,

consult
OMEGA for current repair charges. Have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the

COST of the repair,

2. Model and serial number of theproduct, and

3. Repair instructions and/or specific problems

relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

䡺⻬

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

䡺⻬

Wire: Thermocouple, RTD & Thermistor

䡺⻬

Calibrators & Ice Point References

䡺⻬

Recorders, Controllers & Process Monitors

䡺⻬

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

䡺⻬

Transducers & Strain Gages

䡺⻬

Load Cells & Pressure Gages

䡺⻬

Displacement Transducers

䡺⻬

Instrumentation & Accessories

FLOW/LEVEL

䡺⻬

Rotameters, Gas Mass Flowmeters & Flow Computers

䡺⻬

Air Velocity Indicators

䡺⻬

Turbine/Paddlewheel Systems

䡺⻬

Totalizers & Batch Controllers

pH/CONDUCTIVITY

䡺⻬

pH Electrodes, Testers & Accessories

䡺⻬

Benchtop/Laboratory Meters

䡺⻬

Controllers, Calibrators, Simulators & Pumps

䡺⻬

Industrial pH & Conductivity Equipment

SM

DATA ACQUISITION

䡺⻬

Data Acquisition & Engineering Software

䡺⻬

Communications-Based Acquisition Systems

䡺⻬

Plug-in Cards for Apple, IBM & Compatibles

䡺⻬

Data Logging Systems

䡺⻬

Recorders, Printers & Plotters

HEATERS

䡺⻬

Heating Cable

䡺⻬

Cartridge & Strip Heaters

䡺⻬

Immersion & Band Heaters

䡺⻬

Flexible Heaters

䡺⻬

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

䡺⻬

Metering & Control Instrumentation

䡺⻬

Refractometers

䡺⻬

Pumps & Tubing

䡺⻬

Air, Soil & Water Monitors

䡺⻬

Industrial Water & Wastewater Treatment

䡺⻬

pH, Conductivity & Dissolved Oxygen Instruments

M5080/1211
