Omega HHT31R, HHT32R User guide

MADE IN

NIST

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

User’s Guide

Shop online at

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA… Of Course!

TEMPERATURE

✓

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

✓

Wire: Thermocouple, RTD & Thermistor

✓

Calibrators & Ice Point References

✓

Recorders, Controllers & Process Monitors

✓

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

✓

Transducers & Strain Gauges

✓

Load Cells & Pressure Gauges

✓

Displacement Transducers

✓

Instrumentation & Accessories

FLOW/LEVEL

✓

Rotameters, Gas Mass Flowmeters & Flow Computers

✓

Air Velocity Indicators

✓

M2906/0598

Turbine/Paddlewheel Systems

✓

Totalizers & Batch Controllers

pH/CONDUCTIVITY

pH Electrodes, Testers & Accessories

✓

Benchtop/Laboratory Meters

✓

Controllers, Calibrators, Simulators & Pumps

✓
✓

Industrial pH & Conductivity Equipment

DATA ACQUISITION

✓

Data Acquisition & Engineering Software

✓

Communications-Based Acquisition Systems

✓

Plug-in Cards for Apple, IBM & Compatibles

✓

Datalogging Systems

✓

Recorders, Printers & Plotters

HEATERS

✓

Heating Cable

✓

Cartridge & Strip Heaters

✓

Immersion & Band Heaters

✓

Flexible Heaters

✓

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

Metering & Control Instrumentation

✓
✓

Refractometers

✓

Pumps & Tubing

✓

Air, Soil & Water Monitors
Industrial Water & Wastewater Treatment

✓

pH, Conductivity & Dissolved Oxygen Instruments

✓

M-4576/0907

HHT31R and HHT32R

Deluxe Stroboscopes

OMEGAnetSM On-Line Service

http://www.omega.com

Internet e-mail

[email protected]

Servicing North America:

USA: One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Canada: 976 Bergar

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

Mexico and
Latin America: Tel: (95) 800-TC-OMEGA

Tel: [phone] FAX: [phone]
e-mail: [email protected]

Laval (Quebec) H7L 5A1
Tel: [phone] FAX: [phone]
e-mail: [email protected]

For immediate technical or application assistance:

Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN
TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

En Espanõl: [phone] e-mail: [email protected]

SM

SM

SM

FAX: [phone]

SM

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Czech Republic: ul. Rude armady 1868, 733 01 Karvina-Hranice, Czech Republic

France: 9, rue Denis Papin, 78190 Trappes

Germany/Austria: Daimlerstrasse 26, D-75392, Deckenpfronn, Germany

United Kingdom: 25 Swannington Road, P.O. Box 7, Omega Drive,

ISO 9002 Certified Broughton Astley, Leicestershire, Irlam, Manchester,

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is
constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the
CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for
any errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient connected applications.

Tel: [phone] FAX: [phone]
Toll Free in Benelux: 06 0993344
e-mail: [email protected]

Tel: [phone] FAX: [phone]
e-mail: [email protected]

Tel: [phone] FAX: [phone]
Toll Free in France: 0800-4-06342
e-mail: [email protected]

Tel: [phone] FAX: [phone]
Toll Free in Germany: 0130 11 21 66
e-mail: [email protected]

LE9 6TU, England M44 5EX, England
Tel: [phone] Tel: [phone]
FAX: [phone] FAX: [phone]
Toll Free in England: 0800-488-488
e-mail: [email protected]

WARRANTY/ DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 25 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace
period to the normal two (2) years product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corro­sion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other op­erating conditions outside of OMEGA’s control. Components which wear are not warranted, including
but not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages
that result from the use of its products in accordance with information provided by OMEGA, either verbal or
written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects.
OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EX­PRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WAR­RANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict
liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In
no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a
“Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in
medical applications or used on humans. Should any Product(s) be used in or with any nuclear
installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes
no responsibility as set forth in our basic WARRANTY / DISCLAIMER language, and, additionally,
purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever
arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS / INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to

FOR

WARRANTY

following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the prod
uct was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 1998 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, repro-

duced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior
written consent of OMEGA ENGINEERING, INC.

RETURNS, please have the

FOR

NON-WARRANTY

current repair charges. Have the following infor­mation available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

REPAIRS,

consult OMEGA for

9.0 OPTIONS AND ACCESSORIES

HHT32-LAMP Digital Stroboscope replacement lamp

HHT32R-URC Universal Recharger, 115/230 Vac with USA, U.K.,

AUS, Euro Adapter Plugs for battery operated Nova­Strobes (one supplied with battery strobe)

HHT20-ROS Remote Optical Sensor with 8 foot [2.5 m] cable for

triggering strobe

HHT-RT-5 Reflective tape - 5 foot [1.5 m] roll, 0.5 inch [12.7 mm]

wide

HHT32-SPC Splash proof Protective Cover for Battery Powered

Strobe ONLY

21

Safeguards and Precautions

1. Read and follow all instructions in this manual carefully, and
retain this manual for future reference.

2. Do not use this instrument in any manner inconsistent with
these operating instructions or under any conditions that
exceed the environmental specifications stated.

3. Use of this product may induce an epileptic seizure in persons
prone to this type of attack.

4. Objects viewed with this product may appear to be stationary
when in fact they are moving at high speeds. Always keep a
safe distance from moving machinery and do no touch the target.

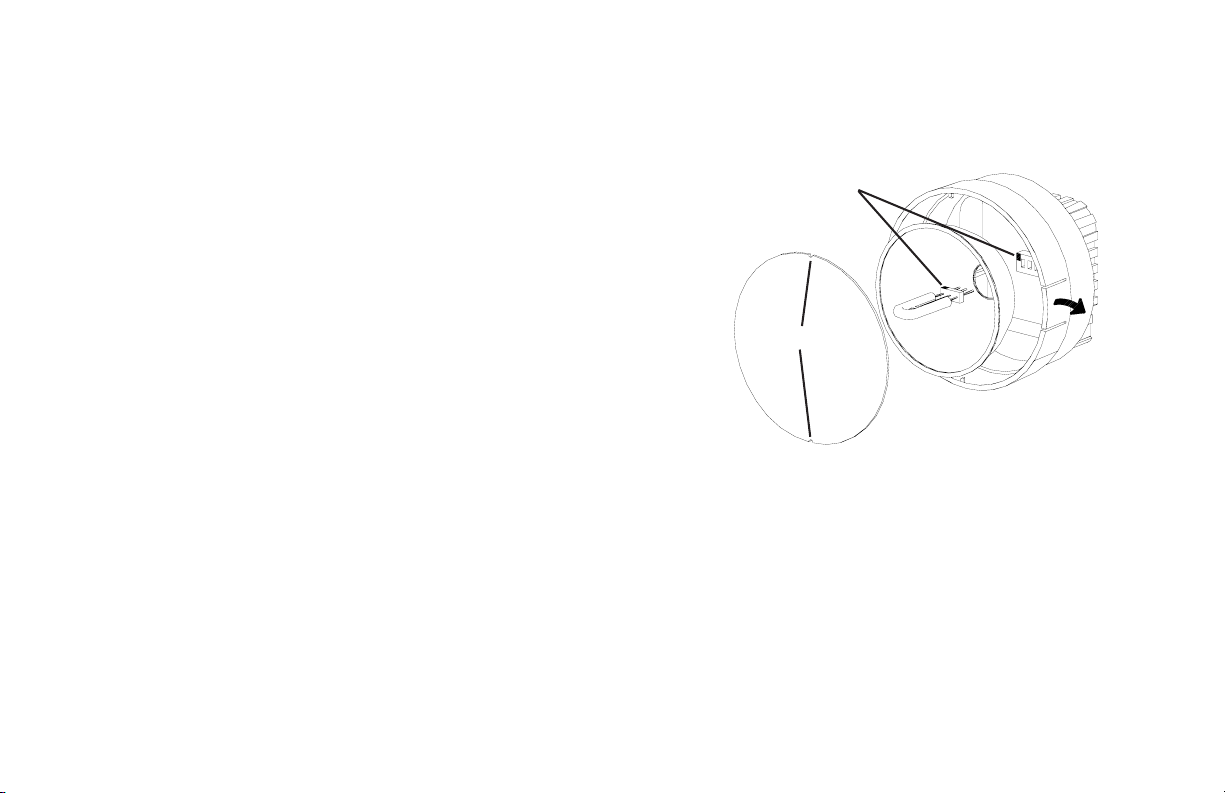

5. There are lethal voltages present inside this product. Refer to
the section on Lamp Replacement before attempting to open
this product.

AC Stroboscopes that have three wire mains cable must
have the earth wire connected to a suitable Earth point.

6. Do not allow liquids or metallic objects to enter the ventilation
holes on the stroboscope as this may cause permanent
damage and void the warranty.

7. Do not allow cables extending from unit to come into contact
with rotating machinery, as serious damage to the equipment,
or severe personal injury or death may occur as a result.

8. Do not direct strobe flash toward certain data collectors, as it
may temporarily interrupt data collector operation, and could
result in loss of stored data.

9. This instrument may not be safe for use in certain hazardous
environments, and serious personal injury or death could occur
as a result of improper use. Please refer to your facility’s
safety program for proper precautions.

10. The HHT32R contains Nickel Metal Hydride batteries which must
be disposed of in accordance with Federal, State, & Local
Regulations. Do not incinerate. Batteries should be shipped to
a reclamation facility for recovery of the metal and plastic
components as the proper method of waste management.
Contact distributor for appropriate product return procedures.

11. This instrument is not user serviceable. For technical
assistance, contact the sales organization from which you
purchased the product.

In order to comply with EU Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE): This product

may contain material which could be hazardous to human health
and the environment. DO NOT DISPOSE of this product as un­sorted municipal waste. This product needs to be RECYCLED in

accordance with local regulations, contact your local authorities
for more information. This product may be returnable to your distributor for
recycling - contact the distributor for details.

HHT32R Specific:
Trigger to Flash Delay 13 µsec typical
Input Power Battery powered: Internal Rechargeable

Batteries 6 Vdc, External AC recharger (100 Vac
to 240 Vac, 50/60 Hz)

Light Output Average: 13 Watts typical > 4000 FPM

Instantaneous (per flash): 230 mJoule typical

to 4000 FPM

Run Time 2 hours typical at 1800 FPM, and over 1 hour at

6000 FPM with fully charged batteries

Charge Time 4-5 hours typical with PSC-2U
Weight 1.875 lbs [0.8505 kg] including batteries

HHT31R Specific:
Trigger to Flash Delay 16 µsec typical
Input Power AC powered: 115 Vac OR 230 Vac, 35VA (as

ordered)

Light Output Average Power: 15.5 Watts typical > 4000 FPM

Instantaneous (per flash): 230 mJoule typical

to 4000 FPM

Run Time Continuous within temperature limitations.

Vents must not be restricted. Unit must be
horizontal.

Weight 1.55 lbs [0.70 kg]

20

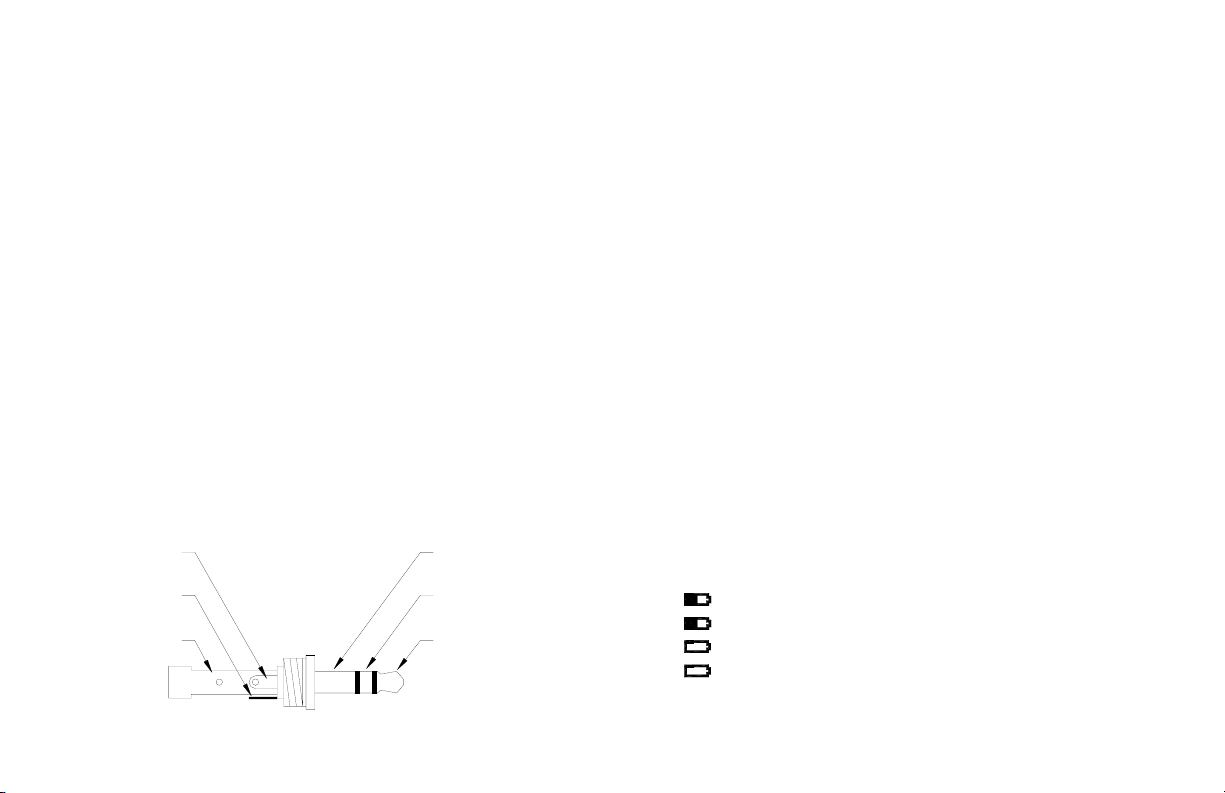

External Input TTL Compatible (24V pk max), 500 nanosec

min pulse width,
Positive or Negative edge triggered (menu
selectable)

Output Pulse 40 µsec positive/negative pulse (menu

selectable), 3.3 Vdc typical
Note: HHT31R – Input/Output connectors
isolated from AC power

Time Base Ultra Stable Crystal Oscillator

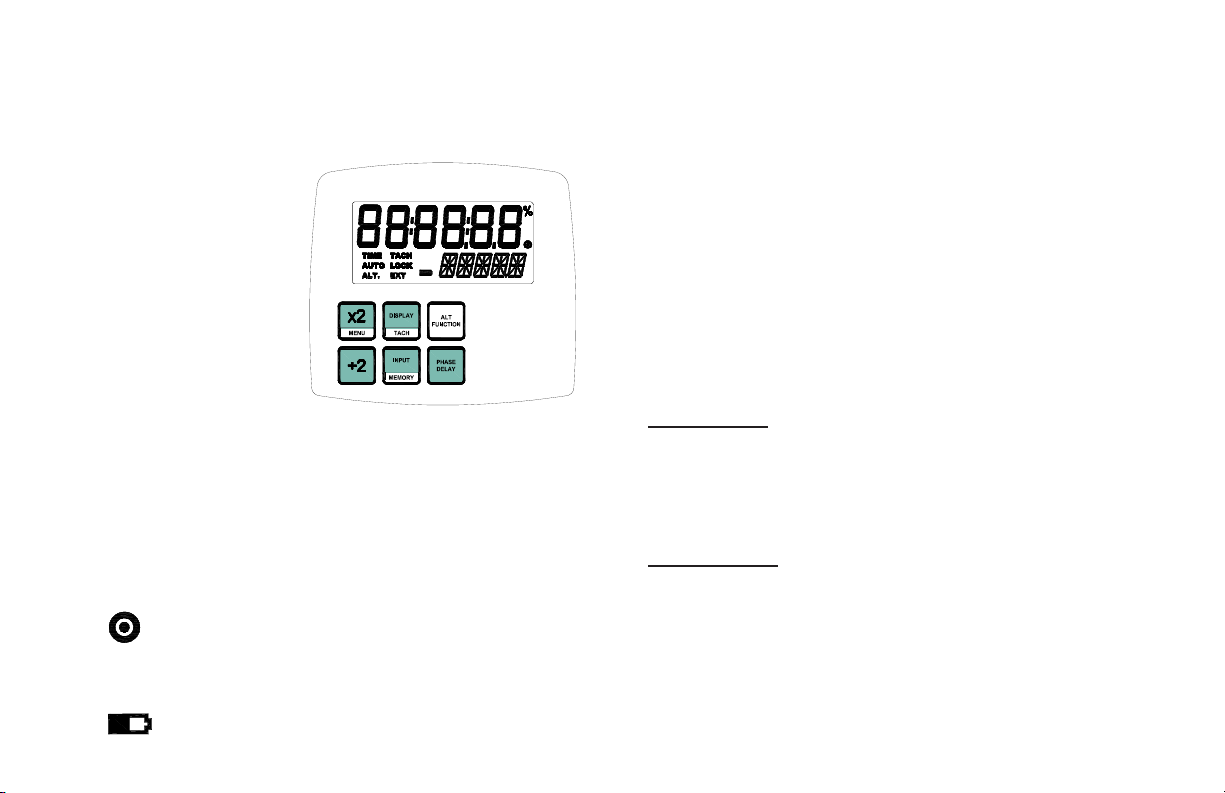

Display LCD display with 6 numeric 0.506 inch [12.85

mm] high digits and
5 alphanumeric 0.282 inch [7.17 mm] high digits

Indicators Battery level, On Target, ALT, TACH, and EXT

icons

Knob Adjustment Digital Rotary switch with 36 detents per

revolution; velocity sensitive

Memory Last setting before power down is remembered

and restored on next power up. 9 user settable
flash rates.

Flash Duration 10-25 microseconds (auto adjust with flash rate)
Flash Tube (Lamp) Life 100 million flashes

This product is designed to be safe for indoor use under the following
conditions (per IEC61010-1).

Operating Temperature 32-104 ºF [0-40 °C]
NOTE: Safety thermal fuse will set unit into TACH Mode (stops

flashing) in the event of internal overheating.

Humidity Maximum relative humidity 80% for temperature

up to 88 °F [31 °C] decreasing linearly to 50%
relative humidity at 104 °F [40 °C]

TABLE OF CONTENTS

TABLE OF CONTENTS

1.0 OVERVIEW ............................................................................. 1

1.1 Display Panel / Definition of Buttons ........................... 1

2. 0 PREPARATION FOR USE ........................................................ 3

2.1 Power............................................................................ 3

2.2 Input / Output Connections .......................................... 3

3.0 MENU ...................................................................................... 5

4. 0 OPERATION ............................................................................ 6

4.1 Internal Mode - Standard Strobe Operation ............... 6

4.2 Internal Mode - TACH Frequency Generator ............... 9

4.3 External Mode - External Input Required .................... 9

4.4 Tachometer Mode - External Input Required............ 10

4.5 Power Up Features .................................................... 10

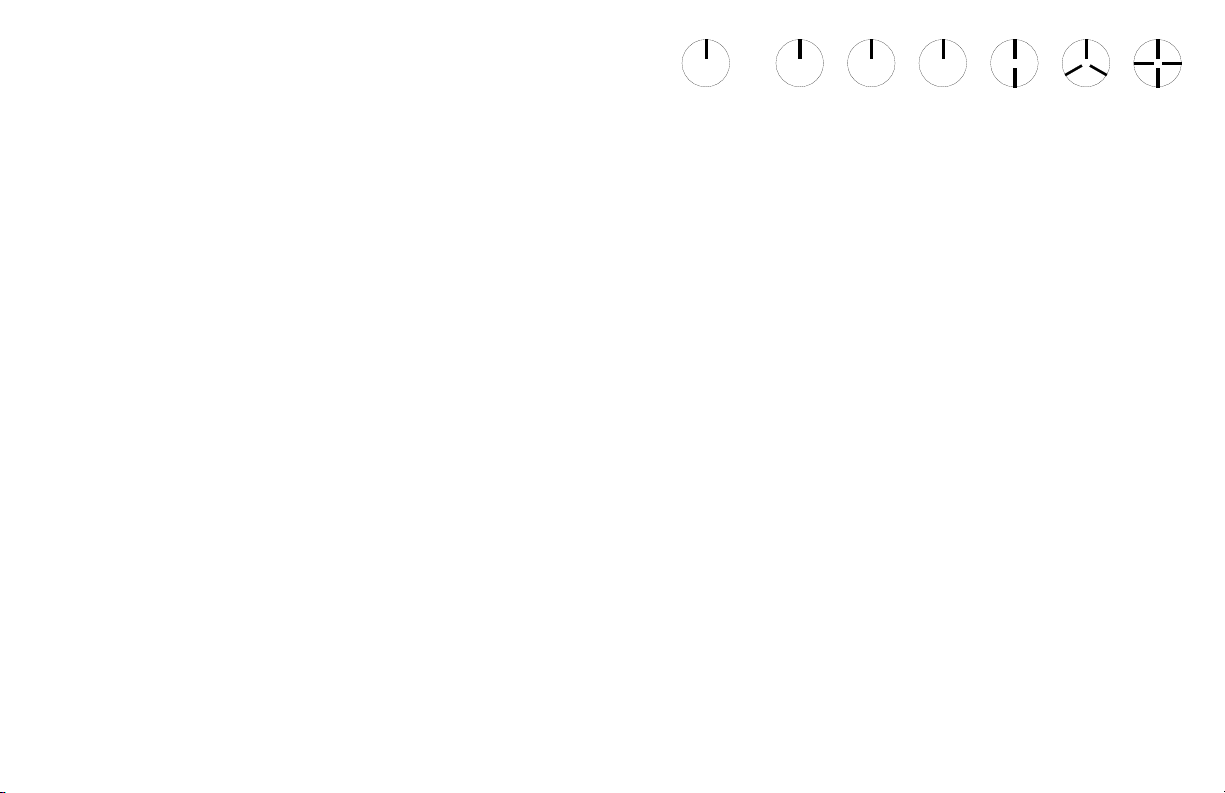

5.0 USING THE STROBOSCOPE TO MEASURE RPM ................ 11

6. 0 LAMP AND FUSE REPLACEMENT ....................................... 13

6.1 Lamp Replacement .................................................... 13

6.2 Fuse Replacement ..................................................... 15

7.0 BATTERY POWERED MODELS ONLY .................................. 16

7.1 Low Battery Indication ............................................... 16

7.2 Charging the Batteries ............................................... 17

7.3 Battery Disposal ......................................................... 18

8.0 SPECIFICATIONS .................................................................. 18

9.0 OPTIONS AND ACCESSORIES ............................................ 21

19

1.0 OVERVIEW

All descriptions in this manual apply to both the battery powered (HHT32R)
and AC mains powered (HHT31R) digital stroboscopes except where noted.

1.1 Display Panel / Definition of Buttons

The display panel consists of
a backlighted liquid crystal
display with six numeric digits
on top and five alphanumeric
digits on the bottom, which
indicate modes, flash rates, etc.
(see Figure 1).

Additional information
displayed include:

TIME Unused

AUTO Unused

ALT. Indicates

alternate (lower) function of each button and knob
will be used

TACH Tachometer Mode active (strobe won’t flash)

LOCK Unused

EXT External Mode active

On Target Indicator for Tachometer Mode and
Remote Sensor in External Mode

- - - - - Indicates input frequency exceeds the limit of the
stroboscope

(Battery Powered Model Only) Battery indication,

1

see section 7.0

Figure 1 Display Panel

7.3 Battery Disposal

Prior to disposing of the battery-powered strobe, the user must remove
the Nickel Metal Hydride batteries. To do this, remove the lens,
reflector and lamp as detailed in the Lamp Replacement section. This
will expose four (4) screws that must be removed so the reflector
housing can be dismantled. There are four (4) additional screws in the
case half opposite the input and output jacks that must be removed.
The case halves can now be separated, exposing the batteries. Remove
the cables from the batteries and place tape over the battery terminals
to prevent them from shorting. The batteries should be sent to a
recycling center or returned to the factory. The rest of the parts may
now be disposed of.

8.0 SPECIFICATIONS

Internal Mode:
Flash Range 30 - 20,000 FPM (Flashes Per Minute)

Flash Rate Accuracy 0.002% of setting or ± last digit

Flash Rate Resolution 0.01 to 1 FPM (menu selectable), 0.1 FPM

max resolution above 9,999.99 FPM

Display Update Rate Instantaneous

External Modes:
Flash Range and Display same as internal mode - External flash rates

to 0 are acceptable

Tachometer Measurements 5 to 250,000 RPM

Accuracy: ±0.001% of reading or ± last digit

Display Update Rate 0.5 second typical

18

The strobe has a protection feature that prevents the strobe from
operating if the battery voltage is too low. This condition is indicated
by no flash and the display shows “LO BAT”. At this time the
batteries must be recharged. Remember to release the trigger switch.

7.2 Charging the Batteries

The unit may be recharged at any time. You do not need to wait until
the low battery condition is indicated.

To charge the battery powered strobe with the recharger:

1. Release the trigger so the strobe is off.

2. Plug the recharger cable into the recharger socket (located below
the display panel behind the handle).

3. Plug the recharger into an AC mains wall outlet.

CAUTION: Use of rechargers other than the one supplied

(HHT32R-URC) will damage the stroboscope and
void the warranty.

The strobe will display the current battery charge percent and the
recharger will fast charge the batteries for about 4-5 hours. Once the
fast charge is completed, the recharger will trickle charge the batteries.

Allow the recharger to charge the batteries until the display shows
DONE for peak battery life performance. If the batteries are not
charged to 100% regularly, the batteries will lose capacity.

When the recharger plug is inserted into the recharger jack, the strobe
will go into the Charging Mode. Make sure the trigger switch is not
depressed. The strobe will not do anything else when charging (e.g. it
will not flash and the buttons have no function).

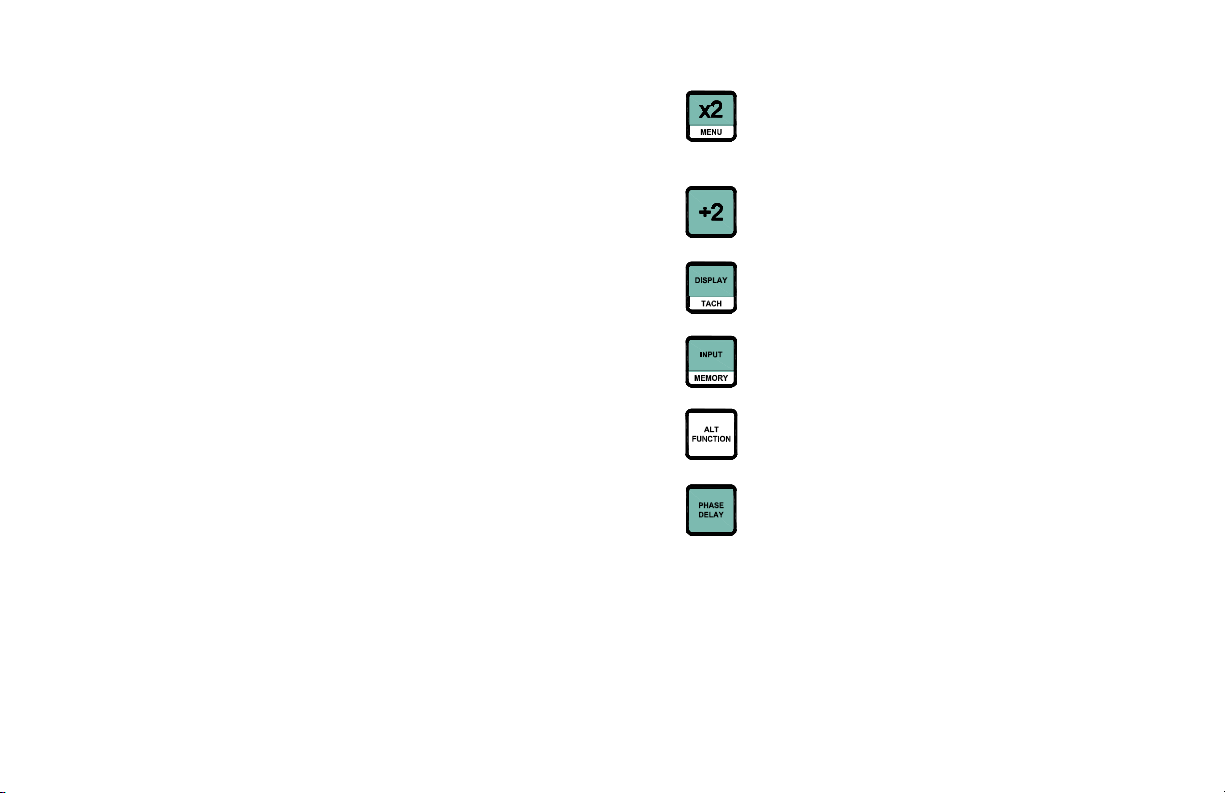

Below the display are six membrane buttons which control the operation
of the Stroboscope. They are:

Multiplies flash rate by 2 times
ALT Function - Starts Menu (See section 3.0)
Hold when powering up to show all segments, then
Rev # and display test

Divides flash rate by 2
Hold when powering up to reset factory defaults

Toggles display between RPM and RPS
ALT Function - Toggles Tach Mode (flashing) on/off

Manually toggles between Internal and External Modes
ALT Function - Reads and Stores 9 preset flash rates

Activates Alternate Function for buttons (lower color)
and knob

In Internal Mode, toggles between normal flash rate
adjust and “phase” adjust

The ALT FUNCTION button toggles ALT. in the display. When ALT. is
displayed, the buttons will perform their secondary function listed in
the lower section of each button. It also changes how the tuning knob
works.

17

2

2.0 PREPARATION FOR USE

7.0 BATTERY POWERED MODELS ONLY

The Strobe may be hand held or mounted on a tripod or other user supplied
bracket using the ¼-20 UNC bushing at the base of the handle.

2.1 Power

The AC powered strobe must have its power cord plugged into an AC
outlet (115Vac or 230Vac).

The battery powered strobe has internal rechargeable batteries. The
unit should be charged before use (see section 7.0). The actual operating
time of the stroboscope depends on the flash rate and duty cycle of
operation. Slower flash rates (below 4,000 FPM) increase the operating
time. Note that the strobe will not operate from the recharger supplied
with the unit.

2.2 Input / Output Connections

The strobe has input and output jacks on the left side of the stroboscope.
These can be used for external triggering or synchronization (daisy
chaining two or more strobes). These jacks accept 1/8" (3.5mm) phone
plugs (input - stereo, output - mono). The input and output are TTL
compatible. See Figures 2 and 3 for connector connection detail.

Signal Input

+6V Out to

Sensor

Common

(GND)

Common
(GND)

+6V Out to
Sensor

Signal Input

The HHT32R is fitted with rechargeable NiMH (Nickel Metal Hydride)
batteries. These batteries contain fewer toxic metals than NiCd (Nickel
Cadmium) and are currently classified “environmentally friendly”. They
also have 30% more capacity than NiCd batteries of the same size.

Like NiCds, NiMH batteries are prone to self-discharge - 10 to 15% of
charge is lost in the first 24 hours then continues at a rate of 0.5 to 1% per
day. For maximum performance, charge the batteries just prior to use.

When not in use, the batteries should be charged at least every three months,
otherwise the battery capacity will be reduced or the batteries may become
unusable.

Charge the batteries before use and allow 3-5 cycles of charging and
discharging for batteries to reach full capacity.

The enclosure contains control electronics to properly and safely charge the
batteries. Never remove the batteries from the enclosure and attempt to
charge externally. Always use the charger supplied (HHT32R-URC).

7.1 Low Battery Indication

The Low Battery icon will be displayed differently depending on the
battery voltage. If the Low Battery icon is not displayed, the batteries
are full. Otherwise, the Low Battery icon will indicate that the battery
voltage is decreasing as follows:

Half solid ¾ Full
Half with block blinking ½ Full
Outline only solid ¼ Full
Outline blinking Low battery (very little time left)

Figure 2 Input Connector Detail (Stereo plug)

3

16

6.2 Fuse Replacement

Under normal operating conditions, the fuse within the stroboscope
should never blow. Examples of abnormal operating conditions would
be foreign materials entering the strobe, such as water, pulp, ink, etc.

The AC Powered stroboscope has a replaceable fuse inside the unit,
which may be accessed by removing the lens and reflector - refer to
Figure 4. If the fuse needs to be replaced, replace only with a fuse of
the same type and value: Fast Blow - 750mA, 2AG.

WARNING: Before attempting to replace the fuse, make

sure the stroboscope is turned off and any
mains cord is removed from the AC outlet. Allow
the lamp to cool waiting at least 5 minutes.

The Battery Powered stroboscope has a resettable fuse, which will
reset once conditions are normal again.

Signal Input

Common

(GND)

Common
(GND)

Signal Input

Figure 3 Output Connector Detail (Mono plug)

The input jack is the one with the arrowhead pointing toward it (S
closest to the black knob) and enables an external signal to trigger the
strobe. Inserting a plug into the input jack will automatically put the
strobe into the External Mode. When the plug is removed, the strobe
will be put back into the Internal Mode. The Internal Mode can be
forced by pressing the INPUT button. The polarity of the input pulse
can be set in the MENU options.

The output jack is the one with the arrowhead pointing away from it
(T closest to the reflector). With no external input this output provides
a TTL compatible pulse from the strobe’s internal oscillator. If an
external input is applied, the output pulse is in sync with the input
pulse. This output pulse may be used to trigger a second stroboscope
synchronously to illuminate larger areas. Many strobes can be “daisy
chained”. The output jack of one strobe is connected to the input jack
of the next strobe causing all the strobes to flash together and be
controlled by the first strobe in the chain. The polarity of the output
pulse can be set in the MENU options.

15

4

3.0 MENU

The strobe has a Menu which allows the user to select settings such as
number of decimal places, backlight on or off, pulse width and positive or
negative edge for input and output signal.

To enter the MENU:

1. Press the ALT FUNCTION button and then the MENU button.

2. SetUP and the menu option will be displayed.

3. Turn the tuning knob to cycle through the main menu selections.

4. Once the desired menu option is displayed, press the MENU button to

select it. Press any other button to cancel.

5. Turn the tuning knob to edit the menu option.

6. Press the MENU button to save your changes. Press any other button

to cancel.

7. Press any button other than MENU to exit the Main Menu.

8. DONE will be displayed.

Below is a list of the menu items:

DECPTDECPT

DECPT- Decimal Point (none, 1 or 2)

DECPTDECPT
BLITEBLITE

BLITE- Backlight (Yes=On or No=Off)

BLITEBLITE
INPUTINPUT

INPUT- Positive (pos) or Negative (neg) Edge for Input Signal

INPUTINPUT
OUTPTOUTPT

OUTPT- Positive (pos) or Negative (neg) Edge for Output Signal

OUTPTOUTPT

while pushing it into place (see Figure 4). Make sure the lamp is
in straight and centered in the reflector hole.

CAUTION: Do NOT allow the reflector to contact the lamp.

Red Dots

Notches

Figure 4 Lamp Replacement

4. Reinstall the reflector and then position the front lens in place
matching up the notches on the lens with the two small tabs on
the housing to prevent lens rotation (see Figure 4). Push the tabs
on the front rim outward and press the lens into place.

5

14

6.0 LAMP AND FUSE REPLACEMENT

4.0 OPERATION

6.1 Lamp Replacement

WARNING: Before attempting to remove the lamp, make

sure the stroboscope is turned off and any
mains cord is removed from the AC outlet. Allow
the lamp to cool waiting at least 5 minutes.

The stroboscope is designed to discharge the internal high voltages
within 30 seconds. However, caution should be exercised when replacing
the lamp.

The lamp can be replaced by using just a pocket screwdriver. It is not

necessary to remove any screws to replace the lamp.

To change the lamp:

1. Push apart the two tabs on the side of the reflector housing and
remove the lens using a small screwdriver to help pry one tab and
lift the lens. Take care not to pry the tab any more than is necessary
to free the lens. The reflector is held in place by the front lens and
will come loose, but it is not necessary to remove the reflector.

2. Hold the lamp with a cloth between your forefinger and thumb
and rock it back and forth gently while pulling out. Do not attempt
to rotate the lamp. The lamp is socketed and will come out easily
when pulled straight out.

WARNING: Do NOT touch the new lamp with bare fingers.

3. The lamps are polarized and must be put into the socket matching
polarity. Using a lint free cloth, match up the red dot on the
plug with the red dot on the socket and gently rock the lamp

To turn on the stroboscope, depress and hold the trigger. The trigger may be
locked in position using the side locking button. To lock the stroboscope
on, depress the trigger as far as it will go and then press the locking button.
Once the locking button is set you may release the trigger and the trigger will
be held in place. To unlock the stroboscope, simply depress the trigger and
then release.

There are three major operating modes for the Strobe. These are Internal,

External and Charging (Battery powered model only). In the Internal
Mode, the knob adjusts the flash rate. In the External Mode, an external

signal from a remote sensor is used to trigger the flash and the knob has no
effect. The Charging Mode (Battery powered model only) is when the
strobe has the battery recharger plugged into it. The strobe will continuously
display the state of the battery charge while being recharged.

4.1 Internal Mode - Standard Strobe Operation

In the Internal Mode the stroboscope generates it’s own signals and
functions like a tunable stroboscope. The strobe is in the Internal
Mode when nothing is plugged into the input jack or when manually
set using the INPUT button.

To change the flash rate:

With the power on, turn the knob counter clockwise to increase the flash
rate and clockwise to decrease it. The knob is velocity sensitive. Turn the
knob slowly to have each “click” is equal to 0.01 FPM. Turning the knob
more quickly will adjust the FPM by larger steps. When adjusting flash
rate, quickly turn the knob (or use the x2 or ÷2 buttons) to coarsely
change the FPM. Then slowly turn the knob for fine adjustments.

613

NOTE: There are maximum and minimum values in each mode

beyond which you cannot adjust. If you are adjusting the
rate and you reach a value which on the next increment would
exceed the maximum flash rate, the display will not increment.
The same is true if you try to adjust the flash rate below the
minimum flash rate.

To multiply or divide the current flash rate by 2:

In addition to the knob, there are two buttons on the back panel
marked x2 and ÷2. This enables the user to instantly double or halve
the reading on the display to the maximum or minimum values allowed.
This feature is useful for checking harmonics in the internal flashing
mode.

Alternate Knob Function (multiple by 2, 3, 4, 5, etc.)

The tuning knob functions differently when ALT. is displayed. The
current flash rate is used as an adder. The knob will add (counter
clockwise) or subtract (clockwise) that initial flash rate for each “click”
the knob is turned. This in effect allows the user to multiply the initial
flash rate by 2, 3, 4, 5, etc up to the maximum flash rate. This is very
helpful on fan blades. Using this feature, one can superimpose the
blades on top of each other and check for blade tracking, bent blades,
lead and lag tests, etc.

For example: A 3 bladed fan is spinning at 3600 RPM. The strobe is
flashing at 3600 FPM. Press the ALT FUNCTION button to display
ALT. Then turn the knob counter clockwise 2 clicks. The strobe will
now flash at 10,800 FPM (effectively 3600 times 3). The fans blades
will be all superimposed on each other. One can now see if the blades
are out of alignment, bent, etc. by viewing the blades from the front or
viewing from the side edge of the blades.

7

Stopped Image 1/3 times 1/2 times 1 time 2 times 3 times 4 times

Flash Rate (FPM) 1250 2500 5000 10000 15000 20000

Example: object rotating at 5000 RPM

If the speed is outside the full scale range of the stroboscope (20,000 FPM),
it can be measured using the method of harmonics and multipoint calculation.
Start at the highest flash rate and adjust the flash rate down. You will
encounter multiple images so be aware of these. Note the flash rate of the
first SINGLE image you encounter, call this speed “A”. Continue decreasing
the flash rate until you encounter a second SINGLE image. Note this speed
as “B”. Continue decreasing the speed until you reach a third SINGLE
image at speed “C”.

For a two point calculation the actual speed is given by:

RPM = AB/(A-B)

For a three point calculation:

RPM = 2XY(X+Y)/(X-Y)2 where
X = (A-B) and
Y = (B-C)

If a Remote Optical Sensor or Magnetic Sensor is used to sense one pulse
per revolution (External mode), the readout will display directly in RPM
(FPM) without any adjustment required.

In instances when you can shut down the device and install a piece of
reflective tape, then an optical tachometer is easier to use for RPM
measurement. Stroboscopes must be used when you can’t shut down
the device. The human eye is not easily tricked into seeing a stopped image
by a stroboscope when the flash rate is slower than 300 FPM. Therefore,
stroboscopes are just about impossible to use below 300 FPM for inspection
or to measure RPM.

12

5.0 USING THE STROBOSCOPE TO MEASURE
RPM

The primary use for a stroboscope is to stop motion for diagnostic inspection
purposes. However the stroboscope can be used to measure speed (in
RPM / RPS). In order to do this several factors need to be considered. First,
the object being measured should be visible for all 360° of rotation (e.g. The
end of a shaft). Second, the object should have some unique part on it, like
a bolt, key way or imperfection to use as a reference point. If the object
being viewed is perfectly symmetrical, then the user needs to mark the
object with a piece of tape or paint in a single location to be used as a
reference point. Look only at the reference point.

If the speed of rotation is within the range of the stroboscope, start at the
highest flash rate and adjust the flash rate down. At some point you will
stop the motion with only a single reference point of the object in view.
Note that at a flash rate twice the actual speed of the image you will see two
images (reference points). As you approach the correct speed you may see
three, four or more images at harmonics of the actual speed. The first
SINGLE image you see is the true speed. To confirm the true speed, note
the reading and adjust the stroboscope to exactly half this reading, or just
press the ÷2 button. You should again see a single image (which may be
phase shifted with respect to the first image seen).

For example, when viewing a shaft with a single key way you will see one
stationary image of the key way at the actual speed and at 1/2,1/3,1/4, etc,
of the actual speed. You will see 2 images of the key way at 2 times the
actual speed, 3 key way at 3 times, etc.

Revolutions Per Minute (RPM) at the highest flash rate that gives
only one stationary image of the key way.

The FPM equals the shafts

To select a flash rate from a Preset (memory) location:

1. Press the ALT FUNCTION button and then the MEMORY button.

2. READ will be displayed.

3. Turn the tuning knob to cycle through the preset flash rates.

4. Once the desired flash rate is displayed, press the MEMORY

button to select it. Press any other button to cancel.

5. DONE will be displayed.

To store the current flash rate in a Preset (memory) location:

1. Press the ALT FUNCTION button and then the MEMORY button.

2. READ will be displayed.

3. Do NOT turn the knob and press the MEMORY button again.

4. STORE will be displayed.

5. Turn the tuning knob to cycle through the memory locations.

6. Once the desired memory location is displayed, press the

MEMORY button to store the current flash rate in that location.
Press any other button to cancel.

7. DONE will be displayed.

Internal “Phase” Delay

Once the flash rate has been adjusted to give a stopped motion image,
the PHASE DELAY button may be used with the knob to increase or
decrease the phase of the reference mark location. Use the PHASE
DELAY button and knob to bring a reference mark, such as a key way,
into your line of sight.

To adjust the “Phase” Delay:

1. Press the PHASE DELAY button.

2. PHASE will be displayed on the bottom line and the current flash
rate will be displayed on the top line.

11

8

3. Turn the tuning knob to adjust the location (phase) of the reference
mark.

4. Press the PHASE DELAY button again to turn the “Phase” Delay
mode off.

4.2 Internal Mode - TACH Frequency Generator

In the Internal Mode, the strobe can be used as a frequency generator
(outputting TTL pulses) without having the strobe flash. The pulse
output will still occur at the flash rate; the strobe is just not flashing.

To stop flashing:

1. Press the ALT FUNCTION button and then the TACH button.

2. The TACH icon will be displayed.

To start flashing again:

3. Press the ALT FUNCTION button and then the TACH button.

4. The TACH icon will go away and the strobe will start flashing
again.

4.3 External Mode - External Input Required

The strobe is in the External Mode whenever there is a plug in the
input jack. When the strobe is in the External Mode, EXT will be
displayed.

In the External Mode the user can’t make any flash rate adjustments.
The flash rate is a function of the input trigger signal. This mode is
used to synchronize the flash to an external event (for example, from
an optical sensor) to stop or freeze motion. The flash will be triggered
on the rising or falling edge (menu selectable) of the external input
pulse.

4.4 Tachometer Mode - External Input Required

When an external input is supplied to the unit and the strobe is put in
the Tachometer Mode, the unit will read the signal from the external
input (sensor) and display the reading on the LCD display without
flashing the lamp. The strobe will not flash in the Tachometer

Mode.

To enter the Tachometer Mode:

1. Press the ALT FUNCTION button and then the TACH button.

2. The TACH icon will be displayed.

NOTE: If the external input signal exceeds the maximum flash rate,

the strobe will go into the Tachometer Mode automatically.

To exit the Tachometer Mode:

1. Press the ALT FUNCTION button and then the TACH button.

2. The TACH icon will go away.

4.5 Power Up Features

When the strobe is powered up it will remember the last settings.

Press and hold the x2/MENU button, then turn on the strobe by
depressing the trigger switch. This will turn on all the display segments
for two seconds or until you release the button. It will then show the
software revision, “REV x.x” and then go through a display diagnostic.

Press and hold the ÷2 button, then turn on the strobe by depressing
the trigger switch. This will restore the factory programmed presets.

9

10
