Contents

1.0 INTRODUCTION ..............................................................................1

1.1 Direct Digital Synthesis ..............................................................1

1.2 Preparation For Use ...................................................................2

1.3 Input / Output Connections......................................................... 3

2.0 LCD PANEL DISPLAY SYMBOL DEFINITION................................. 4

3.0 OPERATION ....................................................................................4

3.1 Internal Mode -Standard Strobe Operation................................. 6

3.2 External Mode - External Input Required................................... 6

3.3 Common Features for Both Internal and External Modes........... 7

3.4 Charger Mode (Battery Powered Model Only)............................ 8

3.5 Power Up Features ....................................................................8

4.0 USING THE STROBOSCOPE TO MEASURE RPM ........................ 8

5.0 MISCELLANEOUS ......................................................................... 10

5.1 Lamp Replacement .................................................................. 10

5.2 Low Battery Indication (Battery Powered Model Only) ............. 11

5.3 Battery Recharger (Battery Powered Model Only)....................11

5.4 Fuse .........................................................................................12

6.0 SPECIFICATIONS.......................................................................... 13

Precautions

ACCESSORIES

CAUTION - USE OF THIS PRODUCT MAY INDUCE AN EPILEPTIC
SEIZURE IN THOSE PRONE TO THIS TYPE OF ATTACK.

CAUTION - OBJECTS VIEWED WITH THIS PRODUCT MAY
APPEAR TO BE STATIONARY WHEN IN FACT THEY ARE
MOVING AT HIGH SPEEDS. ALWAYS KEEP A SAFE
DISTANCE FROM AND DO NOT TOUCH THE TARGET.

CAUTION - THERE ARE LETHAL VOLTAGES PRESENT
INSIDE THIS PRODUCT. REFER TO THE SECTION ON LAMP
REPLACEMENT BEFORE ATTEMPTING TO OPEN THIS
PRODUCT.

CAUTION - DO NOT ALLOW LIQUIDS OR METALLIC
OBJECTS TO ENTER THE VENTILATION HOLES ON THE
STROBOSCOPE AS THIS MAY CAUSE PERMANENT
DAMAGE.

1.0 INTRODUCTION

All descriptions in this manual apply to both the battery powered strobe and
AC mains powered strobe except where noted.

Model Description

R-115 Charger 115 Vac 50/60 Hz (14 hour) for battery operated

Nova-Strobes
R-230 Same as above except 230 Vac 50/60 Hz
HHT32-SPC Splash proof Protective Cover for Battery Powered Strobe
L-1903 Digital Stroboscope replacement lamp.
HHT20-ROS Remote Optical Sensor with 8 ft. cable for Stroboscopes
HHT-RT-5 Reflective tape.

The strobe is a sophisticated instrument with many features, yet remains
simple to operate. Use only the features required for your application. The
strobe’s internal microprocessor and digital encoder knob ensures precise
settings and measurement. Each Strobe comes with a NIST Traceable
Certificate of Calibration.

The strobe stores and recalls six user programmable flash rate settings
and the last used settings in non-volatile memory so that the strobe
“remembers” all the settings when the power is turned off.

1.1 Direct Digital Synthesis

“Direct Digital Synthesis” is the method by which the strobe’s internal
microprocessor generates all the signals required to set internal flash
rates. In analog stroboscopes, these values are adjusted using a single
or multiple turn potentiometer (knobs) and these generally lack sensitivity

Page 1

6.0 SPECIFICATIONS

Internal Mode
Fla s h Ra nge Flash Rang e

Flash Rate Resolution (Se t ting)
Flash Rate Accuracy (Sett in g)
Update Rate

Ex ternal Mode

Flash Range an d Display

Update Rate
Tachometer Measurements

Time Base Ult r a stable Crys tal O s cillator
Light Power

Average

Instantaneou s (per flash)

Flash Dura tion 10 - 30 microseconds ty pic al
Memory 6 preset user programm able Flash Rates.

Knob Adjusment - all ranges and modes Rotary Switch with 36 detents per rev.
Display

Input Power (Battery powered) Internal Rechargable Batteries

Input Puls e
Trigger to Flash De lay

Outp u t Pu ls e 100 sec positive pulse, 5VDC typical
Remote Sensor Power Supply 5VDC @50mA
Weight (Batte ry powered) 2‰ lbs (1.2 kg) including

30.0 - 14,000.0 FPM (Flashes per Minute)

0.5 - 2 3 3.33 F PS (Flahes per Second)
–0.1 FPM
Th e gr eater of –0.5 FPM or –0. 01% of readi ng
Instantaneous

5.0 to 14,000.0 FPM

0.08 to 233 .33 FP S
External flash rates to 0 are acceptable
1 Second Typical

5.0 to 9999.9 FPM –0.1 FPM Res o lution
–0 .2 FP M Accuracy
10,000 to 200,000 FPM –0.1 FPM Resoluti on
–0.01% of reading Accuracy

(Battery Powered) 10W
( AC Powe red) 15W
220mJoule

100, 500, 1000, 3600, 7200, 14000 FPM
Last set tings befor pow er down remembered and
restored on next power up.

6 digit alphanumeric bac klit LCD di splay.
Low Battery Indication (Battery powe red only).
Indi vidual chevrons f or mo de display.

6VD C. Externa l AC fast cha rge .
(AC powered) 115VAC or 230VAC
20 sec min positive pu l se, T TL to 24VDC max

< 5 sec

batteries
(AC powered) 1‰ lbs (0.68 kg)

and tend to drift with time. It is very difficult to set absolute values on
analog stroboscopes.

The strobe synthesizes all signals digitally, in small, very precise steps.
These signals are derived from a stable crystal oscillator. There is no
user calibration or adjustment required to ensure an accurate reading.
In the internal flash mode, these steps are as small as 0.1 flashes per
minute. Thus absolute values may be dialed in very easily and
accurately. The strobe’s adjustment knob is actually a digital encoder
that is connected directly to the microprocessor. This knob has 36 definite
steps or clicks per revolution allowing very definite adjustment and can
be turned continuously. This is equivalent to having a 100 turn
potentiometer in an analog unit. Of course you are not expected to turn
this knob that many times to get from the slowest flash rate to the fastest.

Turn the knob counter clockwise to increase the flash rate and clockwise
to decrease it. The knob is velocity sensitive. Turn the knob slowly to
have each “click” is equal to 0.1 FPM. Turning the knob more quickly
will adjust the FPM by larger steps. When adjusting flash rate, quickly
turn the knob (or use the x2 or ÷2 buttons) to coarsely change the
FPM. Then slowly turn the knob for fine adjustments. Turn slower still
for very fine adjustments.

Note: There are maximum and minimum values in each mode, beyond
which you cannot adjust. In the Internal Flash mode, the maximum flash
rate is 14,000 FPM. If you are adjusting the rate and you reach a value
which on the next increment would exceed 14,000 FPM, the display
will not increment. The same is true if you try to adjust the flash rate
below 30 FPM.

In addition to the Knob, there are two buttons on the back panel marked
x2 and ÷2. This enables the user to instantly double or halve the
reading on the display to the maximum or minimum values allowed.
This feature is useful for checking harmonics in the internal flashing
mode. (Refer to section 4.0)

1.2 Preparation For Use

The strobe may be hand held or mounted on a tripod or other user
supplied bracket using the ¼-20 UNC bushing at the base of the handle.

The AC powered must have its power cord plugged into an AC outlet
(115VAC or 230VAC).

Rev 1.1 February, 1999

Page 13

Page 2

The battery powered strobe has internal rechargeable batteries. The
unit should be charged before use. This model can operate continuously
in excess of 60 minutes at 6000 flashes per minute from fully charged
batteries. The strobe has a protection feature that prevents the strobe
from operating if the battery voltage is low. This condition is indicated
by no flash and the display shows “LO BAT”. At this time the batteries
must be recharged. The actual operating time of the stroboscope
depends on the flash rate and duty cycle of operation. Slower flash
rates increase the operating time.

5.4 Fuse

There is a 5 x 20mm fuse inside the unit. It may be accessed by removing
the lens and reflector - refer to section 5.1. Replace only with a fuse of
the same type and value. Under normal operating conditions, the fuse
should never blow.

Battery Powered:

Slow Blow - 3.15A fuse

To charge the battery powered strobe with the charger, the trigger must
be OFF (released). Plug the charger cable into the socket located below
the display panel, and behind the handle. Then plug the charger into
the mains wall outlet. The unit may be left on charge overnight and it
requires 14 hours to charge fully from a low battery condition. The unit
starts with a fast charge that will restore 90% of the battery capacity in
approximately 3 hours. Once the fast charge mode is completed, the
unit will enter the float charge mode (indicated by all the chevrons on
the display coming on) and the stroboscope can be used at this time.
The unit may be recharged at any time. You do not need to wait until
the low battery condition is indicated. The strobe should not be left

on the charger for more than 36 hours at a time.
NOTE: USE OF RECHARGERS OTHER THAN THE ONE SUPPLIED

MAY DAMAGE THE STROBOSCOPE AND VOID THE WARRANTY.

1.3 Input / Output Connections

The strobe has input and output jacks on the left side of the stroboscope.
These can be used for external triggering or synchronization (daisy
chaining two or more strobes). These jacks accept 1/8" (3.5mm) phone
plugs (input - stereo, output - mono). The jacks’ outer connection (barrel)
is common and the inner or center connection is the signal. The input

jack also has a middle
connection which
provides power to an
input sensor. The input
and output are TTL
compatible.

AC Powered:

Fast Blow - 750mA fuse

Figure 1

Page 3

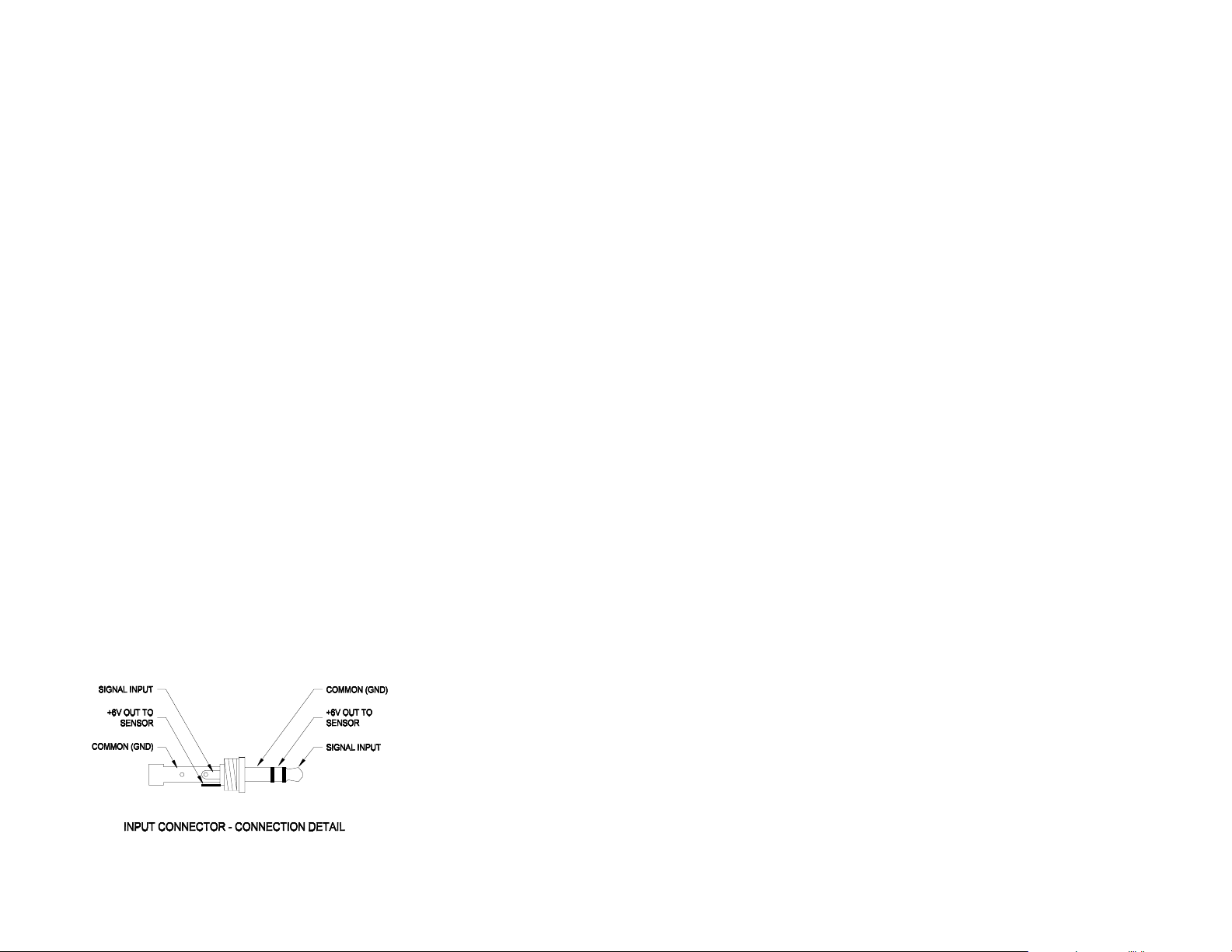

The input jack is the
one with the arrowhead
pointing toward it ("
closest to the black
knob) and enables an
external signal to

Page 12

Red Dot

Notches

Figure 4

the lens notches onto the two small tabs to prevent lens rotation. Push
the tabs on the front rim outward and press the lens into place.

trigger the strobe. Inserting a plug into the input jack will put the strobe
into the External mode. The range for triggering is from 0 flashes per
second to 233 flashes per second (14,000 flashes per minute). The
display will only display down to 0.08 FPS (5 FPM). There is typically a
5 msec delay from trigger input to flash. The trigger source should provide
a pulse with a minimum duration (width) of 20 µsec.

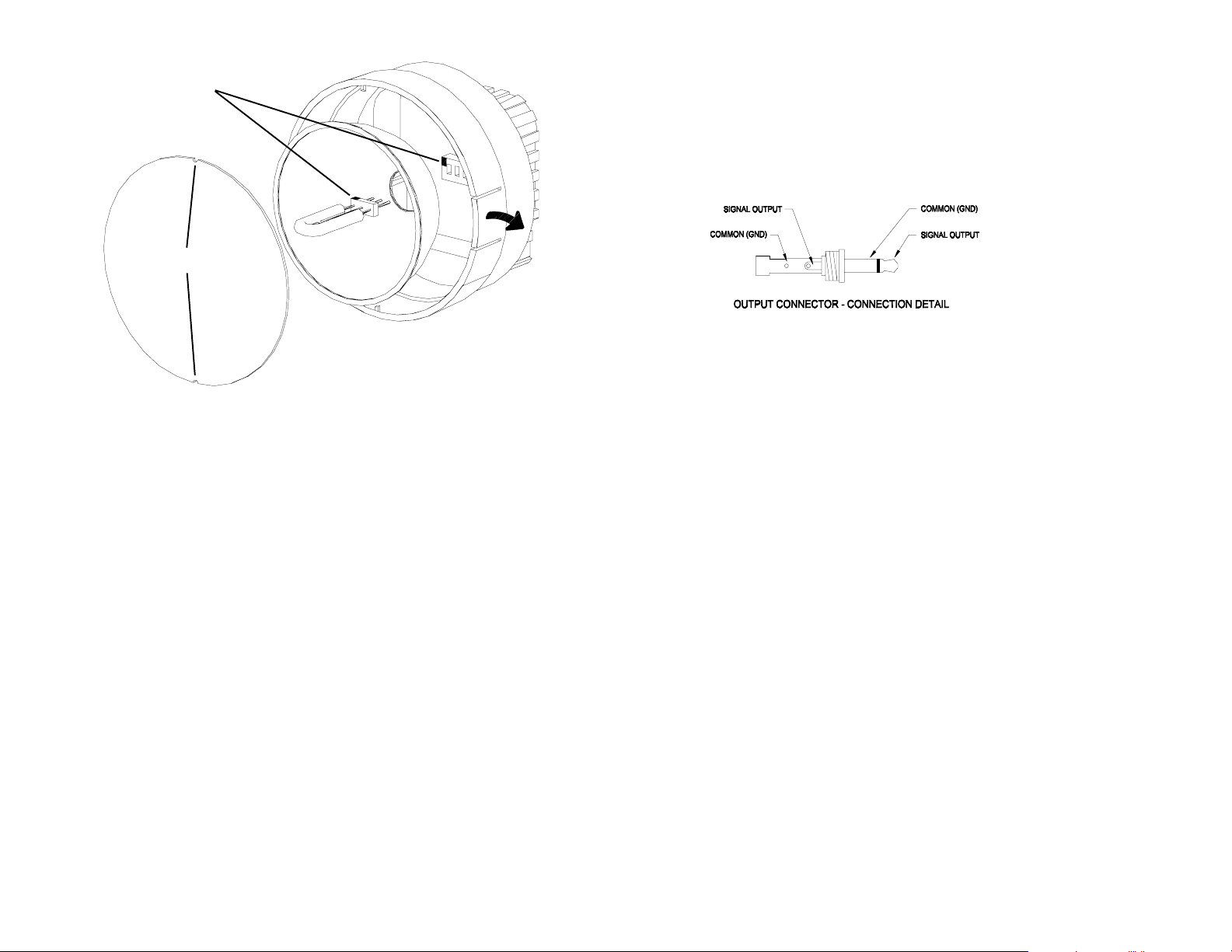

The output jack is the
one with the arrowhead
pointing away from it (#
closest to the reflector).
With no external input
this output provides a
TTL compatible pulse

Figure 2

output pulse mimics the input pulse. This output pulse may be used to
trigger a second stroboscope synchronously to illuminate larger areas.
Many strobes can be “daisy chained”. The output jack of one strobe is
connected to the input jack of the next strobe causing all the strobes to
flash together and be controlled by the first strobe in the chain.

from the strobe’s internal
oscillator. If an external
input is applied, the

5.2 Low Battery Indication (Battery Powered Model Only)

When the batteries are low, the display blinks “LO BAT” every second.
The strobe may still be used for a short time. When the battery charge
is further depleted, the strobe will stop flashing, display “LO BAT” and
then completely shut off. The unit needs to be recharged. Remember
to release the trigger switch.

5.3 Battery Recharger (Battery Powered Model Only)
The unit should not be left on charge indefinitely as this will damage

the lead acid batteries.
TO AVOID SERIOUS DAMAGE TO THE STROBOSCOPE, USE ONLY

THE PROVIDED AND APPROVED RECHARGERS.

See Charger Mode Section 3.4 above.

Page 11

2.0 LCD PANEL DISPLAY SYMBOL DEFINITION

Ext — External Mode active.
Tach — Tachometer Mode active (strobe won’t flash).
Alt Function — Indicates second function of each button and knob

will be used.

FPS — Flashes Per Second is on the display.
FPM — Flashes Per Minute is on the display.

$ — Remote Sensor On Target Indicator.

- - - - - — Indicates input frequency exceeds the limit of the

stroboscope.

LO BAT — (Battery Powered Model Only) Flashes on

display when the battery is getting low. It is on
steady when strobe must be recharged.

3.0 OPERATION

To turn on the stroboscope, depress the trigger. The trigger may be locked in
position using the side locking button. T o do this while holding the unit in the right
hand, depress the trigger as far as it will go, and then using the thumb press the
locking button. Y ou may release the trigger and the trigger will be held in place.
T o release, simply depress the trigger and then release.

Page 4

When the strobe is powered up, it will begin flashing immediately. It will
remember the last internal flash rate and whether to display in FPM or FPS.

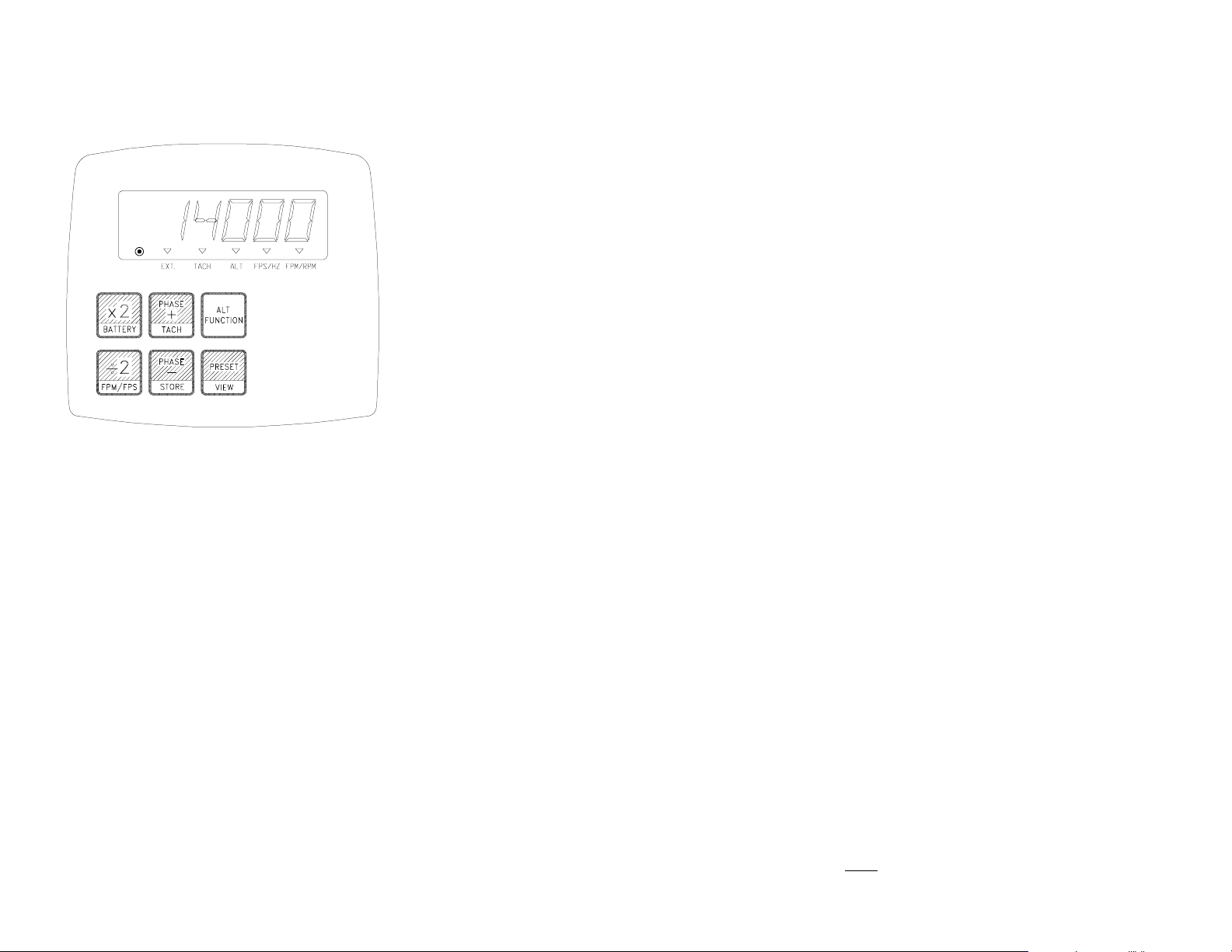

The back panel consists
of a backlighted liquid
crystal display with six
alphanumeric digits
which indicate modes,
flash rates, etc. (Fig 3).
Below the six digits are
five small chevrons (#)
which indicate the
present mode or value
currently indicated - Ext
(External mode), Tach,
Alt function, FPS (
Flashes Per Second),
and FPM (Flashes Per
Minute). The External
Chevron is on whenever

Figure 3

external input jack. The Tachometer chevron is on whenever the tachometer
only (no flashing) mode is selected. The Alt Function chevron toggles
whenever the Alt function button is pressed. When this chevron is on, the
buttons will perform their alternate function listed in the white (lower) section
of each button. The FPS chevron is on when the display is displaying Flashes

Per Second or Hertz (Hz). FPS = FPM ÷ 60. The FPM chevron is on when
the display is displaying Flashes Per Minute.

Below the display are six membrane buttons which control the operation of
the Stroboscope.

There are three major operating modes for the Strobe. These are Internal,
External and Charging (Battery powered model only). In the Internal mode,
the knob adjusts the flash rate from 30 to 14,000 Flashes Per Minute (FPM).
In the External mode, an external signal from a remote sensor is used to
trigger the flash and the knob has no effect. The Charging mode (Battery
powered model only) is when the strobe has the battery charger plugged
into it. The strobe will continuously display the state of the battery charge
while being recharged.

Page 5

the strobe is in the
external mode. That is
when it has an external
signal plugged into the

In instances when you can shut down the device and install a piece of
reflective tape then an optical tachometer is easier to use for RPM
measurement. Stroboscopes must be used when you can’t shut down
the device. The human eye is not easily tricked into seeing a stopped image
by a stroboscope when the flash rate is slower than 300 FPM. Therefore,
stroboscopes are just about impossible to use below 300 FPM for inspection
or to measure RPM.

5.0 MISCELLANEOUS

5.1 Lamp Replacement

The replacement of the lamp can be accomplished by using only a
pocket screwdriver.

THERE IS NO NEED TO REMOVE ANY SCREWS TO REPLACE THE
LAMP.

BEFORE ATTEMPTING TO REMOVE THE LAMP MAKE SURE THE
STROBOSCOPE IS TURNED OFF AND ANY MAINS CORD
REMOVED FROM THE AC OUTLET. ALLOW THE LAMP TO COOL
BUT WAIT AT LEAST 1 MINUTE BEFORE ATTEMPTING TO
CHANGE THE LAMP.

The stroboscope is designed to discharge the internal high voltages
within 30 seconds. However, caution should be exercised when replacing
the lamp.

To change the lamp it is necessary only to remove the front lens. The
lens is held in place by two tabs on the sides of the reflector housing.
These must be pushed apart and the lens removed. A small screwdriver
can be used to help pry one tab and lift the lens. Take care not to pry
the tab any more than is necessary to free the lens. The reflector is held
in place by the front lens and will come loose. It is not necessary however
to remove the reflector. The lamp should be held with a cloth between
forefinger and thumb and rocked gently while pulling out. Do not attempt
to rotate the lamp. The lamp is socketed and will come out easily when
pulled.

DO NOT TOUCH THE NEW LAMP WITH BARE FINGERS. The new
lamp is fitted by locating the plug pins into the socket. The lamps are
polarized. Using a lint free cloth, match up the red dot on the plug
with the red dot on the socket and gently rock the lamp while pushing
it into place. Make sure the lamp is in straight and centered in the reflector
hole. Caution - Do NOT allow the reflector to contact the lamp.
Reinstall the reflector and then position the front lens in place. Position

Page 10

If the speed of rotation is within the range of the stroboscope, start at the
highest flash rate and adjust the flash rate down. At some point you will stop
the motion with only a single image of the object in view. Note that at a flash
rate twice the actual speed of the image you will see two images. As you
approach the correct speed you may see three, four or more images at
harmonics of the actual speed. The first SINGLE image you see is the true
speed. To confirm the true speed, note the reading and adjust the
stroboscope to exactly half this reading, or just press the ÷2 button. You
should again see a single image (which may be phase shifted with respect
to the first image seen).

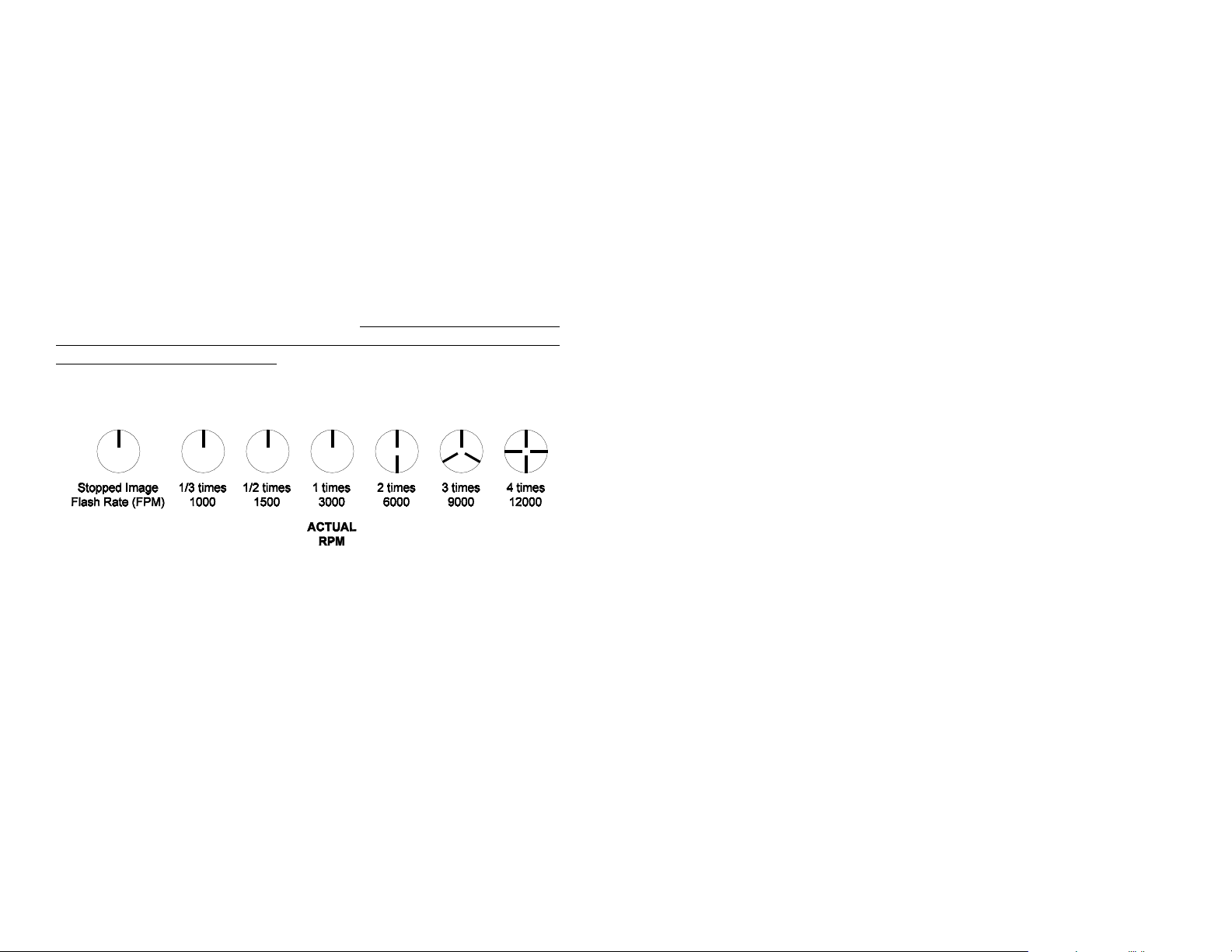

For example, when viewing a shaft with a single key way you will see one
stationary image of the key way at the actual speed and at 1/2,1/3,1/4, etc,
of the actual speed. You will see 2 images of the key way at 2 times the
actual speed, 3 key way at 3 times, etc. The FPM equals the shafts
Revolutions Per Minute (RPM) at the highest flash rate that gives only one
stationary image of the key way.

Example: object rotating at 3000 RPM

3.1 Internal Mode - Standard Strobe Operation

In the INTERNAL Mode the stroboscope generates it’s own signals
and functions like a tunable stroboscope. The strobe is in the internal
mode when nothing is plugged into the input jack.

The flash rate can be adjusted using the black knob on the left of the
unit. The current flash rate is displayed. Turn the knob counter clockwise
to increase the flash rate and clockwise to decrease it. If an attempt to
change a value would cause the flash rate to exceed the minimum or
maximum, the value remains unchanged. Refer to section 1.1 above
for more detail on changing flash rates.

The flash rate can be doubled or halved instantly by pressing the x2
or ÷2 buttons respectively up to the maximum or minimum allowed.

Once the flash rate has been adjusted to give a stopped motion image,
the Phase + and Phase - buttons may be used to increase or decrease
the phase of the image. Press and hold the Phase + button to have the
image appear to slowing rotate in the direction the object is actually
rotating. Press and hold the Phase - button to rotate the image in the
opposite direction the object is actually rotating. Use the phase buttons
to bring a reference mark , such as a key way, into your line of sight.
The Store button stores the current flash rate into the last preset location
viewed.

If the speed is outside the full scale range of the stroboscope (14,000 FPM),
it can be measured using the method of harmonics and multipoint calculation.
Start at the highest flash rate and adjust the flash rate down. You will
encounter multiple images so be aware of these. Note the flash rate of the
first SINGLE image you encounter, call this speed “A”. Continue decreasing
the flash rate until you encounter a second SINGLE image. Note this speed
as “B”. Continue decreasing the speed until you reach a third SINGLE image
at speed “C”. For a two point calculation the actual speed is given by

RPM = AB/(A-B)

For a three point calculation

RPM = 2XY(X+Y)/(X-Y)2 where
X = (A-B) and
Y = (B-C)

If a Remote Optical Sensor or Magnetic Sensor is used to sense one pulse
per revolution (External mode), the readout will display directly in RPM (FPM)
without any adjustment required.

Page 9

The Preset button will cycle through six different preset flash rates.
These rates are set at the factory to be: 100, 500, 1000, 3600, 7200
and 14000 FPM. Each time this button is pressed, the flash rate and
display is changed to the next preset. The presets can be changed by
the user using the Store button. The Store button stores the current
flash rate into the last preset location the user has viewed.

See section 3.3 for more features.

3.2 External Mode - External Input Required

The strobe is in the external mode whenever there is a plug in the input jack.
The External chevron comes on automatically to indicate this mode.

In the EXTERNAL mode there are no flash rate adjustments the user
can make. The Flash rate is a function of the input signal. This mode is
used to synchronize the flash to an external event (for example, from
an optical sensor) to stop or freeze motion. The flash will be triggered
on the rising edge of the external input pulse. The Alt Function mode
and chevron is automatically set in this mode, since the primary function
of the buttons have no use in this mode.

Page 6

3.3 Common Features for Both Internal and External Modes

The Alt Function button toggles the Alt Function chevron. When the
Alt Function chevron is on, the buttons will perform their secondary
function listed in the white section of each button. It also changes how
the tuning knob works.

Below are all the Alternate functions of each button:

For example: A 3 bladed fan is spinning at 3600 RPM. The strobe is
flashing at 3600 FPM. Press the Alt button to turn on the Alt chevron.
Now turn the knob clockwise 2 clicks. The strobe is now flashing at
10,800 FPM (effectively 3600 times 3) The fans blades are all
superimposed on each other. One can now see if the blades are out of
alignment, bent, etc by viewing the blades from the front or viewing
from the edge of the blades.

The Battery button (Battery powered model only) will display the current
battery charge level from 0 to 100% for about 2 seconds. When the
strobe is not flashing, this number represents the percentage of usable
charge left in the batteries. When the strobe is flashing, this number will
be lower. It will decrease with increasing flash rates. This will give the
user, an indication of how much quicker the batteries will be discharged
at a given flash rate.

The FPM/FPS button toggles the display between Flashes Per
Minute(FPM) and Flashes Per Second (FPS). The FPM and FPS
chevrons on the display indicate which way the flash rate is being
displayed.

Note that the unit automatically converts between FPM and FPS so
you can set the rate in FPM then view it in FPS by simply pressing the
FPM/FPS button.

The Tach button toggles the Tach chevron on the display. When the
chevron is on, the strobe is inhibited from flashing. In the external mode,
the strobe can be used as a tachometer without having the strobe flash.
In the internal mode, the strobe can be used as a frequency generator
(outputting TTL pulses) without having the strobe flash.

The Store button stores the current flash rate into the last preset location
the user has viewed.

The View button displays the next flash rate preset (one of six). It does not
change the flash rate. This allows the user to select which preset to write
over before storing the current flash rate by pressing the Store button.

When the Alt Function chevron is turned on, the current flash rate is
used as an adder. Now as long as the Alt Function chevron remains on,
the knob will add (counter clockwise) or subtract (clockwise) that initial
flash rate for each “click” the knob is turned. This in effect allows the
user to multiply the initial flash rate by 2, 3, 4, 5, etc up to the maximum
flash rate. This is very helpful on fan blades. Using this feature, one
can superimpose the blades on top of each other and check for blade
tracking, bent blades, lead and lag tests, etc.

Page 7

3.4 Charger Mode (Battery Powered Model Only)

When the charger plug is inserted into the charger jack, the strobe will
go into the charger mode. Make sure the trigger switch is not depressed.
The strobe will not do anything else when charging. (e.g. it will not flash
and the buttons have no function)

When the charger plug is inserted the strobe will display the current
battery charge percent and fast charge the batteries for up to 3 hours or
until the batteries are mostly charged. It will then turn on all the chevrons
to indicate it is now trickle charging the batteries. It should be allowed to
trickle charge the batteries for a total of 14 hours for peak performance.

3.5 Power Up Features

First press and hold the one of the buttons listed below, then turn on the
strobe using the trigger switch:

The Store button will restore the factory programmed presets. These
are: 100, 500, 1000, 3600, 7200 and 14000 FPM

The Alt Function button will turn on all the display segments for two
seconds. It will then show the software revision, “REV x.x”.

4.0 USING THE STROBOSCOPE TO MEASURE RPM

The primary use for a stroboscope is to stop motion for diagnostic inspection
purposes. However the stroboscope can be used to measure speed. In
order to do this several factors need to be considered. First, the object
being measured should be visible for all 360° of rotation (e.g. The end of a
shaft). Second, the object should have some unique part on it, like a bolt,
key way or imperfection to use as a reference point. If the object being
viewed is perfectly symmetrical, then the user needs to mark the object with
a piece of tape or paint in a single location only, to be used as a reference
point. Look only at the reference point.

Page 8
