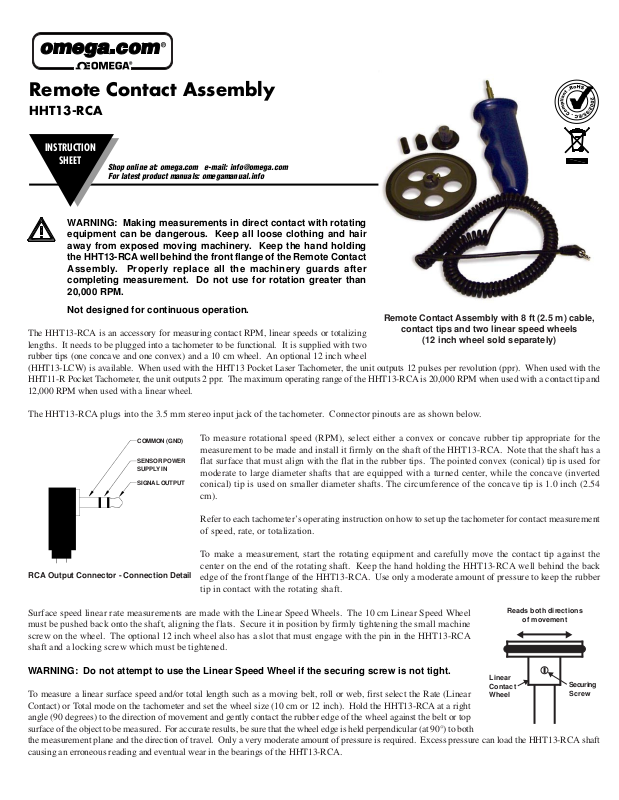

Omega HHT13-RCA User guide

Remote Contact Assembly

HHT13-RCA

INSTRUCTION

SHEET

Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.info

WARNING: Making measurements in direct contact with rotating
equipment can be dangerous. Keep all loose clothing and hair
away from exposed moving machinery. Keep the hand holding
the HHT13-RCA well behind the front flange of the Remote Contact
Assembly. Properly replace all the machinery guards after
completing measurement. Do not use for rotation greater than
20,000 RPM.

Not designed for continuous operation.

The HHT13-RCA is an accessory for measuring contact RPM, linear speeds or totalizing
lengths. It needs to be plugged into a tachometer to be functional. It is supplied with two
rubber tips (one concave and one convex) and a 10 cm wheel. An optional 12 inch wheel
(HHT13-LCW) is available. When used with the HHT13 Pocket Laser Tachometer, the unit outputs 12 pulses per revolution (ppr). When used with the
HHT11-R Pocket Tachometer, the unit outputs 2 ppr. The maximum operating range of the HHT13-RCA is 20,000 RPM when used with a contact tip and
12,000 RPM when used with a linear wheel.

The HHT13-RCA plugs into the 3.5 mm stereo input jack of the tachometer. Connector pinouts are as shown below.

To measure rotational speed (RPM), select either a convex or concave rubber tip appropriate for the
measurement to be made and install it firmly on the shaft of the HHT13-RCA. Note that the shaft has a
flat surface that must align with the flat in the rubber tips. The pointed convex (conical) tip is used for
moderate to large diameter shafts that are equipped with a turned center, while the concave (inverted
conical) tip is used on smaller diameter shafts. The circumference of the concave tip is 1.0 inch (2.54
cm).

Refer to each tachometer’s operating instruction on how to set up the tachometer for contact measurement
of speed, rate, or totalization.

To make a measurement, start the rotating equipment and carefully move the contact tip against the
center on the end of the rotating shaft. Keep the hand holding the HHT13-RCA well behind the back
edge of the front flange of the HHT13-RCA. Use only a moderate amount of pressure to keep the rubber
tip in contact with the rotating shaft.

Surface speed linear rate measurements are made with the Linear Speed Wheels. The 10 cm Linear Speed Wheel
must be pushed back onto the shaft, aligning the flats. Secure it in position by firmly tightening the small machine
screw on the wheel. The optional 12 inch wheel also has a slot that must engage with the pin in the HHT13-RCA
shaft and a locking screw which must be tightened.

WARNING: Do not attempt to use the Linear Speed Wheel if the securing screw is not tight.

To measure a linear surface speed and/or total length such as a moving belt, roll or web, first select the Rate (Linear
Contact) or Total mode on the tachometer and set the wheel size (10 cm or 12 inch). Hold the HHT13-RCA at a right
angle (90 degrees) to the direction of movement and gently contact the rubber edge of the wheel against the belt or top
surface of the object to be measured. For accurate results, be sure that the wheel edge is held perpendicular (at 90°) to both
the measurement plane and the direction of travel. Only a very moderate amount of pressure is required. Excess pressure can load the HHT13-RCA shaft
causing an erroneous reading and eventual wear in the bearings of the HHT13-RCA.

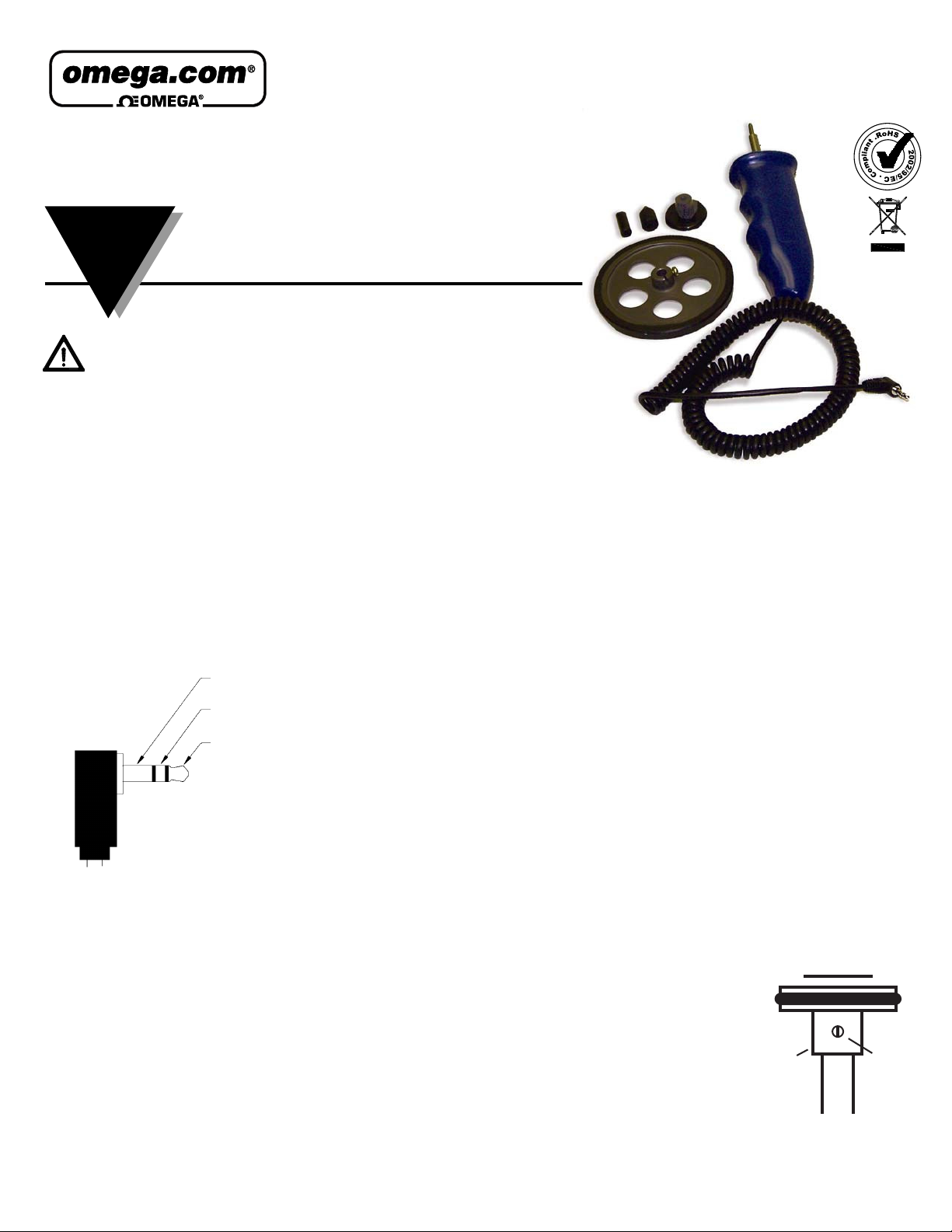

Remote Contact Assembly with 8 ft (2.5 m) cable,

contact tips and two linear speed wheels

(12 inch wheel sold separately)

COMMON (GND)

SENSOR POWER
SUPPLY IN

SIGNAL OUTPUT

RCA Output Connector - Connection Detail

Reads both directions

of movement

⊳ u

Linear
Contact
Wheel

⊳

u

Securing
Screw
