Omega HHP8200 User guide

TM

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

www.omegamanual.info

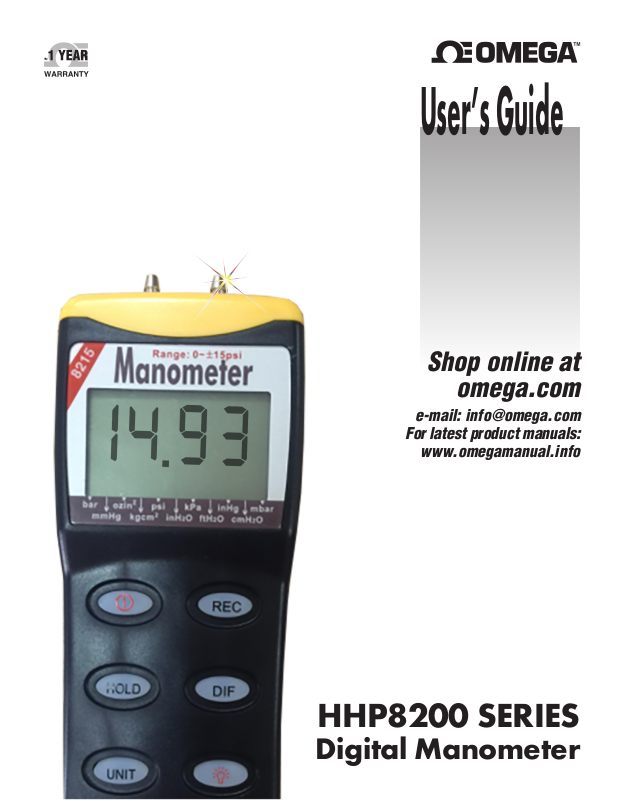

HHP8200 SERIES

Digital Manometer

omega.com [email protected]

Servicing North America:

U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.

1

Introduction

Section 1 - Introduction

• The Meter will display all LCD segments when it is first turned on for approx.
3 seconds. Though you might see DATALOGGER, Y/M/D, REL, AVG... these
segments are not available for these meters.

• The LCD is divided into two distinct sections: One large (primary) top screen
and one smaller right - bottom screen (Relative Clock). The two display areas
keep you constantly updated with the pressure measurements.

• The Meter measures gauge pressure - a measure of pressure in psi that is
referenced to ambient pressure and differential pressure - a measure of the
difference two pressures.

• 11 Pressure units are selectable for imperial and Metric in different areas: bar,
mmHg, orin², kgcm², psi, inH², kPa, ftH²O, inHg, cmH²O, mbar. .

• 4 Manometer models for your choice: Pressure Range:

• 0~± 5 psi (HHP8205)

• 0~± 15 psi (HHP8215)

• 0~± 30 psi (HHP8230)

• 0~± 100 psi (HHP8200)

Please check the tubing is not leaking or damaged before using.

3

Introduction

Section 1.1 - Conversion & Resolution

5 15 30 100

PSI

Resolution Resolution Resolution Resolution

psi 1.000000 0.003 0.01 0.02 0.1

inch of H20 27.680517 0.1 0.3 0.5 2

bar 0.068948 0.001 0.001 0.002 0.004

mbar 68.948253 0.2 1 2 4

mm of Hg 51.712016 0.2 0.5 1 3

oz/inch^2 16.000844 0.05 0.2 0.3 1

kg/cm^2 0.070309 0.001 0.001 0.002 0.004

kPa 6.894859 0.02 0.1 0.2 0.4
ft of H2O 2.306719 0.01 0.02 0.04 0.2

1

cm of H2O 70.309000 0.2 1 2 4

Model/Unit psi inH2O mbar

kg/cm²

HHP8205 5 138 245 0.35
HHP8215 15 415 1034 1.05
HHP8230 30 830 2068 2.10
HHP8200 100 2768 6895 7.03

4

2

Controls

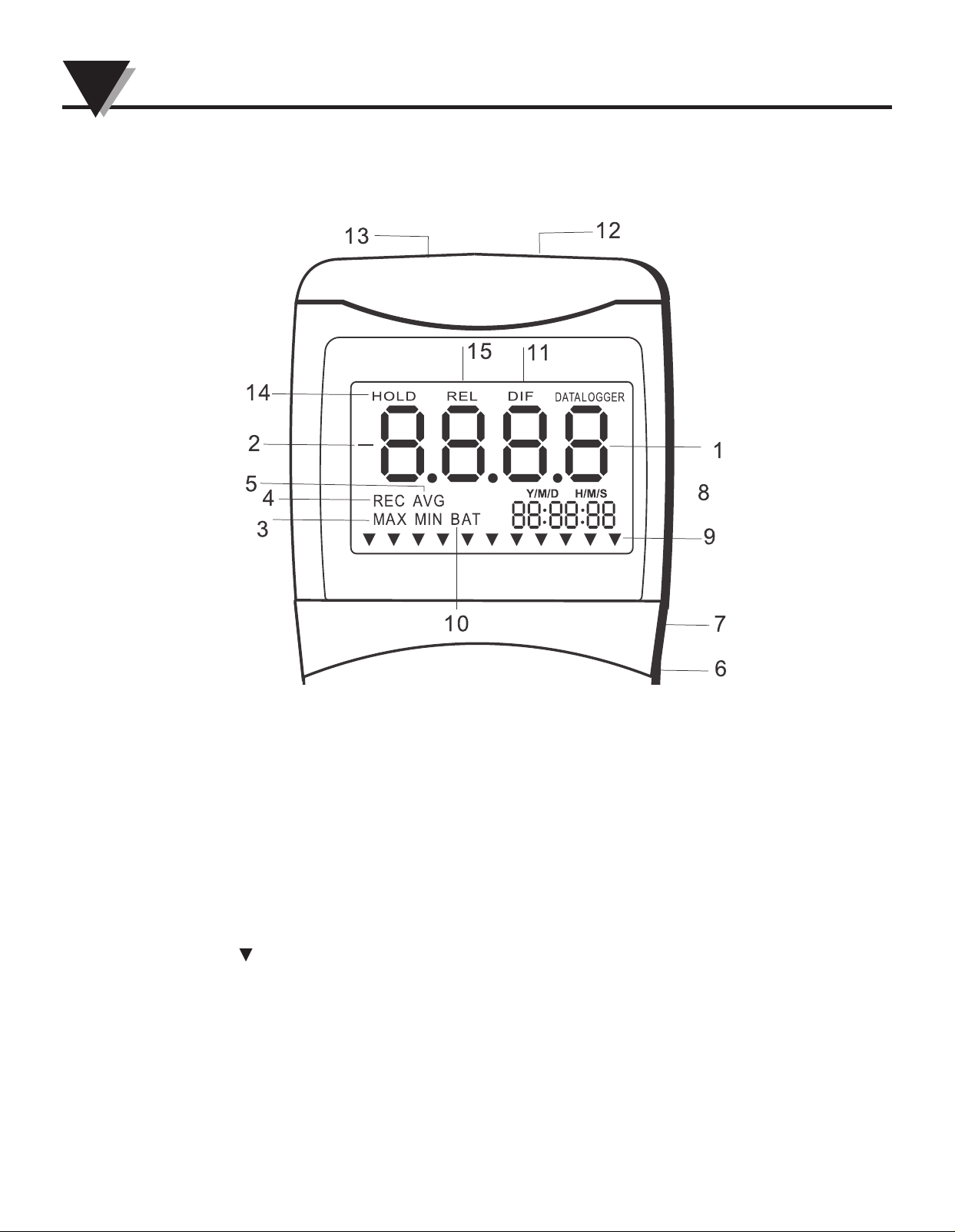

Section 2.1 - Controls and Indicators

1. Primary Data Screen displays pressure value.

2.

: Minus pressure display.

"-"

3. MAX MIN : Pressure recorded.

4. REC : Starts recording mod and displays max/min. pressure recorded.

5. AVG : Average records (N/A).

6. DC : Power in Jack.

7. RS 232 : output port.

8. H/M/S : 88:88:88 displays data for Hour/Minute/Second.

9. : Pressure unit indication.

10. BAT : Battery low indicator.

11. DIF : Differential pressure mode.

5

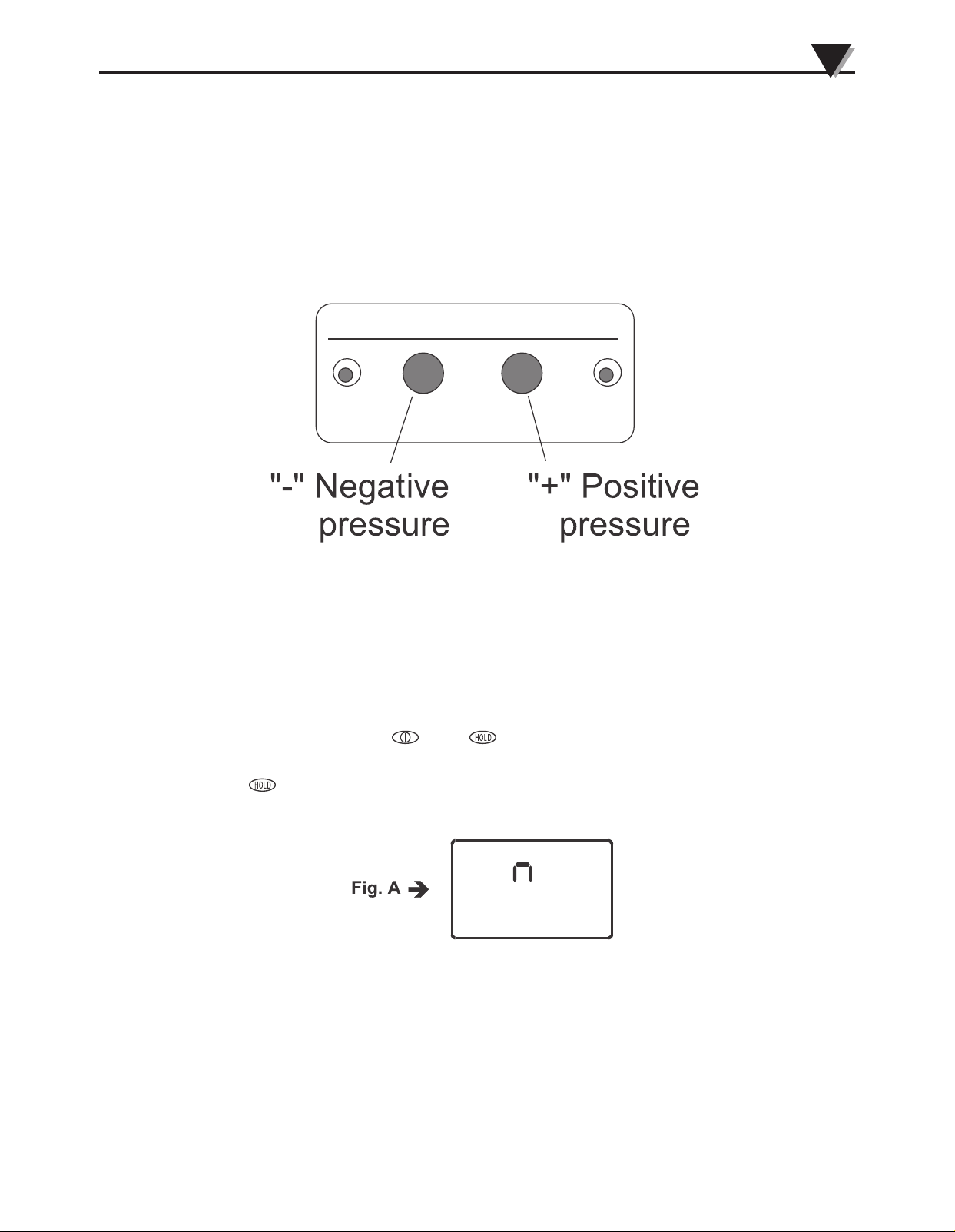

Controls

2

12.

13.

14. Hold : Freezes pressure reading.

15. REL : Establish a relative zero for the primary screen information. (N/A)

: Positive pressure hoseplug.

"+"

: Negative pressure hoseplug.

"-"

Section 2.2 - Auto Power Off (Sleep Function)

This instrument will automatically shut off in approx. 20 minutes for every
power on.

For recording or operating over longer periods of time, you can disable the sleep
mode by pressing and simultaneously before power on.

An "n" will appear in the middle of the screen at which time you can release the
button. (see Fig. A) The disable sleep mode will be invalid after powering
off.

6

2

Controls

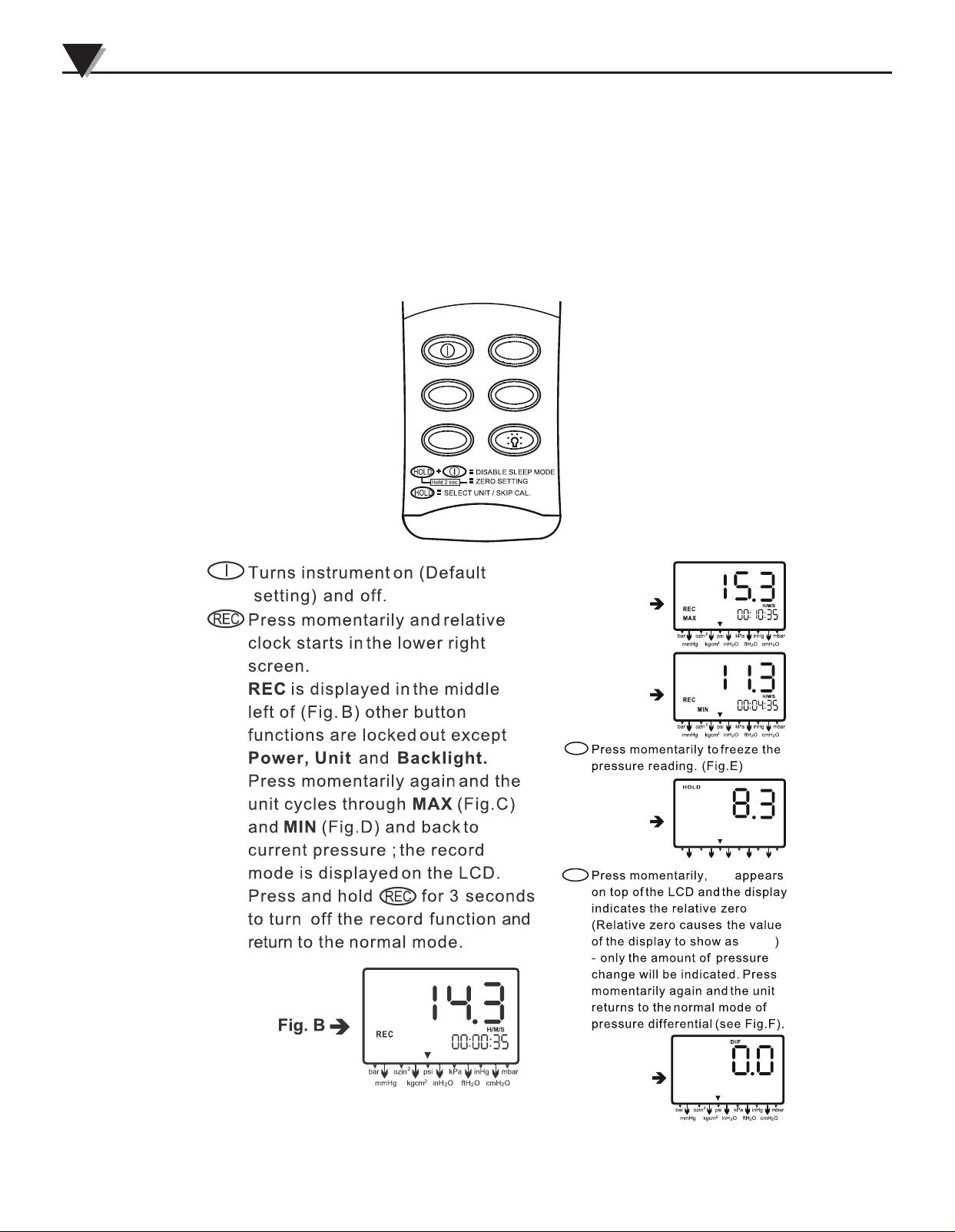

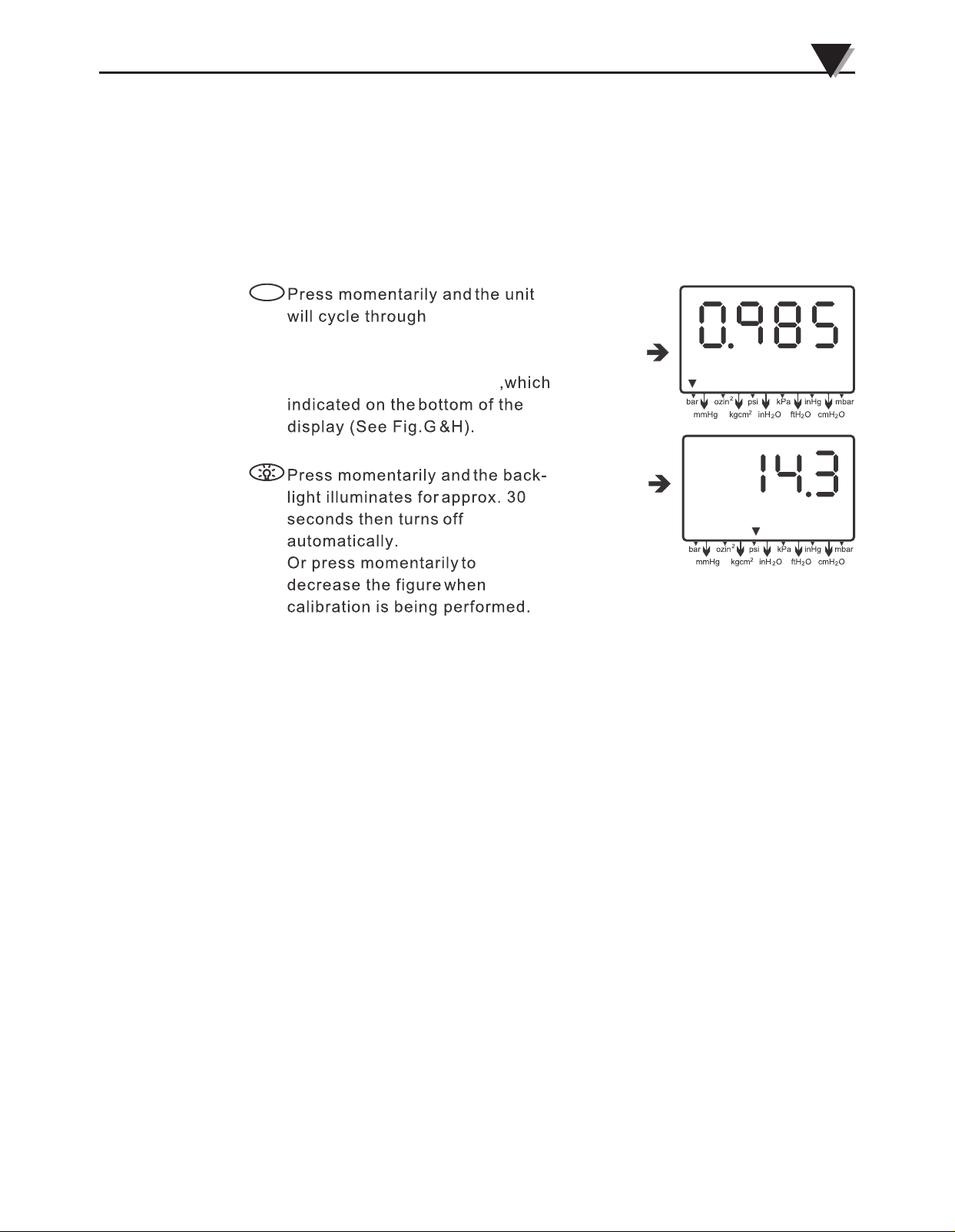

Section 2.3 - Mode Options

Delete and replace with programmable user selectable start-up mode. The
display will default to the mode last used.

For your convenience, the meter defaults to the setting used during the last
operation. The following table lists the last operation. The following table lists
the modes of operation that can be invoked by pressing the button indicated.

REC

HOLD

UNIT

DIF

Fig. C

Fig. D

HOLD

Fig. E

2

bar ozin psi kPa inHg mbar

2

DIF

mmHg kgcm in H 2OftH 2O cmH2 O

DIF

"0.0"

DIF

Fig. F

7

Section 2.3 - Mode Options cont.

Differential Pressure: A measure of the difference between two pressures, i.e. use
differential pressure sensor to measure gauge pressure by leaving one process
connection open to atmosphere and connecting the second sensor port to your
system.

UN IT

"bar" ,

2

"mmHg","ozin
psi" ," InH

2

inHg" ,"cm H

","kgc m2" ,"

O,"kPa","ft H2O" ,"

O" ,"mbar "

2

Controls

Fig. G

2

Fig. H

8

3

Maintenance

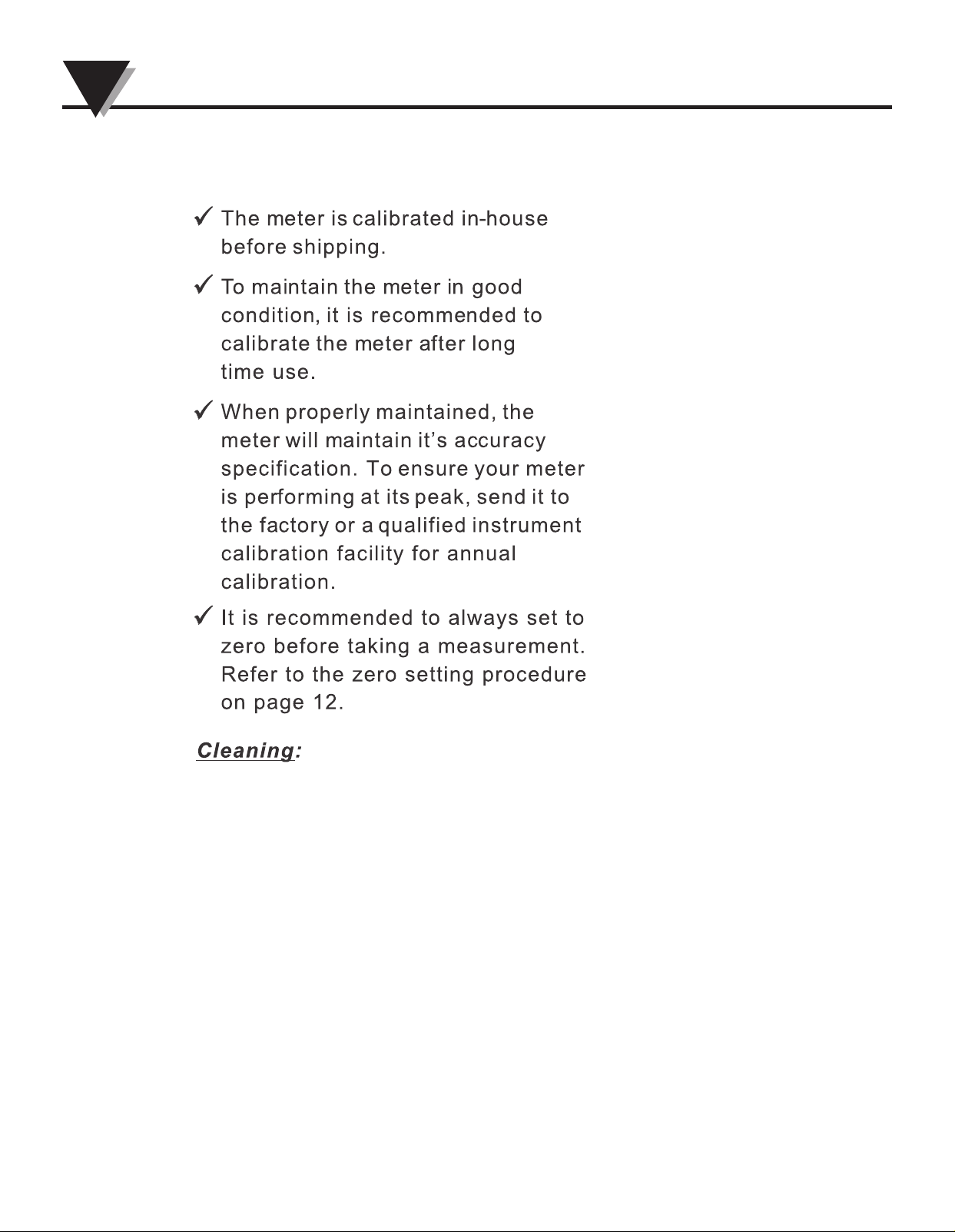

Section 3.1 - Maintenance

Use a damp cloth and mild soap to clean
the case of the Manometer, do not use
harsh detergents or abrasives as these may
mark the surface or damage the unit’s case
with an adverse chemical reaction

9

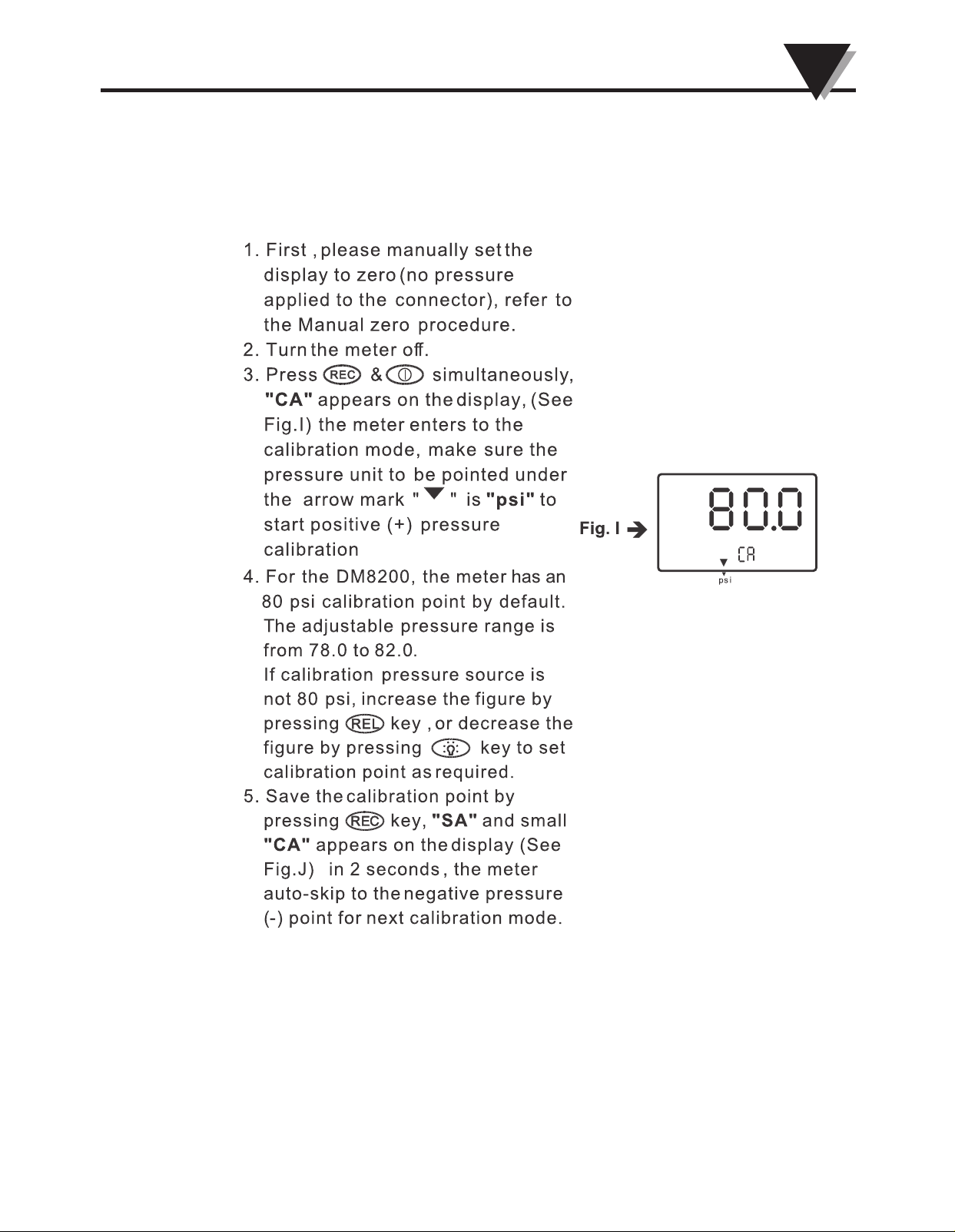

Section 4.1 - Calibration

Calibration mode is only applicable for a standard Manometer calibrator or any
qualified meter calibration facility for annual calibration.

Calibration

4

10

4

Calibration

Section 4.1 - Calibration cont.

Check: (a) The calibration pressure

11

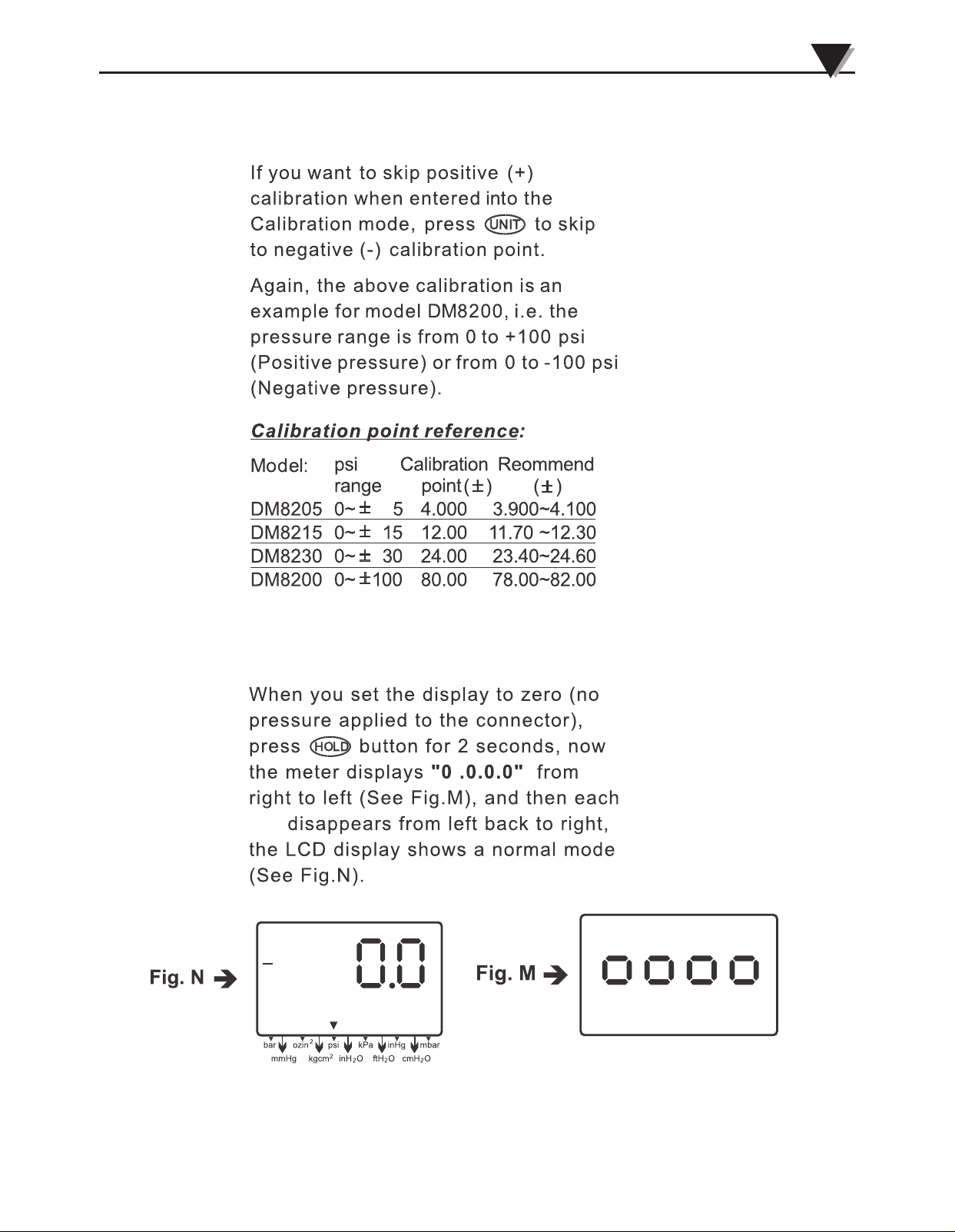

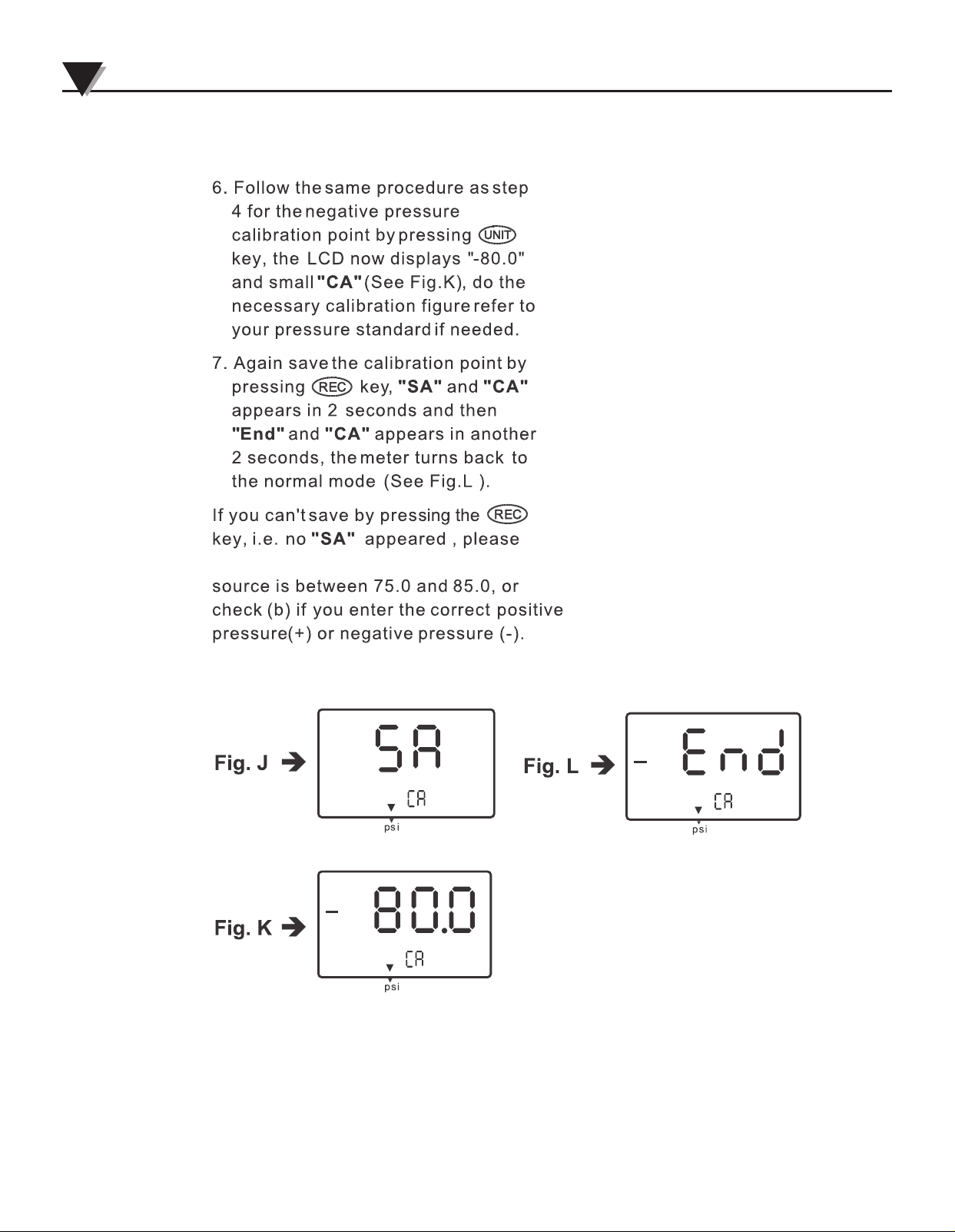

Section 4.1 - Calibration cont.

Calibration

4

Section 4.2 - Manual Zero Setting

"0"

12

5

Troubleshooting

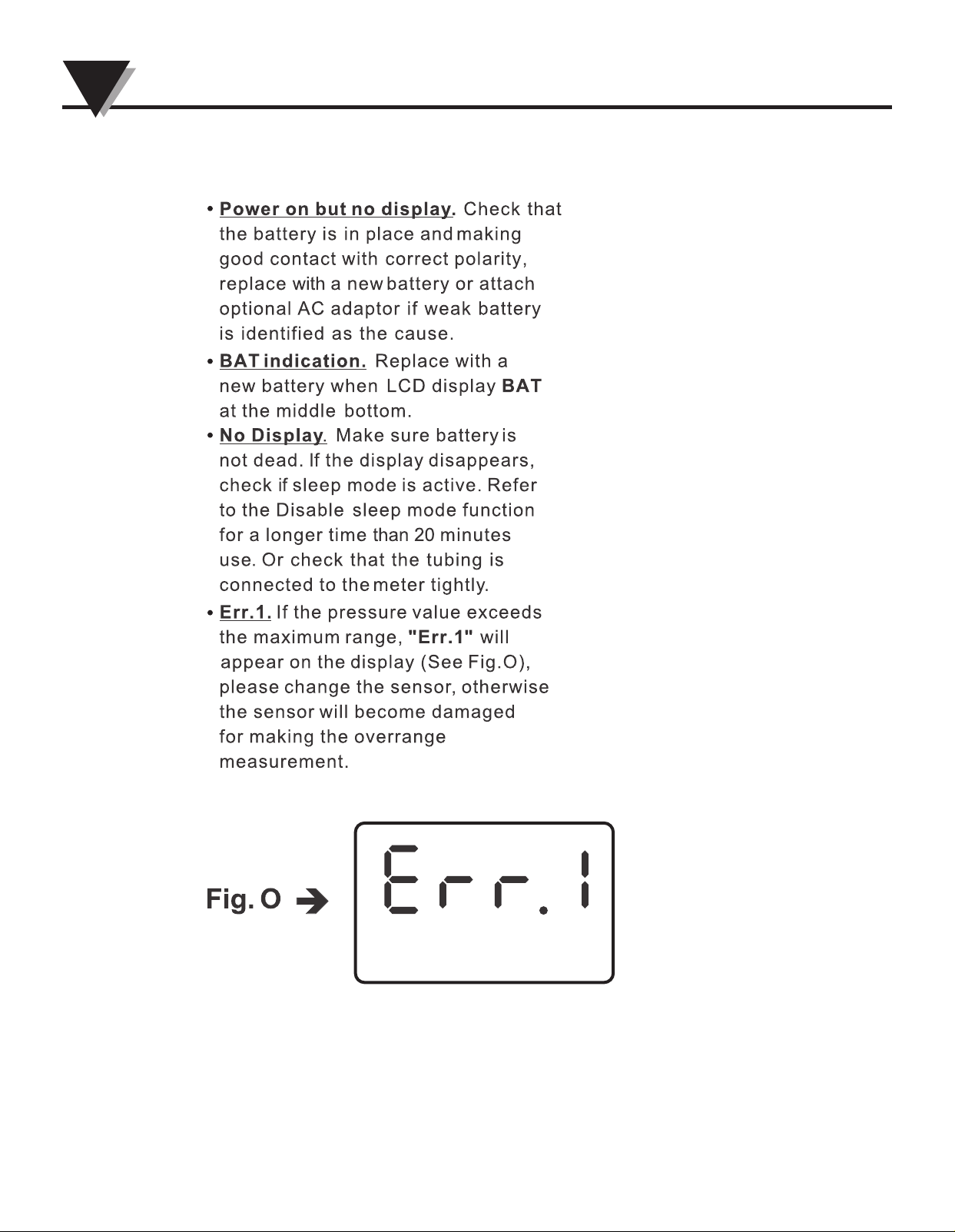

Section 5.1 - TroubleShooting

13

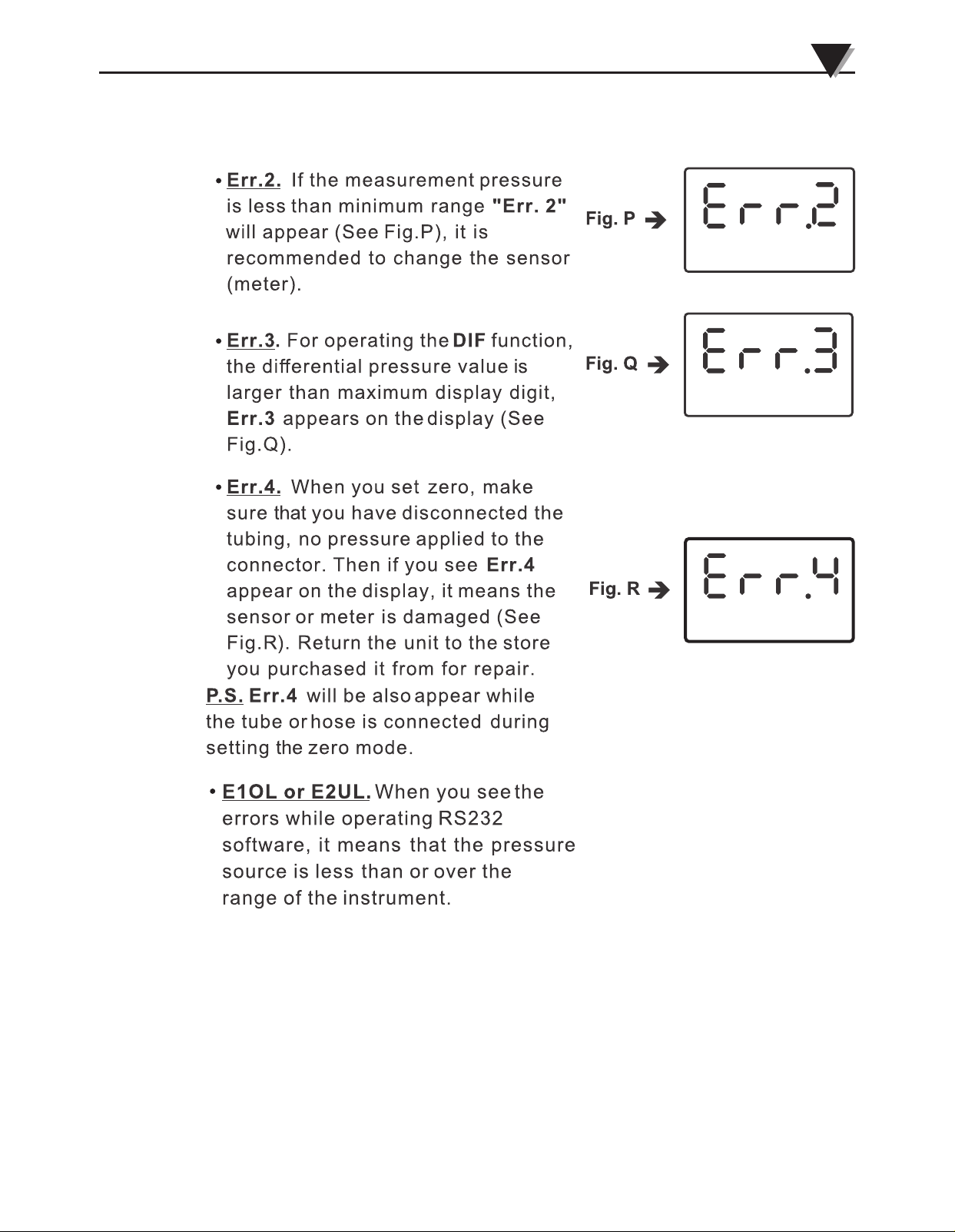

Section 5.1 - Troubleshooting cont.

Troubleshooting

5

14

5

Troubleshooting

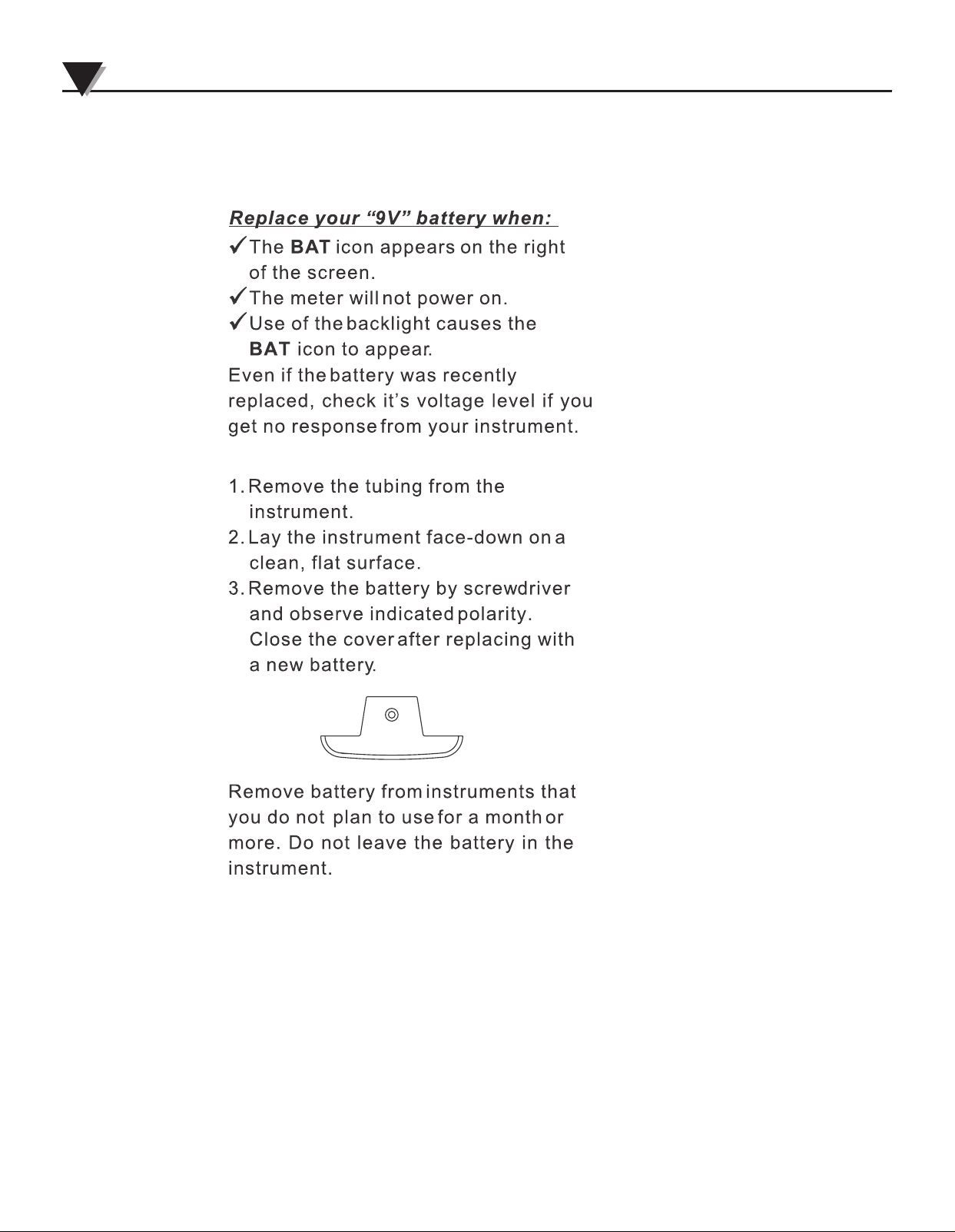

Section 5.2 - Replacing The Battery

To replace the battery :

15

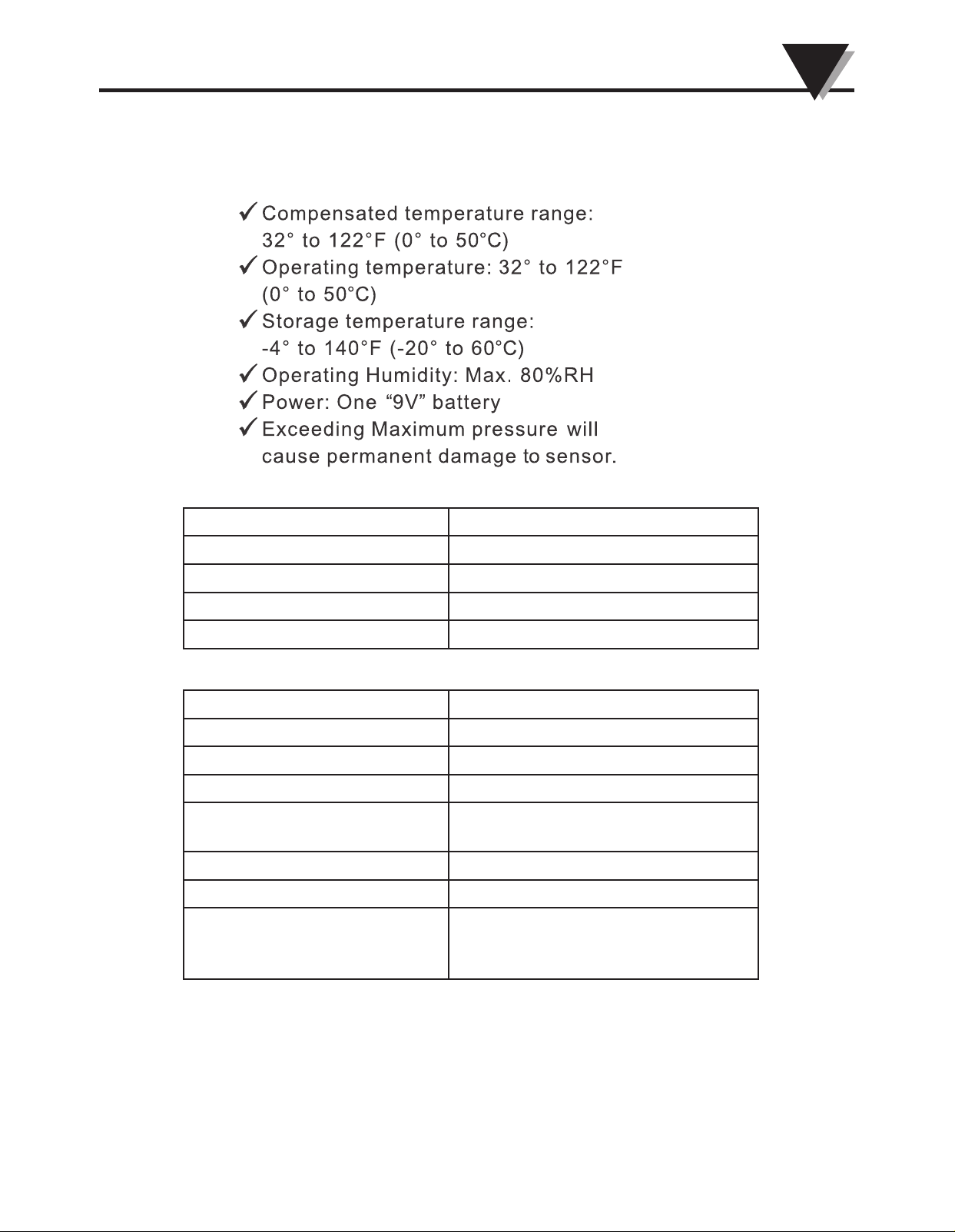

Section 6.1 - Operating Conditions

Operation

6

Model Max. Pressure

HHP8205 20 psi

HHP8215 30 psi

HHP8230 60 psi

HHP8200 150 psi

Pressure

Range

Resolution

Accuracy

Dimensions

Unit Weight

Response Time

Format

0~±(5 or 15 or 30 or 100 psi)

See page 8 data sheet

± 0.3% of full scale at ± 25°C

7.2" x 2.8" x 1.2"
182 x 72 x 30mm

Approx. 7.8 oz (220g) with battery

0.5 seconds

Baud Rate: 2400 bit/sec

Data Bit: 8, Stop Bit: 1

P XXXXX, P - XXXXX (unit)

16

6

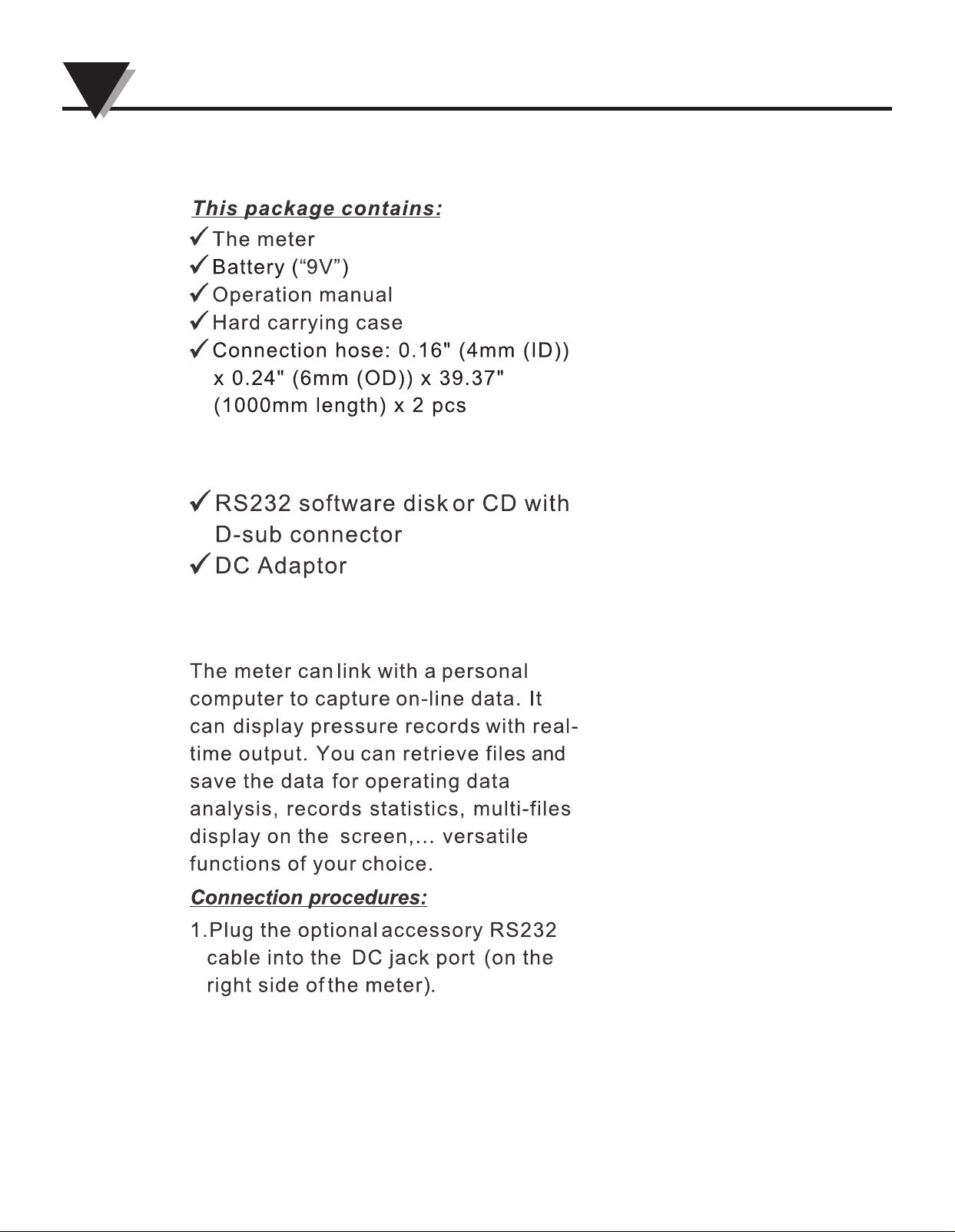

Materials/accessories

Section 6.1 - Materials supplied

Section 6.2 - Optional Accessories

Section 6.3 - Optional Accessories

17

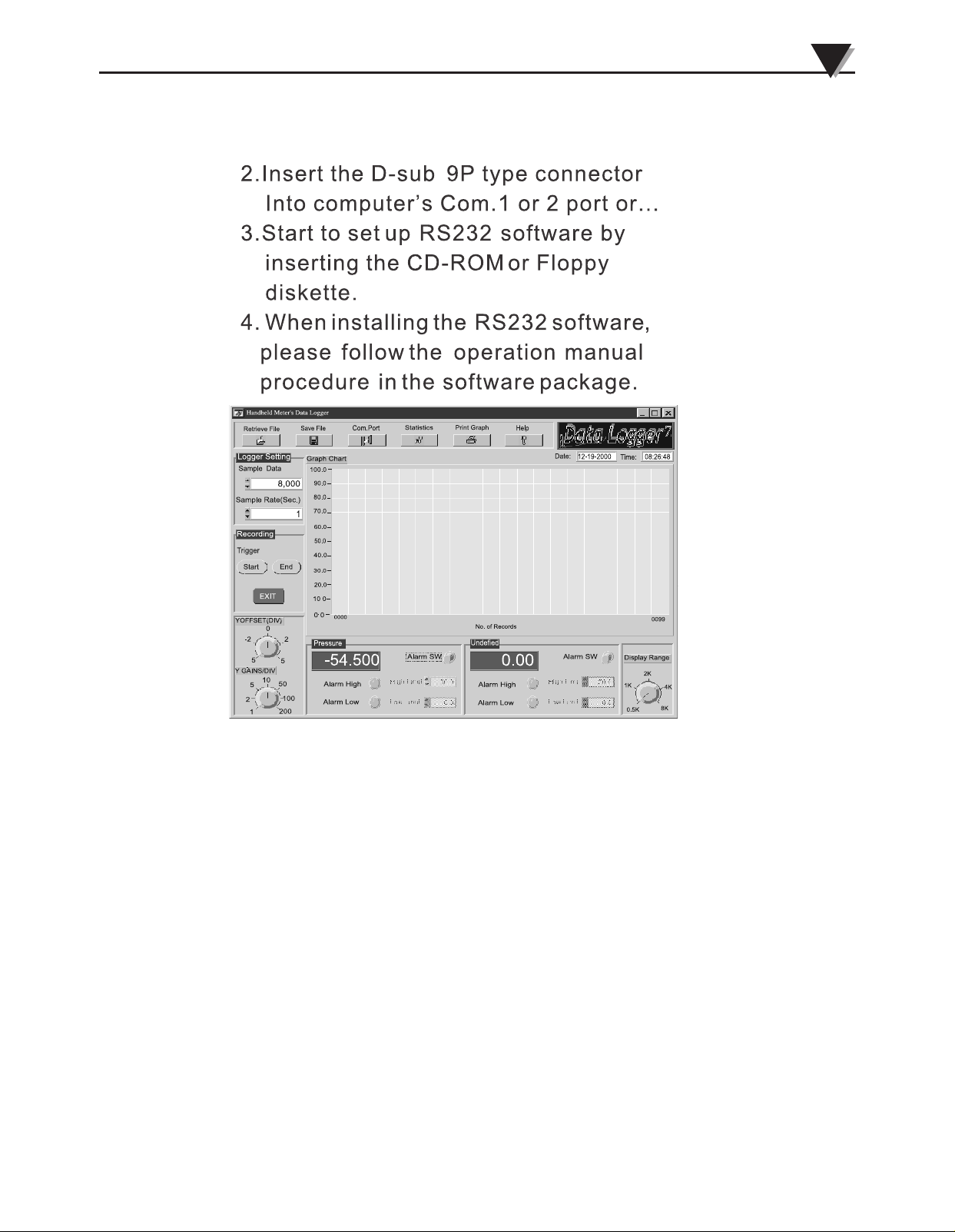

Section 6.3 - Optional Accessories cont.

Materials/Accessories

5

Section 6.4 - Warranty

This meter is warranted to be free from defects in material and
workmanship for a period of one year from the date of purchase.
This warranty covers normal operation and does not cover
battery, misuse, abuse, alteration, tampering, neglect, improper
maintenance, or damage resulting from leaking batteries. Proof of
purchase is required for warranty repairs. Warranty is void if the
meter has been opened.

Section 6.5 - Return Authorization

Authorization must be obtained from the supplier before returning
items for any reason. When requesting a Return Authorization (RA),
Please include data regarding the defective reason.
The meter is to be returned along with good packing to prevent any
damage in shipment and insured against possible damage or loss.

18
