User Manual
HHP452
Smart Manometer
Smart Manometer and Sensors
OMEGA Tethered Sensors
HHP400 Suite Application
Omega 2021
Page 2
M20011 REL-0000 (2103)
Contents
General Information ...................................................................................................................................
Glossary ......................................................................................................................................
General warnings and cautions .......................................................................................................
Preventing injury ..................................................................................................................
Safety symbols .......................................................................................................................
Sample label for General Purpose Smart Manometers ...........................
Fire or explosion hazard ..................................................................................................
For General Purpose series ..........................................................................................
Do not exceed pressure limits ....................................................................................
Sensors .................................................................................................................................................................
Tethered Sensors ..............................................................................................................
How to zero Absolute sensors .................................................................................
How to zero Dierential or Compound sensors .........................................
Smart Manometer .....................................................................................................................................
Battery and USB power ................................................................................................
Batteries ...................................................................................................................................
The display .............................................................................................................................
Keypad: Description of the keys ............................................................................
The backlight ........................................................................................................................
Measurement units ..........................................................................................................
Damping ..................................................................................................................................
Data Logging........................................................................................................................
Leak Test .................................................................................................................................
Relief Valve Test .................................................................................................................
Dierential displays .........................................................................................................
Auto O (Automatic shut o) ...................................................................................
What does the Zero (ø) key do? .............................................................................
HHP400 Suite application .................................................................................................................
How does HHP400 Suite benefit you? ..............................................................
HHP400 Suite and USB Drivers required .......................................................
Tips for using HHP400 Suite ....................................................................................
Connection status.............................................................................................................
Configuration button ......................................................................................................
User Calibration button ................................................................................................
Data Log button .................................................................................................................
TSV file format .....................................................................................................................
Application button ............................................................................................................
Update button ......................................................................................................................
Specifications ..............................................................................................................................................
Internal sensors: type and range ...........................................................................
Omega Tethered Sensors: type and range ....................................................
Overrange limit ...................................................................................................................
Temperature ..........................................................................................................................
User Manual for Smart Manometer
of
Page 3
M20011 REL-0000 (2103)
Relative humidity ...............................................................................................................
Vibration ..................................................................................................................................
Ingress specifications ....................................................................................................
Keypad ......................................................................................................................................
Media compatibility .........................................................................................................
EMC compliance ...............................................................................................................
Weight .......................................................................................................................................
Enclosure ................................................................................................................................
User Manual for Smart Manometer
of
Page 4
M20011 REL-0000 (2103)
General Information
Glossary
Words and phrases with their definitions or explanations.
Words &
phrases
Blinking
FS
Home
Key and
button
Isolated
Customer
Calibration
Definitions or explanations
• It indicates the active edit field on an edit
screen.
• It indicates the displayed value is not actively
changing (like Hold or stopped Test).
• FS is the abbreviation of Full Scale.
• Home is the first screen that displays after
turning on the Smart Manometer. It’s the
screen with measurements and units on it.
• After you press the Home key in many other
screens, the Smart Manometer returns you to
Home.
• A key refers to hardware push-buttons on the
keypad that you can press.
• A button refers to an area in HHP400 Suite
that you can tap or click to select functions.
• The word isolated refers to the sensing
element being separated from the media. It
is commonly used in the phrases Absolute
Isolated (AI) pressure and Compound Isolated
(CI) pressure.
• Customer calibration refers to any calibration
done outside of traceability.
• Customer calibration includes: Multipoint
calibration or adjustment.
Tethered
Sensor
-- P1 --
-- P2 --
p1.P2
DIFF P1-P2
User Manual for Smart Manometer
• A Tethered Sensor always refers to an external
pressure sensor P2.
• P1 on the display always refers to the internal
sensor.
• P2 on the display always refers to the external
pressure sensor.
• Data from the internal and external pressure
sensors display in two lines on the Smart
Manometer at the same time.
• The displayed result of the external pressure
measurement subtracted from the internal
pressure measurement.
of
Page 5
M20011 REL-0000 (2103)
Words &
phrases
Diff p2-p1
--out-
Definitions or explanations
• The displayed result of the internal pressure
measurement subtracted from the external
pressure measurement.
• --out- displays on the process readout
when the information readout is providing
information about exiting tests.
User Manual for Smart Manometer
of
Page 6
M20011 REL-0000 (2103)
General warnings and cautions
Preventing injury
Failure to follow all instructions could result in injury:
▪ Read the entire manual before using the Smart Manometer.
▪ Understand the contents before using the Smart Manometer.
▪ Follow all safety warnings and instructions provided with this
product.
Safety symbols

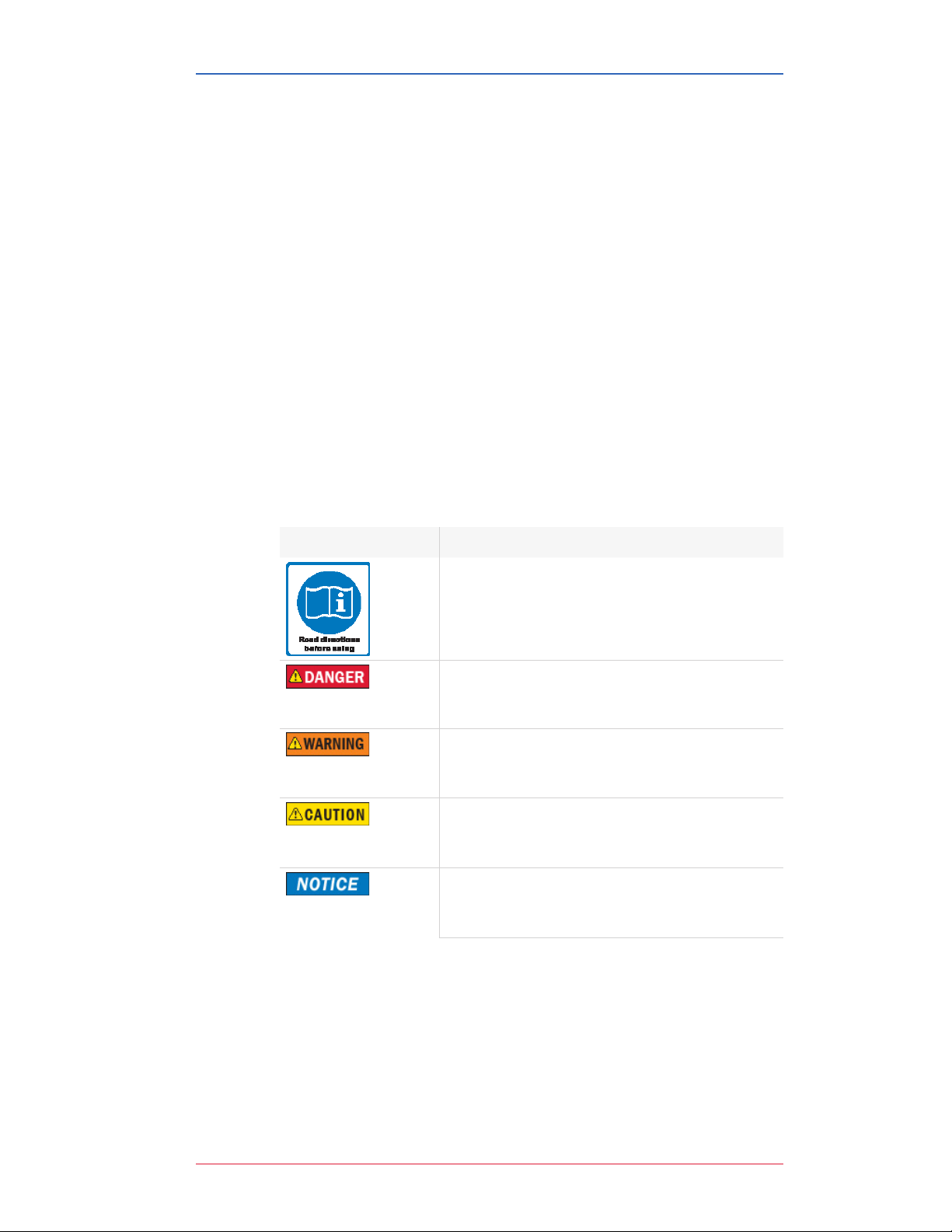

The following table defines the safety symbols, signal words,
and corresponding safety messages used in the manual. These
symbols:
▪ Identify potential hazards.
▪ Warn you about hazards that could result in personal injury or
equipment damage.
Safety symbols Explaining the symbols
This is the Read directions before using
symbol. This symbol indicates that you
must read the instruction manual.
Indicates a potentially hazardous situation
which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in minor
or moderate injury.
Indicates information essential for
proper product installation, operation or
maintenance.
User Manual for Smart Manometer
of
Page 7
M20011 REL-0000 (2103)
Sample label for General Purpose Smart
Manometers
All Series models are available for general-purpose use.

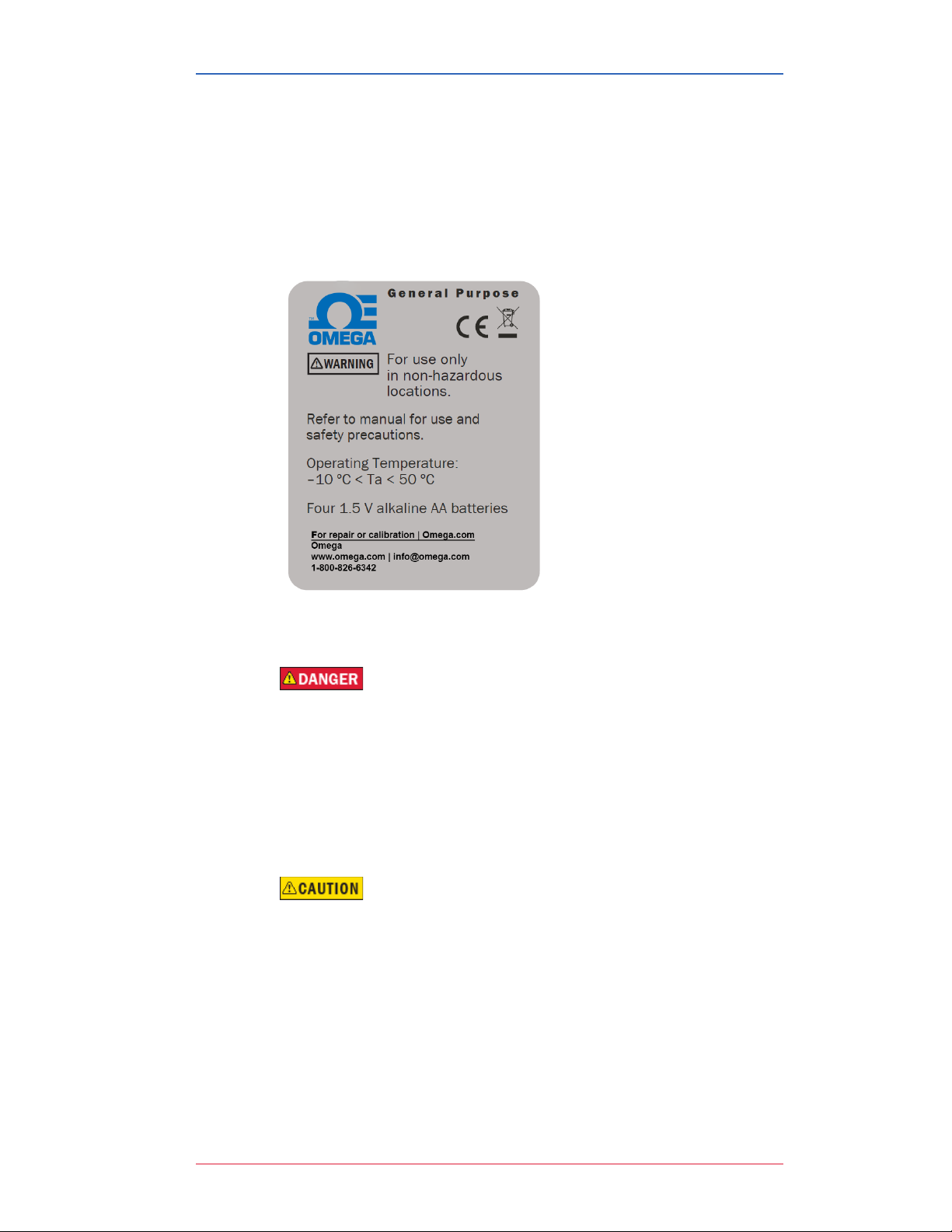

General Purpose (GP) versions are identified by the name plate
located on the rear of the unit under the protective rubber boot. A
sample of the General Purpose name plate is shown below:
Fire or explosion hazard
▪ Do not use General Purpose versions in hazardous areas.
▪ Do not use General Purpose versions in areas that may
contain flammable gas or vapors, combustible dusts or
ignitable fibers where an unintended spark can cause a fire or
explosion.
For General Purpose series
Substitution of components may impair operation and safety.
▪ Disconnect power before servicing.
▪ Do not power the Smart Manometer with a combination of
new and old batteries.
▪ Do not power the Smart Manometer with a combination of
batteries from dierent manufacturers.
User Manual for Smart Manometer
of
Page 8
M20011 REL-0000 (2103)
Do not exceed pressure limits
▪ Do not exceed the Pressure Limits listed in the Specifications
section of this manual.
▪ Failure to operate within the specified pressure limit could
result in minor or moderate injury.
User Manual for Smart Manometer
of
Page 9
M20011 REL-0000 (2103)
Sensors
Overview of sensors
The Smart Manometer can display two measurements: one from
the internal sensor and one from the optional tether sensor.
▪ P1 on this Smart Manometer always refers to the internal
sensor.
▪ P2 on this Smart Manometer always refers to the external
sensor.
Use two wrenches to install or remove pressure connections
Connection: 1/8” female NPT, 316L SS.
▪ Always use a 3/4 in. wrench on the pressure manifold when
you install or remove the 1/8 in. NPT fitting.
▪ Applying torque to the manifold can damage the plastic
enclosure and voids the warranty.
▪ Do not over tighten.
Carefully equalize the pressure
Avoid these two issues with dierential sensors:
1. Connecting pressure to the incorrect pressure port on DN or
DI dierential pressure modules may cause damage to the
pressure sensor.
2. Applying pressure to either port before both connections are
made.
Apply pressure to both dierential ports at the same time.
Note: See Overrange limit in the section called Specifications
concerning overrange pressure limits. If over pressure damage
occurs, you must return the Smart Manometer to the factory for
sensor replacement.
User Manual for Smart Manometer
of
Page 10
M20011 REL-0000 (2103)
Tethered Sensors
1. The P2 sensor can be displayed with the P1 sensor.
2. When two sensors are displayed, no Units are displayed and
the Units key is disabled.
3. The Zero key is also disabled.
4. When a single sensor is selected it displays the measurement
units that were selected in HHP400 Suite.
Make an electrical connection
▪ Align the red dot on the Smart Manometer with the red dot on
the Tether cable and push in.
▪ Align the red dot on the Omega Tethered Sensor with the red
dot on the Tether cable and push in.
How to zero Absolute sensors
Overview of the zeroing Absolute sensors
The Smart Manometer is a stable and precise instrument.
However, on occasion the Smart Manometer should have a new
zero taken. The new zero removes a zero drift that can occur after
the Smart Manometer was last zeroed. The Smart Manometer can
be zeroed only if the new applied zero is within ± 1 % FS of the
original factory calibration zero. This prevents accidental zeroing
at atmospheric pressure or other relatively high pressures. If the
Smart Manometer is outside this limit, the Smart Manometer
cannot zero.
1. Referenced to Absolute Zero - This traditional and preferred
method takes a snapshot of the measured pressure when a
vacuum of less than 100 microns Absolute is applied to the
sensor.
2. Restore Factory Zero - This method restores the calibration
curve to the original zero taken at the factory.
Note: This feature is intended for comparison purposes, and
should not be used for real pressure measurement. This feature
does not compensate for any zero drift.
3. User Defined Oset (Zero) - With this method, you can enter
any pressure value when a known reference is applied (for
example, the local barometer). The Smart Manometer will
compare its actual measured value with the entered value, and
calculate a new zero reference based on the oset.
User Manual for Smart Manometer
of
Page 11
M20011 REL-0000 (2103)
Steps for zeroing Absolute sensors
You can zero the Smart Manometer in one of three ways. The
following may appear in a dierent order depending on which
arrow key you press. When an absolute sensor displays on-screen
as P1 or P2, press the Zero key to see one of the three sets of
characters below and the following three messages
On-screen
message
TAP TO
CHOOSE REF
ARROWS TO
CHANGE REF
X Cancels
ab5 0
dflt
u5Er 0
Explanations
• Tapping the Accept key selects the displayed
reference.
• Tapping an Arrow key changes the displayed
reference.
• Tapping the Cancel key cancels the zero
request.
• This is the on-screen abbreviation for
Absolute Zero.
• This is the on-screen abbreviation for Default.
• If you want to restore the Factory Zero on a
sensor, press the Accept key when you see
these characters appear.
• This refers to User Defined Oset (Zero). You
can set an absolute reference point other than
zero.
User Manual for Smart Manometer
of
Page 12
M20011 REL-0000 (2103)
How to zero Dierential or Compound sensors
1. Disconnect from a pressure source and vent the pressure port
to atmosphere.
1. Do not remove the factory installed P2 plug if it is present.
2. The display should read close to zero.
2. Press the Zero key.
The top line displays dashes ------.
3. The process is complete when the Smart Manometer returns
to the Home (Measurement Units) screen.
4. If someone has turned on the Password Required For Future
Access feature in HHP400 Suite, the password feature does
not prevent you from zeroing the Smart Manometer.
Note: You can only zero the Smart Manometer if the new zero
value is within ± 5 % (of FS) of the original factory calibrated
zero. If the zero procedure generates a new zero reference
outside this limit, the procedure fails. Factory service may be
required.
5. You can turn o the Zero function in HHP400 Suite by
deselecting Allow zero adjust (Ø) in the Display Functions list.
User Manual for Smart Manometer
of
Page 13
M20011 REL-0000 (2103)
Smart Manometer
Battery and USB power
When you turn on the Smart Manometer, it draws power from the
batteries and the battery icon displays in the bottom row. When
you press the information button, it displays Batt %.
When you turn on the Smart Manometer and plug in the USB
cable to the computer, the Smart Manometer switches to the
power supplied by the USB cable. The battery icon disappears
from the bottom row. When you press the information button, it
displays USB POWER.
Do not use the USB in hazardous locations.
Batteries
Remove and replace batteries in non-hazardous (safe) areas only.
Turn o the backlight
▪ Turn o the backlight when you need to conserve battery
power.
▪ The backlight is dimmed when the Smart Manometer is in low
battery mode.
Suggested brands of batteries
The following is a suggested list of batteries.
• Duracell MN1500
• Duracell PC1500
• Energizer EN91
• Panasonic LR6XWA
• Rayovac 815
• Varta 4906
User Manual for Smart Manometer
of
Page 14
M20011 REL-0000 (2103)
Know your batteries
▪ Never mix batteries—not by manufacturer or by size, by
capacity, or by chemistry.
▪ Never mix old and new batteries.
▪ Remove all four batteries in the Smart Manometer at the same
time.
▪ Replace all four batteries with batteries from the same
package or with the same expiration date.
Install the batteries
1. Turn over the Smart Manometer so the display faces down.
2. Remove the two screws on the battery cover with the Phillipshead screwdriver by turning them counterclockwise.
3. Insert the four AA batteries.
Note: Pay attention to the positive (+) and negative (−) battery
polarity markings at the bottom of the compartment.
4. Replace the battery cover.
5. To secure the cover, torque the screws clockwise 2 in. lbs.
maximum.
6. Do not over tighten.
To prevent internal damage to circuitry, do not substitute screws
with lengths that are dierent from the screws provided to you.
Watch for the low battery indicator
The battery indicator on the display shows the current charge.
Note: Be prepared to change batteries when you see the outline
of the battery icon and the outline of the battery icon flashes.
You have approximately 2 hours of run time following a low
battery warning.
Refer to battery manufacturers’ instructions
Visit the website of the battery manufacturer to learn more about
the care, storage, shipping, use, disposal, and recycling of your
batteries.
User Manual for Smart Manometer
of
Page 15
M20011 REL-0000 (2103)

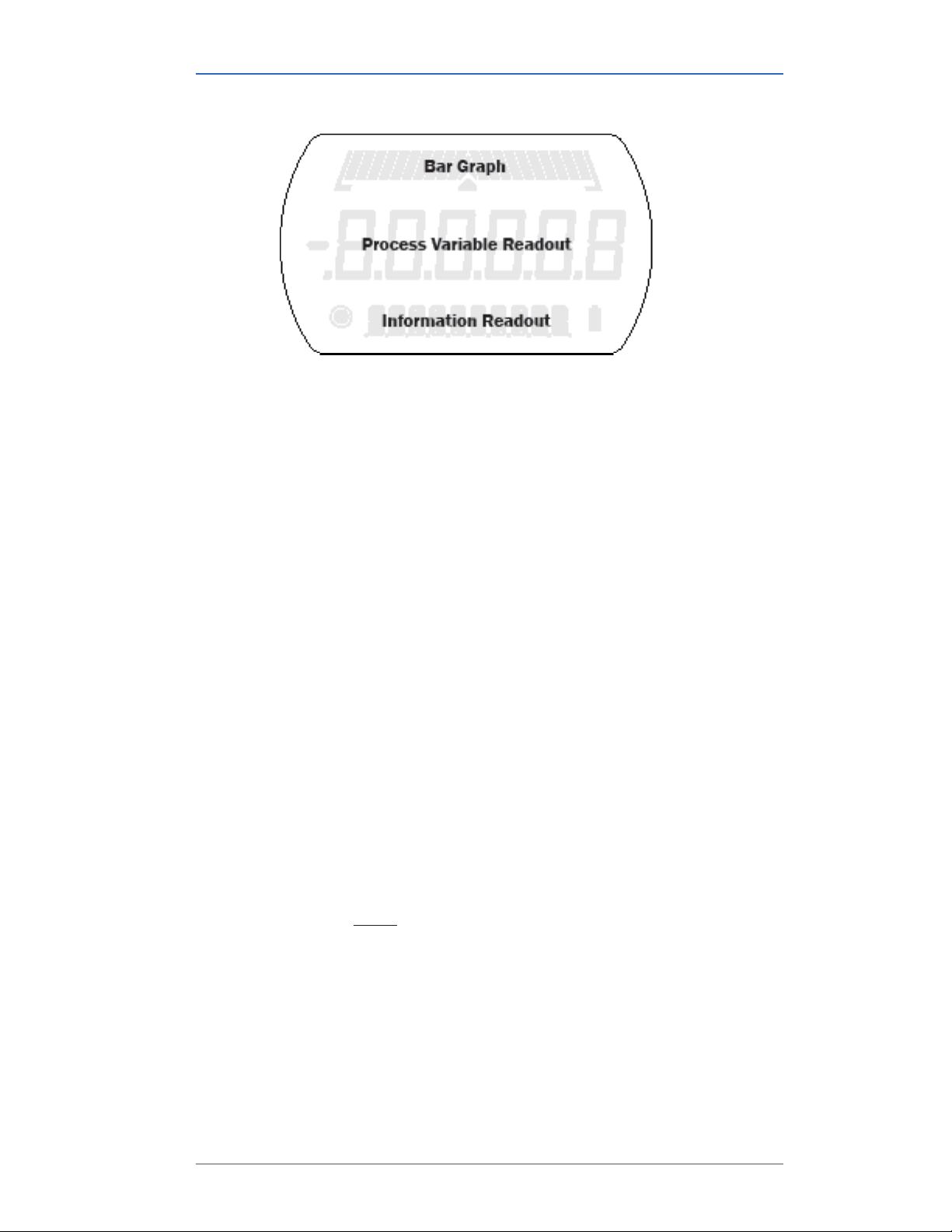

The display
The bar graph
The bar graph displays a live indication of the current pressure or
temperature applied to a sensor as a percent of FS.
Note: When you press the Information key, the bar graph
displays the remaining state of the charge for the batteries.
Display functions
The Smart Manometer has twelve display functions. It ships with
five display functions active (they appear in bold below). You can
change which displays are active with HHP400 Suite.
Press the Forward (or Backward in reverse order) key to view
these modes.
1. Home is the default view
with measurement units
2. MIN (Minimum) 8. RATE
3. MAX (Maximum) 9. DATA LO G
4. RELIEF VALVE TEST 10. Temperature & Time
5. + / - (Accuracy) 11. LEAK TEST
6. T.OFF, T.ON ( Tare) 12. LEAK TEST DURATION
7. AVG (Average)
Display function NOT appearing on the Omega Tethered
Sensor
The following display function do not appear on an when you
attach it to the Smart Manometer.
▪ Temperature & Time.
User Manual for Smart Manometer
of
Page 16
M20011 REL-0000 (2103)
Keypad: Description of the keys
Name Key Description
Backward • It cycles backward through menu
options.
Home • Home key returns you to the
Measurement and Units screen.
• Home key is disabled during tests
and edits
Forward • It cycles forward through menu
options.
Units • Select a measurement unit.
Start • Start key begins a test or data log.
Stop • Stop or Hold (Freeze) key.
Up arrow • It increases digits by one.
• It switches between the P1 and P2
sensors displays.
Left arrow • It moves the blinking cursor one
space at a time to the left.
Zero & Tare • Zero key resets pressure values to
zero.
• It resets min max values.
• It sets edit values to zero.
• It resets relief valve test.
• As a Tare key, it turns o or turns on
the Tare function.
Right arrow • It moves the blinking cursor one
space at a time to the right.
Down Arrow • It decreases digits by one.
• It switches between the P1 and P2
sensors displays.
Cancel or Esc • Cancel any editing or changes
without saving.
• It also stops tests.
Accept • Accept applies all editing and
changes, and then saves them.
• It also stops tests.
Power • Turns the Smart Manometer on or o.
Information • Displays information about the Smart
User Manual for Smart Manometer
Manometer, internal sensor, attached
sensor, and the firmware.
of
Page 17
M20011 REL-0000 (2103)
Name Key Description
Backlight • It provides three levels of brightness
and o.
The Information key and the Home screen
The Information menu provides you with details about the Smart
Manometer and sensors.
Depending on what is attached to the Smart Manometer and
depending on what is selected in the bottom row in the LCD
display, determines what data appears.
1. Batt % displays the percentage on the bar graph and in digits
or it displays the words USB POWER.
2. -- P1 -- or -- P2 --
Note: the bottom row indicates sensor (or measurement type):
compound, absolute, or dierential. All the following sensor
information describes the sensor indicated by P1 P2..
3. CAL DATE
4. USL is an abbreviation for upper sensor limit.
5. LSL is an abbreviation for lower sensor limit.
6. LT MAX % displays the Life-Time Maximum that has been
reached on the sensor.
7. SENSOR F/W VERS F/W is an abbreviation for firmware (this
message scrolls to display the information).
8. SENSOR S/N S/N is an abbreviation for serial number
(this message scrolls to display the information).
9. SNSR NAME [this message scrolls to display the information].
10. DEV F/W VER DEV is an abbreviation for device; it refers to
the M2000 (this message scrolls to display the information).
11. DEV S/N (this message scrolls to display the information).
12. DEV NAME refers to the Smart Manometer (this message
scrolls to display the information).
User Manual for Smart Manometer
of
Page 18
M20011 REL-0000 (2103)
Up and Down Arrows
In the edit mode, the Up Arrow increases the digit each time you
press it. The Down Arrow decreases the digit
and
1. Up Arrow: 0 to 1 to 2 to 3 to 4 to 5 to 6 to 7 to 8 to 9.
2. Down Arrow: –0 to –1 to –2 to –3 to –4 to –5 to –6 to –7 to –8
to –9.
3. The negative symbol in the display appears in front of the first
digit when it is required.
The backlight
White backlight
The white backlight has an automatic time out. If you do not press
any keys while the backlight is on, it automatically turns o after 1
minute.
Note: You can configure the backlight timeout using HHP400
Suite
Levels of backlight intensity
Press the Backlight key to cycle through these choices:
▪ Low.
▪ Medium.
▪ High.
▪ O.
Flashing red backlight
The flashing red backlight indicates an error condition. Possible
error conditions are:
▪ Pressure has exceeded the calibrated accuracy of the Smart
Manometer.
▪ Pressure has fallen below the stated accuracy of the HHP400
Suite.
Note: The red backlight overrides the white backlight.
User Manual for Smart Manometer
of
Page 19
M20011 REL-0000 (2103)
Overrange condition
During an error or overrange condition, the red backlight
overrides the white backlight.
However, once the error or overrange condition is corrected, the
white backlight is restored to its previous state (if the backlight
Auto O timeout did not expire).
Measurement units
A measurement unit doesn’t display
If a given measurement unit cannot display the correct number of
digits, the Smart Manometer automatically advances to the next
displayable unit.
Note: When you turn on the Smart Manometer, it defaults to the
last selected measurement unit or P2.
Measurement units are stored on a sensor
The HHP400 Suite application gives you the ability to configure
specific measurement units on specific sensors.
A total of 32 measurement units are available in HHP400 Suite.
When the Smart Manometer is shipped, 12 measurement units are
active. The 12 units appear in bold type in the following list.
Standard Measurement Units (non-custom)
. PSI . CMW4C . KG/M2
. INW20C . CMW60F . PA
. INW4C . MW2OC . HPA
. INW60F . MW4C . KPA
. FTW2OC . MW60F . MPA
. FTW4C . INHG0C . BAR
. FTW60F . MGH0C . MBAR
. MMW20C . CMGH0C . ATM
. MMW4C . MMHG0C . OZ/IN2
. MMW60F . TORR . LB/FT2
. CMW2OC . KG/CM2
User Manual for Smart Manometer
of
Page 20
M20011 REL-0000 (2103)
Damping
Damping rate
Select a Time Constant: 1 second, 2 seconds, 4 seconds,
8seconds, or 16seconds.
▪ When set for 4 second time constant, it takes 4 seconds
from the time of the step change until the Smart Manometer
displays the full value of the new pressure.
Damping types
Select a Type: Exponential, Smart Quick, Smart Normal, or
SmartSlow.
▪ Use adjustable Exponential type damping to steady the
display when you measure pulsating pressure or flow.
▪ Exponential damping displays approximately 70% of a step
change in pressure at the next display update.
User Manual for Smart Manometer
of
Page 21
M20011 REL-0000 (2103)
Data Logging
Review settings before starting a data log
To review the settings on the Smart Manometer before starting a
new data log, follow these steps:
1. From the Home screen, press the Backward or Forward key
until you see DATA LOG.
2. Press the Information key to view these seven settings:
Description Information Information
VERS.
AVAIL.PTS
AVAIL.LOG
TYP.
Interval
PTS.CFG.
TIME CFG.
PRO (optional)
maximum number of
points 100 000
maximum number of
logs 128
MEAS, AVG,
AVG+PK, DEMAND
seconds are
expressed in decimal
points
100 (when time is
configured, points is
blank)
------ (when points
are configured, time
is blank)
LITE
maximum number of
points 240
maximum number of
logs 1
MEAS
seconds are
expressed in decimal
points
n/a
n/a
Starting a data log
1. From the Home screen, press the Backward or the Forward
keys until you see DATA LOG on screen.
2. Press and hold the Start key until -- Starting -- appears
in the display. Data Logging continues for the defined time or
the defined number of points.
3. Snsr Error - means one of the sensors reported an error
after the test began. This will stop the Data Log. Sensor Error
will appear in the Data Log Pro log.
4. While DATA LOG is running, you may press the Information
key to see how much time is remaining for the active log.
Stopping a data log
To stop the Data Log at any point or at any time, press and hold
the Stop key until -- Stopping -- appears.
User Manual for Smart Manometer
of
Page 22
M20011 REL-0000 (2103)
Leak Test
The Leak Test determines the leak rate in the system you are
monitoring.
The timeout setting for Auto O (Automatic Shut O) is
automatically suspended during a Leak Test session.
Review or change the LEAK TEST DURATION setting
Starting from the Home screen:
1. Press the Backward key to view the Leak Test Duration
screen.
2. If you want to change the duration, follow the on-screen
instructions LEAK TEST DURATION TAP TO CHANGE.
3. TAP - Pressing the Accept key starts the first digit blinking.
4. Use the Right Arrow key to move the blinking cursor to the
first zero you want to change.
Note: The on-screen scrolling message reminds you to enter a
number from 0.1 - 1440 (1440 minutes is 24 hours).
5. Press the Up Arrow key until you see the number you need
and continue to use the Right Arrow and Up Arrow keys until
you have the total number of minutes you require.
6. You have three choices after entering minutes for duration:
1. Saves (the Accept key).
2. X Cancels (the Cancel key).
3. 0 Clears to start over (the Zero “” key).
7. After reviewing or changing these settings, press the
Backward key to go to the screen to start the Leak Test.
Fix a RANGE ERR issue
1. The first zero digit is blinking.
2. Press the Zero “” key to reset all numbers to zeros and enter
a valid number of minutes from 0.1 - 1440.
User Manual for Smart Manometer
of
Page 23
M20011 REL-0000 (2103)
Start the Leak Test
Starting from the Home screen:
1. Press the Backward key a second time if you do not want
change the duration and TAP START TO BEGIN.
(START is referring to the Start key).
2. The numbers blink to indicate when the test has stopped. This
screen displays the results of the Leak Test with the calculated
leak rate in units per minute.
3. After the test has stopped, press the Forward key to review
the MIN value, and then the MAX value, and then you can
select an --out- option to exit the test by pressing either
the Cancel or Accept keys.
Note: MIN is the minimum pressure measured during the test.
MAX is the maximum pressure measure during the test.
Note: Starting a Data Log is dierent than starting a Leak Test.
Data Log requires pressing and holding the Start key until you
see the word Starting. In a Leak Test press and release the Start
key (the on-screen message refers to this action as TAP).
User Manual for Smart Manometer
of
Page 24
M20011 REL-0000 (2103)
Stop a Leak Test
It stops automatically when it counts down to zero
1. After the Leak Test counts down to zero, the digits begin to
blink to indicate the Leak Test has stopped.
2. Press the Forward key to cycle through these options:
1. MIN
2. MAX
3. OR X to EXIT TEST
3. Press the Home key to exit Leak Test.
Exit the test during the count down to zero
1. Press the Cancel key or the Accept key to exit the test.
2. Press the Home key to return to the Home screen.
User Manual for Smart Manometer
of
Page 25
M20011 REL-0000 (2103)
Relief Valve Test
Starting the Relief Valve Test
To start the Relief Valve Test follow these steps:
1. Press the Forward key until you see RELIEF VALVE TEST
TAP START TO BEGIN
2. MAX TEST P displays when the test begins. (MAX is the
maximum pressure measured during the test.)
3. Press the Forward key to see MIN TEST P value. (MIN is the
minimum pressure measured after reaching MAX and pressure
starts releasing. If a new MAX is reached, MIN resets.)
4. Press the Forward key and you see --out-.
Note: At this point, you see options available to you during the
Relief Valve Test.
1. OR X TO EXIT TEST (use either option to exit)
2. TO RESET MIN + MAX (the Zero key)
3. STP-FREEZE When you press the Stop key, hold.on
briefly appears and the current value remains on-screen
blinking.
Press the Zero key and HOLD.OFF appears and new values
continue to display.
5. Press the Forward key to see MAX TEST P value.
User Manual for Smart Manometer
of
Page 26
M20011 REL-0000 (2103)
Stopping the Relief Valve Test
At any time during the test you may
1. Press the Stop key and the HOLD.ON message appears. The
digits continue to blink to indicate the hold status.
2. Press the Zero key to turn o the hold status and the HOLD.
OFF message appears. The test restarts.
3. Press the OR X to exit the test. The results are lost when
you use these keys.
Dierential displays
When you first turn on the Smart Manometer, you see the Home
screen and the internal sensor information displays first. Press the
Up arrow and external sensor information displays.
▪ Press the Up arrow again and information for both the internal
and external sensors displays. The internal sensor displays in
large characters while external sensor information displays in
small characters.
▪ Press the Up arrow and Di P1-P2 scrolls with P1 Units
(internal measurement units).
Note: Dierential displays are not available if either pressure sensor
is a dierential sensor.
▪ Press the Left or Right arrow and Di P2-P1 scrolls with P2
units (external measurement units).
▪ Press the Left or Right arrow and Di P1-P2 scrolls with P1
units (internal measurement units).
▪ Press the Down arrow to reverse the sequence.
▪ Press the Home key at any point to return to the Home screen.
Auto O (Automatic shut o)
How long will the Smart Manometer remain on if I leave it
unattended?
▪ The default setting is Always On.
▪ You can configure the timeout for the Auto O with HHP400
Suite.
▪ The Auto O timeout is suspended during Data Logging and
Leak Test sessions to prevent accidental loss of data.
▪ Auto Shut-O automatically restarts after Data Logging or
Leak Test sessions stop.
User Manual for Smart Manometer
of
Page 27
M20011 REL-0000 (2103)
What does the Zero (ø) key do?
In normal measure mode
If the sensor is within a tolerance band around zero, press and
hold the Zero key to zero the pressure measurement and to reset
the Min and Max measurements.
Note: The tolerance band is approximately ± 1 % of the FS
pressure value of the sensor.
In Min or Max mode
Press and hold the Zero key to reset the MIN and MAX
measurement. However, this does not zero the pressure
measurement.
In Tare mode
When the Tare is o (T.OFF), press and hold the Zero key to turn
on Tare (T.ON) and to set the Tare value at the current pressure
measurement.
Likewise, when the Tare is on (T.ON), press and hold the Zero key
to turn o the Tare mode.
In Average mode
Press and hold the Zero key to restart the rolling average.
Holding the Zero key
The key must be held to perform the Zero or Tare mode. The
displayed value(s) dashes out during the zero or tare process.
User Manual for Smart Manometer
of
Page 28
M20011 REL-0000 (2103)
HHP Suite application
How does HHP Suite benefit you?
Note: HHP400 Suite is not required to operate the HHP452.
▪ You can configure your Smart Manometer or sensor to display
information the way your company needs to use it.
▪ You can configure data logging requirements and Data Log
Pro.
▪ You can perform your own calibration.
▪ You can update the Smart Manometer in the field.
HHP Suite and USB Drivers required
First—Install HHP400 Suite
1. Download the HHP400 Suite.
2. Run the installer (setup.exe)
3. Follow the on-screen instructions.
Second—Install USB Drivers
1. Read the USB Drivers Installation Instructions on the
Downloads page on www.Omega.com.
2. The instructions have links that you can click to download the
required USB Driver.
3. Follow the on-screen instructions.
User Manual for Smart Manometer
of
Page 29
M20011 REL-0000 (2103)
Tips for using HHP Suite
USB cable and your computer
For use only in non-hazardous locations (safe locations)
Connect the USB cable to your Smart Manometer and to your
computer to configure any sensors you wish to include.
Use only the supplied USB cable when you connect to the USB
port.
Close HHP400 Suite first, then turn o your Smart Manometer
Do not turn o the power on the Smart Manometer while it is
communicating with HHP400 Suite. The Smart Manometer
displays dashes and the words USB ACTIVE while HHP400 Suite
is communicating with a Smart Manometer or sensor.
▪ Close HHP400 Suite first, disconnect the USB, and turn o
your Smart Manometer.
▪ As long as USB ACTIVE remains visible, Auto O is
suspended.
User Manual for Smart Manometer
of
Page 30
M20011 REL-0000 (2103)

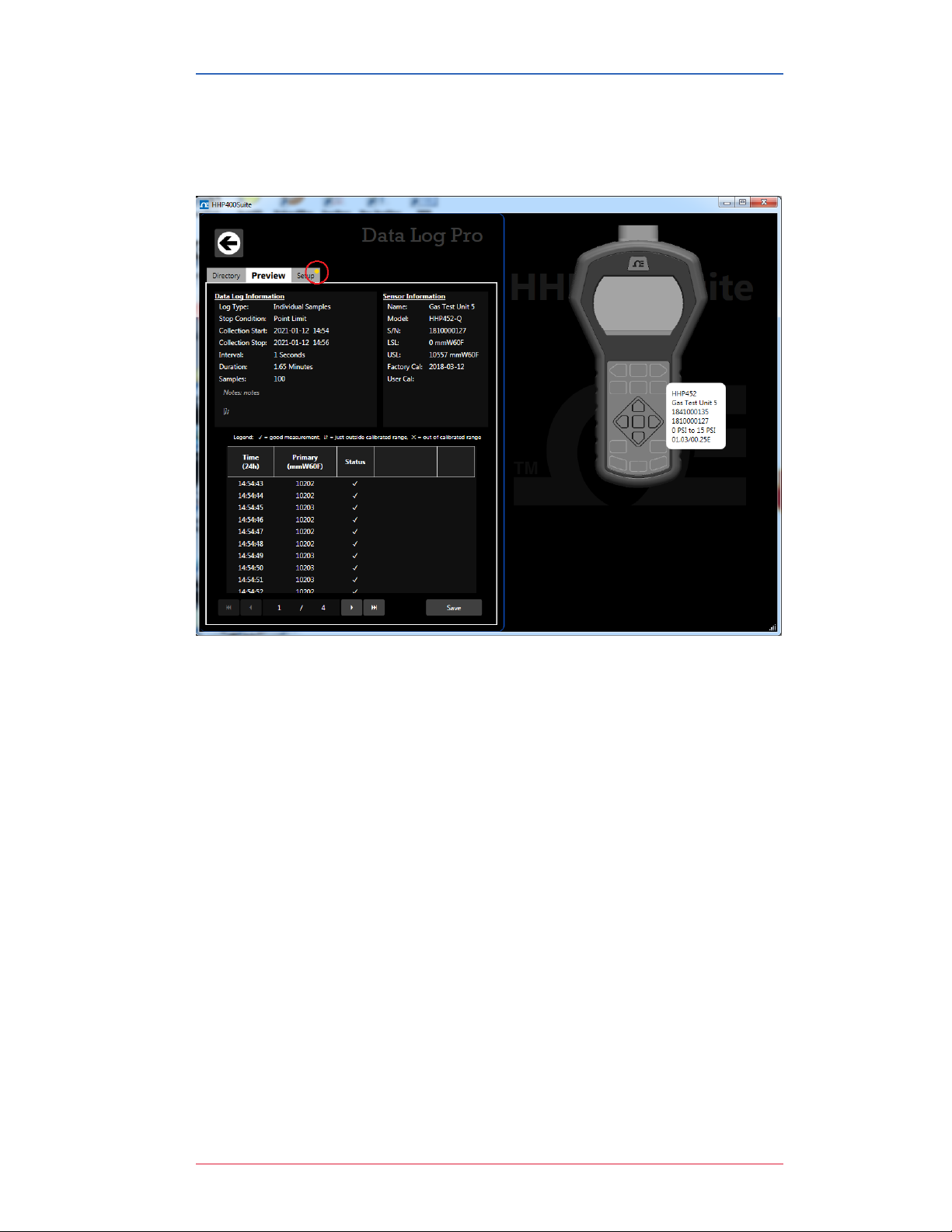

Watch for a yellow dot on an active tab

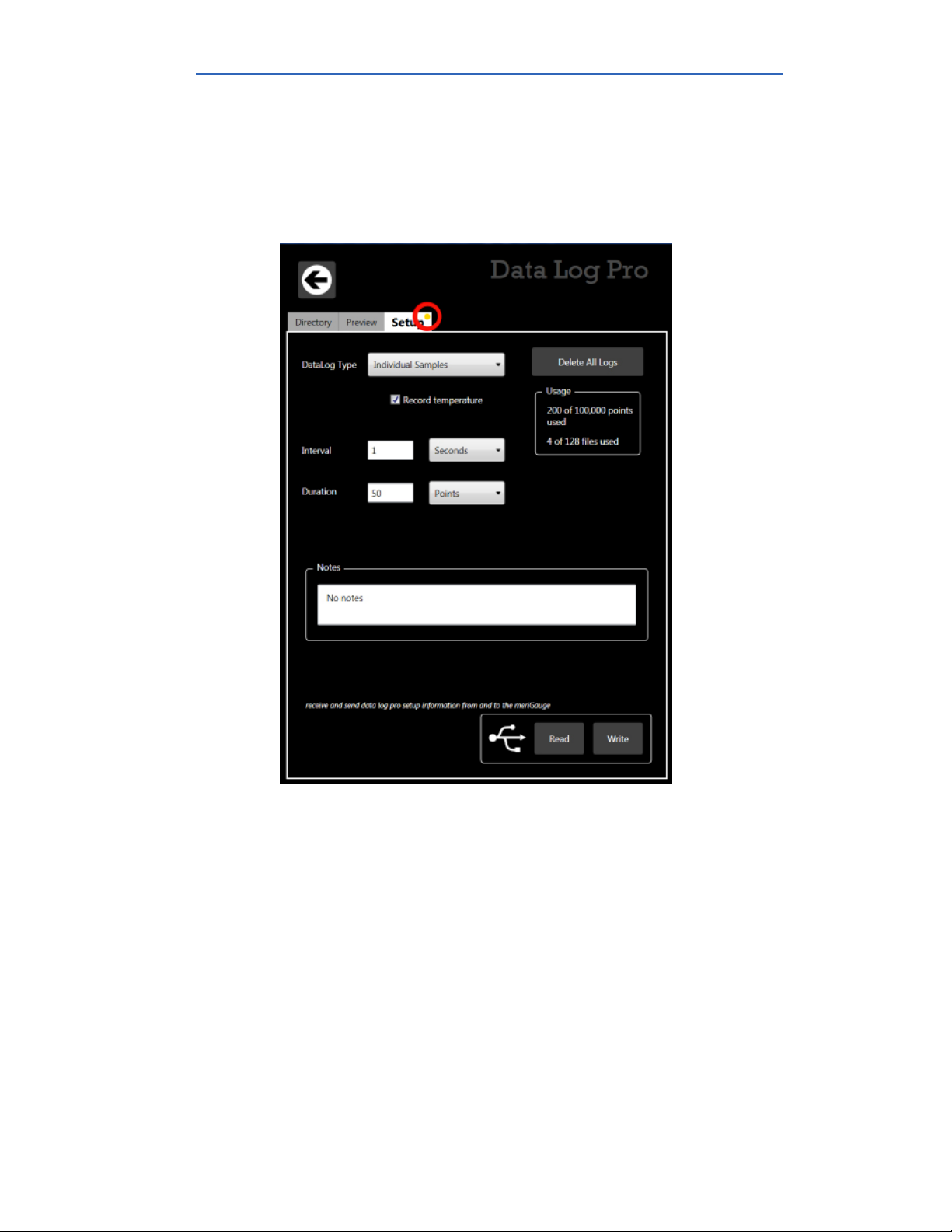

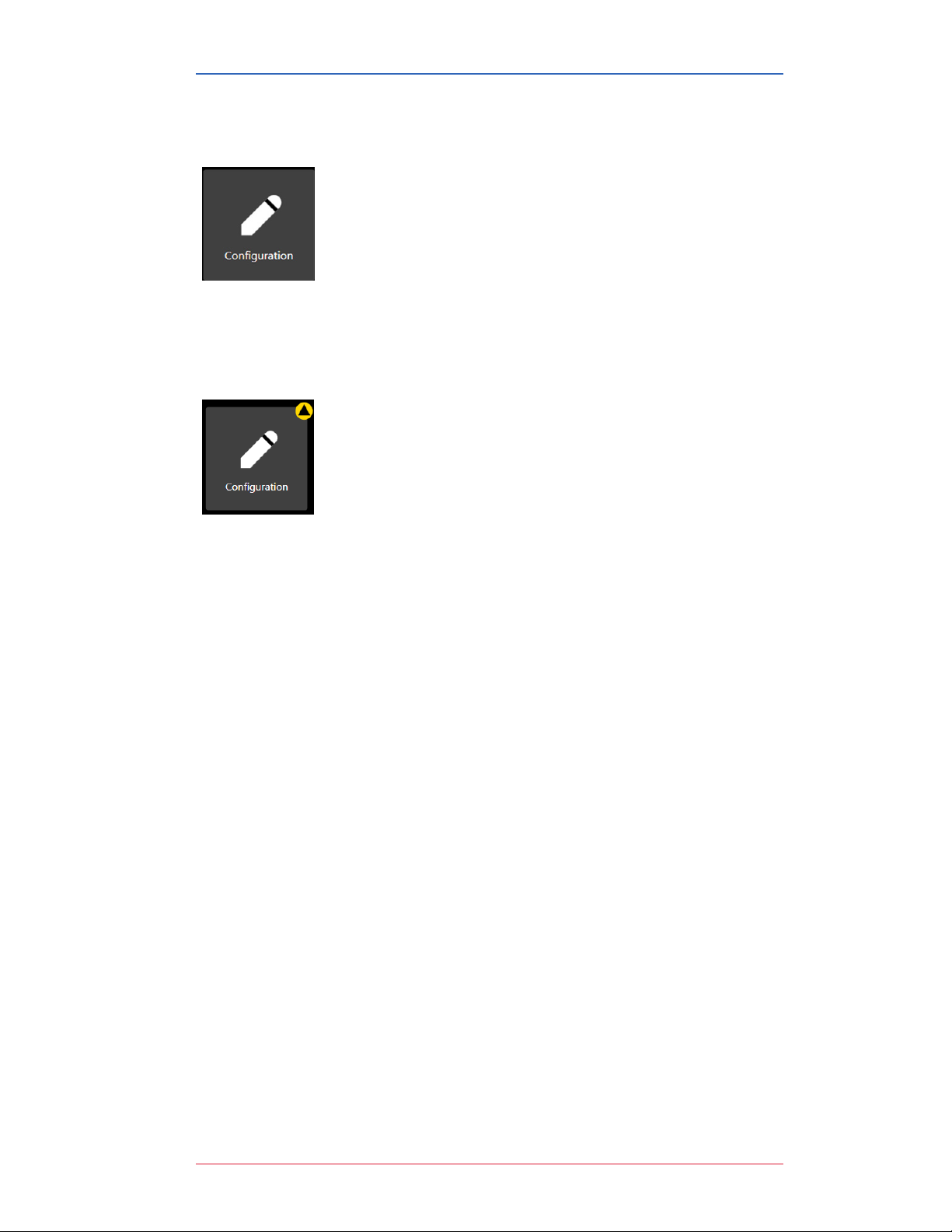

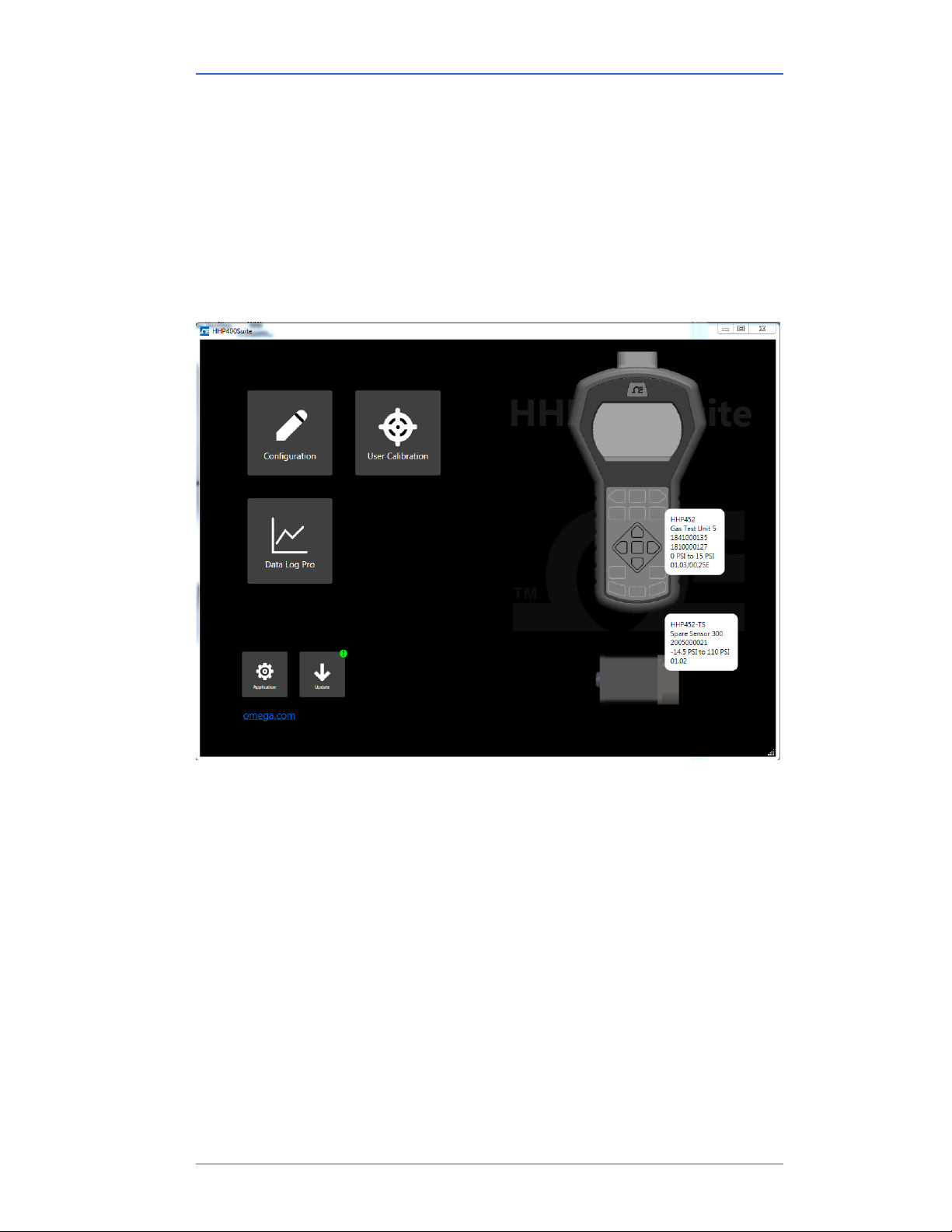

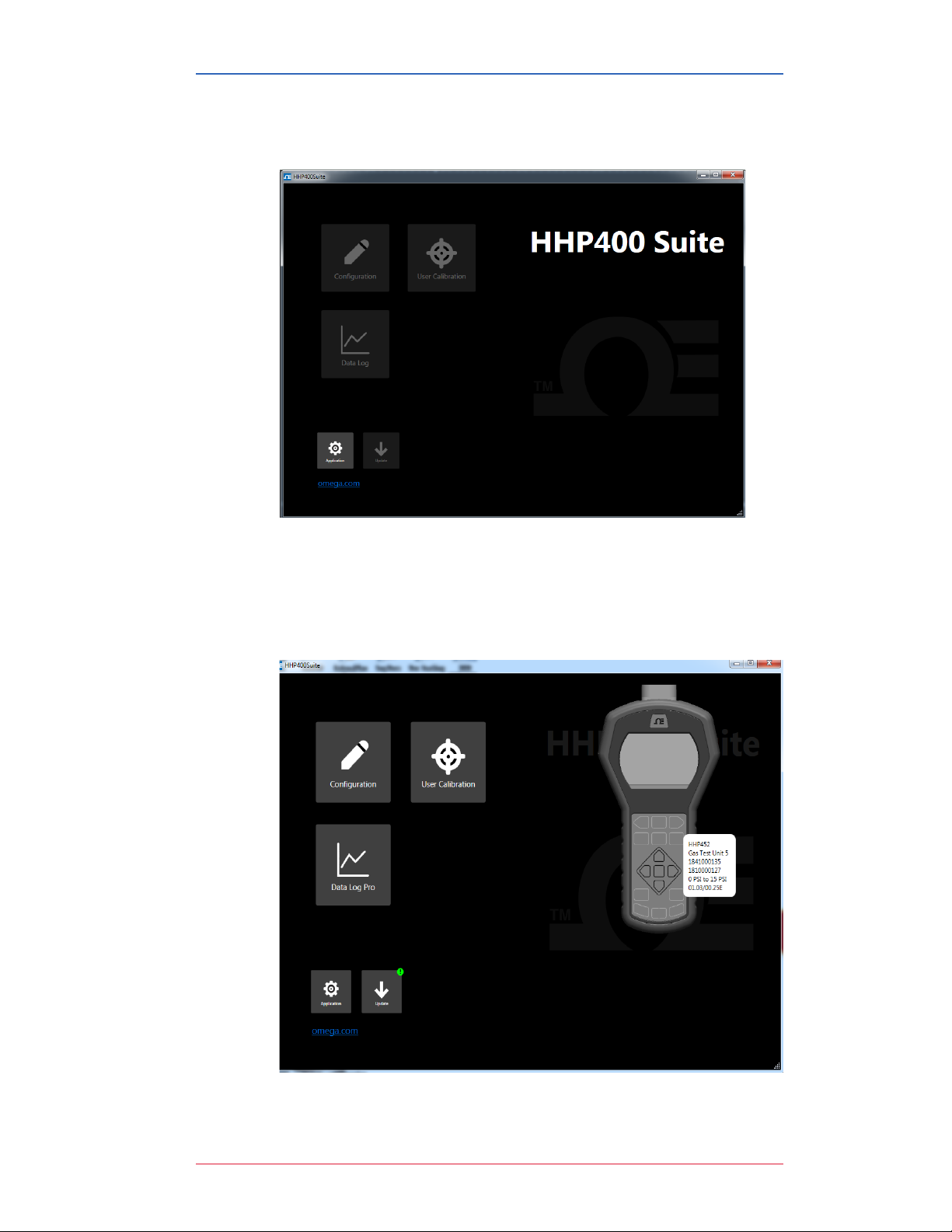

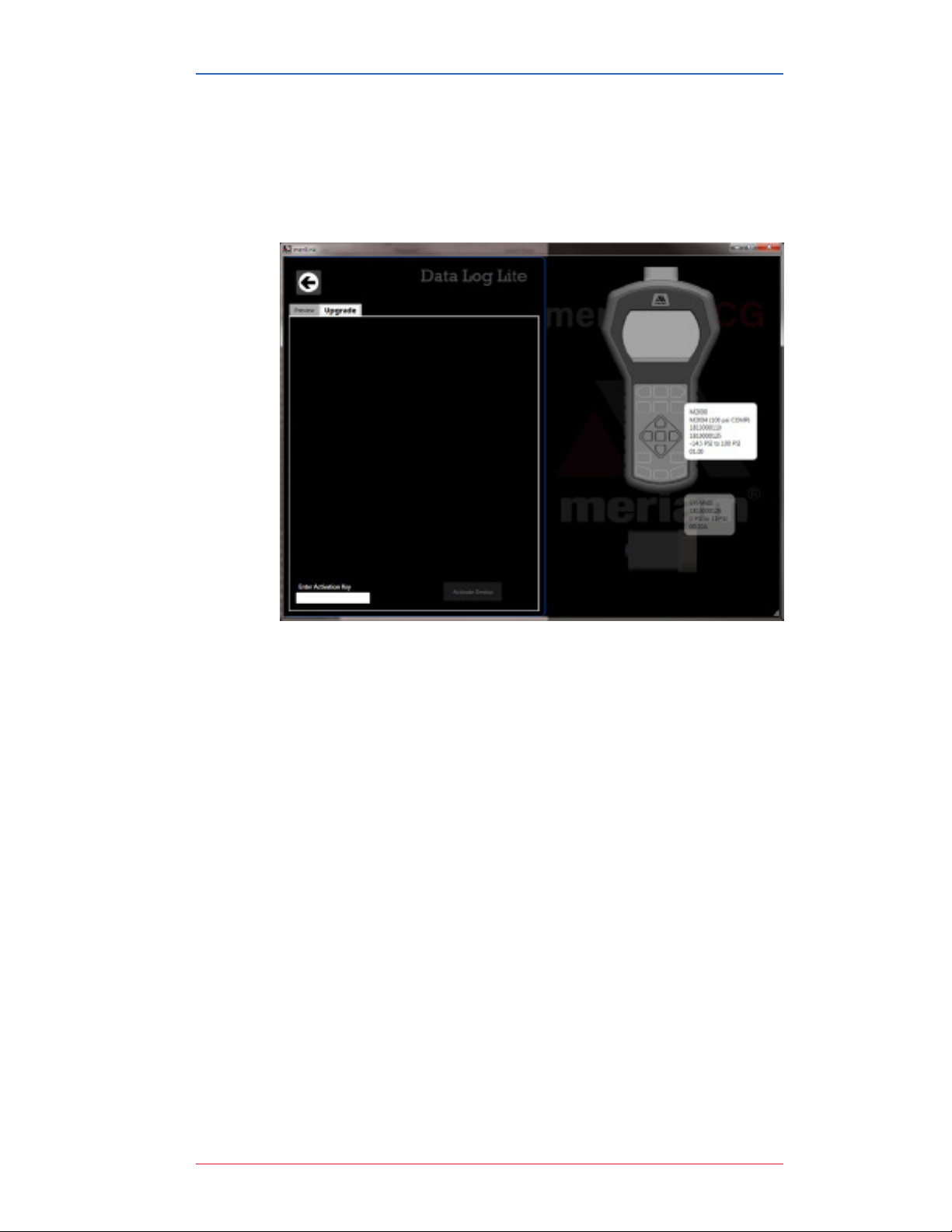

▪ A yellow dot appears on a tab in HHP400 Suite to indicate that
you have made changes to settings but you have not saved
them yet. See Figure 1 and Figure 2 below.
▪ You may click the Write button to save the changes you made.
User Manual for Smart Manometer
of
Page 31
M20011 REL-0000 (2103)
Watch for a yellow dot on an inactive tab
Yellow dot on an inactive tab. See the red circle in the figure
below.
Year-Month-Date format
▪ The HHP400 Suite application displays the date in year-
month-day format.
▪ For example: 2016-04-22 (YYYY-MM-DD).
Hours:Minutes:Seconds format
▪ The HHP400 Suite application displays the time in 24-hour
format.
▪ You may choose from Time Zones:
Universal Coordinated Time (UTC) US - Arizona -7:00
US - Eastern -5:00 US - Pacific-8:00
US - Central -6:00 US - Alaska -9:00
US - Mountain -7:00 US - Hawaii -10:00
▪ For example: 15:05:45 UTC (hours:minutes:seconds).
User Manual for Smart Manometer
of
Page 32
M20011 REL-0000 (2103)
Connection status
Attached devices
The HHP400 Suite application displays the figures of the Smart
Manometer and tethered sensor. Descriptions appear alongside
both of them. See the figure below.
User Manual for Smart Manometer
of
Page 33
M20011 REL-0000 (2103)
No attached devices
The HHP400 Suite application displays no figure of devices on the
right side. See the figure below.
No tethered sensor attached
Notice the figure of the Smart Manometer and description. See the
figure below.
User Manual for Smart Manometer
of
Page 34
M20011 REL-0000 (2103)
Configuration button
Overview of the Configuration button
The Configuration button displays a window with two
tabs if a tethered sensor is attached:
• The first tab displays the Smart Manometer name or
the name you assigned to it.
• Optional: this second tab displays the tethered sensor
name or the name you assigned to it.
Note: These tabs oer you various settings to configure
the Smart Manometer and each sensor.
Notification about unsaved settings
It displays a yellow alert icon to indicate you have
changed a setting and you have not yet saved the setting.
Passwords
Overview of passwords
Passwords are never required to use a Smart Manometer or any
sensor.
▪ The passwords are turned o when the Smart Manometers
and sensors are shipped.
▪ Each device can have its own unique 16-character password.
You may use from 1-16 characters: letters, numbers, or
symbols, and uppercase and lowercase.
▪ An internal sensor and a tethered sensor have their own
separate passwords.
▪ Each device can have its password turned on or turned o
independently from any other tethered sensor.
▪ HHP400 Suite retrieves the passwords stored on the devices.
User Manual for Smart Manometer
of
Page 35
M20011 REL-0000 (2103)
HHP400 Suite uses the password
If you choose to select the Password Required For Future
Access, then HHP400 Suite requests a password for the following
actions:
▪ To modify a configuration.
Note: This action includes writing to or reading from a device.
▪ To update the firmware on a device or the application.
▪ To calibrate a device.
▪ To access the Setup tab of Data Log Pro.
HHP400 Suite remains unlocked
▪ Once HHP400 Suite accepts a password for one of those
actions, the device remains unlocked until it is disconnected
from HHP400 Suite.
▪ If you enter the password on one window, HHP400 Suite
unlocks that Smart Manometer or sensor on its other windows
as well.
Data Log Lite has no password
HHP400 Suite does not use a password for Data Log Lite since it
cannot make any changes to the device.
Request a recovery password from Omega
Forgot the password for a device or sensor?
▪ If you forget a password, contact Omega to generate a
recovery password for you to unlock the device.
▪ A recovery password disables the password until you create a
new password.
▪ You must have the serial number of the device or sensor to
request a recovery password.
▪ Call + 1-800-826-6342 or send an e-mail to [email protected]
Recovery password valid for one date
When you call Omega to generate a recovery password, you may
select a date that is convenient for you. If you do not specify a
date, the request date is used.
User Manual for Smart Manometer
of
Page 36
M20011 REL-0000 (2103)
Common features for a Smart Manometer and sensor(s)
The Names field
You can assign your own company designations to each device.
As Left / As Found Configuration Report button
▪ You can review a summary of the configuration of the Smart
Manometer or sensor when it is first connected and the
changes you made.
▪ The As Found / As Left Report cannot report changes made
in HHP400 Suite unless you save those new configurations to
the device.
Read and Write Configurations
▪ Read and Write refer to reading configuration data from a
Smart Manometer or sensor or writing new data to them.
Save your configuration changes before you click the Read
button. After you click the Read button, all changes on-screen
are replaced with the configuration that is on the device.
Configuring devices
Sync PC time to Gauge
▪ Click to update the Smart Manometer time and date with your
computer.
▪ The LCD display and data logging use this time and date.
Timeouts
▪ Backlight.
▪ Auto O (Automatic O).
Display Functions
▪ Min/Max.
▪ Accuracy.
▪ Tare .
▪ Average.
▪ Rate of Change.
▪ Relief Valve Test.
▪ Time & Temp.
▪ Data Log.
▪ Allow zero adjust (Ø)
▪ Leak Test.
User Manual for Smart Manometer
of
Page 37
M20011 REL-0000 (2103)
Configuring sensors
Enabled Units
Select or deselect measurement units to view them on the Smart
Manometer. They are saved on each sensor.
▪ The All button selects all measurement units.
▪ The None button deselects all measurement units.
▪ You must select at least one unit before you can Write to the
sensor.
Two User Defined Units
You can define the Name, Multiplier, Oset, and Function for two
non-standard or unsupported display units.
Note: Flow type does not use Oset.
Note: (multiplier × PSI) + Oset = the displayed value for linear
type.
Damping
No settings on the Smart Manometer
You cannot set the Damp Rate on the Smart Manometer. You have
to click the Configuration button in HHP400 Suite to change the
Damp Rate.
Damping rate
Select a Time Constant: 1 second, 2 seconds, 4 seconds,
8seconds, or 16seconds.
▪ When set for 4 second time constant, it takes 4 seconds
from the time of the step change until the Smart Manometer
displays the full value of the new pressure.
Damping types
Select a Damp Type: Exponential, Smart Quick, Smart Normal, or
SmartSlow.
▪ Use adjustable Exponential type damping to steady the
display when you measure pulsating pressure or flow.
▪ Exponential damping displays approximately 70 % of a step
change in pressure at the next display update.
User Manual for Smart Manometer
of
Page 38
M20011 REL-0000 (2103)
User Calibration button
The User Calibration button displays options to calibrate
the sensor.
The User Calibration button displays a yellow alert icon
to indicate you have changed a setting and you have not
yet saved the setting to the Smart Manometer.
User Calibration: For authorized personnel only
What does “Calibration Enabled” refer to?
▪ With a check mark in the box, Calibration Enabled displays the
Live Reading with your current user calibration applied.
▪ Without a check mark in the box, it displays Live Reading
without your user calibration.
Restore Factory Defaults
This button clears your user calibration from the sensor.
Choose Calibration Unit
▪ Select the calibration reference units.
▪ This does not aect or depend on the configuration units.
Begin button…Apply button
1. Click Begin.
2. Select the point.
3. Apply reference pressure within the range shown.
4. Enter the reference value.
5. Save the point.
6. Repeat steps 2-5 until you are done. (You have to change at
least one point.)
7. Click the Apply button.
User Manual for Smart Manometer
of
Page 39
M20011 REL-0000 (2103)
Customer calibration
You can calibrate the manometer in the field for
1. Zero.
2. Span.
3. Linearity.
The customer calibration does not replace the Factory Lab
Calibration Procedure. It is intended to correct the curve fit if the
actual sensor characteristics change slightly over time.
For sensors up to 200 psi, Omega recommends a ± 0.0015% of
reading deadweight tester. For sensors 200 psi and above, a ±
0.0030 % of reading deadweight tester is recommended. Note that
AI type sensor requires absolute referenced deadweight testers or
standards for field calibration. The options are:
1. 2-point (within upper 50% of FS)
2. 5-point (nominal values of 0%, 25%, 50%, 75% and 100% of
FS).
3. Restore factory default calibration.
For the 5 Point calibration, points 2, 3 and 4 can be adjusted
within ± 1% of reading around the nominal values. Point #5 can be
adjusted within -1% of reading around nominal. Point #1 is fixed.
The unit can only be calibrated if the calibration points are within
5 times the accuracy of the original factory calibration
For example: at 0.05% accuracy, the point limit is ± 0.25% of
FS.
If the calibration procedure generates a new value outside this
limit the procedure fails. In this case the unit would need to be
returned to the factory for service.
After a calibration has been performed (either 2-point or
5-point), the sensor uses only that calibration. To turn on another
calibration type, you must first Restore Factory Defaults and then
choose another calibration method.
User Manual for Smart Manometer
of
Page 40
M20011 REL-0000 (2103)

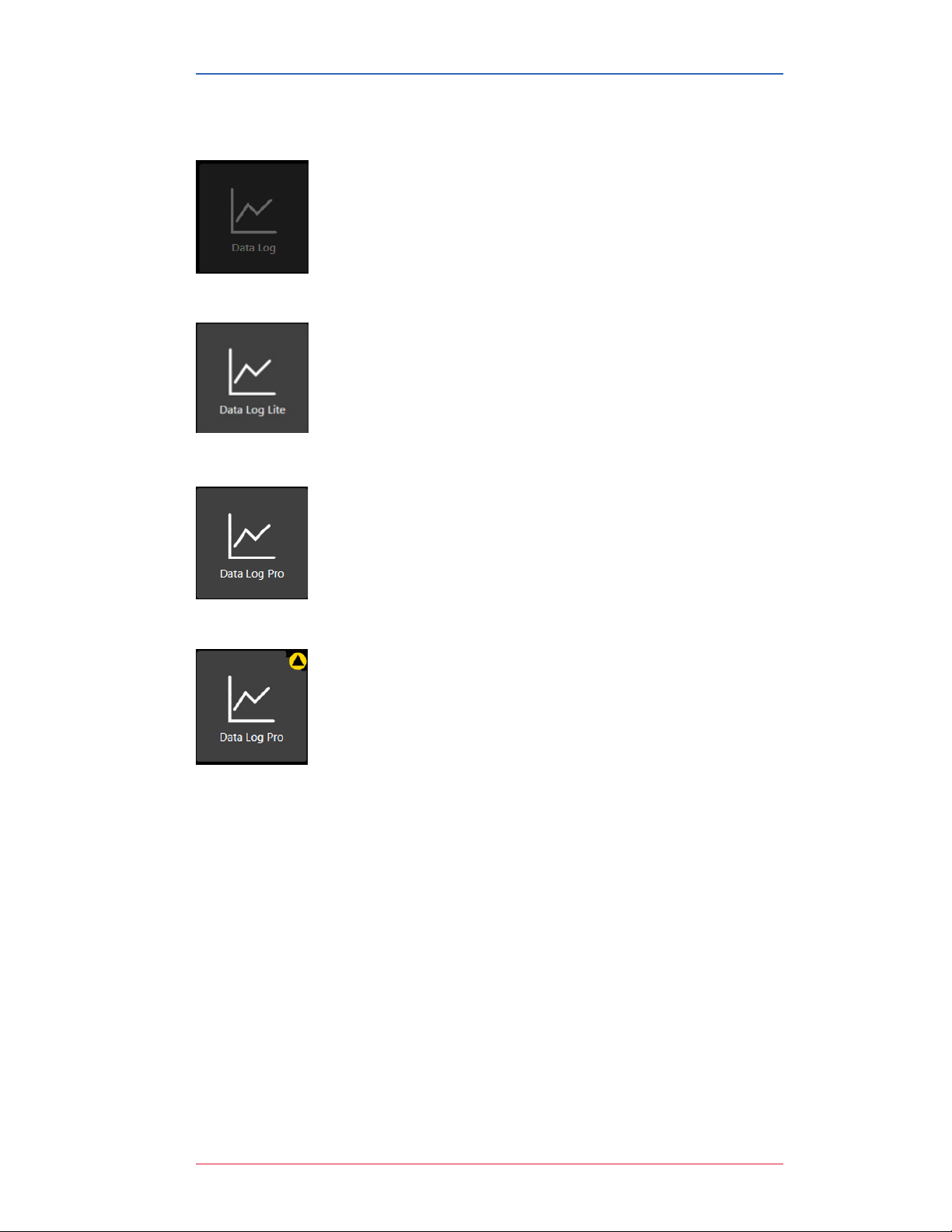

Data Log button
Overview of Data Log buttons
Data logging displays three dierent buttons depending
on what you order or on what you add-on at a later time.
The Data Log button is always unavailable until the USB
cable is attached to the computer with HHP400 Suite.
Data Log Lite
The Data Log Lite button displays when you attach a
Smart Manometer. Data Log Lite is the free version of
data logging. It has no options.
Data Log Pro
The Data Log Pro button displays when Data Log Pro
is activated on the Smart Manometer that is attached to
HHP400 Suite.
Data Log Pro alert
The button displays a yellow alert icon to indicate you
have changed a setting and you have not yet saved the
setting to the Smart Manometer.
User Manual for Smart Manometer
of
Page 41
M20011 REL-0000 (2103)
Data Log Lite

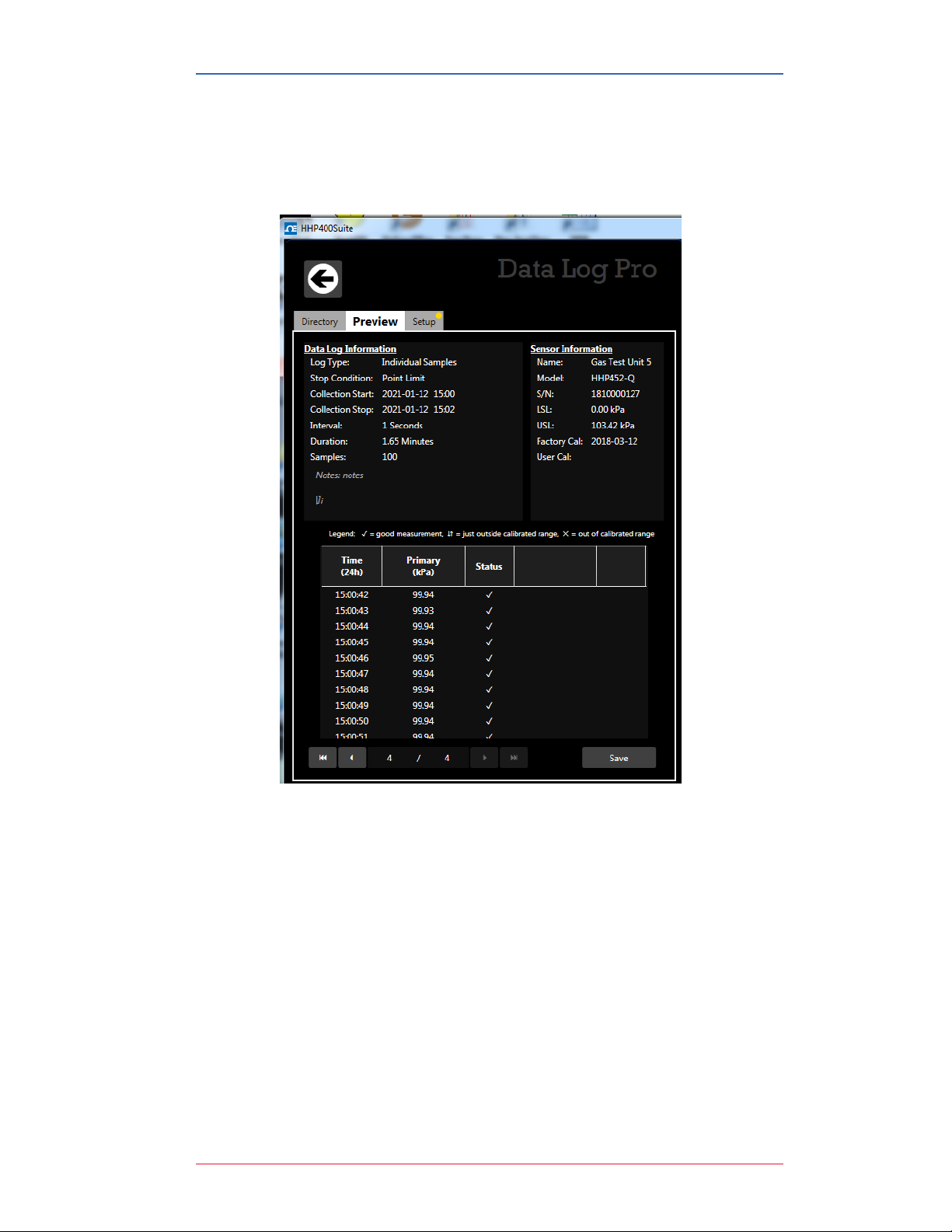

Preview tab
Preview the data log
The Preview tab displays the first 10 samples so you can confirm
the data to save. If you have fewer than 10, it displays all of your
samples.
Status and pressure for logs
The Status symbols for pressure and temperature.
The symbol corresponds to readings that are within the
calibrated range.
▪ The ⇵ and ⨯ symbols indicate an abnormal condition.
▪ The ⇵ symbol indicates readable data.
▪ The ⨯ symbol indicates dashes and no readable data.
The Pressure
The pressure indicates the reading at each 15-second interval in
the data set.
User Manual for Smart Manometer
of
Page 42
M20011 REL-0000 (2103)
TSV file format
Overview
Configuration, Data Log Lite, and Data Log Pro provide you with
the option to save Configuration Reports and Data Log files in
TSV file format.
Two ways to open TSV files
Double click a TSV file
Double click a TSV file in Windows Explorer and if it opens in a
spreadsheet application, then you do not need to do anything
additional.
Examples of spreadsheet applications: Microsoft Excel,
Google Sheets, and OpenOice Calc.
Drag and drop a TSV file into a spreadsheet
Drag and drop TSV files to open them. The following steps are
similar for these spreadsheet applications: Microsoft Excel,
OpenOice Calc, and Google Sheets.
1. Open File Explorer (Windows 8 and 10). Keep File Explorer
small enough to see Excel in the background.
Note: Depending on which version of Windows you have, Fi
Explorer may be known as Windows Explorer, File Manager, or
My Computer.
2. Open Excel. It can have a blank spreadsheet or an existing
spreadsheet. Drag and drop creates a new spreadsheet.
3. Switch to File Explorer and navigate to the location where you
saved the TSV file.
4. Select the file and drag-and-drop it in the middle of the blank
spreadsheet.
5. Save it as an Excel file.
le
User Manual for Smart Manometer
of
Page 43
M20011 REL-0000 (2103)
Upgrade tab
The Upgrade tab provides you with an Enter Activation Key edit
box and an Activate Device button to replace Lite with Pro.
Note: The Activate Pro button remains unavailable until you
enter an activation key number.
User Manual for Smart Manometer
of
Page 44
M20011 REL-0000 (2103)

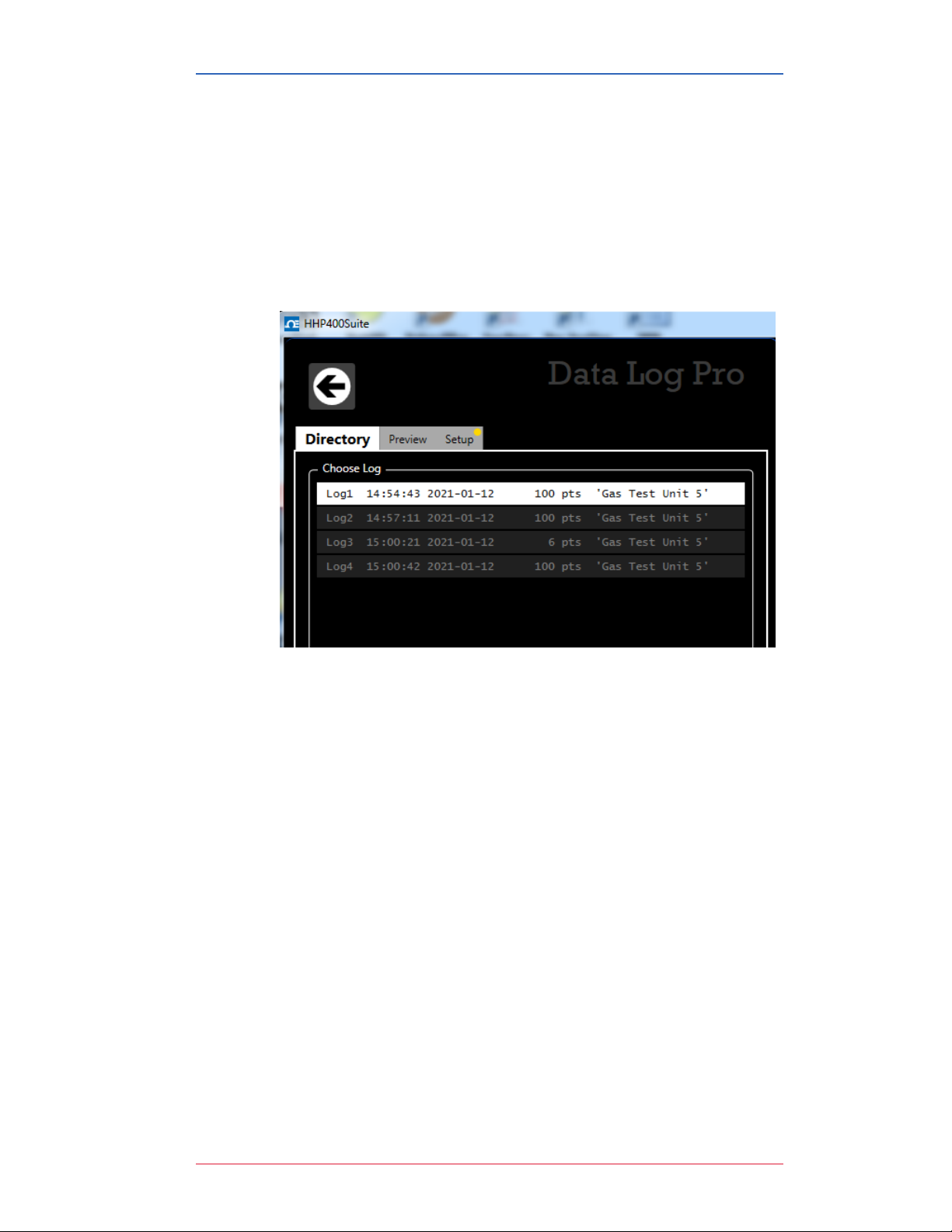

Directory tab
View the list of logs on the Smart Manometer
The Directory tab displays all the logs in the memory of the
connected Smart Manometer. Two ways to open a log:
▪ Double click a log to open it in the Preview tab.
▪ Or, you may select a log from the list and click the Preview tab
to view it.
User Manual for Smart Manometer
of
Page 45
M20011 REL-0000 (2103)
Preview tab
Overview of the Preview tab
When you double click a log in the Directory tab, the Preview tab
opens.
The Preview tab contains seven areas of information:
1. Data Log Information list.
2. Sensor Information list.
3. Notes.
4. Legend.
5. Samples table.
6. Navigation bar.
7. Save button.
User Manual for Smart Manometer
of
Page 46
M20011 REL-0000 (2103)
Details about the Preview tab
1
. Data Log Information list
A description of items in this list:
1. Log type indicates the type that was selected in the Setup tab
when the log was created.
2. Stop condition indicates why the log stopped.
List of stop conditions: Manual Stop, Data Complete, Time
Limit, Point Limit, Storage Limit, Low Power, Sensor Removed,
PC Connection, or Sensor Error
3. Collection Start indicates the day and time the log began.
4. Collection Stop indicates the day and time the log ended.
5. Interval is how often data is saved but the Internal does not
display with the On Demand option.
6. Duration displays how long the log actually recorded data.
This may or may not be the Duration you selected in the Setup
tab. Check the Stop condition.
7. Samples indicate the number of readings in the log. They
reflect how many data points were saved.
. Sensor Information list
2
▪ All information in this list was retrieved from the internal
sensor (and from an Omega Tethered Sensor) if one was
attached) at the time the Smart Manometer recorded this
particular log.
. Notes
3
▪ Any information that displays here comes from the text you
enter in the Notes box in the Data Log Pro Setup tab.
User Manual for Smart Manometer
of
Page 47
M20011 REL-0000 (2103)
4. Legend for the status columns
The samples table has two columns for Status. The legend
provides three symbols to indicate the level of confidence for
pressure or temperature measurements.
1. The symbol corresponds to readings that are within the
calibrated range.
2. The ⇵ and ⨯ symbols indicate an abnormal condition.
3. The ⇵ symbol indicates readable data but it is out of range.
4. The ⨯ symbol indicates dashes on the Smart Manometer and
no readable data.
. Navigation bar
6
▪ This bar provides you with buttons to jump to the first log or to
the last log.
▪ The bar also provides you with buttons to navigate to the
previous log or next log.
▪ The numbers in the bar indicate which log out of the total
number of logs on the Smart Manometer that you are currently
viewing.
. Save button
7
Click the Save button on the right side and the Save As b
appears. You can save the file in two file formats:
▪ PDF.
▪ TSV.
ox
User Manual for Smart Manometer
of
Page 48
M20011 REL-0000 (2103)
Setup tab
Overview of the Setup tab
▪ The Setup tab lists parameters you may change. It gives you
usage statistics and it displays three action buttons.
▪ A yellow dot appears on this tab after you changed a setting
and have not saved it.
Parameter Choices
Four data logging types
1. Individual Samples refers to actual measurements taken at
fixed intervals.
2. Average only refers to average measurements over the
intervals you selected. It takes measurements every 200 ms.
3. Average with peaks refers to average measurements over
the intervals you selected. It also saves the maximum and
minimum measured values during the interval you saved. It
takes measurements every 200 ms.
4. On Demand refers to manually recording actual
measurements rather than at fixed intervals.
Interval types
You can select Seconds, Minutes, or Hours from a drop-down
menu and enter a number.
Duration types
▪ You can select: Minutes, Hours, Days, Forever, or Points and
enter a number.
▪ Selecting Forever makes the number box disappear.
Note: Forever is limited by the remaining number of points on
the Smart Manometer. Look for these numbers on the Usage box
to the right of Interval.
Notes edit box
Notes you enter in this edit box appear in the Preview tab, the TSV
file, and the PDF file. This field is limited to 64 characters.
User Manual for Smart Manometer
of
Page 49
M20011 REL-0000 (2103)
Usage statistics
Usage presents the amount of memory available on the Smart
Manometer for data logging in two ways:
1. The number of data points used out of a maximum of 100 000.
2. The number of logs used out of a maximum of 128.
Delete All Logs
This button deletes all the logs on the Smart Manometer. This
does not aect the files you saved to the computer in the Preview
tab.
Note: If the Smart Manometer has a password, then clicking this
button requires you to enter a password. This password was
created in the Configuration tab for a sensor.
Read
Save your configuration changes before you click the Read button.
After you click this button, all changes on-screen are replaced
with the configuration that is on the Smart Manometer.
Note: If the Smart Manometer has a password, then clicking this
button requires you to enter a password. This password was
created in the Configuration tab for internal sensor.
Press this button, Data Log Pro reads the parameters from the
Smart Manometer and displays them in the Setup tab.
Write
This button remains unavailable until you make a change in
the Setup tab. It saves the new setup parameters to the Smart
Manometer and overwrites the parameters stored on the Smart
Manometer.
Note: If a sensor has a password, then clicking this button
requires you to enter a password. This password was created in
the Configuration tab.
User Manual for Smart Manometer
of
Page 50
M20011 REL-0000 (2103)
Application button
Overview
The Application button displays a window with three
sections about the HHP400 Suite application:
• About.
• Available Update.
• Language Selection.
Application notifies you of available updates
It displays a green alert icon with an exclamation mark to
indicate an Available Update. After clicking this button, it
displays the following message:
“PLEASE BE ADVISED! If you choose to install the
update at this time, you will lose unsaved configuration
information or data log setup changes. Be sure to save
that information to a file or Write it to the connected
device.”
Application notifies you of no internet connection
It displays a red alert icon with an “x” to indicate”
“There is no connection to the update server. This is
usually caused by the PC not having internet connectivity
or the server may be temporarily unavailable.”
User Manual for Smart Manometer
of
Page 51
M20011 REL-0000 (2103)
Update button
Overview
The Update button displays a window with multiple
sections:
• The first section alerts you to updates for the sensor
and the Smart Manometer.
• The second section alerts you to updates for each
sensor that you attach to the Smart Manometer.
Update notifies you of available updates
It displays a green alert icon to indicate an update is
available for the firmware in the sensor or the Smart
Manometer.
Update notifies you that you have no internet connection
It displays a red alert icon to indicate:
“There is no connection to the update server. This is
usually caused by the PC not having internet connectivity
or the server may be temporarily unavailable.”
User Manual for Smart Manometer
of
Page 52
M20011 REL-0000 (2103)
Specifications
Internal sensors: type and range
Non-Isolated:
Model number Pressure range
Dierential Non- Isolated (DI)
HHP-A - psi to psi
HHP-B - psi to psi
HHP-K -. psi to psi
HHP-L
HHPP-C -. psi to psi
Compound Isolated (CI)
HHP-D -. psi to psi
HHP-T -. psi to psi
HHP-U -. psi to psi
HHP-V -. psi to psi
HHP-W -. psi to psi
HHP-X -. psi to psi
HHP-Y -. psi to psi
HHP-Z -. psi to psi
Absolute Isolated (AI)
HHP-Q psi to psi
HHP-I psi to psi
HHP-R psi to psi
-. psi to psi
User Manual for Smart Manometer
of
Page 53
M20011 REL-0000 (2103)
Omega Tethered Sensors: type and range
Model number Pressure range
Dierential Non-Isolated (DI)
HHP-A-T S
HHP-B-TS
HHP-K-TS
HHP-L-TS -. psi to psi
HHP-C-TS -. psi to psi
Compound Isolated (CI)
HHP-D-TS
HHP-T-TS
HHP-U-T S
HHP-V-T S
HHP-W-TS
HHP-X-TS
HHP-Y-T S
HHP-Z-TS
Absolute Isolated (AI)
HHP-Q-TS psi to psi
HHP-I-TS psi to psi
HHP-R-TS psi to psi
- psi to psi
- psi to psi
-. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
–. psi to psi
User Manual for Smart Manometer
of
Page 54
M20011 REL-0000 (2103)
Pressure measurements
▪ Accuracy Specification
▪ ± (0.02% of FS + 0.005 % of Rdg) from 0% to 110% of FS.
▪ For Compound sensors only:
▫ Vacuum: ± (0.02 % of FS)
▫ Vacuum = -14.5 psi
▪ Accuracy statements include the combined eects of linearity,
repeatability, hysteresis, and temperature over the specified
operating temperature range.
▪ Warm up time: 5 minutes.
▪ You should zero the sensor at working ambient temperature
before using it.
User Manual for Smart Manometer
of
Page 55
M20011 REL-0000 (2103)
Overrange limit
▪ Overrange pressure or temperature means the value is outside
the calibrated upper or lower range.
▪ Above 100 %, the red backlight turns on automatically.
▪ Above 120 %, the red backlight turns on and displays OVER
RANGE in place of pressure reading.
Temperature
▪ Storage: –20 °C to 70 °C (–4 °F to 158 °F)
▪ Operating: –10 °C to 50 °C (14 °F to 122 °F)
Relative humidity
▪ 95 % non-condensing
Vibration
▪ 1 meter drop test
Ingress specifications
▪ IP52 for the HHP452
▪ IP54 for the Omega Tethered Sensors
Keypad
▪ Sealed membrane 16 domes.
User Manual for Smart Manometer
of
Page 56
M20011 REL-0000 (2103)
Media compatibility
Pressure Types
▪ DN: Dierential pressure, non-isolated sensors for use with
clean, dry, non-corrosive gases only.
▪ CN: Compound non-isolated sensors for use with clean, dry,
non-corrosive gases only.
▪ AN: Absolute non-isolated sensors for use with clean, dry,
non-corrosive gases only.
▪ DI: Dierential pressure, isolated sensors for use with gases
and liquids compatible with 316LSS and Viton O-rings
▪ CI: Compound or Absolute pressure sensors for use with
gases and liquids compatible with 316LSS.
▪ AI: Compound or Absolute pressure sensors for use with
gases and liquids compatible with 316LSS.
Pressure Limits
▪ DN units: 3x range or 200 psi, whichever is less.
▪ CN units: 3x range or 200 psi, whichever is less.
▪ AN units: 3x range or 200 psi, whichever is less.
▪ DI units: 1000 psi common mode, P1 (HI) only is 3x range, P2
(LO) only is 3x range or 150 PSI, whichever is less.
▪ CI units: 2x range.
▪ AI units: 2x range.
User Manual for Smart Manometer
of
Page 57
M20011 REL-0000 (2103)
EMC compliance
Conformity to EN 61326-1:2016
This product has been evaluated to EN 61326-1:2016 the EMC
General requirements for electrical equipment for measurement,
control and laboratory use. This evaluation demonstrated that
when the product is exposed to Radiated Radio Frequency
energy in the frequency range 130-1000 MHz and 1.6-2.1 GHz, the
pressure and temperature readings may fluctuate beyond the
published tolerance of each respective value being measured. In
the event of such a phenomenon occurring, the operator should
move away from (or have removed) any source of strong RF
emissions such as radio transmitters, cell-phones, etc., and repeat
the measurement, or reconnect to a PC.
Electrostatic discharge (ESD)
This unit is sensitive to ESD discharges that may result in the
unit re-starting of the operating system, or interruption of a PC
connection. In the unlikely event of such an occurrence, users
should ensure they discharge any static charge they may be
carrying by touching a known grounded conductive surface prior
to operating the equipment .
User Manual for Smart Manometer
of
Page 58
M20011 REL-0000 (2103)
Weight
▪ Smart Manometer 1000 g (35.2 oz. or 2.2 lb.)
▪ Omega Tethered Sensors pressure module 148 g or 0.33 lb.
▪ Omega Tethered Sensors temperature module
92.5 g or 0.20 lb.
Enclosure
Polycarbonate / ABS alloy.
User Manual for Smart Manometer
of
Loading...
