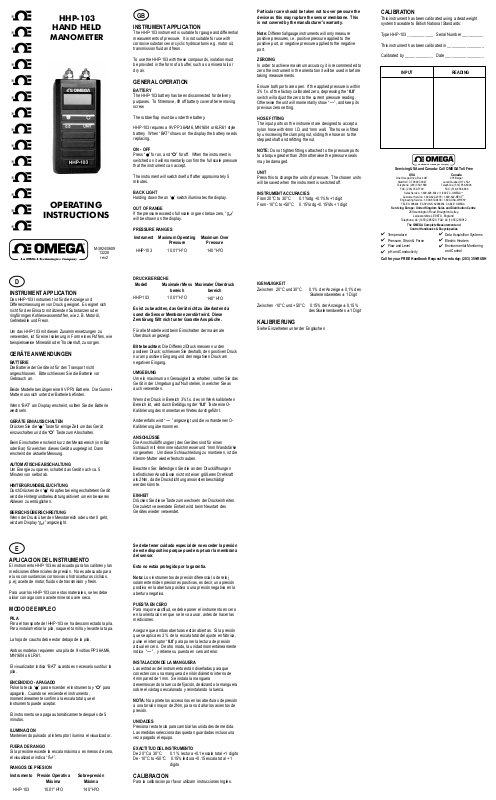

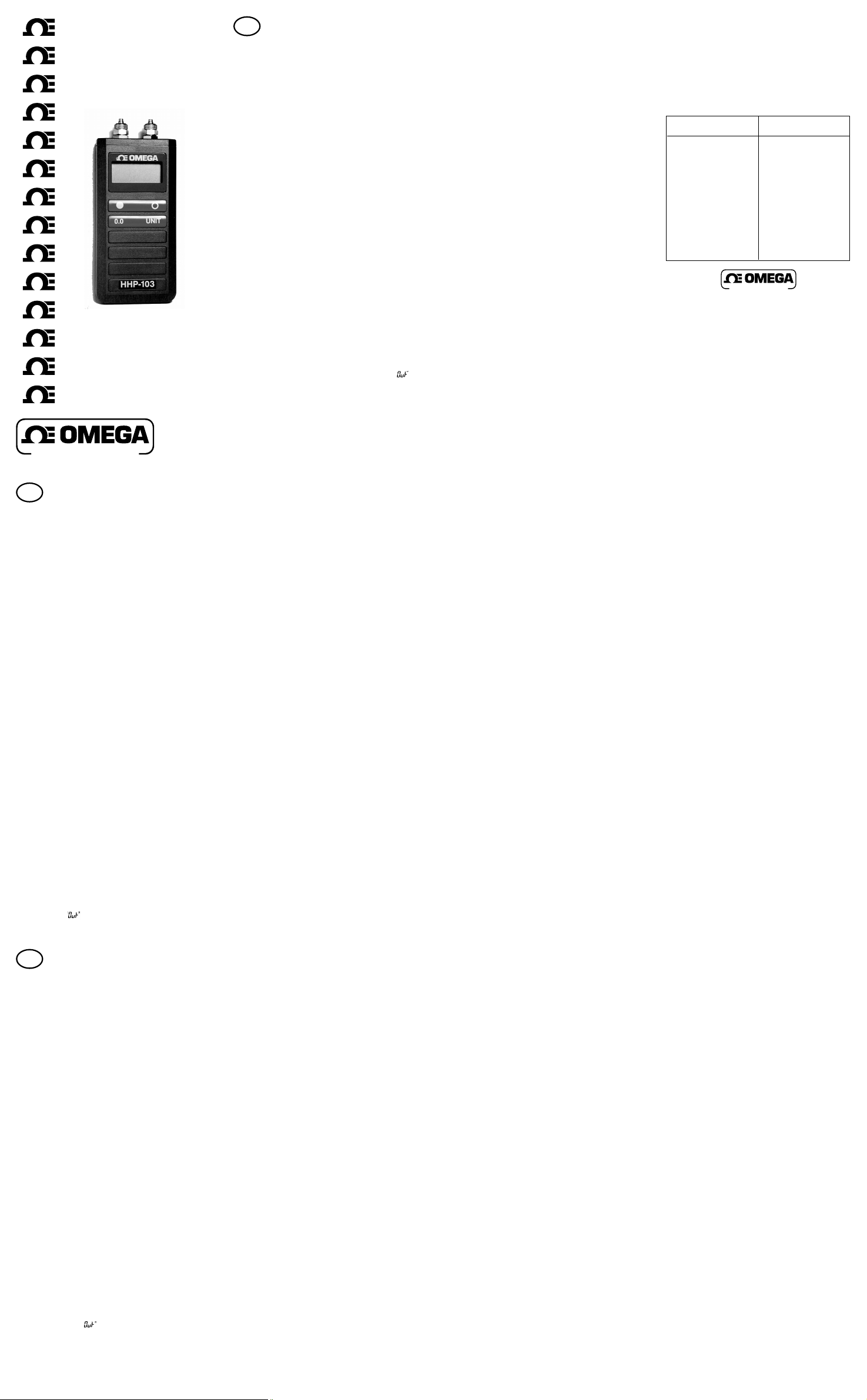

Omega HHP-103 User guide

®

®

HAND HELD

MANOMETER

®

®

®

®

®

®

®

®

®

®

®

OPERATING

INSTRUCTIONS

®

An OMEGA Technologies Company

HHP-103

®

M-3924/0609

13228

rev.2

GB

INSTRUMENT APPLICATION

The HHP-103 instrument is suitable for gauge and differential
measurements of pressure. It is not suitable for use with
corrosive substances or cyclic hydrocarbons e.g. motor oil,
transmission fluid and freon.

To use the HHP-103 with these compounds, isolation must
be provided in the form of a buffer, such as a mineral oil or
dry air.

GENERAL OPERATION

BATTERY

The HHP-103 battery has been disconnected for delivery
purposes. To fit/remove, lift off battery cover after removing
screw.

The rubber flap must be under the battery.

HHP-103 requires a 9V PP3 6AM6, MN1604 or 6LR61 style
battery. When “BAT” shows on the display the battery needs
replacing.

ON - OFF

Press “l” for on, and “O” for off. When the instrument is
switched on it will momentarily confirm the full scale pressure
that the instrument can accept.

The instrument will switch itself off after approximately 5
minutes.

BACK LIGHT

Holding down the on “l” switch illuminates the display.

OUT OF RANGE

If the pressure exceeds full scale or goes below zero, “ ”
will be shown on the display.

PRESSURE RANGES

Instrument Maximum Operating

Pressure

HHP-103 10.01" H²O 140" H²O

Maximum Over

Pressure

Particular care should be taken not to over pressure the
device as this may rupture the sensor membrane. This
is not covered by the manufacturer’s warranty.

Note: Differential/gauge instruments will only measure

positive pressures, i.e. positive pressure applied to the
positive port, or negative pressure applied to the negative
port.

ZEROING

In order to achieve maximum accuracy, it is recommended to
zero the instrument in the orientation it will be used in before
taking measurements.

Ensure both ports are open. If the applied pressure is within
3% f.s. of the factory calibrated zero, depressing the “0.0”
switch will adjust the zero to the current pressure reading.
Otherwise the unit will momentarily show “----”, and keep its
previous zero setting.

HOSE FITTING

The input ports on the instrument are designed to accept a
nylon hose with 4mm I.D. and 1mm wall. The hose is fitted
by unscrewing the clamping nut, sliding the hose on to the
stepped shaft and refitting the nut.

NOTE: Do not tighten fittings attached to the pressure ports
to a torque greater than 2Nm otherwise the pressure seals
may be damaged.

UNIT

Press this to change the units of pressure. The chosen units
will be saved when the instrument is switched off.

INSTRUMENT ACCURACIES

From 20°C to 30°C 0.1%rdg +0.1%fs +1 digit
From -10°C to +50°C 0.15%rdg +0.15%fs +1 digit

CALIBRATION

This instrument has been calibrated using a dead weight
system traceable to British National Standards:

Type HHP-103 ____________ Serial Number __________

This instrument has been calibrated in _________________

Calibrated by _____________ Date __________________

INPUT

Servicing USA and Canada: Call OMEGA Toll Free

One Omega Drive, Box 4047

Stamford, CT 06907-0047

Telephone: [phone]

Servicing Europe: United Kingdom Sales and Distribution Centre

4

Temperature

4

Pressure, Strain & Force

4

Flow and Level

4

pH and Conductivity

Call for your FREE Handbook Request Form today: (203) 359-RUSH

An OMEGA Technologies Company

USA

FAX: [phone]

Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

Customer Service: 1-800-622-2378 / 1-800-622-BEST

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

25 Swannington Road, Broughton Astley,

Leicestershire LE9 6TU, England

Telephone: [phone] FAX: [phone]

The OMEGA Complete Measurement and

Control Handbooks & Encyclopedias

READING

®

Canada

976 Bergar

Laval (Quebec) H7L 5A1

Telephone: [phone]

FAX: [phone]

SM

SM

4

Data Acquisition Systems

4

Electric Heaters

4

Environmental Monitoring
and Control

SM

D

INSTRUMENT APPLICATION

Das HHP-103 Instrument ist für die Anzeige und
Differenzmessungen von Druck geeignet. Es eignet sich
nicht für den Einsatz mit ätzenden Substanzen oder
ringförmigen Kohlenwasserstoffen, wie z. B. Motoröl,
Getriebeöle und Freon.

Um das HHP-103 mit diesen Zusammensetzungen zu
verwenden, ist für eine Isolierung in Form eines Puffers, wie
beispielsweise Mineralöl oder Trockenluft, zu sorgen.

GERÄTE ANWENDUNGEN

BATTERIE

Die Batterie der Geräte ist für den Transport nicht
angeschlossen. Bitte schliessen Sie die Batterie vor
Gebrauch an.

Beide Modelle benötigen eine 9V PP3 Batterie. Die Gummi­Matte muss sich unter der Batterie befinden.

Wenn “BAT” am Display erscheint, sollten Sie die Batterie
wechseln.

GERÄTE EIN/AUSSCHALTEN

Drücken Sie die “l” Taste für einige Zeit um das Gerät
einzuschalten und die “O” Taste zum Abschalten.

Beim Einschalten erscheint kurz der Messbereich (in mBar
oder Bar) für welchen dieses Gerät ausgelegt ist. Dann
erscheint die aktuelle Messung.

AUTOMATISCHE ABSCHALTUNG

Um Energie zu sparen, schaltet das Gerät nach ca. 5
Minuten von selbst ab.

HINTERGRUNDBELEUCHTUNG

DurchDrücken den “l” Knopfes bei eingeschaltetem Gerät
wird die Hintergrundbeleuchtung aktiviert um ein besseres
Ablesen zu ermöglichen.

BEREICHSÜBERSCHREITUNG

Wenn der Druck über den Messbereich oder unter 0 geht,
wird am Display “ ” angezeight.

DRUCK BEREICHE

Modell Maximaler Mess

bereich

HHP-103 10.01" H²O

Maximaler Überdruck

bereich

140" H²O

Es ist zu beachten, das Gerät nicht zu überlasten da
sonst die Sensor Membrane zerstört wird. Diese
Zerstörung fällt nicht unter Garantie Ansprüche.

Für alle Modelle wird beim Einschalten der maximale
Überdruck angezeigt.

Bitte beachten: Die Differenz/Druck messen nur den
positiven Druck; schliessen Sie deshalb, den positiven Druck
nur am positiven Eingang und den negativen Druck am
negativen Eingang.

UMGEBUNG

Um ein maximum an Genauigkeit zu erhalten, sollten Sie das
Gerät in der Umgebung auf Null stellen, in welcher Sie as
auch verwenden.

Wenn der Druck in Bereich 3% f.s. des im Werk kalibrierten
Bereich ist, wird durch Betätigung der “0.0” Taste eine O­Kalibrierung des momentanen Wetes durchgeführt.

Anderenfalls wird “ ---- ” angezeigt und die vorhandenen O­Kalibrierung übernommen.

ANSCHLÜSSE

Die Anschlußöffnung(en) des Gerätes sind für einen
Schlauch mit 4mm innendurchmesser und 1mm Wandstärke
vorgesehen. Um diese Schlauchleitung zu montieren, ist die
Klemm-Mutter wieder festschrauben.

Beachten Sie: Befestigen Sie die an den Drucköffnungen
befindlichen Anschlüsse nicht mit einer größeren Drehkraft
als 2Nm, da die Druckdichtung ansonsten beschädigt
werden könnte.

EINHEIT

Drücken Sie diese Taste zum wechseln der Druckeinheiten.
Die zuletzt verwendete Einheit wird beim Neustart des
Gerätes wieder verwendet.

IGENAUIGKEIT

Zwischen 20°C und 30°C 0.1% der Anzeige ± 0,1% des
Skalenendweretes ± 1 Digit

Zwischen -10°C und +50°C 0.15% der Anzeige ± 0,15%
des Skalenendwertes ± 1 Digit

KALIBRIERUNG

Siehe Einzelheten unter der Englischen

E

APLICACION DEL INSTRUMENTO

El instrumento HHP-103 es adecuado para los calibres y las
mediciones diferenciales de presión. No es adecuado para
el uso con sustancias corrosivas o hidrocarburos cíclicos,
p.ej; aceite de motor, fluidos de transmisión y freón.

Para usar los HHP-103 con estos materiales, se les debe
aislar con aigo como aceite mineral o aire seco.

MODO DE EMPLEO

PILA

Para el transporte del HHP-103 se ha desconnectado la pila.
Para instalar/retirar la pila, saque el tornillo y levante la tapa.

La hoja de caucho debe estar debajo de la pila.

Ambos modelos requieren una pila de 9 voltios PP3 6AM6,
MN1604 o 6LR61.

El visualizador indica “BAT” cuando es necesario sustituir la
pila.

ENCENDIDO - APAGADO

Pulse la tecla “l” para encender el instrumento y “O” para
apagarlo. Cuando se enciende el instrumento,
momentáneamente confirma la escala total que el
instrumento puede aceptar.

El instrumento se apaga automáticamente después de 5
minutos.

ILUMINACION

Manteniendo pulsado al interruptor l ilumina el visualizador .

FUERA DE RANGO

Si la presióne excede la escala máxima o es menos de cero,
el visualizador indica “ ”.

RANGOS DE PRESION

Instrumento Presión Operativa

Máxima

HHP-103 10.01" H²O 140" H²O

Sobre-presión

Máxima

Se debe tener cuidado especial de no exceder la presión
de este dispositivo porque puede rup-turar la membrana
del sensor.

Esto no estáa protegido por la garantia.

Nota: Los instrumentos de presión diferencial o de reloj

solamente miden presiones positivas, es decir, una presión
positiva en la abertura positiva o una presión negativa en la
abertura negativa.

PUESTA EN CERO

Para mayor exactifud, se debe poner el instrumento en cero
en la orientación en que se le va a usar, antes de hacer las
mediciones.

Asegure que ambas aberturas están abiertas. Si la presión
que se aplica es 3% de la escala total del ajuste en fábrica,
pulse el interruptor “0.0” para poner la lectura de presión
actual en cero. De otro modo, la unidad momentáneamente
indica “----” , y retiene su puesta en cero anterior.

INSTALACION DE LA MANGUERA

Las entradas del instrumento están diseñadas para que
conecten con una manguera de nilón diámetro interno de
4mm pared de 1mm. Se instala la manguera
desenroscando la tuerca de fijación, deslizando la manguera
sobre el vástago escalonado y reinstalando la tuerca.

NOTA: No apriete los accesorios en las aberturas de presión
a una torsión mayor de 2Nm, para no dañar los asientos de
presión.

UNIDADES

Presionar esta tecla para cambiar las unidades de medida.
Las medidas seleccionadas quedan guardadas incluso una
vez apagado el equipo.

EXACTITUD DEL INSTRUMENTO

De 20°C a 30°C 0.1% lectura +0.1 escala total +1 digito
De -10°C to +50°C 0.15% lectura +0.15 escala total + 1
digito

CALIBRACION

Para la calibracion por favor utilizam instrucciones Ingles.

F

DESCRIPTION

L’instrument HHP-103 est adapté aux mesures de pression
différentielles et avec jauges. Il ne peut être utilisé avec des
substances corrosives ou des hydrocarbures cycliques
comme l’huile de moteur, les liquides hydrauliques et le
fréon.

Pour utiliser les appareils HHP-103 avec ces substances il
faut isoler l’appareil au moyen d’un tampon tel que de l’huile
minérale ou de l’air asséché.

MODE D’EMPLOI

PILES

Les piles ont été déconnectées pendant la livraison. Veuillez
connecter (9V PP3, 6AM6, MN1604, 6LR61) avant
utilisation. Quand “BAT” s’affiche les piles sont déchargées.

L’UTILISATION DE L’APPAREIL HHP-103

Pour mettre l’appareil en service appuyer sur le bouton “l”
et sur le bouton “O” pour l’arrêter. Quand l’appareil est mis
en service la gamme de pression entière sera brièvement
affichée (en Bar ou mbar). Puis la pression mesurée sera
affichée. L’appareil s’arrête automatiquement après 5
minutes environ.

ÉCLAIRAGE DE L’AFFICHAGE

En appuyant continuellement sur la touche “l” l’affichage est
éclairé.

AU-DESSUS/AU-DESSOUS DE L’AUTONOMIE

Si la pression raccordée est au-dessus/au-dessous de
l’autonomie “ ” se montre sur l’affichage.

GAMMES DE PRESSION
Appareil Pression maximale

de fonction

HHP-103 10.01" H²O 140" H²O

Il ne faut pas dépasser la surpression maximale, cela
pourra endommager le capteur et n’est pas couvert par
la garantie.

Surpression

maximale

Note: Les appareils de pression différentielle et directe ne

mesurent que des valeurs positives c’est-à-dire de la
pression positive raccordée au port positif et de la pression
négative raccordée au port négatif.

RÉGLAGE DU ZÉRO

Pour atteindre la précision maximale, vous êtes conseillé de
remettre l’appareil à zéro dans la position dans laquelle il
sera utilisé avant de commencer de prendre des mesures.

Mettez l’appareil en marche. Attendez que l’affichage se
stabilise. Si la valeur affichée est de l’ordre de 3% de la
pleine échelle, appuyez sur le bouton “0.0”, l’appareil se
mettra automatiquement à zéro et la pression peut être
raccordée. Autrement l’appareil montre “----” et le réglage du
zéro ne changera pas.

TUYAU DE RACCORDEMENT

Les raccords acceptent un tuyau en nylon avec un diamètre
inférieur à 4mm et extérieur de 1mm. Pour raccorder le
tuyau dévisser l’écrou, glisser le tuyau sur le raccord et
revisser l’écrou. Le moment de torsion ne devra pas
dépasser 2Nm pour ne pas endommager les capuchons de
pression.

UNITES

Appuyez sur le bouton « unit » pour changer les unités de
pression. Les nouvelles unités seront sauvegardées lorsque
vous éteindrez l'appareil.

PRÉCISION DE L’APPAREIL

De 20°C à 30°C 0.1% de la lecture +0.1% de la pleine
échelle + 1 digit
De -10°C à +50°C 0.15% de la lecture +0.15% de la

pleine échelle + 1 digit

CALIBRAGE

Détails dans la partie anglaise.

I

APPLICAZIONI DELLO STRUMENTO

Lo strumento HHP-103 è adatto a misurazioni manometriche
e differenziali della pressione. Non è adatto all’uso con
sostanze corrosive o con idrocarburi ciclici come l’olio per il
motore, i liquidi di trasmissione e il Freon.

Per poter usare il HHP-103 con questi composti, la sonda va
isolate tramite tamponi, quale l’olio minerale o l’aria secca.

FUNZIONAMENTO

BATTERIA

La batteria del HHP-103 viene consegnata disinserita. Per
l’inserimento/rimozione, alzare il coperchio del
compartimento batteria dopo aver tolto la vite.

L’aletta in gomma deve stare sotto la batteria.

Entrambi i modelli necessitano di un tipo di batteria da 9V
PP3 6AM6, MN1604 o 6LR61. L‘iscrizione “BAT” appare
sullo schermo quando si rende necessaria la sostituzione
della batteria.

ACCENSIONE - SPEGNIMENTO

Premere “l” per l’accensione e “O” per lo spegnimento.
All’accensione, lo strumento, darà momentanea conferma
dell’intera scala delle pressioni che lo instrumento può
accettare. Lo strumento si spegne automaticamente dopo
circa 5 minuti.

RETRO ILLUMINAZIONE

Lo schermo si illumina tenendo premuto il tasto d’accensione
“l” .

FUORI SCALA

Se la pressione eccede la scala massima o scende sotto lo
zero, apparirà sullo schermo la dicitura “ ”.

SCALE PRESSIONE

Strumento Massima Pressione

di Funzionamento

HHP-103 10.01" H²O 140" H²O

Massimo Fuori

Scala

Occorre fare particolare attenzione a non sovraccaricare
il dispositivo in quanto potrebbe lacerare la membrana
del sensore. Ciò non è coperto dalla garanzia del
fabbricante.

Nota: Gli strumenti di taratura/differenziale misurano solo

pressioni in senso positivo, vale a dire la pressione positiva
applicata all’attacco positivo, oppure la pressione negativa
applicata all’attacco negativo.

AZZERAMENTO

Per ottenere la massima precisione, si raccomanda di
azzerare lo strumento nell’orientamento in cui verrà utilizzato
prima di effettuare le misurazioni.

Assicurarsi che entrambi gli attacchi siano aperti. Se la
pressione applicata rientra nell’ 3% della scala dello zero
tarato in fabbrica, premendo el rilasciando il tasto “0.0”
allineerà zero con l’attuale lettura della pressione. In caso
contrario, l’apparecchio mostrerè temporaneamente “----” e
manterrà il precedente settaggio dello zero.

MONTAGGIO DEL TUBO FLESSIBLE

Gli attachi d’ingresso dello strumento sono progettati per il
montaggio di un tubo flessibile in nylon con un diametro
interno di 4 mm ed una parete di 1 mm. Il tubo viene
montato svitando il dado di serraggio, facendo scorrere il
tubo sul’albero a gradini e avvitando il dado.

NOTA: Non avvitare gli accessori applicati agli attacchi di
pressione ad una torsione oltre 2Nm altrimenti si potrebbero
danneggiare le guarnizioni di pressione.

UNIT

Premendo il tasto UNIT, l’unità di misura verrà cambiata. La
nuova unità selezionata verrà memorizzata anche nel caso
in cui lo strumento viene spento.

PRECISIONE STRUMENTO

Da 20°C a 30°C 0.1%rdg +0.1%fs +1 cifra
Da -10°C a +50°C 0.15%rdg +0.15%fs +1 cifra

TARATURA

Per risultati di calibrazione per favore riferire alla sezione
inglese.

OMEGA ENGINEERING, INC warrants this unit to be free of defects in materials and
workmanship for a period of 25 months from the date of purchase. OMEGA Warranty
adds an additional one (1) month grace period to the normal one (1) year product
warranty to cover handling and shipping time. This ensures that OMEGA’S customers
receive maximum coverage on each product. If the unit malfunctions, it must be returned
to the factory for evaluation. OMEGA’s Customer Service Depart-ment will issue an
Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced
at no charge. OMEGA’S WARRANTY does not apply to defects resulting from any action
of the purchaser, including but not limited to mishandling, improper interfacing, operation
outside of design limits, improper repair, or unauthorized modification. This WARRANTY
is VOID if the unit shows evidence of having been tampered with or shows evidence of
having been damaged as a result of excessive corrosion; or current, heat, moisture or
vibration; improper specification; misapplication; misuse or other operating conditions
outside of OMEGA’s control. Components which wear are not warranted, including but
not limited to contact points, fuses, and triacs. OMEGA is pleased to offer suggestions
on the use of its various products. However, OMEGA neither assumes responsibility for
any omissions or errors nor assumes liability for any damages that result from the use if
its products in accordance with information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by it will be as specified and free of
defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND
ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANT-ABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DIS-CLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive,
and the total liability of OMEGA with respect to this order, whether based on contract,
warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the
purchase price of the component upon which liability is based. In no event shall OMEGA
be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be
used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear
installation or activity; or (2) in medical applications or used on humans. Should any
Product(s) be used in or with any nuclear installation or activity, medical application, used
on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our
basic WARRANTY / DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out
of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service
Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER
MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S
CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS).
The assigned AR number should then be marked on the outside of the return package an
on any correspondence.

FOR WARRANTY RETURNS For NON-WARRANTY REPAIRS,
please have the following information consult OMEGA for current repair
available BEFORE contacting OMEGA: charges. Have the following information

1. Purchase Order number under which available BEFORE contacting OMEGA:
the product was PURCHASED, 1. Purchase Order number to cover the

2. Model and serial number of the COST of the repair/calibration
product under warranty, and 2. Model and serial number of the

3. Repair instructions and/or specific product, and
problems relative to the product. 3. Repair instructions and/or specific

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.
This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 1998 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,
photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in
whole or in part, without the prior written consent of OMEGA ENGINEERING, INC. It is the policy of
OMEGA to comply with all worldwide safety and EMC / EMI regulations that apply. OMEGA is constantly
pursuing certification of its products to the European New Approach Directive. OMEGA will add the CE
mark to every appropriate device upon certification. The information contained in this document is believed
to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the
right to alter the specifications without notice. WARNING: These products are not designed for use in, and
should not be used for, patient connected applications.

WARRANTY / DISCLAIMER

RETURN REQUESTS / INQUIRIES

problems relative to the product.

omega.com

®

OMEGAnet On-Line Service

http://www.omega.com

®

®

Internet e-mail

[email protected]

Servicing North America:

USA:

ISO 9001 Certified

Canada:

USA and Canada:

Mexico and
Latin America:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Czech Republic:

France:

Germany/Austria:

United Kingdom:

ISO 9002 Certified

One Omega Drive, Box 4047
Stamford, CT 06907-0047
Tel: [phone]
e-mail: [email protected]

976 Bergar
Laval (Quebec) H7L 5A2
Tel: [phone]
e-mail: [email protected]

For immediate technical or application assistance:

Sales Service:1-800-826-6342 / 1-800-TC-OMEGA
Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436/1-800-USA-WHEN
TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Tel: [phone]
En Español: (95) 203-359-7803

FAX: [phone]

FAX: [phone]

FAX: [phone]
Email: [email protected]

Servicing Europe:

Tel: [phone]
Toll Free in benelux: 0 800 0993344
e-mail: [email protected]

ul. Rude armady 1868, 73301 Karvina-Hranice
Tel: [phone]
Toll Free: 0800-1-66342

9 rue Denis Papin, 78190 Trappes
Tel: [phone]
Toll Free in France: 0800-4-06342
e-mail: [email protected]

Daimlerstrasse 26, D-85392 Deckenpfronn, Germany
Tel: [phone]
Toll Free in German: 0130 11 21 66
e-mail: [email protected]

One Omega Drive, River Bend Technology Centre,
Northbank, Irlam, Manchester M44 5EX, England
Tel: [phone]
Toll Free in England: 0800-488-488
e-mail: [email protected]

FAX: [phone]

FAX: [phone]
Email: [email protected]

FAX: [phone]

FAX: [phone]

FAX: [phone]

SM

SM

SM
