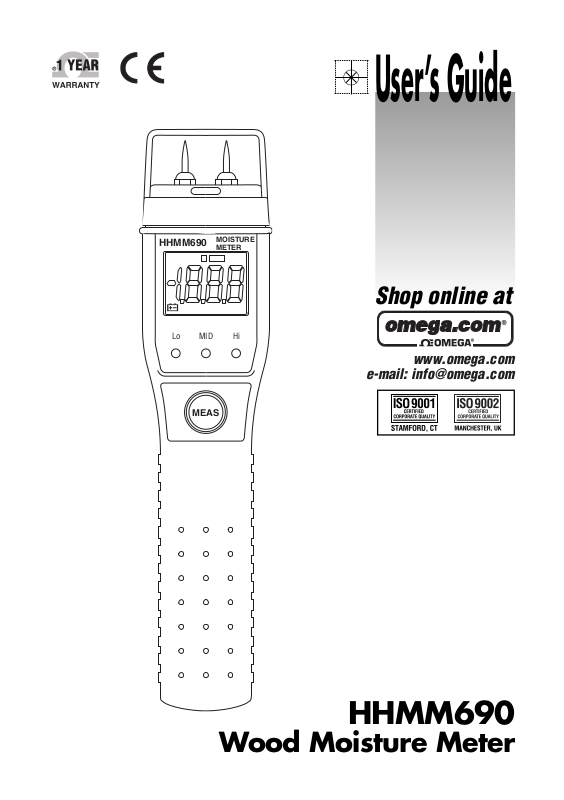

Page 1
HHMM690
MOISTURE
METER
MEAS
Lo MID Hi
Shop online at
Page 2
Servicing North America:
USA: One Omega Drive, Box 4047
ISO 9001 Certified Stamford CT 06907-0047
Tel: (203) 359-1660 FAX: (203) 359-7700
e-mail: [email protected]
Canada: 976 Bergar
Laval (Quebec) H7L 5A1
Tel: (514) 856-6928 FAX: (514) 856-6886
e-mail: [email protected]
For immediate technical or application assistance:
USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA
®
Customer Service: 1-800-622-2378 / 1-800-622-BEST
®
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN
®
TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA
Mexico: En Espan˜ol: (001) 203-359-7803 e-mail: [email protected]
FAX: ( 001) 203-359-7807 [email protected]
Servicing Europe:
Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands
Tel: +31 (0)20 3472121 FAX: +31 (0)20 6434643
Toll Free in Benelux: 0800 0993344
e-mail: [email protected]
Czech Republic: Rudé armády 1868, 733 01 Karviná 8
France: 11, rue Jacques Cartier, 78280 Guyancourt, France
Tel: +33 (0)1 61 37 29 00 FAX: +33 (0)1 30 57 54 27
Toll Free in France: 0800 466 342
e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
Tel: +49 (0)7056 9398-0 FAX: +49 (0)7056 9398-29
Toll Free in Germany: 0800 639 7678
e-mail: [email protected]
United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9002 Certified Northbank, Irlam, Manchester
M44 5BD United Kingdom
Tel: +44 (0)161 777 6611 FAX: +44 (0)161 777 6622
Toll Free in United Kingdom: 0800-488-488
e-mail: [email protected]
OMEGAnet®Online Service Internet e-mail
www.omega.com [email protected]
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that
apply. OMEGA is constantly pursuing certification of its products to the European New Approach
Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.
Page 3
HHMM690 Wood Moisture Meter
Introduction
The HHMM690 moisture meter is a handheld meter which allows for
measurement of wood moisture content from 8% to 28%.
Moisture in wood is used to indicate the potential of wood to decay. The
HHMM690 can be used on any type of wood. Best results are obtained if the
measurement pins are inserted at least 4-5 mm into the wood. The insulated
pins read only at the tip and can be inserted to the desired depth. Note the
HHMM690 measures wood moisture only and is not designed for other
materials.
Operating Instructions
Precaution: Static Electricity can have an effect on measurement. Static
electricity should be minimized before making a measurement.
To minimize the effect of "Static Electricity":
a. Push the electrode pins into the wood with the meter turned off, and then
turn the meter on when you are ready to take the reading.
b. After driving the pins, place your hand next to them on each side of
electrode to help discharge the static from the board.
c. Passing a damp cloth over the board's surface to pick up any static charges
before driving the pins.
How to Use
1. Note Precaution for "Static Electricity".
2. Remove protective cover exposing the two pins.
3. Align the contact pins parallel to the grain of the wood and push them to
their full penetration into the wood if possible. Pins should be at least 4-5
mm into wood for an accurate measurement. The pins are insulated and
only read at the tip.
4. Press the "MEAS" button to measure the wood's moisture content. When
the meter turns off press "MEAS" to resume use of the meter.
5. Hold down the "MEAS" button for continuous measurement of moisture
content.
6. Note moisture level indicated and indication lights. The HHMM690 is
designed for moisture levels between 8% and 28%. Readings above 28%
will indicate and show increasing levels of moisture but is not an accurate
measurement of percent moisture.
Indicating Lights (LED's)
GREEN (Less then 14.7%)
"Air Dry" decay unlikely
YELLOW (between 14.7 and 19.4%)
Slightly in excess of normal. Investigate further
1
Page 4
HHMM690 Wood Moisture Meter
RED (Greater then 19.4%)
Excess moisture. Decay inevitable.
7. Continuous display of “ “ indicates battery should be replaced.
HHMM690 Calibration Procedure
Only qualified technicians who have access to the items, as
following should perform the following calibration procedure.
Operating description:
Step 1. Use a 10M resistor for standard and adjust the reading displayed to
18% within ±2% the yellow LED should be indicating. VR2 is for
coarse adjustment and VR1 is for fine adjustment.
Step 2. Use a 1.9M resister. The reading should be 23% ±2% and the red LED
displayed.
Step 3. Check with a 100M resistor. The meter should read 13% ±2%.
Step 4. Check with a 600M resistor. The meter should read 10% ±2%.
Safety Information
Replace protective cover on measurement probes when not in use.
Replace the contact pins when they are damaged.
To avoid damage to instrument, remove dead battery
immediately.
Remove battery when Low Batt light displayed.
Remove power from circuit under test.
To avoid electrical shock remove test leads before opening case
or battery cover. Do not operate with battery cover open.
WARNING
WARNING
NOTE
2
Page 5
HHMM690 Wood Moisture Meter
Specifications
General
Display:
3
1
⁄2 digit liquid crystal display (LCD).
Low battery indication:
The “ “ is displayed when the battery voltage drops below the
operating level.
Auto power off:
15 seconds approx.
Operating Environment:
0°C to 50°C (32°F to 122°F) < 80% relative humidity
Storage Temperature:
-20°C to 60°C (-4°F to 140°F), 0 to 80% R. H. with battery removed from
meter
Battery:
4 pcs 1.5V (AAA size) MN-2400
Battery Life:
30 hours (continuity).
(No measurable current drawn when power is off)
Dimensions:
90 mm (H) x 42 mm (W) x 35 mm (D)
Weight:
approx. 170 g including battery
Accuracy:
Measurement is for estimation only. Accuracy up to ±2% between 8% and
28%
Maintenance
Battery Replacement
Power is supplied by four 1.5V (AAA size) batteries. The “ “ appears on
the LCD display when replacement is needed. To replace batteries, remove
the screw from the back of the meter and lift off the battery cover case.
Remove the batteries from battery contacts.
Cleaning
Periodically wipe the case with a damp cloth and detergent, do not use
abrasives or solvents.
