INTRODUCTION
This instrument is a portable easy use 3½ digit, compact-sized digital megohmmeter designed for simplicity one hand operation. Provides 500V to test insulation. Meter with Backlit LCD display, Auto-hold function and auto power off (15 seconds approx.) feature after releasing MEAS button to extend battery life with external power supply input jack (DC 6V).
SAFETY INFORMATION
It is recommended that you read the safety and operation instructions before using the megohmmeter.
Remove power from circuit under test.
WARNING
To avoid electrical shock remove test leads before opening case
WARNING
or battery cover. Do not operate with battery cover open.
1
Page 4
The symbol on the instrument indicates that the operator must refer to an explanation in this manual.
SPECIFICATIONS
GENERAL
Display: 3½ digit liquid crystal display (LCD) with maximum reading of 1999. Overrange: (OL) or (-OL) is displayed. Low battery indication: the " " is displayed when the battery voltage drops
below the operating level.
Measurement rate: 2.5 times per second, nominal. Operating Environment: 0°C to 40°C at < 70% relative humidity. Storage Temperature: -20°C to 60°C, 0 to 80% R.H. with battery removed from
meter.
For Indoor use only. Altitude: UP to 2000m Safety: According to EN61010-1 protection class II overvoltage category (CAT
II 600V) pollution degree 2.
Auto power off: 15 seconds approx. Standby consume current: <1µA. External power: 6VDC 1A .
2
Page 5
Battery: 4 pcs 1.5V (AAA size). Battery Life: 10 hours (continuity) typical (@20MW range test 10MW resistor). Dimensions: 170mm(H) x 44mm(W) x 40mm(D). Weight: 160g including batteries.
ELECTRICAL
Range: 20MW,2000MW Resolution: 10KW on 20MW range
Accuracy:
20MW range: ±(2%rdg + 2dgts) 2000MW range: <500MW ±(4%rdg + 2dgts)
Output current: 1mA dc min. at 0.5MW (500V) Rated voltage: DC-DC converter to 500VDC Accuracy temperature: 23°C ± 5°C less than 70%RH Temperature Coefficient: 0.1X (specified accuracy)/°C (<18°C or >28°C)
1MW on 2000MW range
>500MW ±(5%rdg + 2dgts)
3
Page 6
OPERATING INSTRUCTIONS
Push buttons
Display Back-Light Button
Releasing MEAS button then pressing " " button to toggle between turn on and turn off the Back-Light. When releasing MEAS button Back-Light will turn off automatically after 15 seconds to extend battery life.
Range Select Button
Releasing MEAS button then press 20MW,2000MW range select button to toggle between 20MW and 2000MW ranges.
MEAS (MEASURE) Button
Depress MEAS button to turn on 500VDC (red LED lighted) for measure insulation resistance. Releasing MEAS button to turn off 500VDC and automati­cally hold the display reading, the meter turns off automatically after 15 sceonds.
4
Page 7
OPERATION
Check of internal battery (E,L terminals open)
1. Depress the MEAS button.
2. The 500V on LED lamp should light, indicating normal operation form the
internal batteries.
3. If the 500V on LED fails to light shown the batteries are completely worn or
batteries are not installed in the meter. Since either of those conditions are
possible, remove the battery cover and insert at set of four type AAA cells.
4. If the 500V on LED lights (weakly) but the " " LCD display lights, the batteries
are near the end of their life and should be replaced immediately with new
batteries.
5. To remove the battery cover, remove the centrally located case mounting
screw and replace batteries.
6. After battery check is completed, releasing MEAS button.
5
Page 8
Insulation resistance measurements
1. Remove test tip and test lead from E,L terminals. (terminals open)
2. Depress MEAS button to turn on 500V on LED lamp, check the display
resistance range is 20MW range or 2000MW range.If resistance is 20MW
range, releasing MEAS button then press range button one time to selected
2000MW range.
3. Connect the test tip to the "L" terminal and the clip lead to the "E" terminal of
the meter.
4. Connect the clip to one end of the circuit to be measured, and the test tip to
the other end.
5. Depress the MEAS button. The 500V pilot LED lamp will light and the
resistance value will be displayed in the meter. When display reading stable,
releasing MEAS button, the meter will automatically hold the display reading
then turns off automatically after 15 sceonds.
6. For open circuits or values of resistance over 2000MW, the meter will treat the
resistance value as infinite and display a "OL" only.
6
Page 9
7. When measuring values of resistance below 20MW on the 2000MW range,
measurement error is great. Releasing MEAS button then press range button
one time to selected 20MW range, re-depress the MEAS button.
8. When measuring values of resistance below 1MW on any range. The 500V on
LED will fail to light or light weakly.
This due to the large power consumed when measuring such small resis-
tances.
7
Page 10
PRECAUTIONS
E and L terminars
If one point of the circuit to be measured is connected to ground, connect that part of the circuit to the E side measurement lead. This is a safety measure. In general, howerver, either terminal of the meter may be used for the ground side connection. When the 500V on LED is lighted, 500V is present between the E and L terminals. Please be caution when handing the instrument in this condition.
The Low battery alarm
The battery alarm, the " " is displayed when measuring very low values of resistance (below 100KW). This due to the large power consumed when measuring such small resistances. When subsequent resistance measurements of high values result in the " " disappearing, the meter batteries should be assumed to be normal. If the 500V on LED lights (weakly) but the " " LCD display lights, the batteries are near the end of their life and should be replaced immediately with new batteries.
8
Page 11
Cleaning
Periodically wipe the case with a damp cloth and detergent, do not use abrasives or solvents.

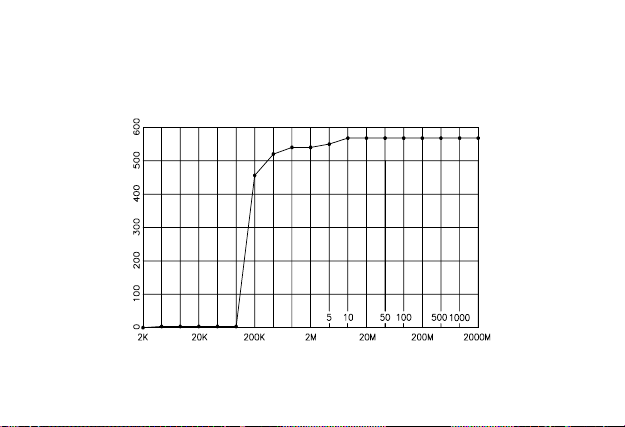

Insulation Resistance Measurement T erminal V oltage
Terminal voltage(V)
WW
Rx(
W )
WW
9
