Omega HHG191 User guide

User’s Guide

Shop online at

e-mail: [email protected]

For latest product manuals:

omega.com

omegamanual.info

MADE IN TAIWAN

HHG191

Magnetic Field Meter

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

U.S.A.: One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Canada: 976 Bergar

Tel: [phone]
FAX: [phone]
e-mail: [email protected]

Laval (Quebec) H7L 5A1, Canada
Tel: [phone]
FAX: [phone]
e-mail: [email protected]

For immediate technical or application assistance:

Servicing North America:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

Mexico: En Espan˜ol: [phone]-7803

Customer Service: 1-800-622-2378/1-800-622-BEST
Engineering Service: 1-800-872-9436 1-800-USA-WHEN

FAX: [phone]
e-mail: [email protected]
[email protected]

7

x

®

®

®

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karvina´, Czech Republic

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

It is the policy of OMEGA Engineering, Inc.to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European Ne
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.

These products are not designed for use in, and should not be used for, human applications.

WARNING:

Tel: [phone]
FAX: [phone]
Toll Free: 0800-1-66342
e-mail: [email protected]

Tel: [phone]
FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [email protected]

M44 5BD United Kingdom
Tel: [phone]
FAX: [phone]
Toll Free in United Kingdom: 0800-488-488
e-mail: [email protected]

k

w

Table of Contents

1 Introduction

.....................................................................

1

2 Application

......................................................................

1

3 Features

.........................................................................

1

4 Identifying Parts

..............................................................

2

5 Measurement Procedures

..............................................

2

6 Specifications

.................................................................

4

7 Battery replacement

.......................................................

4

8 Safety Precaution

...........................................................

5

9 End of life

........................................................................

5

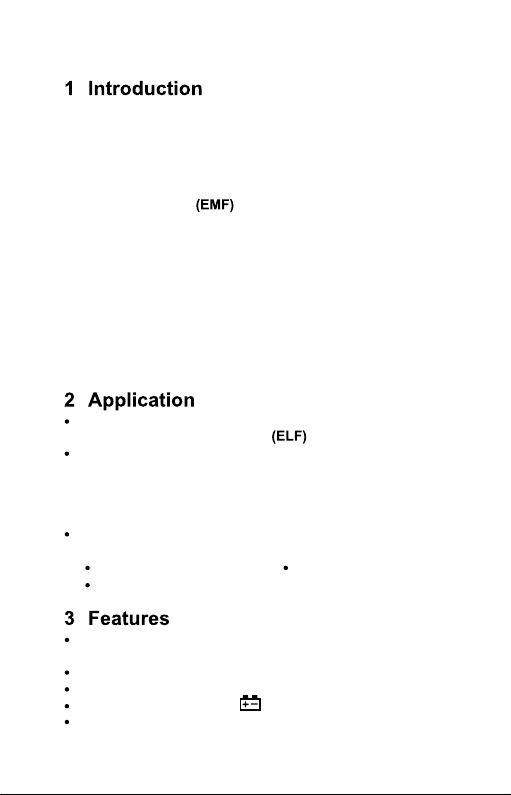

Safety precautions should be taken against electric appliances
in places including medical institutions, schools and residential
districts, where people usually stay for a long time, to prevent
patients, babies and senior citizens from exposure to high
electromagnetic waves.
An electromagnetic wave simply means the wave motion of the
electromagnetic field
The change in electric fields produces magnetic fields, and the
change in magnetic fields can also generate electric fields. The
fluctuation of correlation between each other is known as
“electromagnetic waves", which is a form of energy similar to
light and heat that can be transmitted either by radiation in the
air or by an electric conductor
It is suggested that rearrangements should be made in families
and work locations where electromagnetic fields are detected
the strongest in order to avoid prolonged exposure to excessive
electromagnetic fields

.

.

.

This meter is applied to measuring electromagnetic fields
of extremely low frequency
It is capable of measuring the electromagnetic field
radiation intensity that is produced from electric
transmission equipment, power line, microwave oven, air
conditioner, refrigerator, computer monitor, video/audio
device and so forth.
The magnetic field unit is Tesla (T), Gauss (G), milli­Gauss (mG) or micro-Tesla (

1 T_10,000 G 1 G_1,000 mG
1_T_10 mG

Switch between the display of micro-Tesla and milli­Gauss is available.
Data hold (HOLD)_maximum (MAX) Hold function.
Range display(20, 200, 2000).
Low battery detector “ ”.
Over load display “OL”.

of 30 to 300Hz.

_T).

1

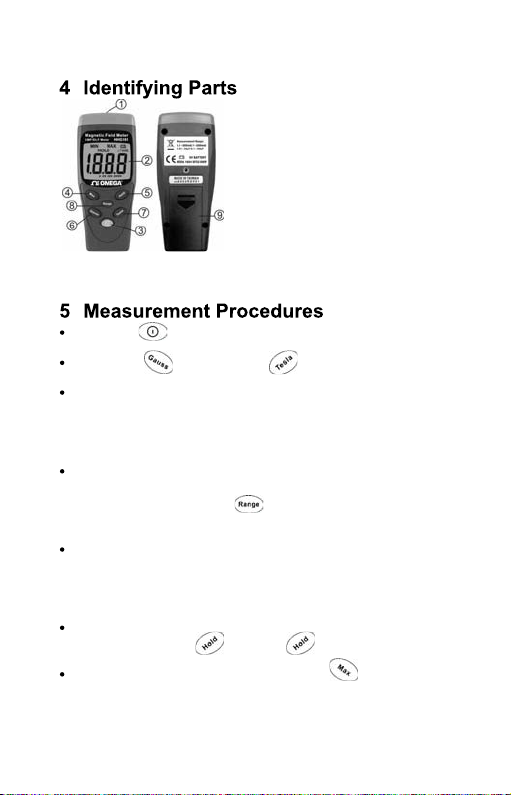

1. Sensor position.

2. LCD

3. Power on/off.

4. maximum hold button

5. Data hole button

6. mG unit select button

7. µT unit select button

8. Range select button

9. Battery cover

Press to power on.

Select for mG unit or for µT unit.

Position the front (refer to Figure 1) of the meter to
measure the electromagnetic waves. Try to change the
measurement angle or position for obtaining the highest
reading value (please refer to Figure 2 to 6).

Read the measured value. The display of “OL” on the left
highest position indicates there is an overload on the
reading. Please press to select a higher range for
measurement again.

Due to the environmental magnetic field factors, this
magnetic field meter could display a reading value that is
lower than 0.5mG prior to measuring. This is not a
malfunction of the device.

To permanently lock and keep the reading displayed on
the LCD, press or press again to unlock.

To retain the maximum value, press and the reading
value displayed on the LCD will keep updating to the
maximum value.

.

2

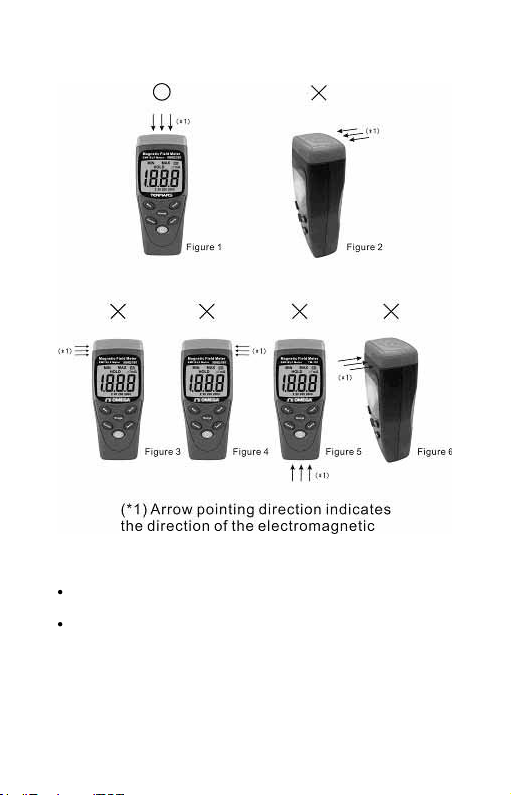

Figure 1 indicate the correct measurement direction of the
electromagnetic wave.
Figure 2,3, 4, 5 and 6 indicate the incorrect measurement
direction of the electromagnetic wave.

3

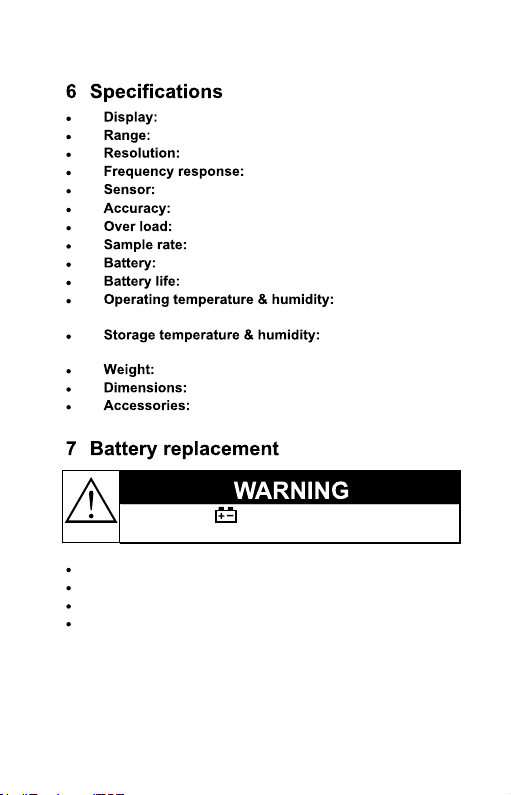

3-1/2 digits LCD, maximum reading 1999.

If the symbol “ ” appears on the LCD, please
replace the battery immediately

200/2000 mG,20/200µT.

0.1/1 mG or 0.01/0.1 µT.
30Hz to 300Hz.

Single Axis

±(2.5%+6dgt) at 50Hz/60Hz.

LCD display “OL”.

2.5 times per second.

9V NEDA 1604, IEC 6F22 or JIS 006P.

Approximate 100 hours.

80% RH.

70%.

About 170g.

130(L)*56(W)*38(H)mm.
User’s manual, 9V battery, Carrying case.

Turn off the instrument.
Remove the battery cover
Replace the battery.
Install the battery cover.

5_to 40_,below

-10_ to 60_, below

4

For cleaning the instrument use a soft dry cloth. Never
use a wet cloth, solvents or water, etc..
Operation Altitude: Up to 2000M.
Operating Environment: Indoors use. This instrument has
been designed for being used in an environment of
pollution degree 2.

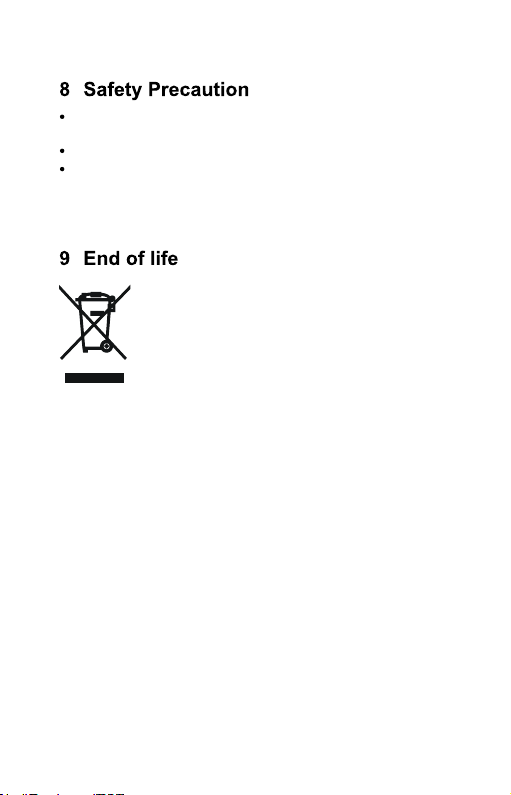

Caution: this symbol indicates that equipment
and its accessories shall be subject to a
separate collection and correct disposal

5

OME GA E NGINE ERING , IN C. w arran ts t his unit to be free of defec ts i n m ateri als and
workmanship for a period of
additional one (1) month grace period to the normal
han dling and shipp ing time. This ens ures that OMEGA ’s c ustome rs r eceive
coverage on each product.

If

the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA,
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of
oper ation outsid e of desig n li mits, improp er re pair, or unautho rized
WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence
of having been dam aged as a r esult of excessi ve corro sion; or current , heat,
vibration;

improper specification; misapplication; misuse or other operating conditions outside of
OMEGA’s control. Components in which wear is not warranted,
contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither
for any damages
provided by OMEGA, either verbal or written. OMEGA warrants only that the parts
manufactured by
NO OTHER
EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES
INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of pur­chaser set forth herein are exclusive, and the total liability of OMEGA with respect to this
order, whether based on contract, warranty, negligence,
otherwise,
based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS:
a “Basic Component” under 10 CFR 21
or (2) in medical applications or used on humans. Should any Product(s) be used in or
nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in
and, additionally, purchaser
or damage whatsoever arising out of the use of the Product(s) in such a manner

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEF ORE RETU RNING ANY PR ODUCT (S) TO OMEGA , PU RCHAS ER
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSI NG
marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to
prevent breakage in transit.

FOR WARRANTY
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which

2. Model and serial number of the produc

3. Repair instructions and/or specific

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is
possible. This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2007 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,

photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in
whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

WARR ANTIES OR RE PRESENTA TIONS OF A NY KI ND WH ATSOEVE R,

shall not exceed the purchase price of the component upon which liability is

Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as

the product was PURCHASED

under warranty, an

problems relative to the product.
