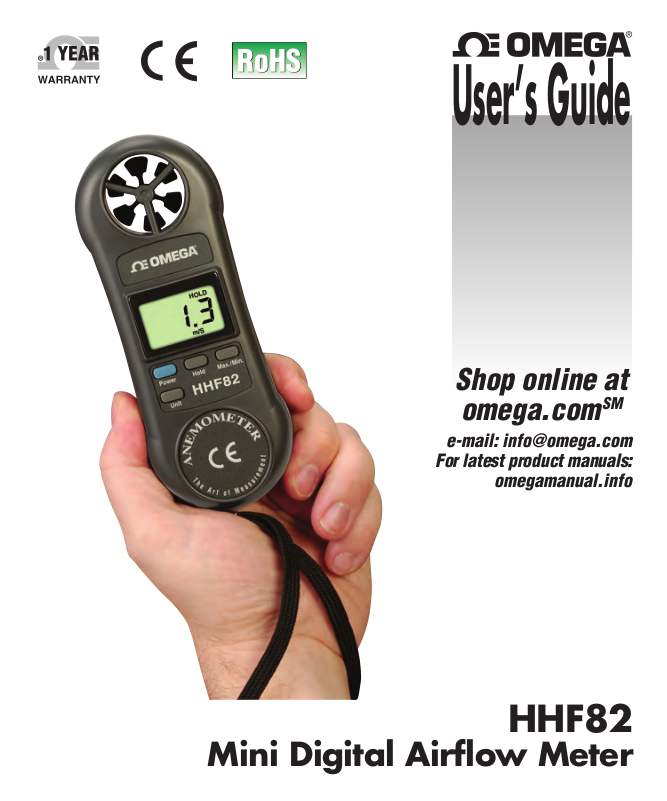

HHF82
Mini Digital Airflow Meter
Page 2
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
Page 3
MINI DIGITAL AIRFLOW METER
USER’S MANUAL
HHF82
Please read this manual carefully and thoroughly before using this product.
Page 4
TABLE OF CONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 –3
What’s In the Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setup Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Install Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 –6
Measuring Real-time Air Speeds. . . . . . . . . . . . . . . . . . . . . . 4 –5
Recording and Displaying Maximum and Minimum Speeds
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . 5 –6
INTRODUCTION
Thank you for purchasing OMEGA’s HHF82 Mini Digital Airflow Meter. Please read this user’s manual carefully and thoroughly before using the product.
The HHF82 is an inexpensive one-piece vane anemometer that can accurately measure airflow speeds in ducts and at input and output grilles of HVAC/R systems.
KEY FEATURES
• Five available air velocity units: ft./min, m/sec, kmph, mph, knots
• Low-friction ball vane wheels provide high accuracy at all air speeds
• Min/max memory + data hold
• 10-minute Auto Power Off (disabled during Min/Max recording sessions)
2
Page 5
• Small and light enough for one-handed operation
• Includes wrist strap
• CE and RoHS approved
• 1 year limited warranty
WHAT’S IN THE BOX
The meter comes in a white box along with this user’s manual.
PRODUCT OVERVIEW
The figure below shows all controls and components on the front of the meter as well as the location of the battery compartment, which is accessible from the back of the unit.
A
A. Vane sensor B. LCD C.
Power
button
D.
Hold
button
E.
Max./Min.
F.
Unit
button
button G. Wrist strap H. Battery compartment
(on back)
B
C F
H
D E
G
3
Page 6
SETUP INSTRUCTIONS
INSTALL BATTERY
To open the battery compartment, turn the meter over and use a small Phillips­head screwdriver to loosen and remove the single screw securing the battery compartment cover. Plug a “9V” battery into the wired socket inside the compartment. The terminals of the battery and the socket mate in only one way, with the smaller male terminal plugging into the larger female terminal.
Secure the battery compartment by replacing its cover and reinstalling and tightening the Phillips-head screw.
Complete setup by carefully removing the plastic film protecting the LCD.
OPERATING INSTRUCTIONS
MEASURING REAL-TIME AIR SPEEDS
To begin, press the front-panel sounding a single beep. Then press the to choose from among five widely used air speed units. The options are (in the button-press sequence):
Km/h
•
•
•
•
•
The meter will “remember” your last selection when it is powered off and will resume using that unit upon restart. So if you always use the same unit, you will never have to press the
To extend battery life, when operating in real-time mode the HHF82 will automatically power itself off following any 10-minute period in which no front­panel button is pressed. The meter will sound two beeps twice when this Auto
(kilometers per hour)—the factory default unit
M/S
(meters per second)
fpm
(feet per minute)
mph
(miles per hour)
Knot
(knots)
Power
Unit
button again.
button. The meter will respond by
Unit
button below it one or more times
4
Page 7
Power Off (APO) function is activated. The APO function is disabled when operating in Min/Max recording mode (see next section).
To make a measurement
, position the vane at the top of the meter perpendicular to the source of air or wind. Allow time for the reading to stabilize. It makes no difference whether the front of back of the vane faces the wind or air flow.
To hold any reading
the hold and resume displaying real-time values, press the
(“freeze” the display), press the
Hold
button. To release
Hold
button again. This function is very useful for making measurements in low light or when the source of air or wind is above your head, below your knees or around a corner. You can make a measurement, hold it, and then read the display up to 10 minutes later after positioning the LCD at eye level.
RECORDING AND DISPLAYING MAXIMUM AND MINIMUM SPEEDS
The HHF82 can record the maximum and minimum (fastest and slowest) air speed values measured over a user-selectable period of time. The Min/Max recording function is handy for noting fluctuations in the output of a fan over time.
During these recording sessions, the meter’s Auto Power Off function is disabled to enable recording for longer than 10 minutes. The only limit on recording duration is remaining battery life.
To begin recording Max and Min readings
air or wind and then press the
Max./Min.
, first position the vane in the flow of
button on the right side of the front panel. If you begin recording before positioning the vane, your Min. reading will always be recorded as
Pressing the
Max./Min.
0.0
(zero).
button will cause the term
REC
to appear at the top left of the LCD. The meter will continue to record Max and Min values—but display real-time values—until you press the
To display the maximum air speed
session, briefly press the
Max./Min.
measured during the current recording
Max./Min.
button. (
button again.
Do not
press and hold the button;
this will stop recording). The LCD will display the maximum value below the
Max
term
on the top line.
5
Page 8
To display the minimum air speed
session, briefly press the hold the button.) The LCD will now display the minimum value below the term
Min
on the top line.
Once you have pressed the cannot resume displaying real-time readings without ending the recording session.
To end the recording session, press and hold the
REC
cause the real-time air speed measurements.
term to disappear. The meter will then resume displaying
Max./Min.
measured during the current recording
button again. (Again, do not press and
Max./Min.
button with
REC
on the top line, you
Max./Min.
button. This will
SPECIFICATIONS
Measurement Ranges1.4 to 108 km/hr, 0.4 to 30m/sec,
80 to 5910 fpm, 0.9 to 67 mph, 0.8 to 58.3 knots
Measurement Accuracy±3% of full-scale value below 20m/sec;
±4% of full-scale value above 20m/sec
Measurement Resolutions 0.1 km/hr, 0.1m/sec, 1 fpm, 0.1 mph, 0.1 knots
Display Size 1.3 in. (33mm) diagonal
Digit Height 3/8 in. (10mm)
Auto Power Off Trigger 10 minutes of front-panel inactivity (disabled in
Min/Max recording mode)
Current Consumption 17mADC
Dimensions 6.15 x 2.36 x 1.29 in. (156 x 60 x 33mm)
Weight (including battery) 5.6 oz. (159g)
Power Source1 “9V” battery
6
Page 9
MAINTENANCE TIPS
When the icon appears in the upper left corner of the LCD, it’s time to change the meter’s “9V” battery (although measurements will remain valid for several hours after the icon first appears). To change the battery, follow the Setup Instructions on p. 4.
Remove the battery if you do not expect to use the meter for an extended period of time (months or years).
Do not drop or disassemble the meter or immerse it in water. To clean the housing or LCD, use a dry or damp cloth. Avoid using chemical
cleaners.
7
