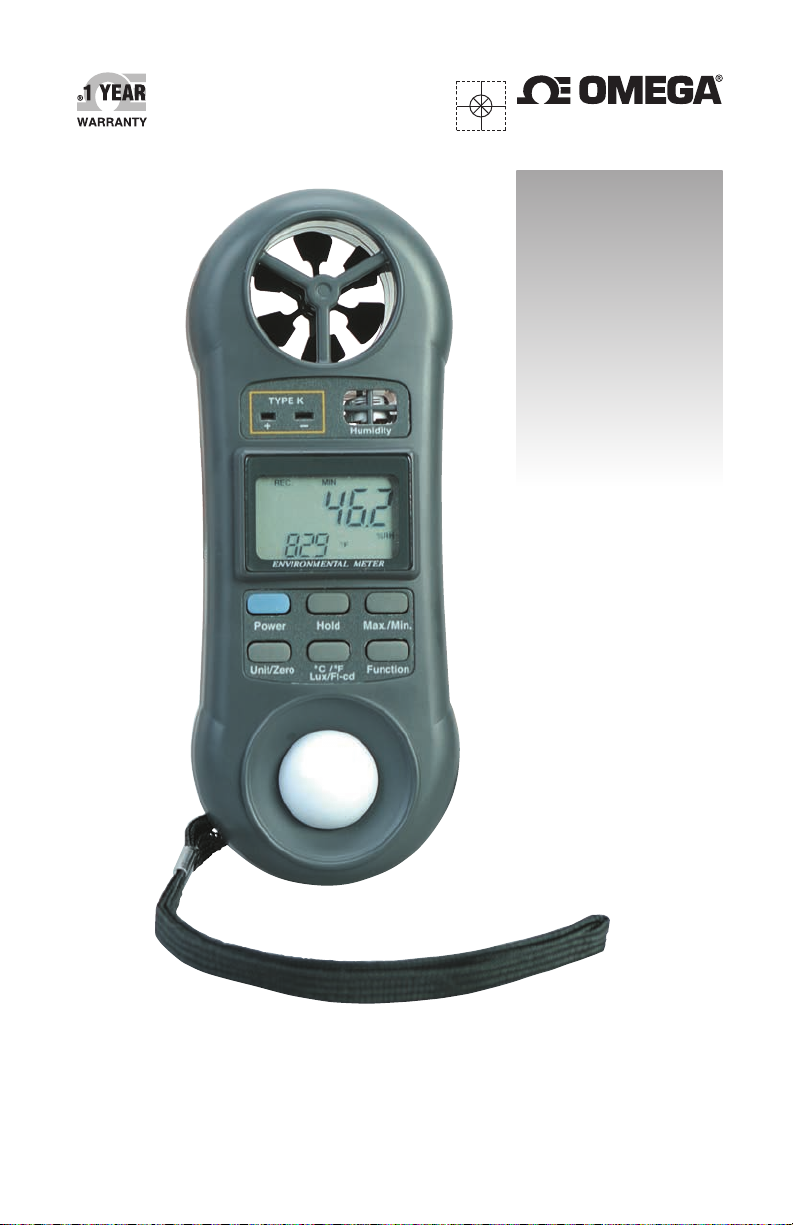

HHF81

Anemometer, Hygrometer,

Light Meter, Thermometer

Page 2

omega.com [email protected]

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

Stamford, CT 06907-0047 USA

Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

Page 3

TABLE OF CONTENTS

1. FEATURES ................................................................................................... 1

2. SPECIFICATIONS ..................................................................................... 2

 2-1 GeneralSpecications ....................................................................... 2

 2-2 ElectricalSpecications ..................................................................... 2

3. FRONT PANEL DESCRIPTION AND DIAGRAM ............................ 4

4. MEASURING PROCEDURES ................................................................ 5

4-1 Air Velocity Measurement ................................................................ 5

4-2 Temperature Measurement (Thermocouple) ................................. 5

4-3 Humidity and Ambient Temperature Measurement .................... 6

4-4 Light Measurement ............................................................................ 6

5. OTHER FUNCTIONS ............................................................................... 7

5-1 Hold Function ..................................................................................... 7

5-2 Data Record Function ........................................................................ 7

5-3 Auto Power Off Disable .................................................................... 8

6. BATTERY REPLACEMENT ..................................................................... 8

7. OPTIONAL TEMPERATURE PROBE AND

OTHER ACCESSORIES ........................................................................... 9

Page 4

1. FEATURES

•4in1professionalmeasuringinstrument:Anemometer,

Hygrometer, Thermometer, and Light Meter.

•Tinyboneshapewithlightweightandsmallsizecasedesignare

suitable for handling with one hand.

•Wristletdesignprovidesextraprotectiontotheinstrument

especially for user one hand operation.

•Low-frictionballbearingmountedwheeldesignprovideshigh

accuracy at high and low air velocity.

•Exclusivephotodiodeandcolorcorrectionlterlightsensor,

spectrum meets C.I.E. photopic.

•Highprecisionthin-lmcapacitancehumiditysensorwithfast

response to the humidity changes.

•StandardtypeK(NiCr-NiAl)thermocoupleinputjacksuitable forallkindsoftypeKprobes.

•Built-inmicroprocessorcircuitassuresexcellentperformance

and accuracy.

•Conciseandcompactbuttonsarrangement,easyoperation.

•Memorizethemaximumandminimumvaluewithrecall.

•°C/°Fselectablebypressingbuttononthefrontpanel.

•Lux/Feet-candleselectablebypressingbuttononthefront

panel.

•Airvelocitymeasuringunitsselectablebypressingbuttonon thefrontpanelforvekindsofunits.

•Multichanneldisplayforrelativehumidityandtemperature

measured values or air velocity and temperature measured values at the same time.

•Zerobuttondesignmakeslightmetercalibration.

•Holdfunctiontofreezethecurrentreadingvalue.

Page 5

2. SPECIFICATIONS

2-1 General Speciﬁcations

Display 8 mm LCD Display Measurement Anemometer, Humidity, Temperature, Light Operating

Humidity Operating

Temperature Over Input

Display Power Supply 006P DC 9V Battery (Heavy duty type) Power

Consumption Weight 160 g (Battery included) Dimension HWD 156 x 60 x 33 mm (6.14 x 2.36 x 1.29") Standard

Accessory Optional

Accessory

Max. 80% RH

0to50°C(32to122°F)

Indication of “_ _ _ _”

Approx. DC 6.2 mA

Instruction Manual

Carrying Case. Temperature Probe (Please refer to page 9)

2-2 Electrical Speciﬁcations (23 ± 5°C)

Measurement Range Resolution

ft/min 80 to 5910 ft/min 1 ft/min

Air Velocity

m/s 0.4 to 30.0 m/s 0.1 m/s

km/h

MPH 0.9 to 67.0 mile/h 0.1 MPH

knots

Temperature (Thermistor)

1.4to108.0km/h 0.1km/h

0.8to58.3knots 0.1knots 32to122°F 0.1°F 0to50°C 0.1°C

Page 6

Measurement Range Resolution

% RH 10 to 95% RH 0.1% RH

Humidity

Temperature (Thermistor)

32to122°F 0.1°F 0to50°C 0.1°C

0 to 2,200 Lux 1 Lux

Lux

1,800 to 20,000 Lux 10 Lux

Light * auto range

Ft-cd

0 to 204.0 Fc 0.1 Ft-cd 170 to 2,000 Fc 1 Ft-cd

-148to2372°F 0.1°F

Temperature(TypeK)

-100to13,000°C 0.1°C

Measurement Range Accuracy

80to5910/min

0.4 to 30.0 m/s

≥20m/s:±3%F.S. >20m/s:±4%F.S.

Air Velocity

1.4to108.0km/h

0.9 to 67.0 mile/h

0.8to58.3knots 32to122°F ±2.5°F 0to50°C ±1.2°C

10 to 95% RH

<70%RH:±4%RH ≥70%RH:

Humidity

±(4%rdg+1.2%rdg) 32to122°F ±2.5°F 0to50°C ±1.2°C

Light

Temperature

(TypeK)

Remark:

ft/min: feet per minute MPH: miles per hour

m/s:meterspersecond knots:nauticalmilesperhour km/h:kilometersperhour Ft-cd:feetcandle

0 to 20,000 Lux 0 to 2,000 Fc

-148to2372°F ±(1%rdg+2°F)

-100to1300°C ±(1%rdg+1°C)

±5%rdg±8dgt

Page 7

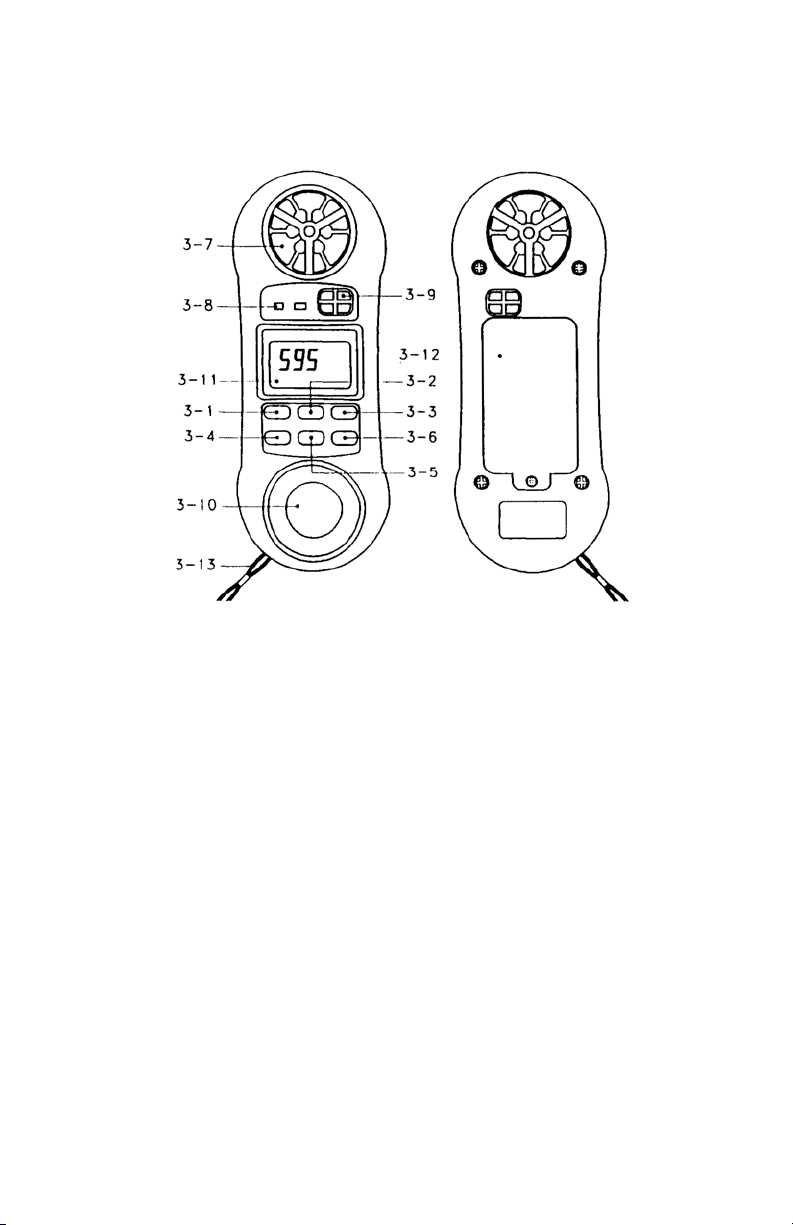

3. FRONT PANEL DESCRIPTION AND DIAGRAM

Figure 1

3-1 Power Button 3-7 Air Flow Sensor

3-2HoldButton 3-8ThermocoupleInputSocket

3-3 Max./Min. Button 3-9 R. H. Sensor

3-4Unit/ZeroButton 3-10LightSensor 3-5°C/°FButton 3-11LCDDisplay

Lux/Ft-cd Button 3-12 Battery/Compartment Cover 3-6 Function Button 3-13 Wristlet

Page 8

4. MEASURING PROCEDURE

4-1 Air Velocity Measurement

1. Power on the instrument by pressing the "Power Button" (3-1,

Figure 1).

2. Select the Anemometer function by pressing "Function Button"

(3-6, Figure 1).

3.Pressthe"Unit/ZeroButton"(3-4,Figure1)toselecttheunit

you want and then face the "Air Flow Sensor" (3-7, Figure 1) to the source of the wind.

4. Allow time for the reading to become stable and note the value

indicated. From a practical point of view the velocity may

uctuate.

4-2 Temperature Measurement (Thermocouple)

1. Power on the instrument by pressing the "Power Button" (3-1,

Figure 10.

2.PlugatypeKthermocoupleprobeinthe"ThermocoupleInput

Socket"(3-8,Figure1).

3. Select the Temperature function by pressing "Function Button"

(3-6, Figure 1).

4.ContacttheThermocoupleSensorHeadwithmeasuringobject

and the reading value will be displayed on the LCD display.

Measuring Consideration of Temperature Measurement (Thermocouple)

•Pleasemakesurethepolarityiscorrectwhenyoupluga

thermocoupleprobeintheTemperatureInputSocket.

Page 9

•Thetemperaturedifferencebetweenthermocoupleprobe

and thermometer will cause an inaccurate measuring result. Therefore, for the best measuring and accuracy performance, whenever change a probe or plug a new probe, thermal

equivalentbetweentheprobeplugandmeter'sinputsocketisa necessarycondition.Thermalequivalentproceduremaytakea

few minutes and apply only when the probe has been exposed to an ambient temperature different from the meter.

4-3 Humidity and Ambient Temperature Measurement

1. Power on the instrument by pressing the "Power Button" (3-1,

Figure 1, Page 4).

2. Select the Relative Humidity function by pressing "Function

Button" (3-6, Figure 1).

3. At the mean time the reading value of relative humidity and

temperature will be displayed on the LCD display.

4. When the meter is applied in a new environment, a few minutes

are required to reach a stable condition.

4-4 Light Measurement

1. Power on the instrument by pressing the "Power Button" (3-1,

Figure 1, Page 4).

2. Select the Light Measurement function by pressing the

"Function button" (3-6, Figure 1) until the light value is

displayed.Thelightdisplaydigitsareoriented180°fromthe

other function displays for easy exposure and output reading of the light sensor.

3. Press the "Lux/Ft-cd Button" (3-5, Figure 1) to select measuring

unit "Lux" or "Ft-cd".

Page 10

Zero Offset Adjustment of Light Function

•Forbestresultszerothelightsensorpriortouseinadark

environment. Placing the light sensor end of the meter under a

desktoporatsurfacesoastoblockanylightcanaccomplish this.Thenpressthe"Unit/ZeroButton"(3-4,Figure1)toset

the meter indication to zero.

•Zeropointcandriftduetoenvironmenttemperatureand

battery power change as well as for other reasons. It is

recommendedthatthezerobecheckedfrequentlyusingthe

above procedure.

5. OTHER FUNCTIONS

5-1 Hold Function

Press the "Hold Button" (3-2, Figure 1) to freeze the current reading value with a "HOLD" symbol on the display.

5-2 Data Record Function

1. The Data Record function records and displays the maximum

and minimum reading values. Start the Data Record function by pressing the "Max./Min. Button" (3-3, Figure 1) once. There will be a "REC" symbol on the display.

Page 11

2. With the REC symbol on the display:

(a) Press the "Max./Min. Button" (3-3, Figure 1, Page 4)

once and the "Max" symbol along with the maximum value will appear on the display.

(b) Press the "Max./Min. Button" again, the "Min" symbol

along with the minimum value will appear on the display.

Min. Button" continuously for at least 2 seconds. The display will revert to the current reading.

(d) Clear the "Max./Min. value recorded by pressing the

"Hold Button" (3-2, Figure 1) once. Previous recorded "Max./Min. value will be given up and then revert to

theRECfunctionkeeponrecording.

5-3 Auto Power Off Disable

In order to prolong the battery life, the instrument has "Auto Power Off" function. The meter will switch off automatically if no buttons are pressed for around 10 minutes.

6. BATTERY REPLACEMENT

1. When the LCD display shows " " symbol, it is necessary to

replace the battery. However measurements may still be made for several hours after the low battery indicator appears.

2. Open the "Battery Compartment/Cover" (3-12, Figure 1, Page 4)

and remove the battery.

3.Installa9V(AlkalineorHeavydutytype)andthenreinstallthe

cover.

Page 12

7. OPTIONAL TEMPERATURE PROBE AND OTHER ACCESSORIES

ermocouple Probe (Type K) TP-01

ermocouple Probe (Type K) TP-02A

ermocouple Probe (Type K) TP-03

ermocouple Probe (Type K) TP-04

• Surface

Temperature

Probe

Carrying Case CA-52A

• Measuring Range: -40 to 250°C (-40 to 482°F)

• Max. short-term operating temperature:

• It's an ultra fast response naked-bead thermocouple suitable for many general purpose applications.

• Measuring Range: -50 to 900°C

(-50 to 1650°F)

• Dimensions: 10 cm tube, 3.2 mm Dia.

• Measuring Range: -50 to 1200°C

(-50 to 2200°F)

• Dimensions: 10 cm tube, 8 mm Dia.

• Measuring Range: -50 to 400°C

(-50 to 752°F)

• Size:

Temp. sensing head - 15 mm Dia. Probe length: 12 mm

• High quality carrying case with sash.

Page 13

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions onthe use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY / DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service

RETURN REQUESTS/INQUIRIES

Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

copied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS,

consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the

COST of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems relative to the product.

Page 14

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

Wire: Thermocouple, RTD & Thermistor

Calibrators & Ice Point References

Recorders, Controllers & Process Monitors

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

Transducers & Strain Gages

Load Cells & Pressure Gages

Displacement Transducers

Instrumentation & Accessories

FLOW/LEVEL

Rotameters, Gas Mass Flowmeters & Flow Computers

Air Velocity Indicators

Turbine/Paddlewheel Systems

Totalizers & Batch Controllers

pH/CONDUCTIVITY

pH Electrodes, Testers & Accessories

Benchtop/Laboratory Meters

Controllers, Calibrators, Simulators & Pumps

Industrial pH & Conductivity Equipment

DATA ACQUISITION

Data Acquisition & Engineering Software

Communications-Based Acquisition Systems

Plug-in Cards for Apple, IBM & Compatibles

Data Logging Systems

Recorders, Printers & Plotters

HEATERS

Heating Cable

Cartridge & Strip Heaters

Immersion & Band Heaters

Flexible Heaters

Laboratory Heaters

ENVIRONMENTAL MONITORING AND CONTROL

Metering & Control Instrumentation

Refractometers

Pumps & Tubing

Air, Soil & Water Monitors

Industrial Water & Wastewater Treatment

pH, Conductivity & Dissolved Oxygen Instruments

M4118/0215
