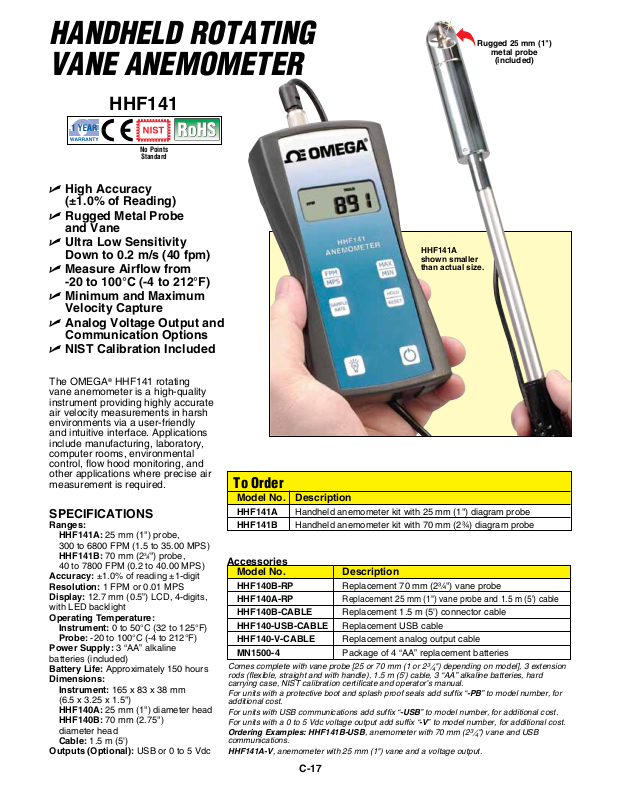

Page 1
HANDHELD ROTATING
VANE ANEMOMETER
HHF141
No Points
Standard
U High Accuracy
(±1.0% of Reading)
U Rugged Metal Probe
and Vane
U Ultra Low Sensitivity
Down to 0.2 m/s (40 fpm)
U Measure Airflow from
-20 to 100°C (-4 to 212°F)
U Minimum and Maximum
Velocity Capture
U Analog Voltage Output and
Communication Options
U NIST Calibration Included
Rugged 25 mm (1")
metal probe
(included)
HHF141A
shown smaller
than actual size.
The OMEGA® HHF141 rotating
vane anemometer is a high-quality
instrument providing highly accurate
air velocity measurements in harsh
environments via a user-friendly
and intuitive interface. Applications
include manufacturing, laboratory,
computer rooms, environmental
control, flow hood monitoring, and
other applications where precise air
measurement is required.
SPECIFICATIONS
Ranges:
HHF141A: 25 mm (1") probe,
300 to 6800 FPM (1.5 to 35.00 MPS)
HHF141B: 70 mm (2
40 to 7800 FPM (0.2 to 40.00 MPS)
Accuracy: ±1.0% of reading ±1-digit
Resolution: 1 FPM or 0.01 MPS
Display: 12.7 mm (0.5”) LCD, 4-digits,
with LED backlight
Operating Temperature:
Instrument: 0 to 50°C (32 to 125°F)
Probe: -20 to 100°C (-4 to 212°F)
Power Supply: 3 “AA” alkaline
batteries (included)
Battery Life: Approximately 150 hours
Dimensions:
Instrument: 165 x 83 x 38 mm
(6.5 x 3.25 x 1.5")
HHF140A: 25 mm (1") diameter head
HHF140B: 70 mm (2.75")
diameter head
Cable: 1.5 m (5')
Outputs (Optional): USB or 0 to 5 Vdc
3
⁄4") probe,
To Order
Model No. Description
HHF141A Handheld anemometer kit with 25 mm (1") diagram probe
HHF141B Handheld anemometer kit with 70 mm (2³⁄₄) diagram probe
Accessories
Model No. Description
HHF140B-RP Replacement 70 mm (2³⁄₄") vane probe
HHF140A-RP
HHF140B-CABLE Replacement 1.5 m (5') connector cable
HHF140-USB-CABLE Replacement USB cable
HHF140-V-CABLE Replacement analog output cable
MN1500-4 Package of 4 “AA” replacement batteries
Comes complete with vane probe [25 or 70 mm (1 or 2
rods (flexible, straight and with handle), 1.5 m (5') cable, 3 “AA” alkaline batteries, hard
carrying case, NIST calibration certificate and operator’s manual.
For units with a protective boot and splash proof seals add suffix “-PB” to model number, for
additional cost.
For units with USB communications add suffix “-USB” to model number, for additional cost.
For units with a 0 to 5 Vdc voltage output add suffix “-V” to model number, for additional cost.
Ordering Examples: HHF141B-USB, anemometer with 70 mm (2
communications.
HHF141A-V, anemometer with 25 mm (1") vane and a voltage output.
Replacement 25 mm (1") vane probe and 1.5 m (5') cable
3
") depending on model], 3 extension
⁄
4
3
") vane and USB
⁄
4
C-17
