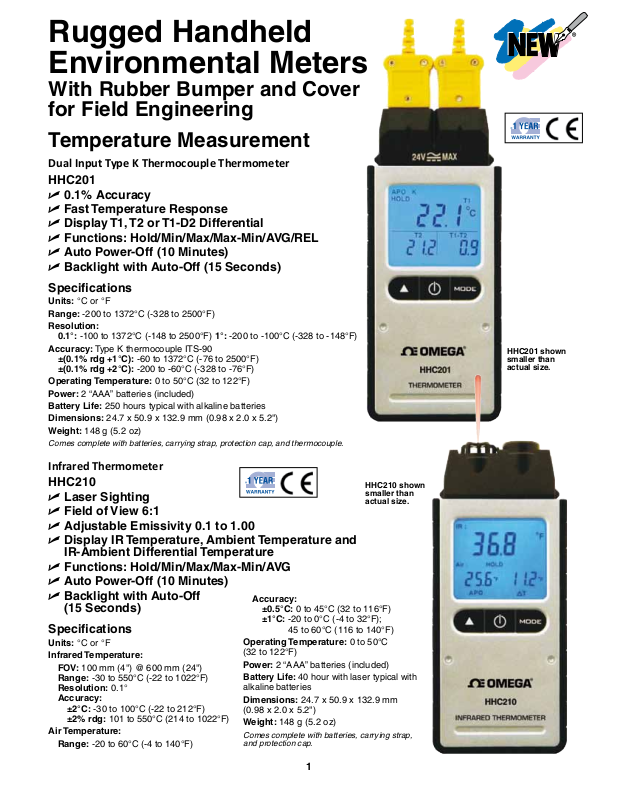

Page 1
Rugged Handheld
Environmental Meters
With Rubber Bumper and Cover
for Field Engineering
Temperature Measurement
Dual Input Type K Thermocouple Thermometer
HHC201
U 0.1% Accuracy
U Fast Temperature Response
U Display T1, T2 or T1-D2 Differential
U Functions: Hold/Min/Max/Max-Min/AVG/REL
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Units: °C or °F
Range: -200 to 1372°C (-328 to 2500°F)
Resolution:
0.1°: -100 to 1372°C (-148 to 2500°F) 1°: -200 to -100°C (-328 to -148°F)
Accuracy: Type K thermocouple ITS-90
±(0.1% rdg +1°C): -60 to 1372°C (-76 to 2500°F)
±(0.1% rdg +2°C): -200 to -60°C (-328 to -76°F)
Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 250 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 148 g (5.2 oz)
Comes complete with batteries, carrying strap, protection cap, and thermocouple.
HHC201 shown
smaller than
actual size.
Infrared Thermometer
HHC210
U Laser Sighting
U Field of View 6:1
U Adjustable Emissivity 0.1 to 1.00
U Display IR Temperature, Ambient Temperature and
IR-Ambient Differential Temperature
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off
(15 Seconds)
Specifications
Units: °C or °F
Infrared Temperature:
FOV: 100 mm (4") @ 600 mm (24")
Range: -30 to 550°C (-22 to 1022°F)
Resolution: 0.1°
Accuracy:
±2°C: -30 to 100°C (-22 to 212°F)
±2% rdg: 101 to 550°C (214 to 1022°F)
Air Temperature:
Range: -20 to 60°C (-4 to 140°F)
Accuracy:
±0.5°C: 0 to 45°C (32 to 116°F)
±1°C: -20 to 0°C (-4 to 32°F);
45 to 60°C (116 to 140°F)
Operating Temperature: 0 to 50°C
(32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 40 hour with laser typical with
alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm
(0.98 x 2.0 x 5.2")
Weight: 148 g (5.2 oz)
Comes complete with batteries, carrying strap,
and protection cap.
HHC210 shown
smaller than
actual size.
1
Page 2
Pressure Measurement
HHC280 shown
smaller than
actual size.
HHC281 shown
smaller than
actual size.
Differential Manometer
HHC280
U 0 to 40 inH2O/0 to 100 hPa
U HVAC System Troubleshooting
U Gas Pressure Measurements
U Compliant for Pitot Tubes for
Measuring Air Velocity
U Dual Inputs P1 and P2
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Eight Selectable Units: mmH2O, mmHg, psi, inH2O, inHg,
hPa, mbar, Pa, plus m/s and fmp (for air velocity)
Range: 0 to 100 hPa/0 to 1019.7 mmH
Resolution: 0.1 hPa/0.1 mmH
Accuracy: ±0.03 hPa (0 to 0.30 hPa)
Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 85 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 113 g (4.0 oz)
Comes complete with batteries, carrying strap, and protection cap.
±0.05 hPa (0.31 to 1.00 hPa)
±0.1 hPa + 1.5% or rdg (rest of range)
±0.3 mmH
±0.5 mmH
±1.02 mmH
O (0 to 3.0 mmH2O)
2
O (3.1 to 10.2 mmH2O)
2
2
O
2
O + 1.5% of rdg (rest of range)
O
2
Absolute Pressure Meter
HHC281
U High Accuracy Absolute Pressure
Measurement
U Barometric and Altitude Measurement
U Calculation of Barometric Pressure
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Eight Selectable Units: hPa, mbar, Pa, mmH2O, mmHg,
inH
O, inHg, psi, plus m and ft (for altitude)
2
Range: 300 to 1200 hPa
Resolution: 0.1 hPa
Accuracy: ±3 hPa
Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 600 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 120 g (4.2 oz)
Comes complete with batteries, carrying strap, and protection cap.
Unit Range Resolution
mmH
O 0 to 1019.7 0.1
2
mmHg 0 to 75.00 0.01
psi 0 to 1.450 0.001
inH
O 0 to 40.14 0.01
2
inHg 0 to 2953 0.001
hPa 0 to 100.00 0.01
mbar 0 to 100.00 0.01
Pa 0 to 10000 1
FPM * 1
m/s * 0.1
2
Page 3
RPM/Light Measurement
Light Meter
HHC230
U Measures Light Intensity
U Wide Measuring Range 0 to 200,000 lux
U
Spectral Response ƒ<8%
U Based on CIE Standard Illuminant A (2856K)
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Range: 0 to 200,000 lux; 0 to 18,580 fc
Accuracy: ±3% rdg + 10 digits (based on a light source 2856K)
Resolution: 1 lux (0 to 19999), 10 lux (20,000 to 200,000), 1 fc (0 to 18,580)
Units: lux/fc
Operating Temperature: 0 to 50°C (32 to 122°F)
Typical Light Intensity Ranges (lux):
Design/General Office: 1500 to 2000
Meeting Room: 300 to 750
Precision Assembly: 1500 to 3000
R&D Department: 750 to 1500
Packing/Measurement/Hallway: 300 to 750
Power: 2 “AAA” batteries (included)
Battery Life: 180 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 116 g (4.0 oz)
Comes complete with batteries, carrying strap, and protection cap.

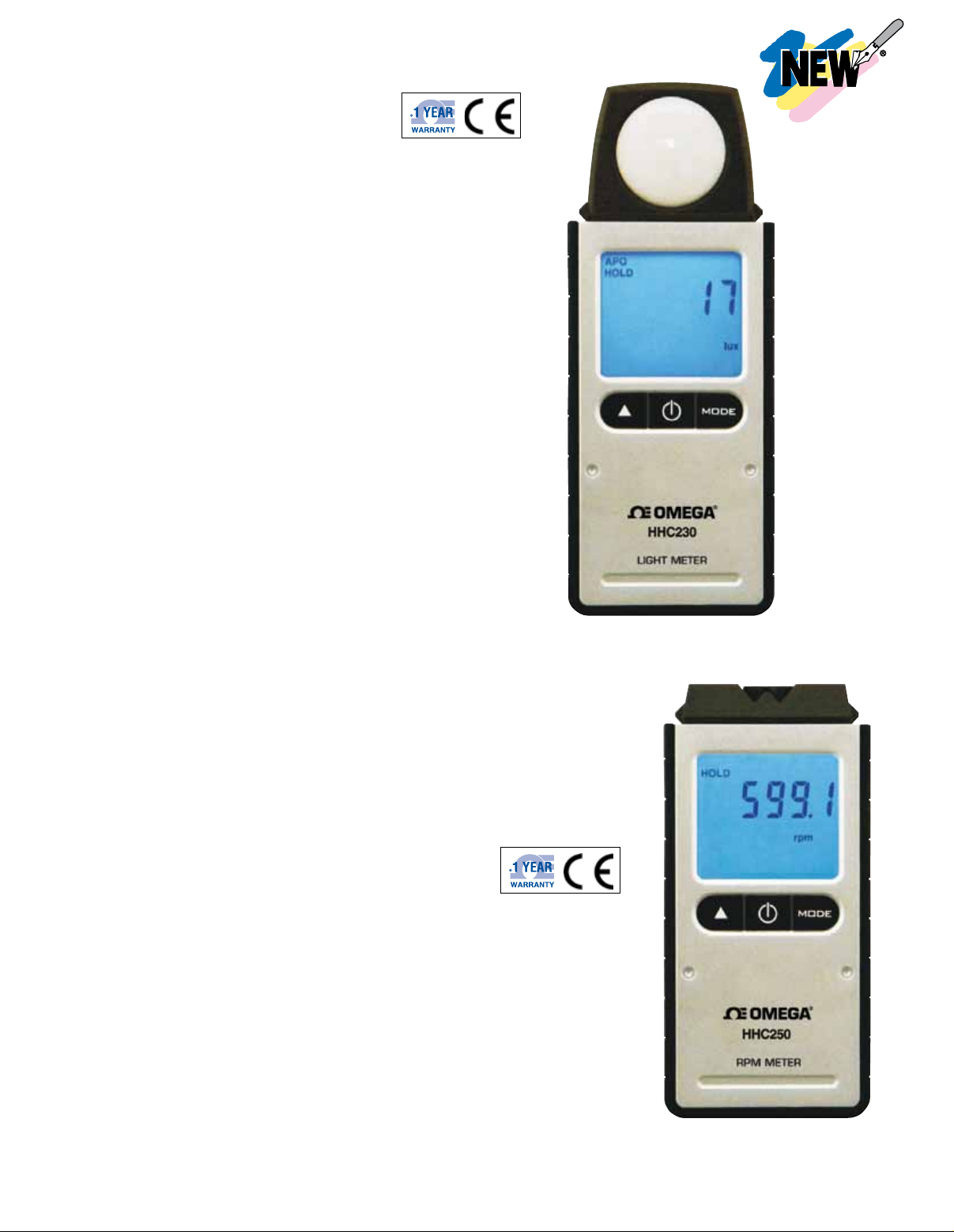

HHC230 shown
smaller than
actual size.
RPM Meter
HHC250
U Non-Contact Optical RPM Measurement
U Wide Measuring Range up to 99999 rpm with
LED Spot Marking and Reflective Tape on Object
U Measuring Range Up to 40 cm (15.7")
(Depending on Ambient Light)
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Range: 100.0 to 99999
Accuracy: ±0.02% of rdg + 1 digit
Resolution:
0.1 rpm: 100.1 to 19999.9 rpm
0.1 rps: 1.7 to 333.3 rps
1 rpm: 20,000 to 99,999
1 rps: 334 to 1666 rps
Units: rpm/rps
Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 30 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 110 g (3.9 oz)
Comes complete with batteries, carrying strap, protection cap, and reflective tape (5 each).
HHC250 shown
smaller than
actual size.
3
Page 4
Air Flow/Humidity/Dew Point/Wet Bulb
Hygro-Anemometer
HHC261
U
0.4 to 20 m/s (80 to 4000 ft/min)
U High Accuracy Air Flow Measurement
U Built-In Ambient Temperature
Measurement
U Wind Chill Temperature (WCT) Indicator
U Integrated Flow Vane
U Humidity with Dew Point and Wet Bulb
U Functions: Hold/Min/Max/Max-Min/AVG
U Auto Power-Off (10 Minutes)
U Backlight with Auto-Off (15 Seconds)
Specifications
Air Velocity:
Range: 0.4 to 20 m/s (80 to 4000 ft/min)
Accuracy: ±0.2 m/s + 2% of rdg; ±0.40 ft/min + 2% of rdg
Resolution: 0.1 m/s, 1 ft/min
Units: beau, m/s, ft/m, mph, km/h, WCT, kts
Air Temperature:
Range: -20 to 60°C (-4 to 140°F)
Accuracy:
±0.5°C: 0 to 45°C (32 to 113°F)
±1°C: -20 to 0°C and 45 to 60°C
(-4 to 32°F) and (113 to 140°F)
Resolution: 0.1°C/°F
Humidity:
Range: 0 to 100% RH
Accuracy:
±2.5%: 10 to 90% RH
±5%: 0 to 10% RH and 90 to 100% RH
Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 50 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 119 g (4.2 oz)
Comes complete with batteries, carrying strap, and protection cap.

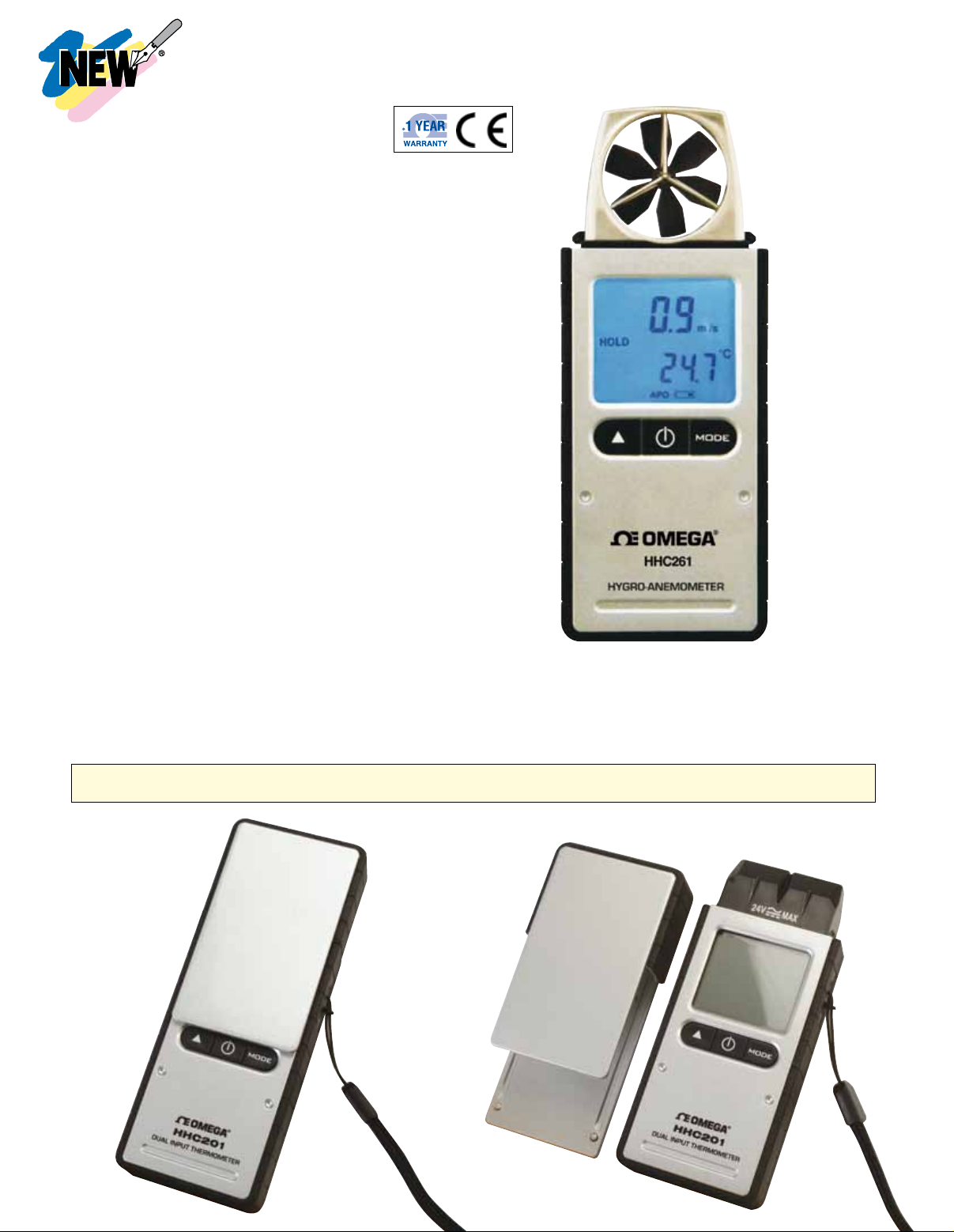

HHC261 shown
smaller than
actual size.
HHC201 shown
closed with
included cover.
All Models Include Slip-Off Hard Cover Shell
HHC201 shown
with included
cover.
4
