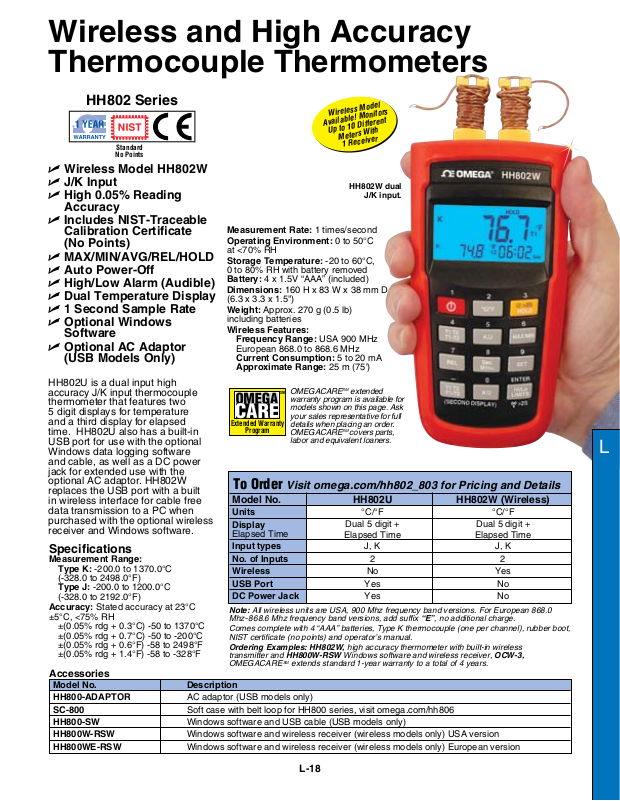

Wireless and High Accuracy
Thermocouple
Thermometers
HH802 Series
Wireless Model
Available! Monitors
Up to 10 Different
Meters With
Standard
No Points
U Wireless Model HH802W
U J/K Input
U High 0.05% Reading
Accuracy
U Includes NIST-Traceable
Calibration Certificate
(No Points)
U MAX/MIN/AVG/REL/HOLD
U Auto Power-Off
U High/Low Alarm (Audible)
U Dual Temperature Display
U 1 Second Sample Rate
U Optional Windows
Software
U Optional AC Adaptor
(USB Models Only)
HH802U is a dual input high
accuracy J/K input thermocouple
thermometer that features two
5 digit displays for temperature
and a third display for elapsed
time. HH802U also has a built-in
USB port for use with the optional
Windows data logging software
and cable, as well as a DC power
jack for extended use with the
optional AC adaptor. HH802W
replaces the USB port with a built
in wireless interface for cable free
data transmission to a PC when
purchased with the optional wireless
receiver and Windows software.
Specifications
Measurement Range:
Type K: -200.0 to 1370.0°C
(-328.0 to 2498.0°F)
Type J: -200.0 to 1200.0°C
(-328.0 to 2192.0°F)
Accuracy: Stated accuracy at 23°C
±5°C, <75% RH
±(0.05% rdg + 0.3°C) -50 to 1370°C
±(0.05% rdg + 0.7°C) -50 to -200°C
±(0.05% rdg + 0.6°F) -58 to 2498°F
±(0.05% rdg + 1.4°F) -58 to -328°F
Accessories
Model No. Description
HH800-ADAPTOR AC adaptor (USB models only)
SC-800 Soft case with belt loop for HH800 series, visit omega.com/hh806
HH800-SW Windows software and USB cable (USB models only)
HH800W-RSW Windows software and wireless receiver (wireless models only) USA version
HH800WE-RSW Windows software and wireless receiver (wireless models only) European version
Measurement Rate: 1 times/second
Operating Environment: 0 to 50°C
at <70% RH
Storage Temperature: -20 to 60°C,
0 to 80% RH with battery removed
Battery: 4 x 1.5V “AAA” (included)
Dimensions: 160 H x 83 W x 38 mm D
(6.3 x 3.3 x 1.5")
Weight: Approx. 270 g (0.5 lb)
including batteries
Wireless Features:
Frequency Range: USA 900 MHz
European 868.0 to 868.6 MHz
Current Consumption: 5 to 20 mA
Approximate Range: 25 m (75')
OMEGACARESM extended
SM
warranty program is available for
models shown on this page. Ask
Extended Warranty
Program
your sales representative for full
details when placing an order.
OMEGACARE
labor and equivalent loaners.
To Order Visit omega.com/hh802_803 for Pricing and Details
Model No. HH802U HH802W (Wireless)
Units °C/°F °C/°F
Display
Elapsed Time
Input types J, K J, K
No. of Inputs 2 2
Wireless No Yes
USB Port Yes No
DC Power Jack Yes No
Note: All wireless units are USA, 900 Mhz frequency band versions. For European 868.0
Mhz˜ 868.6 Mhz frequency band versions, add suffix “E”, no additional charge.
Comes complete with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot,
NIST certificate (no points) and operator’s manual.
Ordering Examples: HH802W, high accuracy thermometer with built-in wireless
transmitter and HH800W-RSW Windows software and wireless receiver, OCW-3,
OMEGACARESM extends standard 1-year warranty to a total of 4 years.
1 Receiver
HH802W dual
J/K input.
SM
covers parts,
Dual 5 digit + Dual 5 digit +
Elapsed Time Elapsed Time
L
L-18
