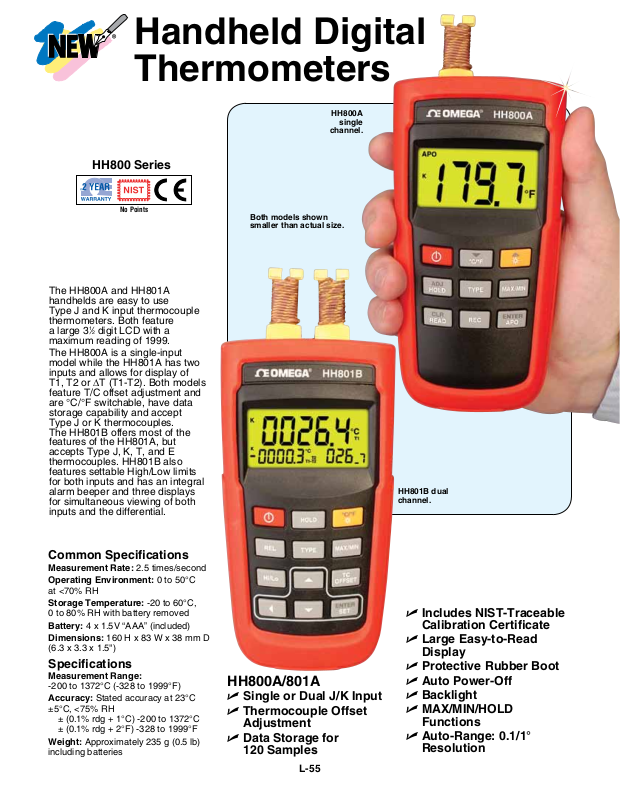

Omega HH800 Specification

Handheld Digital
Thermometers

HH800 Series

HH800A

single

channel.

No Points

The HH800A and HH801A
handhelds are easy to use
Type J and K input thermocouple
thermometers. Both feature
a large 31⁄2 digit LCD with a
maximum reading of 1999.

The HH800A is a single-input
model while the HH801A has two
inputs and allows for display of
T1, T2 or ∆T (T1-T2). Both models
feature T/C offset adjustment and
are °C/°F switchable, have data
storage capability and accept
Type J or K thermocouples.
The HH801B offers most of the
features of the HH801A, but
accepts Type J, K, T, and E
thermocouples. HH801B also
features settable High/Low limits
for both inputs and has an integral
alarm beeper and three displays
for simultaneous viewing of both
inputs and the differential.

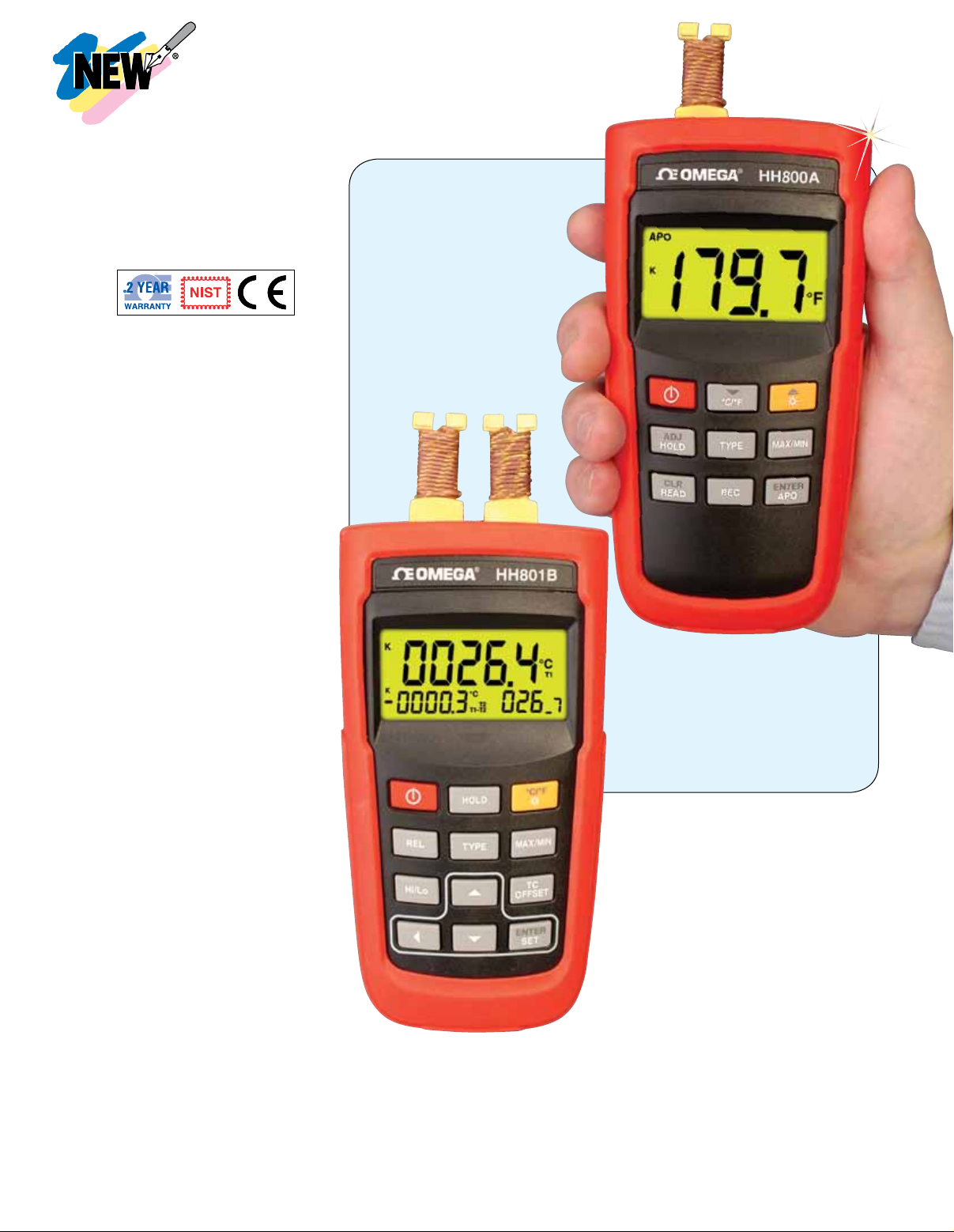

Both models shown
smaller than actual size.

HH801B dual
channel.

Common Specifications

Measurement Rate: 2.5 times/second
Operating Environment: 0 to 50°C

at <70% RH
Storage Temperature: -20 to 60°C,

0 to 80% RH with battery removed

Battery: 4 x 1.5V “AAA” (included)
Dimensions: 160 H x 83 W x 38 mm D

(6.3 x 3.3 x 1.5")

Specifications

Measurement Range:

-200 to 1372°C (-328 to 1999°F)
Accuracy: Stated accuracy at 23°C

±5°C, <75% RH
± (0.1% rdg + 1°C) -200 to 1372°C
± (0.1% rdg + 2°F) -328 to 1999°F

Weight: Approximately 235 g (0.5 lb)
including batteries

HH800A/801A

U Single or Dual J/K Input
U Thermocouple Offset

Adjustment

U Data Storage for

120 Samples

L-55

U Includes NIST-Traceable

Calibration Certificate

U Large Easy-to-Read

Display

U Protective Rubber Boot
U Auto Power-Off
U Backlight
U MAX/MIN/HOLD

Functions

U Auto-Range: 0.1/1°

Resolution

Specifications

Measurement Range:
Type K: -200 to 1372°C

(-328 to 1999°F)
Type J: -200 to 1200°C
(-328 to 1999°F)

Accuracy: Stated accuracy at 23°C
±5°C, <75% RH
±(0.1% rdg + 1°C) -200 to 1372°C
±(0.1% rdg + 2°F) -328 to 1999°F

Weight: Approximately 230 g (0.5 lb)
including batteries

HH801B

U Dual J/K/T/E Input
U Thermocouple Offset

Adjustment

U Includes NIST-Traceable

Calibration Certificate

U Large Easy to Read

Display

U Protective Rubber Boot
U Auto Power-Off
U High/Low Alarm (audible)
U Backlight
U MAX/MIN/AVG/REL/HOLD

Functions

Specifications

Measurement Range HH801B:
Type K: -200 to 1372°C

(-328 to 2501°F)
Type J: -210 to 1050°C
(-346 to 1922°F)
Type T: -200 to 400°C
(-328 to 752°F)
Type E: -220 to 790°C
(-364 to 1454°F)

Accuracy HH801B:
±(0.1%rdg + 1°C) -60 to 1372°C
±(0.1%rdg + 2°C) -60 to -220°C
±(0.1%rdg + 2°F) -76 to 2501°F
±(0.1%rdg + 4°F) -76 to -364°F

Weight: Approximately 265 g (0.6 oz)
including batteries

HH801B
shown smaller
than actual size.

To Order Visit omega.com/hh800 for Pricing and Details

Model No. HH800A HH801A HH801B

Units °C/°F °C/°F °C/°F

1

Display Single 3

Input types J, K J, K J, K, T, E

Data Storage 120 samples 120 samples NO

No. of Inputs 1 2 2

Resolution 0.1° to 199°; 1° above 199° (auto ranging)

Comes complete with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot and operator’s manual.
Ordering Example: HH801B, dual input handheld thermometer.

⁄2 Digit Single 31⁄2 Digit Single 31⁄2 Digit

L

L-56

High Accuracy Thermocouple
Thermometers

Both models

HH800 Series

No Points

Standard

Wireless Model

Available! Monitors

U J/K Input
U High 0.05% Reading

Up to 10 Different

Meters With

1 Receiver

Accuracy

U Includes NIST-Traceable

Calibration Certificate

U MAX/MIN/AVG/REL/HOLD
U Auto Power-Off
U High/Low Alarm (Audible)
U Dual Temperature Display
U 1 Second Sample Rate
U Optional Windows

Software (See
omega.com)

U Optional AC Adaptor

(USB Models Only)

HH802U is a dual input high
accuracy J/K input thermocouple
thermometer that features two
5 digit displays for temperature
and a third display for elapsed
time. HH802U also has a built-in
USB port for use with the optional
Windows data logging software
and cable, as well as a DC power
jack for extended use with the
optional AC adaptor. HH802W
replaces the USB port with a built
in wireless interface for cable free
data transmission to a PC when
purchased with the optional wireless
receiver and Windows software.

Specifications

Measurement Range:
Type K: -200 to 1370°C

(-328 to 2498°F)
Type J: -200 to 1200°C
(-328 to 2192°F)

Accessories

Model No. Description

HH800-ADAPTOR AC adaptor (USB models only)
SC-800 Soft case for HH800 series
HH800-SW Windows software and USB cable (USB models only)
HH800W-RSW Windows software and wireless receiver (wireless models only) USA version

HH800WE-RSW Windows software and wireless receiver (wireless models only) European version

Accuracy: Stated accuracy at 23°C

±5°C, <75% RH
±(0.05% rdg + 0.3°C) -50 to 1370°C
±(0.05% rdg + 0.7°C) -50 to -200°C
±(0.05% rdg + 0.6°F) -58 to 2498°F
±(0.05% rdg + 1.4°F) -58 to -328°F

Measurement Rate: 1 times/second
Operating Environment: 0 to 50°C

at <70% RH
Storage Temperature: -20 to 60°C,

0 to 80% RH with battery removed

To Order Visit omega.com/hh800 for Pricing and Details

Model No. HH802U HH802W (Wireless)

Units °C/°F °C/°F
Display

Input types J, K J, K
Number of Inputs 2 2
Wireless No Yes
USB Port Yes No
DC Power Jack Yes No

Note: All wireless units are USA, 900 Mhz frequency band versions. For European 868.0
Mhz˜ 868.6 Mhz frequency band versions, add suffix “E”, no additional charge.

Comes complete with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot,
NIST certificate and operator’s manual.

Ordering Example: HH802W, high accuracy thermometer with built-in wireless
transmitter and HH800W-RSW, Windows software and wireless receiver (see omega.com).

shown

smaller than

actual size.

HHW802W
dual J/K
input.

HH802U dual J/K input.

Battery: 4 x 1.5V “AAA” (included)
Dimensions: 160 H x 83 W x 38 mm D

(6.3 x 3.3 x 1.5”)
Weight: Approximately 270 g (0.5 lb)

including batteries

Wireless Features:
Frequency Range: USA 900 MHz

European 868.0 to 868.6 MHz
Current Consumption: 5 to 20 mA
Approximate Range: 25 m (75')

Dual 5 digit + Dual 5 digit +

Elapsed Time Elapsed Time

L-57

High Accuracy RTD
Thermometers

HH800 Series

No Points

U 100 Ω Platinum
U 0.00385/0.003916/

0.003926 Curves

U 3- or 4-Wire RTD
U High ±0.05% +0.2°C

Reading Accuracy

U Includes NIST-Traceable

Calibration Certificate
(No Points)

U MAX/MIN/AVG/REL/HOLD
U Elapsed Time
U High/Low Limits Alarm

(Audible)

U Dual Temperature Display
U Supplied with 4 Pin

Mini DIN Plug (One per
Channel)

®

U Optional Windows

Software (See
omega.com)

U Optional AC Adaptor

(USB Models Only)

The HH804U is a high accuracy
RTD input thermometer. HH804U
works with 100Ω platinum RTDs
and is selectable for 3 different
temperature coefficient curves.
HH804U complies with ITS-90
and comes standard with a built
in USB port and DC power jack.
Optional Windows software and AC
adaptor allow real time data logging
to PC for extended periods. The
HH804W features a quick and easy
to use wireless interface instead
of USB. This allows real time data
transmission at distances of up to
25 m (75').
without wireless or USB interface.

HH804 is a basic version,

Specifications

Measurement Range:

0.00385 (100Ω): -200 to 800°C

(-328 to 1472°F)

0.003916/0.003926 (100Ω):

-200 to 630°C (-328 to 1166°F)
Accuracy: Stated accuracy at 23°C

±0.05%, <75% RH
±(0.05% rdg + 0.2°C)
±(0.05% rdg + 0.4°F)

Input Connections: 4-pin mini on DIN
Measurement Rate: 1 times/second
Operating Environment: 0 to 50°C

at <70% RH

Wireless Models

Available! Monitors

Up to 10 Different

Meters With

1 Receiver

Order a spare

DIN connector,

HH804-CONNECTOR.

HH804U dual
RTD input
shown smaller
than actual
size.

To Order Visit omega.com/hh800 for Pricing and Details

Model No. HH804U HH804W HH804

Units °C/°F °C/°F °C/°F
Display Dual 41⁄2 digit + Dual 41⁄2 digit + Dual 41⁄2 digit +

Elapsed Time Elapsed Time Elapsed Time
Input types Pt100 RTD Pt100 RTD Pt100 RTD
No. of Inputs 2 2 2
Wireless No Yes No
USB Port Yes No No
DC Power Jack Yes No Yes
Resolution 0.1°/0.2°F

Note: All wireless units are USA, 900 Mhz frequency band versions. For European

868.0 Mhz˜868.6 Mhz frequency band versions, add suffix “E”, no additional charge.

Comes complete with HH804-CONNECTOR (one per channel), protective rubber boot,
NIST certificate, 4 “AAA” batteries, and operator’s manual.

Ordering Example: HH804U, high accuracy RTD input thermometer and HH800-SW,
Windows software and USB cable (see omega.com).

Accessories

Model No. Description

HH800-ADAPTOR AC adaptor (USB models only)
SC-800 Soft case for HH800 series
HH800-SW Windows software and USB cable (USB models only)
HH800W-RSW Windows software and wireless receiver (wireless models only) USA version
HH800WE-RSW Windows software and wireless receiver (wireless models only) European version
HH804-CONNECTOR Spare DIN connector

L

L-58

High Accuracy Data Logger/
Thermometers

Specifications

HH800 Series

No Points

U Dual Inputs
U 7 Thermocouple Types
U Triple Display
U Data Logging
U Includes NIST-Traceable

Calibration Certificate

U High/Low Alarm

(Audible)

U Auto Power-Off
U MAX/MIN/MAX/

Comes with Windows

software, USB cable,

wireless receiver and

AC adaptor, and
2 thermocouples

MIN/AVG/REL/HOLD

U Thermocouple Offset
U Optional USB Interface
U Optional AC Adaptor

Measurement Range:
Type K: -200 to 1372°C

(-328 to 2501°F)
Type J: -210 to 1200°C
(-346 to 2192°F)
Type T: -200 to 400°C
(-328 to 752°F)
Type E: -220 to 1000°C
(-364 to 1832°F)
Type R: 0 to 1767°C (32 to 3212°F)
Type S: 0 to 1767°C (32 to 3212°F)
Type N: -50 to 1300°C
(-58 to 2372°F)

Features built-in USB

port for use with optional

windows software

HH806AU.

The HH806 represents the top
of the line in the HH800 series of
handheld thermometers. All of the
HH806 versions feature exceptional

0.05% basic accuracy and include a
triple display as well as data logging
capabilities. At a push of a button
the HH806W can store up to
128 samples on demand, and at
a user specified logging interval
up to 1024 in data logging mode.
The HH806AU and HH806AW
expand the data logging capabilities
further and allow storage of up to
256 samples on demand and up
to 16,000 in data logging mode. All
versions of the HH806 feature three
easy to read displays. Two 41⁄2 digit
displays are selectable for T1 or
T2 and the third 6 digit display
can be used for T1-T2 or to
show the current date and time.
Windows software is available for
all models but is included with the
HH806AW, as is the USB cable,
wireless receiver, and AC adaptor
(HH806AW only).

L-59

Wireless!

Monitors up to

10 different

meters with

1 receiver

HH806AW.

Both models shown
smaller than actual size.

Free Thermocouple
Included!

These models include a free 1 m (40") Type
K insulated beaded wire thermocouple with
subminiature connector and wire spool caddy
(1 per channel). Order a Spare! Model No.

SC-GG-K-30-36

Accuracy: Stated accuracy at 23°C
±5°C, <75% RH

Type K/J/T/E:
±(0.05% rdg + 0.3°C) -50 to 1372°C
±(0.05% rdg + 0.7°C) -50 to -210°C
±(0.05% rdg + 0.6°F) -58 to 2501°F
±(0.05% rdg + 1.4°F) -58 to -346°F

Type N:
±(0.05% rdg + 0.8°C) -50 to 0°C
±(0.05% rdg + 0.4°C) 0 to 1300°C
±(0.05% rdg + 1.6°F) -58 to 32°F
±(0.05% rdg + 0.8°F) 32 to 2372°F

Type R/S:
±(0.05% rdg + 2 0°C to 1767°C
±(0.05% rdg + 4 32°F to 3212°F

Operating Environment: 0 to 50°C
at <70% RH

Storage Temperature: -20 to 60°C,
0 to 80% RH with battery removed

Battery: 4 x 1.5V “AAA” (included)
Dimensions: 160 H x 83 W x 38 mm D

(6.3 x 3.3 x 1.5")

Wireless Features:
Frequency Range:

USA 900 MHz
European 868.0 to

868.6 MHz
Current Consumption:
5 to 20 mA
Approximate Range: 25 m (75')

To Order

Model No. HH806W (Wireless) HH806AU HH806AW (Wireless)

Units

°C/°F °C/°F °C/°F
Display Triple Display Triple Display Triple Display
Input types K/J/T/E/R/S/N K/J/T/E/R/S/N K/J/T/E/R/S/N
Data Storage 128 on demand + 1024 256 on demand + 16000 256 on demand + 16000

in logging mode in logging mode in logging mode
Number of Inputs 2 2 2
Wireless Yes No Yes
USB Port No Yes Yes
DC Power Jack No Yes Yes
Resolution 0.1° to 1999°; 1° above (auto ranging)

Note: All wireless units are USA, 900 Mhz frequency band versions. For European 868.0 Mhz˜ 868.6 Mhz frequency band versions,
add suffix “E”, no additional charge.

Comes complete with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot and operator’s manual.
Ordering Example: HH806AU, high accuracy data logger and HH800-SW, Windows software.

Accessories

Model No. Description
HH800-ADAPTOR AC adaptor (USB models only)
SC-800 Soft case for HH800 series

Software For HH800 Series with
USB or Wireless Interface Software
for Windows 2000 and Windows XP
with Wireless Receiver

HH800W-RSW Windows
software and wireless

HH800-SW

U Data Logging and Retrieval

Software for USB

U Display Retrieved Data in

Graphic Format

U Display MAX/MIN/AVG/REL
U High/Low Alarms
U Selectable Logging Interval
U Provided on 3.5" CD

To Order

Model No. Description

HH800-SW Windows software and USB cable (USB models only)
HH800W-RSW Windows software and wireless receiver (wireless models only) USA version
HH800WE-RSW Windows software and wireless receiver (wireless models only) European version

Ordering Example: HH800-SW, data logging software for HH800 Series meters wth built-in USB port.
Hardware Requirements: Pentium III, 700 Mhz or better, minimum of 150 MB free hard disk space is recommended, single USB port.

receiver (wireless
models only).

The HH800-SW and the HH800W-RSW both allow real time data logging
to a PC. For wireless enable meters HH800W-RSW comes with both the
software and wireless receiver, while for meters with USB, HH800-SW
comes with the software and a USB cable. Both versions of software
are identical and can work interchangeably. For meters with built in data
storage, the software allows users to download and analyze data on there
PC. Users can also export data to Excel or text files for further manipulation.

L-60

L
