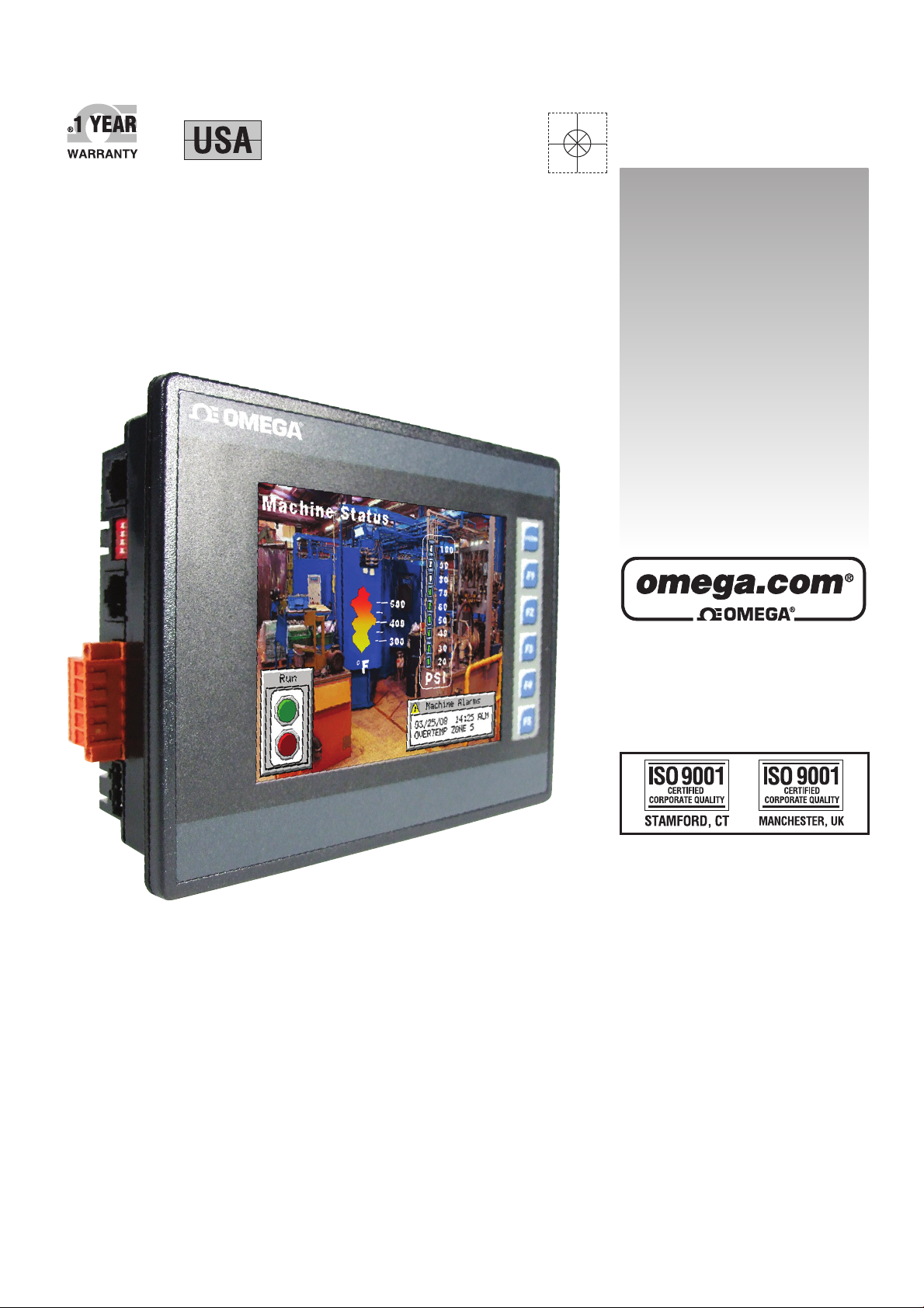

HE-XL105
12 Digital DC Inputs,
12 Digital DC Outputs,
2 Analog Inputs Including
T/C & RTD (High Resolution),
2 Analog Outputs
Page 2
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford, CT 06907-0047 USA
Canada: 976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: (514) 856-6928
FAX: (514) 856-6886 e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA
®
Customer Service: 1-800-622-2378/1-800-622-BEST
®
Engineering Service: 1-800-872-9436/1-800-USA-WHEN
®
Mexico: En Español: 001 (203) 359-7803 FAX: (001) 203-359-7807
Servicing Europe:
Benelux: Managed by the United Kingdom Office
Czech Republic: Frystatska 184
733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: +420-59-6311899
FAX: +420-59-6311114 e-mail: [email protected]
France: Managed by the United Kingdom Office
Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00
FAX: +33 (0) 130 57 54 27 e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26
D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0
FAX: +49 (0) 7056 9398-29 e-mail: [email protected]
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: +44 (0)161 777-6611
FAX: +44 (0)161 777-6622 e-mail: [email protected]
OMEGAnet®Online Service Internet e-mail
omega.com [email protected]
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Page 3

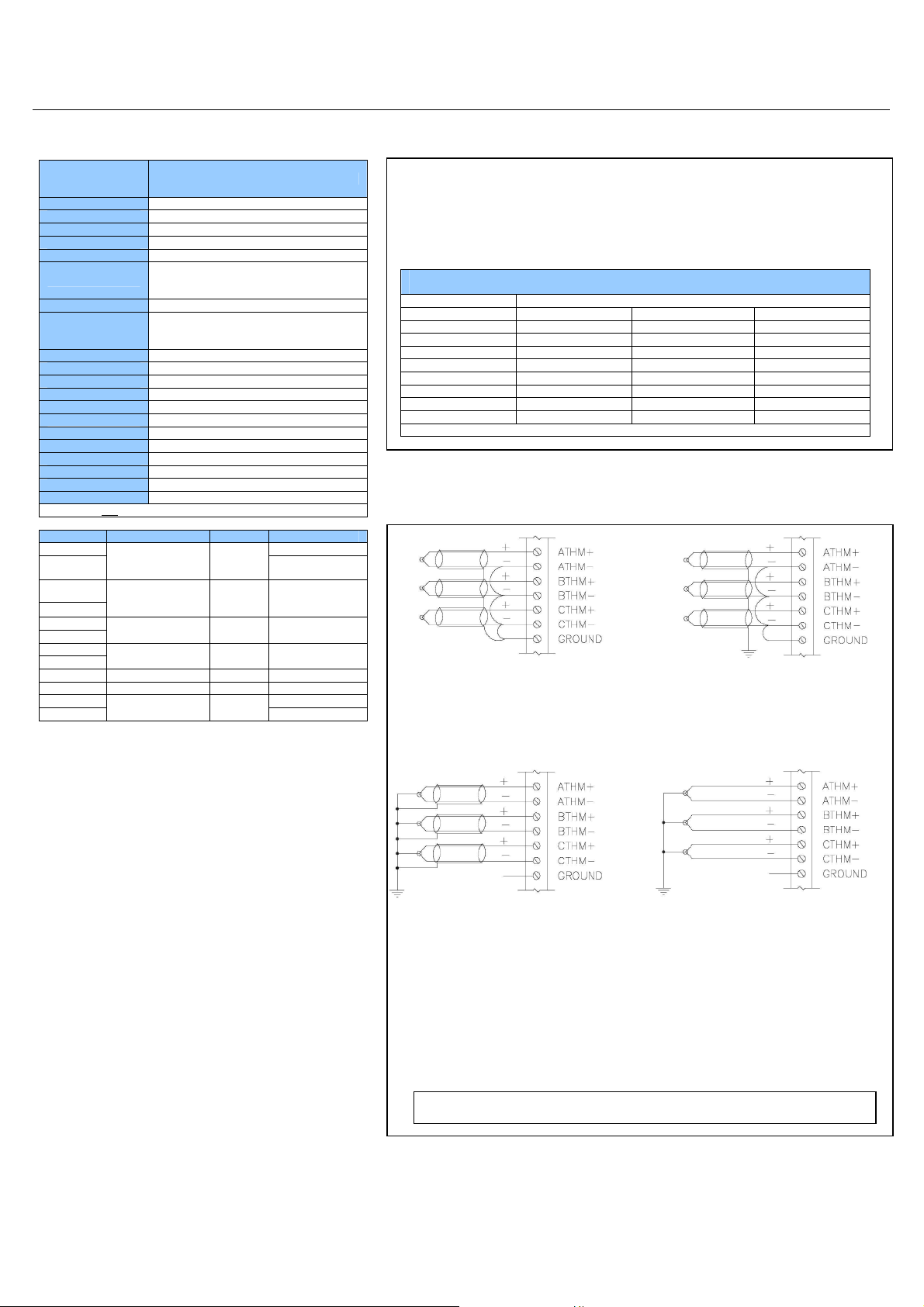

1 Specifications
Inputs per Module 12 including 4 configurable HSC inputs Outputs per Module 12 including 2 configurable PWM outputs
Input Impedance
Input Current Positive Logic Negative Logic A 5.0 tniop rep tnerruC tuptuO .xaM
Upper Threshold 0.8 mA -1.6 mA suounitnoC A 4 tnerruC latoT .xaM
Lower Threshold 0.3 mA -2.1 mA CDV 03 egatloV ylppuS tuptuO .xaM
HSC Max. Switching Rate
Input Ranges
(Selectable)
Safe input voltage range
Nominal Resolution
Input Impedance
(Clamped @ -0.5 VDC to 12
Open Thermocouple Detect
VDC)
%AI full scale
Current
Output Ranges
Update rate Once per PLC scan Operating Temperature
Minimum 10 V load
Maximum 20 mA load
Analog Outputs;
Output Points Required
Maximum Error at 25°C (excluding
Additional error for temperatures
zero)
other than 25°C
Digital DC Inputs Digital DC Outputs
10 kΩ
10 kHz Totalizer/Pulse, Edges
5 kHz Frequency/Pulse, Width
2.5 kHz Quadrature
and J, K, N, T, E, R, S, B Thermocouples
10 VDC: -0.5 V to +15 V
20 mA: -0.5 V to +6 V
10V, 20mA, 100mV: 14 Bits
RTD, Thermocouple: 16 Bits
100 Ω, 35mA Max. Continuous
500 kΩ, 35mA Max. Continuous
10 V, 20 mA, 100 mV: 32,000 counts full scale.
Analog Outputs General Specifications
RTD / T/C: 20 counts / °C
sm 1 esnopseR FFO ot NO Min. Load None
0 - 10 VDC
0 – 20 mA
4 – 20 mA
100mV
PT100 RTD,
RTD / T/C: ±24 VDC
Current Mode:
Voltage Mode:
50 nA RTD Excitation Current
2 slennahC fo rebmuN
0-10 VDC,
0-20 mA
1 kΩ
500 Ω
0.1%
0.01% / °C
Note: Highest usable frequency for PWM output is 65 KHz
Specifications
eludoM rep snommoC 1 eludoM rep snommoC 1
Output Protection Short Circuit
OFF to ON Response 1 ms
ON to OFF Response 1 ms
Analog Inputs, High Resolution
B / R / S
E
T
J
K / N
Max Thermocouple Error (After
Warm Up Time of One Hour)
Conversion Speed, Both Channels
Required Power
(Steady State)
Required Power (Inrush)
egnaR rewoP yramirP stiB 21 noituloseR lanimoN 10 - 30 VDC
gniretliF 2
Weight 12.5 oz. (354.36)
CE
UL
Clock Accuracy
gatloV .xaM etulosbA .xaM CDV 53 egatloV .xaM etulosbA .xaM CDV 82 e
egatloV ylppuS tuptuO muminiM CDV 8 dlohserhT reppU xaM CDV 01
detaR ta porD egatloV .xaM CDV 3 dlohserhT rewoL niM CDV 52.0 tnerruC
Max. Error at 25°C
(*excluding zero)
Converted
2912°F to 32.0°F (1600°C to 0°C)
1652°F to -328°F (900°C to -200°C)
752.0°F to -400.0°F (400°C to -240° C)
1382.0°F to -346.0°F (750°C to -210°C)
2498.0°F to -400°F (1370°C to -240°C)
lennahC rep emiT noisrevnoC Am 53 tnerruC-revO .xaM
30 A for 1 ms @ 24 VDC – DC Switched
2.5 A for 4 ms @ 24 VDC - AC Switched
1-128 scan digital running average filter
If you requ ire a Compliance Table:
+/- 35 ppm maximum at 25° C
(+/- 1.53 Minutes per Month)
uoS epyT tuptuO CDV 42 / CDV 21 egnaR egatloV tupnI rcing / 10 K Pull-Down
ep Am 056 tnerruC hsurnI .xaM sm 1 esnopseR NO ot FFO r channel
egnaR erutarepmeT elpuocomrehT 2 slennahC fo rebmuN
*4-20 mA ±0.10%*
*0-20 mA ±0.10%*
*0-10 VDC ±0.10%*
RTD (PT100) ±1.0 °C
0-100 mV ±0.05%
±0.2% (±0.3% below -100°C)
10V, 20mA, 100mV: 30 Times/Second
RTD, Thermocouple: 7.5 Times/Second
10V, 20mA, 100mV: 16.7mS
RTD, Thermocouple: 66.7mS
250 µA
500 mA @ 24 VDC
-10° to 60° Celsius
15Hz hash (noise) filter
,epyT wercS epyT lanimreT
)C°06 ot 01-( F°041 ot 41 erutarepmeT egarotS
gnisnednoc-noN %59 ot 5 ytidimuH evitaleR
elbavomeR mm 5
1-888-556-6342
L evitisoP( gnicruoS tnerruC scitsiretcarahC tuptuO ogic)
V01± egnaR edoM nommoC elpuocomrehT
amgiS atleD epyT retrevnoC
__________________________________________________________________________________________________________________________________________________________________
Page 1 of 8
Page 4
2 Installation
Caution: Do
not
force the OCS into the panel cutout.
1. Prior
to mounting, observe requirements for the panel layout
design and spacing/clearances in the OCS XL Series Manual
(MAN0883).
2. Cut the host panel.
3. Insert the OCS through the panel cutout (from the front). The
gasket material needs to be between the host panel and the
OCS.

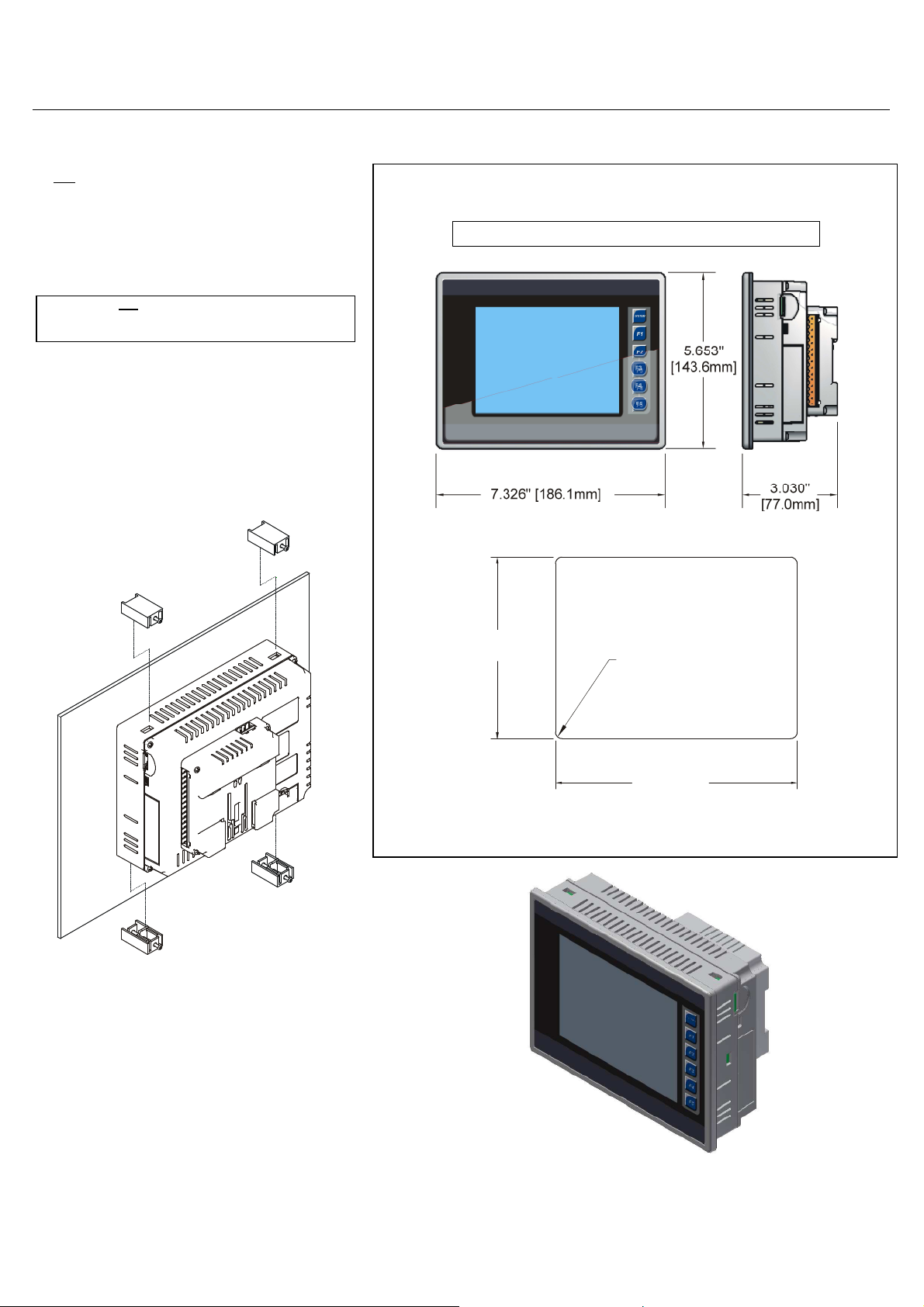

3 Panel Cut-Out and Dimensions
Note: Max. panel thickness: 5 mm.
Note: The tolerance to meet NEMA standards is ± 0.005” (0.1 mm).
An incorrectly sized panel cutout can damage the
touch screen.
4. Install and tighten the mounting clips (provided with the OCS) until
the gasket material forms a tight seal.
5. Connect cables as needed such as communicati
programming, power and CsCAN cables to the ports using the
provided connectors.
6. Begin configuration procedures.
ons,
5.156"
[131mm]
R .125" [3 mm] TYP.
RADIUS CORNERS
WHEN REQUIRING
DUST OR WATER
TIGHT SEAL PER
NEMA 4, 4X OR 12
6.875"
[175mm]
001OCS003-R1
001XLQX007
HE-XL105
__________________________________________________________________________________________________________________________________________________________________
Page 2 of 8
Page 5

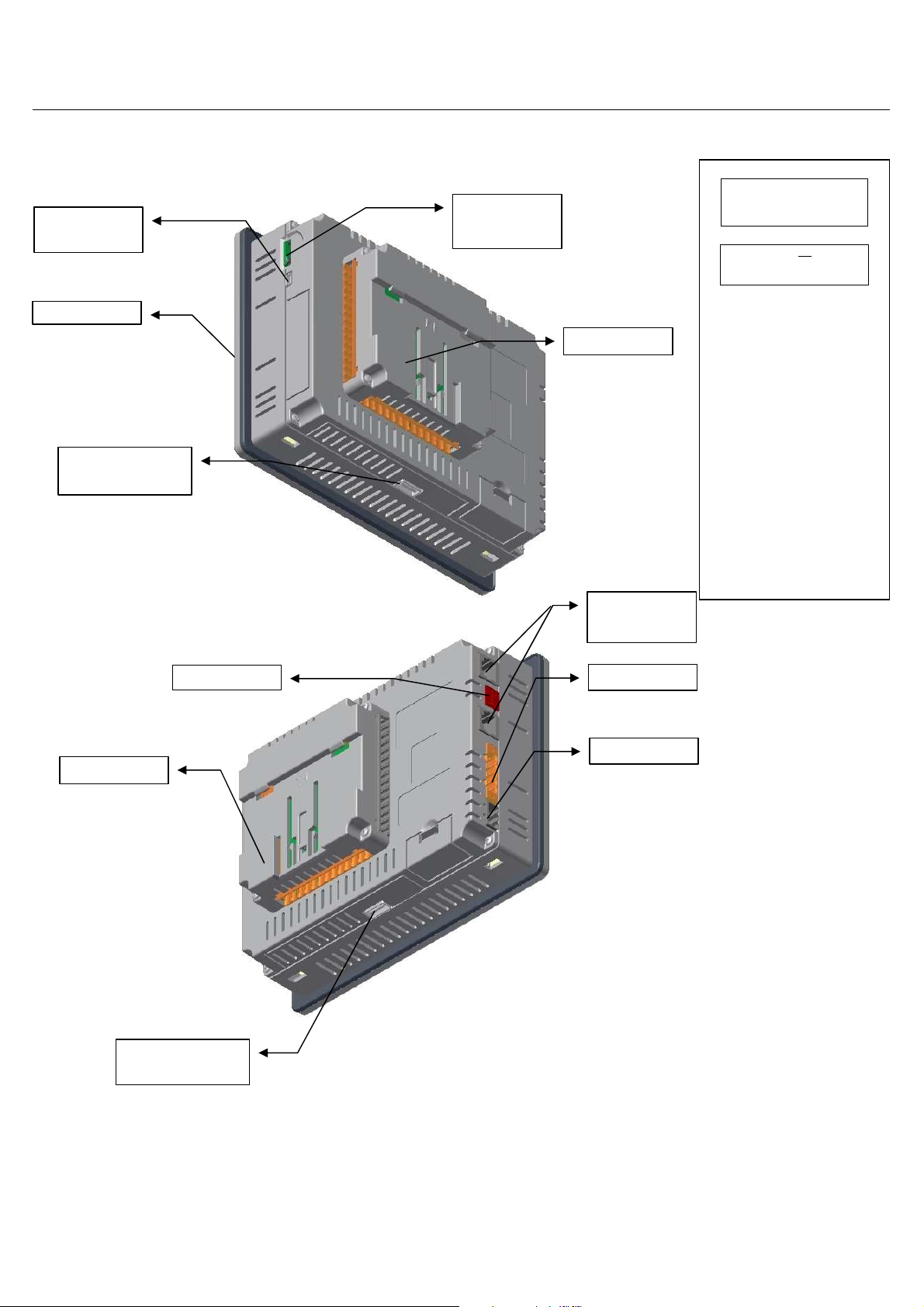

4 Ports and Connectors
USB
USB
Remove cover.
Mini B USB 5 pin
programming port
Removable
Media
Memory Slot
To Remove I/O Cover:
Unscrew 4 screws located on the
CAUTION: Do not over tighten
screws when replacing the back
cover.
cover.
User Interface
USB
USB A Port
(not active)
I/O Cover
DIP Switches
I/O Cover
Serial Comm
MJ1
MJ2
CAN Comm
Power
I/O Jumpers (JP) are located internally.
To access, remove I/O cover of unit.
Wiring Connectors (J1 / J2 / J3) and
I/O Jumpers (JP1 / JP2 / JP3 / JP4)
Jumpers section of this document.
Uses Removable Memory for data
logging, screen captures, program
Cscape programming and Application-
Application-Defined Communications.
I/O Jumpers:
are described in the Wiring and
Memory Slot:
loading and recipes.
Horner Part No.: HE-MC1
Serial Communications:
MJ1: (RS-232 / RS-485) Use for
Defined Communications.
MJ2: (RS-232 /
RS-485) Use for
USB A Port
(not active)
__________________________________________________________________________________________________________________________________________________________________
Page 3 of 8
Page 6

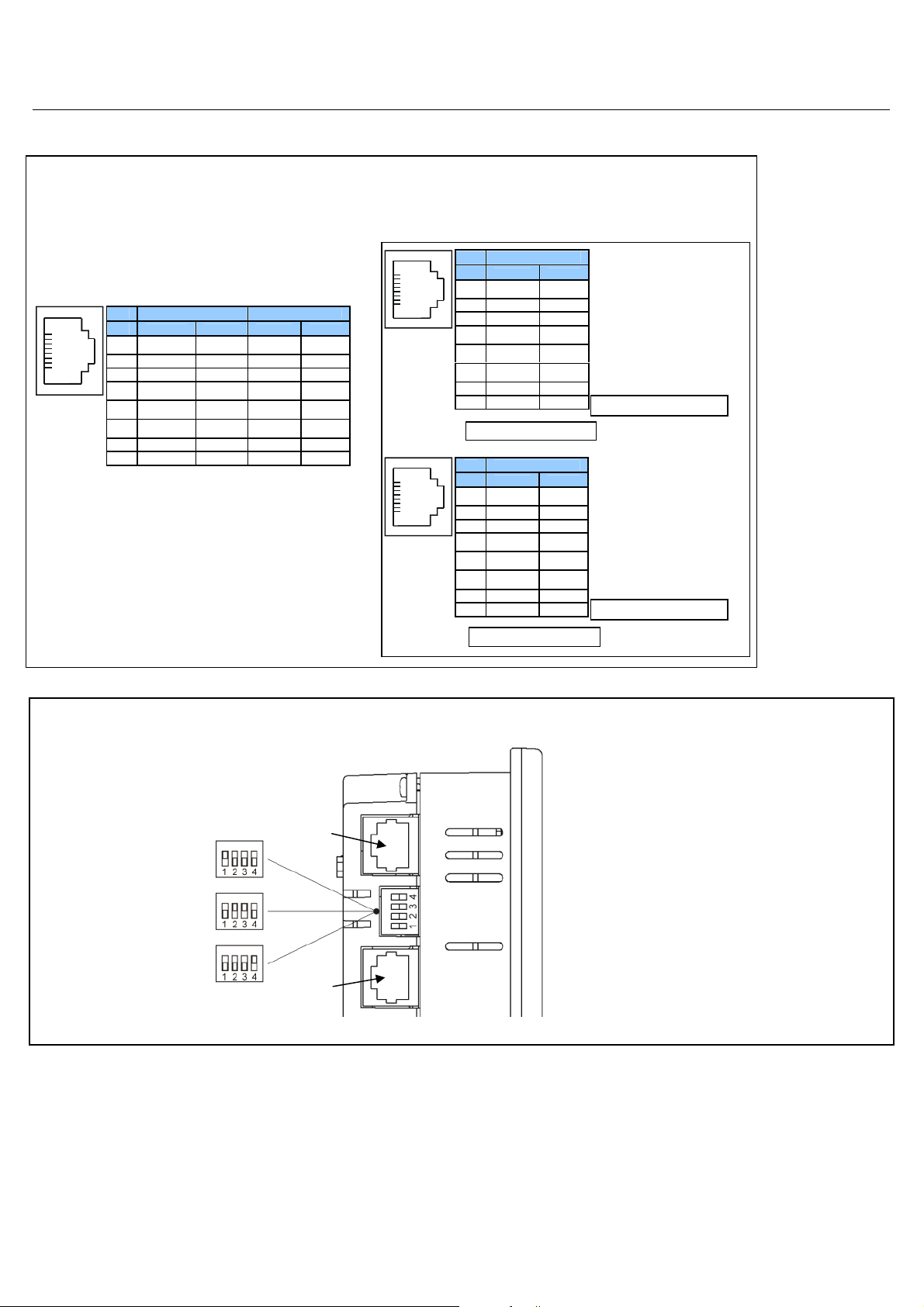

4.1 Serial Communications
1
8
1
8
1
8
On
MJ1: (RS-232 / RS-485) Use for Cscape programming
and Application-Defined Communications.
MJ2: (RS-232 / RS-485) Use for Application-Defined
Communications.
Pin MJ1 Pins MJ2 Pins
Signal Direction Signal Direction
TXD OUT TXD OUT
8
RXD IN RXD IN
7
0 V Ground 0 V Groun d
6
+5 60mA OUT +5 60mA OUT
5*
RTS OUT TX- OUT
4
CTS IN TX+ OUT
3
RX- / TX- IN / OUT RX- IN
2
RX+ / TX+ IN / OUT RX+ IN
1
MJ2 Pinouts in Half and Full Duplex Modes
Pin MJ2 Pins
Signal Direction
TXD OUT
8
RXD IN
7
0 V Ground
6
+5 60mA OUT
5*
TX- OUT
4
TX+ OUT
3
TX-/RX- IN/OUT
2
TX+/RX+ IN/OUT
1
MJ2 Half Duplex Mode
Pin MJ2 Pins
Signal Direction
TXD OUT
8
RXD IN
7
0 V Ground
6
+5 60mA OUT
5*
TX- OUT
4
TX+ OUT
3
RX- IN
2
RX+ IN
1
MJ2 Full Duplex Mode
* +5V 60mA Max
* +5V 60mA Max
4.2 External DIP Switch Settings
As seen when looking at the side of the XL6 unit :
The DIP Switches are used for
termination of the RS-485 ports. The
XL6 is shipped un-terminated.
To terminate, select one of the DIP
Switches and configure it based upon
the option that is desired.
On
Off
Off
On
Off
MJ1
MJ2
SW1 - ON enables MJ2 RS485 port termination (121 Ohms).
OFF disables MJ2 RS485 port termination.
SW2 & SW3 - ON places MJ2 RS485 port in half-duplex mode.
OFF places MJ2 RS485 port in full-duplex mode.
SW4 - ON enables MJ1 RS485 port termination (121 Ohms).
OFF disables MJ1 RS485 port termination.
__________________________________________________________________________________________________________________________________________________________________
Page 4 of 8
Page 7

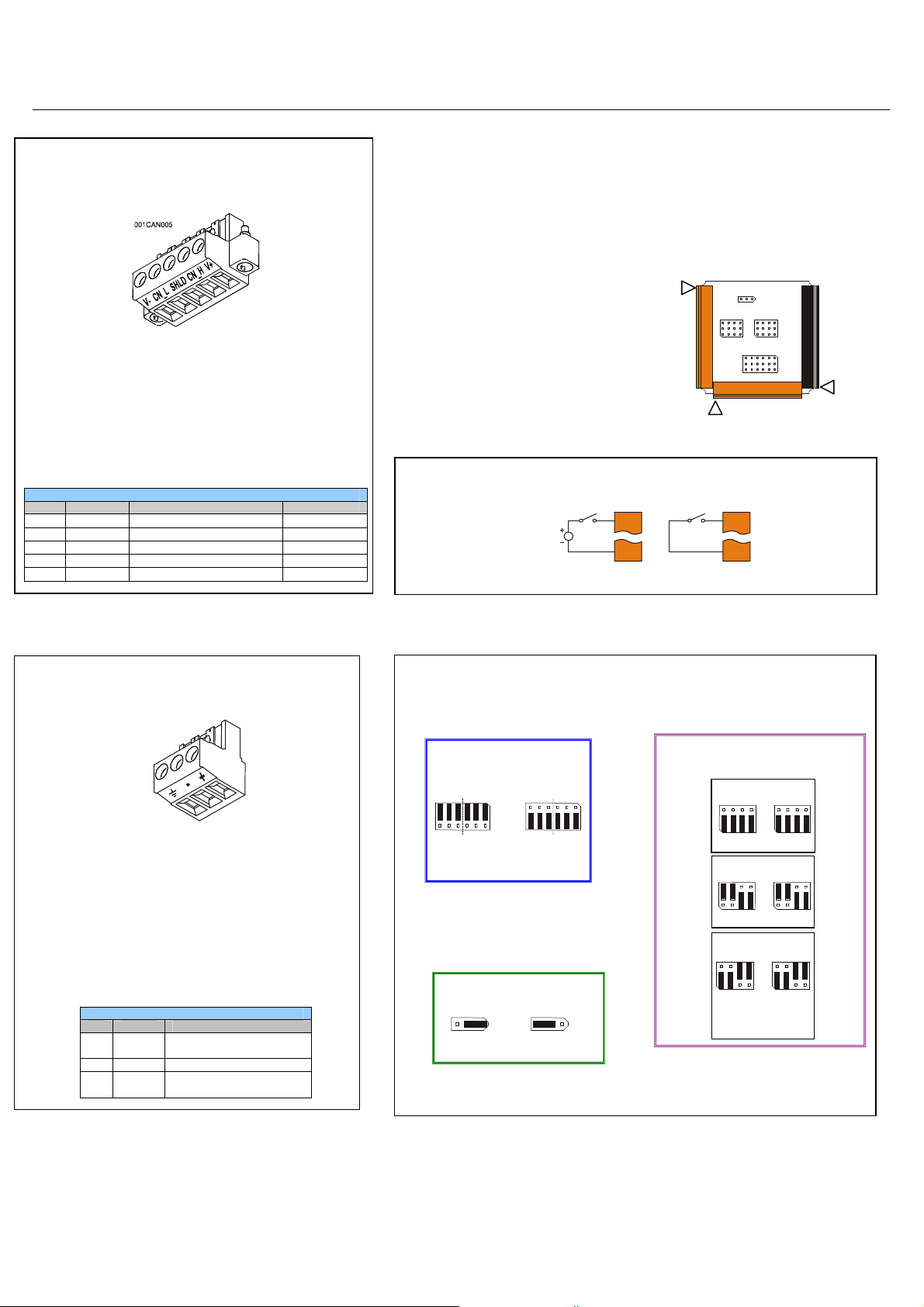

4.3 CAN Network Port and Wiring
10V/20mA
MA1/V1
MA2/V2
J2
J3
JP2
CAN
Connector
JP4
5 Wiring and Jumpers
• Wire according to the type of inputs / outputs used and select the appropriate jumper option.
• Use Copper Conductors in Field Wiring Only, 60/75° C
Use the CAN Connector when
using CsCAN network.
Torque rating 4.5 – 7 Lb-In
(0.50 – 0.78 N-m)
NET1 Port Pin Assignments
Pin Signal Signal Description Direction
1 V- CAN Ground
−
2 CN_L CAN Data Low In/Out
3 SHLD Shield Ground
−
4 CN_H CAN Data High In/Out
5 NC No Connect
−
4.4 Power Port and Wiring
Wiring Specifications
• For I/O wiring (discrete), use the
following wire type or equivalent:
Belden 9918, 18 AWG (0.8 mm2)
• For shielded Analog I/O wiring,
following wire type or equivalent:
Belden 3084, 24 AWG (0.2 mm2)
or larger.
use the following wire type or
equivalent: Belden 8441, 18
AWG (0.8 mm
2
) or larger.
• For CAN wiring, use the
or larger.
Positive Logic vs. Negative Logic Wiring
The XL6 can be wired for Positive Logic inputs or
12-24VDC
Positive Logic In Negative Logic In
5.1 I/O Jumpers Settings (JP1 – JP4)
J1
Negative Logic inputs.
I1
0V
Location of I/O jumpers (JP)
and wiring connectors
(J1 – J3).
JP1
JP3
JP4
001XLE030
I1
0V
001XLE036
Power Connector
Power Up:
Connect to Earth Ground.
Apply 10 - 30 VDC.
Screen lights up.
Torque rating 4.5 – 7 Lb-In
(0.50 – 0.78 N-m)
Primary Power Port Pins
Pin Signal Description
1 Ground Frame Ground
2 V- Input Power Supply Ground
3 V+ Input Power Supply Voltage
Note: The Cscape Module Setup configuration must match the selected I/O (JP) jumper settings.
ANALOG OUTPUT SETTING
VOLTAGE OR CURRENT
CURRENT
(20mA)
AQ2 AQ1 AQ2 AQ1
Default
Note: When using JP4 (output) or JP2 / JP3
(inputs), each channel can be independently
configured. For example, JP2 can be configured
VOLTAGE
(10V)
JP2 and JP3
Analog In Settings
AI1 AI2
T/C/100mV
JP2
T1 T2
JP2 J P3
T1 T2
JP3
RTD (PT100)
for 10 V and JP3 can be configured as an RTD.
JP2 JP3
JP1 Digital DC Inputs
Positive Logic
Default
Negative Logic
Default
__________________________________________________________________________________________________________________________________________________________________
Page 5 of 8
Page 8

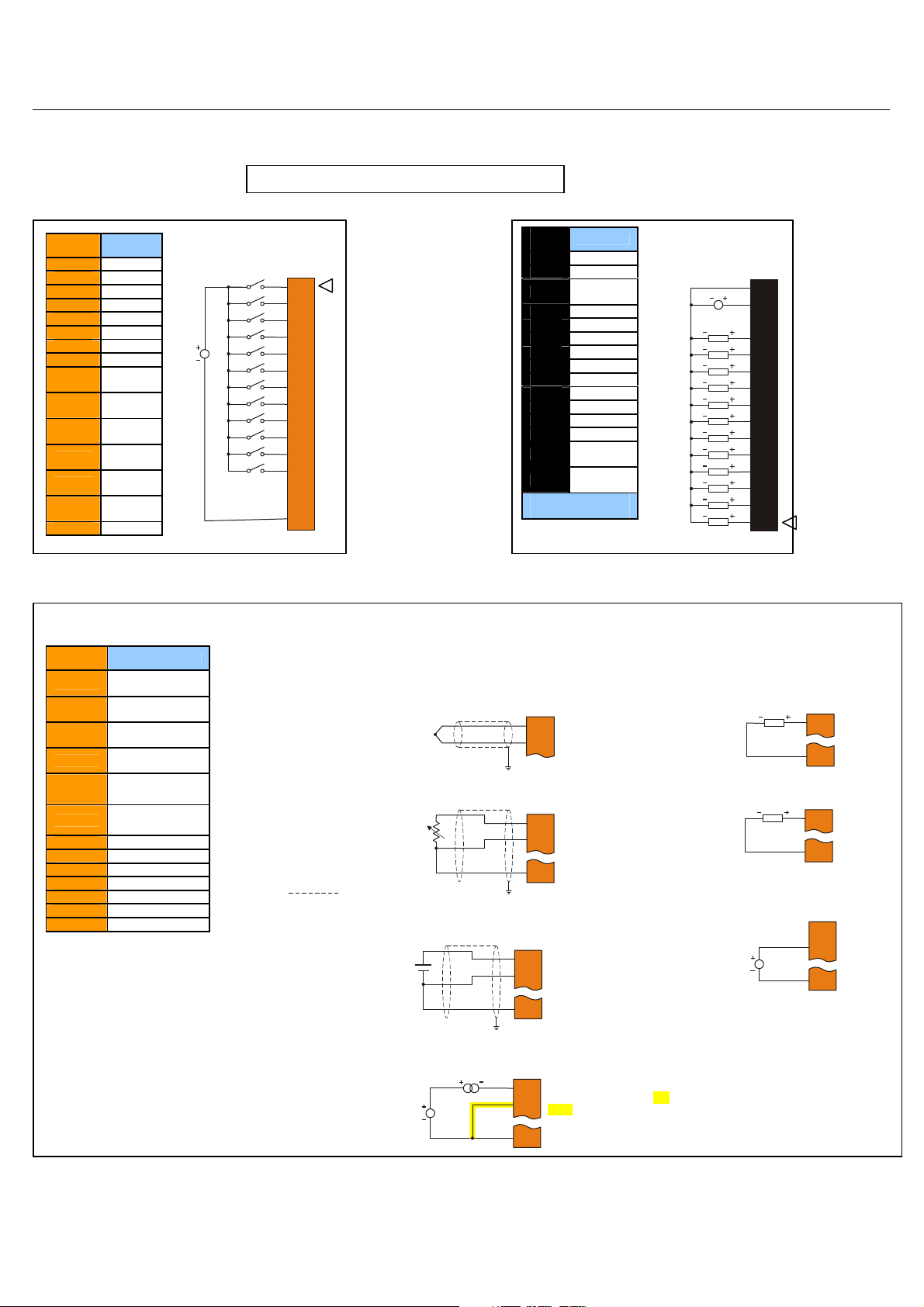

5.2 Wiring Examples
J3 Orange
Q10
LOAD
LOAD
8
J2 Black
Note: The wiring examples show Positive Logic input wiring.
J1
Orange
Name
I1 IN1
I2 IN2
I3 IN3
I4 IN4
I5 IN5
I6 IN6
I7 IN7
I8 IN8
H1
H2
H3
H4
NC
NC
HSC1 /
HSC2 /
IN10
HSC3 /
IN11
HSC4 /
IN12
Connect
Connect
IN9
No
No
12-24
VDC
0V Ground
J3
Orange
T1+
T1-
T2+
T2-
AQ1
AQ2
Name
T/C / RTD IN1+ /
100 mV+
T/C / RTD IN1- /
100 mV-
T/C / RTD IN2+ /
100 mV+
T/C / RTD IN2- /
100 mV-
10 V / 20 mA
OUT1
*
0 V / 20 mA
OUT2
*
0V Ground
MA1 20 mA IN1
V1 10 V IN1
0V Ground
MA2 20 mA IN2
V2 10 V IN2
0V Ground
*
Note: AQ1 and AQ2 are referenced as
%AQ9 and %AQ10 in the Application
Program
J1 Orange
Positive Logic
Digital In
H1
H2
H3
H4
NC
NC
0V
001XLE007
Note: A total of 2 Analog Inputs can be used (T/C, RTD, mV, mA, and V).
J2
Black
0V Ground
V+* V+*
I1
I2
I3
I4
I5
I6
I7
I8
NC
Q12 OUT12
Q11 OUT11
Q10 OUT10
Q9 OUT9
Q8 OUT8
Q7 OUT7
Q6 OUT6
Q5 OUT5
Q4 OUT4
Q3 OUT3
Q2
Q1
Sourcing Outputs
Name
No
Connect
OUT2 /
PWM2
OUT1 /
PWM1
V+* Supply for
Positive Logic
Digital Outputs
0V
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
V+
NC
Q12
Q11
Q9
Q8
Q7
Q6
Q5
Q4
Q3
Q2
Q1
001XLE00
10 - 30VDC
Analog In / Analog Out
100mV+
100mV-
Thermocouple In
T1+
T1-
RTD In
T1+
T1-
0V
mV In
T1+
T1-
0V
0 -10 V Analog Out
10VDC
4 - 20 mA Analog Out
20mA
0 – 10 V Analog In
0-10VDC
NC
AQ1
0V
AQ1
0V
MA1
V1
0V
20 mA Analog In
20mA
Note: Loop Power (LOOP PWR) requirements are
determined by the transmitter specification.
__________________________________________________________________________________________________________________________________________________________________
Page 6 of 8
LOOP PWR
MA1
Note: Be sure to wire 0 V
V1
to V1 as shown for proper
operation.
0V
Page 9
6 I/O Register Map
Ungrounded Thermocouples.
Ungrounded Thermocouples.
G
rounded Thermocouples
7 Digital Filtering for Analog Inputs
Registers Description
%I1 to %I24 Digital Inputs
%Q1 to %Q16 Digital outputs
%Q17 Clear HSC1 accumulator to 0
%Q18
%Q19 Clear HSC3 Accumulator to 0
%Q20
%Q21 to %Q32 Reserved
%AI1 to %AI4 Analog inputs
%AI5, %AI6 HSC1 Accumulator
%AI7, %AI8 HSC2 Accumulator
%AI9, %AI10 HSC3 Accumulator
%AI11, %AI12 HSC4 Accumulator
%AQ1, %AQ2 PWM1 Duty Cycle
%AQ3, %AQ4 PWM2 Duty Cycle
%AQ5, %AQ6 PWM Prescale
%AQ7, %AQ8 PWM Period
%AQ9 to %AQ14 Analog outputs
Note: Not all XL6 units contain the I/O listed in this table.
Registers PWM HSC Stepper
%AQ1 Start Frequency
%AQ2
%AQ3
%AQ4
%AQ5
%AQ6
%AQ7
%AQ8
%Q1 Run
%I30 Ready/Done
%I31
PWM1 Duty Cycle
(32 bit)
PWM2 Duty Cycle
(32 bit)
PWM Prescale
(32 bit)
PWM Period
(32 bit)
Totalizer: Clear HSC2
Quadrature 1-2: Accumulator 1 Reset to
Quadrature 3-4: Accumulator 3 Reset to
max – 1
Totalizer: Clear HSC4
max – 1
HSC1
Preset
Value
HSC2
Preset
Value
tluaF tuptuO 23I%
devreseR 13I% ot 52I%
Run Frequency
Accel Count (32
Run Count (32
Decel Count (32
bit)
bit)
bit)
Error
The digital filter is updated once per conversion. It is an “IIR” running average filter that emulates a simple
RC filter. The equivalent time constant is determined by the Filter Constant and the sum of the conversion
times for the two channels. The Filter Constant determines the weight given to the most recent
conversion. The following table lists the equivalent time constant for the three
times, which are dependent upon the two input mode selections. This filter delay is in addition to the PLC
scan delay.
Equivalent RC Time Constant in Seconds
(Nominal time to reach 63% of final value.)
Filter Constant 0.03 0.09 0.13
0* 0.03* 0.09* 0.13*
1 0.07 0.18 0.27
2 0.13 0.35 0.53
3 0.27 0.71 1.07
4 0.53 1.41 2.13
5 1.07 2.83 4.27
6 2.14 5.65 8.54
7 4.28 11.30 17.08
8 Thermocouple Grounding Schemes
Ungrounded Thermocouples
Alternate Shield Connection for
* No filter delay, reading is unfiltered conversion value
Ungrounded Thermocouples
Preferred Shield Connection for
possible total conversion
sdnoceS ni emiT noisrevnoC latoT
Grounded Thermocouples
Field Ground Potential Less Than
Seven Volts AC
Typical Shield Connection for
Grounded Thermocouples
Note: The examples for thermocouple grounding schemes above are generic illustrations. The
__________________________________________________________________________________________________________________________________________________________________
Page 7 of 8
XL6 model XL105 has two thermocouple inputs.
Field Ground Potential Less Than
Seven Volts AC
Shields Connected at One End Only
May be Used to Reduce Noise
Grounded Thermocouples May Use
the Ungrounded Thermocouple Shield
Connections if the Shield is not
Grounded at the Field End
Page 10
9 Safety
.
When found on the product, the following symbols specify:
Warning: Electrical
Shock Hazard.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or Non-hazardous locations only
WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
AVERTISSEMENT - RISQUE D'EXPLOSION - AVANT DE DECONNECTOR L'EQUIPMENT, COUPER LE COURANT OU S'ASSURER QUE L'EMPLACEMENT EST DESIGNE
NON DANGEREUX.
WARNING: To avoid the risk of electric
WARNING: To reduce the risk of fire, electrical shock, or physical injury it is strongly recommended to fuse the voltage measurement inputs. Be sure to locate fuses as close to
the source as possible.
WARNING: Replace fuse with the same type and rating to provide protection against risk of fire and shock hazards.
WARNING: In the eve
WARNING – EXPLOSION HAZARD – Substitution of components may impair suitability for Class I, Division 2
AVERTISSEMENT - RISQUE D'EXPLOSION - LA SUBSTITUTION DE COMPOSANTS PEUT RENDRE CE MATERIAL INACCEPTABLE POUR LES EMPLACEMENTS DE
CLASSE 1, DIVISION 2
WARNING - The USB parts are for operational maintenance only. Do not leave permanently connected unless area is known to be non-hazardous.
WARNING – EXPLOSION HAZARD - BATTERIES MUST ONLY BE CHANGED IN AN AREA KNOWN TO BE NON-HAZARDOUS
AVERTISSEMENT - RISQUE D'EXPLOSION - AFIN D'EVITER TOUT RISQUE D'EXPLOSION, S'ASSURER QUE L'EMPLACEMENT EST DESIGNE NON DANGEREUX
AVANT DE CHANGER LA BATTERIE
WARNING - Battery May Explode If Mistreated. Do Not Recharge, Disassemble or Dispose Of In Fire
WARNING: Only qualified electrical personnel familiar with the construction and operat
this equipment. Read and understand this manual and other applicable manuals in their entirety before proceeding. Failure to observe this precaution could result in severe
bodily injury or loss of life.
nt of repeated failure, do not
Warning: Consult
user documentation
shock or burns, always connect the safety (or earth) ground before making any other connections.
replace the fuse again as a repeated failure indicates a defective condition that will not clear by replacing the fuse.
ion of this equipment and the hazards involved should install, adjust, operate, or service
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Radiated Emission Compliance: For compliance requirement, a ferrite (Horner P/N FBD006 supplied with the unit) needs to be placed on the AC/DC line with one loop.
• All applicable codes and standards need to be followed in the installation of this product.
• Adhere to the foll
• Connect the safety (earth) ground on the power connector first before making any other connections.
• When connecting to electric circuits or pulse-initiating equipment, open their related breakers.
• Do not
make connections to live power lines.
• Make connections to the module first; then connect to the circuit to be monitored.
• Route power wires in a safe manner in accordance with good practice and local codes.
• Wear proper personal protective equipment including safety glasses and insulated gloves when making connections to power circuits.
• Ensure hands, shoes, and floor are dry before making any connection to a power li
• Make sure the unit is turned OFF before making connection to terminals.
• Make sure all circuits are de-energized before making connections.
• Before each use, inspect all cables for breaks or cracks in the insulation. Replace immediately if defective.
• Use Copper Conductors in Field Wiring Only, 60/75° C
owing safety precautions whenever any type of connection is made to the module:
ne.
__________________________________________________________________________________________________________________________________________________________________
Page 8 of 8
Page 11
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY
RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
FOR NON-WARRANTY REPAIRS,
consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2009 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
Page 12
M4766/0109
OME0887-01
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
sm
TEMPERATURE
䡺⻬
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
䡺⻬
Wire: Thermocouple, RTD & Thermistor
䡺⻬
Calibrators & Ice Point References
䡺⻬
Recorders, Controllers & Process Monitors
䡺⻬
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
䡺⻬
Transducers & Strain Gages
䡺⻬
Load Cells & Pressure Gages
䡺⻬
Displacement Transducers
䡺⻬
Instrumentation & Accessories
FLOW/LEVEL
䡺⻬
Rotameters, Gas Mass Flowmeters & Flow Computers
䡺⻬
Air Velocity Indicators
䡺⻬
Turbine/Paddlewheel Systems
䡺⻬
Totalizers & Batch Controllers
pH/CONDUCTIVITY
䡺⻬
pH Electrodes, Testers & Accessories
䡺⻬
Benchtop/Laboratory Meters
䡺⻬
Controllers, Calibrators, Simulators & Pumps
䡺⻬
Industrial pH & Conductivity Equipment
DATA ACQUISITION
䡺⻬
Data Acquisition & Engineering Software
䡺⻬
Communications-Based Acquisition Systems
䡺⻬
Plug-in Cards for Apple, IBM & Compatibles
䡺⻬
Datalogging Systems
䡺⻬
Recorders, Printers & Plotters
HEATERS
䡺⻬
Heating Cable
䡺⻬
Cartridge & Strip Heaters
䡺⻬
Immersion & Band Heaters
䡺⻬
Flexible Heaters
䡺⻬
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
䡺⻬
Metering & Control Instrumentation
䡺⻬
Refractometers
䡺⻬
Pumps & Tubing
䡺⻬
Air, Soil & Water Monitors
䡺⻬
Industrial Water & Wastewater Treatment
䡺⻬
pH, Conductivity & Dissolved Oxygen Instruments
Loading...
