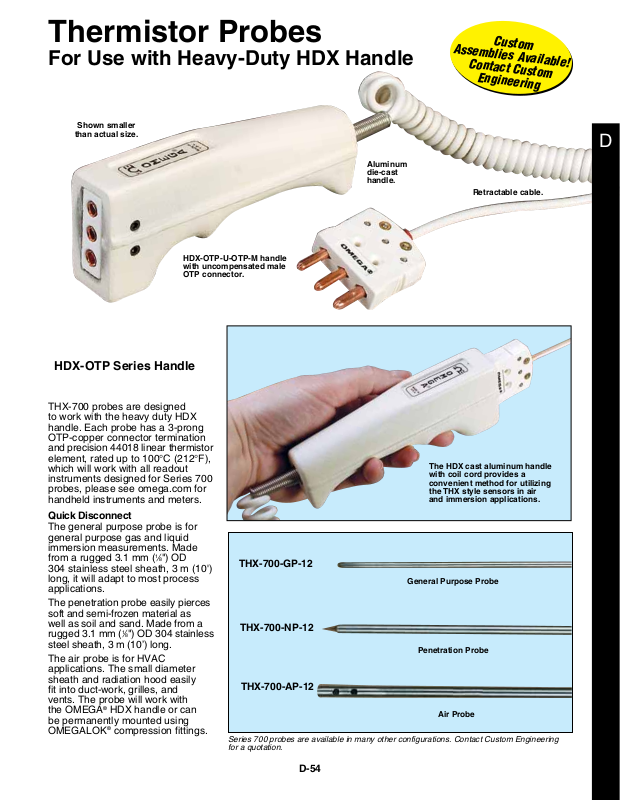

Thermistor Probes
For Use with Heavy-Duty HDX Handle
Shown smaller
than actual size.
Aluminum
die-cast
handle.
HDX-OTP-U-OTP-M handle
with uncompensated male
OTP connector.
Assemblies Available!
Custom
Contact Custom
Engineering
Retractable cable.
D
HDX-OTP Series Handle
THX-700 probes are designed
to work with the heavy duty HDX
handle. Each probe has a 3-prong
OTP-copper connector termination
and precision 44018 linear thermistor
element, rated up to 100°C (212°F),
which will work with all readout
instruments designed for Series 700
probes, please see omega.com for
handheld instruments and meters.
Quick Disconnect
The general purpose probe is for
general purpose gas and liquid
immersion measurements. Made
from a rugged 3.1 mm (1⁄8") OD
304 stainless steel sheath, 3 m (10')
long, it will adapt to most process
applications.
The penetration probe easily pierces
soft and semi-frozen material as
well as soil and sand. Made from a
rugged 3.1 mm (1⁄8") OD 304 stainless
steel sheath, 3 m (10’) long.
The air probe is for HVAC
applications. The small diameter
sheath and radiation hood easily
fit into duct-work, grilles, and
vents. The probe will work with
the OMEGA® HDX handle or can
be permanently mounted using
OMEGALOK® compression fittings.
The HDX cast aluminum handle
with coil cord provides a
convenient method for utilizing
the THX style sensors in air
and immersion applications.
THX-700-GP-12
General Purpose Probe
THX-700-NP-12
Penetration Probe
THX-700-AP-12
Air Probe
Series 700 probes are available in many other configurations. Contact Custom Engineering
for a quotation.
