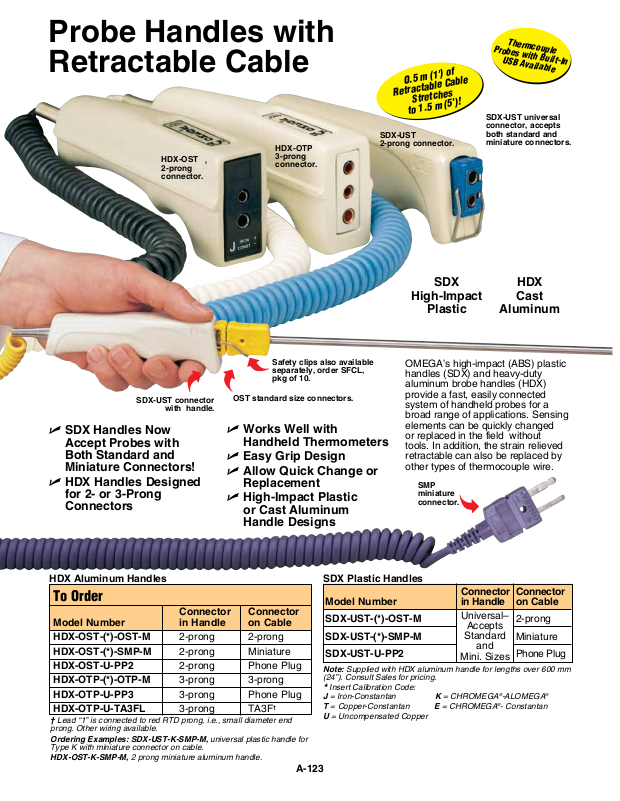

Probe Handles with
Retractable Cable
HDX-OTP
HDX-OST
2-prong
connector.
3-prong
connector.
O.5 m (1') of
Retractable Cable
Stretches
to 1.5 m (5')!
SDX-UST
2-prong connector.
Thermcouple
Probes with Built-In
USB Available
SDX-UST universal
connector, accepts
both standard and
miniature connectors.
Safety clips also available
separately, order SFCL,
pkg of 10.
SDX-UST connector
with handle.
U SDX Handles Now
Accept Probes with
Both Standard and
Miniature Connectors!
U HDX Handles Designed
for 2- or 3-Prong
Connectors
OST standard size connectors.
U Works Well with
Handheld Thermometers
U Easy Grip Design
U Allow Quick Change or
Replacement
U High-Impact Plastic
or Cast Aluminum
Handle Designs
HDX Aluminum Handles
To Order
Connector Connector
Model Number in Handle on Cable
HDX-OST-(*)-OST-M 2-prong 2-prong
HDX-OST-(*)-SMP-M 2-prong Miniature
HDX-OST-U-PP2 2-prong Phone Plug
HDX-OTP-(*)-OTP-M 3-prong 3-prong
HDX-OTP-U-PP3 3-prong Phone Plug
HDX-OTP-U-TA3FL 3-prong TA3F
† Lead “1” is connected to red RTD prong, i.e., small diameter end
prong. Other wiring available.
Ordering Examples: SDX-UST-K-SMP-M, universal plastic handle for
Type K with miniature connector on cable.
HDX-OST-K-SMP-M, 2 prong miniature aluminum handle.
†
A-123
SDX
High-Impact
Plastic
OMEGA’s high-impact (ABS) plastic
handles (SDX) and heavy-duty
aluminum brobe handles (HDX)
provide a fast, easily connected
system of handheld probes for a
broad range of applications. Sensing
elements can be quickly changed
or replaced in the field without
tools. In addition, the strain relieved
retractable can also be replaced by
other types of thermocouple wire.
SMP
miniature
connector.
SDX Plastic Handles
Connector Connector
Model Number in Handle on Cable
SDX-UST-(*)-OST-M 2-prong
SDX-UST-(*)-SMP-M Miniature
SDX-UST-U-PP2 Phone Plug
Note: Supplied with HDX aluminum handle for lengths over 600 mm
(24”). Consult Sales for pricing.
Insert Calibration Code:
*
J = Iron-Constantan K = CHROMEGA®-ALOMEGA
T = Copper-Constantan E = CHROMEGA®- Constantan
U = Uncompensated Copper
Universal–
Accepts
Standard
and
Mini. Sizes
HDX
Cast
Aluminum
®
