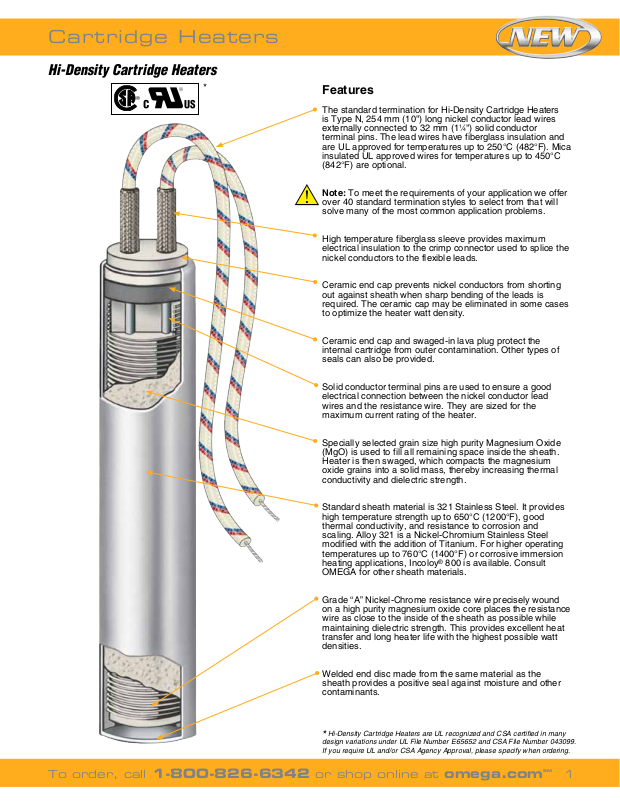

Omega HDC00426 Specification

Page 1

Cartridge Heaters

Hi-Density Cartridge Heaters

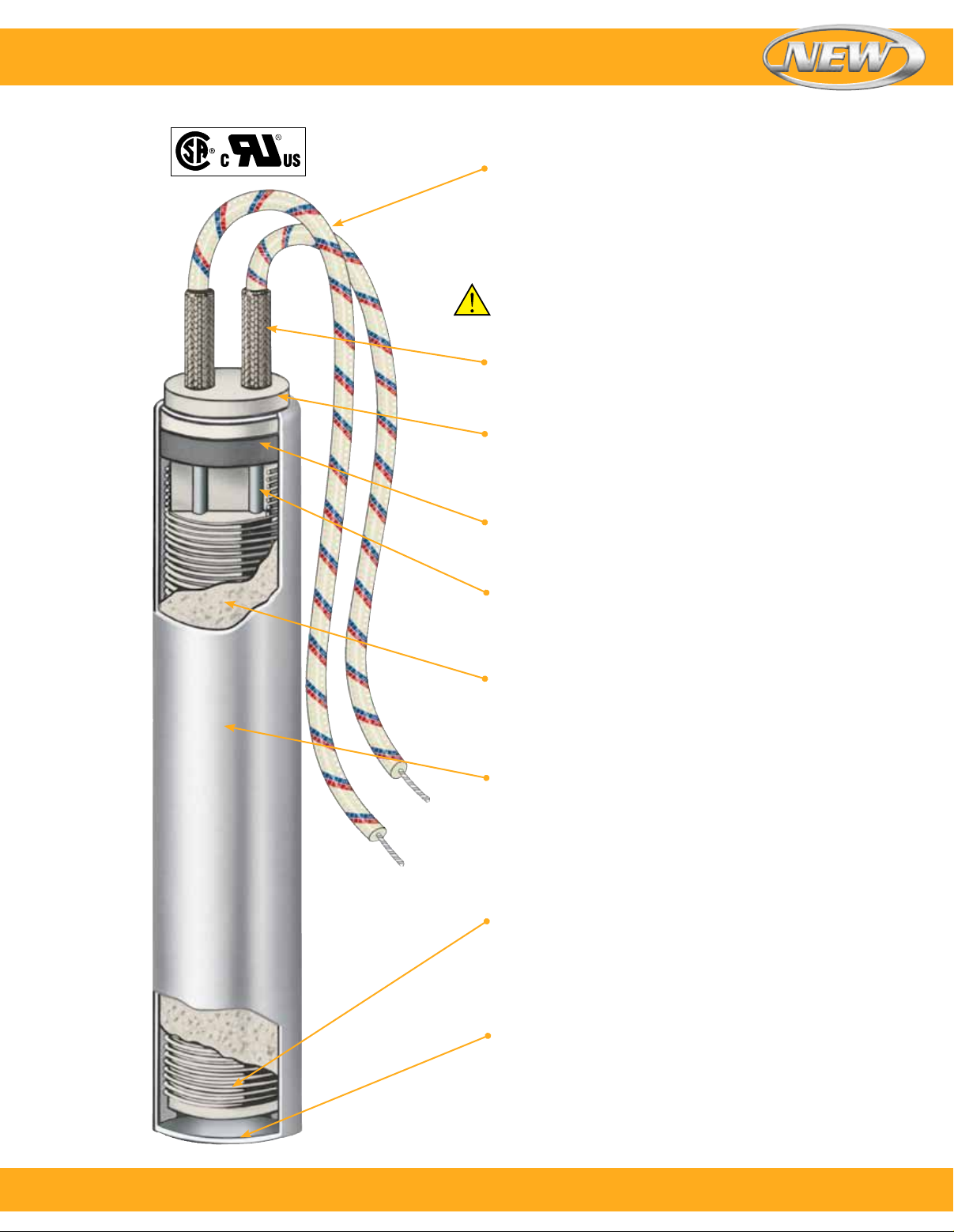

Features

The standard termination for Hi-Density Cartridge Heaters is Type N, 254 mm (10") long nickel conductor lead wires externally connected to 32 mm (11⁄4") solid conductor terminal pins. The lead wires have fiberglass insulation and are UL approved for temperatures up to 250°C (482°F). Mica insulated UL approved wires for temperatures up to 450°C (842°F) are optional.

Note: To meet the requirements of your application we offer over 40 standard termination styles to select from that will solve many of the most common application problems.

High temperature fiberglass sleeve provides maximum electrical insulation to the crimp connector used to splice the nickel conductors to the flexible leads.

Ceramic end cap prevents nickel conductors from shorting out against sheath when sharp bending of the leads is required. The ceramic cap may be eliminated in some cases to optimize the heater watt density.

Ceramic end cap and swaged-in lava plug protect the internal cartridge from outer contamination. Other types of seals can also be provided.

Solid conductor terminal pins are used to ensure a good electrical connection between the nickel conductor lead wires and the resistance wire. They are sized for the maximum current rating of the heater.

Specially selected grain size high purity Magnesium Oxide (MgO) is used to fill all remaining space inside the sheath. Heater is then swaged, which compacts the magnesium oxide grains into a solid mass, thereby increasing thermal conductivity and dielectric strength.

Standard sheath material is 321 Stainless Steel. It provides high temperature strength up to 650°C (1200°F), good thermal conductivity, and resistance to corrosion and scaling. Alloy 321 is a Nickel-Chromium Stainless Steel modified with the addition of Titanium. For higher operating temperatures up to 760°C (1400°F) or corrosive immersion heating applications, Incoloy® 800 is available. Consult OMEGA for other sheath materials.

Grade “A” Nickel-Chrome resistance wire precisely wound on a high purity magnesium oxide core places the resistance wire as close to the inside of the sheath as possible while maintaining dielectric strength. This provides excellent heat transfer and long heater life with the highest possible watt densities.

Welded end disc made from the same material as the sheath provides a positive seal against moisture and other contaminants.

Hi-Density Cartridge Heaters are UL recognized and CSA certified in many

design variations under UL File Number E65652 and CSA File Number 043099. If you require UL and/or CSA Agency Approval, please specify when ordering.

To order, call 1-800-826-6342 or shop online at omega.com

Page 2

Cartridge Heaters

OMEGA Offers the Most Comprehensive and Diverse Selection in Hi-Density Cartridge Heaters

Typical Applications

l Plastic Extruders l Hot Runner Molds l Hot Stamping l Medical Equipment l Packaging Equipment l Molds l Aerospace l Sealing Bags l Semi-Conductor

l Plastic Molding l Shoe Machinery l Food Processing l Heating Gases and Liquids l Glue Guns l Laminating Presses l Platens l Scientific Equipment l Food Service Equipment

Hi-Density Cartridge Heaters Have Evolved and Today Offer a Multitude of Diverse Product Options:

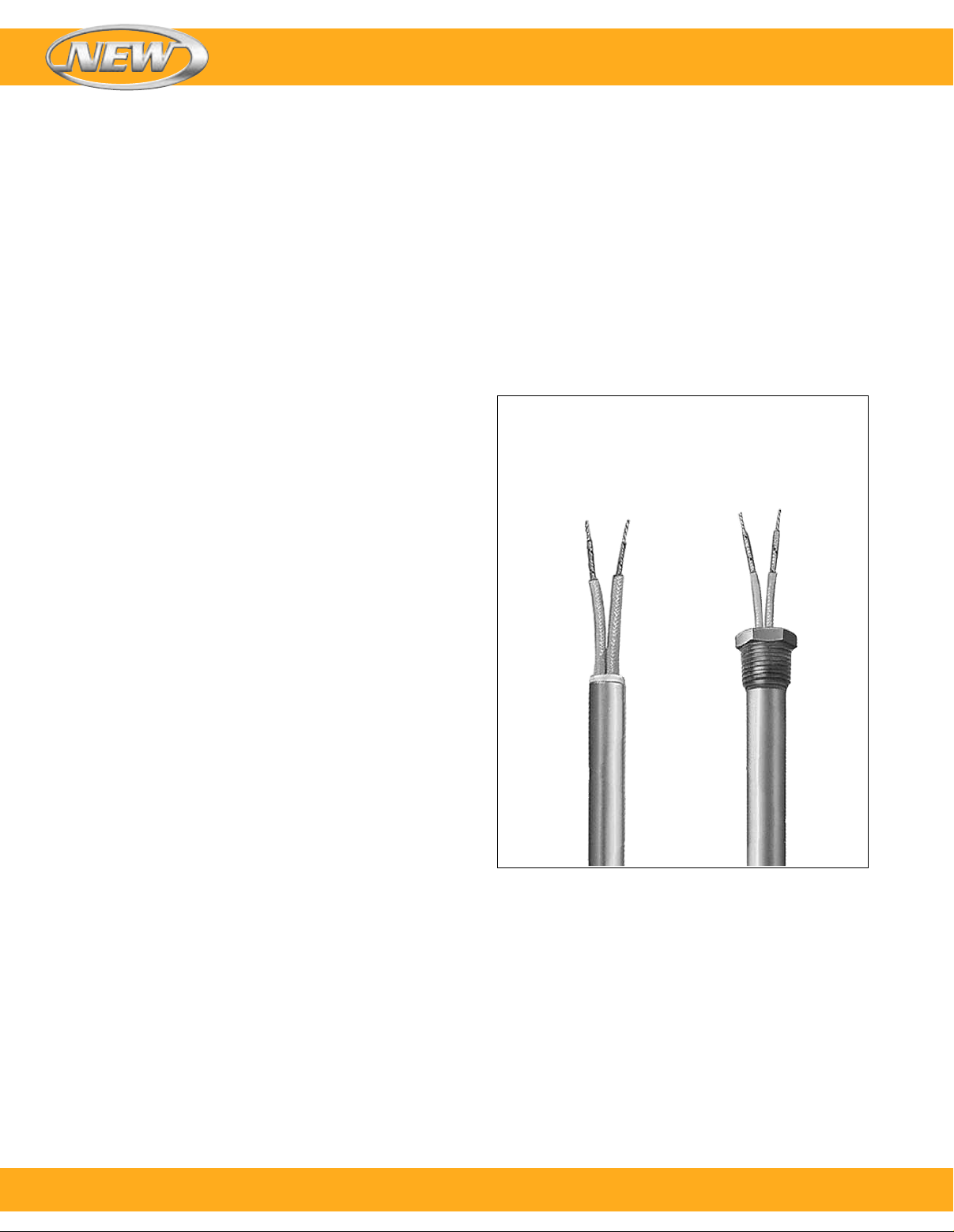

1. (HDC) A hi-density cartridge heater in US sizes.

2. (HDL) A hi-density cartridge heater designed with NPT

Fittings for Immersion heating.

Hi-Density Cartridge Heaters Provide Maximum Processing Temperature Capability

l Higher watt densities permit smaller heaters to be used

without sacrificing life expectancy. This results in up-front as well as long-term cost savings.

l Swaged construction provides maximum support for the

resistance wire and excellent heat transfer characteristics, improving the overall life expectancy of the cartridge heater.

l Termination styles and special features allow customization

to any application.

l Applications up to 760°C (1400°F)

Hi-Density Cartridge Heaters are Classified in Two Distinct Categories

Multi-Purpose Use

The multi-purpose use cartridge heaters represent OMEGA’s commitment to value-added customer service as we maintain in stock over 65,000 semi-finished hi-density cartridge heater substrates, offering a combination of over 1000 sizes in industry standard diameters and lengths ranging from 25.4 mm (1") to 914.4 mm (36") in a complete spectrum of wattages and operating voltages. Multi-purpose use cartridge heaters are the solution for a multitude of original equipment manufacturers (OEMs) or maintenance (MRO) applications.

Available through the terminator program. Complete details are found on page 8.

➁

➀

Highly Engineered Specific Purpose Use

OMEGA has been at the forefront of addressing the challenges of Original Equipment Manufacturers (OEMs) in a broad segment of diversified industries. As a company we are uniquely qualified and committed to providing valueadded expertise in engineering and manufacturing capabilities assisting customers in developing highly engineered specific use cartridge heaters for dependable and reliable performance. Let us provide the optimal solution to your thermal loop system and cartridge heater design challenges.

Consult us with Your Requirements

We Welcome Your Inquiries

To order, call 1-800-826-6342 or shop online at omega.com

Page 3

Cartridge Heaters

Hi-Density Cartridge Heater Specifications

Standard Speciﬁcations

Performance Ratings Maximum Temperature: 760°C (1400°F)

Maximum Watt Density: 15.5 to 46.5 watt/cm

(100 to 300 Watt/in2) depending on heater size and operating temperature

Note: The maximum operating temperature and the life expectancy of a cartridge heater is dependent on two main factors:

1. The maximum recommended sheath temperature [648°C (1200°F) for a standard heater]

2. The maximum ambient temperature for the termination selected.

Consult OMEGA if you require a recommendation for your application.

Length Tolerance for Lead Wires, Wire Braid Leads, and Armor Cable Leads:

Up to 914 mm (36"): -12.7, 25.4 mm (-

⁄2, 1")

914 to 1829 mm (36 to 72"):

25.4, 50.8 mm (-1, 2")

Above 72": 101.6 mm (±4")

Dimensional Speciﬁcations

Nominal Diameter

Actual Diameter

Diameter Tolerance

Minimum Length

Maximum Length

Length Tolerance Heaters

up to 127 mm (5") long

⁄8"

mm (inch)

3.10

(0.122)

0.051

(±0.002)

31.8

(1.25)

305 (12)

2.4

(±3/32)

Length Tolerance Heaters

over 127 mm (5") long

Camber Tolerance Heaters

to 305 mm (12") long

Camber Tolerance Heaters

over 305 mm (12") long

A certain amount of camber is unavoidable. With a slight force, hi-density cartridge heaters will flex enough to fit into a straight reamed hole.

⁄4"

mm (inch)

6.25

(0.246)

0.051

(±0.002)

25.40 (1)

914 (36)

2.4

(±3/32)

⁄16"

mm (inch)

7.82

(0.308)

0.051

(±0.002)

25.40 (1)

914

(36)

2.4

(±3/32)

⁄8"

mm (inch)

9.42

(0.371)

0.051

(±0.002)

25.40 (1)

1219

(48)

2.4

(±3/32)

⁄2"

mm (inch)

12.60

(0.496)

0.051

(±0.002)

25.40 (1)

1219

(48)

2.4

(±3/32)

±2% of sheath length

0.254 mm (0.010") per foot of length

0.508 mm (0.020") per foot of length

⁄8"

mm (inch)

15.77

(0.621)

0.051

(±0.002)

25.40 (1)

1829

(72)

2.4

(±3/32)

mm (inch)

(0.746)

(±0.003)

Electrical Speciﬁcations

Nominal Diameter Maximum Voltage Maximum Amperage

⁄8"

240 240 240 240 240 480* 480* 480*

3.0 4.4 4.5 6.7 10.5 23 23 23

(see next line for exceptions) †Maximum Amperage for Types C1C, C1D, C2C,

C2D, CS, F, M3, R1B, S1, S2, SA, W and

— 3.0 3.0 5.5 7.6 9.7 9.7 9.7

W3 Terminations Minimum Wattage at 120V on a 1" long Heater Minimum Wattage at 120V on a 2" long Heater Maximum Wattage at 120V Maximum Wattage at 240V Maximum Wattage at 480V Wattage Tolerance Resistance Tolerance

† Current carrying capacities are for ambient temperatures up to 250°C (482°F) with mica insulated lead wires. *480V when applicable. Consult OMEGA.

Temperature Coefficient of Resistance

The electrical resistance (ohms) of the heater resistance

— 50 45 45 50 50 — —

5 20 20 20 20 20 20 20 360 525 540 800 1260 2760 2760 2760 720 1050 1080 1600 2520 5520 5520 5520

— — — — — 11,000 11,000 11,000 +10, -15% Plus 5%, minus 10% +15, -10% Plus 10%, minus 5%

Available Electrical Features

Diameter

wire increases with temperature rise. OMEGA standard hi-density cartridge heaters are

manufactured with ohms (cold ohms) 3.3% lower than the actual calculated ohms (hot ohms) to compensate for this increase.

Note: Specifications detailed on this page are standard. consult OMEGA if your application requires tighter tolerances or has other special requirements

Consult factory for maximum wattages and voltages *Heaters may require a larger diameter transition area at lead end.

⁄8" No No No No

⁄4" No No No No

⁄16" No No No No

⁄8" Yes* No No Yes*

⁄2" Yes* Yes Yes Yes*

⁄8" Yes Yes Yes Yes

⁄4" Yes Yes Yes Yes

⁄4"

⁄16"

Dual

Volts 3-Phase

⁄8"

⁄2"

Dual

Circuits

⁄8"

Multiple Heat Zones

(maximum 3 zones)

1" Yes Yes Yes Yes

⁄4"

18.95

0.076

31.75

⁄4)

1829

(72)

3.2

(±1/8)

mm (inch)

23.30

(0.996)

0.076

(±0.003)

44.45 (13⁄4)

1829

(72)

3.2

(±1/8)

⁄4" 1"

To order, call 1-800-826-6342 or shop online at omega.com

Page 4

Cartridge Heaters

Recommendations for Improving the Life of Hi-Density Cartridge Heaters

Hi-density cartridge heaters have been widely used in many demanding and diverse applications since 1972. The commonly used basic applications are platen, plastic mold and die heating, liquid immersion and air heating.

Note: Selection of the wrong termination for a particular application is the primary reason for all heater failures. However, failure to consider other important criteria can also have a negative effect on the life of the heater. To get the best performance and assure long life, it is important to carefully evaluate the following factors.

Operating Temperature

Operating temperature of a heater is a major factor in determining the life expectancy of a heating element. The heater life depends on the actual temperature of the resistance wire within the heater and not on the process operating temperature. The graph in Figure 1 demonstrates the proper relationship between operating temperature and watt density; the higher the operating temperature, the lower the maximum recommended watt density.

Heater Watt Density

Cartridge heater watt density is defined as the wattage dissipated per square inch of the heated sheath surface. For a particular application a heater’s watt density governs internal resistance wire temperature, which determines the outer sheath temperature. These factors are critical to the proper heating of the application and to the life expectancy of the heater. Special construction features that promote excellent heat transfer permit Hi-Density Cartridge Heaters to operate at higher watt densities while maintaining the lowest possible resistance wire temperatures of any style cartridge heater.

Heater watt density (watts/in2) is calculated using the following formula:

Watt Density =

Heated length × Heater diameter × 3.1416

Heater wattage

Heated length is the overall length of the heater minus any unheated (cold) sections. Standard Type N, Hi-Density cartridge heaters have 10 mm (3⁄8") at the lead end and 6 mm (1⁄4") at the disc end unheated. This would mean a 152 mm (6") long heater would have 265 mm (53⁄8") effective heated length. Unheated sections vary with type of heater termination.

The graph in Figure 1 shows the maximum recommended watt density for hi-density cartridge heaters when used in a steel platen. Watt density limitations for various materials are given in the engineering section of this catalog. For liquid immersion heaters the maximum watt density depends on the type of liquid being heated. The more viscous, or thicker the liquid, the lower the maximum watt density. Higher watt density can cause the liquid to carbonize and accumulate on the heater sheath, which will cause premature heater failure. It is advisable to use heaters that have watt densities below the maximum recommended watt density to get the longest heater life. If the actual heater watt density is close to the maximum recommended watt density, you can correct the problem by:

1. Increasing the number, diameter and length of heaters.

2. Lowering the total wattage; however, this may increase

the heat-up time.

3. Obtaining tighter fit (see Figure 2 — Determining Fit).

A hi-density cartridge heater designed at the maximum recommended watt density allows the smallest heater to be used to obtain the required wattage with good service life. All things being equal, using a lower watt density heater will typically provide optimized service life.

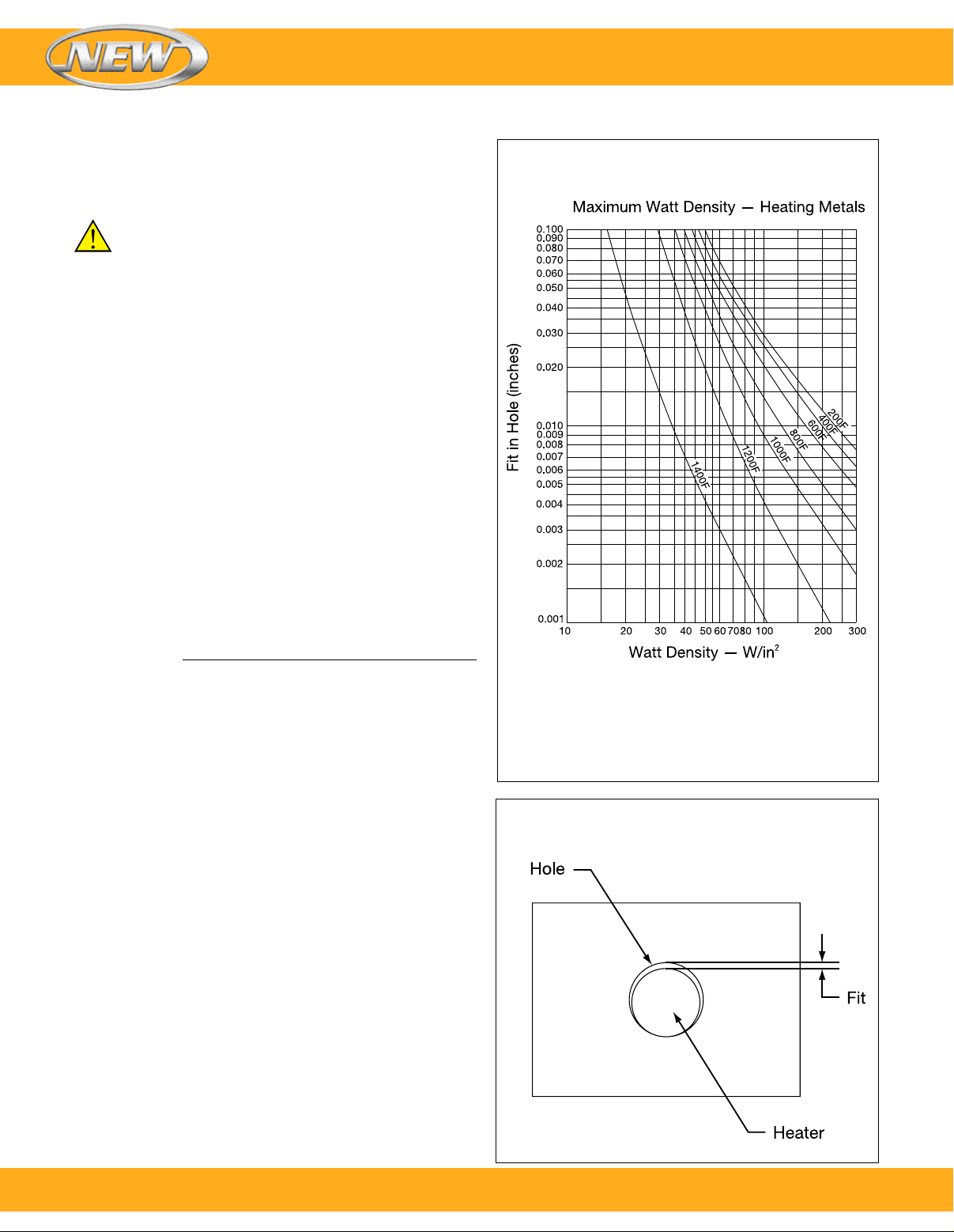

Figure 1

Recommended Watt Density for Heating Metal Parts

The graph shows the recommended maximum watt density for OMEGA Hi-Density cartridge heaters at different operating temperatures and fit, when the heater is installed in an oxidized mild steel block. The thermocouple is located 13 mm (1⁄2") from the heater. When heating other materials, the data needs to be extrapolated based on the thermal conductivity of the material. Consult OMEGA with your requirements.

Figure 2

Determining Fit

To order, call 1-800-826-6342 or shop online at omega.com

Page 5

Cartridge Heaters

Recommendations for Improving the Life of Hi-Density Cartridge Heaters (Continued)

Determining Fit

When heating a platen, mold, die or hot runner probe with hi-density cartridge heaters inserted into drilled holes, fit is an important factor in determining the life expectancy of the heater. Fit is the difference between the minimum diameter of the cartridge heater and the maximum diameter of the hole. Unheated sections on a hi-density cartridge may be smaller in diameter due to swaging. To determine fit, use the smallest diameter on the heated length only.

Example: A 10 mm (3⁄8") nominal OD Hi-Density cartridge heater has an actual diameter of 9 mm (0.371") ±0.002, which translates to a minimum diameter of 9 mm (0.369"). If used in a 10 mm (0.376") ±0.002 hole, the fit would be

0.23 mm (0.009") 10 – 9 mm = 23 mm (0.378" – 0.369" = 0.009").

When medium watt density heaters (less than 60 watts per square inch) are used in low temperature applications [less than 315°C (600°F)] general purpose drills are commonly used to drill holes. The typical hole size may be 0.1 to 0.2 mm (0.003 to 0.008") over the drill size. For higher watt density and/or higher temperature applications, we recommend that the holes are drilled and reamed for the tightest possible fit. In applications where precise temperature control and heat transfer properties are required, hi-density cartridge heaters can be centerless ground to ±0.01 mm (±0.0005").

Although a tighter fit is desirable to efficiently transfer heat and to get long heater life, a looser fit will aid in installing and removing heaters, especially long heaters. We recommend that you apply BNS anti-seize cartridge heater coating as it will improve heat transfer and will make the removal of heaters easier.

The graph in Figure 1 (page 4) shows the effect of fit in determining the maximum recommended watt density on a steel platen. As it is indicated in the graph, the tighter the fit, the higher the maximum recommended watt density.

Temperature Control and Location of Temperature Sensing Device

In order to better control the heater temperature and hence the resistance wire temperature, use of an appropriate temperature control and the proximity of the heater to the sensor is very important. The graph in Figure 1 (page 4) shows the effect of operating temperature in determining the maximum recommended watt density on a steel platen where the sensor is located 13 mm (1⁄2") from the heater. Higher watt density heaters can generate heat faster than the surrounding area’s ability to dissipate heat. This creates a thermal lag between the heater and the sensor. The closer the sensor to the heater, the better you can control the heater temperature. By keeping the sensor further from the heater, temperature gradients of several hundred degrees can be observed in many applications, especially during initial start-up and heavy thermal cycling. Although the set operating temperature may be low, the heater may be running at a very high temperature. This is a common cause of heater failure. This can be minimized using time proportional and PID functions of the temperature controllers.

Power Control

Power control methods affect the life expectancy of heating elements. In general, although economical, on-off controls increase thermal fatigue and oxidation rate on heating elements by causing wide temperature swings of the internal heating element. Silicon controlled rectifiers (scrs), mercury relays and solid state power controls can increase the life expectancy of heating elements by reducing the temperature swings of the internal heating element.

Common Causes of Cartridge Heater Failures

Contamination

Contamination is a major cause of heater failure. Moisture, hydraulic oils, and melted plastic are the most common contaminants that are seen on failed heaters. Since the magnesium oxide insulation in a hi-density heater is hygroscopic in nature, moisture is easily absorbed into the heater and typically results in premature heater failure. Moisture absorption during machine washdown or cleanup also is a frequent problem. These contaminants, which are electrically conductive, will short out the heater. Most probably, the failures will be at the lead end of the heater and in some cases can split or blow a hole on the heater sheath. The disc end of a Hi-Density cartridge heater is welded shut with a stainless steel disc.

Generally, contaminants enter the heater through the lead end of the heater. The high temperature lead wires used on Hi-Density heaters have fiberglass or mica insulation. Oil and moisture can wick through the insulation on the lead wire into the heater. OMEGA offers a wide variety of terminations to avoid this problem, including epoxy seals, PTFE seals, convoluted cables, welded end discs, PTFE insulated lead wires and SJO cable . However, there are temperature limitations on many of these terminations.

Excessive Flexing of Leads

Hi-Density heaters use flexible grade A nickel stranded lead wires with fiberglass or mica insulation. On certain terminations the lead wires are connected externally to solid nickel conductor pins. In applications where there is excessive movement or vibration, the solid pins could break due to fatigue. A simple solution is to give enough slack on the leads to minimize the stress on the solid pins or provide an internal lead wire connection within the heater. OMEGA also offers strain relief brackets and springs to prevent this problem.

Where heater leads can wear out by abrasion due to excessive flexing of the leads, OMEGA offers several abrasion resistant terminations.

Lack of Heat Sink

Hi-Density heaters are designed with minimum unheated (cold) sections. If the heated sections project from the platen or mold, these sections will get extremely hot due to lack of heat transfer. This will lead to premature heater failure. OMEGA can manufacture heaters with cold sections anywhere along the length of the heater to prevent overheating of the heater sheath.

When a hi-density heater is used as a liquid immersion heater, make sure the heater’s sheath length is completely immersed in the liquid. The heater lead end should not be immersed in liquid, since most of the lead end seals are only moisture resistant, not moisture proof.

Note: If you should encounter premature cartridge heater failure, consult OMEGA. Our team of professionals will have the solution to your problem.

To order, call 1-800-826-6342 or shop online at omega.com

Page 6

Cartridge Heaters

Recommendations for Improving the Life of Hi-Density Cartridge Heaters (Continued)

High Operating Temperature

OMEGA hi-density heaters are designed to operate at sheath temperatures up to 760°C (1400°F). When process temperatures approach the maximum heater sheath temperature, make sure the sheath temperature doesn’t exceed its limitations. Location of the thermocouple and the type of temperature and power controls are factors that affect sheath temperature and potential overshoot conditions.

Although the heater is designed to run at temperatures up to 760°C (1400°F), heater lead wires and terminations are rated for much lower temperatures. Care should be taken to make sure that the heater lead end temperatures do not exceed their limitations. Heaters can be made longer with unheated sections at the lead end to bring the lead end out of the high temperature area. OMEGA can also provide you with a high temperature wiring harness, which can withstand temperatures up to 760°C (1400°F).

Wattage Rating

Heaters with very high wattage ratings can create temperature overshoots, uneven temperature distribution and high heater sheath temperatures, causing premature heater failure.

For liquid immersion heaters, maximum watt density depends on the type of liquid being heated. The heavier or thicker the liquid, the lower the maximum watt density. Higher watt density can cause the liquid to carbonize and accumulate on the heater sheath, which will cause premature heater failure.

Scale and Sludge Buildup

In liquid immersion applications, periodic cleaning of the heater sheath is necessary to remove any scale buildup on the sheath. Scale can accumulate on the sheath and cause the heater to overheat and fail. When used to heat liquid in a tank, be sure to clean any sludge from the bottom of the tank. A heater sheath covered with sludge will overheat and fail.

Note: As explained in the above paragraphs, the single major cause for cartridge heater failure is the selection of the wrong type of heater lead end termination for the specific application. To assist you in selecting the right termination type, see section of detailed descriptions of over 40 terminations designed to solve many of the common application problems. If you need further assistance, consult OMEGA.

Important Installation Considerations

1. For closest fit and best heat transfer, use reamed holes.

2. When possible, drill holes through the object being heated.

This will make heater removal easier.

3. When using an anti-seize coating like BNS spray or paste, do not apply over lead wires or any other current carrying conductors.

4. When using insulated tape or sleeving, check to make sure it is rated for the temperature of the application. Lower temperature rated materials can contain an adhesive or binder that can carbonize and become electrically conductive.

5. When using heaters near their maximum recommended watt density, it is recommended that the temperature sensing probes be at maximum 13 mm (1⁄2") from the heater sheath.

6. Lead wires should not be located in the hole containing the cartridge heater during operation. This may cause the lead wires to be exposed to temperatures above their rated temperature.

7. When used in a vacuum application, make sure the lead end of the heater is outside the vacuum. If the lead has to be in the vacuum, consult OMEGA for specific recommendations.

8. Many applications will subject a heater’s electrical terminations to one or more of the following potentially damaging conditions:

 •Moisture •Flexing  •Oilandother •Abrasion

contaminants •Hightemperature

Note: To protect the heater from damage in these harsh environments, OMEGA has a wide selection of terminations and options available.

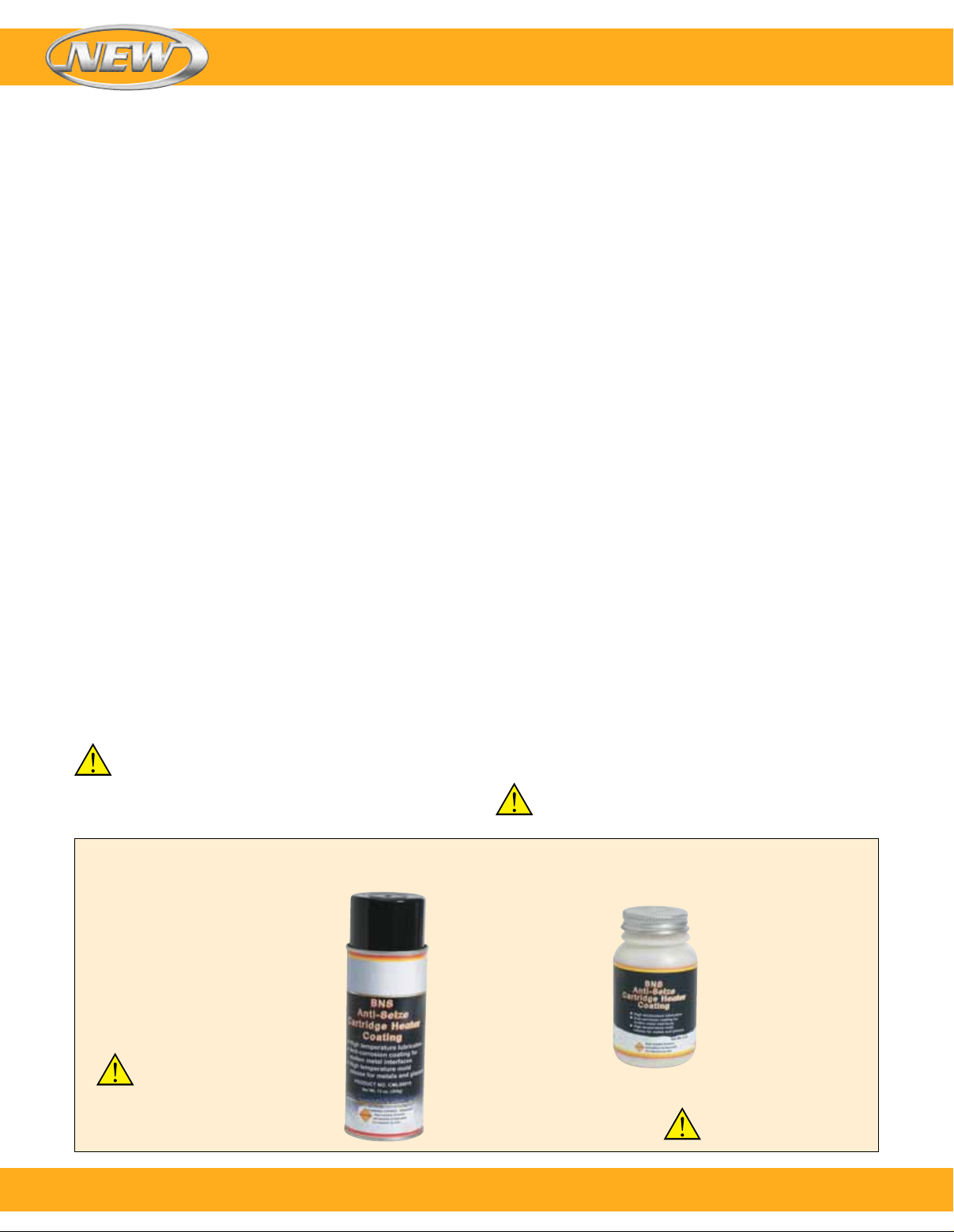

BNS Anti-Seize Cartridge Heater Coating

This high temperature, electrically insulating and thermally conductive coating will minimize oxidation and improve heat transfer from heater to the object being heated.

Brush a thin layer of paste or spray lightly over the cartridge heater prior to inserting the heater into a hole.

CAUTION! Do not apply over lead wires or other bare current carrying conductors, since the water in the paste and spray can cause an electrical short circuit.

To order, call 1-800-826-6342 or shop online at omega.com

13 oz. Aerosol spray can

Part Number: CML00010

l Temperature Range

1562°F (850°C)

l High Heat Transfer

4 oz. Paste with brush applicator top

Part Number: CML00020

l Temperature Range

1562°F (850°C)

l High Heat Transfer

Note: Formulated to assist in the removal of cartridge heaters.

Page 7

Cartridge Heaters

Custom Terminated Multi-Purpose Use Cartridge Heaters from the Terminator Program

OMEGA stocks over 1000 different semi-finished hi-density cartridge heaters in diameters 6, 8, 10, 13, 16, and 19 mm (1⁄4, 5⁄16, 3⁄8, 1⁄2, 5⁄8 and 3⁄4").

These cartridge heaters are semi-finished (substrates), offering you the option to finish them by choosing from 19 program-qualified lead end terminations and options. Cartridge heaters will be ready for shipment within 1 to 3 days, depending on the termination/option selected.

Ordering Information — Follow These Simple Steps

1. Select an available 6 mm (

⁄4") through 19 mm (3⁄4") hi-density cartridge heater. The model numbers in the tables are for heaters with termination type N [254 mm (10") long externally connected lead wires].

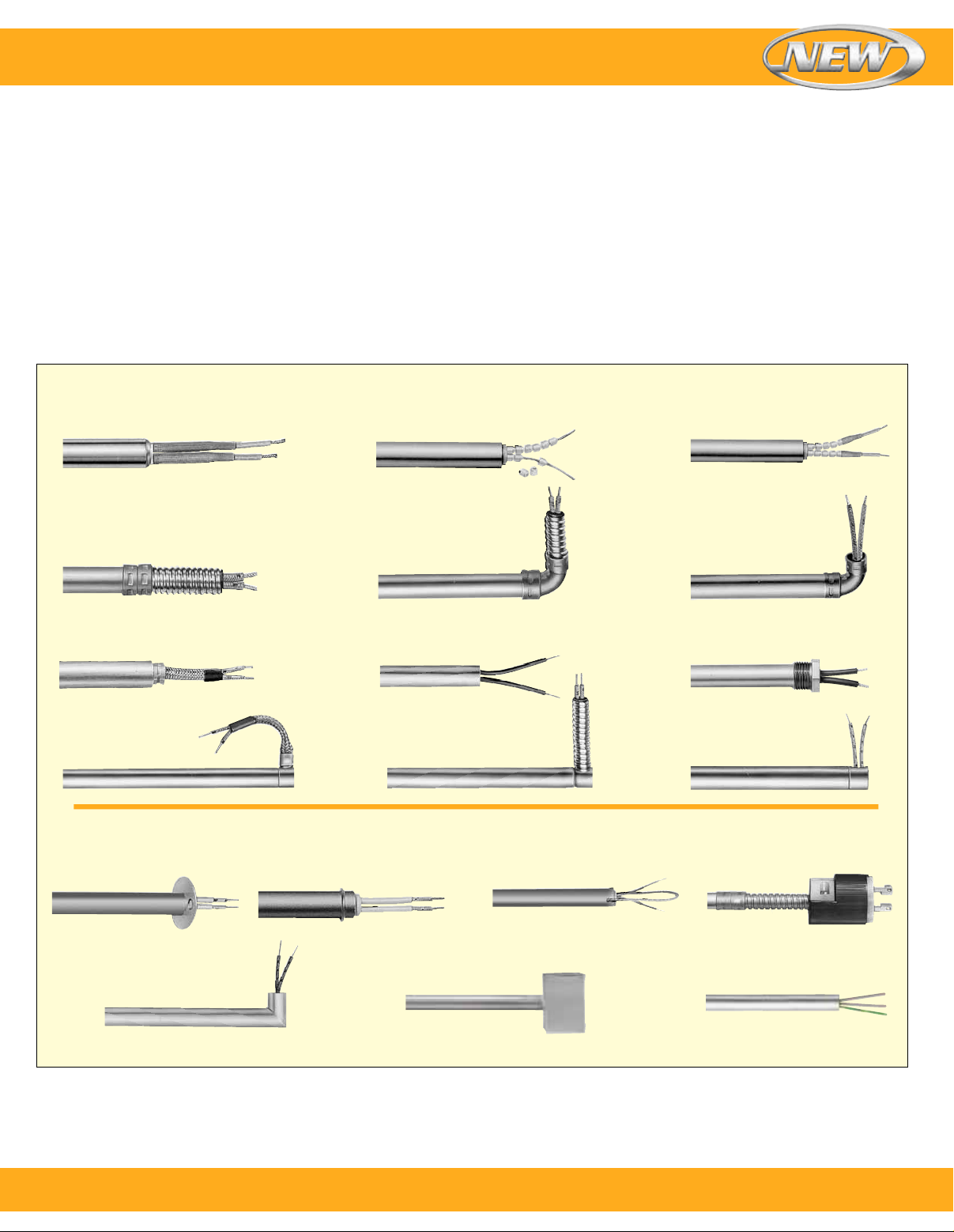

Terminations

Type N

Standard Leads

Type C1A & C1B only

Straight Armor Cable

Ceramic Bead Insulation

Type C2A & C2B

Right-Angle Armor

Cable with Copper Elbow

2. Refer to the program-qualified lead terminations reference photos to select the cartridge heater termination type best suited for your application.

NOTE: Type “N” [254 mm (10") long externally connected plain lead wires]

is the most common termination applied in the Terminator program. If a termination other than Type N is selected a new permanent part number will be assigned when your order is placed.

3. Specify your lead requirements in the event that the standard supplied lengths for Plain Leads 254 mm (10"), braid or armor cable [254 mm (10") over 305 mm (12") leads] are not suited for your application.

4. Specify the quantity.

Type B

Type BL

Ceramic Bead and Leads

Type R1A

Right-Angle Leads with

Copper Elbow

Straight Wire Braided Leads

Type W1A & W1B

Mounting Flange Round

Type W

Right-Angle Wire

Braided Leads

Type MFR

Type R3

Angled Sheath Extension

(Cement Potting Only)

Type M2A & M2E

Potted Lead End Seal

(Cement Only)

Type C3A, C3B, C3C & C3D

Right-Angle Armor Cable

Options

Type LR

Locating Ring

Type E1

General Purpose Box

Complete specifications and details on these terminations can be found at omega.com.

Type PS

Pull Strap

Type CMB & CMP

Single Threaded Fitting

Type R2A & R2B

Right-Angle Leads

Type P

Quick Disconnect Plug

Type GL

Ground Lead Sheath

Custom Engineered/Manufactured Hi-Density Cartridge Heaters

Because cartridge heaters can be very application specific, consult OMEGA with your special

requirements. For sizes, electrical ratings and any other design features required but not listed in the

catalog, OMEGA will custom engineer and manufacture to your specifications.

Consult OMEGA with Your Requirements. We Welcome Your Inquiries.

To order, call 1-800-826-6342 or shop online at omega.com

Page 8

Cartridge Heaters

Hi-Density Cartridge Heaters

⁄2" Diameter, Actual 12.6 mm (0.496")

Model numbers listed are for cartridge heaters terminated with 254 mm (10") long leads (Type N termination). Other terminator program terminations and options can also be applied to heaters (see ordering information).

To Order Visit omega.com/hdc00426_series for Pricing and Details

Model Number Sheath Length

120V 240V mm inch Watts/cm

HDC00426 — HDC00427 —

— HDC00428 HDC00429 — HDC00430 HDC00431

— HDC00432

— HDC00433

— HDC00434 HDC00435 — HDC00436 HDC00437 HDC00438 HDC00439 HDC00440 —

— HDC00441 HDC00442 —

— HDC00443 HDC00444 —

— HDC22944 HDC00445 — HDC00446 — HDC00447 HDC00448 HDC00449 HDC00450 HDC00451 HDC00452 HDC00453 HDC00454 HDC00455 —

— HDC00456

— HDC00457 HDC00458 — HDC00459 — HDC00460 — HDC00461 — HDC00462 HDC00463

— HDC00464 HDC00465 HDC00466 HDC00467 HDC00468 HDC00470 HDC00471 HDC00472 — HDC00473 HDC00474

— HDC00475 HDC00476 HDC00477 HDC00478 HDC00479 HDC00480 —

— HDC00481 HDC00482 HDC00483 HDC00484 HDC00485 HDC00486 HDC00487 HDC00489 HDC00490 HDC00491 HDC00492

— HDC00493 HDC00494 — HDC00495 — HDC00496 HDC00497 HDC00498 HDC00499 HDC00500 HDC00501

— HDC00502 HDC00503 HDC00504 HDC00505 HDC00506 HDC00507 — HDC00508 HDC00509

25.4 1 50 10 64

25.4 1 150 30 191

25.4 1 200 40 255

31.8 1

⁄4 50 7 42

31.8 11⁄4 125 17 106

31.8 11⁄4 180 24 153

31.8 11⁄4 200 26 170

31.8 1

⁄4 250 33 212

38.1 11⁄2 50 5 32

38.1 11⁄2 150 15 95

38.1 11⁄2 200 20 127

44.5 1

44.5 13⁄4 200 16 102

44.5 1

⁄4 100 8 51

⁄4 250 20 127

⁄4 400 32 204

50.8 2 75 5 32

50.8 2 100 8 52

50.8 2 150 10 64

50.8 2 175 12 74

50.8 2 200 13 85

50.8 2 250 17 106

50.8 2 300 20 127

50.8 2 400 26 170

50.8 2 500 33 212

50.8 2 600 40 255

50.8 2 700 46 297

57.2 2

57.2 21⁄4 125 7 45

57.2 2

57.2 21⁄4 250 14 91

57.2 2

57.2 21⁄4 500 28 182

60.3 2

60.3 23⁄8 125 7 42

60.3 2

60.3 23⁄8 400 21 136

60.3 2

63.5 21⁄2 100 5 32

63.5 2

63.5 21⁄2 150 7 48

63.5 2

63.5 21⁄2 300 15 95

63.5 2

63.5 21⁄2 500 25 159

65.1 2

65.1 29⁄16 350 17 108

69.9 2

⁄4 75 4 27

⁄4 100 6 36

⁄4 150 9 55

⁄4 300 17 109

⁄4 400 23 146

⁄8 100 5 34

⁄8 250 13 85

⁄8 500 26 170

⁄2 125 6 40

⁄2 200 10 64

⁄2 250 12 80

⁄2 400 20 127

⁄16 300 14 93

⁄4 250 11 71

69.9 23⁄4 400 18 113

76.2 3 125 5 32

76.2 3 150 6 38

76.2 3 200 8 51

76.2 3 250 10 64

76.2 3 300 12 76

76.2 3 350 14 89

76.2 3 400 16 102

Watts

Watt Density

Watts/in

To order, call 1-800-826-6342 or shop online at omega.com

Page 9

Cartridge Heaters

Hi-Density Cartridge Heaters

⁄2" Diameter, Actual 12.6 mm (0.496")

To Order Visit omega.com/hdc00426_series_series for Pricing and Details

Model Number Sheath Length

120V 240V mm inch Watts/cm

HDC00510 HDC00511 HDC00512 HDC00513 HDC00514 HDC00515 HDC00516 — HDC00517 HDC00518

— HDC00519 — HDC00520 — HDC08472

HDC00522 HDC00523

— HDC00524 — HDC00525 — HDC00526

— HDC00527 HDC00528 — HDC00529 HDC00530

— HDC07555 HDC00531 HDC00532 HDC00533 HDC00534 HDC00536 HDC00537 HDC00538 HDC00539 HDC00540 HDC00541 HDC00542 HDC00543

— HDC00544 HDC00545 HDC00546

— HDC00547

— HDC00548 HDC00550 — HDC00551 —

— HDC00552 HDC00553 HDC00554 HDC00555 HDC00556 HDC00557 HDC00558

— HDC00559

— HDC00560 HDC00561 —

— HDC00562

— HDC00563 HDC00565 HDC00566 HDC00567 —

— HDC00568 HDC00569 HDC00570 HDC00571 HDC00572 HDC00573 HDC00574

— HDC00575

— HDC00576

— HDC00577 HDC00578 HDC00579

— HDC00580

— HDC00581 HDC00582 HDC00583

— HDC00584

— HDC00585 HDC00586 HDC00587

— HDC00588 HDC00589 HDC00590

— HDC00591 HDC00592 HDC00593

— HDC00594

76.2 3 500 20 127

76.2 3 600 24 153

76.2 3 750 30 191

76.2 3 1000 40 255

88.9 3

⁄2 250 8 53

⁄2 300 10 64

88.9 31⁄2 350 12 74

88.9 31⁄2 400 15 95

88.9 31⁄2 500 17 106

88.9 31⁄2 750 25 159

88.9 3

95.3 3

96.8 313⁄16 250 8 48

96.8 3

⁄2 1000 33 212

⁄4 500 15 98

⁄16 500 15 96

101.6 4 150 4 27

101.6 4 200 6 40

101.6 4 250 7 45

101.6 4 300 9 55

101.6 4 350 10 64

101.6 4 400 11 73

101.6 4 500 14 91

101.6 4 550 16 100

101.6 4 600 17 109

101.6 4 750 21 136

101.6 4 1000 28 182

101.6 4 1200 34 218

109.5 4

114.3 41⁄2 250 6 40

114.3 4

114.3 41⁄2 500 12 80

114.3 4

114.3 41⁄2 1000 25 159

120.7 4

122.2 413⁄16 250 6 37

122.2 4

⁄16 550 14 92

⁄2 350 9 56

⁄2 650 16 103

⁄2 750 19 119

⁄4 200 5 30

⁄16 300 7 44

122.2 413⁄16 1000 23 148

127.0 5 200 4 28

127.0 5 250 6 35

127.0 5 300 7 42

127.0 5 350 8 50

127.0 5 400 9 57

127.0 5 500 11 71

127.0 5 550 12 78

127.0 5 600 13 85

127.0 5 625 14 88

127.0 5 750 17 106

127.0 5 800 18 113

127.0 5 1000 22 141

133.4 5

133.4 51⁄4 1000 21 134

139.7 5

139.7 51⁄2 500 10 64

139.7 5

139.7 51⁄2 750 15 95

146.1 5

146.1 53⁄4 700 13 85

147.6 5

⁄4 250 5 34

⁄2 200 4 25

⁄2 650 13 83

⁄4 350 7 42

⁄16 300 6 36

Watts

Watt Density

Watts/in

To order, call 1-800-826-6342 or shop online at omega.com

Page 10

Cartridge Heaters

Hi-Density Cartridge Heaters

⁄2" Diameter, Actual 12.6 mm (0.496")

To Order Visit omega.com/hdc00426_series_series for Pricing and Details

Model Number Sheath Length

120V 240V mm inch Watts/cm

— HDC00595 HDC00596 HDC00597 HDC00598 HDC00599

HDC00600 HDC00601

— HDC00602 HDC00603 HDC00604

— HDC00605 HDC00606 HDC00607 HDC00609 HDC00610

— HDC00611 HDC00612 HDC00613

— HDC00614

— HDC16228

— HDC00615 HDC00616 HDC00617

— HDC00618 HDC00619 HDC00620 HDC00621 —

— HDC00622

— HDC00623 HDC00624 HDC00625 HDC00626 HDC00627

— HDC00628 HDC00629 HDC00630 HDC00631 HDC00632

— HDC00633

HDC00634 HDC00635

— HDC00636

— HDC00637

— HDC00639 HDC00640 HDC00641 HDC00642 HDC00643

— HDC00644 HDC00645 HDC00646 HDC00647 HDC00648 HDC00650 HDC00651

— HDC00653 — HDC00654 — HDC00655 — HDC00656

— HDC00657 HDC00658 HDC00659

— HDC00660

— HDC00661

— HDC00662 HDC00663 HDC00664

152.4 6 200 4 23

152.4 6 250 5 29

152.4 6 300 5 35

152.4 6 350 6 41

152.4 6 450 8 52

152.4 6 500 9 58

152.4 6 600 11 69

152.4 6 750 14 87

152.4 6 850 15 98

152.4 6 875 16 101

152.4 6 1000 18 116

152.4 6 1200 22 139

152.4 6 1500 28 183

161.9 6

165.1 6

⁄8 1000 17 108

⁄2 500 8 53

165.1 61⁄2 1000 17 106

171.5 6

⁄4 500 8 51

177.8 7 250 4 24

177.8 7 340 5 33

177.8 7 400 6 39

177.8 7 500 8 49

177.8 7 600 9 59

177.8 7 700 11 69

177.8 7 750 11 73

177.8 7 1000 15 98

177.8 7 1500 23 147

190.5 7

⁄2 500 7 45

⁄2 1000 14 91

196.9 73⁄4 1000 14 88

203.2 8 200 3 17

203.2 8 300 4 25

203.2 8 500 7 42

203.2 8 600 8 51

203.2 8 750 10 64

203.2 8 800 11 68

203.2 8 1000 13 85

203.2 8 1200 16 102

203.2 8 1500 20 127

203.2 8 2000 26 170

215.9 8

⁄2 300 4 24

⁄2 500 6 40

215.9 81⁄2 1000 12 80

222.3 8

⁄4 1000 12 77

228.6 9 500 6 37

228.6 9 750 9 56

228.6 9 1000 12 75

Watts

Watt Density

Watts/in

To order, call 1-800-826-6342 or shop online at omega.com

Page 11

Cartridge Heaters

Hi-Density Cartridge Heaters

⁄2" Diameter, Actual 12.6 mm (0.496")

To Order Visit omega.com/hdc00426_series_series for Pricing and Details

Model Number Sheath Length

120V 240V mm inch Watts/cm

— HDC00665 — HDC00666 — HDC00667 — HDC00668 — HDC00669

HDC00670 HDC00671

— HDC00672 — HDC00673

HDC00674 HDC00675

— HDC00677 — HDC00678 — HDC00679 — HDC00680

HDC00681 —

— HDC00682 — HDC00683 — HDC00684

— HDC00685 HDC00686 HDC00687 HDC00688 HDC00689 HDC00690 HDC00691

— HDC00692

— HDC00693

— HDC00694

— HDC00695

— HDC00696

— HDC00697

— HDC00698

— HDC00699

— HDC00700

— HDC00701

— HDC00702

— HDC00703

— HDC00704

— HDC00705

— HDC17207

— HDC00706

— HDC00707

— HDC00708

— HDC00709

— HDC00710

— HDC00711

— HDC00712

— HDC11652

— HDC14867

228.6 9 1325 15 99

228.6 9 1500 17 112

241.3 9

241.3 91⁄2 800 9 57

241.3 9

⁄2 500 6 35

⁄2 1000 11 71

254.0 10 500 5 34

254.0 10 750 8 50

254.0 10 800 8 54

254.0 10 1000 10 67

254.0 10 1250 13 84

254.0 10 1500 16 101

254.0 10 2000 21 134

266.7 10

⁄2 1500 15 95

279.4 11 500 5 30

279.4 11 1000 9 61

279.4 11 1500 14 91

279.4 11 2000 19 121

292.1 11

⁄2 1525 14 88

304.8 12 500 4 28

304.8 12 600 5 33

304.8 12 1000 9 55

304.8 12 1100 9 61

304.8 12 1500 13 83

304.8 12 2000 17 111

317.5 12

⁄2 1675 14 89

342.9 131⁄2 500 4 24

355.6 14 1000 7 47

355.6 14 1700 12 80

355.6 14 2300 17 108

381.0 15 800 5 35

381.0 15 1000 7 44

381.0 15 1500 10 66

381.0 15 2000 14 88

406.4 16 800 5 33

406.4 16 1000 6 41

406.4 16 2000 13 84

419.1 16

⁄2 2200 14 88

431.8 17 1000 6 39

457.2 18 750 4 27

457.2 18 1000 6 36

457.2 18 1500 9 55

457.2 18 1700 10 62

457.2 18 2000 11 73

508.0 20 1000 5 34

609.6 24 1000 4 28

Ordering Information

Order by model number for cartridge heaters with Type N termination. Call OMEGA for part numbers for heaters with other terminator program terminations and options.

Watts

Custom Engineered/Manufactured

Cartridge Heaters can be application specific; therefore for sizes, electrical ratings, terminations and any other design features not listed in this section will custom manufacture to your specifications. Consult us with your requirements.

Watt Density

Watts/in

To order, call 1-800-826-6342 or shop online at omega.com
