[127]
1/4 BSP WITH
1/4 BSP WITH

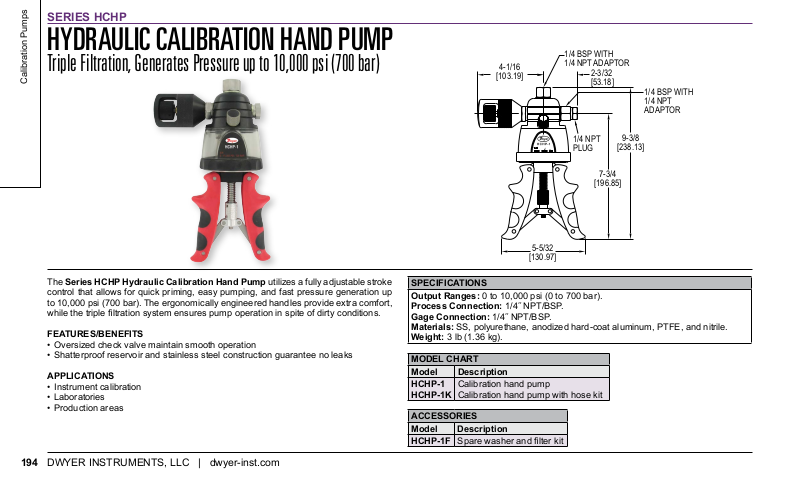

SERIES HCHP
HYDRAULIC CALIBRATION HAND PUMP
Triple Filtration, Generates Pressure up to 10,000 psi (700 bar)
Calibration Pumps
4-1/16
[103.19]
1/4 NPT ADAPTOR
2-3/32
[53.18]
1/4 BSP WITH
1/4 NPT
ADAPTOR
The Series HCHP Hydraulic Calibration Hand Pump utilizes a fully adjustable stroke
control that allows for quick priming, easy pumping, and fast pressure generation up
to 10,000 psi (700 bar). The ergonomically engineered handles provide extra comfort,
while the triple ltration system ensures pump operation in spite of dirty conditions.
FEATURES/BENEFITS
• Oversized check valve maintain smooth operation
• Shatterproof reservoir and stainless steel construction guarantee no leaks
APPLICATIONS
• Instrument calibration
• Laboratories
• Production areas
DWYER INSTRUMENTS, LLC | dwyer-inst.com194
7-3/4
[196.85]
9-3/8
[238.13]
1/4 NPT
PLUG
5-5/32
[130.97]
SPECIFICATIONS
Output Ranges: 0 to 10,000 psi (0 to 700 bar).
Process Connection: 1/4˝ NPT/BSP.
Gage Connection: 1/4˝ NPT/BSP.
Materials: SS, polyurethane, anodized hard-coat aluminum, PTFE, and nitrile.
Weight: 3 lb (1.36 kg).
MODEL CHART
Model Description
HCHP-1
HCHP-1K
ACCESSORIES
Model Description
HCHP-1F Spare washer and lter kit
Calibration hand pump
Calibration hand pump with hose kit
