Page 1
0.40
2.37
8.00 STEM
9/16" HEX RESET BUSHING
0.250
0.12
0.25
0.250.30
1.7
0.12
0.250
9/16" HEX RESET BUSHING
8.00 STEM
0.240.40
2
.37
0
.175
0
.330 0.250
P
LAIN BUSHING (STANDARD)
S
PECIFY STEM LENGTHS
B
ETWEEN T HESE PO INTS

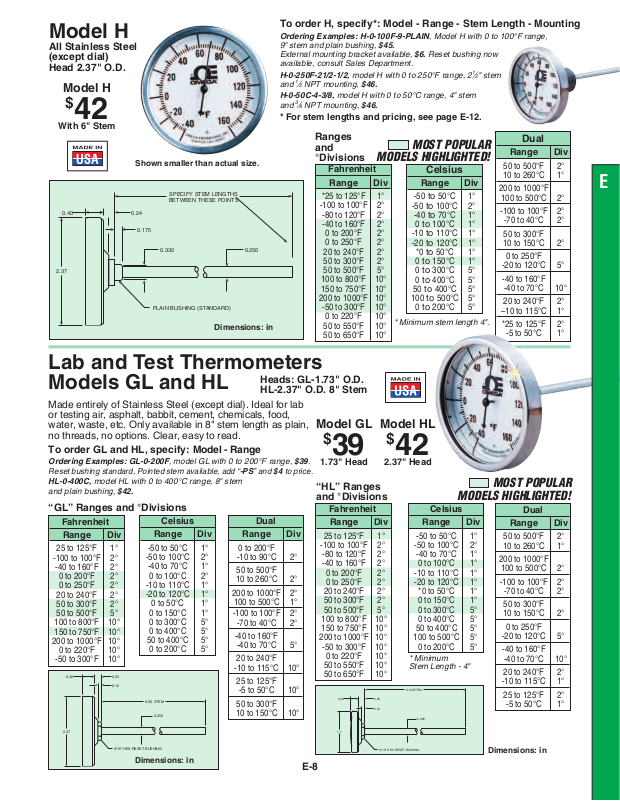

Model H
All Stainless Steel
(except dial)
Head 2.37" O.D.
Model H
$
42
With 6" Stem
Shown smaller than actual size.
Dimensions: in
To order H, specify*: Model - Range - Stem Length - Mounting
Ordering Examples: H-0-100F-9-PLAIN, Model H with 0 to 100°F range,
9" stem and plain bushing, $45.
External mounting bracket available, $6. Reset bushing now
available, consult Sales Department.
H-0-250F-21/2-1/2, model H with 0 to 250°F range, 2
1
and
⁄2 NPT mounting, $46.
H-0-50C-4-3/8, model H with 0 to 50°C range, 4" stem
3
and
⁄8 NPT mounting, $46.
* For stem lengths and pricing, see page E-12.
Ranges
and
°Divisions
Fahrenheit
Range Div
*25 to 125°F 1°
-100 to 100°F 2°
-80 to 120°F 2°
-40 to 160°F 2°
0 to 200°F 2°
0 to 250°F 2°
20 to 240°F 2°
50 to 300°F 2°
50 to 500°F 5°
100 to 800°F 10°
150 to 750°F 10°
200 to 1000°F 10°
-50 to 300°F 10°
0 to 220°F 10°
50 to 550°F 10°
50 to 650°F 10°
MODELS HIGHLIGHTED!
MOST POPULAR
Celsius
Range Div
-50
to
50°C 1°
-50
to
100°C 2°
-40
to
70°C 1°
0
to
100°C 1°
-10
to
110°C 1°
-20
to
120°C 1°
*0
to
50°C 1°
0
to
150°C 1°
0
to
300°C 5°
0
to
400°C 5°
50
to
400°C 5°
100
to
500°C 5°
0
to
200°C 5°
* Minimum stem length 4".
1
⁄2" stem
200 to 1000°F
100 to 500°C 2°
-100 to 100°F 2°
–10 to 115°C 1°
Dual
Range Div
50 to 500°F 2°
10 to 260°C 1°
-70 to 40°C 2°
50 to 300°F
10 to 150°C 2°
0 to 250°F
-20 to 120°C 5°
-40 to 160°F
-40 to 70°C 10°
20 to 240°F 2°
*25 to 125°F 2°
-5 to 50°C 1°
E
Lab and Test Thermometers
Models GL and HL
Made entirely of Stainless Steel (except dial). Ideal for lab
or testing air, asphalt, babbit, cement, chemicals, food,
water, waste, etc. Only available in 8" stem length as plain,
no threads, no options. Clear, easy to read.
To order GL and HL, specify: Model - Range
Ordering Examples: GL-0-200F, model GL with 0 to 200°F range, $39.
Reset bushing standard. Pointed stem available, add “-PS” and $4 to price.
HL-0-400C, model HL with 0 to 400°C range, 8" stem
and plain bushing, $42.
“GL” Ranges and °Divisions
Fahrenheit
Range Div
25 to 125°F 1°
-100 to 100°F 2°
-40 to 160°F 2°
0 to 200°F 2°
0 to 250°F 2°
20 to 240°F 2°
50 to 300°F 2°
50 to 500°F 5°
100 to 800°F 10°
150 to 750°F 10°
200 to 1000°F 10°
0 to 220°F 10°
-50 to 300°F 10°
Celsius
Range Div
-50 to 50°C 1°
-50 to 100°C 2°
-40 to 70°C 1°
0 to 100°C 2°
-10 to 110°C 1°
-20 to 120°C 1°
0 to 50°C 1°
0 to 150°C 1°
0 to 300°C 5°
0 to 400°C 5°
50 to 400°C 5°
0 to 200°C 5°
Dimensions: in
Heads: GL-1.73" O.D.
HL-2.37" O.D. 8" Stem
Dual
Range Div
0 to 200°F
-10 to 90°C 2°
50 to 500°F
10 to 260°C 2°
200 to 1000°F 2°
100 to 500°C 1°
-100 to 100°F 2°
-70 to 40°C 2°
-40 to 160°F
-40 to 70°C 5°
20 to 240°F
-10 to 115°C 10°
25 to 125°F
-5 to 50°C 10°
50 to 300°F
10 to 150°C 10°
E-8
Model GL
$
39
1.73" Head
“HL” Ranges
and °Divisions
Fahrenheit
Range Div
25 to 125°F 1°
-100 to 100°F 2°
-80 to 120°F 2°
-40 to 160°F 2°
0 to 200°F 2°
0 to 250°F 2°
20 to 240°F 2°
50 to 300°F 2°
50 to 500°F 5°
100 to 800°F 10°
150 to 750°F 10°
200 to 1000°F 10°
-50 to 300°F 10°
0 to 220°F 10°
50 to 550°F 10°
50 to 650°F 10°
Model HL
$
42
2.37" Head
Range Div
-50 to 50°C 1°
-50 to 100°C 2°
-40 to 70°C 1°
0 to 100°C 1°
-10 to 110°C 1°
-20 to 120°C 1°
*0 to 50°C 1°
0 to 150°C 1°
0 to 300°C 5°
0 to 400°C 5°
50 to 400°C 5°
100 to 500°C 5°
0 to 200°C 5°
* Minimum
Stem Length - 4"
MOST POPULAR
MODELS HIGHLIGHTED!
Celsius
50 to 500°F 2°
10 to 260°C 1°
200 to 1000°F
100 to 500°C 2°
-100 to 100°F 2°
-70 to 40°C 2°
50 to 300°F
10 to 150°C 2°
0 to 250°F
-20 to 120°C 5°
-40 to 160°F
-40 to 70°C 10°
20 to 240°F 2°
-10 to 115°C 1°
25 to 125°F 2°
-5 to 50°C 1°
Dimensions: in
Dual
Range Div
