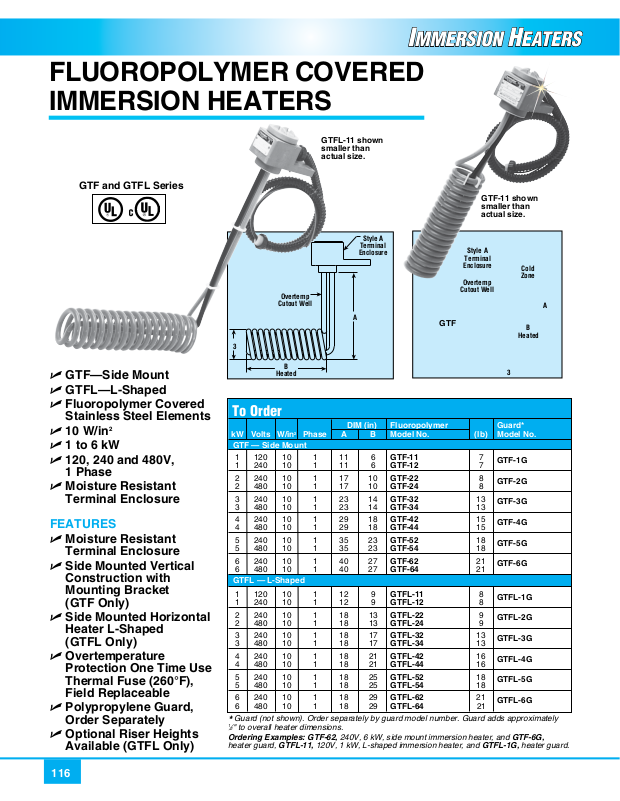

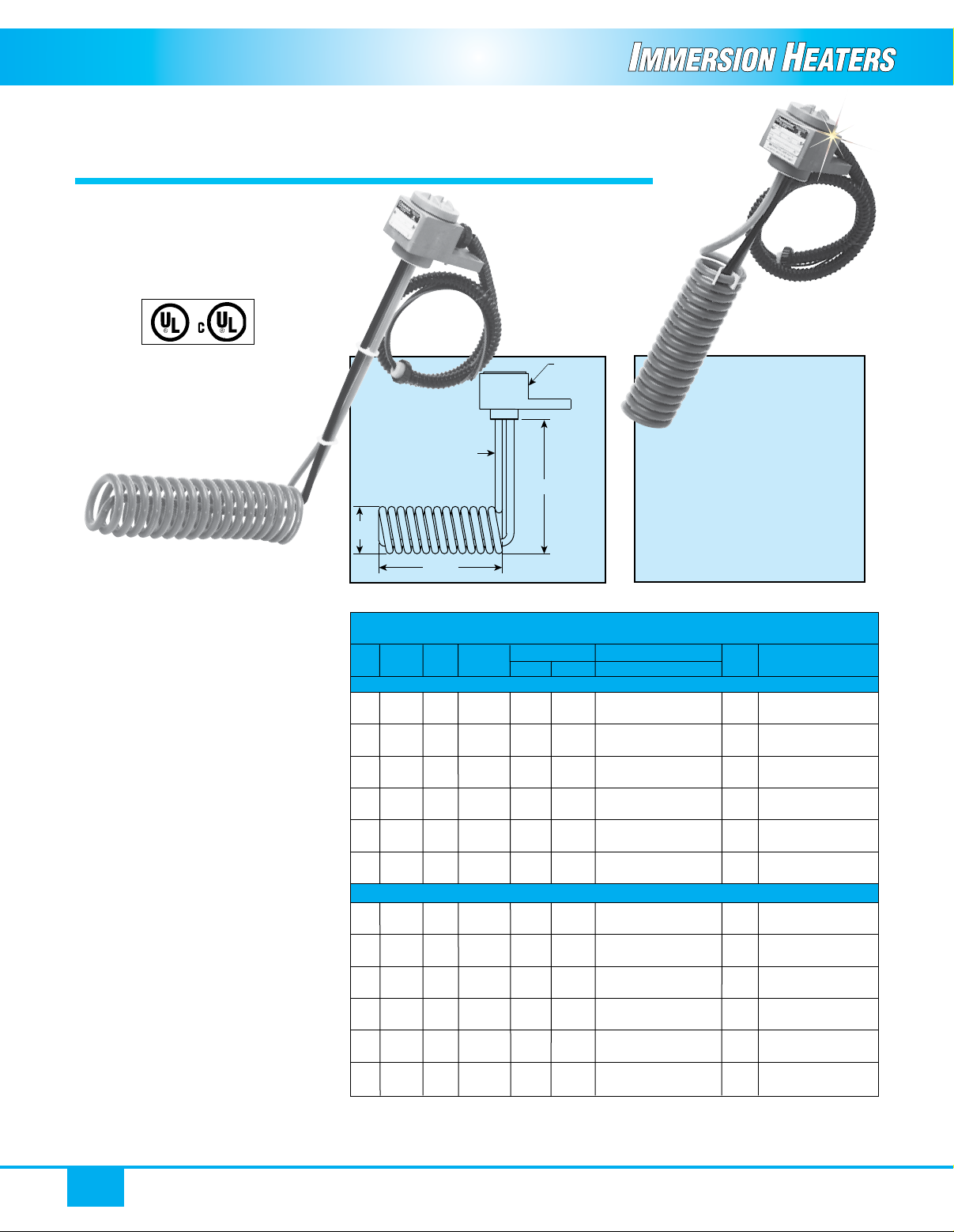

FLUOROPOLYMER COVERED
IMMERSION HEATERS
GTFL-11 shown
smaller than
actual size.
GTF and GTFL Series
Style A
Terminal
Enclosure
Overtemp
Cutout Well
A
3
GTF
GTF-11 shown
smaller than
actual size.
Style A
Terminal
Enclosure
Overtemp
Cutout Well
Cold
Zone
B
Heated
A
U GTF—Side Mount
U GTFL—L-Shaped
U Fluoropolymer Covered
Stainless Steel Elements
U 10 W/in
2
U 1 to 6 kW
U 120, 240 and 480V,
1 Phase
U Moisture Resistant
Terminal Enclosure
FEATURES
U Moisture Resistant
Terminal Enclosure
U Side Mounted Vertical
Construction with
Mounting Bracket
(GTF Only)
U Side Mounted Horizontal
Heater L-Shaped
(GTFL Only)
U Overtemperature
Protection One Time Use
Thermal Fuse (260°F),
Field Replaceable
U Polypropylene Guard,
Order Separately
U Optional Riser Heights
Available (GTFL Only)
B
Heated
GTFL
3
To Order
DIM (in) Fluoropolymer Guard*
kW Volts W/in2 Phase A B Model No. (lb) Model No.
GTF — Side Mount
1 120 10 1 11 6 GTF-11 7
1 240 10 1 11 6 GTF-12 7
2 240 10 1 17 10 GTF-22 8
2 480 10 1 17 10 GTF-24 8
3 240 10 1 23 14 GTF-32 13
3 480 10 1 23 14 GTF-34 13
4 240 10 1 29 18 GTF-42 15
4 480 10 1 29 18 GTF-44 15
5 240 10 1 35 23 GTF-52 18
5 480 10 1 35 23 GTF-54 18
6 240 10 1 40 27 GTF-62 21
6 480 10 1 40 27 GTF-64 21
GTFL — L-Shaped
1 120 10 1 12 9 GTFL-11 8
1 240 10 1 12 9 GTFL-12 8
2 240 10 1 18 13 GTFL-22 9
2 480 10 1 18 13 GTFL-24 9
3 240 10 1 18 17 GTFL-32 13
3 480 10 1 18 17 GTFL-34 13
4 240 10 1 18 21 GTFL-42 16
4 480 10 1 18 21 GTFL-44 16
5 240 10 1 18 25 GTFL-52 18
5 480 10 1 18 25 GTFL-54 18
6 240 10 1 18 29 GTFL-62 21
6 480 10 1 18 29 GTFL-64 21
Guard (not shown). Order separately by guard model number. Guard adds approximately
*
1
⁄2" to overall heater dimensions.
Ordering Examples: GTF-62, 240V, 6 kW, side mount immersion heater, and GTF-6G,
heater guard, GTFL-11, 120V, 1 kW, L-shaped immersion heater, and GTFL-1G, heater guard.
GTF-1G
GTF-2G
GTF-3G
GTF-4G
GTF-5G
GTF-6G
GTFL-1G
GTFL-2G
GTFL-3G
GTFL-4G
GTFL-5G
GTFL-6G
116
