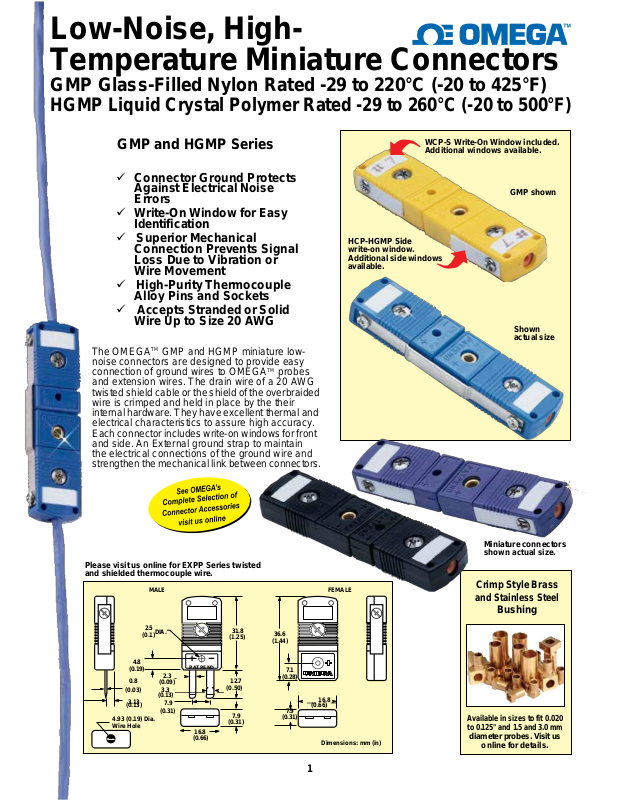

Page 1
1
Crimp Style Brass
and Stainless Steel
Bushing
Available in sizes to fit 0.020
to 0.125" and 1.5 and 3.0 mm
diameter probes. Visit us
online for details.

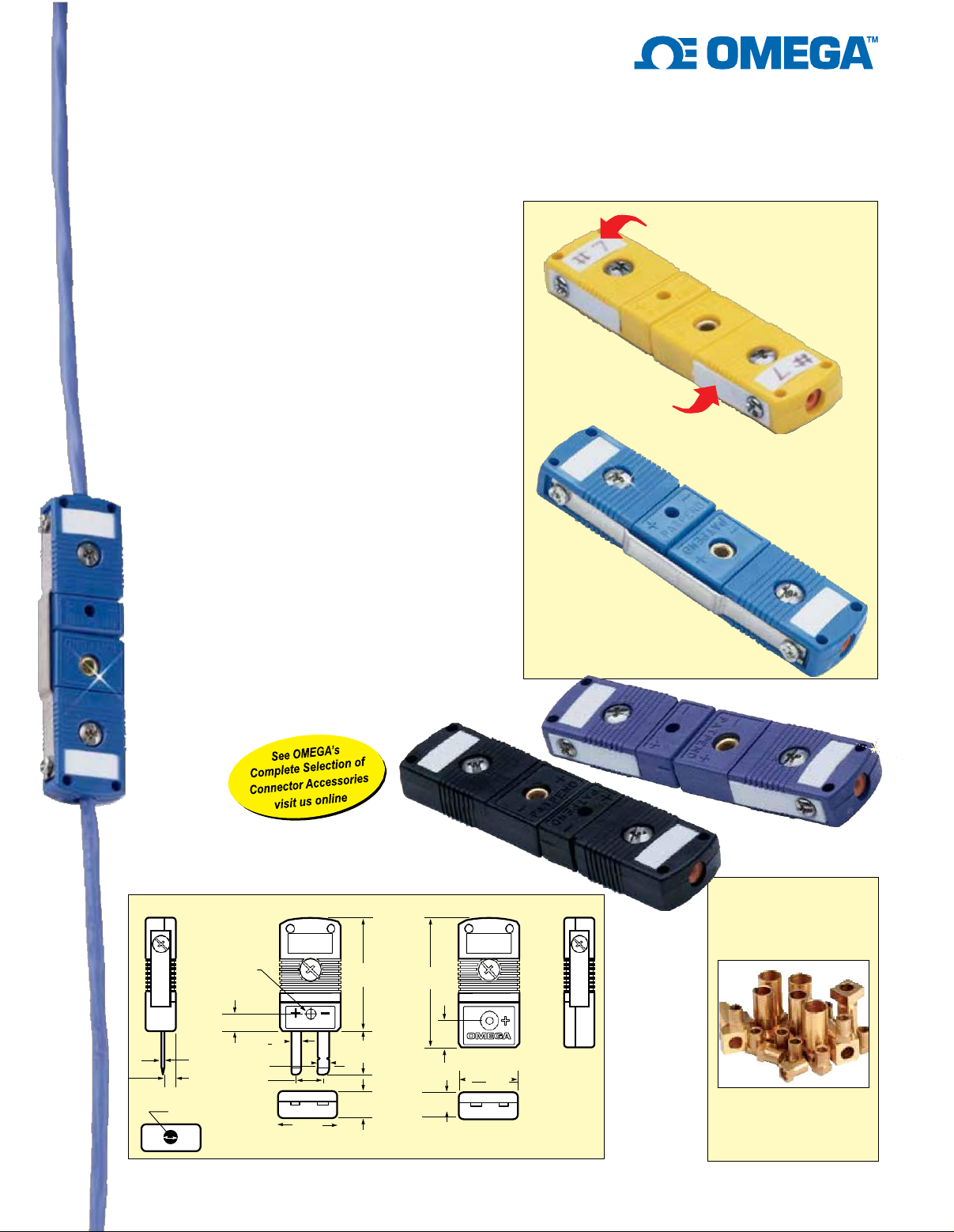

Low-Noise, HighTemperature Miniature Connectors
GMP Glass-Filled Nylon Rated -29 to 220°C (-20 to 425°F)
HGMP Liquid Crystal Polymer Rated -29 to 260°C (-20 to 500°F)
GMP and HGMP Series
WCP-S Write-On Window included.
Additional windows available.
✓ Connector Ground Protects
Against Electrical Noise
Errors
✓ Write-On Window for Easy
Identification
✓ Superior Mechanical
Connection Prevents Signal
Loss Due to Vibration or
Wire Movement
✓ High-Purity Thermocouple
Alloy Pins and Sockets
✓ Accepts Stranded or Solid
Wire Up to Size 20 AWG
The OMEGA
TM
GMP and HGMP miniature lownoise connectors are designed to provide easy
connection of ground wires to OMEGA
TM
probes
and extension wires. The drain wire of a 20 AWG
twisted shield cable or the shield of the overbraided
wire is crimped and held in place by the their
internal hardware. They have excellent thermal and
electrical characteristics to assure high accuracy.
Each connector includes write-on windows for front
and side. An External ground strap to maintain
the electrical connections of the ground wire and
strengthen the mechanical link between connectors.
HCP-HGMP Side
write-on window.
Additional side windows
available.
GMP shown
Shown
actual size
Please visit us online for EXPP Series twisted
and shielded thermocouple wire.
MALE
FEMALE
Miniature connectors
shown actual size.
2.5
(0.1)
31.8
(1.25)
36.6
(1.44)
4.8
(0.19)
0.8
2.3
(0.09)
PATPEND
12.7
7.1
(0.28)
(0.03)
3.13
(0.13)
3.3
(0.50)
(0.13)
7.9
16.8
(0.66)
4.93 (0.19) Dia.
Wire Hole
(0.31)
16.8
(0.66)
7.9
(0.31)
7.9
(0.31)
Dimensions: mm (in)
DIA.

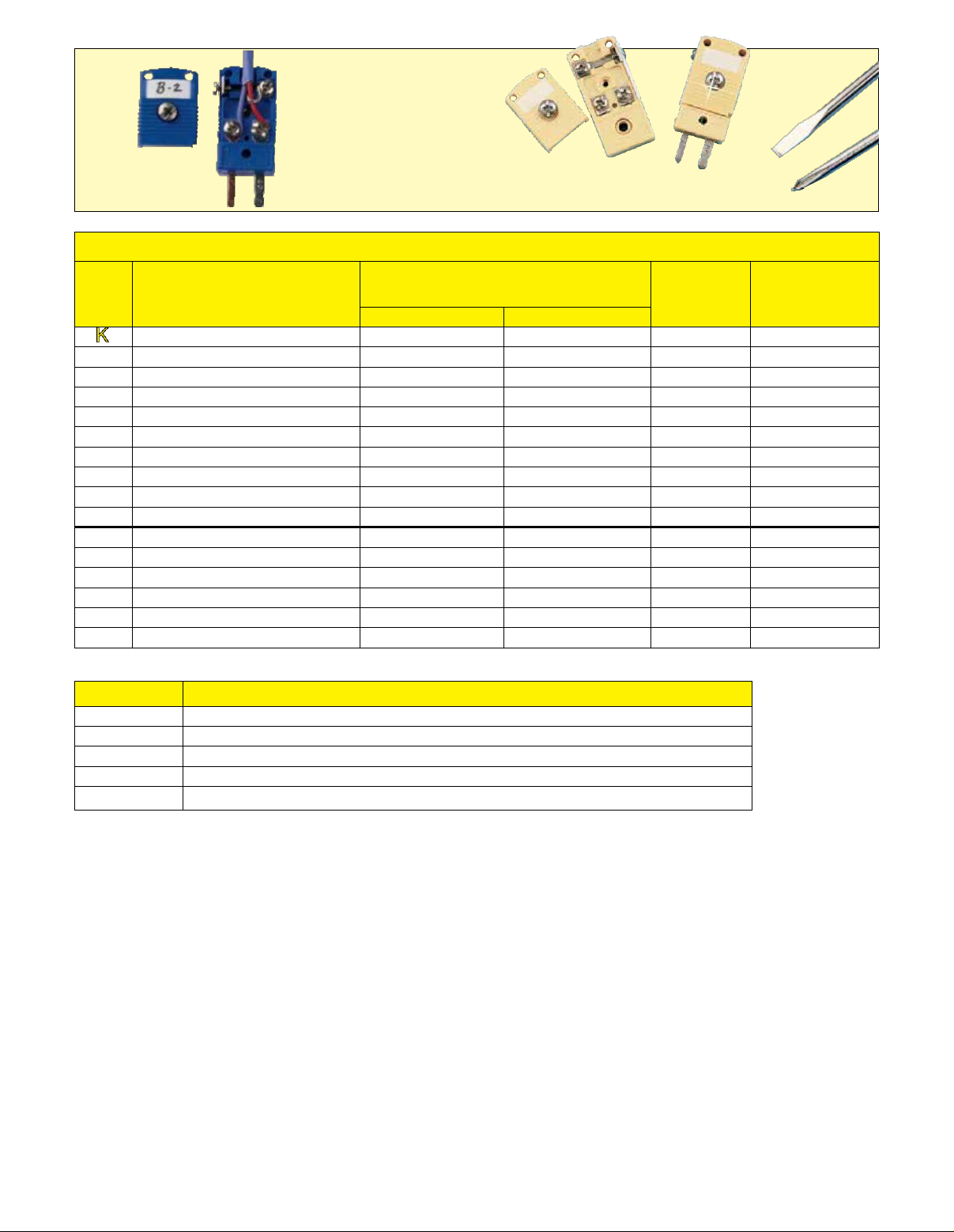

Page 2
2
Accepts stranded
or solid wire up to
size 20 AWG.
Connector design is a
registered trademark of
OMEGA Engineering, Inc.
The foolproof connector! Interior and side screws have
combination heads, so you can use either a flathead or Phillips
screwdriver. And they’re captive, so they won’t fall out.
To Order
Alloy
Code
†
Type Thermocouple
Used with Connector
Compensating Alloy
Used in Connector
Shell
Color
Model
Number
+ -
CHROMEGATM-
ALOMEGA
TM
CHROMEGA
ALOMEGA
Yellow
GMP-K-(*)
T
Copper-Constantan
Copper
Constantan
Blue
GMP-T-(*)
J
Iron-
Constantan
Iron
Constantan
Black
GMP-J-(*)
E
CHROMEGA-
Constantan
CHROMEGA
Constantan
Purple
GMP-E-(*)
R/S
Pt/13%Rh-
Pt
Copper
Alloy #11
Green
GMP-R/S-(*)
C
W/5% Re-W/26%Re
CPX
CNX
Red
GMP-C-(*)
U
Uncompensated
Copper
Copper
White
GMP-U-(*)
N
OMEGALLOY
TM
OMEGA-P
TM
OMEGA-N
TM
Orange
GMP-N-(*)
K
CHROMEGA-
ALOMEGA
CHROMEGA
ALOMEGA
Yellow
HGMP-K-(*)
T
Copper-Constantan
Copper
Constantan
Blue
HGMP-T-(*)
J
Iron-
Constantan
Iron
Constantan
Black
HGMP-J-(*)
E
CHROMEGA-
Constantan
CHROMEGA
Constantan
Purple
HGMP-E-(*)
R/S
Pt/13%Rh-
Pt
Copper
RNX/SNX
Green
HGMP-R/S-(*)
C
W/5% Re-W/26%Re
CPX
CNX
Red
HGMP-C-(*)
U
Uncompensated
Copper
Copper
White
HGMP-U-(*)
N
OMEGALLOY
OMEGA-P
OMEGA-N
Orange
HGMP-N-(*)
Accessories
Model No.
Description
HCP-
S
Write-on window for HGMP connector face
WCP-S
Replaceable write-on windows for GMP connector face
HCP-
HGMP
Write-on window for HGMP connector side
WCP-GMP
Replaceable write-on insert for GMP connector side
GS-GMP
Ground straps
*To order, specify “-M” for male connector only, or “-F” for female connector only.
†
J, K, T, E, R, S and B are ANSI designations. OMEGALLOY is generically known as Nicrosil-Nisil. ANSI color models shown.
Note: Type U (uncompensated) connector bodies are used with Type B thermocouples (Pt/6%Rh-Pt/30%Rh).
Ordering Examples: HGMP-J-M, high-temp, low-noise, Type J calibration, male connector.
HGMP-K-F, high-temp, low-noise, Type K calibration, female connector.
Note: Each connector
is supplied with a
write-on window for
the face and side.
The ground strap
replaces the side
window and maintains
the electrical
connection through
the connector.
