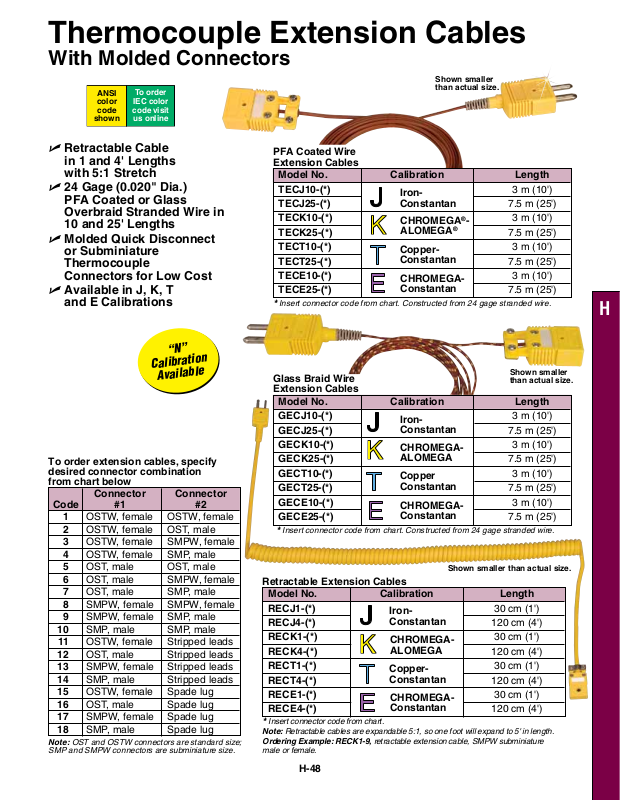

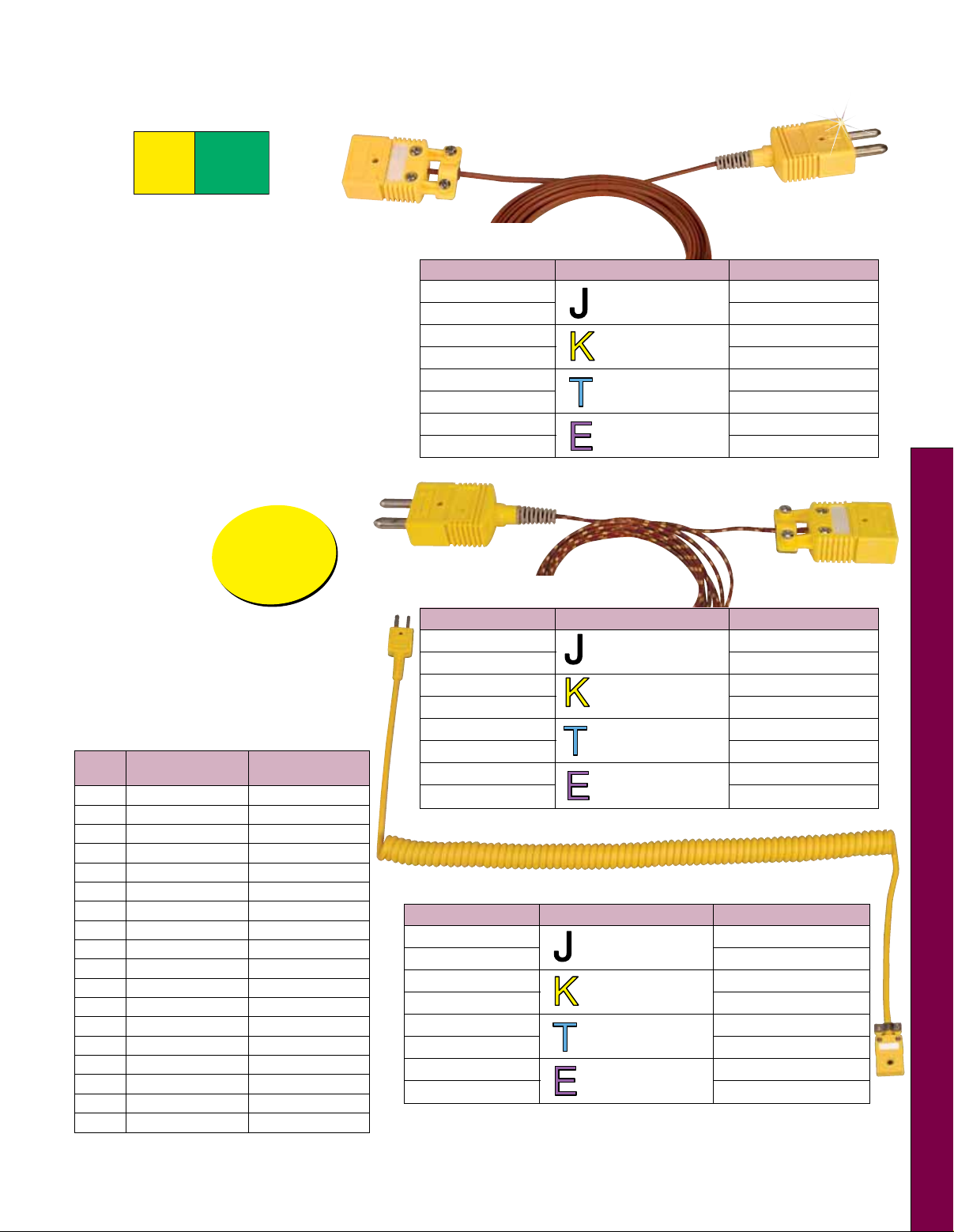

Thermocouple Extension Cables
With Molded Connectors
Shown smaller
ANSI
color
code
shown
To order
IEC color
code visit
us online
than actual size.
U Retractable Cable
in 1 and 4' Lengths
with 5:1 Stretch
U 24 Gage (0.020" Dia.)
PFA Coated or Glass
Overbraid Stranded Wire in
10 and 25' Lengths
U Molded Quick Disconnect
or Subminiature
Thermocouple
Connectors for Low Cost
U Available in J, K, T
and E Calibrations
“N”
Calibration
Available
To order extension cables, specify
desired connector combination
from chart below
Connector Connector
Code #1 #2
1 OSTW, female OSTW, female
2 OSTW, female OST, male
3 OSTW, female SMPW, female
4 OSTW, female SMP, male
5 OST, male OST, male
6 OST, male SMPW, female
7 OST, male SMP, male
8 SMPW, female SMPW, female
9 SMPW, female SMP, male
10 SMP, male SMP, male
11 OSTW, female Stripped leads
12 OST, male Stripped leads
13 SMPW, female Stripped leads
14 SMP, male Stripped leads
15 OSTW, female Spade lug
16 OST, male Spade lug
17 SMPW, female Spade lug
18 SMP, male Spade lug
Note: OST and OSTW connectors are standard size;
SMP and SMPW connectors are subminiature size.
PFA Coated Wire
Extension Cables
Model No. Calibration Length
TECJ10-(*) 3 m (10')
TECJ25-(*) 7.5 m (25')
TECK10-(*) 3 m (10')
TECK25-(*) 7.5 m (25')
TECT10-(*) 3 m (10')
TECT25-(*) 7.5 m (25')
TECE10-(*) 3 m (10')
TECE25-(*) 7.5 m (25')
Insert connector code from chart. Constructed from 24 gage stranded wire.
*
Glass Braid Wire
Extension Cables
Model No. Calibration Length
GECJ10-(*) 3 m (10')
GECJ25-(*) 7.5 m (25')
GECK10-(*) 3 m (10')
GECK25-(*) 7.5 m (25')
GECT10-(*) 3 m (10')
GECT25-(*) 7.5 m (25')
GECE10-(*) 3 m (10')
GECE25-(*) 7.5 m (25')
Insert connector code from chart. Constructed from 24 gage stranded wire.
*
Retractable Extension Cables
Model No. Calibration Length
RECJ1-(*) 30 cm (1')
RECJ4-(*) 120 cm (4')
RECK1-(*) 30 cm (1')
RECK4-(*) 120 cm (4')
RECT1-(*) 30 cm (1')
RECT4-(*) 120 cm (4')
RECE1-(*) 30 cm (1')
RECE4-(*) 120 cm (4')
Insert connector code from chart.
*
Note: Retractable cables are expandable 5:1, so one foot will expand to 5' in length.
Ordering Example: RECK1-9, retractable extension cable, SMPW subminiature
male or female.
Iron Constantan
CHROMEGA® ALOMEGA
Copper Constantan
CHROMEGA Constantan
Constantan
ALOMEGA
Constantan
Constantan
Iron Constantan
CHROMEGA ALOMEGA
Copper Constantan
CHROMEGA Constantan
Iron-
CHROMEGA
Copper
CHROMEGA
Shown smaller than actual size.
®
Shown smaller
than actual size.
-
-
H
H-48
