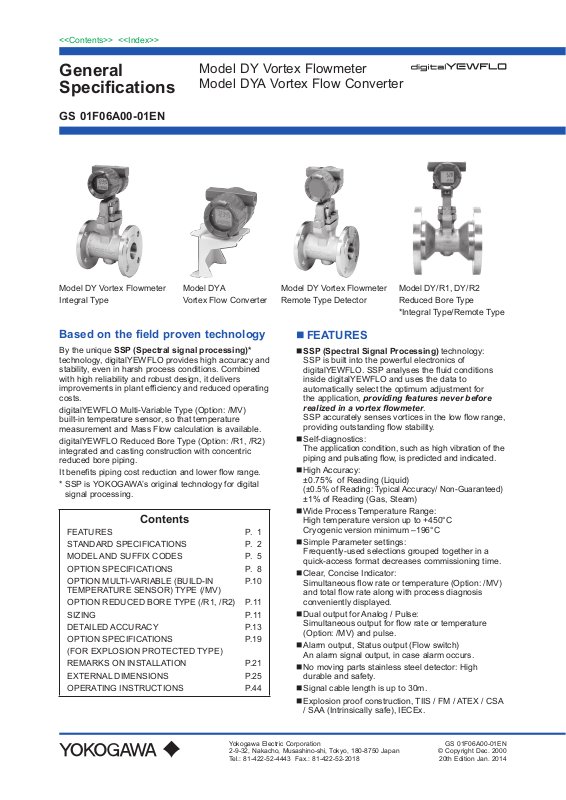

Omega FV500C Specification

<<Contents>> <<Index>>

General

Specications

Model DY Vortex Flowmeter
Model DYA Vortex Flow Converter

GS 01F06A00-01EN

Model DY Vortex Flowmeter
Integral Type

Model DYA
Vortex Flow Converter

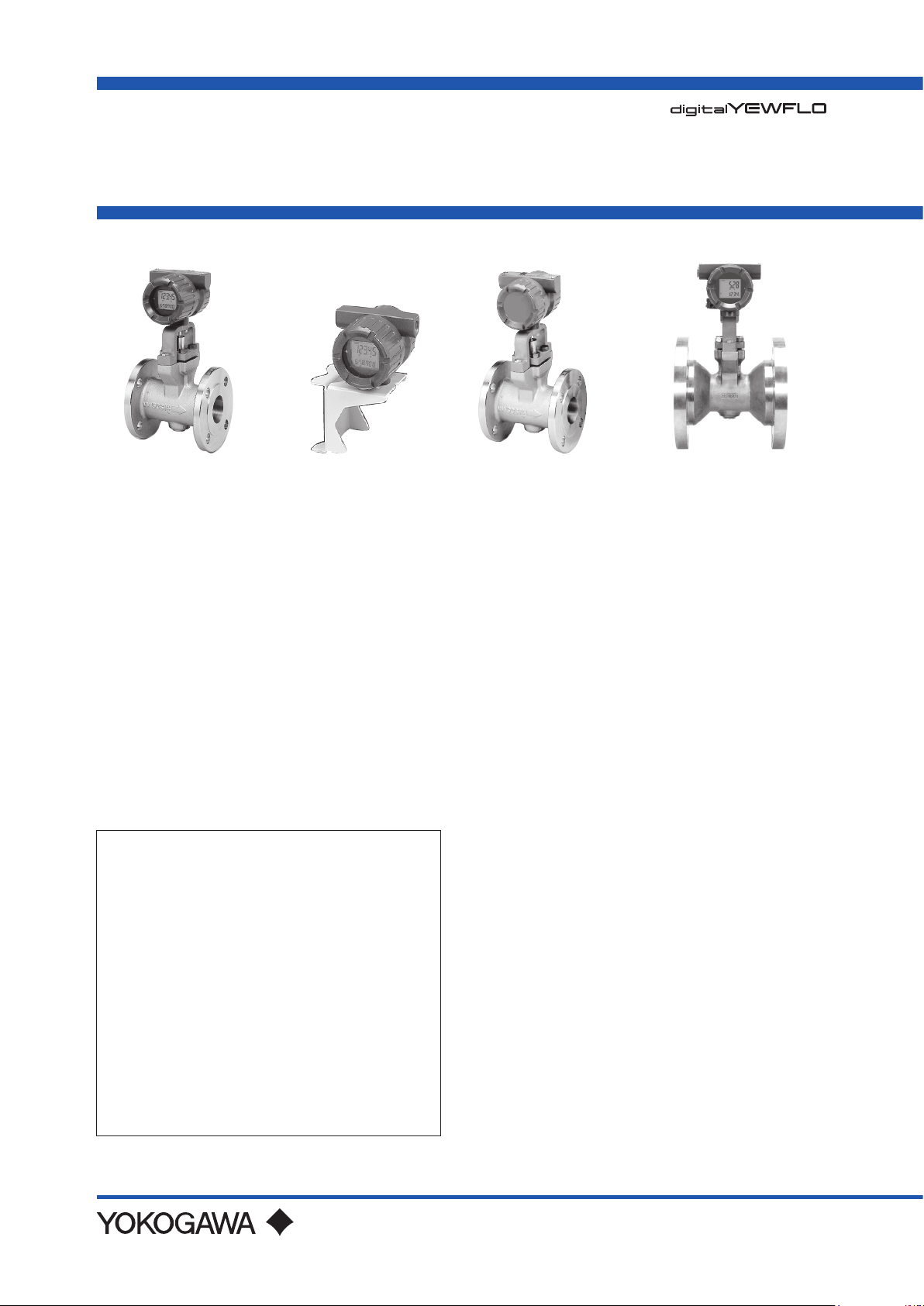

Based on the eld proven technology

By the unique SSP (Spectral signal processing)*
technology, digitalYEWFLO provides high accuracy and
stability, even in harsh process conditions. Combined
with high reliability and robust design, it delivers

improvements in plant efciency and reduced operating

costs.
digitalYEWFLO Multi-Variable Type (Option: /MV)

built-in temperature sensor, so that temperature
measurement and Mass Flow calculation is available.

digitalYEWFLO Reduced Bore Type (Option: /R1, /R2)
integrated and casting construction with concentric
reduced bore piping.

It benets piping cost reduction and lower ow range.

* SSP is YOKOGAWA’s original technology for digital

signal processing.

Contents

FEATURES P. 1
STANDARD SPECIFICATIONS P. 2
MODEL AND SUFFIX CODES P. 5
OPTION SPECIFICATIONS P. 8
OPTION MULTI-VARIABLE (BUILD-IN

TEMPERATURE SENSOR) TYPE (/MV)
OPTION REDUCED BORE TYPE (/R1, /R2) P. 11
SIZING P. 11
DETAILED ACCURACY P. 13
OPTION SPECIFICATIONS P. 19
(FOR EXPLOSION PROTECTED TYPE)
REMARKS ON INSTALLATION P. 21
EXTERNAL DIMENSIONS P. 25
OPERATING INSTRUCTIONS P. 44

P. 10

Model DY Vortex Flowmeter
Remote Type Detector

Model DY/R1, DY/R2
Reduced Bore Type
*Integral Type/Remote Type

n FEATURES

n SSP (Spectral Signal Processing) technology:

SSP is built into the powerful electronics of

digitalYEWFLO. SSP analyses the uid conditions

inside digitalYEWFLO and uses the data to
automatically select the optimum adjustment for
the application, providing features never before
realized in a vortex owmeter.

SSP accurately senses vortices in the low ow range,
providing outstanding ow stability.

n Self-diagnostics:

The application condition, such as high vibration of the

piping and pulsating ow, is predicted and indicated.

n High Accuracy:

±0.75% of Reading (Liquid)
(±0.5% of Reading: Typical Accuracy/ Non-Guaranteed)
±1% of Reading (Gas, Steam)

n Wide Process Temperature Range:

High temperature version up to +450°C
Cryogenic version minimum –196°C

n Simple Parameter settings:

Frequently-used selections grouped together in a
quick-access format decreases commissioning time.

n Clear, Concise Indicator:

Simultaneous ow rate or temperature (Option: /MV)
and total ow rate along with process diagnosis

conveniently displayed.

n Dual output for Analog / Pulse:

Simultaneous output for ow rate or temperature

(Option: /MV) and pulse.

n Alarm output, Status output (Flow switch)

An alarm signal output, in case alarm occurs.

n No moving parts stainless steel detector: High

durable and safety.

n Signal cable length is up to 30m.
n Explosion proof construction, TIIS / FM / ATEX / CSA

/ SAA (Intrinsically safe), IECEx.

Yokogawa Electric Corporation
2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 Japan
Tel.: [phone] Fax.: [phone]

GS 01F06A00-01EN

© Copyright Dec. 2000

20th Edition Jan. 2014

<<Contents>> <<Index>>

2

[MULTI-VARIABLE TYPE]

(OPTION: /MV)

digtalYEWFLO build-in temperature sensor (Pt1000) in
the vortex shedder bar.

Temperature measuremt and Mass Flow Calculation by
temperature is available.

(Refer to P.10)
n High Process Temperature Version Multi-Variable

Type (Option: combination of /HT and /MV)
The combination of /HT and /MV is available up to

400 °C (330 °C for Saturated Steam).

n digitalYEWFLO build-in steam table (IAPWS-IF97),

and Mass measurement of saturated steam and
superheated steam (Mass Flow Calculation)

n Accuracy of digtalYEWFLO Multi-Variable Type is

±0.5% of rate for temperature measurement, ±2% of
rate for Mass Flow Calculation (saturated steam).

[REDUCED BORE TYPE]

(OPTION: /R1, /R2)

Integrated and casting construction with concentric
reduced bore piping makes ;

n Reduction of the piping cost and improving the safety

of the work site

n Replace work and cost reduction: the same face-to-

face dimension with standard type.

n Stability and expansion of the low ow rate

n STANDARD SPECIFICATIONS

n Communication function includes FOUNDATION

eldbus, BRAIN and HART protocol.

Refer to GS 01F06F01-01EN for Fieldbus
communication type marked with “”.

Performance Specications

Fluid to be Measured:

Liquid, Gas, Steam (Avoid multiphase ow

and sticky uids)

Measuring Flow Rates:

Refer to Table 6
Accuracy: ±0.75% of Reading (Liquid)
±1% of Reading (Gas, Steam)
Refer to P.13.
/MV: Refer to P.14

Repeatability: ± 0.2% of Reading
Calibration:

This owmeter is factory-calibrated using a

water ow.

Temperature and ow calibration by water

ow when Multi-Variable Type is selected.

Normal Operating Condition

Process Temperature Range:

–29 to +250 °C (Standard)
–196 to +100 °C (Cryogenic Version:

Option)

–29 to +450 °C (High Process

Temperature Version:
Option)

–29 to +400 °C (High Process

When Multi-Variable Type is selected, refer

Refer to Figure 1 for integral type.

Process Pressure Limit:

–0.1MPa (–1 kg/cm
Ambient Temperature Range:
–29 to +85 °C (Remote Type detector)
–40 to +85 °C (Remote Type converter)
–29 to +85 °C ( Integral Type, refer to

–29 to +80 °C ( Integral Type with Indicator,

–30 to +80 °C ( Remote Type converter

Ambient Humidity: 5 to 100% RH (at 40 °C)
(No Condensation)

Power Supply Voltage (): 10.5 to 42 V DC

(Refer to Figure 2 ; Relationship Between

Mechanical Specications

Material (Standard Type):

Refer to Table.1

Wetted Parts:

Body
ASTM CF8M

Shedder Bar; Duplex stainless steel

Gasket: JIS SUS316 stainless steel with

Non-Wetted Parts:

Housing (Case, Cover):

Name Plate: Stainless steel JIS SUS304
DYA Mounting Bracket for 2B pipe:

Coating Color:

Housing:

DYA Mounting Bracket for 2B pipe:

Degree of Protection:

IP66/IP67 (IEC 60529), Type 4X (NEMA 250)

Type of Protection:

Refer to item “OPTION SPECIFICATIONS”

Electrical Connection:

JIS G1/2 female, ANSI 1/2 NPT female,
ISO M20 × 1.5 female

Signal Cable:

Model DYC signal cable, used for remote detector
and converter.
Signal cable length is up to 30 m.
Outer Sheath Material: Heat resisting polyethylene
Durable Temperature: –40 to +150 °C

Weight:

Refer to item “External Dimensions”.

to P.10.

10.5 to 30 V DC (Lightning Protector: option)

Power Supply Voltage and Load
Resistance)

*1

; Stainless steel JIS SCS14A,

*1 Flange materials for DY250 to DY400 are

JIS SUS F304

Size 15mm ASTM S31803
Size 25mm to 400mm EN 1.4517

polytetrauoroethylene (Teon) coating.

Aluminum alloy JIS ADC12

Carbon steel sheet JIS SPCC, JIS SECC

Polyurethane corrosion-resistant coating
Deep sea moss green (Munsell 0.6GY 3.1/2.0)

Polyurethane corrosion-resistant coating
Frosty white (Munsell 2.5Y 8.4/1.2)

Temperature Version Multi­Variable Type: Option)

2

) to ange rating.

Figure 1)

refer to Figure 1)

with Indicator)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

3

Mounting:

Integral type and Remote type detector:
Flange mounting or wafer mounting by

ange adjacent to the pipeline.

Remote type converter: 2 inch pipe mounting.

Electrical Specications

Note*: Pulse output,alarm output and status output use

the common terminal, therefore these functions
are not used simultaneously.

Output Signal (): Dual Output (Both Analog

and Transistor contact output can be obtained
simultaneously). In this case refer to the item
“Remarks on installation” for power supply and
pulse output wiring.

Analog: 4 to 20 mA DC, 2-wire system.
Transistor Contact Output*:

Open collector, 3-wire system.
Pulse,alarm,status output are selected by
parameter setting.
Contact rating: 10.5 to 30 V DC, 120 mA DC*
Low level: 0 to 2 V DC. (refer to Figure3)

*1: 10.5 to 30 V DC. 80 mA DC for ATEX Intrinsically

Safe Approval (/KS2) and IECEx Intrinsically Safe
Approval (/SS2)

Communication Requirements:

Communication Signal:

BRAIN or HART communication signal
(superimposed on a 4 to 20 mA DC signal)

Note: HART is a registered trademark of the HART

Communication Foundation.

Conditions of Communication Line:

Load Resistance:

250 to 600 Ω(including cable resistance).

Refer to Figure 2.

Supply Voltage:

16.4 to 42 V DC for digital communications
BRAIN and HART protocols. (16.4 to 30 V DC for
intrinsically safe type).
Refer to Figure 2.

BRAIN:

Space from other Power Line: 15cm or more
(Parallel wiring should be avoided.)

Communication Distance:

Up to 2 km,when polyethylene insulated PVC­sheathed cables (CEV cables) are used.
Communication distance varies depending on
type of cable used and wiring.

Load Capacitance: 0.22 µF or less
Load Inductance: 3.3 mH or less
Input Impedance Communicating Device:

10 kΩ or more at 2.4 kHz.

Selection of HART 5/ HART 7

Output Signal Code -E -J

Ordering

Information

HART Protocol

Revision

Requirement

for HART 7

functionarlity

Selection

guide

Other

1

Remarks

conditions

*1: “-E” is HART5 exclusive model and will be terminated.

“-J” is recommended for HART communication.

*2: HART protocol revision for the device and HART

conguration tool HART7 communication is supported

by FieldMate R2.02 or later.

— Specify “5” Specify “7”

HART 5 HART 7

NO

Not

available

to switch to

HART 7
protocol

after

delivery.

*1 *2 *2

Available to

switch to HART

7 protocol after

delivery by

userconguration.

of the HART

conguration

shown in *2.

YES

Be sure to

conrm the

protocol
revision

tool

—

HART protocol revision and availability

Protocol revision

supported by HART

conguration tool

5 7

DY or DYA HART 5 Available Available

DY or DYA HART 7 Not Available Available

Note: Protocol revision supported by HART conguration

tool must be the same or higher than that of the
digitalYEWFLO.

Functions:

Damping Time Constant:

0 to 99 Sec (63% response time)

Note: Delay time is 0.5 Sec.
Analog output circuit time constant is 0.3 Sec.

Pulse Output Function*:

Pulse output is selected from scaled pulse,
unscaled pulse, frequency (number of pulses
output per second at 100% of output).
Pulse frequency: Max 10 kHz
Duty cycles: Approx.50% (1:2 to 2:1)

Self-diagnostics and Alarm Output *:

In case alarm (over range output signal, EEPROM

error, vibration noise, abnormal ow such as

clogging, bubble) occurs, an alarm signal is output
and indicated.
The alarm signal output goes from close(ON) to
open(OFF) during alarming.

Analog Output Function:

Analog output is selected from owrate and

temperature value when option code /MV is
selected.

Status Output Function*:

Flow Switch:

In case ow rate decreases under the ow set

value,a status signal is output.
Status signal output mode can reverse (ON/ OFF).

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

4

Data Security During Power Failure:

Data (parameter, totalizer value, etc) storage by
EEPROM. No back-up battery required.

Correction:

Instrument Error Correction:

Vortex owmeter instrument errors can be

corrected by segment approximations.

Reynolds Number Correction:

Output error at Reynolds number 20000 or less is

corrected by using ve-break-point line-segment

approximation.

Gas Expansion Correction:

When measuring a compressibility gas and steam,
this expansion factor is useful to correct the error

at high velocity of ow (35m/s or more).

Down-scale or Up-scale burn out.

In case a CPU or EEPROM failure occurs, ow

meter output the signal of Up-scale (21.6 mA or
more).
Up-scale or Down-scale (3.6 mA or less) is user­selectable through the fail mode alarm jumper.

Indicator:

Flow rate (% or engineering units) or
temperature value and totalizer can be indicated
simultaneously.
Short message for self diagnostics indicated.
Local parameter setting can be operated by key
switches.
In mounting direction, the right and left 90° is
rotatable.

EMC Conformity Standards:

EN 61326-1: 2006 Class A, Table 2 (For use in
industrial locations), EN 61326-2-3: 2006

Note1: This instrument is a Class A product, and it is

designed for use in the industrial environment.
Please use this instrument in the industrial
environment only.

Note2: Use the metal conduit for the remote cable.

Pressure Equipment Directive:

Type of equipment: piping

Type of uid: liquid and gas
Group of uid: 1 and 2

Module: H

MODEL

DY015 15 42 630 Article 3,

DY025 25 42 1050 Article 3,

DY040 40 42 1680 II

DY050 50 42 2100 II

DY080 80 42 3360 II

DY100 100 42 4200 II

DY150 150 42 6300 III

DY200 200 42 8400 III

DY250 250 42 10500 III

DY300 300 42 12600 III

DY400 400 25 10000 III

* PS: Maximum allowable pressure for Flow tube, DN:

Nominal size

** Refered to Table 6 coverd by ANNEX II of EC Directive on

Pressure Equipment Directive 97/23/EC

*** Sound Engineering Practice (SEP)

DN(mm)*

PS(MPa)*

PS·DN(MPa·mm)

CATEGORY**

Paragraph 3

Paragraph 3

***

***

85

100

85
80

55

50

0

-29

Ambient Temperature (˚C)

-50

-50

-29

80

0

50

100

Process Temperature (˚C)

With Indicator

Without Indicator

200

250

300

F01.ai

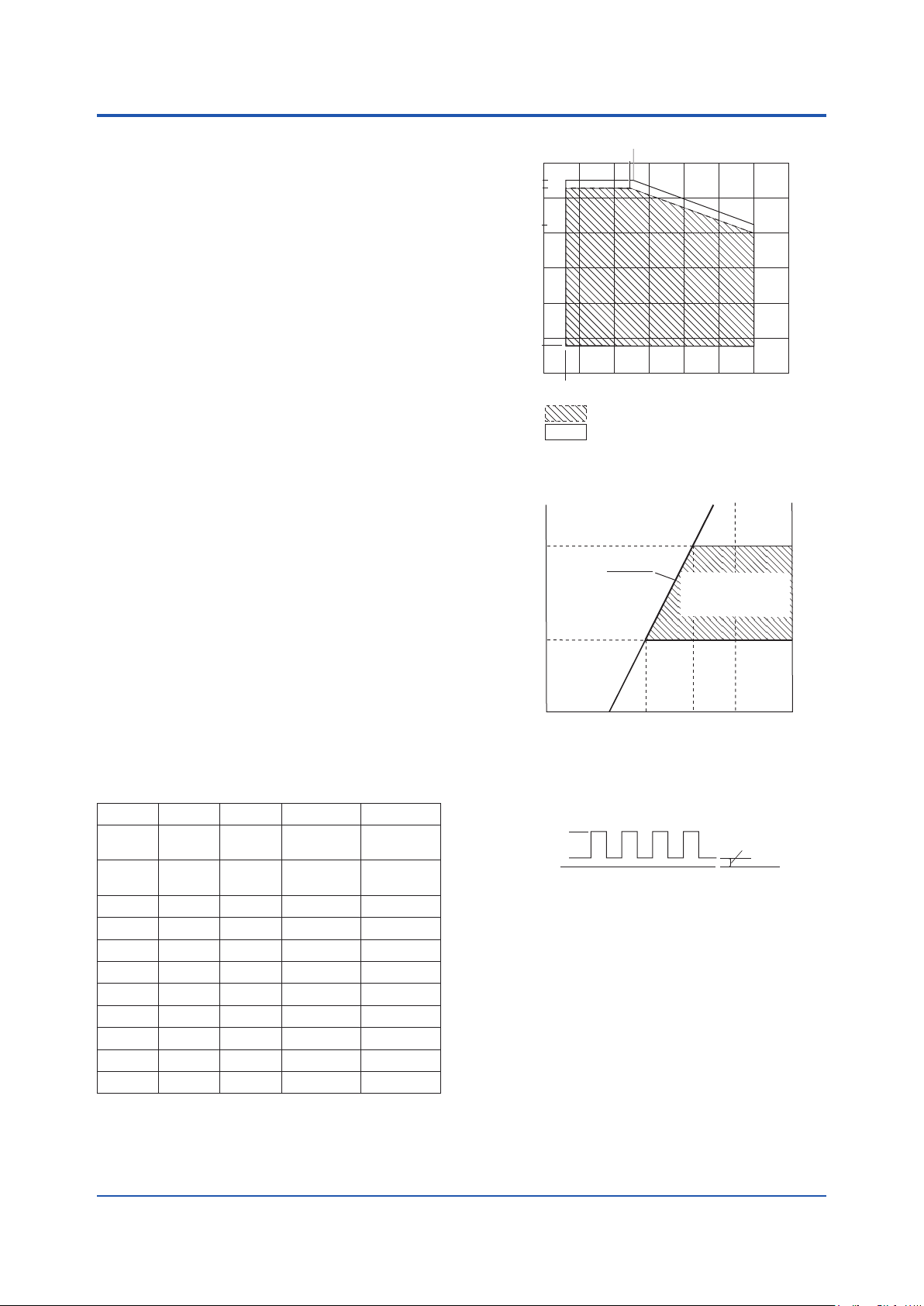

Figure 1 Ambient Temperature limit (Integal Type)

600

E - 10.5

(Ω)

250

Load Resistance

R=

0.0236

10.5 16.4 24.7 42

Power Supply Voltage E(V)

Communication

applicable range

BRAIN or HART

30

F02.ai

Figure 2 Relationship Between Power Supply and

Load Resistance

HIGH level

LOW level

0 to 2 V

0 V

F03.ai

Figure 3 High and low level (Pulse output)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

5

n MODEL AND SUFFIX CODES

DY Vortex Flowmeter (Integral Type, Remote Type
detector)

Model Sufx Codes Description

DY015
DY025
DY040
DY050
DY080
DY100
DY150
DY200
DY250
DY300
DY400

Output
Signal
/Communication

Body
Material
*6, *7

Shedder bar
Material
*6, *7

Process
Connection
*8

RF: Raised Face
SF: Smooth Finish
RJ: Ring Joint

Electrical
Connection *9

Indicator
*11

Options

················································

················································

················································

················································

················································

················································

················································

················································

················································

················································

················································

-D ············································

-E ············································

-J·············································

-F ············································

-N ············································

A ·······································
B ·······································
X ·······································

L ·································
B ································
E ································
X ································

AJ1 ·······················
AJ2 ·······················
AJ4 ·······················

AA1·······················
AA2·······················
AA4·······················

AD1 ······················
AD2 ······················
AD3 ······················
AD4 ······················

BJ1 ·······················
BJ2 ·······················
BJ4 ·······················

BA1·······················
BA2·······················
BA4·······················
BA5·······················

BS1·······················
BS2·······················
BS4·······················
BS5·······················

BD1 ······················
BD2 ······················
BD3 ······················
BD4 ······················

CA4 ······················
CA5 ······················

-0 ······················

-2 ······················

-4 ······················

D ··················
N ··················

/

Size 15 mm (1/2 inch)
Size 25 mm (1 inch)
Size 40 mm (1-1/2 inch)
Size 50 mm (2 inch)
Size 80 mm (3 inch)
Size 100 mm (4 inch)
Size 150 mm (6 inch)
Size 200 mm (8 inch)
Size 250 mm (10 inch)
Size 300 mm (12 inch)
Size 400 mm (16 inch)

4 to 20 mA DC, Pulse,
BRAIN Communication
4 to 20 mA DC, Pulse,
HART Communication *1
4 to 20 mA DC, Pulse,
HART 5/HART 7 Communication *2
Digital communication

OUNDATION Fieldbus protocol) *3

(F
Remote type detector

JIS SCS14 A *4
ASTM CF8M *5
Others

Duplex Stainless Steel
Stainless Steel
Duplex Stainless Steel (for TIIS Approval)
Others

JIS 10 K Wafer
JIS 20 K Wafer
JIS 40 K Wafer

ANSI Class 150 Wafer
ANSI Class 300 Wafer
ANSI Class 600 Wafer

DIN PN10 Wafer
DIN PN16 Wafer
DIN PN25 Wafer
DIN PN40 Wafer

JIS 10K Flange(RF)
JIS 20K Flange(RF)
JIS 40K Flange(RF)

ANSI Class 150 Flange(RF)
ANSI Class 300 Flange(RF)
ANSI Class 600 Flange(RF)
ANSI Class 900 Flange(RF)

ANSI Class 150 Flange(RF, SF)
ANSI Class 300 Flange(RF, SF)
ANSI Class 600 Flange(RF, SF)
ANSI Class 900 Flange(RF, SF)

DIN PN10 Flange(RF)
DIN PN16 Flange(RF)
DIN PN25 Flange(RF)
DIN PN40 Flange(RF)

ANSI Class 600 Flange(RJ)
ANSI Class 900 Flange(RJ)

JIS G 1/2 Female
ANSI 1/2 NPT Female *10
ISO M201.5 Female

With Indicator
None Indicator, Remote type detector

Refer to Option Specications

DYA Vortex Flowmeter Converter(Remote Type)

Model Sufx Codes Description

DYA ················································

-D ·······································

Output
Signal
/Communication

Electrical
Connection *9

Indicator

Options

-E ·······································

-J········································

-F ·······································

0································
2································
4································

D ··························
N ··························

/
/MV

Vortex Flowmeter Converter
(Remote Type)

4 to 20 mA DC, Pulse
BRAIN Communication
4 to 20 mA DC, Pulse
HART Communication *1
4 to 20 mA DC, Pulse
HART 5/HART 7 Communication *2
Digital communication
(FOUNDATION Fieldbus protocol) *3

JIS G 1/2 Female
ANSI 1/2 NPT Female *10
ISO M20 ×1.5 Female

With Indicator
None Indicator

Refer to Option Specications

Multi-Variable Type *12

DYC Signal Cable

Model Sufx Codes Description

DYC ················································ Signal Cable

Cable
End

Cable
Length
*14

Options

-0 ············································

-1 ············································

-05 ·····································

-10 ·····································

-15 ·····································

-20 ·····································

-25 ·····································

-30 ·····································

-35 ·····································

-40 ·····································

-45 ·····································

-50 ·····································

-55 ·····································

-60 ·····································

-65 ·····································

-70 ·····································

-75 ·····································

-80 ·····································

-85 ·····································

-90 ·····································

-95 ·····································

/C1 ································

/C2 ································
/C3 ································
/C4 ································
/C5 ································
/C6 ································
/C7 ································
/C8 ································
/C9 ································

/MV ·······························

Without End nish *13
With End nish

5 m
10 m
15 m
20 m
25 m
30 m
35 m
40 m
45 m
50 m
55 m
60 m
65 m
70 m
75 m
80 m
85 m
90 m
95 m

Cable End Finish Parts
1 set
2 set
3 set
4 set
5 set
6 set
7 set
8 set
9 set

Multi-Variable Type

*1: Output signal code ‘-E’: HART 5. (Output signal code ‘-J’ is recommended for HART communication.)
*2: Output signal code ‘-J’: HART 5 or HART 7 selectable. Specify HART 5 or HART 7 when ordering.
*3: For FOUNDATION Fieldbus protcol, refer to GS 01F06F01-01EN. For Fieldbus communication type, there are not setting keys on the display board.
*4: In case of A (JIS SCS14A), the process connection is available for JIS (AJ, BJ)
*5: In case of B (ASTM CF8M), the process connection is available for ANSI (AA, BA, BS, CA) and DIN (AD, BD).
*6: Refer to Table 1.

*7: Users must consider the characteristics of selected wetted parts material and the inuence of process uids. The use of inappropriate materials can result in the leakage of

corrosive process uids and cause injury to personnel and/or damage to plant facilities. It is also possible that the instrument itself can be damaged and that fragments from
the instrument can contaminate the user's process uids.
Be very careful with highly corrosive process uids such as hydrochloric acid, sulfuric acid, hydrogen sulde, sodium hypochlorite, and hightemperature steam (+150°C

[+302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.
*8: Refer to Table 2.
*9: In case of an explosion protect type, it depends for an electrical connecion on the kind of an explosion protect type. Refer to “OPTION SPECIFICATIONS (FOR EXPLOSION

PROTECTED TYPE)”
*10: In case of /FF1 or /CF1, CF11, /KF2, /KS2, /SF2, /SS2 the screw length is deeper than ANSI standard for 0.5 to 2 threads.
*11: Indicator is not available for remote type detector.
*12: DYA-/MV and DY-N***/MV should be combined.

*13: One set of end nish part is attached.

*14: DYC Signal Cable can be used up to 30m. When you divide the cable below 30m, select the Cable End code [-0].

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

Body Material

6

Table 1 Body, Shedder Bar and Gasket Material

Standard

Model Code (Note3)

DY015 DY025/R1 DY040/R2

DY025 DY040/R1 DY050/R2

DY040 DY050/R1 DY080/R2

DY050 DY080/R1 DY100/R2

DY080 DY100/R1 DY150/R2

DY100 DY150/R1 DY200/R2

DY150 DY200/R1 — — —

DY200 — — — —

DY250 — — — — —

DY300 — — — — —

DY400 — — — — —

(Note1) In case of the sufx code of the body material is [A], the code of the process connection is for one of AJ,BJ or BP.
In case of the code [B], process connection code is for one of AA,BA,BS,CA,AD or BD.
(Note2) In cases of option code /HY, /HT, /LT or /NC, select [X] for both body material code and select
shedder bar material code in accordance with the shedder bar material chart.
(Note3) Reduced bore type is Flange type only.

(Note1)

A

JIS SCS14A

B

ASTM CF8M

Anti-Corrosion
Version II (/HY)

(Note2)

X (Note2)

JIS SCS14A

ASTM CF8M

High Process

Temperature
Version (/HT)

(Note2)

—

X (Note2)

JIS SCS14A

ASTM CF8M

Cryogenic

Version (/LT)

(Note2)

X (Note2)

DIN1.4308

(JIS SCS13)

NACE Material

ASTM CF8M

Shedder Bar Material

Standard

TIIS Flame

Model Code (Note3)

DY015 DY025/R1 DY040/R2

DY025 DY040/R1 DY050/R2

DY040 DY050/R1 DY080/R2

DY050 DY080/R1 DY100/R2

DY080 DY100/R1 DY150/R2

DY100 DY150/R1 DY200/R2

DY150 DY200/R1 —

DY200 — — — —

DY250 — — —

DY300 — — — — —

DY400 — —

(Note1) Select body code [X] for /HY, /HT, /LT and /NC.
Available to combine with TIIS Flame proof type /JF3 or Multi-Variable type /MV.
(Note2) The shedder bar code [E] is for TIIS Flame proof type /JF3 only.
Select shedder bar code [X] for DY025 to DY200 when you combine TIIS Flame proof type /JF3 with /HY, /HT, /LT or /NC.
(Note3) Wafer type (Process Connection: A**): DY015 to DY100, Flange type (Process Connection: B**): DY015 to DY400
Reduced bore type is Flange type only.
(Note4) Shedder bar code [X] or [B] is selectable for DY150/HT, DY150/NC, DY200/HT and DY200/NC.
(Note5) Select shedder bar code only [B] for DY250/HT to DY400/HT.
(Note6) Available to combine with TIIS Flame proof type /JF3, High Process Temperature Version (/HT) and shedder bar code [B]

as TOKUCHU.

L

ASTM

S31803

L

EN1.4517

L

EN1.4517

B

CF8M

proof approval

(/JF3) (Note2)

E

ASTM

S31803

E

EN1.4517

E

EN1.4517

B

CF8M

A

nti-

corrosion

version II

(/HY) (Note1,2)

X

ASTM

N10276

X

ASTM

CW-12MW

—

— — —

High Process

Temperature
Version (/HT)

(Note1,2)

—

X

ASTM

CW-12MW

X

ASTM

CW-12MW

or

B

ASTM CF8M

(Note4) (Note6)

B

ASTM CF8M

(Note5)
(Note6)

Cryogenic

Version (/LT)

(Note1,2)

X

ASTM

N10276

X

ASTM

CW-12MW

—

— —

CW-12MW

CW-12MW

ASTM CF8M

(/NC)

X

NACE

Material

(/NC)

(Note1,2)

X

ASTM

N10276

X

ASTM

X

ASTM

or
B

(Note4)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

Gasket Material

7

Anti-corrosion
Version II (/HY)

Model Code (Note1)

Standard

DY015 DY025/R1 DY040/R2

DY025 DY040/R1 DY050/R2

DY040 DY050/R1 DY080/R2

DY050 DY080/R1 DY100/R2

DY080 DY100/R1 DY150/R2

DY100 DY150/R1 DY200/R2

DY150 DY200/R1 — — —

JIS SUS316
stainless steel
with polytetra-

uoroethylene

(Teon) coating

JIS SUS316
stainless steel
with polytetra-

uoroethylene

(Teon) coating

High Process

Temperature
Version (/HT)

—

JIS SUS316

stainless steel

plated with silver

Cryogenic

Version (/LT)

JIS SUS316
stainless steel
with polytetra-

uoroethylene

(Teon) coating

NACE Material

(/NC)

JIS SUS316
stainless steel
with polytetra-

uoroethylene

(Teon) coating

DY200 — — — —

DY250 — — — — —

DY300 — — — — —

DY400 — — — — —

(Note1) Wafer type (Process Connection: A): DY015 to DY100, Flange type (Process Connection: B): DY015 to DY400
Reduced bore type is Flange type only.

Table 2 Flowmeter Selection Guide

Process

Connection

JIS 10 K AJ1

JIS 20 K AJ2

JIS 40 K AJ4

ANSI Class 150 AA1

ANSI Class 300 AA2

ANSI Class 600 AA4

ANSI Class 900 ― ― ― ― BA5

DIN PN10 AD1

DIN PN16 AD2

DIN PN25 AD3

DIN PN40 AD4

Sufx

Wafer Flange (Raised Face) Flange (Ring Joint) Flange (Raised Face, Smooth Finish)

Code

Model Code

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

DY015

to

DY100

Sufx

Code

― ― BJ1

― ― BJ2

― ― BJ4

― ― BA1

― ― BA2

― ― BA4

― ― BD1

― ― BD2

― ― BD3

― ― BD4

DY015

to

DY400

DY015

to

DY400

DY015

to

DY150

DY015

to

DY400

DY015

to

DY400

DY015

to

DY200

DY015

to

DY200

DY015

to

DY200

DY015

to

DY200

DY015

to

DY200

DY015

to

DY200

Model Code

DY025/R1

DY200/R1

DY025/R1

DY200/R1

DY025/R1

DY200/R1

DY025/R1

DY200/R1

DY040/R2

to

DY200/R2

DY040/R2

to

DY200/R2

― ― ― ― ― ― ― ― ― ―

DY040/R2

to

DY200/R2

DY040/R2

to

DY200/R2

― ― CA4

― ― CA5

― ― ― ― ― ― ― ― ― ―

― ― ― ― ― ― ― ― ― ―

― ― ― ― ― ― ― ― ― ―

― ― ― ― ― ― ― ― ― ―

Sufx

Code

― ― ― ― ― ― ― ―

to

― ― ― ― ― ― ― ―

to

― ― ― ― BS1

to

― ― ― ― BS2

to

Model Code

DY015

to

DY200

DY015

to

DY200

― ― BS4

― ― BS5

Sufx

Code

DY015

to

DY400

DY015

to

DY400

DY015

to

DY200

DY015

to

DY200

Model Code

DY025/R1

to

DY200/R1

DY025/R1

to

DY200/R1

― ―

― ―

(Note)

• ANSI standardized types are worked by serration nishing except the Smooth Finish type.

• The Smooth Finish type is shipped without serration nishing.

• Refer to “OPTION REDUCED BORE TYPE (/R1, /R2)” (refer to P.11), when you select reduced bore type /R1, /R2.

DY040/R2

to

DY200/R2

DY040/R2

to

DY200/R2

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n OPTION SPECIFICATIONS

8

Multi-Variable Type (Note 5) Build in Temperature sensor (Pt 1000 ) in vortex shedder bar. DY / DYA MV

Reduced bore type (Note 8) (Note 12)

Stainless Steel Tag Plate (Note 1) JIS SUS304 tag plate, hung on the case. DY / DYA SCT

Stainless Steel Bolt & Nut Assembly

Paint Color Change Only for the covers: Refer to Table 3 DY / DYA

Hydrostatic / Pneumatic Test Certicate

Hydrostatic Test Certicate

Degrease Treatment (Note 2) Degrease cleansing treatment. DY K1

Epoxy Coating Epoxy coating for case and cover. DY / DYA X1

Piling up coating of epoxy and
polyurethane

High Process Temperature Version

Cryogenic Version (Note 7)

Stainless Steel Bracket for Remote
Conveter (DYA)

Lightning Protector

NACE Material (Note 10) Refer to Table 1. DY NC

Compliance with NAMUR (Note 6)

Anti-corrosion Version II

Converter Installing Direction 180°
Change (Note4)

Down-scale burn-out in CPU or
EEPROM failure (Note 3)

Stainless steel housing (Note 9)

Flameproof Packing Adapter

Calibration Certicate

Material certicates: Mill sheets

Material certicates: 3.1

PMI test certicate

ASME welding
documents submission (Note 10)

Dye Penetrant test certicate

Item Specication

Integrated and welded construction with concentric reduced bore piping.

R1: Detector size (B) is one meter body size down of digitalYEWFLO to ange pipe size (A).

R2: Detector size (B) is two meter body size down of digitalYEWFLO to ange pipe size (A). R2

JIS SUS304 bolt/nut assembly.
Used when a wafer type is installed.

Test pressure value is in accordance with Table 4. Test time: 10 minutes. Available for the Standard
type. Test medium: Air, Nitrogen or Water.

Test pressure value is in accordance with Table 4. Test time: 10 minutes. Available for the Standard
type. Test medium: Water.

Epoxy and Polyurethane coating for the purpose of corrosion - proof improvement; salt damage,
alkali, climate and acidity

This specication temperature is from -29 to +450 °C

Refer to Table 1, Figure 4.
Refer to Table 5 for minimum velocity.
Refer to Note 5 for the combination of High Process Temperature Version (/HT) and Multi-Variable
Type (/MV).

This specication temperature is from -196 to +100 °C

Refer to Table 1, Figure 5. /R1 and /R2 are not available.

The bracket material for remote converter type (DYA) is JIS SUS304. DYA SB

There is an arrester inside converter for power supply line.
Maximum power supply voltage: 30VDC

Compliance with NAMUR43. Current signal for measurement is 4mA up to 20.5mA. Set output

3.6mA or less when burn-out occurred.

Anti-corrosion Version II. Refer to Table 1. DY150/R1, DY150/R2, and DY200/R2 are not
available.

Converter installing direction 180° change inversely when shipped. DY CRC

Set output 3.6mA or less when burn-out occurred.

Converter housing, case and cover material: JIS SCS14A or ASTM, ASME CF8M stainless steel
castings. (equivalent to JIS SUS316)

Power source connection port and signal cable (remote type) connection port. JIS G1/2 female
thread. Other cable shape: ø 8 to ø 12.
/G11: One piece, /G12: Two pieces.

Level 2 Declaration and Calibration Equipment List DY / DYA L2

Level 3 Declaration and Primary Standard List DY / DYA L3

Level 4 Declaration and YOKOGAWA Measuring DY / DYA L4

Item to be

specied

3.1 certicate to be attached according to EN10204.

Item to be

specied

Positive Material Identication certicate to be attached for the main 3 chemical components of
specied materials. Each certicate to be attached.

Item to be

specied

1. Welder/Welding Operator Performance Qualication (or Welder Qualication Record)

2. Welding Procedure Specication (WPS)

3. Procedure Qualication Record (PQR)
Each certicate to be attached.
The customer’s name and job name to be specied when ordered.

Item to be

specied

Dye Penetrant test certicate for the welded portion to be attached.
Each certicate to be attached.

Item to be

specied

1. Meterbody

1. Meterbody, 2. Shedder bar M02

1. Meterbody, 2. Shedder bar, 3. Bottom plug M03

1. Meterbody, 2. Shedder bar, 3. Bottom plug, 4. Welding rod M04

1. Meterbody E01

1. Meterbody, 2. Shedder bar E02

1. Meterbody, 2. Shedder bar, 3. Bottom plug E03

1. Meterbody, 2. Shedder bar, 3. Bottom plug, 4. Welding rod E04

1. Meterbody PM1

1. Meterbody, 2. Shedder bar PM2

1. Welded portion for the bottom plug

2. Welded portion for the ange in case of the welding construction

1. Welded portion for the bottom plug

2. Welded portion for the ange in case of the welding construction

3. Criterion: ASME B31.1

Applicable Model

DY

DY Wafer Type BL

Refer to Table3

DY

DY

DY / DYA X2

DY***-N HT

DY***-N LT

DY Integral Type

/ DYA

DY / DYA NM

DY HY

DY Integral Type

/ DYA

DY***-N / DYA E1

DY / JF3 G11

DYA / JF3 G12

DY

DY

DY

DY WP

DY

2. is for DY250 to
DY400.

(Note 11)

(Note 11)

Code

R1

T01

T02

C1

M01

PT

(Note 1) Up to 30 alphanumeric characters can be engraved on the stainless tag plate. Capital/small letters are available for

BRAIN communication “-D” and FOUNDATION Fieldbus “-F”. Only capital letters are available for HART communication “-E”

or “-J”.
(Note 2) There is a case that calibration water should stay in the meter tube. So this is not degrease treatment in the strict sense.
(Note 3) The output is set 3.6mA or less (Standard type is set 21.6mA or more at shipping).

A

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

Fluid Temperature (˚C)

F04.ai

(Note 4) The electrical connection turn to a downstream side.
(Note 5) Refer to “OPTION MULTI-VARIABLE (BUILD-IN TEMPERATURE SENSOR) TYPE (/MV)” (P.10)

(Note 6) /NM can not combine with Remote type (DY***-N).
(Note 7) ATEX Flameproof Approval /KF2 and IECEx Flameproof Approval /SF2 are not Available.

(Note 8) • Cryogenic version /LT is not available.

• High process temperature version /HT and Multi-variable type /MV for DY025/R1 and DY040/R2 is not available.

• Flange type only and available process connections are JIS10k, 20k (BJ1, BJ2) and ANSI class 150, 300

• Model Code (A) means “DY***-” nominal size.
(Note 9) • Applicable for Option code /FF1, /KF2, /KS2, /FS1, /SF2 and /SS2.

• Not applicable for Option code /P1, /P2, /P7, /X1, /X2, /HT, /LT, /SB /JF3, /FS1, /CF1, /CS1, /CF11 and /CS11.

• The materials of exterior parts, name plate, screw, bolts on the stainless steel housing and bracket, u-bolt, nuts for DYA/

(Note 10) The wetted parts materials conform to NACE material recommendations per MR0175.

(Note 11) /T01 and /T02 can be selected only one code either.
(Note 12) Refer to “OPTION REDUCED BORE TYPE (/R1, /R2)” (P.11)

In case of Remote type detector (DY***-N), select “/MV” both DY and DYA.

(BA1,BA2,BS1,BS2).

E1 and tag plate for /E1/SCT are JIS SUS316 or SUS316L.

NACE Material /NC can not combine with ASME welding documents submission /WP.

Table 3 Paint Color and Codes

Codes Munsell Renotation Code Color

P1 N1.5 Black
P2 7.5BG4/1.5 Shade green
P7 ————— Metallic silver

-20

0

Operating Range

Table 4 Test Pressure Value

Flange Rating Pressure

JIS 10 K 2.1 MPa
JIS 20 K 5.0 MPa

JIS 40 K 10.0 MPa
ANSI Class 150 2.9 MPa
ANSI Class 300 7.5 MPa
ANSI Class 600 14.9 MPa
ANSI Class 900 22.4 MPa

DIN PN 10 1.5 MPa
DIN PN 16 2.4 MPa
DIN PN 25 3.8 MPa
DIN PN 40 5.9 MPa

-40

-50

Ambient Temperature (˚C)

-100-196

Fluid Temperature (˚C)

-40 0 +100

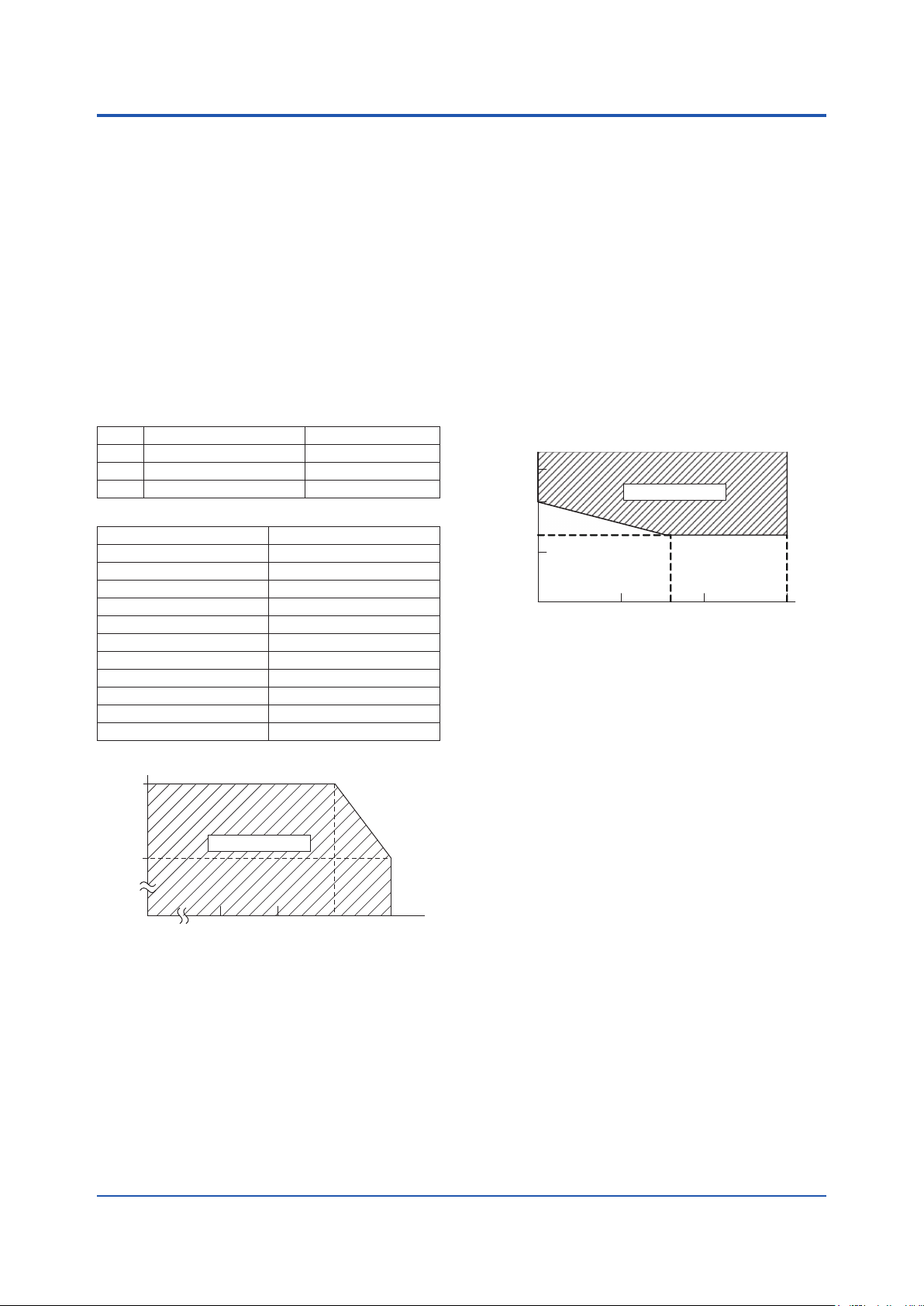

Figure 5 Fluid Temperature Range of Cryogenic

Version

9

F05.ai

+85

+60

Ambient Temperature (˚C)

–29

–29 +100 +200 +300 +450

Operating Range

Figure 4 Fluid Temperature Range of High Process

Temperature Version

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n OPTION MULTI-VARIABLE (BUILT-IN TEMPERATURE SENSOR) TYPE (/MV)

This options is the same as standard specication except the following items.

Multi-Variable (Built-in Temperature sensor) Type (Option Code: /MV) (Note1)

High Process Temperature Version Multi-Variable Type (Option Code: /HT/MV)

Model code

Function (Note2)

Fluid

Calculation
Temperature

Mass Flow
Calculation

Temperature

Temperature Response
(50% Response)

Output

Display

Remote Type

(Note1) Multi-Variable Type /MV can not be combined with Cryogenic Version /LT.
(Note2) Temperature measurement may be affected by installation conditions, such as thermal insulation of piping or the temperature

(Note3) Measured temperature is not used for ow measurement.
(Note4) Mass ow rate is calculated from density calculated with density at the mesuared temperature derived by the built-in saturated

(Note5) Mass ow rate is calculated with the density at the measured temperature derived by the built-in steam table. For mass ow

(Note6) Volumetric ow rate is calculated by temperature/pressure compensation. For volumetric ow calculation of gas, operating

(Note7) Mass ow rate is calculated with density compensated by the secondary formula of measured temperature. Operating

(Note8) Refer to the "Detailed Accuracy" (P.13, P.14).
(Note9) The factory setting is the ow rate output. When the temperature output is required, it is necessary to change the parameter.

(Note10) In case of indicating the temperature %, the display indicate not only “%” but also “t”. ( “t” means temperature).

(Note11) Default setting is "Temperature" but "Total" is set when the total rate is specied in sizing data.

(Note12) In case of remote type, option code /MV is necessary for both Vortex Flow Converter (DYA) and Signal Cable (DYC).
To correct the temperature error due to signal cable length, parameter setting of the signal cable length to Vortex Flow

Range

Accuracy
(Note8)

Temperature
Range

Accuracy

Analog Output Select from Flow Rate or Temperature (Note9)
Pulse Output Flow Rate: Same as Standard Type
Alarm Output Alarm Output same as Standard Type and Temperature Sensor Error, etc.
Status Output Flow Switch (Flow Rate): Same as Standard Type
Upper Select from Flow Rate (%, Engineering Unit) or Temperature (%) (Note10)
Lower Select from Total Rate or Temperature (°C,°F) (Note11)

distribution of the uid. Refer to "REMARKS ON INSTALLATION" for thermal insulation of piping. When measuring mass
ow of saturated steam, superheated steam thermal insulation of piping may be required.

steam table.

calculation of superheated steam, operating pressure is used as constant value.

pressure and pressure at standard/normal condition are used.

density is used as a base density and the 1st and 2nd coefcients have to be set.

Converter (DYA) is required.

Option Code:
/MV

Option Code:
/HT/MV

Option Code:
/MV
/HT/MV

Option Code:
/MV

Option Code:
/HT/MV

Option Code:
/MV

Option Code:
/HT/MV

Temperature

Indication /

Ouput

LIQUID, GAS,

SATURATED

STEAM,

SUPERHEATED

STEAM
(Note3)

Select Vortex Flow Converter DYA-/MV and Signal Cable DYC-/MV (Note12)

SATURATED

STEAM
(Note4)

+100 to +250°C +100 to +250°C -29 to +250°C -29 to +250°C

+100 to +330°C +100 to +400°C -29 to +400°C -29 to +400°C

±0.5°C(less than +100°C)

±0.5% of rate (+100°C or more)

DY025 to DY100 (Wafer)

DY025 to DY200 (Flange)

(Volmetric owrate at Standard Condition for GAS)

(Churning Underwater)

Mass Flow Calculation

SUPERHEATED

STEAM

(Note5)

(Note8)

-29 to +250°C

-29 to +400°C

±1°C (less than +100°C)

±1% of rate (+100°C or more)

60 sec

GAS

(Note6)

±1°C(less than +100°C)

±1% of rate (+100°C or more)

LIQUID
(Note7)

10

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

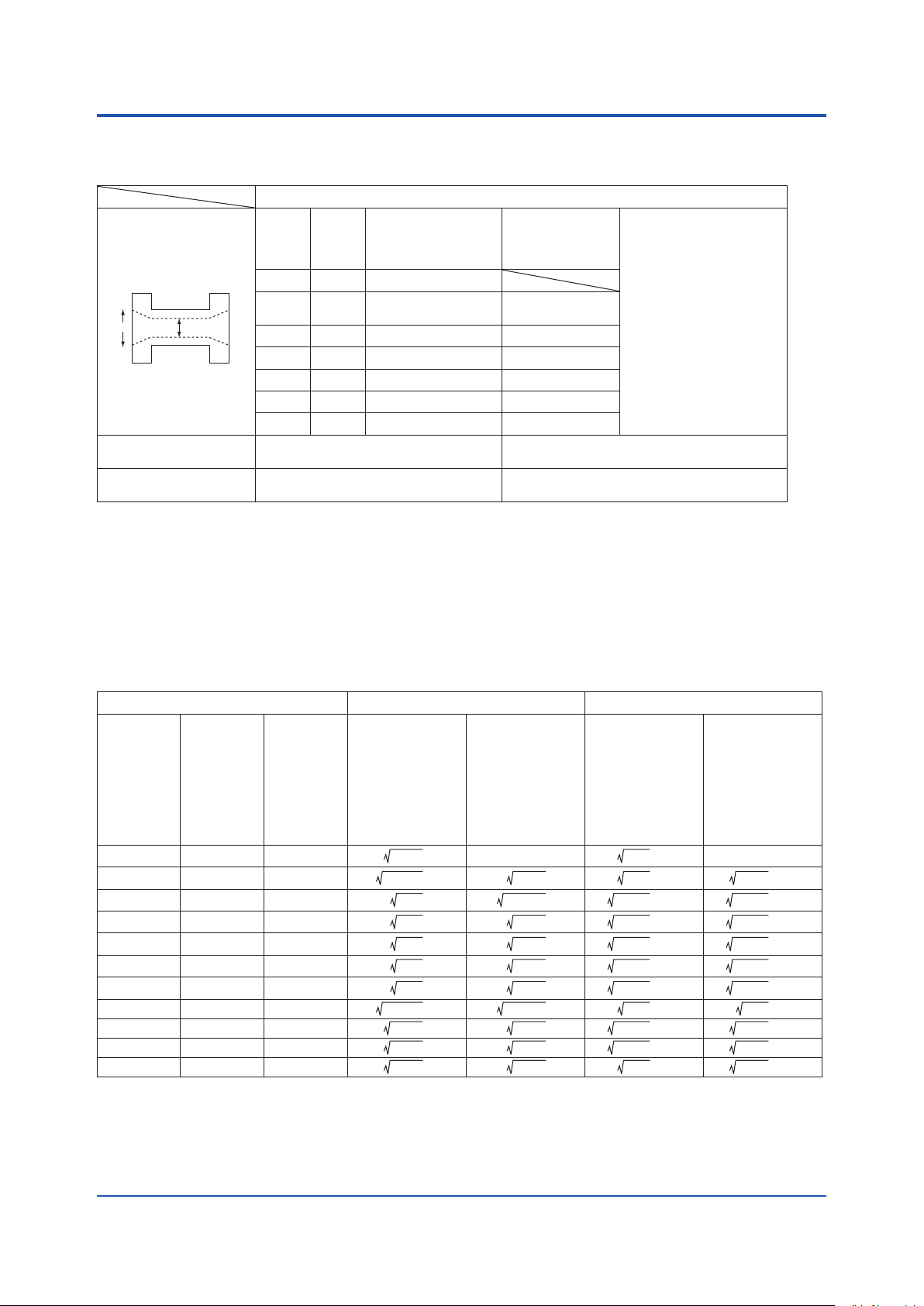

n OPTION REDUCED BORE TYPE (/R1, /R2)

This option is the same as standard specication except the following items.

Reduced Bore Type (Option: /R1, /R2) (Note1)

Model

Code

(Note 2)

A

Measurable minimum

ow velocity

Range of measurable

ow velocity

(Note 1) For accuracy, refer to “Detailed Accuracy”(P.13, P.14). Cryogenic Version /LT is not available.
(Note 2) Flange type only: JIS10K, 20K (BJ1, BJ2) and ANSI150, 300 (BA1, BA2, BS1, BS2)
(Note 3) High process temperature version /HT and Multi-variable type /MV for DY025/R1 and DY040/R2 are not available.

B

F06.ai

DY025 25mm 15 (14.6) (mm) (Note 3)

DY040 40mm 25 (25.7) (mm)

DY050 50mm 40 (39.7) (mm) 25 (25.7) (mm)

DY080 80mm 50 (51.1) (mm) 40 (39.7) (mm)

DY100 100mm 80 (71) (mm) 50 (51.1) (mm)

DY150 150mm 100 (93.8) (mm) 80 (71) (mm)

DY200 200mm 150 (138.8) (mm) 100 (93.8) (mm)

Liquid, Gas, Steam Refer to Table 5.

Liquid, Gas, Steam Refer to Table 6.

Flange

piping

size

(A)

R1 Detector size

(inner dia.) (B)

R2 Detector size

(inner dia.) (B)

15 (14.6) (mm)

(Note 3)

[Pressure Loss]
R1: about 15% increases to
standard type.
R2: about 28% increases to
standard type.
Refer to P.18

11

n SIZING

The following items are the basic specications.
In case of the denite sizing, it is neccessary to check by the sizing software.

n Measurable minimum ow velocity

Table 5 Relationship between Minimum Velocity and Density

Model Code Liquid Gas, Steam (Note1)

High Process

Standard Type,

Standard

Type,

Multi-Variable

Type(/MV)

DY015 DY025/R1 DY040/R2 250/ρ — 80/ρ or 3 —

DY025 DY040/R1 DY050/R2 122.5/ρ 490/ρ 45/ρ or 2 125/ρ or 2

DY040 DY050/R1 DY080/R2 90/ρ 302.5/ρ 31.3/ρ or 2 90.3/ρ or 2

DY050 DY080/R1 DY100/R2 90/ρ 160/ρ 31.3/ρ or 2 61.3/ρ or 2

DY080 DY100/R1 DY150/R2 90/ρ 160/ρ 31.3/ρ or 2 61.3/ρ or 2

DY100 DY150/R1 DY200/R2 90/ρ 160/ρ 31.3/ρ or 2 61.3/ρ or 2

DY150 DY200/R1 — 90/ρ 160/ρ 31.3/ρ or 3 61.3/ρ or 3

DY200 — — 122.5/ρ 202.5/ρ 45/ρ or 3 80/ρ or 3

DY250 — — 160/ρ 360/ρ 61.3/ρ or 3 125/ρ or 3

DY300 — — 160/ρ 360/ρ 61.3/ρ or 3 125/ρ or 3

DY400 — — 250/ρ 490/ρ 80/ρ or 4 125/ρ or 4

ρ: Density at operating conditions (kg/m
(Note1) The case of gas, it is whichever is greater than a xed value of each model and calculated from density.

(Note2) Reduced bore type /R1 or /R2 are not available to combine for Cryogenic Version /LT.

Reduced

Bore Type

(/R1) (Note2)

Reduced

Bore Type

(/R2) (Note2)

Cryogenic Version

(/LT)(Note2),

Multi-Variable Type

(/MV)

Unit: m/s

3

), Liquid density range is 400 to 2000 kg/cm

Temperature
Version(/HT),
High Process

Temperature

Version Multi-

Variable Type

(/HT/MV)

Unit: m/s

Standard Type,

Cryogenic Version

(/LT)(Note2),

Multi-Variable Type

(/MV)

Unit: m/s

3

High Process

Temperature
Version(/HT),
High Process

Temperature

Version Multi­Variable Type

(/HT/MV)

Unit: m/s

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n Range of measurable ow velocity

Table 6 Range of measurable ow velocity

12

Fluid

Liquid

Gas,

Steam

When the ow velocity is lower than minimum, both the analog output and the pulse output is displayed as “0”.

DY015

DY400

DY015

DY400

Model Code Minimum ow velocity

to

to

DY025 /R1

to

DY200 /R1

DY025 /R1

to

DY200 /R1

DY040 /R2

to

DY200 /R2

DY040 /R2

to

DY200 /R2

“ow velocity obtained from Table 5” or “ow velocity at Reynolds

number of 5000”, whichever is greater.
For liquid Reynolds number of 5000: Refer to P.15 “Calculation
formula”.

“ow velocity obtained from Table 5” or “ow velocity at Reynolds

number of 5000”, whichever is greater.
For Gas and steam Reynolds number of 5000:
Refer to P.15 “Calculation formula”.

n Range of xed accuracy ow velocity

Table 7 Range of xed accuracy ow velocity

Fluid Model Code Minimum ow velocity

“ow velocity obtained from Table 5” or
“ow velocity at Reynolds number of 20 000”, whichever is greater.

For liquid Reynolds number of 20000: The value is four times
velocity value in P.15 “Calculation formula”.

“ow velocity obtained from Table 5” or “ow velocity at Reynolds

number of 40000”, whichever is greater.
For liquid Reynolds number of 40000: The value is eight times
velocity value in P.15 “Calculation formula”.

“ow velocity obtained from Table 5” or “ow velocity at Reynolds

number of 20000”, whichever is greater.
For gas and steam Reynolds number of 20000:
Refer to P.15 “Calculation formula”.

“ow velocity obtained from Table 5” or “ow velocity at Reynolds

number of 40000”, whichever is greater.
For gas and steam Reynolds number of 40000:
Refer to P.15 “Calculation formula”.

Liquid

Gas,

Steam

DY015

to

DY100

DY150

to

DY400

DY015

to

DY100

DY150

to

DY400

DY025 /R1

to

DY150 /R1

DY200 /R1 ―

DY025 /R1

to

DY150 /R1

DY200 /R1 ―

DY040 /R2

DY200 /R2

DY040 /R2

DY200 /R2

to

to

Maximum

ow

velocity

10m/s

80m/s

Maximum

ow

velocity

10m/s

80m/s

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n DETAILED ACCURACY

Accuracy is the value in range of xed accuracy ow velocity. Refer to Table 7.

Volumetric ow rate at operation condition

Model Code Standard Type Multi-Variable Type (/MV) Reduced Bore Type (/R1) Reduced Bore Type (/R2)

±1.0%

DY015

DY025

DY040

Liquid

Gas,

Steam

DY050

DY080

DY100

DY150

DY200

DY250

DY300

DY400

DY015

DY025

DY040

DY050

DY080

DY100

DY150

DY200

DY250

DY300

DY400

D: Inner diameter of digitalYEWFLO (mm)
Re: Reynolds number (non unit)
Note: This table shows the accuracy of pulse output. In case of analog output, add up ± 0.1% of full scale to the values mentioned

above.

Guarantee conditions of liquid volumetric ow rate: the accuracy of a product before shipment in our water actual test facility.

Totalized value of 2000 pulse or greater, straight pipe length: upper 10D or greater, lower 5D or greater, Fluid temp. 20 ± 10°C
Gas, Steam: The accuracy which is add up from liquid measurement accuracy.

The accuracy is conrmed by actual measured value of typical nominal size.

(20000≤Re<2000*D)

±0.75%

(2000*D≤Re)

±1.0%

(20000≤Re<1500*D)

±0.75%

(1500*D≤Re)

±1.0%

(20000≤Re<1000*D)

±0.75%

(1000*D≤Re)

±1.0%

(40000≤Re<1000*D)

±0.75%

(1000*D≤Re)

±1.0%

(Velocity 35m/s or less)

±1.5%

(Velocity 35m/s to 80m/s)

±1.0%

(20000≤Re<1500*D)

±0.75%

(1500*D≤Re)

±1.0%

(20000≤Re<1000*D)

±0.75%

(1000*D≤Re)

±1.0%

(40000≤Re<1000*D)

±0.75%

(1000*D≤Re)

±1.0%

(Velocity 35m/s or less)

±1.5%

(Velocity 35m/s to 80m/s)

±1.0%

±1.0%

(40000≤Re)

±1.0%

(Velocity 35m/s or less)

±1.5%

(Velocity 35m/s to 80m/s)

±1.0%

±1.0%

(Velocity 35m/s or less)

±1.5%

(Velocity 35m/s to 80m/s)

13

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

Mass ow or Volumetric ow rate at Normal/Standard condition:
for Multi-Variable Type and combination of Multi-Variable Type and Reduced Bore Type

Model Code /MV /MV/R1 /MV/R2

DY025

DY040

DY050

Liquid

Gas,

Steam

D: Inner diameter of digitalYEWFLO (mm)
Re: Reynolds number (non unit)
Note: This table shows the accuracy of pulse output. In case of analog output, add up ± 0.1% of full scale to the values mentioned

DY080

DY100

DY150

DY200 ±2.0% (40000≤Re)

DY025

DY040

DY050

DY080

DY100

DY150

DY200

above.

±2.0% (20000≤Re<1500*D)

±1.5% (1500*D≤Re)

±2.0%(20000≤Re<1000*D)

±1.5% (1000*D≤Re)

±2.0% (40000≤Re<1000*D)

±1.5% (1000*D≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

±2.0% (20000≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

±2.0% (20000≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

14

for High Temperature Version Multi-Variable Type and combination of High Temperature Multi-Variable Type
and Reduced Bore Type

Model Code /HT/MV /HT/MV/R1 /HT/MV/R2

DY025

DY040

DY050

Liquid

Gas,

Superheated

Steam

Saturated

Steam

D: Inner diameter of digitalYEWFLO (mm)
Re: Reynolds number (non unit)
Note: This table shows the accuracy of pulse output. In case of analog output, add up ± 0.1% of full scale to the values mentioned

DY080

DY100

DY150

DY200 ±2.0% (40000≤Re)

DY025

DY040

DY050

DY080

DY100

DY150

DY200

DY025

DY040

DY050

DY080

DY100

DY150

DY200

above.

±2.0% (20000≤Re<1500*D)

±1.5% (1500*D≤Re)

±2.0%(20000≤Re<1000*D)

±1.5% (1000*D≤Re)

±2.0% (40000≤Re<1000*D)

±1.5% (1000*D≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

±3.0%

(Velocity 35m/s or less)

±3.5%

(Velocity 35m/s to 80m/s)

±2.0% (20000≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

±3.0%

(Velocity 35m/s or less)

±3.5%

(Velocity 35m/s to 80m/s)

±2.0% (20000≤Re)

±2.0%

(Velocity 35m/s or less)

±2.5%

(Velocity 35m/s to 80m/s)

±3.0%

(Velocity 35m/s or less)

±3.5%

(Velocity 35m/s to 80m/s)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n Calculation formula

■ How to calculate volume ow rate at operating

conditions.

• Q

= 3600×υ×S or Qf =

f

υ×D

354

2

■ How to calculate the velocity of a Reynolds number.

• υ = 5×n / D (Reynolds number of 5000)

• υ = 20×n / D (Reynolds number of 20000)

• υ = 40×n / D (Reynolds number of 40000)

where

• Re =

354×103×Q

n×D

f

············ (1)

m

• n =

Q

f

D: Inner diameter of digitalYEWFLO (mm)
S: Sectional area of digitalYEWFLO (m

×103 ····················· (2)

r

f

: Volume ow rate at operating conditions (m3/h)

2

)
υ : Flow velocity (m/s)
Re: Reynolds number (non unit)

r

: Density at operating conditions (kg/m3)

f

m : Viscosity at operating conditions (mPa·s (cP) )
n : Kinematic viscosity at operating conditions

(10

-6m2

/s (cSt) )

15

n Typical uid example

DY015 DY025/R1 DY040/R2 0.30 to 6 0.94 to 6

DY025 DY040/R1 DY050/R2 0.65 to 18 1.7 to 18

DY040 DY050/R1 DY080/R2 1.3 to 44 2.6 to 44

DY050 DY080/R1 DY100/R2 2.2 to 73 3.3 to 73

DY080 DY100/R1 DY150/R2 4.3 to 142 4.6 to 142

DY100 DY150/R1 DY200/R2 7.5 to 248 7.5 to 248

DY150 DY200/R1 — 17 to 544 18 to 544

DY200 — — 34 to 973 34 to 973

DY250 — — 60 to 1506 60 to 1506

DY300 — — 86 to 2156 86 to 2156

DY400 — — 177 to 3547 177 to 3547

Table 8 Range of Measurable Water Flow Rate

(At standard condition of 15°C, ρ = 1000 kg/m

Model Code

Measurable Flow Rate

in m

3

/h

3

)

Range of Fixed

Accuracy Flow Rate

in m

3

/h

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

Table 9 Range of Measurable Air Flow Rate at Selected Process Pressures

16

Model Code

DY015

DY025

DY040

DY050

DY080

DY100

DY150

DY200 — —

DY250 — —

DY300 — —

DY400 — —

DY025

DY040

DY050

DY080

DY100

DY150

DY200

(1) Listed ow rate is at standard conditions STP (0°C. 1atm).

(2) Listed gauge pressure is at process temperature of 0°C.

(3) Maximum ow rate is the lower of 80m/s.
(4) Minimum ow rate: (value) is the lower limit of the accuracy range.

DY040

/R1

DY050

/R1

DY080

/R1

DY100

/R1

DY150

/R1

DY200

/R1

/R1

Flow
Rate

0 MPa 0.1 MPa 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1 MPa 1.5 MPa 2 MPa 2.5 MPa

Limits

min. 4.8(11.1) 6.7(11.1) 8.2(11.1) 10.5(11.1) 12.5 16.1 19.7 28.6 37.5 46.4

/R2

max. 48.2 95.8 143 239 334 429 524 762 1000 1238

min. 11.0(19.5) 15.5(19.5) 19.0(19.5) 24.5 29.0 33.3 40.6 59.0 77.5 95.9

/R2

max. 149 297 444 739 1034 1329 1624 2361 3098 3836

min. 21.8(30.0) 30.8 37.8 48.7 61.6 79.2 97 149 184 229

/R2

max. 356 708 1060 1764 2468 3171 3875 5634 7394 9153

min. 36.2(38.7) 51 62.4 80.5 102 131 161 233 306 379

/R2

max. 591 1174 1757 2922 4088 5254 6420 9335 12249 15164

min. 70.1 98.4 120 155 197 254 310 451 591 732

/R2

max. 1140 2266 3391 5642 7892 10143 12394 18021 23648 29274

min. 122 172 211 272 334 442 540 786 1031 1277

/R2

max. 1990 3954 5919 9847 13775 17703 21632 31453 41274 51095

min. 268 377 485 808 1131 1453 1776 2583 3389 4196

—

max. 4358 8659 12960 21559 30163 38765 47365 68867 90373 111875

min. 575 809 990 1445 2202 2599 3175 4617 6059 7501

max. 7792 15482 23172 38549 53933 69313 84693 123138 161591 200046

min. 1037 1461 1788 2306 3127 4019 4911 7140 9370 11600

max. 12049 23939 35833 59611 83400 107181 130968 190418 249881 309334

min. 1485 2093 2561 3303 4479 5756 7033 10226 13419 16612

max. 17256 34286 51317 85370 119441 153499 187556 272699 357856 443017

min. 2790 3933 4812 7020 9821 12622 15422 22424 29426 36427

max. 28378 56385 84391 140405 196418 252432 308445 448479 588513 728547

Minimum and Maximum Measurable Flow Rate in Nm3/h

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

Table 10 Range of Measurable Saturated Steam Flow Rate at Selected Process Pressures

17

Model Code

DY015

DY025

DY040

DY050

DY080

DY100

DY150

DY200 — —

DY250 — —

DY300 — —

DY400 — —

DY025

DY040

DY050

DY080

DY100

DY150

DY200

(1) Maximum ow rate is the lower of 80m/s.
(2) Minimum values are determined from Table 7. The values in parenthesis show the minimum linear ow rates (Re = 20,000 or

40,000) when they are higher than the minimum measurable ow rate.

DY040

/R1

DY050

/R1

DY080

/R1

DY100

/R1

DY150

/R1

DY200

/R1

/R1

Flow
Rate

0.1 MPa 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1 MPa

Limits

min. 5.8(10.7) 7.0(11.1) 8.8(11.6) 10.4(12.1) 11.6(12.3) 12.8 15.3 19.1 23.6 28.1

/R2

max. 55.8 80 129 177 225 272 390 508 628 748

min. 13.4(18.9) 16.2(20.0) 20.5 24.1 27.1 30 36 41 49 58

/R2

max. 169.7 247.7 400 548 696 843 1209 1575 1945 2318

min. 26.5(29.2) 32 40.6 47.7 53.8 59 72 93 11 6 138

/R2

max. 405 591 954 1310 1662 2012 2884 3759 4640 5532

min. 44.0 53 67.3 79 89 98 119 156 192 229

/R2

max. 671 979 1580 2170 2753 3333 4778 6228 7688 9166

min. 84.9 103 130 152 171 189 231 300 371 442

/R2

max. 1295 1891 3050 4188 5314 6435 9224 12024 14842 17694

min. 148 179 227 267 300 330 402 524 647 772

/R2

max. 2261 3300 5326 7310 9276 11232 16102 20986 25907 30883

min. 324 392 498 600 761 922 1322 1723 2127 2536

—

max. 4950 7226 11661 16010 20315 24595 35258 45953 56729 67624

min. 697 841 1068 1252 1410 1649 2364 3081 3803 4534

max. 8851 12918 20850 28627 36325 43976 63043 82165 101433 120913

min. 1256 1518 1929 2260 2546 2801 3655 4764 5882 7011

max. 13687 19977 32243 44268 56172 68005 97489 127058 156854 186978

min. 1799 2174 2762 3236 3646 4012 5235 6823 8423 10041

max. 19602 28609 46175 63397 80445 97390 139614 181960 224633 267772

min. 3381 4086 5187 6078 6848 8002 11472 14957 18468 22003

max. 32217 47070 75834 104152 132193 160037 229449 299131 369366 440055

Minimum and Maximum Measurable Flow Rate in kg/h

1.5 MPa

2 MPa

2.5 MPa

3 MPa

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

18

n Reference

Table 11 Inner Diameter and Nominal value

Inner

Model Code

DY025

DY015

DY025

DY040

DY050

DY080

DY100

DY150

DY200 — — 185.6 0.185 5.00 0.0514

DY250 — — 230.8 0.0966 4.04 0.0268

DY300 — — 276.2 0.0563 3.37 0.0156

DY400 — — 354.2 0.0265 2.61 0.00736

/R1

DY040

/R1

DY050

/R1

DY080

/R1

DY100

/R1

DY150

/R1

DY200

/R1

Diameter

DY040

/R2

DY050

/R2

DY080

/R2

DY100

/R2

DY150

/R2

DY200

/R2

— 138.8 0.441 6.67 0.123

Nominal
K-Factor

mm

Pulse/L

14.6 376 62.7 104

25.7 68.6 35.5 19.1

39.7 18.7 23.1 5.19

51.1 8.95 18.3 2.49

71.0 3.33 13.2 0.925

93.8 1.43 9.88 0.397

Nominal Pulse

Rate

Hz / m/s Hz / m

n Pressure Loss
Calculation of pressure loss for standard type

obtained from the following equations.

∆P=108×10

or

∆P=135×r

−5

×rf×υ2 ········· (1)

2

Q

f

×

············ (2)

f

4

D

where,

∆P: Pressure loss (kPa )
r

: Density at operating condition (kg/m3)

f

υ: Flow velocity (m/s)
Q

: Actual ow rate (m3/h)

f

D: Inner diameter of digitalYEWFLO (mm)

(Example)

DY050, hot water: 80°C, owrate: 30 m

3

/h

1. Since the density of water at 80°C is 972 kg/m
substitute this value in equation (2):

2

∆P = 135 × 972 × 30

/ 51.1

4

= 17.3 kPa

2. Obtain the pressure loss using equation (1). The

ow velocity when the ow rate is 30 m

3

/h is

given by:

υ = 354×Q

/D2=

f

354×30

51.1

= 4.07m/s

2

Therefore, substitute this value in equation (1):
∆P = 108 × 10

-5

× 972 × 4.07

2

= 17.3 kPa

Calculation of pressure loss for reduced bore
type (Option code: /R1)

obtained from the following equations.
∆P = 124 × 10
or

∆P = 155 × ρ

-5

× rf × υ2 ················ (3)

2

× Q

/ D4 ·················· (4)

f

f

(Example)

DY040/R1, hot water: 50 °C, owrate: 10 m

1. Since the density of water at 50 °C is 992 kg/m

3

/h

3

,

substitute this value in equation (4):

2

3

/ h

= 35.3 kPa

2. Obtain by using equation (3). The ow velocity
when the ow rate is 10 m

∆P = 155 × 992 × 10

υ = 354 × Q

= 5.4m/s

× /D2 = 354 × 10 × 25.7

f

/ 25.7

4

3

/h is given by:

2

Therefore, substitute this value in equation (3):
∆P = 124 × 10

-5

× 992 × 5.4

2

= 35.3 kPa

Calculation of pressure loss for reduced bore
type (Option code: /R2)

obtained from the following equations.
∆P = 138 × 10

or

∆P = 173 × r

(Example)

DY050-/R2, hot water: 50 °C, owrate: 15 m

1. Since the density of water at 50 °C is 992 kg/m

-5

× rf × υ2 ················ (5)

2

Q

f

×

f

······················ (6)

4

D

3

/h

3

,

substitute this value in equation (6):

2

∆P = 173 × 992 × 15

/ 25.7

4

= 88.5 kPa

2. Obtain by using equation (5). The ow velocity
when the ow rate is 15m

υ = 354×Q

/D2=

f

354×15

25.7

3

/h is given by:

= 8.0m/s

2

Therefore, substitute this value in equation (5):
∆P = 138 × 10

-5

× 992 × 8.0

2

= 88.5 kPa

n Cavitation

(Minimum Back Pressure, Liquid service only):

Cavitation occurs when the ow line pressure is low
and ow velocity is high during uid measurement,
preventing correct measurement of ow rate. The

3

,

optimum line pressure can be obtained from the
following equation.
P = 2.7 × ∆P + 1.3 × Po ················ (7)

Where,

P: Line pressure, 2 to 7 times as large as internal

diameter on downstream of owmeter body

surface. (kPa absolute).

∆P: Pressure loss (kPa). Refer to the item above.

Po: Saturation liquid vapor pressure at operating

temperature (kPa absolute).

(Example) Conrmation of presence of cavitation
Suppose that the line pressure is 120 kPa abs and

the ow rate scale is 0 to 30 m

3

/h. It is only necessary

to conrm the pressure at the maximum ow rate ;

therefore, the saturated steam pressure of water at
80°C is as follows from the table of saturated steam
pressures:

Po = 47.4 kPa abs

Therefore, substitute this value in equation (7):

P = 2.7 × 17.3 + 1.3 × 47.4
= 108.3 kPa abs

Since the operating pressure of 120 kPa abs is
higher than 108.3 kPa abs, no cavitation occurs.

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

n OPTION SPECIFICATIONS (FOR EXPLOSION PROTECTED TYPE)

* Refer to “Contact rating” for the maximum current value of Pulse Circuit.

Item Specication Code

TIIS Certication TIIS Flameproof Approval (Note 1)

Factory Mutual
(FM)

ATEX ATEX Flameproof Approval (Note 3)

(Note 1) The ameproof packing adapter /G11 or /G12 is necessary except the electrical conduit work. In case the ambient

(Note 2) For intrinsically safe approval, use the barrier certied by the testing laboratories (BARD-400 is not applicable).

(Note 3) Cryogenic Version /LT is not available.

Flameproof Ex d IIC T6 Certied by TIIS.

(TIIS is the abbreviation of Technology Institution of Industrial Safety.)
Amb. Temp: –20 to 60°C
Electrical connection: JIS G1/2 female

FM Explosion proof Approval

Applicable Standard: FM3600, FM3611, FM3615, FM3810, ANSI/NEMA 250
Type of Protection: Explosion proof for Class I, Division 1, Groups A, B, C and D;
Dust-ignitionproof Class II/III, Division 1, Groups E, F, and G.
“SEAL ALL CONDUITS WITHIN 18 INCHES.” “WHEN INSTALLED IN DIV.2, SEALS NOT REQUIRED.”
Enclosure Rating: Type 4X
Temperature Code: T6
Ambient Temperature: –29 to 60°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
–40 to 60°C (Remote Type Vortex Flow Converter)
Ambient Humidity: 0 to100%RH (No condensation)
Coating of Enclosure: Epoxy resin coating or Polyurethane resin coating.
Electrical Connection: ANSI 1/2NPT female

FM Intrinsically safe Approval (Note 2)

Applicable Standard: FM3600, FM3610, FM3611, FM3810, NEMA-250, ANSI/ISA-60079-0, ANSI/ISA 60079-11
Type of Protection: Intrinsically safe:
Class I, Division 1, Groups A, B, C and D, T4
Class II, Division 1, Groups E, F and G, T4
Class III, Division 1, T4
Class I, Zone 0, AEx ia IIC T4
Nonincendive:
Class I, Division 2, Groups A, B, C and D, T4
Class II, Division 2, Groups F and G, T4
Class III, Division 1, T4
Ambient Temperature: –29 to +60°C (Integral Type Vortex Flowmeter)
–29 to +80°C (Remote Type Vortex Flow Detector)
–40 to +60°C (Remote Type Vortex Flow Converter)
Ambient Humidity: 0 to 100% RH (No condensation)
Indoors and Outdoors: Type 4X
Electrical Parameter: Vmax=30Vdc, Imax=165mAdc, Pi=0.9W, Ci=12nF, Li=0.15mH
Electrical Connection: ANSI 1/2NPT female

Applicable Standard: EN 60079-0, EN 60079-1
Type of Protection: II2 G Ex d IIC T6...1 Gb (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)

Groups: II, Category: 2 G
Temperature Class: T6...T1 (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
T6 (Remote Type Vortex Flow Converter)
Process Temp.: T6 (–29 to 80°C), T5 (–29 to 100°C), T4 (–29 to 135°C),
T3 (–29 to 200°C), T2 (–29 to 300°C) T1 (–29 to 450°C)
(Use /HT version above 250°C),
Ambient temperature: –29 to 60°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)

Ambient Humidity: 0 to 100%RH (No condensation)
Electrical Connection: ANSI 1/2NPT female, ISO M20 × 1.5 female

ATEX Intrinsically Sare (Note2)

Applicable Standard : EN 60079-0, EN60079-11, EN 60079-26
Type of protection: Ex ia IIC T4...T1Ga (Integral Type Vortex Flowmeter)

Groups/Category: II 1 G
Temperature Class: T4...T1(Integral Type Vortex Flowmeter)

Ambient temperature: –29 to +60°C (Integral Type Vortex Flowmeter)

Ambient Humidity: 5 to 100%RH (No condensation)
Process temperature: T6: –196 to 84[79]°C, T5: –196 to 100°C, T4: –196 to 135°C,

Signal/Supply (Terminals SUPPLY + and –) and Pulse (Terminals PULSE + and –) Circuit:
Ui = 30 V, Ii = 300 mA, Pi = 0.9 W (linear source), Ci = 14 nF, Li = 0 mH
Electrical connection: ANSI 1/2 NPT female, ISO M20 × 1.5 female

II2 G Ex d IIC T6 Gb (Remote Type Vortex Flow Converter)

–40 to 60°C (Remote Type Vortex Flow Converter without indicator)
–30 to 60°C (Remote Type Vortex Flow Converter with indicator)

Ex ia IIC T6...T1 Ga (Remote Type Vortex Flow Detector)
Ex ia IIC T4 Ga (Remote Type Vortex Flow Converter)

T6...T1(Remote Type Vortex Flow Detector)
T4 (Remote Type Vortex Flow Converter)

–40 to +80[79]°C (Remote Type Vortex Flow Detector)
(Option /LT below –29°C, [ ] for Option /MV at T6)
–40 to +80°C (Remote Type Vortex Flow Converter without indicator):
–30 to +80°C (Remote Type Vortex Flow Converter with indicator):

T3: –196 to 199°C, T2: –196 to 299[289]°C, T1: –196 to 449[439]°C
(Option /HT above 250°C and Option /LT below -29°C, [ ] : Option /MV)

temperature exceeds 50°C, use heat resistant cables with maximum allowable temperature of 70°C or above.

19

JF3

FF1

FS1

KF2

KS2

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

Item Specication Code

Canadian
Standards
Association
(CSA)

IECEx IECEx Flameproof Approval (Note 1)

(Note 1) Cryogenic Version /LT is not available.

(Note 2) For intrinsically safe approval, use the barrier certied by the testing laboratories (BARD-400 is not applicable).

CSA Explosion proof Approval

Applicable Standard: C22.1-98, C22.2 No.0, C22.2 No.0.4, C22.2 No.0.5, C22.2 No.25, C22.2 No.30, C22.2 No.94, C22.2 No.142, C22.2,
No.61010-1, ANSI/ISA-12.27.01
Type of Protection: explosion-proof for Class I, Groups B, C and D; Class II, Groups E, F, and G; Class III.
For Class I, Division 2 locations­ “FACTORY SEALED, CONDUIT SEAL NOT REQUIRD”
Temperature Class: T6...T1 (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
T6 (Remote Type Vortex Flow Converter)
Amb.Temp.: –29 to +60°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
–40 to +60°C (Remote Type Vortex Flow Converter)
Process temp.: T6;85°C, T5;100°C, T4;135°C, T3;200°C, T2;300°C, T1; 450°C
Enclosure: Type 4X
Coating of Enclosure: Epoxy resin coating or Polyurethane resin coating.
Electrical Connection: ANSI 1/2 NPT female (Special)

CSA Explosion proof Approval

· The approval specication is the same with /CF1.

· Process Sealing Certication
Dual Seal Certied by CSA to the requirement of ANSI/ISA 12.27.01

No additional sealing required
CSA Intrinsically safe Approval (Note 2)

Applicable Standard: C22.2 No. 0.4, C22.2 No. 157, C22.2 No. 213, C22.2 No. 1010.1, CAN/CSA-E60079-0, CAN/CSA-E60079-11,
CAN/CSA-E60079-15 and ANSI/ISA 12.27.01
Type of Protection: Ex ia IIC T4...T1 and Ex nC IIC T4...T1 (Integral Type Flowmeter and Remote Type Flowmeter)
Ex ia IIC T4 and Ex nC IIC T4 (Remote Type Converter)
Process Temp.: T4;135°C, T3;200°C, T2;300°C, T1;450°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
Amb. Temp.: –40 to +60°C (Integral Type Vortex Flowmeter, Remote Type Vortex Flow Detector and Remote Type Vortex Flow Converter)
Amb. Hum.: 0 to 100%RH (No condensation)
Degree of Protection of Enclosure: IP67
Electrical Parameter: Ui=30Vdc, Ii=165mAdc, Pi=0.9W, Ci=12nF, Li=0.15mH.
Electrical Connection: ANSI 1/2 NPT female

Type of Protection: Intrinsically Safe for Class I, II, III, DIV.1, Groups A, B, C, D, E, F and G
Non-incendive for Class I, II, DIV.2, Groups A, B, C, D, E, F and G, ClassIII, DIV.1.
Temperature Code: T4...T1(Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
T4(Remote Type Vortex Flow Converter)
Process Temp.: T4;135°C, T3; 200°C, T2; 300°C, T1; 450°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
Amb. Temp.: –40 to +60°C (Integral Type Vortex Flowmeter, Remote Type Vortex Flow Detector and Remote Type Vortex Flow Converter)
Amb. Hum.: 0 to 100%RH (No condensation)
Enclosure: Type 4X
Electrical Parameter: Vmax =30Vdc, I max =165mAdc, Pmax = 0.9W, Ci =12nF, Li = 0.15mH.
Electrical Connection: ANSI 1/2 NPT female

CSA Intrinsically safe Approval

· The approval specication is the same with /CS1.

· Process Sealing Certication
Dual Seal Certied by CSA to the requirement of ANSI/ISA 12.27.01

No additional sealing required

Applicable Standard: IEC60079-0, IEC60079-1
Type of Protection: Ex d IIC T6...T1 Gb (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)

Temperature Class: T6...T1 (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)
T6 (Remote Type Vortex Flow Converter)
Process Temp.: T6(–29 to 80°C), T5(–29 to 100°C), T4(–29 to 135°C),
T3(–29 to 200°C), T2(–29 to 300°C), T1(–29 to 450°C)
(Use /HT version above 250°C)
Ambient temperature: –29 to 60°C (Integral Type Vortex Flowmeter and Remote Type Vortex Flow Detector)

Ambient Humidity: 0 to 100%RH
Electrical Connection: ANSI 1/2NPT female, ISO M20 × 1.5 female

IECEx Intrinsically Safe (Note2)

Applicable Standard : IEC 60079-0, IEC60079-11, IEC 60079-26
Type of protection: Ex ia IIC T4...T1Ga (Integral Type Vortex Flowmeter)

Temperature Class: T4...T1(Integral Type Vortex Flowmeter)

Ambient temperature: –29 to +60°C (Integral Type Vortex Flowmeter)

Ambient Humidity: 5 to 100%RH (No condensation)
Process temperature: T6: –196 to 84[79]°C, T5: –196 to 100°C, T4: –196 to 135°C,

Signal/Supply (Terminals SUPPLY + and –) and Pulse (Terminals PULSE + and –) Circuit:

Electrical connection: ANSI 1/2 NPT female, ISO M20 × 1.5 female

Ex d IIC T6 Gb (Remote Type Vortex Flow Converter)

–40 to 60°C (Remote Type Vortex Flow Converter without indicator)
–30 to 80°C (Remote Type Vortex Flow Converter with indicator)

Ex ia IIC T6...T1 Ga (Remote Type Vortex Flow Detector)
Ex ia IIC T4 Ga (Remote Type Vortex Flow Converter)

T6...T1(Remote Type Vortex Flow Detector)
T4 (Remote Type Vortex Flow Converter)

–40 to +80[79]°C (Remote Type Vortex Flow Detector)
(Option /LT below –29°C, [ ] for Option /MV at T6)
–40 to +80°C (Remote Type Vortex Flow Converter without indicator):
–30 to +80°C (Remote Type Vortex Flow Converter with indicator):

T3: –196 to 199°C, T2: –196 to 299[289]°C, T1: –196 to 449[439]°C
(Option /HT above 250°C and Option /LT below –29°C, [ ] : Option /MV)

Ui = 30 V, Ii = 300 mA, Pi = 0.9 W (linear source), Ci = 14 nF, Li = 0 mH

20

CF1

CF11

CS1

CS11

SF2

SS2

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

21

n REMARKS ON INSTALLATION

 Piping support

Typical vibration immunity level is 1G for normal piping

condition.Piping support should be xed in case of over

1G vibration level.

 Installation direction

If a pipe is always lled with liquids, the pipe can be

installed vertically or at inclined angle.

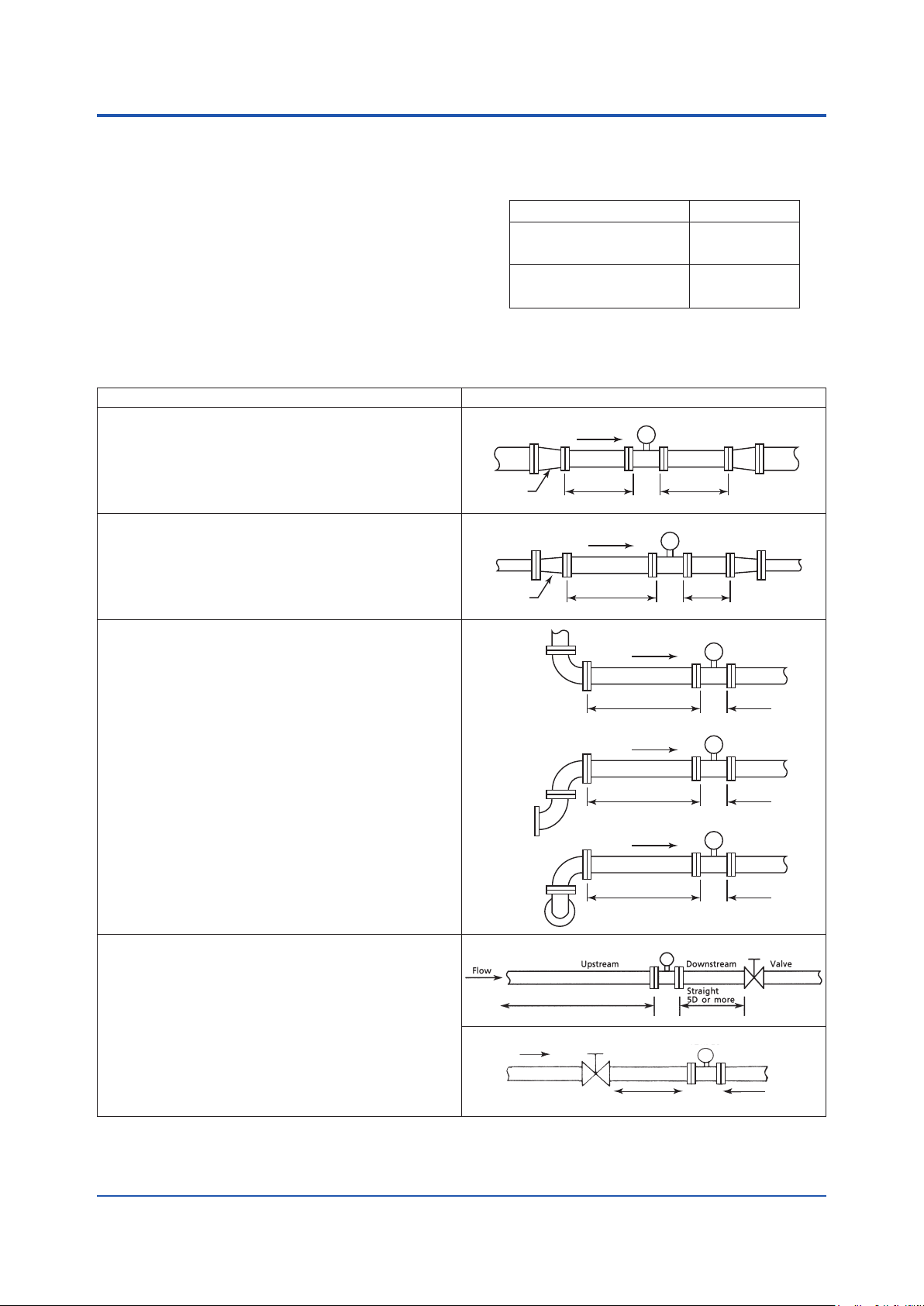

 Straight pipe length and recommendations (1)

D: Nominal diameter (mm)

Description Figure

Reducer pipe:

Ensure the upstream straight pipe length to be 5D or more, and the
downstream straight pipe length to be 5D or more for per reducer
pipe.

Expander pipe:

Ensure the upstream straight pipe length to be 10D or more, and
the downstream straight pipe length to be 5D or more for per
expander pipe.

Bent pipe and straight pipe length:

1. Single bent pipe

 Adjacent pipes

The process pipline inner diameter should be larger
than the digitalYEWFLO inner diameter.
Use the following adjacent pipe.

Model Code Adjacent Pipe

DY015 up to DY050
DY025/R1 up to DY080/R1
DY040/R2 up to DY100/R2

DY080 up to DY400
DY100/R1 up to DY200/R1
DY150/R2 up to DY200/R2

Reducer

Expander

1.

Flow

5D or more

Flow

10D or more

digitalYEWFLO

5D or more

digitalYEWFLO

Flow

Sch40

or larger inner

diameter than Sch40

Sch80

or larger inner

diameter than Sch80

5D or more

digitalYEWFLO

2. Double bent pipe; coplanar

3. Double bent pipe; non coplanar

Valve position and straight pipe length:

Install the valve on the downstream side of the flowmeter.

n

The upstream straight pipe length dependent on the element
located on the upstream such as reducer/expander, bent and etc.,
refer to description as above. Keep 5D or more for downstream
straight pipe length.

In case the valve has to be installed on the upstream of the

n

owmeter, ensure the upstream straight pipe length to be 20D or

more, and the downstream straight pipe length be 5D or more.

2.

3.

Refer to each element above for
straight pipe run.

Flow

Valve

10D or more 5D or more

digitalYEWFLO

Flow

10D or more 5D or more

digitalYEWFLO

Flow

20D or more 5D or more

digitalYEWFLO

digitalYEWFLO

20D or more

5D or more

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

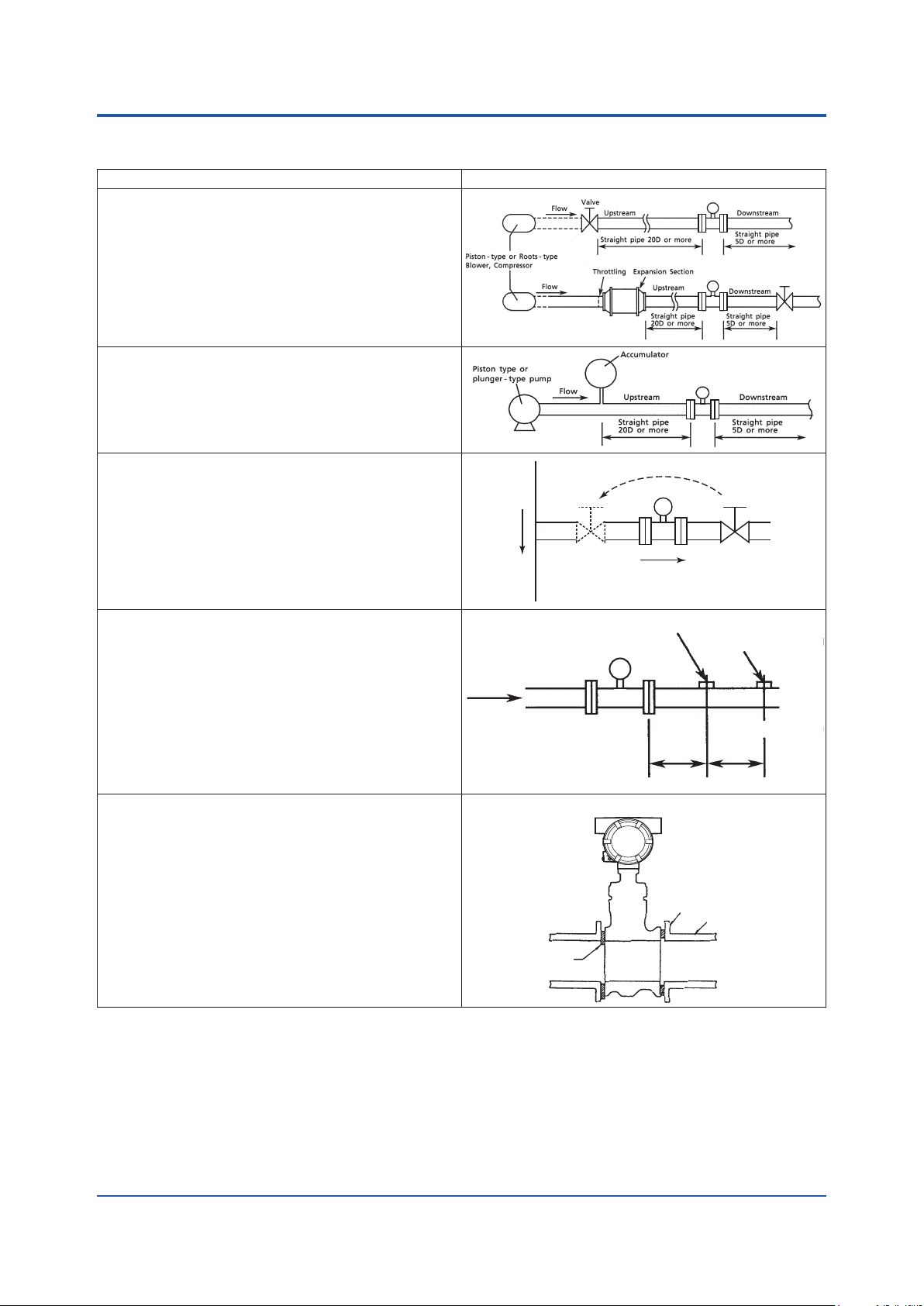

 Straight pipe length and recommendations (2)

D: Nominal diameter (mm)

Description Figure

Fluid vibration:

For a gas line which uses a position-type or roots-type blower
compressor or a high-pressure liquid line (about 1MPa or more)
which uses piston-type or plunger-type pump, fluid vibrations may
be produced.
In these case, install valve on the upstream side of digitalYEWFLO.
For inevitable fluid vibration, put a vibration damping device such
as throttling plate or expansion section in the upstream side of
digitalYEWFLO.

Piston-type or plunger pump:

Install the accumulator on the upstream side of digitalYEWFLO to

reduce uid vibrations.

Valve positon (T-type piping exist):

When pulsation causes by a T-type piping exist, install the valve on

the upstream of the owmeter.

Example: As shown in the figure, when the valve V1 is turned off,
the fluid flow throught B as to meter A the flow is zero. But due to
the pulsating pressure is detected, the meter is zero point become

uctuating. To avoid this, change the valve V1 location to V1'.

Note: In case of the Reduced Bore Type, moisture may be

remained upstream of the owmeter. Drain it appropriately.

B

Flow

digitalYEWFLO

digitalYEWFLO

digitalYEWFLO

Relocating

V1’ V1

digitalYEWFLO

A

22

Valve (Off)

Pressure and Temperature Taps:

Pressure tap outlet: install this tap between 2D and 7D on the

downstream side of a owmeter.

Temperature tap outlet: install this on the downstream side 1D to
2D away from a pressure tap.

Mounting Gasket:

Avoid mounting gaskets which protrude into the pipe line. This may
cause inaccurate readings.
Use the gaskets with bolt holes, even if digitalYEWFLO is the wafer
type.
When using a spiral gasket (without bolt holes), confirm the size
with the gasket -manufacturer, as standard items may not be used

for certain ange ratings.

Flow

Upstream

No good

Pressure tap

digitalYEWFLO

digitalYEWFLO

Temperature tap

downstream

2 to 7D 1 to 2D

Pipeline Flange

Pipeline

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

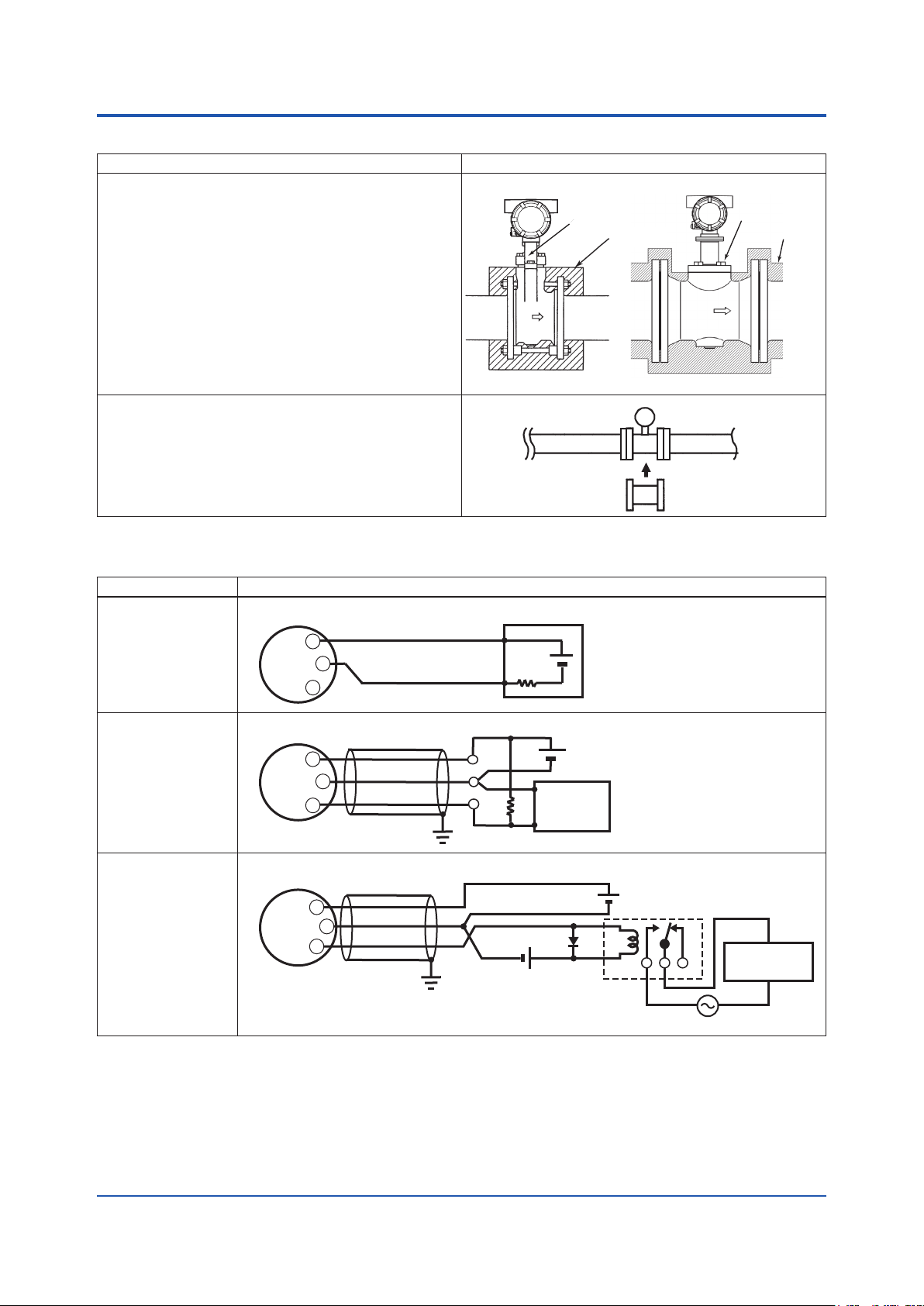

 Straight pipe length and recommendations (3)

Description Figure

Heat-Insulation:

When an integral-type flowmeter or a remote type detector is
installed and the pipe carrying higt-temperature fluids is heat­insulated, do not wrap adiabatic materials around the installation
the bracket (DY015 to DY100) or the nozzle (DY150 to DY400) of
the converter.

Flushing of the pipe line:

Flush and clean scale, incrustation and sludge on the inside of
pipe for newly installed pipe line and repaired pipe line before the

operation. For ushing, the ow should ow through bypass-piping

to avoid damaging the flowmeter. If there is no bypass-piping,

install short pipe instead of the owmeter.

digitalYEWFLO digitalYEWFLO

Bracket

Heat-Insulator Heat-Insulator

[DY015 to DY100] [DY150 to DY400]

Nozzle

digitalYEWFLO

Short pipe

23

 The wiring example for the analog and pulse and status, alarm output.

Connection Description

Analog Output

In this case, Communication
is possible (up to a distance
of 2km when a CEV cable is
used.)

Pulse Output

In this case, No
communication is possible.

digitalYEWFLO Electrical Terminal

+

SUPPLY

–

PULSE

+

digitalYEWFLO Electrical Terminal

+

SUPPLY

Shielded Cable

+

–

Distributor

24V DC

250Ω

E

–

Status Output

Alarm Output

In this case,
No communication is
possible.

PULSE

+

digitalYEWFLO Electrical Terminal

Shielded Cable

+

SUPPLY

–

PULSE

+

*2

R

Electric counter

External Power supply
30V DC, 120mA max
(Contact Rating)

Use the Three-wire shielded cable.

This supply voltage requires
a power sourse with a
maximum output current of
no less than E/R+25mA.

*1

Use the Three-wire shielded cable.

E

Relay

AC power supply

Magnetic

valve

*1: To avoid the inuence of external noise, use an electric counter which ts to the pulse frequency.

*2: Resistor is not necessary in case of an electric counter which can receive contact pulse signal directly.

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

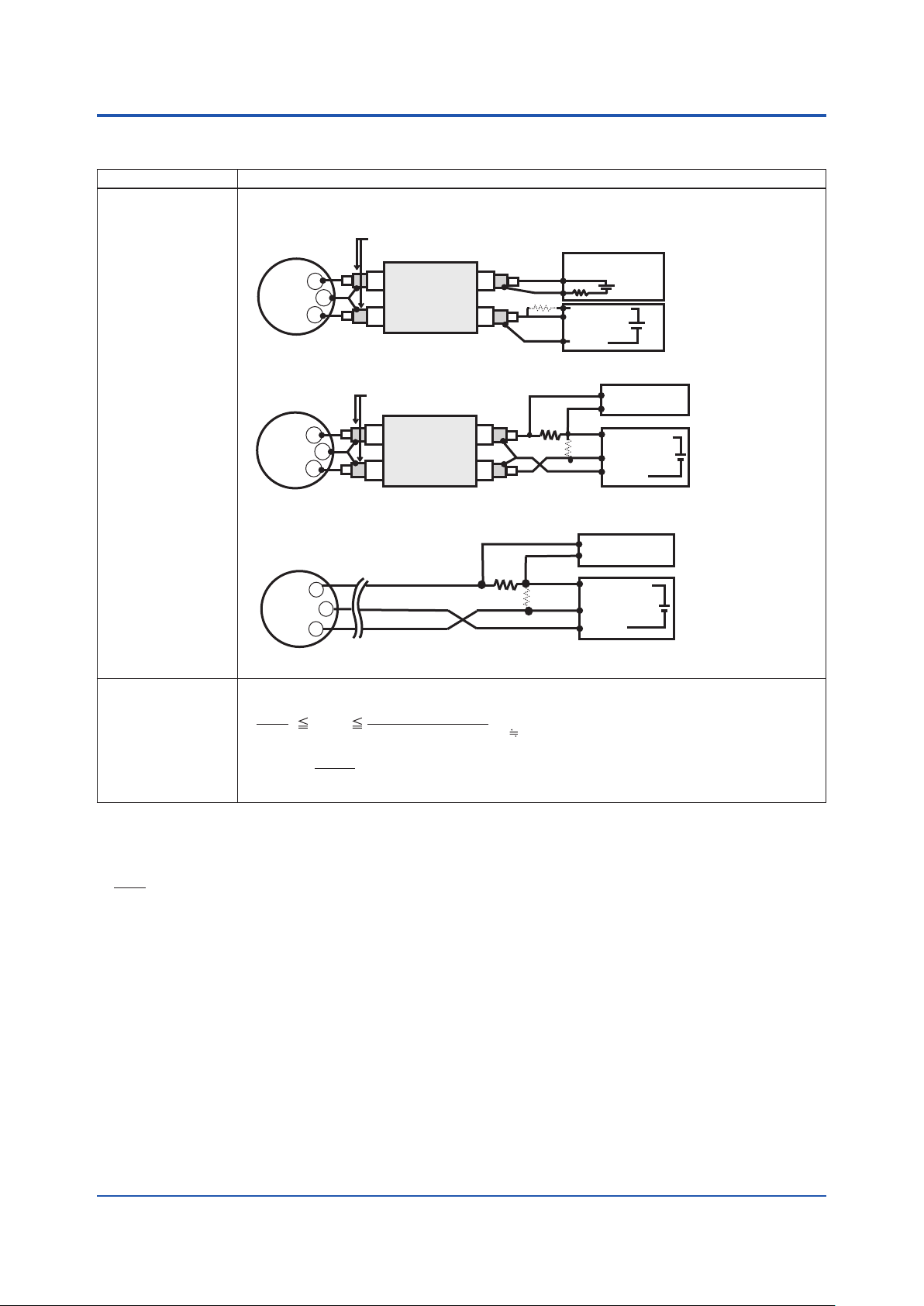

 The wiring example for the the simultaneous analog and pulse output, the calculation formula of the

range of load registance R for the pulse output.

Connection Description

Simultaneous

Analog

-Pulse Output

Example 1

In this case, Communication
is possible(up to a distance
of 2km when a CEV cable is
used).

When analog and pulse output are used, the length of communication line is subjected to wiring conditions. Refer to
example 1 to 3. If the communication carries out from amplifier, no need to consider wiring conditions.

*3

Shield

Shielded Cable

+

SUPPLY

PULSE

digitalYEWFLO Electrical Terminal

–

+

Outer Jacket

Distributor (or communication medium)

For the shielded cables in this
example of flowmeter installation,
use two-wire separately
shielded cables. *4

This supply voltage requires a
power sourse with a maximum
output current of no less than
E/R.

(or communication medium)

*2

(R)

E(10.5 to 30V DC)

Counting input

Common

Electric counter *1

24V DC

250Ω

24

Example 2

In this case, Communication
is possible (up to a distance
of 200m when a CEV cable

is used) and R = 1kΩ).

Example 3

In this case, No communi

-cation is possible (when
shielded cable is not used).

The range of load
resistance R for the
pulse output.

Shield

Shielded Cable

250Ω

250Ω

(R)

*2

(R)

Electric counter *1

(or communication medium)

Recorder or
other instrument

E(16.4 to 30V DC)

*2

Counting input

Common

Electric counter *1

(or communication medium)

PULSE

SUPPLY

+

–

Outer Jacket

+

+

SUPPLY

digitalYEWFLO Electrical Terminal

–

PULSE

+

digitalYEWFLO Electrical Terminal

The load resistance should be selected by calculation as shown below.

*5

E (V)

120

P (mW) =

R (k

E

R (k

Ω)

2

(V)

Ω)

0.1

µF ) × f ( kHz )

C (

Where
E = Supply voltage (V)
f = Frequency of pulse output (kHz)
R = Value of load resistance (k

Example of CEV cable capacitance

0.1µF/km

Ω)

C = Cable capacitance (µF)
P = Power ratio of the load resistance
(mW)

Recorder or
other instrument

E(16.4 to 30V DC)

Counting input

Common

For the shielded cables in this
example of flowmeter installation,
use two-wire separately shielded
cables. *4
This supply voltage requires a
power sourse with a maximum
output current of no less than
E/R+25mA.
The supply voltage requires output
impedance no more than 1/1000
of R (load resistance).

This supply voltage requires
a power sourse with a
maximum output current of
no less than E/R+25mA.

*1: To avoid the inuence of external noise, use an electric counter which ts to the pulse frequency.

*2: Resistor is not necessary in case of an electric counter which can receive contact pulse signal directly.

*3: When using analog and pulse output simultaneously, the HART communication may be inuenced by noise comparing analog output only.

*4: Signal Cable for ADMAG AXF, AXFC-0 (No Termination) is available.

E (V)

*5:

for /KS2 and /SS2

80

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

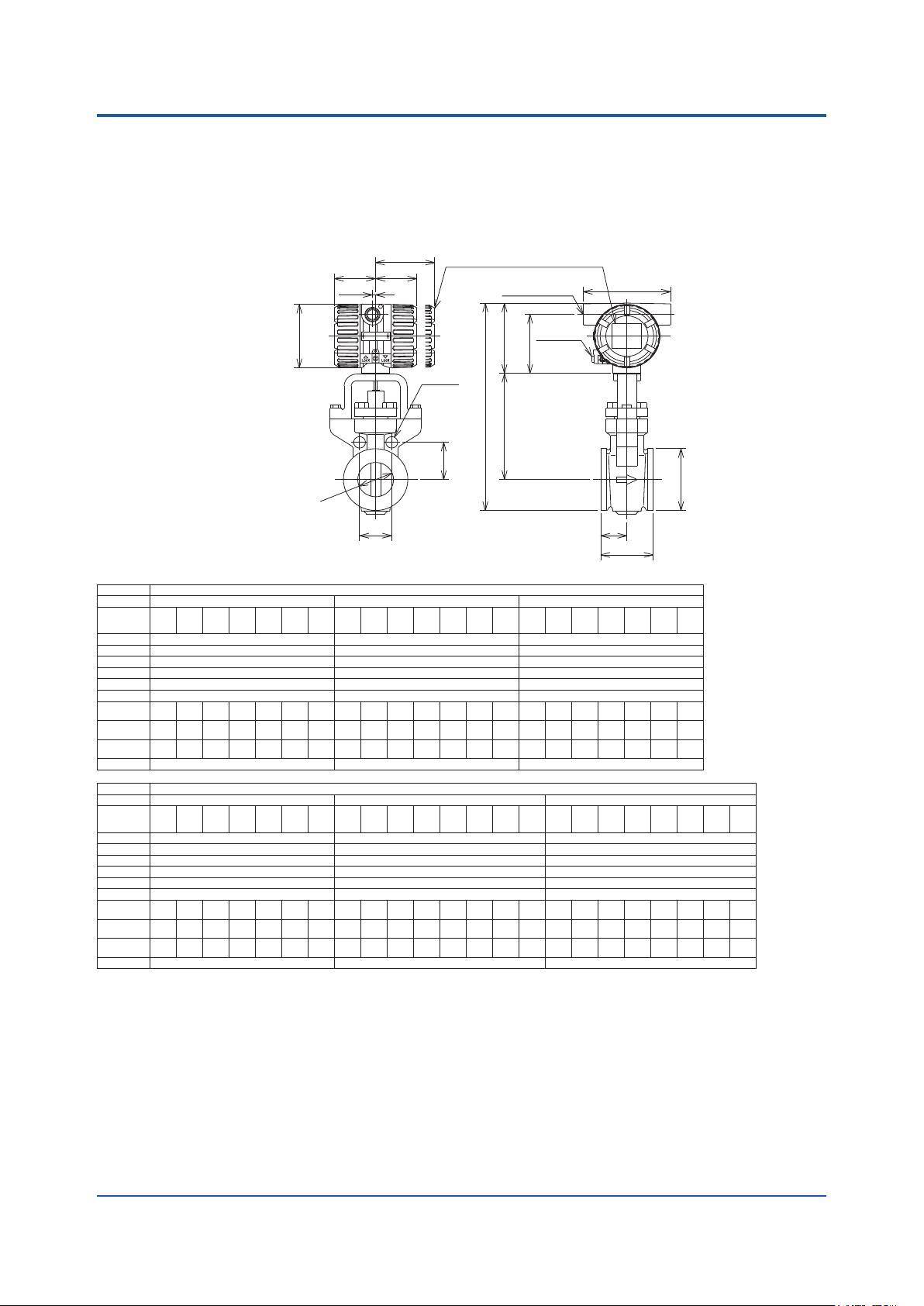

n EXTERNAL DIMENSIONS

n Wafer type (DY015 to DY100)

25

Unit : mm

(approx. inch)

ø94 (3.70)

59 (2.32)

(0.18)

4.5

74 (2.91)

59 (2.32)

WITH INDICATOR

ELECTRICAL
CONNECTION

EARTH
TERMINAL

103.5 (4.07)

87.5 (3.44)

125 (4.92)

2-øG

H

H1

F

C

ø

E

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.
(Note 3) The holes are not provided.

(Note 4) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

AJ1 AJ2 AJ4 AA1 AA2 AA4
L 70 (2.76) 70 (2.76) 70 (2.76)
B 35 (1.38) 35 (1.38) 35 (1.38)
C 14.6 (0.57) 25.7 (1.01) 39.7 (1.56)
D 35.1 (1.38) 50.8 (2.00) 73 (2.87)
H 248 (9.76) 258 (10.16) 276 (10.87)

H1 127 (5.00) 129 (5.08) 136 (5.35)

49.5

E

F

G

TYPE INTEGRAL/REMOTE

L 75 (2.95) 100 (3.94) 120 (4.72)
B 37.5 (1.48) 40 (1.57) 50 (1.97)
C 51.1 (2.01) 71 (2.80) 93.8 (3.69)
D 92 (3.62) 127 (5.00) 157.2 (6.19)
H 307.5 (12.11) 342 (13.47) 372 (14.65)

H1 158 (6.22) 175 (6.89) 190 (7.48)

E

F

G

49.5

(1.95)

(1.95)

24.7

24.7

(0.97)

(0.97)

13

(0.51)

(0.51)

AJ1 AJ2 AJ4 AA1 AA2 AA4

45.9

(Note 3)

(1.81)

55.4

(Note 3)

(2.18)

(Note 3)

(0.67)

DY015 DY025 DY040

56.6

42.7

(2.23)

28.3

(1.11)

13

17

(0.67)

49.8

(1.96)

60.1

(2.36)

17

17

(0.67)

47.1

(1.68)

(1.85)

21.4

23.5

(0.84)

(0.93)

14

14

(0.55)

(0.55)

2.8 (6.2) 3.7 (8.2) 4.3 (9.5)

DY050 DY080 DY100

48.6

(Note 3)

(1.91)

58.7

(Note 3)

(2.31)

17

(Note 3)

(0.67)

6.0 (13.2) 9.4 (20.7) 12.8 (28.2)

47.1

(1.85)

23.5

(0.93)

14

(0.55)

48.6

(1.91)

58.7

(2.31)

17

(0.67)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

46

63.6

63.6

(1.81)

(2.50)

23

31.8

(0.91)

(1.25)

13

17

(0.51)

(0.67)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

57.4

(Note 3)

(2.26)

69.3

(Note 3)

(2.73)

17

(Note 3)

(0.67)

(2.50)

31.8

(1.25)

17

(0.67)

61.2

(2.41)

73.9

(2.91)

21

(0.83)

67.2

(2.65)

33.6

(1.32)

17

(0.67)

65.1

(2.56)

78.5

(3.09)

21

(0.83)

56

(2.21)

28

(1.10)

14

(0.55)

(Note 3)

(Note 3)

(Note 3)

62.9

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

62.9

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

60.1

74.2

(2.37)

30.1

(1.19)

13

(0.51)

AD1

AD2

61.2

(2.41)

73.9

(2.91)

17

(0.67)

74.2

(2.92)

(2.92)

37.1

37.1

(1.46)

(1.46)

17

17

(0.67)

(0.67)

AD3

AD4 AJ1 AJ2 AJ4 AA1 AA2 AA4

61.2

67

(2.41)

(2.64)

73.9

80.8

(2.91)

(3.18)

17

17

(0.67)

(0.67)

84.9

(3.34)

42.4

(1.67)

21

(0.83)

70.8

(2.79)

85.5

(3.37)

21

(0.83)

69.7

(2.74)

34.8

(1.37)

14

(0.55)

78.5

(3.09)

94.7

(3.73)

23

(0.91)

B

L

80.8

(3.18)

40.4

(1.59)

20

(0.79)

72.9

(2.87)

88

(3.46)

17

(0.67)

80.8

(3.18)

40.4

(1.59)

20

(0.79)

76.6

(3.02)

92.5

(3.64)

20

(3.06)

øD

AD1

to

AD4

77.8

(3.06)

38.9

(1.53)

17

(0.67)

82.6

(3.25)

99.7

(3.93)

23

(0.91)

AD1
AD2

68.9

(2.71)

83.1

(3.27)

17

(0.67)

AD3
AD4

72.7

(2.86)

87.8

(3.46)

21

(0.83)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

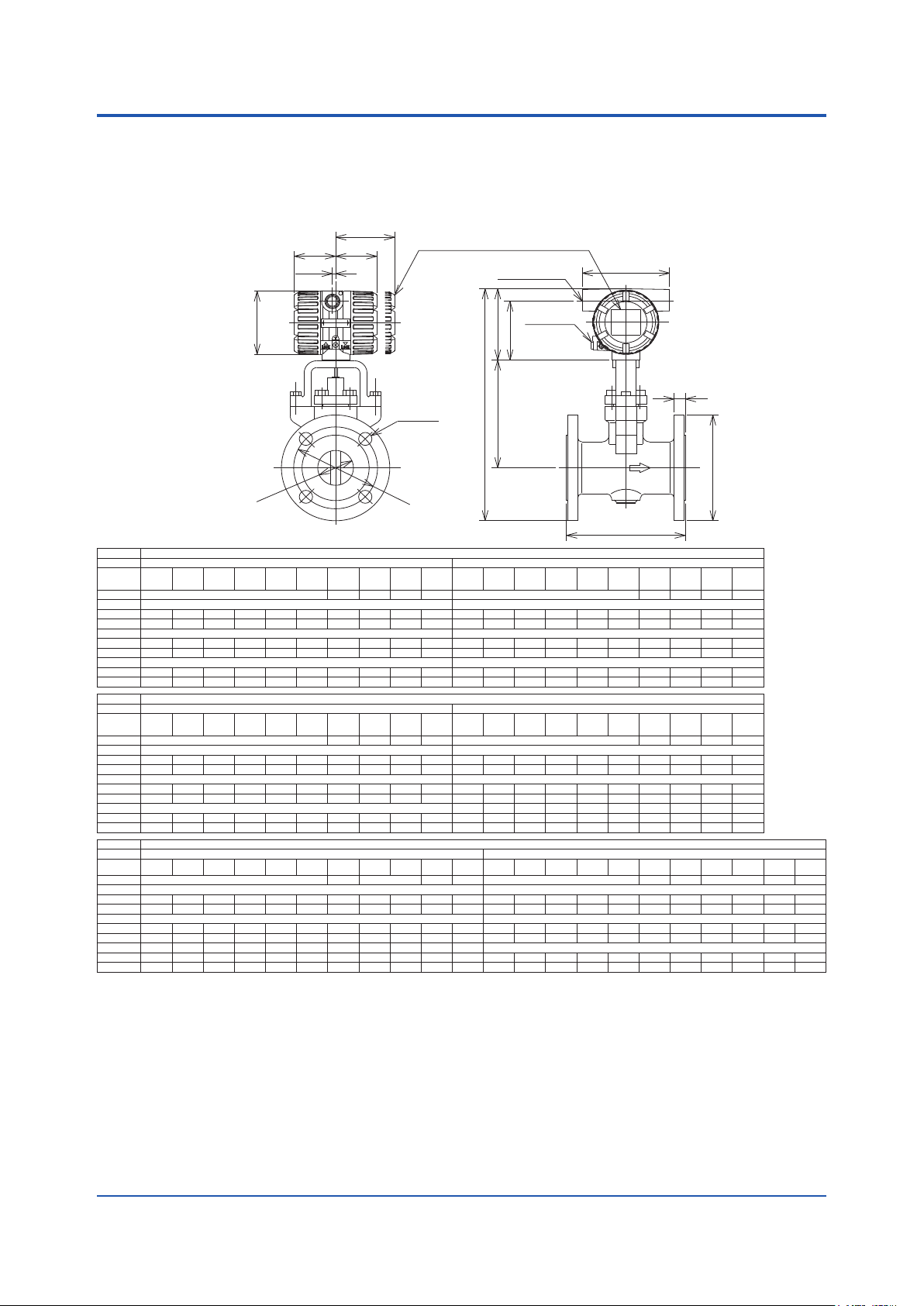

n Flange type (DY015 to DY100)

26

Unit : mm

(approx. inch)

74 (2.91)

WITH INDICATOR

ELECTRICAL
CONNECTION

EARTH
TERMINAL

87.5 (3.44)

103.5 (4.07)

H

H1

125 (4.92)

T

ø94 (3.70)

C

ø

59 (2.32) 59 (2.32)

4.5

(0.18)

ø

N-øG

J

L

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.

(Note 3) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

BJ1 BJ2 BJ4

L 130 (5.12) 160 (6.30) 130 (5.12) 140 (5.51) 160 (6.30) 150 (5.91) 190 (7.48) 150 (5.91) 170 (6.69) 190 (7.48)

C 14.6 (0.58) 25.7 (1.01)

D 95 (3.74) 95 (3.74) 115 (4.53) 88.9 (3.50) 95.3 (3.75) 95.3 (3.75)

H

278 (10.94) 278 (10.94)

H1 127 (5.00) 129 (5.08)

T 12 (0.47) 14 (0.55) 20 (0.79) 11.2 (0.44) 14.2 (0.56) 21 (0.83) 28.8 (1.13) 16 (0.63) 19.9 (0.78) 28.8 (1.13) 14 (0.55) 16 (0.63) 22 (0.87) 14.2 (0.56) 17.5 (0.69) 24 (0.94) 34.9 (1.37) 18 (0.71) 24 (0.94) 34.9 (1.37)

J 70 (2.76) 70 (2.76) 80 (7.15) 60.5 (2.38) 66.5 (2.62) 66.5 (2.62) 82.6 (3.25) 65 (2.56) 66.5 (2.62) 82.6 (3.25) 90 (3.54) 90 (3.54) 95 (3.74) 79.2 (3.12) 89 (3.50) 89 (3.50)

N 4 4

G 15 (0.59) 15 (0.59) 19 (0.75) 15.7 (0.62) 15.7 (0.62) 15.7 (0.62) 22.4 (0.88) 14 (0.55) 15.7 (0.62) 22.4 (0.88) 19 (0.75) 19 (0.75) 19 (0.75) 15.7 (0.62) 19 (0.75) 19 (0.75) 25.4 (1.00) 14 (0.55) 19 (0.75) 25.4 (1.00)

4.2 (9.26) 4.3 (9.48) 5.9 (13.01) 4.1 (9.04) 4.3 (9.48) 4.6 (10.14) 6.7 (14.77) 4.2 (9.26) 4.5 (9.92) 6.8 (14.99) 6.9 (15.21) 7.1 (15.66) 8.6 (18.96) 6.6 (14.55) 7.2 (15.88) 7.7 (16.98)

TYPE INTEGRAL/REMOTE

BJ1 BJ2 BJ4

L 150 (5.91) 200 (7.87) 150 (5.91) 185 (7.28) 200 (7.87) 170 (6.69) 230 (9.06) 170 (6.69) 205 (8.07) 230 (9.06)

C 39.7 (1.56) 51.1 (2.01)

D 140 (5.51) 140 (5.51) 160 (6.30) 127 (5.00)

H

309.5 (12.19) 309.5 (12.19) 319.5 (12.58)

H1 136 (5.35) 158 (6.22)

T 16 (0.63) 18 (0.71) 26 (1.02)

J 105 (4.13) 105 (4.13) 120 (4.72)

N 4 4 8 8 4 8 8 8 4 8 8

G 19 (0.75) 19 (0.75) 23 (0.91)

8.2 (18.08) 8.4 (18.52)

TYPE INTEGRAL/REMOTE

BJ1 BJ2 BJ4

L 200 (7.87) 245 (9.65) 200 (7.87) 235 (9.25) 250 (9.84) 220 (8.66) 240 (9.45)

C 71 (2.80) 93.8 (3.69)

D 185 (7.28) 200 (7.87) 210 (8.27)

H

371 (14.61)

H1 175 (6.89) 190 (7.48)

T 18 (0.71) 22 (0.87) 32 (1.26)

J 150 (5.91) 160 (6.30) 170 (6.69)

N 8 8 8 4 8 8 8 8 8 8 8 8

G 19 (0.75) 23 (0.91) 23 (0.91) 19 (0.75)

17.4 (38.37)

288 (11.34)

11.9 (26.24)

378.5 (14.90) 383.5 (15.10)

20 (44.1)

25.4 (56.01)

275 (10.83) 278 (10.94) 278 (10.94)

303 (11.93)

17.5 (0.69) 20.6 (0.81) 28.8 (1.13) 38.2 (1.50)

98.6 (3.88)

15.7 (0.62) 22.4 (0.88) 22.4 (0.88) 28.4 (1.12)

8.1 (17.86) 9.3 (20.51)

190.5 (7.50) 209.6 (8.25) 209.6 (8.25) 241.3 (9.50)

374 (14.72)

23.9 (0.94) 28.4 (1.12) 38.2 (1.50) 44.5 (1.75)

152.4 (6.00) 168.2 (6.62)

20 (44.1)

DY015 DY025

BA1

BA2

BS1

BA1
BS1

BA1
BS1

BA4

BS2

BS4

DY040 DY050

BA2

BA4

BS2

BS4

155.4 (6.12) 155.4 (6.12) 177.8 (7.00)

317 (12.48) 317 (12.48)

114.3 (4.50) 114.3 (4.50)

11.3 (24.92)

DY080 DY100

BA2

BA4

BS2

BS4

383.5 (15.10) 383.5 (15.10)

168 (6.61)

22.4 (0.88) 22.4 (0.88) 25.4 (1.00)

23.8 (52.48) 25.4 (56.01) 35.7 (78.72) 19.4 (42.78)

BD1

BA5

to

BS5

BD4

CA4 CA5 BJ1 BJ2 BJ4

120.7 (4.75)

95 (3.74) 95.3 (3.75)

291 (11.46)

278 (10.94) 278 (10.94)

BD1

BA5

to

BS5

BD4

150 (5.91)

328.5 (12.93) 314.5 (12.38)

18 (0.71)

124 (4.88) 110 (4.33)

18 (0.71)

16.2 (35.72)

8.8 (19.4)

BA5

BD1

BS5

BD2

200 (7.87) 200 (7.87)

399 (15.71)

378.5 (14.90) 378.5 (14.90) 383.5 (15.10)

20 (0.79) 24 (0.95)

190.5 (7.50)

160 (6.30) 160 (6.30) 170 (6.69) 180 (7.09) 175 (6.89) 185 (7.28) 205 (8.07)

18 (0.71) 18 (0.71)

120.7 (4.75)

125 (4.92) 125 (4.92) 130 (5.12) 108 (4.25) 124 (4.88) 124 (4.88)

291 (11.46) 295 (11.61) 295 (11.61)

CA4 CA5 BJ1 BJ2 BJ4

155.4 (6.12) 177.8 (7.00)

317 (12.48)

28.8 (1.13) 38.2 (1.50)

114.3 (4.50)

22.4 (0.88) 28.4 (1.12)

11.7 (25.8)

BD3
BD4 CA4 CA5 BJ1 BJ2 BJ4

20 (44.1)

155 (6.10) 155 (6.10) 165 (6.50)

328.5 (12.93)

339 (13.35) 339 (13.35) 344 (13.54)

16 (0.63) 18 (0.71) 26 (1.02)

124 (4.88) 120 (4.72) 120 (4.72) 130 (5.12)

19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75)

16.3 (35.94)

11.1 (24.48) 11.6 (25.58)

209.6 (8.25) 241.3 (9.50)

39.7 (1.56)

22.4 (0.88) 25.4 (1.00)

27.1 (59.76) 36.3 (80.04) 22.8 (50.27) 26.8 (59.09) 38.1 (84.01) 27.4 (60.42) 35.9 (79.16)

210 (8.27) 225 (8.90) 250 (9.84)

399 (15.71)

398.5 (15.69)

46 (1.81) 18 (0.71) 24 (0.95) 36 (1.42)

19 (0.75) 23 (0.91) 25 (0.98) 19 (0.75)

297.5 (11.91) 286.5 (11.28) 294.5 (11.59) 294.5 (11.59)

14.3 (31.53)

406 (15.98)

BA1

BA2

BA4

BS1

BS2

BA1

BA2

BS1

BS2

152.4 (6.00) 165.1 (6.50) 165.1 (6.50) 215.9 (8.50)

337.5 (13.29)

344 (13.54) 344 (13.54)

19.1 (0.75) 22.4 (0.88) 31.8 (1.25) 44.5 (1.75)

120.7 (4.75)

127 (5.00) 127 (5.00)

11.7 (25.8)

13.2 (29.11)

BA1
BS1

228.6 (9.00)

418.5 (16.48)

409 (16.10)

23.9 (0.94) 31.8 (1.25) 44.5 (1.75) 50.9 (2.00)

190.5 (7.50) 200.2 (7.88)

BA5

BS4

BS5

149.4 (5.88)

307 (12.09)

101.6 (4.00)

11.1 (24.48)

BA4

BA5

BS4

BS5

369.5 (14.55)

165.1 (6.50)

25.4 (1.00)

14.8 (32.63) 26.5 (58.43)

BA2

BA4

BS2

BS4

254 (10.00)

273 (10.75)

420.5 (16.56)

430 (16.93)

216 (8.50) 235 (9.25) 180 (7.09) 190 (7.48) 216 (8.50) 235 (9.25)

22.4 (0.88) 25.4 (1.00) 31.8 (1.25)

50.8 (112.01)

BD1

to

BD4

115 (4.53) 124 (4.88)

290 (11.42)

294.5 (11.59)

85 (3.35) 89 (3.50)

6.9 (15.21) 7.9 (17.42)

BD1

to

BD4

165 (6.50)

165.1 (6.50) 215.9 (8.50)

344 (13.54) 344 (13.54)

20 (0.79)

33.3 (1.31)

125 (4.92) 127 (5.00)

18 (0.71) 19 (0.75)

11.3 (24.92)

15.8 (34.84) 26.9 (59.31)

BA5
BS5

280 (11.02)

292.1 (11.50)

220 (8.66) 235 (9.25)

439.5 (17.30) 403.5 (15.89)

20 (0.79) 24 (0.95) 46 (1.81)

18 (0.71) 22 (0.87)

55.9 (123.26)

23.2 (51.16) 27.4 (60.42)

øD

CA4 CA5

149.4 (5.88)

307 (12.09)

101.6 (4.00)

11.4 (25.14)

CA4 CA5

369.5 (14.55)

46 (1.81)

165.1 (6.50)

25.4 (1.00)

BD1
BD2

220 (8.66)

411 (16.18) 430 (16.93)

BD3
BD4 CA4 CA5

270 (10.63)

285 (11.22)

273 (10.75)

292.1 (11.50)

439.5 (17.30)

52.4 (2.06)

25.4 (1.00) 31.8 (1.25)

52.8 (116.42)

56.6 (124.8)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

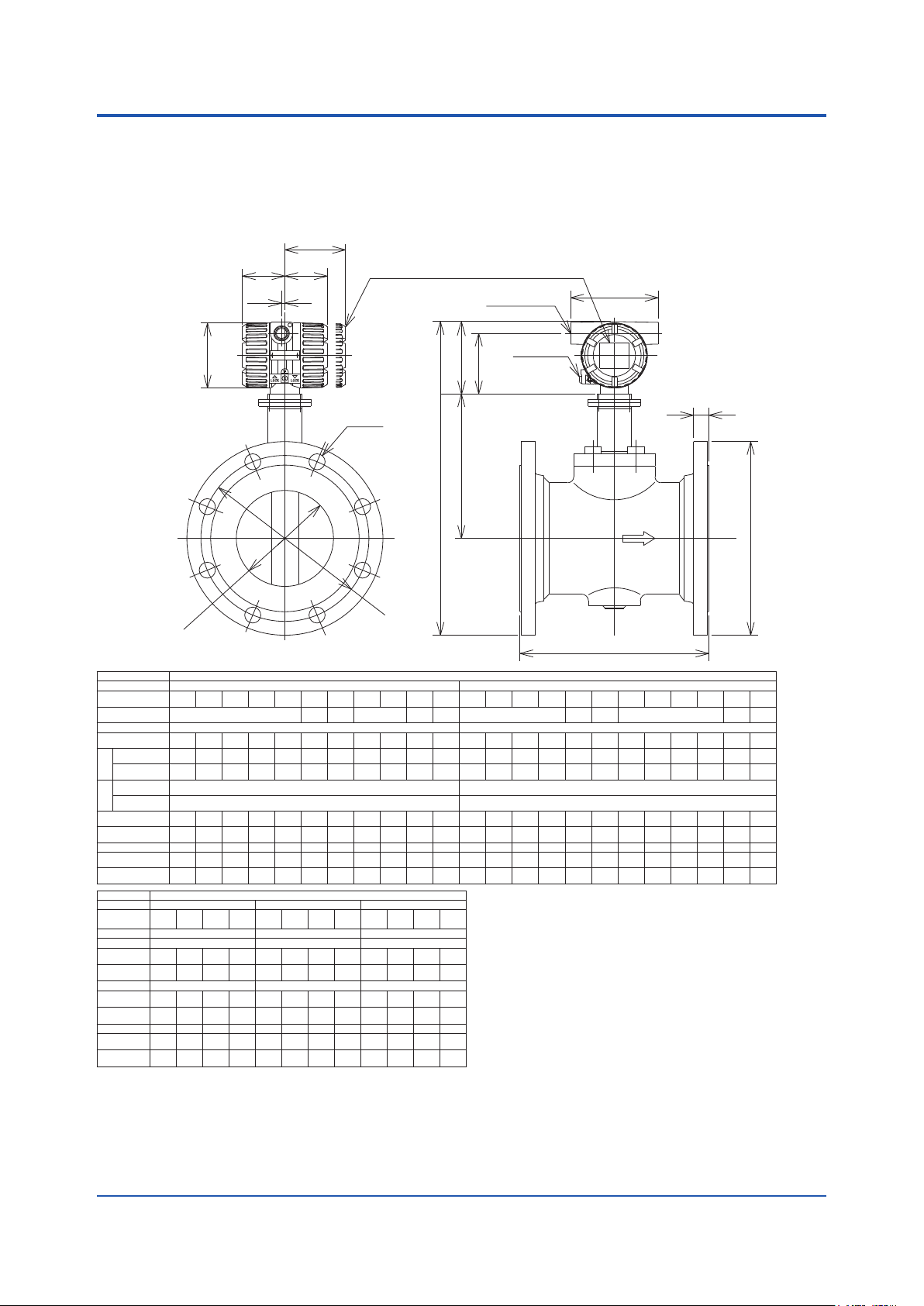

n Flange type (DY150 to DY400)

74 (2.91)

59 (2.32) 59 (2.32)

(0.18)

4.5

ø94 (3.70)

N - øG

WITH INDICATOR

ELECTRICAL
CONNECTION

87.5 (3.44)

103.5 (4.07)

H1

H

EARTH
TERMINAL

27

Unit : mm

(approx. inch)

125 (4.92)

T

øD

øJ

øC

L

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

Shedder Bar
Material: L, E, X

H

Shedder Bar
Material: B

Shedder Bar
Material: L, E, X

H1

Shedder Bar
Material: B

WEIGHT kg (lb)

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

L 370 (14.57) 400 (15.75) 520 (20.47)
C 230.8 (9.09) 276.2 (10.87) 354.2 (13.94)

D

H

H1 277 (10.91) 307 (12.09) 374 (14.72)

T

J

N 12 12 12 16 16 16 12 16 16 16 16 20

G

WEIGHT kg (lb)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.

(Note 3) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

BJ1 BJ2 BJ4

L

C 138.8 (5.46) 185.6 (7.31)

280

D

T

J

N 8 12 12 8 12 12 12 8 8 12 12 12 12 8 12 12 12 8 12 12 12 12 12

G

BJ1 BJ2

400

(15.75)

581

(22.87)

(0.94)

355

(13.98)

(0.98)

(171.99)

305

(11.02)

(12.01)

453

465

(17.83)

(18.31)

460

472

(18.11)

(18.58)

22

28

(0.87)

(1.10)

240

260

(9.45)

(10.24)

23

25

(0.91)

(0.98)

33.4

43.4

(73.65)

(95.7)

DY250 DY300 DY400

140

406.4

(5.51)

(16.00)

309.5

(12.19)

(22.99)

24

34

(1.34)

(1.19)

380

(14.96)

(14.25)

25

27

(1.06)

100

(220.5)

(1.00)

(198.45)

78

270

(10.63)

355

(13.98)

490

(19.29)

497

(19.57)

44

(1.73)

295

(11.61)

33

(1.30)

76.4

(168.46)

BA1

BA2

BS1

BS2 BJ1 BJ2

444.5

(17.50)

584

603

(23.74)

30.2

47.8

(1.88)

362

387.4

(15.25)

25.4

28.5

(1.12)

90

125

(275.63)

BA1
BS1

279.4

(11.00)

452

(17.80)

459

(18.67)

25.4

(1.00)

241.3
(9.50)

22.4

(0.88)

36.4

(80.26)

(17.52)

(24.92)

(15.75)

(220.5)

DY150 DY200

BA2

BA4

BA5

BD1

BS2

BS4

BS5

310

336

(12.21)

(13.23)

317.5

356

381

(14.02)

(15.00)

491

503

(19.33)

(19.80)

498

510

(19.61)

(20.08)

209 (8.23) 241 (9.49)

216 (8.50) 248 (9.76)

54.4

62

(2.14)

(2.44)

292

317.5

(11.50)

(12.50)

28.4

31.8

(1.12)

(1.25)

84.4

106

(186.10)

(233.73)

BA1
BS1

482.6

520.7

(19.00)

(20.50)

652

(25.67)

(26.42)

36

31.8

(1.25)

(2.00)

431.8

450.9

(17.00)

(17.75)

27

25.4

(1.00)

(1.25)

140

(308.7)

(392.49)

445

633

(0.94)

400

(0.98)

100

(12.50)

471

(18.54)

478

(18.82)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

54.4

(119.95)

480

(18.90)

651

(25.63)

24

(1.42)

430

(16.93)

25

(1.06)

128

(282.24)

BD3

BD2

BD4 CA4 CA5 BJ1 BJ2

270

(10.63)

285

300

(11.22)

(11.81)

455

463

(17.91)

(18.23)

462

470

(18.19)

(18.50)

16

16

(0.63)

(0.63)

65

65

(2.56)

(2.56)

22

26

(0.87)

(1.02)

33.4

42.9

(73.65)

(94.59)

BA2
BS2 BJ1 BJ2

560

605

(22.05)

757.5

(29.82)

28

(1.10)

510

(20.08)

27

(1.06)

265

(584.2)

(23.82)

780

(30.71)

46

(1.81)

540

(21.26)

33

(1.30)

308

(679)

671

50.8

31.8

178

325

(12.80)

356

(14.02)

491

(19.33)

498

(19.61)

19.9

(0.78)

66.5

(2.62)

28.4

(1.12)

90

(198.45)

BA1
BS1

596.9
(23.5)

776

(30.55)

36.6

(1.44)

539.8

(21.25)

28.5

(1.12)

300

(661.4)

340

(13.39)

381

(15.00)

503

(19.80)

510

(20.08)

28.8

(1.13)

82.6

(3.25)

31.8

(1.25)

107

(235.94)

BA2
BS2

647.7
(25.5)

801

(31.54)

57.2

(2.25)

571.5
(22.5)

35.1

(1.38)

370

(815.7)

330

(12.99)

510

(20.08)

517

(20.35)

22

(0.87)

290

(11.42)

23

(0.91)

45.4

(100.11)

350

(13.78)

520

(20.47)

527

(20.75)

30

(1.18)

305

(12.01)

22.4

(0.88)

52.4

(115.54)

310

(12.20)

BA1
BS1

342.9

(13.50)

516

(20.31)

523

(20.59)

28.4

(1.12)

298.5

(11.75)

25

(0.98)

55.4

(122.16)

BA2
BS2

381

(15.00)

535

(21.06)

542

(21.34)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

80.4

(177.28)

BA4

BA5

BS4

BS5 BD1 BD2 BD3 BD4 CA4 CA5

370

(14.57)

419.1

(16.50)

554

(21.81)

561

(22.09)

62

(2.44)

349.3

(13.75)

31.8

(1.25)

136

(299.88)

386

(15.20)

469.9

(18.50)

579

(22.80)

586

(23.07)

69.9

(2.75)

393.7

(15.50)

38.1

(1.50)

182

(401.31)

340

(13.39)

515

(20.28)

522

(20.55)

24

(0.95)

295

(11.61)

22

(0.87)

46.3

(102.09)

340

(13.39)

515

(20.28)

522

(20.55)

24

(0.95)

295

(11.61)

22

(0.87)

46.3

(102.09)

310

(12.20)

360

(14.17)

525

(20.67)

532

(20.94)

30

(1.18)

310

(12.20)

26

(1.02)

53.6

(118.19)

375

(14.76)

532

(20.94)

539

(21.22)

34

(1.34)

320

(12.60)

30

(1.18)

55.9

(123.26)

375

(14.77)

419.1

(16.50)

554

(21.81)

561

(22.09)

63.6

(2.50)

349.3

(13.75)

31.8

(1.25)

139

(306.52)

390

(15.55)

469.9

(18.50)

579

(22.80)

586

(23.07)

71.4

(2.81)

393.7

(15.50)

38.1

(1.50)

183

(403.52)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

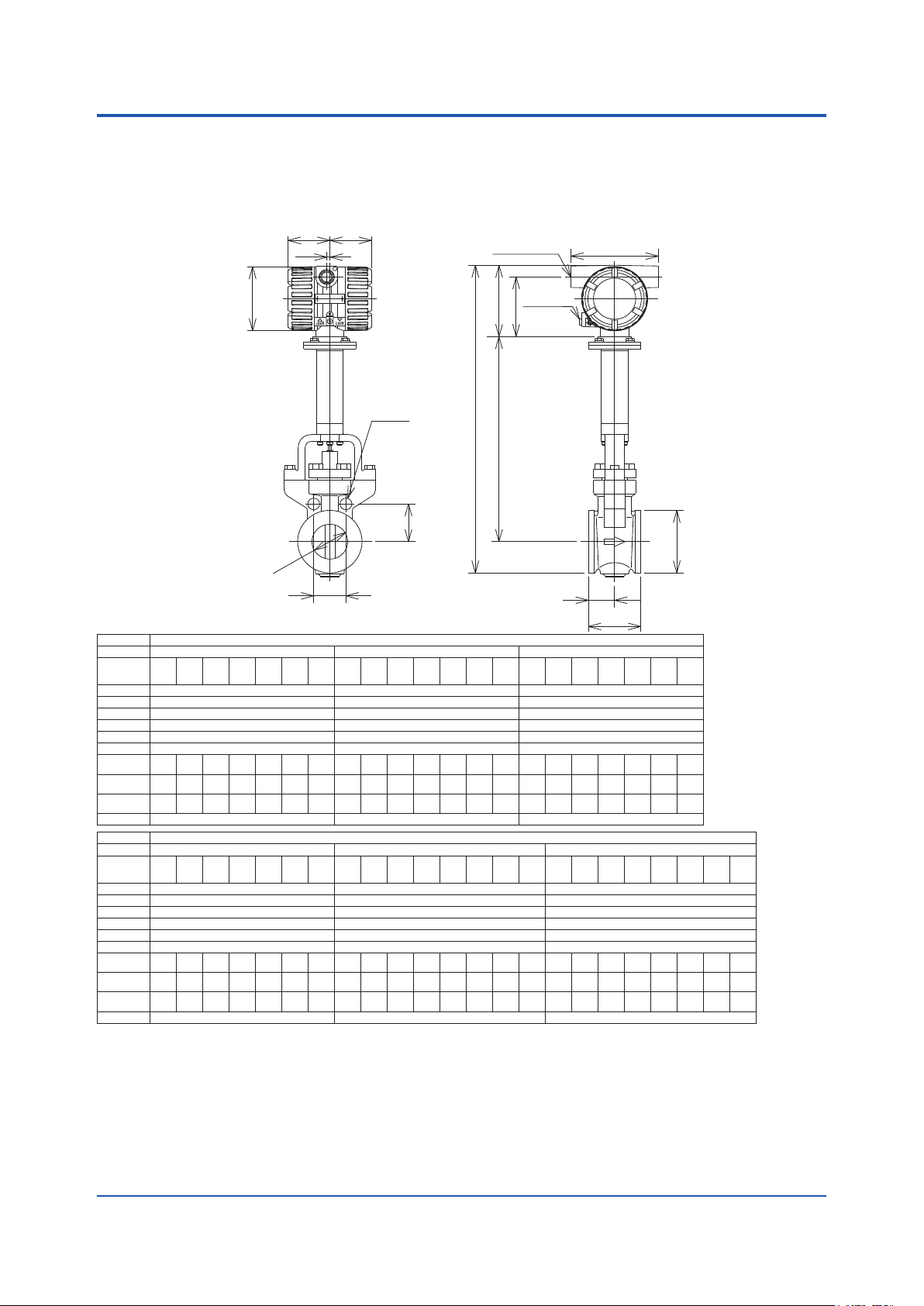

n High Process Temperature Version (/HT): DY025/HT to DY100/HT
n Cryogenic Version (/LT): DY015/LT to DY100/LT
n Wafer type

28

Unit : mm

(approx. inch)

ø94 (3.70)

4.5

59 (2.32)59 (2.32)

(0.18)

2 -øG

ELECTRICAL
CONNECTION

103.5 (4.07)

H

EARTH
TERMINAL

87.5 (3.44)

125 (4.92)

H1

F

øC

E

B

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

(Note 1) The holes are not provided.

(Note 2) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

AJ1 AJ2 AJ4 AA1 AA2 AA4

L 70 (2.76) 70 (2.76) 70 (2.76)

B 35 (1.38) 35 (1.38) 35 (1.38)

C 14.6 (0.57) 25.7 (1.01) 39.7 (1.56)

D 35.1 (1.38) 50.8 (2.00) 73 (2.87)

H 391 (15.39) 401 (15.79) 419 (16.50)

H1 270 (10.63) 272 (10.71) 279 (10.98)

49.5

E

(1.95)

(1.95)

24.7

F

(0.97)

(0.97)

13

G

(0.51)

(0.51)

TYPE REMOTE

AJ1 AJ2 AJ4 AA1 AA2 AA4

L 75 (2.95) 100 (3.94) 120 (4.72)

B 37.5 (1.48) 40 (1.57) 50 (1.97)

C 51.1 (2.01) 71 (2.80) 93.8 (3.69)

D 92 (3.62) 127 (5.00) 157.2 (6.19)

H 450.5 (17.74) 485 (19.09) 515 (20.28)

H1 301 (11.85) 318 (12.52) 333 (13.11)

E

(Note 1)

(1.81)

F

(Note 1)

(2.18)

G

(Note 1)

(0.67)

DY015/LT DY025/LT, DY025/HT DY040/LT, DY040/HT

49.5

56.6

42.7

(2.23)

24.7

28.3

(1.11)

13

17

(0.67)

DY050/LT, DY050/HT DY080/LT, DY080/HT DY100/LT, DY100/HT

45.9

49.8

(1.96)

55.4

60.1

(2.37)

17

17

(0.67)

47.1

(1.68)

(1.85)

21.4

23.5

(0.84)

(0.93)

14

14

(0.55)

(0.55)

3.2 (7.06) 4.1 (9.04) 4.7 (10.36)

48.6

(Note 1)

(1.91)

58.7

(Note 1)

(2.31)

17

(Note 1)

(0.67)

6.4 (14.11) 9.8 (21.61) 13.2 (29.11)

47.1

(1.85)

23.5

(0.93)

14

(0.55)

48.6

(1.91)

58.7

(2.31)

17

(0.67)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

46

63.6

63.6

(1.81)

(2.50)

23

31.8

(0.91)

(1.25)

13

17

(0.51)

(0.67)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

57.4

(Note 1)

(2.26)

69.3

(Note 1)

(2.73)

17

(Note 1)

(0.67)

(2.50)

31.8

(1.25)

17

(0.67)

61.2

(2.41)

73.9

(2.91)

21

(0.83)

67.2

(2.65)

33.6

(1.32)

17

(0.67)

65.1

(2.56)

78.5

(3.09)

21

(0.83)

56

(2.20)

28

(1.10)

14

(0.55)

(Note 1)

(Note 1)

(Note 1)

62.9

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

62.9

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

AD1

to

AD4

AJ1 AJ2 AJ4 AA1 AA2 AA4

60.1

74.2

74.2

(2.37)

(2.92)

30.1

37.1

(1.19)

(1.46)

13

17

(0.51)

(0.67)

AD1

AD3

AD2

AD4 AJ1 AJ2 AJ4

61.2

61.2

(2.41)

(2.41)

73.9

73.9

(2.91)

(2.91)

17

17

(0.67)

(0.67)

(2.92)

37.1

(1.46)

17

(0.67)

67

(2.64)

80.8

(3.18)

17

(0.67)

84.9

(3.34)

42.4

(1.67)

21

(0.83)

70.8

(2.79)

85.5

(3.37)

21

(0.83)

69.7

(2.74)

34.8

(1.37)

14

(0.55)

78.5

(3.09)

94.7

(3.73)

23

(0.91)

80.8

(3.18)

40.4

(1.59)

20

(0.79)

AP1
AA1

72.9

(2.87)

88

(3.46)

17

(0.67)

80.8

(3.18)

40.4

(1.59)

20

(0.79)

AP2
AA2

76.6

(3.02)

92.5

(3.64)

20

(0.79)

øD

AD1

to

AD4

77.8

(3.06)

38.9

(1.53)

17

(0.67)

AP4
AA4

82.6

(3.25)

99.7

(3.93)

23

(0.91)

AD1
AD2

68.9

(2.71)

83.1

(3.27)

17

(0.67)

AD3
AD4

72.7

(2.86)

87.8

(3.46)

21

(0.83)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

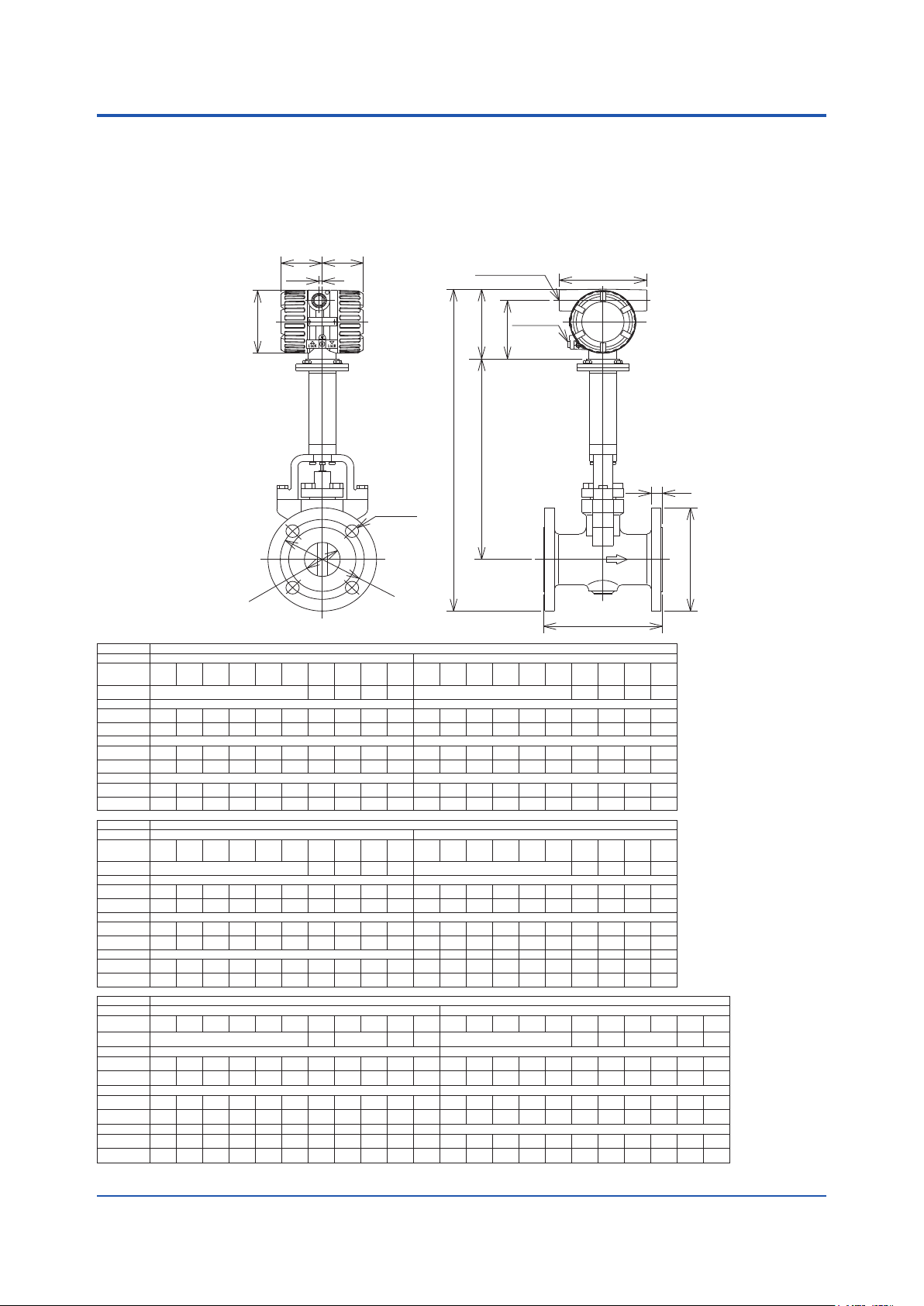

n High Process Temperature Version (/HT): DY025/HT to DY100/HT
n Cryogenic Version (/LT): DY015/LT to DY100/LT
n Flange type

59 (2.32)

4.5

ø94 (3.70)

59 (2.32)

(0.18)

N -øG

ELECTRICAL
CONNECTION

103.5 (4.07)

H

H1

EARTH
TERMINAL

87.5 (3.44)

29

Unit : mm

(approx. inch)

125 (4.92)

T

C

ø

øJ

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

BJ1 BJ2 BJ4

L

C 14.6 (0.57) 25.7 (1.01)

95

D

(3.74)

421

H

(16.57)

H1 270 (10.63) 272 (10.71)

12

T

(0.47)

70

J

(2.76)

N 4 4

15

G

(0.59)

4.6

(10.14)

TYPE REMOTE

BJ1 BJ2 BJ4

L

C 39.7 (1.56) 51.1 (2.01)

140

D

(5.51)

453

H

(17.83)

H1 279 (10.98) 301 (11.85)

16

T

(0.63)

105

J

(4.13)

N 4 4 8 8 4 8 8 8 4 8 8

19

G

(0.75)

8.6

(18.96)

TYPE REMOTE

BJ1 BJ2 BJ4

L

C 71 (2.80) 93.8 (3.69)

185
D

(7.28)

514

H

(20.24)

H1 318 (12.52) 333 (13.11)

18

T

(0.71)

150

J

(5.91)

N 8 8 8 4 8 8 8 8 8 8 8 8

19

G

(0.75)

17.8

(39.25)

95

(3.74)

421

(16.57)

14

(0.55)

70

(2.76)

15

(0.59)

4.7

(10.36)

140

(5.51)

453

(17.83)

18

(0.71)

105

(4.13)

19

(0.75)

8.8

(19.4)

200

(7.87)

522

(20.55)

22

(0.87)

160

(6.30)

23

(0.91)

20.4

(44.98)

115

(4.53)

431

(16.97)

20

(0.79)

80

(3.15)

19

(0.75)

6.3

(13.89)

160

(6.30)

463

(18.23)

26

(1.02)

120

(4.72)

23

(0.91)

12.3

(27.12)

210

(8.27)

527

(20.75)

32

(1.26)

170

(6.69)

23

(0.91)

25.8

(56.89)

(5.12)

(5.91)

(7.87)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY015/LT DY025/LT, DY025/HT

BA1

BA2

130

150

200

BS1

88.9

(3.50)

418

(16.46)

11.2

(0.44)

60.5

(2.38)

15.7

(0.62)

4.5

(9.92)

BA1
BS1

127

(5.00)

446

(17.56)

17.5

(0.69)

98.6

(3.88)

15.7

(0.62)

8.5

(18.74)

BA1
BS1

190.5

(7.50)

517

(20.35)

23.9

(0.94)

152.4

(6.00)

(0.75)

20.4

(44.98)

19

BA4

BS2

BS4

95.3

95.3

(3.75)

(3.75)

421

421

(16.57)

(16.57)

14.2

21

(0.56)

(0.83)

66.5

66.5

(2.62)

(2.62)

15.7

15.7

(0.62)

(0.62)

4.7

(10.36)5 (11.03)

DY040/LT, DY040/HT DY050/LT, DY050/HT

BA2

BA4

BS2

BS4

155.4

155.4

(6.12)

(6.12)

460

460

(18.11)

(18.11)

20.6

28.8

(0.81)

(1.13)

114.3

114.3

(4.50)

(4.50)

22.4

22.4

(0.88)

(0.88)

9.7

11.7

(21.39)

(25.8)

DY080/LT, DY080/HT DY100/LT, DY100/HT

BA2

BA4

BS2

BS4

209.6

209.6

(8.25)

(8.25)

527

527

(20.75)

(20.75)

28.4

38.2

(1.12)

(1.50)

168.2

168

(6.62)

(6.61)

22.4

22.4

(0.88)

(0.88)

24.2

25.8

(53.36)

(56.89)

BA5
BS5

160

(6.30)

120.7
(4.75)

434

(17.09)

28.8

(1.13)

82.6

(2.25)

22.4

(0.88)

7.1

(15.66)

BA5
BS5

200

(7.87)

177.8
(7.00)

472

(18.58)

38.2

(1.50)

124

(4.88)

28.4

(1.12)

16.6

(36.6)

BA5
BS5

245

(9.65)

241.3
(9.50)

542

(21.34)

44.5

(1.75)

190.5
(7.50)

25.4

(1.00)

36.1

(79.6)

BD1

to

BD4

CA4 CA5 BJ1 BJ2 BJ4

130

140

(5.12)

95

(3.74)

421

(16.57)

16

(0.63)

65

(2.56)

14

(0.55)

4.6

(10.14)

BD1

to

BD4

150

(5.91)

150

(5.91)

458

(18.03)

18

(0.71)

110

(4.33)

18

(0.71)

9.2

(20.29)

BD1
BD2

200

(7.87)

522

(20.55)

20

(0.79)

160

(6.30)

18

(0.71)

19.8

(43.66)

160

(5.51)

(6.30)

95.3

120.7
(4.75)

434

(17.09)

28.8

(1.13)

82.6

(2.25)

22.4

(0.88)

7.2

(15.88)

200

(7.87)

177.8
(7.00)

472

(18.58)

38.2

(1.50)

124

(4.88)

28.4

(1.12)

16.7

(36.82)

235

(9.25)

209.6
(8.25)

527

(20.75)

39.7

(1.56)

170

(6.69)

22.4

(0.88)

27.5

(60.64)

125

(4.92)

438

(17.24)

(0.55)

(3.54)

(0.75)

7.3

(16.1)

155

(6.10)

482

(18.98)

(0.63)

120

(4.72)

(0.75)

11.5

(25.36)

250

(9.84)

241.3
(9.50)

542

(21.34)

(1.81)

180

(7.09)

25.4

(1.00)

36.7

(80.92)

14

90

19

16

19

46

(3.75)

421

(16.57)

19.9

(0.78)

66.5

(2.62)

15.7

(0.62)

4.9

(10.8)

CA4 CA5 BJ1 BJ2 BJ4
185

(7.28)

155.4
(6.12)

460

(18.11)

28.8

(1.13)

114.3
(4.50)

22.4

(0.88)

12.1

(26.68)

BD3
BD4 CA4 CA5 BJ1 BJ2 BJ4

200

(7.87)

200

(7.87)

522

(20.55)

24

(0.94)

160

(6.30)

18

(0.71)

20.4

(44.98)

BA1
BS1

150 (5.91)

125

130

(5.12)

441

(17.36)

22

(0.87)

95

(3.74)

19

(0.75)

165

(6.50)

487

(19.17)

26

(1.02)

130

(5.12)

19

(0.75)

14.7

(32.42)

225

(8.86)

549

(21.61)

24

(0.94)

185

(7.28)

23

(0.91)

27.2

(59.98)

170

(6.69)

108

(4.25)

430

(16.93)

14.2

(0.56)

79.2

(3.12)

15.7

(0.62)

BA1
BS1

152.4
(6.00)

481

(18.94)

19.1

(0.75)

120.7
(4.75)

19

(0.75)

12.1

(26.68)

220

(8.66)

250

(9.84)

562

(22.13)

36

(1.42)

205

(8.07)

25

(0.98)

38.5

(84.89)

(4.92)

438

(17.24)

16

(0.63)

90

(3.54)

19

(0.75)

7.5

(16.54)9 (19.85)7 (15.44)

155

(6.10)

482

(18.98)

18

(0.71)

120

(4.72)

19

(0.75)

12

(26.46)

210

(8.27)

542

(21.34)

18

(0.71)

175

(6.89)

19

(0.75)

23.2

(51.16)

BA2
BS2

124

(4.88)

438

(17.24)

17.5

(0.69)

89

(3.50)

19

(0.75)

7.6

(16.76)

BA2
BP2

165.1

(6.50)

487

(19.17)

22.4

(0.88)

127

(5.00)

19

(0.75)

13.6

(29.99)

BA1
BS1

228.6

(9.00)

552

(21.73)

23.9

(0.94)

190.5

(7.50)

19

(0.75)

27.7

(61.3)

BA4
BS4

124

(4.88)

438

(17.24)

24

(0.94)

89

(3.50)

19

(0.75)

8.1

(17.86)

BA4
BS4

165.1
(6.50)

487

(19.17)

31.8

(1.25)

127

(5.00)

(0.75)

15.2

(33.52)

BA2
BS2

254

(10.00)

564

(22.20)

31.8

(1.25)

200.2
(7.88)

22.4

(0.88)

36.3

(80.04)

BA5
BS5

190

(7.48)

(5.91)

149.4
(5.88)

(4.53)

450

(17.72)

(17.05)

34.9

(1.37)

(0.71)

101.6
(4.00)

(3.35)

25.4

(1.00)

(0.55)

11.5

(25.36)

(16.1)

BA5
BS5

230

(9.06)

(6.69)

215.9
(8.50)

(6.50)

513

(20.20)

(19.17)

44.5

(1.75)

(0.79)

165.1
(6.50)

(4.92)

19

25.4

(1.00)

(0.71)

26.9

(59.32)

(25.8)

BA4
BS4

240

(9.45)

(11.02)

273

292.1

(10.75)

(11.50)

573

(22.56)

(22.95)

44.5

(1.75)

(2.00)

216

(8.50)

(9.25)

25.4

(1.00)

(1.25)

51.2
(124.14)

(112.9)

BD1

BD4
150

115

433

7.3

BD1

BD4
170

165

487

125

BA5
BS5

280

583

50.9

235

31.8

56.3

to

18

85

14

to

20

18

8

CA4 CA5

170

(6.69)

124

(4.88)

438

(17.24)

24

(0.94)

89

(3.50)

19

(0.75)

8.3

(18.3)

CA4 CA5

205

(8.07)

165.1
(6.50)

487

(19.17)

33.3

(1.31)

127

(5.00)

19

(0.75)

16.2

(35.72)

BD1
BD2

220

(8.66)

220

(8.66)

547

(21.54)

20

(0.79)

180

(7.09)

18

(0.71)

23.6

(52.04)

øD

190

(7.48)

149.4
(5.88)

450

(17.18)

34.9

(1.37)

101.6
(4.00)

25.4

(1.00)

11.8

(26.02)

230

(9.06)

215.9
(8.50)

513

(20.20)

46

(1.81)

165.1
(6.50)

25.4

(1.00)

27.3

(60.2)

BD3
BD4 CA4 CA5

270

(10.63)

235

273

(9.25)

(10.75)

554

573

(21.81)

(22.56)

24

46

(0.94)

(1.81)

190

216

(7.48)

(8.50)

22

25.4

(0.87)

(1.00)

27.8

53.2

(61.3)

(117.31)

285

(11.22)

292.1

(11.50)

583

(22.95)

52.4

(2.06)

235

(9.25)

31.8

(1.25)

57

(125.69)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

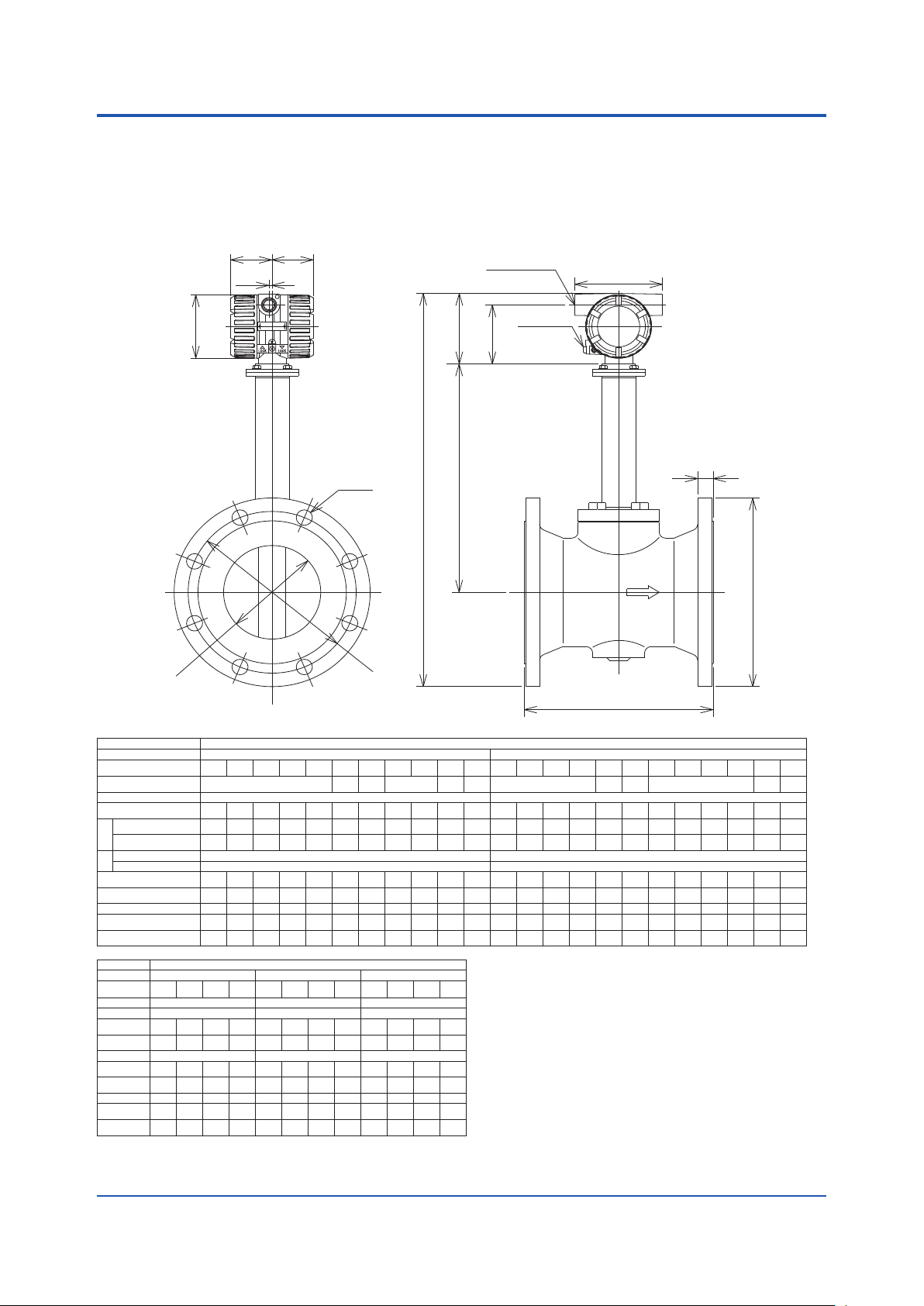

n High Process Temperature Version (/HT): DY150/HT to DY300/HT
n Flange type

30

Unit : mm

(approx. inch)

ø94 (3.70)

øC

59 (2.32) 59 (2.32)

(0.18)

4.5

N -øG

ELECTRICAL
CONNECTION

125 (4.92)

EARTH
TERMINAL

103.5 (4.07)

87.5 (3.44)

H1

T

H

øD

ø

J

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION BJ1 BJ2 BJ4

L

C 138.8 (5.46) 185.6 (7.31)

D

Shedder Bar Material: X

H

Shedder Bar Material: B

Shedder Bar Material: X 339 (13.35) 371 (14.61)

H1

Shedder Bar Material: B 346 (13.62) 378 (14.88)

T

J

N 8 12 12 8 12 12 12 8 8 12 12 12 12 8 12 12 12 8 12 12 12 12 12

G

WEIGHT kg (lb)

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

BJ1 BJ2

L 370 (14.57) 400 (15.75) 520 (20.47)

C 230.8 (9.09) 276.2 (10.87) 354.2 (13.94)

400

D

(15.75)

720

H

(28.35)

H1 416 (16.38) 446 (17.56) 504 (19.84)

24

T

(0.94)

355

J

(13.98)

N 12 12 12 16 16 16 12 16 16 16 16 20

25

G

(0.98)

78

(171.99)

280

(11.02)

583

(22.95)

590

(23.23)

22

(0.87)

240

(9.45)

23

(0.91)

33.4

(73.65)

DY250/HT DY300/HT DY400/HT

BA1
BS1

430

406.4

(16.93)

(16.00)

735

723

(28.94)

(28.46)

34

30.2

(1.34)

(1.19)

380

362

(14.96)

(14.25)

27

25.4

(1.06)

(1.00)

100

90

(220.5)

(198.45)

270

(10.63)

305

355

(12.01)

(13.98)

595

620

(23.43)

(24.41)

602

627

(23.70)

(24.69)

28

44

(1.10)

(1.73)

260

295

(10.24)

(11.61)

25

33

(0.98)

(1.30)

76.4

43.4
(168.46)

(95.7)

BA2
BS2 BJ1 BJ2

444.5

445

(17.50)

(17.52)

742

772

(29.21)

(30.39)

47.8

24

(1.88)

(0.94)

387.4

400

(15.25)

(15.75)

28.5

25

(1.12)

(0.98)

125

100

(275.63)

(220.5)

279.4

(11.00)

(22.91)

(23.19)

(1.00)

241.3

(9.50)

(0.88)

(80.26)

(18.90)

(31.10)

(16.93)

(282.24)

DY150/HT DY200/HT

BA1

BA2

BA4

BA5

BD1

BS1

582

589

25.4

22.4

36.4

480

790

(1.42)

430

(1.06)

128

BS2

BS4

BS5

310

336

(12.20)

(13.23)

317.5

356

(12.50)

601

(23.66)

608

(23.94)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

54.4

(119.95)

BA1
BS1

482.6

(19.00)

791

(31.14)

36

31.8

(1.25)

431.8

(17.00)

27

25.4

(1.00)

140

(308.7)

381

(14.02)

(15.00)

621

633

(24.45)

(24.92)

628

640

(24.72)

(25.20)

54.4

62

(2.14)

(2.44)

292

317.5

(11.50)

(12.50)

28.4

31.8

(1.12)

(1.25)

84.4

106

(186.1)

(233.73)

BA2
BS2 BJ1 BJ2

520.7

560

(20.50)

(22.05)

810

887.5

(31.89)

(34.94)

50.8

28

(2.00)

(1.10)

450.9

510

(17.75)

(20.08)

31.8

27

(1.25)

(1.06)

178

265

(392.49)

(584.2)

BD3

BD2

BD4 CA4 CA5 BJ1 BJ2

270

325

(10.63)

(12.80)

285

300

(11.81)

593

(23.35)

600

(23.62)

28

(1.10)

250

(9.84)

26

(1.02)

42.9

(94.59)

BA1
BS1

596.9
(23.5)

(35.67

36.6

(1.44)

539.8

(21.25)

28.5

(1.12)

(661.4)

356

(14.02)

621

(24.45)

628

(24.72)

55.7

(2.19)

292

(11.50)

28.4

(1.12)

90

(198.45)

BA2
BS2

647.7

(25.5)

906

931.4

(36.67)

)

57.2

(2.25)

571.5

(22.5)

35.1

(1.38)

300

370

(815.7)

(11.22)

585

(23.03)

592

(23.31)

22

(0.87)

240

(9.45)

22

(0.87)

33.4

(73.65)

605

(23.82)

910

(35.83)

(1.81)

540

(21.26)

(1.30)

308

(679)

46

33

340

(13.39)

381

(15.00)

633

(24.92)

640

(25.20)

63.6

(2.50)

317.5

(12.50)

31.8

(1.25)

107

(235.94)

330

(12.99)

640

(25.20)

647

(25.47)

22

(0.87)

290

(11.42)

23

(0.91)

45.4

(100.11)

350

(13.78)

650

(25.59)

657

(25.87)

30

(1.18)

305

(12.01)

25

(0.98)

52.4

(115.54)

310

(12.20)

BA1
BS1

342.9

(13.50)

646

(25.43)

653

(25.71)

28.4

(1.12)

298.5

(11.75)

22.4

(0.88)

55.4

(122.16)

BA2
BS2

381

(15.00)

665

(26.18)

672

(26.46)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

80.4

(177.28)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

L

BA4

BA5

BS4

BS5 BD1 BD2 BD3 BD4 CA4 CA5

370

(14.57)

419.1

(16.50)

684

(26.93)

691

(27.20)

62

(2.44)

349.3

(13.75)

31.8

(1.25)

136

(299.88)

386

(15.20)

469.9

(18.50)

709

(27.91)

716

(28.19)

69.9

(2.75)

393.7

(15.50)

38.1

(1.50)

182

(401.31)

340

(13.39)

645

(25.39)

652

(25.67)

24

(0.95)

295

(11.61)

22

(0.87)

46.3

(102.09)

340

(13.39)

645

(25.39)

652

(25.67)

24

(0.95)

295

(11.61)

22

(0.87)

46.3

(102.091)

310

(12.20)

360

(14.17)

655

(25.79)

662

(26.06)

30

(1.18)

310

(12.20)

26

(1.02)

53.6

(18.19)

375

(14.76)

662

(26.06)

669

(26.34)

34

(1.34)

320

(12.60)

30

(1.18)

55.9

(123.26)

375

(14.77)

419.1

(16.50)

684

(26.93)

691

(27.20)

63.6
(2.50)

349.3

(13.75)

31.8
(1.25)

139

(306.5)

390

(15.35)

469.9

(18.50)

709

(27.91)

716

(28.19)

71.4

(2.81)

393.7

(15.50)

38.1

(1.50)

183

(403.52)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

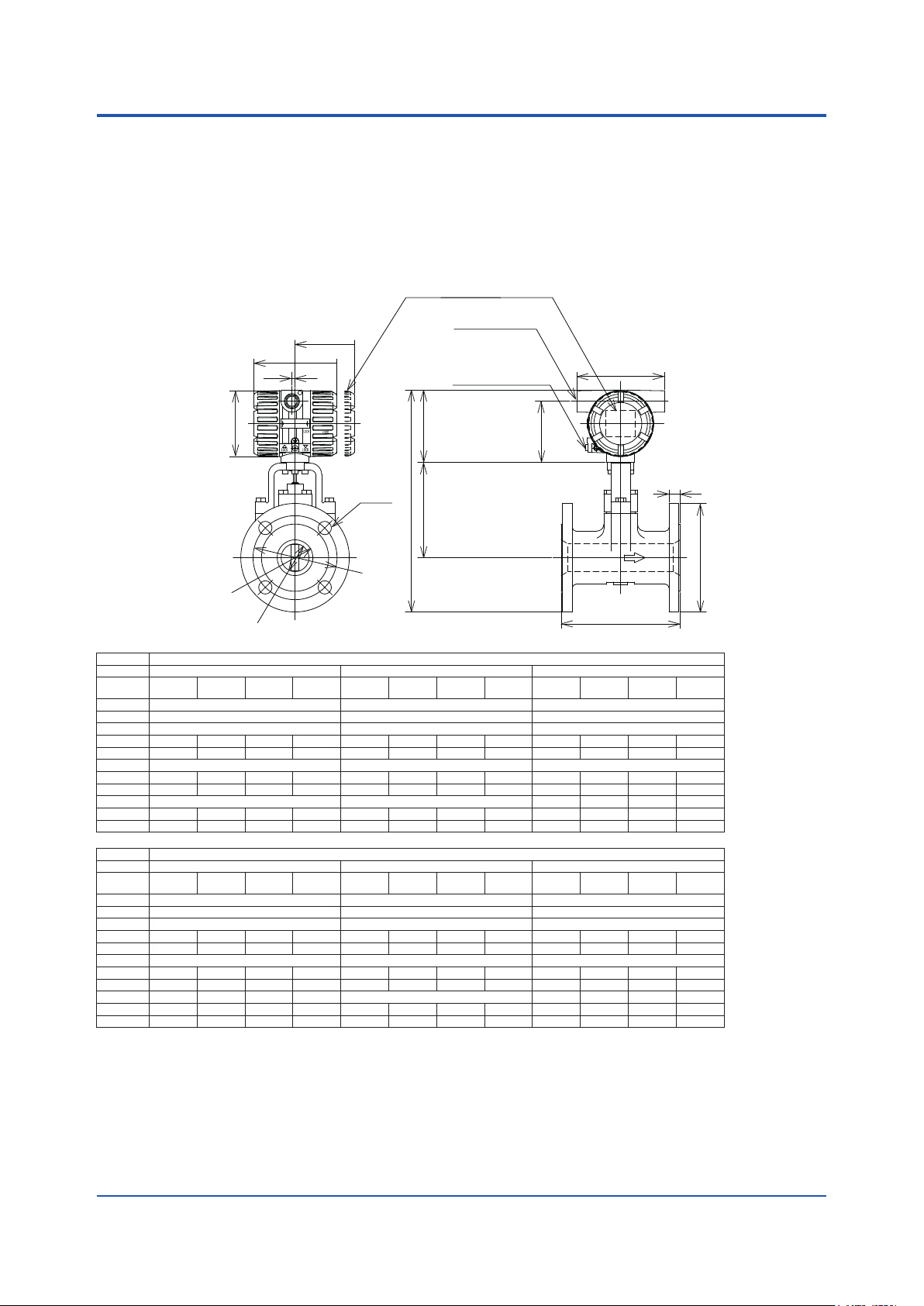

n Reduced Bore Type (/R1): DY025/R1 to DY150/R1
n Flange type

74 (2.91)

59 (2.32)

59 (2.32)

(0.18)

4.5

WITH INDICATOR

ELECTRICAL
CONNECTION

EARTH TERMINAL

31

Unit : mm

(approx. inch)

125 (4.92)

ø94 (3.70)

103.5 (4.07)

87.5 (3.44)

N- øG

H

H1

øJ

øC

øCS

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

CS 14.6 (0.57) 25.7 (1.01) 39.7 (1.56)

H1 127 (5.00) 129 (5.08) 136 (5.35)

WEIGHT kg (lb)

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

CS 51.1 (2.01) 71 (2.80) 93.8 (3.69)

H1 158 (6.22) 175 (6.89) 190 (7.48)

WEIGHT kg (lb)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.

(Note 3) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

BJ1 BJ2

L 150 (5.91) 150 (5.90) 170 (6.69)

C 25.7 (1.01) 39.7 (1.56) 51.1 (2.01)

D 125 (4.92) 125 (4.92) 108 (4.25) 124 (4.88) 140 (5.51) 140 (5.51) 127 (5.00) 155.4 (6.12) 155 (6.10) 155 (6.10) 152.4 (6.00) 165.1 (6.50)

H 293 (11.54) 293 (11.54)

T 14 (0.55) 16 (0.63) 14.2 (0.56) 17.5 (0.69) 16 (0.63) 18 (0.71) 17.5 (0.69) 20.6 (0.81) 16 (0.63) 18 (0.71) 19.1 (0.75) 22.4 (0.88)

J 90 (3.54) 90 (3.54) 79.2 (3.12) 89 (3.50) 105 (4.13) 105 (4.13) 98.6 (3.88) 114.3 (4.5) 120 (4.72) 120 (4.72) 120.7 (4.75) 127 (5.00)

N 4 4 4 8 4 8

G 19 (0.75) 19 (0.75) 15.7 (0.62) 19 (0.75) 19 (0.75) 19 (0.75) 15.7 (0.62) 22.4 (0.88) 19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75)

6.1 (13.4) 6.5 (14.3) 5.5 (12.1) 7 (15.4) 9.5 (20.9) 10.1 (22.3) 9.4 (20.7) 12.6 (27.8) 10.5 (23.1) 11.1 (24.5) 11.4 (25.1) 13.6 (30.0)

BJ1 BJ2

L 200 (7.87) 220 (8.66) 270 (10.63)

C 71 (2.80) 93.8 (3.69) 138.8 (5.46)

D 185 (7.28) 200 (7.87) 190.5 (7.50) 209.6 (8.25) 210 (8.27) 225 (8.86) 228.6 (9.00) 254 (10.00) 280 (11.02) 305 (12.01)

H 354 (13.94)

T 18 (0.71) 22 (0.87) 23.9 (0.94) 28.4 (1.12) 18 (0.71) 24 (0.94) 23.9 (0.94) 31.8 (1.25) 22 (0.87) 28 (1.10) 25.4 (1.00) 36.6 (1.44)

J 150 (5.91) 160 (6.30) 152.4 (6.00)

N 8 8 4 8 8 8 12 8 12

G 19 (0.75) 23 (0.91) 19 (0.75) 22.4 (0.88) 19 (0.75) 23 (0.91) 19 (0.75) 22.4 (0.88) 23 (0.91) 25 (0.98) 22.4 (0.88) 22.4 (0.88)

18.6 (41.0) 21.7 (47.8) 21.9 (48.3) 26.9 (59.3) 25 (55.1) 30 (66.1) 30.6 (67.5) 41 (90.4)

DY025/R1 DY040/R1 DY050/R1

BA1
BS1

284.5 (11.20) 292.5 (11.52) 302.5 (11.91) 302.5 (11.91)

DY080/R1 DY100/R1 DY150/R1

BA1
BS1

361.5 (14.23)

357 (14.06)

BA2
BS2 BJ1 BJ2

BA2
BS2 BJ1 BJ2

366.5 (14.43) 383.5 (15.10)

168.2 (6.62)

175 (6.89) 185 (7.28) 190.5 (7.50) 200.2 (7.88) 240 (9.45) 260 (10.24) 241.3 (9.50)

BA1
BS1

296 (11.65) 310 (12.20) 317 (12.48) 317 (12.48)

BA1
BS1

391 (15.39) 393 (15.47)

BA2
BS2 BJ1 BJ2

BA2
BS2 BJ1 BJ2

405.5 (15.97) 433.5 (17.07)

45.9 (101.2) 56.3 (124.1) 49.4 (108.9) 71.7 (158.1)

L

BA1
BS1

315.5 (12.42)

BA1
BS1

279.4 (11.00)

446 (17.56) 433 (17.05) 452 (17.80)

T

BA2
BS2

322 (12.68)

BA2
BS2

317.5 (12.50)

269.7 (10.62)

øD

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

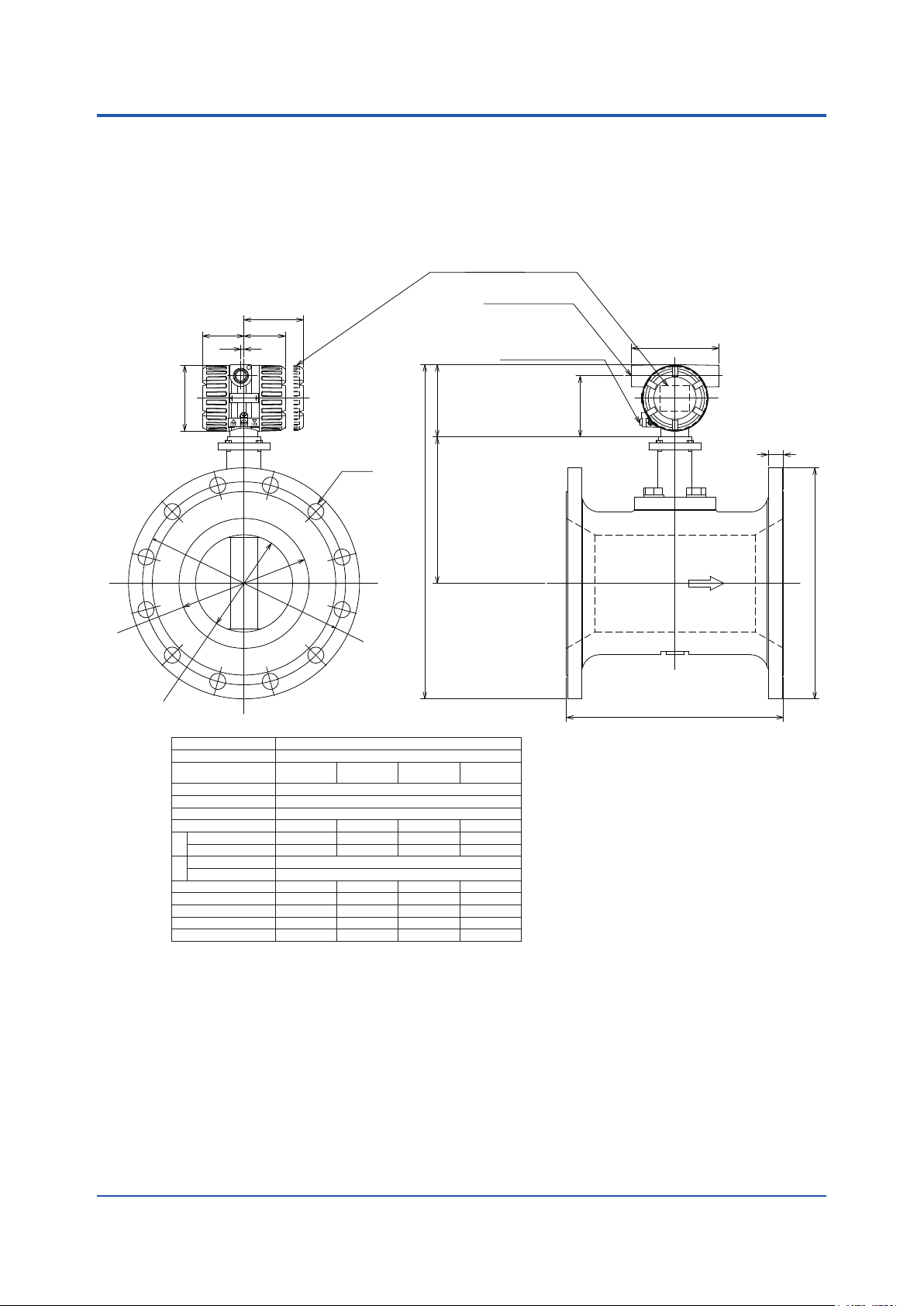

n Reduced Bore Type (/R1): DY200/R1
n Flange type

59 (2.32)

4.5

74 (2.91)

59 (2.32)

(0.18)

WITH INDICATOR

ELECTRICAL
CONNECTION

EARTH TERMINAL

32

Unit : mm

(approx. inch)

125 (4.29)

øC

ø94 (3.70)

103.5 (4.07)

N- øG

H1

H

øJ

øCS

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

L 310 (12.20)

C 185.6 (7.31)

CS 138.8 (5.46)

D 330 (12.99) 350 (13.78) 342.9 (13.50) 381 (15.00)

Shedder Bar Material: L, E, X

H

Shedder Bar Material: B 484.5 (19.07) 494.5 (19.47) 491 (19.33) 510 (20.08)

Shedder Bar Material: L, E, X

H1

Shedder Bar Material: B 216 (8.50)

T 22 (0.87) 30 (1.18) 28.4 (1.12) 41.1 (1.62)

J 290 (11.42) 305 (12.01) 298.5 (11.75) 330.2 (13.00)

N 12 12 8 12

G 23 (0.91) 25 (0.98) 22.4 (0.88) 25.4 (1.00)

WEIGHT kg (lb) 58.7 (129.4) 74.1 (163.4) 70.7 (155.9) 102.9 (226.9)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.

(Note 3) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

BJ1 BJ2

477.5 (18.80) 487.5 (19.19) 484 (19.06) 503 (19.80)

DY200/R1

209 (8.23)

BA1
BS1

BA2
BS2

87.5 (3.44)

T

øD

L

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

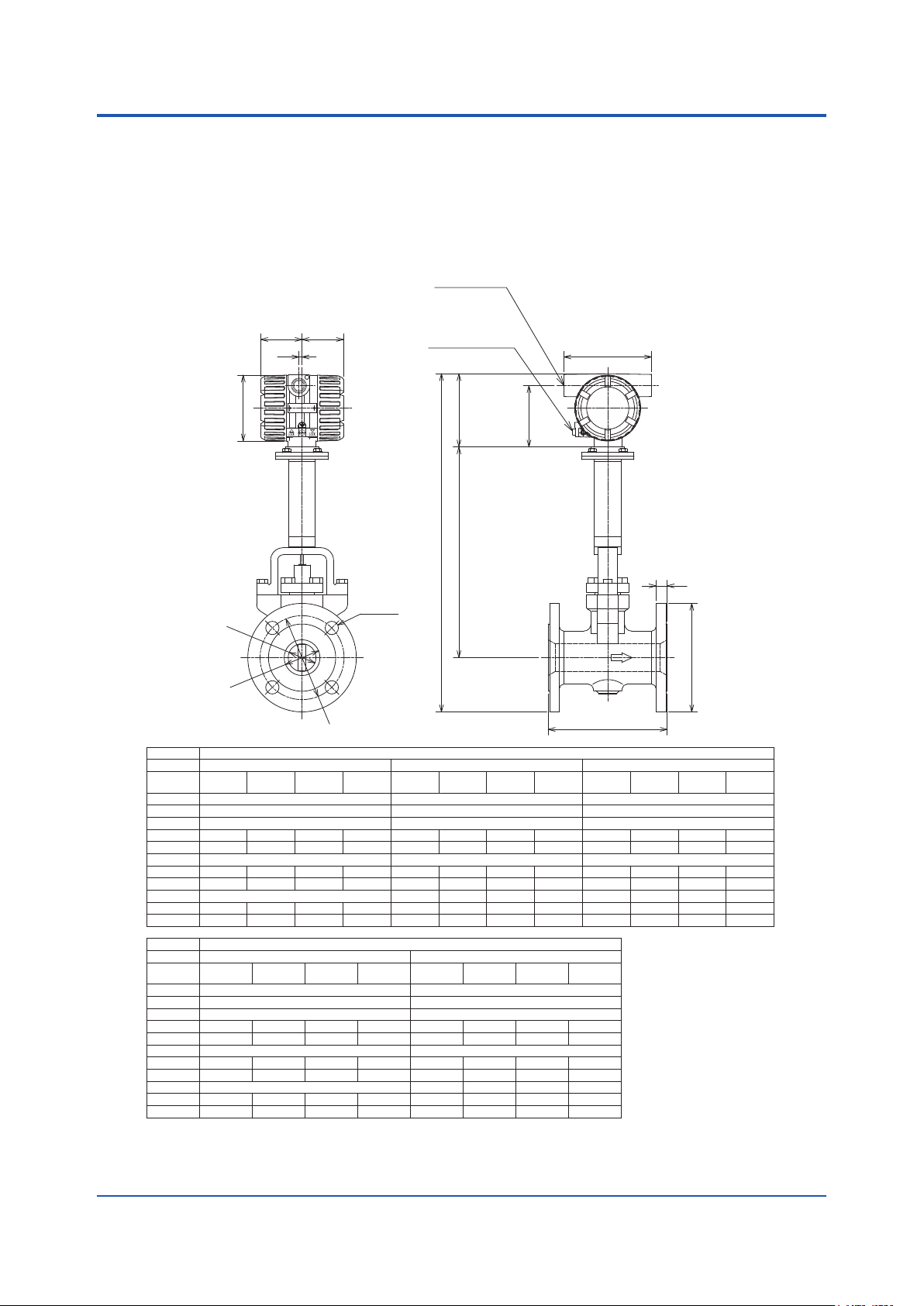

n High Process Temperature Version Reduced Bore Type (/HT/R1): DY040/HT/R1 up to DY150/HT/R1
n Flange type

Unit : mm

(approx. inch)

ELECTRICAL
CONNECTION

33

59 (2.32) 59 (2.32)

(0.18)

4.5

ø94 (3.70)

EARTH TERMINAL

103.5 (4.07)

H

H1

125 (4.92)

87.5 (3.44)

T

N- øG

øCS

øD

øC

øJ

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

C 39.7 (1.56) 51.1 (2.01) 71 (2.79)

CS 25.7 (1.01) 39.7 (1.56) 51.1 (2.01)

D 140 (5.51) 140 (5.51) 127 (5.00) 155.4 (6.12) 155 (6.10) 155 (6.10) 152.4 (6.00) 165.1 (6.50) 185 (7.28) 200 (7.87) 190.5 (7.50) 209.6 (8.25)

H

H1 272 (10.71) 279 (10.98) 301 (11.85)

T 16 (0.63) 18 (0.71) 17.5 (0.69) 20.6 (0.81) 16 (0.63) 18 (0.71) 19.1 (0.75) 22.4 (0.88) 18 (0.71) 22 (0.87) 23.9 (0.94) 28.4 (1.11)

N 4 4 8 4 8 8 8 4 8

G 19 (0.75) 19 (0.75) 15.7 (0.62) 22.4 (0.88) 19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75) 19 (0.75) 23 (0.91) 19 (0.75) 22.4 (0.88)

WEIGHT kg (lb)

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

C 93.8 (3.69) 138.8 (5.46)

CS 71 (2.79) 93.8 (3.69)

D 210 (8.27) 225 (8.86) 228.6 (9.00) 254 (10.00) 280 (11.02) 305 (12.01) 279.4 (11.00) 317.5 (12.50)

H 526.5 (20.73) 534 (21.02) 536 (21.10) 548.5 (21.59) 576.5 (22.70) 589 (23.19) 576 (22.68) 595.5 (23.44)

H1 318 (12.52) 333 (13.11)

T 18 (0.71) 24 (0.94) 23.9 (0.94) 31.8 (1.25) 22 (0.87) 28 (1.10) 25.4 (1.00) 36.6 (1.44)

N 8 8 12 8 12

G 19 (0.75) 23 (0.91) 19 (0.75) 22.4 (0.88) 23 (0.91) 25 (0.98) 22.4 (0.88) 22.4 (0.88)

WEIGHT kg (lb)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

BJ1 BJ2

L 150 (5.90) 170 (6.69) 200 (7.87)

445.5 (17.54) 445.5 (17.54)

J 105 (4.13) 105 (4.13) 98.6 (3.88) 114.3 (4.50) 120 (4.72) 120 (4.72) 120.7 (4.75) 127 (5.00) 150 (5.91) 160 (6.30) 152.4 (6.00) 168.2 (6.62)

10 (22.0) 10.5 (23.1) 9.8 (21.6) 13 (28.7) 10.9 (24.0) 11.5 (25.4) 11.8 (26.0) 14 (30.9) 19 (41.9) 22.1 (48.7) 22.3 (49.2) 27.3 (60.2)

L 220 (8.66) 270 (10.63)

J 175 (6.89) 185 (7.28) 190.5 (7.50) 200.2 (7.88) 240 (9.45) 260 (10.24) 241.3 (9.50) 269.7 (10.62)

BJ1 BJ2

25.4 (56.0) 30.4 (67.0) 31 (68.3) 41.4 (91.3) 45.9 (101.2) 56.3 (124.1) 49.4 (108.9) 71.7 (158.1)

DY040/HT/R1 DY050/HT/R1 DY080/HT/R1

BA1
BS1

439 (17.28) 453 (17.83) 460 (18.11) 460 (18.11)

DY100/HT/R1 DY150/HT/R1

BA2
BS2 BJ1 BJ2

BA1
BS1

BA2
BS2 BJ1 BJ2

BA1
BS1

458.5 (18.05)

BA2
BS2 BJ1 BJ2

465 (18.30) 497 (19.57)

BA1
BS1

BA2
BS2

504.5 (19.86)

500 (19.68)

BA1
BS1

BA2
BS2

509.5 (20.05)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

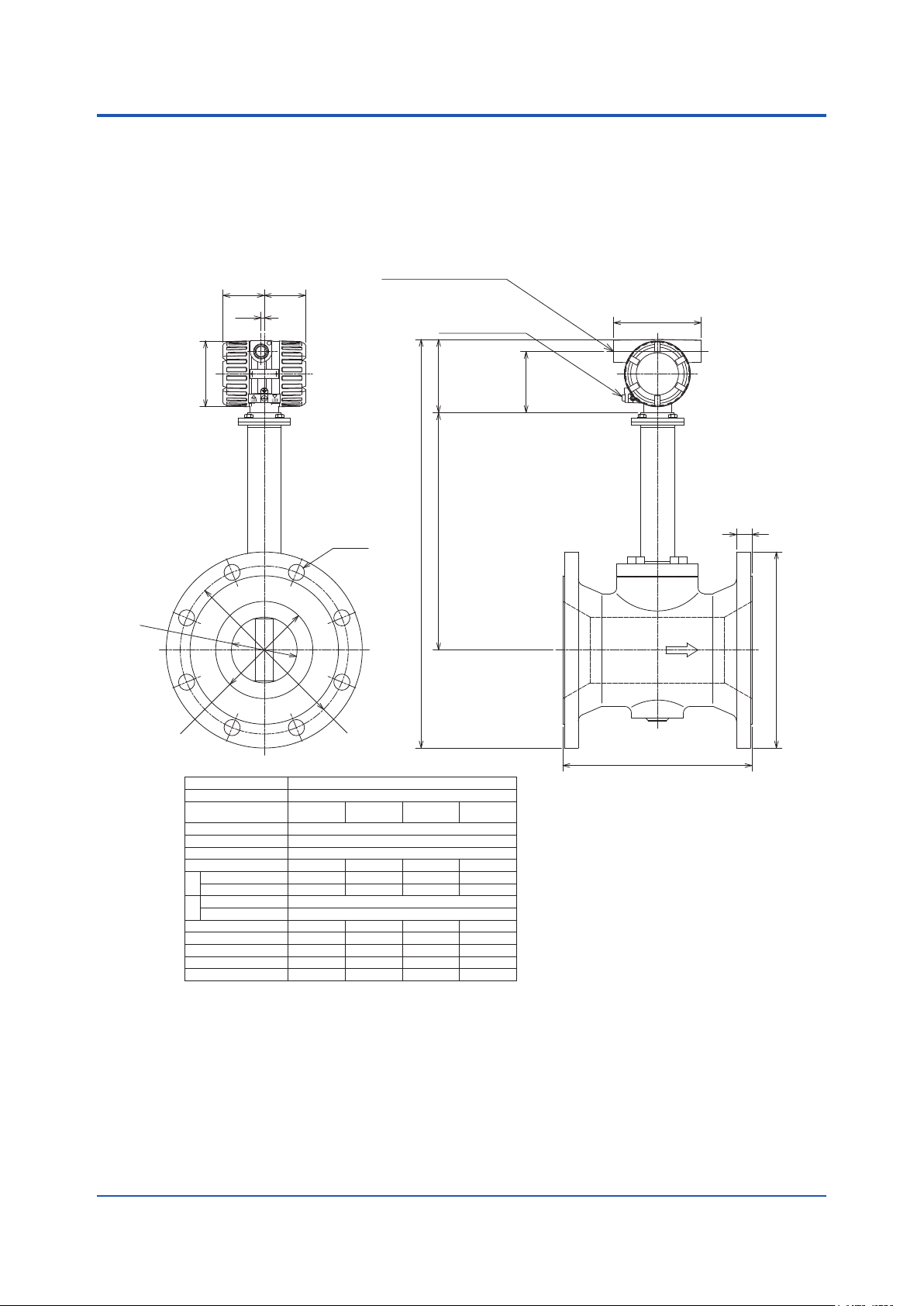

n High Process Temperature Version Reduced Bore Type (/HT/R1): DY200/HT/R1
n Flange type

34

Unit : mm

(approx. inch)

59 (2.32) 59 (2.32)

ELECTRICAL CONNECTION

(0.18)

4.5

94 (3.70)
ø

EARTH TERMINAL

103.5 (4.07)

87.5 (3.44)

125 (4.92)

T

N- øG

ø

CS

H

øD

ø

C

ø

J

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION BJ1 BJ2

L 310 (12.20)

C 185.6 (7.31)

CS 138.8 (5.46)

D 330 (12.99) 350 (13.78) 342.9 (13.5) 381 (15.0)

Shedder Bar Material: X 607.5 (23.92) 617.5 (24.31) 614 (24.17) 633 (24.92)

H

Shedder Bar Material: B 614.5 (24.19) 624.5 (24.59) 621 (24.45) 640 (25.20)

Shedder Bar Material: X 339 (13.35)

H1

Shedder Bar Material: B 346 (13.62)

T 22 (0.87) 30 (1.18) 28.4 (1.11) 41.1 (1.62)

J 290 (11.42) 305 (12.01) 298.5 (11.75) 330.2 (13.00)

N 12 12 8 12

G 23 (0.91) 25 (0.98) 22.4 (0.88) 25.4 (1.00)

WEIGHT kg (lb) 58.7 (129.4) 74.1 (163.4) 70.7 (155.9) 102.9 (226.9)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY200/HT/R1

BA1
BS1

BA2
BS2

L

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

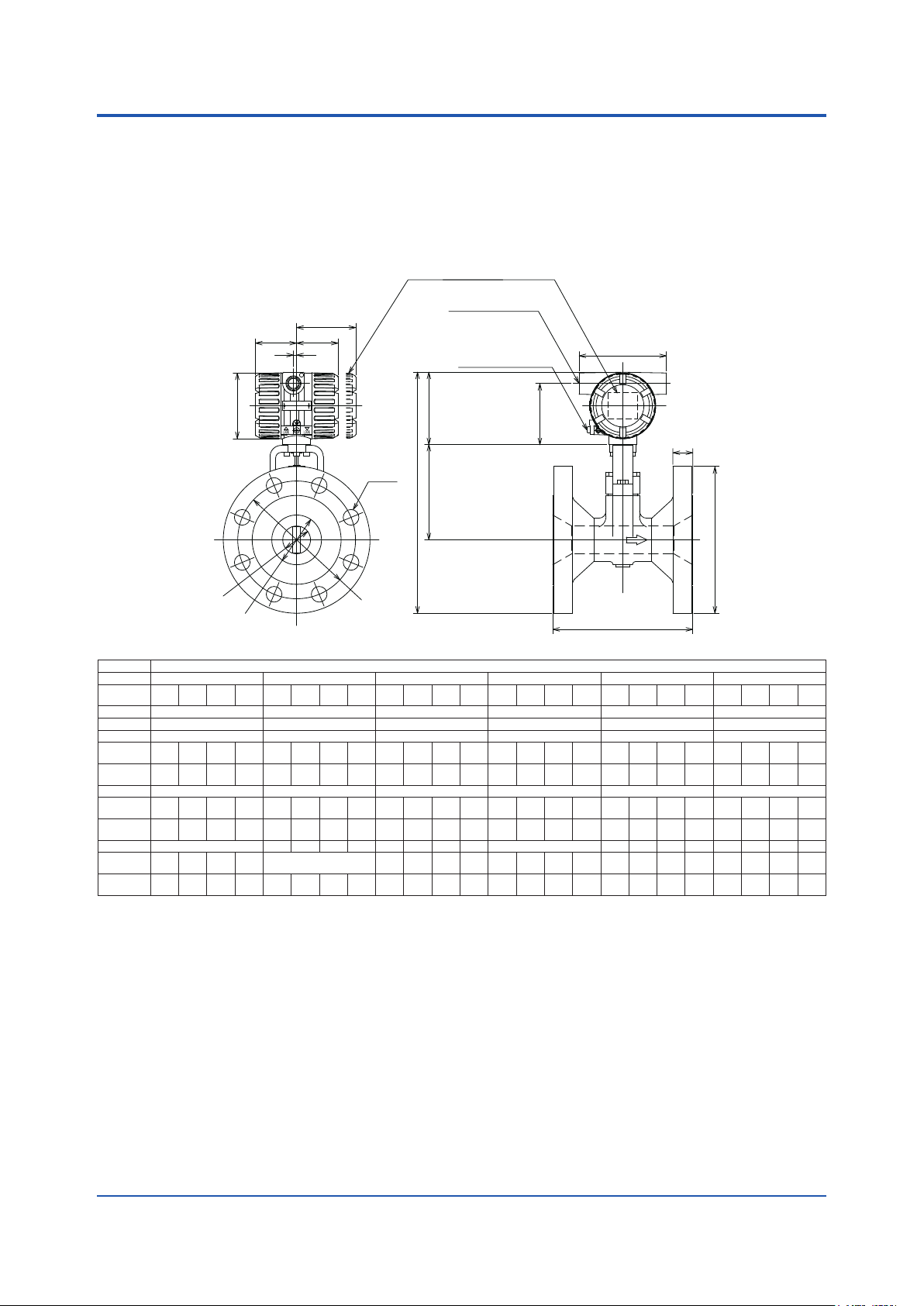

n Reduced Bore Type (/R2): DY040/R2 to DY200/R2
n Flange type

(0.18)

74 (2.91)

N- øG

103.5 (4.07)

H

H1

59 (2.32) 59 (2.32)

4.5

94 (3.70)
ø

WITH INDICATOR

ELECTRICAL
CONNECTION

EARTH TERMINAL

87.5 (3.44)

125 (4.92)

T

Unit : mm

(approx. inch)

D
ø

35

øCS

øJ

øC

L

TYPE INTEGRAL/REMOTE

MODEL CODE

PROCESS

CONNECTION

L 150 (5.90) 170 (6.69) 200 (7.87) 220 (8.66) 270 (10.63) 310 (12.20)

C 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69) 138.8 (5.46) 185.6 (7.30)

CS 14.6 (0.57) 25.7 (1.01) 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69)

D

H

H1 127 (4.94) 129 (5.07) 136 (5.35) 158 (6.22) 175 (6.89) 190 (7.48)

T

J

N 4 4 8 4 8 8 8 4 8 8 8 12 8 12 12 12 8 12

G

WEIGHT kg (lb)

(Note 1) Integral weight is the same as Remote.
(Note 2) In case of with Indicator, add 0.2kg.

(Note 3) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY040/R2 DY050/R2 DY080/R2 DY100 /R2 DY150/R2 DY200/R2

BA1

BJ1 BJ2

140

(5.51)

300.5

(11.83)

16

(0.63)

105

(4.13)

19

(0.75)

7.7

(17.0)

140

(5.51)

300.5

(11.83)

18

(0.71)

105

(4.13)

19

(0.75)

7.9

(17.4)

BS1

127

(4.94)

294

(11.57)

17.5

(0.69)

98.6

(3.88)

15.7

(0.62)

7.6

(16.8)

BA2
BS2 BJ1 BJ2

155.4

155

(6.12)

(6.10)

308.2

310

(12.13)

(12.20)

20.6

16

(0.81)

(0.63)

114.3

120

(4.50)

(4.72)

22.4

(0.88)

8.8

10

(19.4)

(22.0)

155

(6.10)

310

(12.20)

18

(0.71)

120

(4.72)

19 (0.75)

10.5

(23.1)

BA1
BS1

152.4
(6.00)

308.7

(12.15)

19.1

(0.75)

120.7
(4.75)

10.6

(23.4)

BA2
BS2 BJ1 BJ2

185

165.1

(6.50)

(7.28)

315.1

332

(12.40)

(13.07)

22.4

18

(0.88)

(0.71)

127

150

(5.00)

(5.91)

19

(0.75)

12.1

13.6

(26.7)

(30.0)

200

(7.87)

339.5

(13.37)

22

(0.87)

160

(6.30)

23

(0.91)

16.2

(35.7)

BA1
BS1

190.5
(7.50)

334.8

(13.18)

23.9

(0.94)

152.4
(6.00)

19

(0.75)

16.2

(35.7)

(13.55)

BA2
BS2 BJ1 BJ2

209.6

210

(8.27)

366.5

(14.43)

18

(0.71)

175

(6.89)

19

(0.75)

20.9

(46.1)

225

(8.86)

374

(14.72)

(0.94)

185

(7.28)

(0.91)

24.9

(54.9)

(8.25)

344.3

28.4

(1.11)

168.2
(6.62)

22.4

(0.88)

20

(44.1)

BA1

BA2

BS1

BS2 BJ1 BJ2

228.6

254

(10.00)

388.5

(15.30)

31.8

(1.25)

200.2
(7.88)

22.4

(0.88)

34

(75.0)

280

(11.02)

418.5

(16.48)

22

(0.87)

240

(9.45)

23

(0.91)

40.3

(88.8)

(9.00)

375.8

(14.80)

24

23.9

(0.94)

190.5
(7.50)

23

19

(0.75)

25.5

(56.2)

305

(12.01)

431

(16.97)

28

(1.10)

260

(10.24)

25

(0.98)

50.3

(110.9)

BA1
BS1

279.4

(11.00)

418.2

(16.46)

25.4

(1.00)

241.3
(9.50)

22.4

(0.88)

43.3

(95.5)

BA2
BS2 BJ1 BJ2

317.5

(12.50)

437.3

(17.22)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

61.3

(135.1)

(136.5)

330

(12.99)

458.5

(18.05)

22

(0.87)

290

(11.42)

23

(0.91)

61.9

350

(13.78)

468.5

(18.44)

30

(1.18)

305

(12.01)

25

(0.98)

68.9

(151.9)

BA1
BS1

342.9

(13.50)

465

(18.31)

28.4

(1.11)

298.5

(11.75)

22.4

(0.88)

71.9

(158.5)

BA2
BS2

381

(15.00)

484

(19.06)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

96.9

(213.6)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

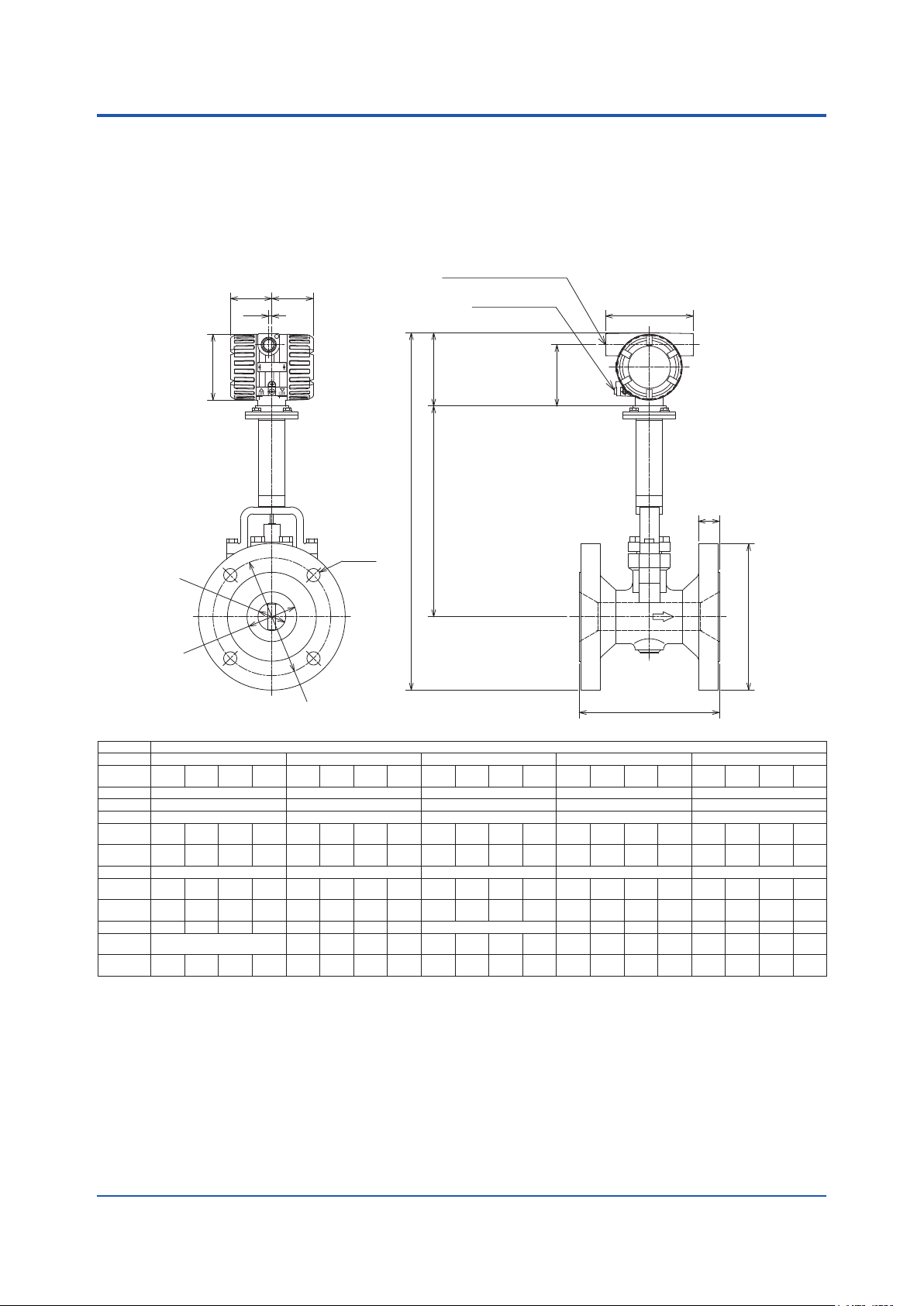

n High Process Temperature Version Reduced Bore Type (/HT/R2): DY050/HT/R2 to DY200/HT/R2

Unit : mm

(approx. inch)

ELECTRICAL CONNECTION

4.5

59 (2.32)59 (2.32)

(0.18)

EARTH TERMINAL

125 (4.92)

36

ø94 (3.70)

H

103.5 (4.07)

H1

87.5 (3.44)

T

N- øG

øCS

øD

øC

øJ

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

L 170 (6.69) 200 (7.87) 220 (8.66) 270 (10.63) 310 (12.20)

C 51.1 (2.01) 71 (2.79) 93.8 (3.69) 138.8 (5.46) 185.6 (7.30)

CS 25.7 (1.01) 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69)

D

H

H1 272 (10.71) 279 (10.98) 301 (11.85) 318 (12.52) 333 (13.11)

T

J

N 4 8 4 8 8 8 4 8 8 8 12 8 12 12 12 8 12

G 19 (0.75)

WEIGHT kg (lb)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY050/HT/R2 DY080/HT/R2 DY100 /HT/R2 DY150/HT/R2 DY200/HT/R2

BA1

BJ1 BJ2

155

(6.10)

453

(17.95)

16

(0.63)

120

(4.72)

10.4

(23.0)

155

(6.10)

453

(17.95)

18

(0.71)

120

(4.72)

10.9

(24.0)

BS1

152.4
(6.00)

451.7

(17.78)

19.1

(0.75)

120.7
(4.75)

11

(24.3)

BA2
BS2 BJ1 BJ2

165.1

185

(6.50)

(7.28)

458.1

475

(18.03)

(18.70)

22.4

18

(0.88)

(0.71)

127

150

(5.00)

(5.91)

19

(0.75)

12.5

14

(27.6)

(30.9)

200

(7.87)

482.5

(19.00)

22

(0.87)

160

(6.30)

23

(0.91)

16.6

(36.6)

BA1
BS1

190.5
(7.50)

477.8

(18.81)

23.9

(0.94)

152.4
(6.00)

19

(0.75)

16.6

(36.6)

BA2
BS2 BJ1 BJ2

209.6

210

(8.25)

(8.27)

487.3

509.5

(19.19)

(20.06)

28.4

18

(1.11)

(0.71)

168.2

175

(6.62)

(6.89)

22.4

19

(0.88)

(0.75)

20.4

21.3

(45.0)

(47.0)

225

(8.86)

517

(20.35)

24

(0.94)

185

(7.28)

23

(0.91)

25.3

(55.8)

BA1
BS1

228.6
(9.00)

518.8

(20.43)

23.9

(0.94)

190.5
(7.50)

19

(0.75)

25.9

(57.1)

BA2
BS2 BJ1 BJ2

254

280

(10.00)

(11.02)

561.5

(22.11)

22

(0.87)

240

(9.45)

23

(0.91)

40.3

(88.8)

(12.01)

(22.60)

(10.24)

(110.9)

531.5

(20.93)

31.8

(1.25)

200.2
(7.88)

22.4

(0.88)

34.4

(75.8)

305

574

28

(1.10)

260

25

(0.98)

50.3

BA1
BS1

279.4

(11.00)

561.2

(22.09)

25.4
(1.0)

241.3
(9.50)

22.4

(0.88)

43.3

(95.5)

BA2
BS2 BJ1 BJ2

317.5
(12.5)

580.3

(22.85)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

61.3

(135.1)

330

(12.99)

601.5

(23.68)

22

(0.87)

290

(11.42)

23

(0.91)

61.9

(136.5)

350

(13.78)

611.5

(24.07)

30

(1.18)

305

(12.01)

25

(0.98)

68.9

(151.9)

BA1
BS1

342.9

(13.5)

608

(23.94)

28.4

(1.11)

298.5

(11.75)

22.4

(0.88)

71.9

(158.5)

BA2
BS2

381

(15.00)

627

(24.69)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

96.9

(213.6)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

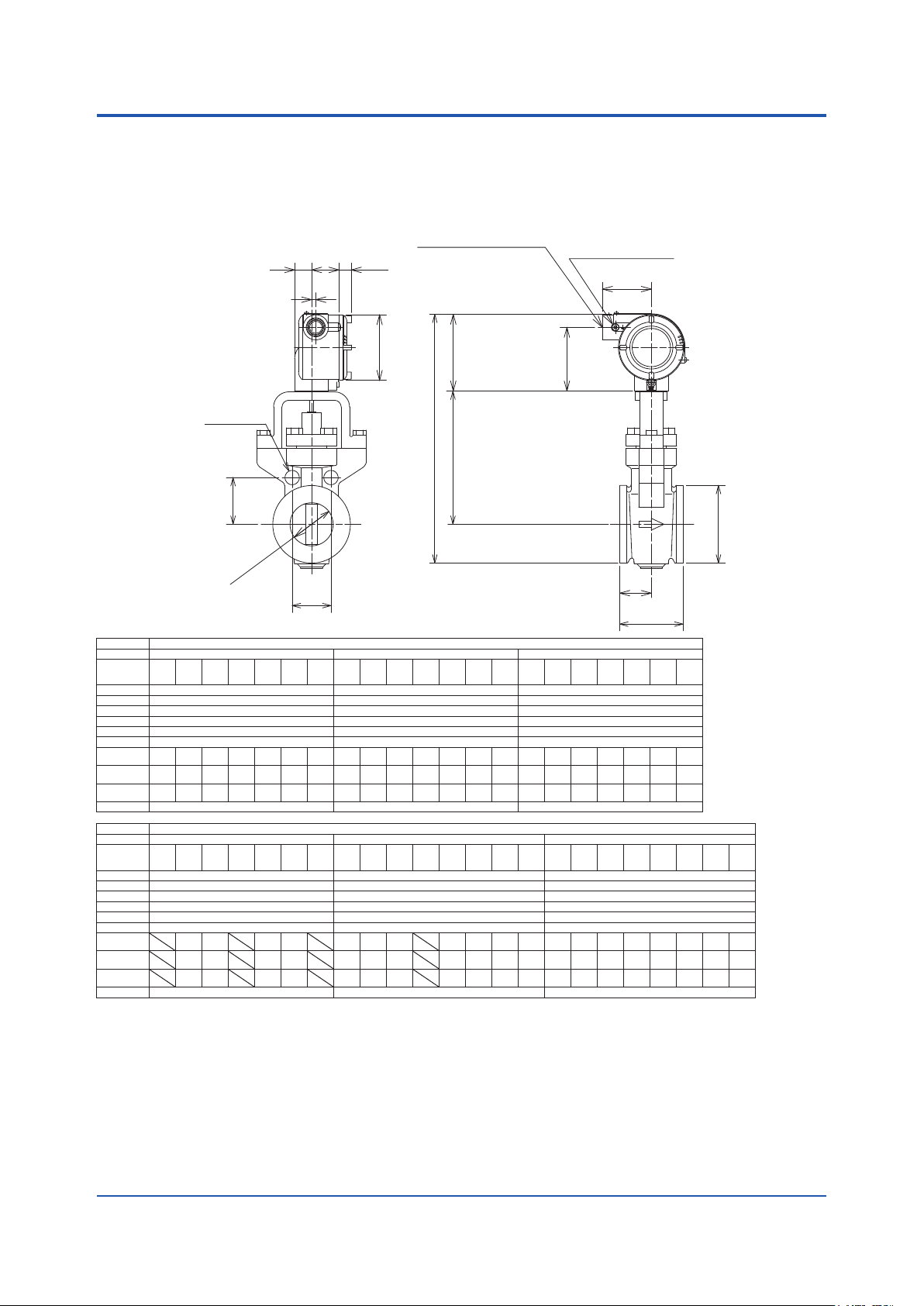

n Stainless Steel Housing: DY015/E1 to DY100/E1
n Wafer Type

37

Unit : mm

(approx. inch)

20 (0.78)

32.5

(1.28)

ELECTRICAL CONNECTION

14.5 (0.57)

EARTH TERMINAL

58 (2.28)

5

(0.19)

ø78 (3.07)

91 (3.58)

75.5 (2.97)

2 - øG

H

H1

F

øC

E

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

(Note 1) The holes are not provided.

(Note 2) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

AJ1 AJ2 AJ4 AA1 AA2 AA4
L 70 (2.76) 70 (2.76) 70 (2.76)
B 35 (1.38) 35 (1.38) 35 (1.38)
C 14.6 (0.57) 25.7(1.01) 39.7 (1.56)
D 35.1 (1.38) 50.8 (2.00) 73 (2.87)
H 235.5 (9.27) 245.4 (9.66) 263.5 (10.37)

H1 127 (5.00) 129 (5.08) 136 (5.35)

49.5

E

(1.95)

24.7

F

(0.97)

13

G

(0.51)

TYPE REMOTE

AJ1 AJ2 AJ4 AA1 AA2 AA4
L 75 (2.95) 100 (3.94) 120 (4.72)
B 37.5 (1.48) 40 (1.57) 50 (1.97)
C 51.1 (2.01) 71 (2.80) 93.8 (3.69)
D 92 (3.62) 127 (5.00) 157.2 (6.19)
H 295 (11.61) 329.5 (12.97) 359.6 (14.16)

H1 158 (6.22) 175 (6.89) 190 (7.48)

E

F

G

DY015/E1 DY025/E1 DY040/E1

49.5

56.6

42.7

(1.95)

24.7

(0.97)

13

(0.51)

45.9

(1.81)

55.4

(2.18)

17

(0.67)

(2.23)

28.3

(1.11)

17

(0.67)

49.8

(1.96)

60.1

(2.37)

17

(0.67)

47.1

(1.68)

(1.85)

21.4

23.5

(0.84)

(0.93)

14

14

(0.55)

(0.55)

2.9 (6.4) 3.8 (8.4) 4.4 (9.7)

DY050/E1 DY080/E1 DY100/E1

48.6

(1.91)

58.7

(2.31)

17

(0.67)

6.1 (13.4) 9.5 (20.9) 12.9 (28.4)

AD1

to

AD4 AJ1 AJ2 AJ4 AA1 AA2 AA4

47.1

46

63.6

63.6

(1.85)

(1.81)

23.5

(0.93)

(0.55)

48.6

(1.91)

58.7

(2.31)

(0.67)

(2.50)

23

31.8

(0.91)

(1.25)

14

13

17

(0.51)

(0.67)

AD1

to

AD4 AJ1 AJ2 AJ4 AA1 AA2 AA4

57.4

(2.26)

69.3

(2.73)

17

17

(0.67)

(2.50)

31.8

(1.25)

17

(0.67)

61.2

(2.41)

73.9

(2.91)

21

(0.83)

67.2

(2.65)

33.6

(1.32)

17

(0.67)

65.1

(2.56)

78.5

(3.09)

21

(0.83)

56

(2.20)

28

(1.10)

14

(0.55)

62.9

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

AD1

to

AD4 AJ1 AJ2 AJ4 AA1 AA2 AA4

62.9

60.1

74.2

(2.48)

31.4

(1.24)

17

(0.67)

64.4

(2.54)

77.7

(3.06)

20

(0.79)

(2.37)

30.1

(1.19)

13

(0.51)

AD1
AD2

61.2

(2.41)

73.9

(2.91)

17

(0.67)

74.2

(2.92)

(2.92)

37.1

37.1

(1.46)

(1.46)

17

17

(0.67)

(0.67)

AD3
AD4 AJ1 AJ2 AJ4 AA1 AA2 AA4

61.2

67

(2.41)

(2.64)

73.9

80.8

(2.91)

(3.18)

17

17

(0.67)

(0.67)

84.9

(3.34)

42.4

(1.67)

21

(0.83)

70.8

(2.79)

85.5

(3.37)

21

(0.83)

69.7

(2.74)

34.8

(1.37)

14

(0.55)

78.5

(3.09)

94.7

(3.73)

23

(0.91)

B

80.8

(3.18)

40.4

(1.59)

20

(0.79)

72.9

(2.87)

88

(3.46)

17

(0.67)

L

80.8

(3.18)

40.4

(1.59)

20

(0.79)

76.6

(3.02)

92.5

(3.64)

20

(0.79)

AD1

AD4

77.8

(3.06)

38.9

(1.53)

17

(0.67)

82.6

(3.25)

99.7

(3.93)

23

(0.91)

øD

to

AD1

AD3

AD2

AD4

68.9

72.7

(2.71)

(2.86)

83.1

87.8

(3.27)

(3.46)

17

21

(0.67)

(0.83)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN Jan. 31, 2014-00

<<Contents>> <<Index>>

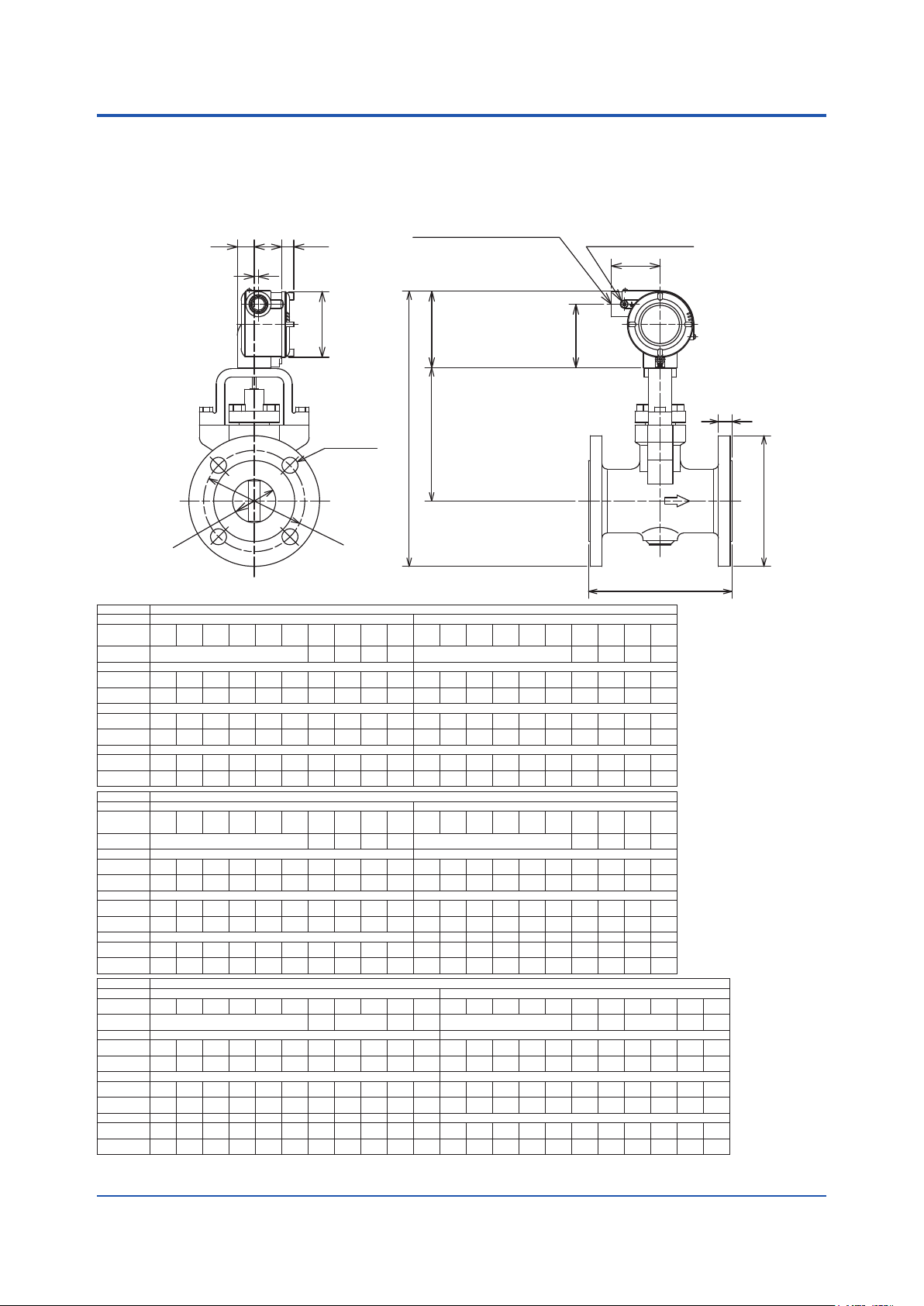

n Stainless Steel Housing: DY015/E1 to DY100/E1
n Flange type

38

Unit : mm

(approx. inch)

20 (0.78)

32.5

(1.28)

14.5 (0.57)

ELECTRICAL CONNECTION

5

(0.19)

ø78 (3.07)

N - øG

BA4
BS4

95.3

(3.75)

265.5

21

(0.83)

66.5

(2.62)

15.7

(0.62)

4.7

(10.4)

BA4
BS4

155.4
(6.12)

304.7

28.8

(1.13)

114.3
(4.50)

22.4

(0.88)

11.4

(25.1)

BA4
BS4

209.6
(8.25)

370.8

38.2

(1.51)

168

(6.61)

22.4

(0.88)

25.5

(56.2)

øJ

BD1

BA5

to

BS5

BD4 CA4 CA5 BJ1 BJ2 BJ4

160

130

(6.30)

120.7
(4.75)

278.5

(10.96)

28.8

(1.13)

82.6

(3.25)

22.4

(0.88)

6.8

(15.0)

BA5
BS5

200

(7.88)

177.8
(7.00)

315.9

(12.44)

38.2

(1.51)

124

(4.88)

28.4

(1.12)

16.3

(36.0)

BA5
BS5

245

(9.65)

241.3
(9.50)

386.5

(15.22)

44.5

(1.75)

190.5
(7.50)

25.4

(1.00)

35.8

(80.0)

140

(5.12)

(5.51)

95

95.3

(3.74)

(3.75)

265.5

265.5

(10.45)

(10.45)

16

19.9

(0.63)

(0.78)

65

66.5

(2.56)

(2.62)

14

15.7

(0.55)

(0.62)

4.3

4.6

(9.5)

(10.1)

BD1

to

BD4 CA4 CA5 BJ1 BJ2 BJ4

150

185

(5.90)

(7.28)

150

155.4

(5.90)

(6.12)

302

304.7

(11.89)

(12.00)

18

28.8

(0.71)

(1.13)

110

114.3

(4.33)

(4.50)

18

22.4

(0.71)

(0.88)

8.9

11.8

(19.6)

(26.0)

BD1

BD3

BD2

BD4 CA4 CA5 BJ1 BJ2 BJ4

200

(7.88)

200

200

(7.87)

(7.87)

366

366

(14.41)

(14.41)

20

24

(0.79)

(0.94)

160

160

(6.30)

(6.30)

18

18

(0.71)

(0.71)

19.5

20.1

(43.0)

(44.3)

øC

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

MODEL CODE

PROCESS

CONNECTION

WEIGHT kg (lb)

BJ1 BJ2 BJ4

L

C 14.6 (0.58) 25.7 (1.01)

95

D

(3.74)

265.5

H

(10.45)

H1 127 (5) 129 (5.08)

12

T

(0.47)

70

J

(2.76)

N 4 4

15

G

(0.59)

4.3

(9.5)

TYPE REMOTE

BJ1 BJ2 BJ4

L

C 39.7 (1.56) 51.1 (2.01)

140

D

(5.51)

297

H

(11.69)

H1 136 (5.36) 158 (6.22)

16

T

(0.63)

105

J

(4.13)

N 4 4 8 8 4 8 8 8 4 8 8

19

G

(0.75)

8.3

(18.3)

TYPE REMOTE

BJ1 BJ2 BJ4

L

C 71 (2.80) 93.8 (3.69)

185

D

(7.28)

358.5

H

(14.11)

H1 175 (6.89) 190 (7.48)

18

T

(0.71)

150

J

(5.91)

N 8 8 8 4 8 8 8 8 8 8 8 8

19

G

(0.75)

17.5

(38.6)

95

(3.74)

265.5

(10.45)

14

(0.55)

70

(2.76)

15

(0.59)

4.4

(9.7)

140

(5.51)

297

(11.69)

18

(0.71)

105

(4.13)

19

(0.75)

8.5

(18.7)

200

(7.87)

366

(14.41)

22

(0.87)

160

(6.30)

23

(0.91)

20.1

(44.3)

115

(4.53)

275.5

(10.85)

20

(0.79)

80

(3.15)

19

(0.75)

(13.2)

160

(6.30)

307

(12.09)

26

(1.02)

120

(4.72)

23

(0.91)

12

(26.5)

210

(8.27)

371

(14.61)

32

(1.26)

170

(6.69)

23

(0.91)

25.5

(56.2)

(5.12)

6

(5.90)

(7.88)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY015/E1 DY025/E1

BA1

BA2

BS1

BS2

130

88.9

95.3

(3.5)

(3.75)

262.5

265.5

(10.33)

(10.45)

(10.45)

11.2

14.2

(0.44)

(0.56)

60.5

66.5

(2.38)

(2.62)

15.7

15.7

(0.62)

(0.62)

4.2

4.4

(9.3)

(9.7)

DY040/E1 DY050/E1

BA1

BA2

BS1

BS2

150

127

155.4

(5.00)

(6.12)

290.5

304.7

(11.44)

(12.00)

(12.00)

17.5

20.6

(0.69)

(0.81)

98.6

114.3

(3.88)

(4.50)

15.7

22.4

(0.62)

(0.88)

8.2

9.4

(18.1)

(20.7)

DY080/E1 DY100/E1

BA1

BA2

BS1

BS2

200

190.5

209.6

(7.50)

(8.25)

361.5

370.8

(14.23)

(14.60)

(14.60)

23.9

28.4

(0.94)

(1.12)

152.4

168.2

(6.00)

(6.62)

19

22.4

(0.75)

(0.88)

20.1

23.9

(44.3)

(52.7)

160

(6.30)

120.7
(4.75)

278.5

(10.96)

28.8

(1.13)

82.6

(3.25)

22.4

(0.88)

6.9

(15.2)

200

(7.88)

177.8
(7.00)

315.9

(12.44)

38.2

(1.51)

124

(4.88)

28.4

(1.12)

16.4

(36.2)

235

(9.25)

209.6
(8.25)

370.8

(14.60)

39.7

(1.56)

168

(6.61)

22.4

(0.88)

27.2

(60.1)

H

91 (3.58)

H1

125

(4.92)

282.5

(11.12)

14

(0.55)

90

(3.54)

19

(0.75)

7

(15.4)

155

(6.10)

326.5

(12.85)

16

(0.63)

120

(4.72)

19

(0.75)

11.2

(24.7)

250

(9.84)

241.3
(9.50)

386.5

(15.22)

46

(1.81)

190.5
(7.50)

25.4

(1.00)

36.4

(80.2)

125

(4.92)

282.5

(11.12)

16

(0.63)

90

(3.54)

19

(0.75)

7.2

(15.9)

155

(6.10)

326.5

(12.85)

18

(0.71)

120

(4.72)

19

(0.75)

11.7

(25.8)

210

(8.27)

386

(15.20)

18

(0.71)

175

(6.89)

19

(0.75)

22.9

(50.5)

130

(5.12)

285

(11.22)

22

(0.87)

95

(3.74)

19

(0.75)

8.7

(19.2)

165

(6.50)

331.5

(13.05)

26

(1.02)

130

(5.12)

19

(0.75)

14.4

(31.7)

225

(8.86)

393.5

(15.49)

24

(0.94)

185

(7.28)

23

(0.91)

26.9

(59.3)

150

(5.91)

170

(6.69)

BA1
BS1

108

(4.25)

274

(10.79)

14.2

(0.56)

79.2

(3.12)

15.7

(0.62)

6.7

(14.8)

BA1
BS1

152.4
(6.00)

325.2

(12.81)

19.1

(0.75)

120.7
(4.75)

19

(0.75)

11.8

(26.0)

220

(8.66)

250

(9.84)

406

(15.98)

36

(1.42)

205

(8.07)

25

(0.98)

38.2

(84.2)

BA2
BS2

124

(4.88)

282

(11.10)

17.5

(0.69)

89

(3.51)

19

(0.75)

7.3

(16.1)

BA2
BS2

165.1

(6.50)

331.5

(13.05)

22.4

(0.88)

127

(5.00)

19

(0.75)

13.3

(29.3)

BA1
BS1

228.6

(9.00)

395.3

(15.56)

23.9

(0.94)

190.5

(7.50)

19

(0.75)

27.5

(61.0)

BA4
BS4

124

(4.88)

282

(11.10)

24

(0.95)

89

(3.51)

19

(0.75)

7.8

(17.2)

BA4
BS4

165.1
(6.50)

331.5

(13.05)

31.8

(1.25)

127

(5.00)

19

(0.75)

14.9

(32.8)

BA2
BS2

254

(10.00)

408

(16.06)

31.8

(1.25)

200.2
(7.88)

22.4

(0.88)

36

(79.4)

75.5 (2.97)

BA5
BS5

190

(7.48)

(5.91)

149.4
(5.87)

(4.53)

294.7

277.5

(11.60)

(10.93)

34.9

(1.37)

(0.71)

101.6
(4.00)

(3.35)

25.4

(1.00)

(0.55)

11.2

(24.7)

(15.4)

BA5
BS5

230

(9.06)

(6.69)

215.9
(8.50)

(6.50)

357

331.5

(14.06)

(13.05)

44.5

(1.75)

(0.79)

165.1
(6.50)

(4.92)

25.4

(1.00)

(0.71)

26.6

(58.6)

(25.1)

BA4
BS4

240

(9.45)

(11.02)

273

292.1

(10.75)

(11.50)

417.5

(16.44)

(16.81)

44.5

(1.75)

(2.00)

216

(8.50)

(9.25)

25.4

(1.00)

(1.25)

50.9

(112.2)

(123.4)

EARTH TERMINAL

58 (2.28)

L

BD1

to

BD4 CA4 CA5

150

170

190

(6.69)

(7.48)

115

124

149.4

(4.88)

(5.87)

282

294.7

(11.10)

(11.60)

18

24

34.9

(0.95)

(3.50)

(0.75)

(17.6)

205

(8.07)

165.1
(6.50)

331.5

(13.05)

33.3

(1.31)

127

(5.00)

(0.75)

15.9

(35.1)

BD1
BD2

220

(8.66)

391

(15.39)

(0.79)

180

(7.09)

(0.71)

23.3

(51.4)

89

19

8

19

220

(8.66)

20

18

(1.37)

101.6
(4.00)

25.4

(1.00)

11.5

(25.4)

230

(9.06)

215.9
(8.50)

357

(14.06)

46

(1.81)

165.1
(6.50)

25.4

(1.00)

27

(60.0)

BD3
BD4 CA4 CA5

235

(9.25)

398.5

(15.69)

24

(0.94)

190

(7.48)

22

(0.87)

27.5

(61.0)

85

14

7

BD1

to

BD4 CA4 CA5

170

165

20

125

18

11.4

BA5
BS5

280

427

50.9

235

31.8

56

270

(10.63)

273

(10.75)

417.5

(16.44)

46

(1.81)

216

(8.50)

25.4

(1.00)

52.9

(117.0)

285

(11.22)

292.1

(11.50)

427

(16.81)

52.4

(2.06)

235

(9.25)

31.8

(1.25)

56.7

(125.0)

T

øD

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

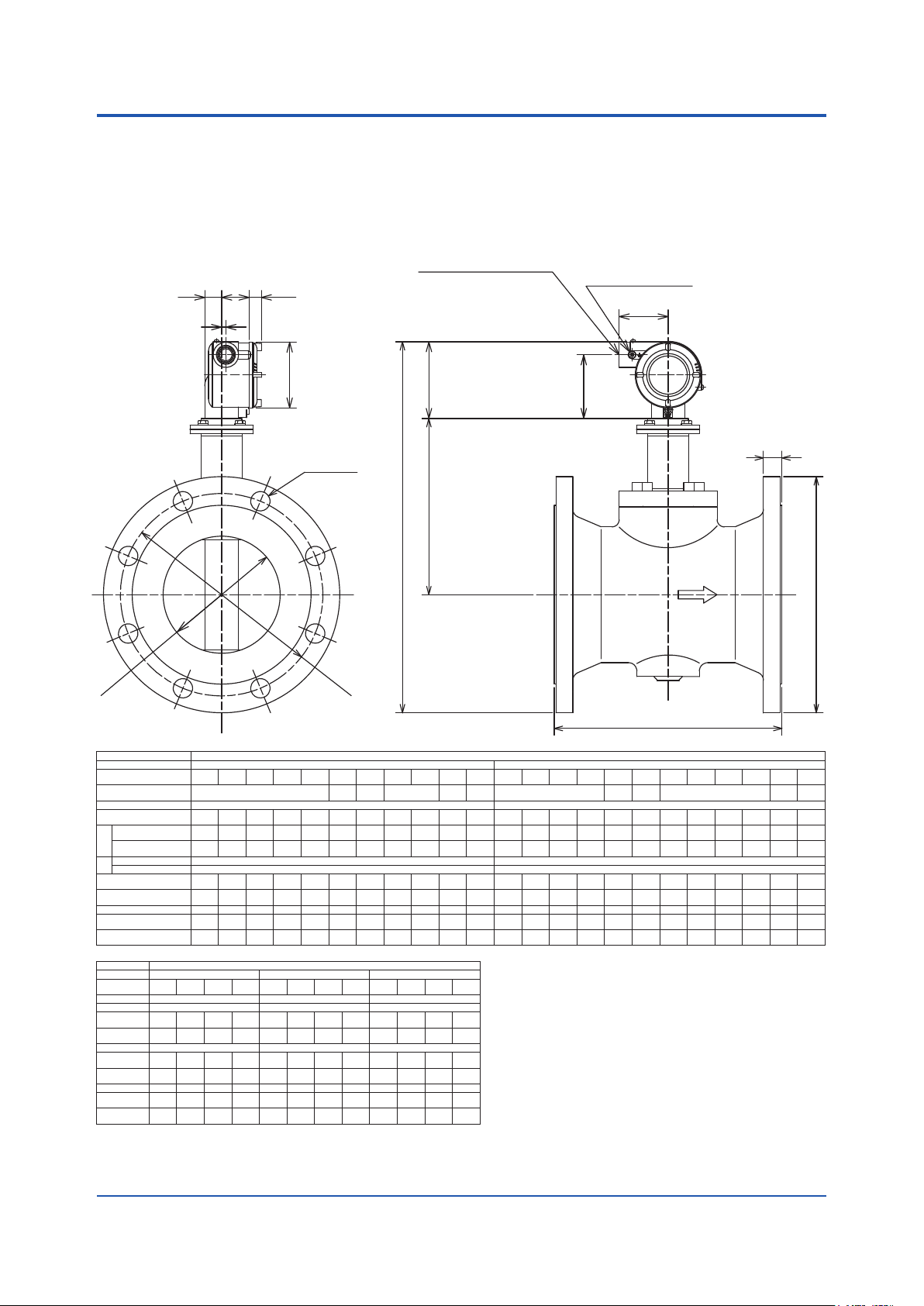

n Stainless Steel Housing: DY150/E1 to DY400/E1
n Flange type

39

Unit : mm

(approx. inch)

ELECTRICAL CONNECTION

20 (0.78)

32.5

(1.28)

(0.19)

5

14.5 (0.57)

ø78 (3.07)

91 (3.58)

EARTH TERMINAL

58 (2.28)

75.5 (2.97)

T

N - øG

H1

H

øD

øC

øJ

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION BJ1 BJ2 BJ4

L

C 138.8 (5.46) 185.6

D

Shedder Bar Material: L, E, X

H

Shedder Bar Material: B

Shedder Bar Material: L, E, X

H1

Shedder Bar Material: B 216 (8.50) 248 (9.76)

T

J

N 8 12 12 8 12 12 12 8 8 12 12 12 12 8 12 12 12 8 12 12 12 12 12

G

WEIGHT kg (lb)

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

L 370 (14.57) 400 (15.75) 520 (20.47)
C 230.8 (9.09) 276.2 (10.87) 354.2 (13.94)

D

H

H1 277 (10.91) 307 (12.09) 374 (14.72)

T

J

N 12 12 12 16 16 16 12 16 16 16 16 20

G

WEIGHT kg (lb)

280

(11.02)

440

(17.32)

447

(17.60)

22

(0.87)

240

(9.45)

23

(0.91)

33.5

(73.9)

DY250/E1 DY300/E1 DY400/E1

BJ1 BJ2

400

430

(15.75)

(16.93)

583

(23.07)

34

(1.34)

380

(14.96)

27

(1.06)

100.1

(220.7)

(16.00)

(22.49)

(14.25)

(198.7)

568

(22.36)

24

(0.94)

355

(13.98)

25

(0.98)

78.1

(172.1)

BA1
BS1

406.4

571.2

30.2

(1.19)

362

25.4

(1.00)

90.1

305

(12.01)

452.4

(17.81)

459.4

(18.09)

28

(1.10)

260

(10.24)

25

(0.98)

43.5

(96.0)

270

(10.63)

355

279.4

(13.98)

(11.00)

477.5

439.7

(18.80)

(17.31)

484.5

446.7

(19.07)

(17.59)

44

(1.73)

(1.00)

295

241.3

(11.61)

(9.50)

33

(1.30)

(0.88)

76.5

(168.7)

(80.5)

BA2
BS2 BJ1 BJ2

444.5

445

(17.50)

(17.52)

590.5

620.5

(23.25)

(24.43)

47.8

24

(1.88)

(0.94)

387.4

400

(15.25)

(15.75)

28.5

25

(1.12)

(0.98)

125.1

100.1

(275.8)

(220.7)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY150/E1 DY200/E1

BA1

BA2

BA4

BA5

BD1

BS1

BS2

BS4

BS5

310

336

(12.20)

(13.23)

317.5

356

381

(14.02)

(15.00)

478

490.5

(18.82)

(19.31)

485

497.5

(19.09)

(19.59)

209 (8.23) 241 (9.49)

54.4

62

(2.14)

(2.44)

292

317.5

(11.50)

(12.50)

28.4

31.8

(1.12)

(1.25)

84.5

106.1

(186.3)

(234.0)

BA1

BA2

BS1

BS2 BJ1 BJ2

482.6

520.7

(20.50)

639.3

658.5

(25.93)

31.8

50.8

(1.25)

(2.00)

431.8

450.9

(17.75)

25.4

31.8

(1.00)

(1.25)

140.1

178.1

(392.6)

25.4

22.4

36.5

480

(18.90)

638

(25.12)

36

(1.42)

430

(16.93)

27

(1.06)

128.1

(282.4)

(12.50)

458.5

(18.05)

465.5

(18.33)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

54.5

(120.2)

(19.00)

(25.17)

(17.00)

(308.9)

BD3

BD2

BD4 CA4 CA5 BJ1 BJ2

270

(10.63)

285

300

(11.22)

(11.81)

442.5

450

(17.42)

(17.72)

449.5

457

(17.70)

(17.99)

22

28

(0.87)

(1.10)

240

250

(9.45)

(9.84)

22

26

(0.87)

(1.02)

33.5

43

(73.9)

(94.8)

BA1
BS1

560

605

(23.82)

767.5

(30.22)

46

(1.81)

540

(21.26)

33

(1.30)

308.1

(679.2)

596.9

(23.50)

763.5

(30.06)

36.6

(1.44)

539.8

(21.25)

28.5

(1.22)

300.1

(661.6)

(22.05)

745

(29.33)

28

(1.10)

510

(20.08)

27

(1.06)

265.1

(584.4)

325

(12.80)

356

(14.02)

478

(18.82)

485

(19.09)

55.7

(2.19)

292

(11.50)

28.4

(1.12)

90.1

(198.7)

BA2
BS2

647.7

(25.50)

788.5

(31.04)

57.2

(2.25)

571.5

(22.50)

35.1

(1.38)

370.1

(816.0)

340

(13.39)

381

(15.00)

490.5

(19.31)

497.5

(19.59)

63.6

(2.50)

317.5

(12.50)

31.8

(1.25)

107.1

(236.1)

330

(12.99)

497

(19.57)

504

(19.84)

22

(0.87)

290

(11.42)

23

(0.91)

45.5

(100.3)

350

(13.78)

507

(19.96)

514

(20.24)

30

(1.18)

305

(12.01)

25

(0.98)

52.5

(115.7)

310

(12.21)

BA1
BS1

342.9

(13.50)

503.5

(19.82)

510.5

(20.10)

28.4

(1.12)

298.5

(11.74)

22.4

(0.88)

55.5

(122.4)

BA2
BS2

381

(15.00)

522.5

(20.57)

529.5

(20.85)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

80.5

(177.5)

BA4

BA5

BS4

BS5 BD1 BD2 BD3 BD4 CA4 CA5

370

(14.57)

419.1

(16.50)

541.5

(21.32)

548.5

(21.59)

62

(2.44)

349.3

(13.75)

31.8

(1.25)

136.1

(300.0)

386

(15.20)

469.9

(18.50)

567

(22.32)

574

(22.60)

69.9

(2.75)

393.7

(15.50)

38.1

(1.50)

182.1

(401.5)

340

(13.39)

502

(19.76)

509

(20.04)

24

(0.94)

295

(11.61)

22

(0.87)

46.4

(102.3)

340

(13.39)

502

(19.76)

509

(20.04)

24

(0.94)

295

(11.61)

22

(0.87)

46.4

(102.3)

310

(12.21

)

360

(14.17)

512

(20.16)

519

(20.43)

30

(1.18)

310

(12.20)

26

(1.02)

53.7

(118.4)

375

(14.76)

519.5
(20.45)

526.5
(20.73)

34

(1.34)

320

(12.60)

30

(1.18)

56

(123.5)

375

(14.76)

419.1

(16.50)

541.5

(21.32)

548.5

(21.59)

63.6

(2.50)

349.3

(13.75)

31.8

(1.25)

139.1

(306.7)

390

(15.35)

469.9

(18.50)

567

(22.32)

574

(22.60)

71.4

(2.81)

393.7

(15.50)

38.1

(1.50)

183.1

(403.7)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

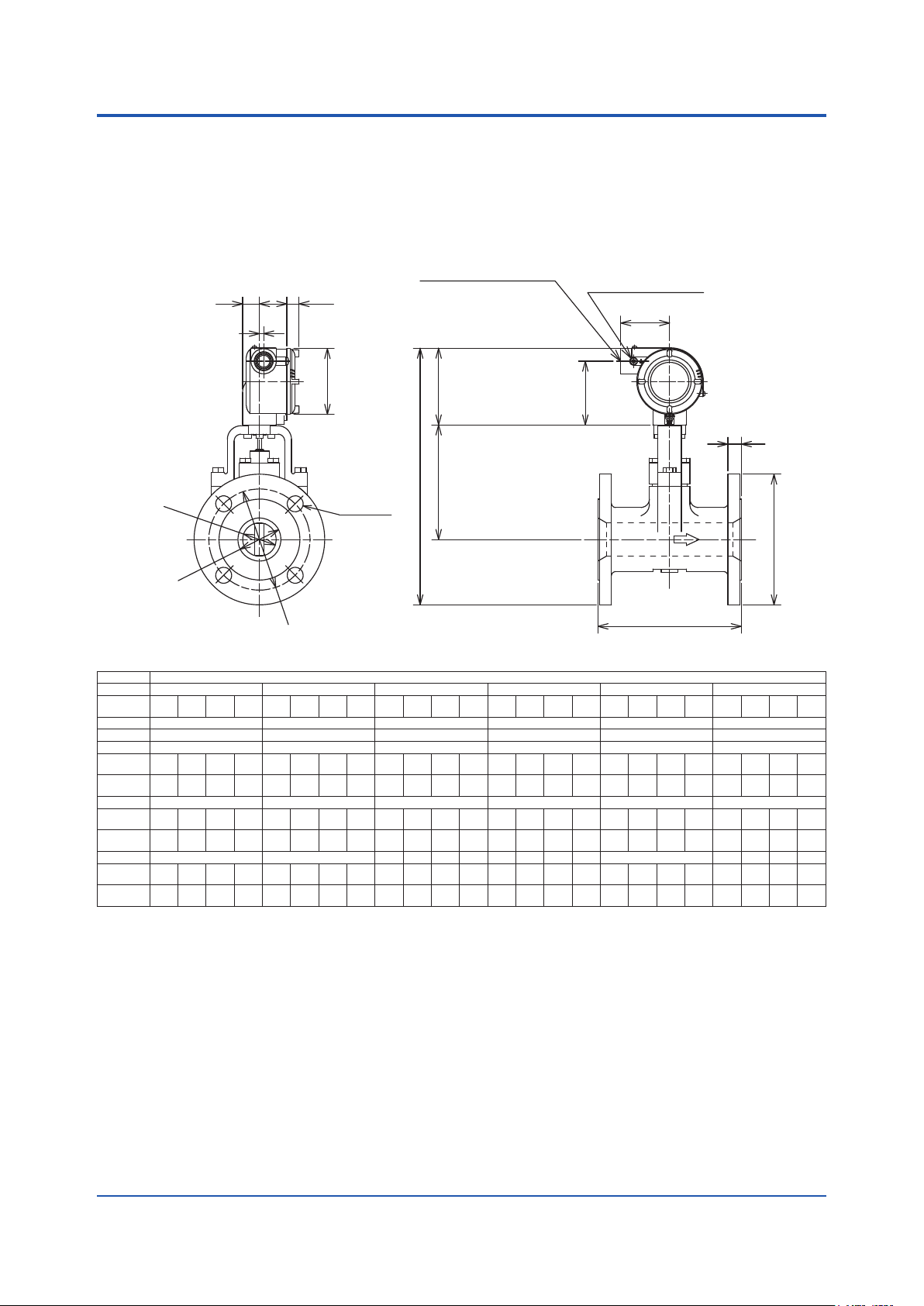

n Stainless Steel Housing Reduced Bore Type (/R1/E1): DY025/R1/E1 to DY150/R1/E1
n Flange type

40

Unit : mm

(approx. inch)

ELECTRICAL CONNECTION

20 (0.78)

32.5

(1.28)

14.5 (0.57)

EARTH TERMINAL

58 (2.28)

5

(0.19)

ø78 (3.07)

91 (3.58)

75.5 (2.97)

T

H

øCS

N - øG

H1

øC

øJ

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

L 150 (5.91) 150 (5.91) 170 (6.69) 200 (7.87) 220 (8.66) 270 (10.63)

C 25.7 (1.01) 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69) 138.8 (5.46)

CS 14.6 (0.57) 25.7 (1.01) 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69)

D

H

H1 127 (5.00) 129 (5.07) 136 (5.35) 158 (6.22) 175 (6.89) 190 (7.48)

T

J

N 4 4 4 8 4 8 8 8 4 8 8 8 12 8 12

G

WEIGHT kg (lb)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY025/R1/E1 DY040/R1/E1 DY050/R1/E1 DY080/R1/E1 DY100/R1/E1 DY150/R1/E1

BA1

BJ1 BJ2

125

(4.92)

280.5

(11.04)

14

(0.55)

90

(3.54)

19

(0.75)

6.2

(13.7)

125

(4.92)

280.5

(11.04)

16

(0.63)

90

(3.54)

19

(0.75)

6.6

(14.6)

BS1

108

(4.25)

272

(10.71)

14.2

(0.56)

79.2

(3.12)

15.7

(0.62)

5.6

(12.3)

BA2
BS2 BJ1 BJ2

124

140

(4.88)

(5.51)

280

290

(11.02)

(11.42)

17.5

16

(0.69)

(0.63)

89

105

(3.50)

(4.13)

19

19

(0.75)

(0.75)

7.1

9.7

(15.7)

(21.4)

140

(5.51)

290

(11.42)

18

(0.71)

105

(4.13)

19

(0.75)

10.2

(922.5)

BA1
BS1

127

(4.94)

283.5

(11.16)

17.5

(0.69)

98.6

(3.88)

15.7

(0.62)

9.5

(21.0)

BA2
BS2 BJ1 BJ2

155.4

155

(6.12)

(6.10)

297.7

304.5

(11.72)

(11.99)

20.6

16

(0.81)

(0.63)

114.3

120

(4.50)

(4.72)

22.4

19

(0.88)

(0.75)

12.7

10.6

(30.1)

(23.4)

155

(6.10)

304.5

(11.99)

18

(0.71)

120

(4.72)

19

(0.75)

11.2

(24.7)

BA1
BS1

152.4

(6.00)

303.2

(11.94)

19.1

(0.75)

120.7

(4.75)

19

(0.75)

11.5

(25.4)

BA2
BS2 BJ1 BJ2

165.1

185

(6.50)

(7.28)

309.5

341.5

(12.16)

(13.44)

22.4

18

(0.88)

(0.71)

127

150

(5.00)

(5.91)

19

19

(0.75)

(0.75)

13.7

18.7

(30.2)

(41.2)

200

(7.87)

349

(13.74)

22

(0.87)

160

(6.30)

23

(0.91)

21.8

(48.1)

BA1
BS1

190.5

(7.50)

344.5

(13.57)

23.9

(0.94)

152.4
(6.00)

19

(0.75)

22

(49.0)

BA2
BS2 BJ1 BJ2

209.6

210

(8.25)

(8.27)

353.8

371

(13.93)

(14.61)

28.4

18

(1.11)

(0.71)

168.2

175

(6.62)

(6.89)

22.4

19

(0.88)

(0.75)

27

25.1

(60.0)

(55.3)

225

(8.86)

378.5

(14.90)

24

(0.94)

185

(7.28)

23

(0.91)

30.1

(66.4)

L

BA1
BS1

228.6
(9.00)

(10.00)

380.3

(14.97)

(15.47)

23.9

(0.94)

(1.25)22(0.87)28(1.10)

190.5

200.2

(7.50)

(7.88)

19

(0.75)

(0.88)

30.7

(67.7)

(91.3)

BA2
BS2 BJ1 BJ2

254

280

305

(11.02)

421

(16.57)

240

(9.45)

23

(0.91)

46

(101.4)

(12.01)

433.5

(17.07)

260

(10.24)

(0.98)

56.4

(124.3)

393

31.8

22.4

41.4

25

øD

BA1
BS1

279.4

(11.00)

420.7

(16.56)

25.4

(1.00)

241.3
(9.50)

22.4

(0.88)

49.5

(109.1)

BA2
BS2

317.5

(12.50)

439.5

(17.31)

36.6

(1.44)

269.7

(10.62)

22.4

(0.88)

71.8

(158.3)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

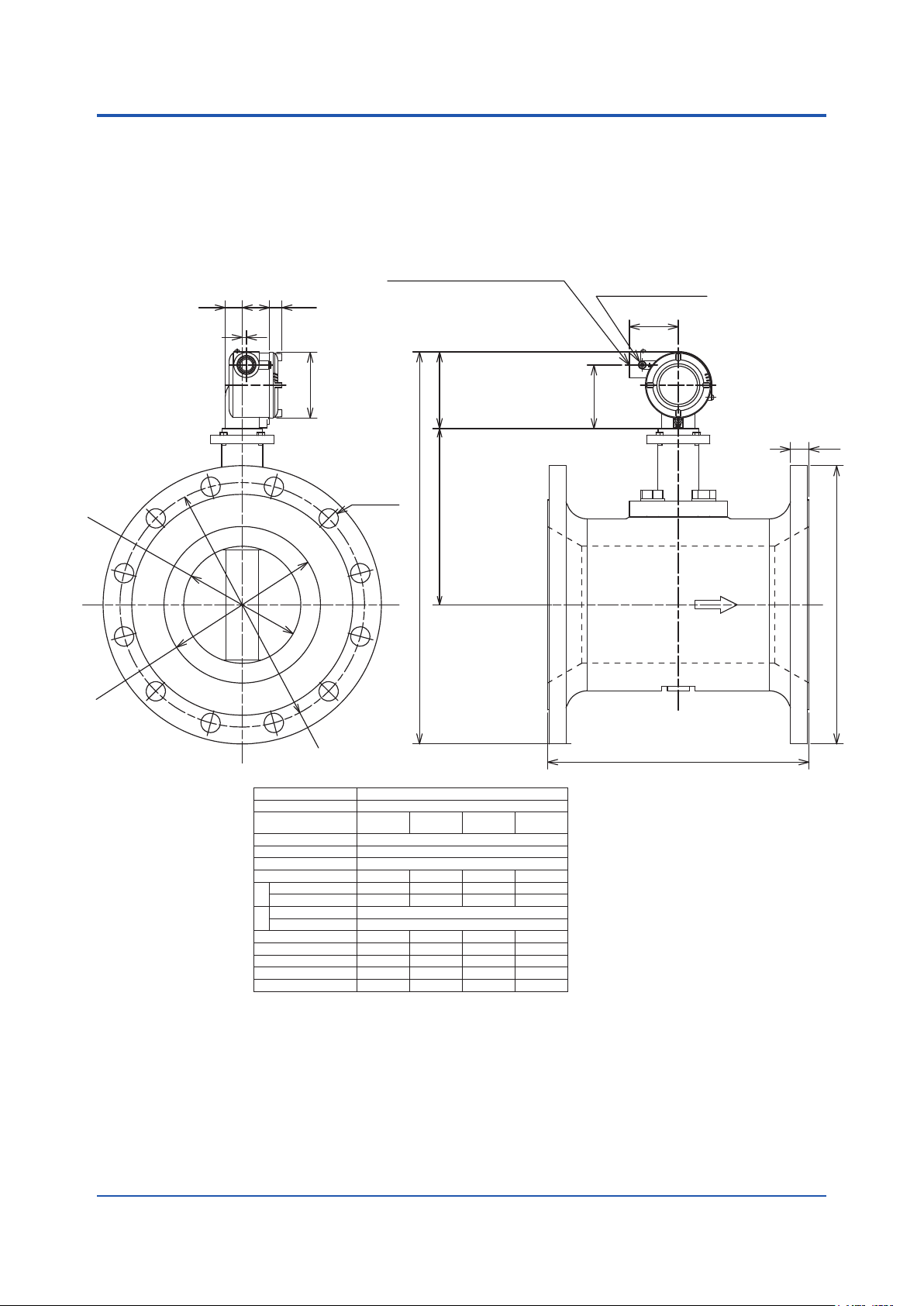

n Stainless Steel Housing Reduced Bore Type (/R1/E1): DY200/R1/E1
n Flange type

ELECTRICAL CONNECTION

32.5

20 (0.78)

(1.28)

(0.19)

14.5 (0.57)

5

41

Unit : mm

(approx. inch)

EARTH TERMINAL

58 (2.28)

øCS

øC

ø78 (3.07)

91 (3.58)

N - øG

H1

H

øJ

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION BJ1 BJ2

L 310 (12.20)

C 185.6 (7.31)

CS 138.8 (5.46)

D 330 (12.99) 350 (13.78) 342.9 (13.50) 381 (15.00)

Shedder Bar Material: L, E, X

H

Shedder Bar Material: B 472 (18.58) 482 (18.98) 478.5 (18.84) 497.5 (19.59)

Shedder Bar Material: L, E, X

H1

Shedder Bar Material: B 216 (8.50)

T 22 (0.87) 30 (1.18) 28.4 (1.12) 41.1 (1.62)

J 290 (11.42) 305 (12.01) 298.5 (11.75) 330.2 (13.00)

N 12 12 8 12

G 23 (0.91) 25 (0.98) 22.4 (0.88) 25.4 (1.00)

WEIGHT kg (lb) 58.8 (129.6) 74.2 (163.6) 70.8 (156.1) 103 (227.1)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

465 (18.31) 475 (18.70) 471.5 (18.56) 490.5 (19.31)

DY200/R1/E1

209 (8.23)

BA1
BS1

BA2
BS2

75.5 (2.97)

T

øD

L

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

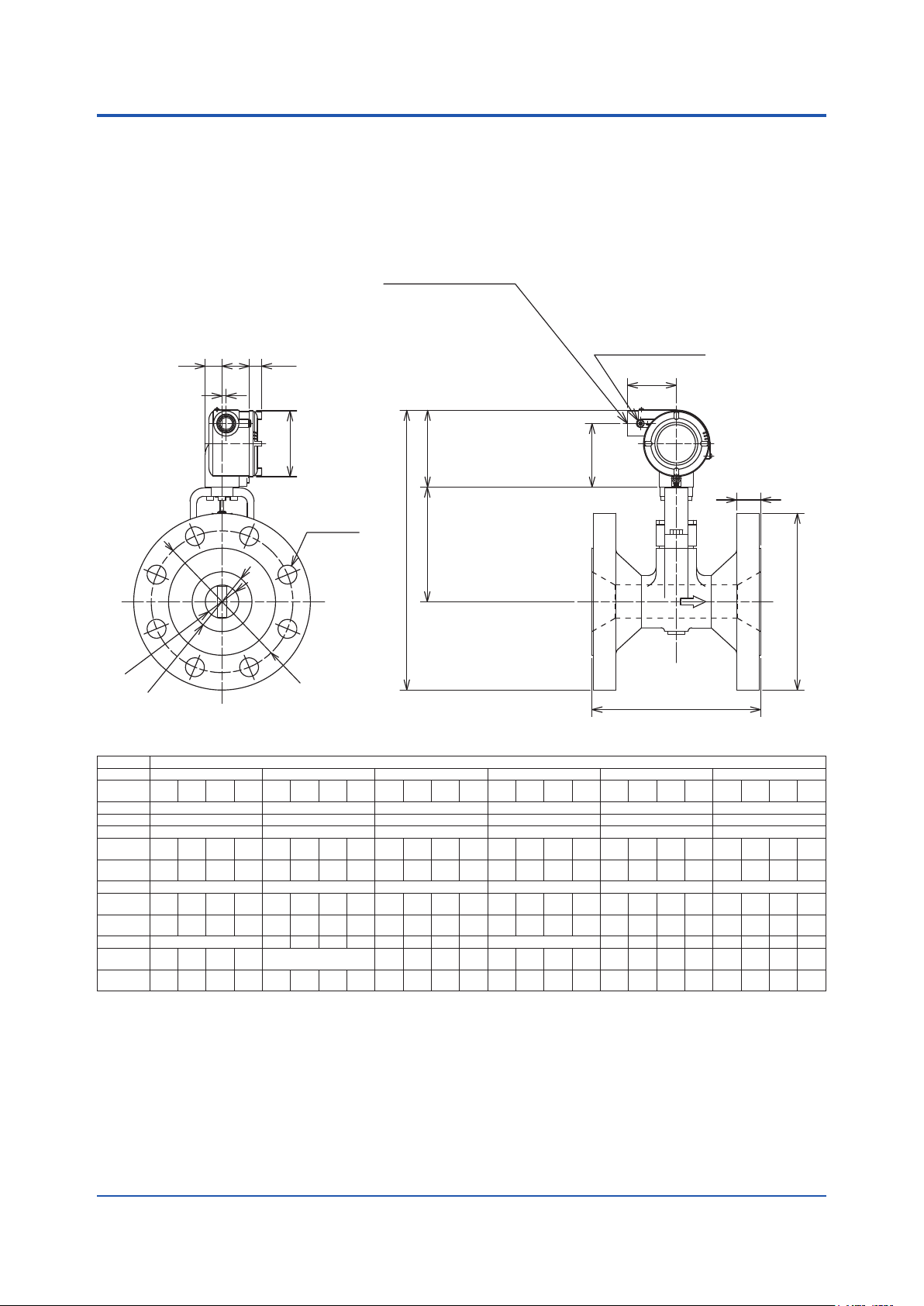

n Stainless Steel Housing Reduced Bore Type (/R2/E1): DY040/R1/E1 to DY200/R2/E1
n Flange type

ELECTRICAL CONNECTION

42

Unit : mm

(approx. inch)

20 (0.78)

32.5

(1.28)

14.5 (0.57)

EARTH TERMINAL

58 (2.28)

5

(0.19)

ø78 (3.07)

91 (3.58)

75.5 (2.97)

T

N - øG

H1

H

øCS

øJ

øC

L

TYPE REMOTE

MODEL CODE

PROCESS

CONNECTION

L 150 (5.91) 170 (6.69) 200 (7.87) 220 (8.66) 270 (10.63) 310 (12.20)

C 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69) 138.8 (5.46) 185.6 (7.30)

CS 14.6 (0.57) 25.7 (1.01) 39.7 (1.56) 51.1 (2.01) 71 (2.79) 93.8 (3.69)

D

H

H1 127 (5.00) 129 (5.07) 136 (5.35) 158 (6.22) 175 (6.89) 190 (7.48)

T

J

N 4 4 8 4 8 8 8 4 8 8 8 12 8 12 12 12 8 12

G

WEIGHT kg (lb)

(Note 1) The ow direction is opposite (right to left when facing onto indicator) in case of code/CRC.

DY040/R2/E1 DY050/R2/E1 DY080/R2/E1 DY100/R2/E1 DY150/R2/E1 DY200/R2/E1

BA1

BJ1 BJ2

140

(5.51)

288

(11.34)

16

(0.63)

105

(4.13)

19

(0.75)

7.8

(17.2)

140

(5.51)

288

(11.34)

18

(0.71)

105

(4.13)

19

(0.75)

8

(17.6)

BS1

127

(4.94)

281.5

(11.08)

17.5

(0.69)

98.6

(3.88)

15.7

(0.62)

7.7

(17.1)

BA2
BS2 BJ1 BJ2

155.4

155

(6.12)

(6.10)

295.7

297.5

(11.64)

(11.71)

20.6

16

(0.81)

(0.63)

114.3

120

(4.50)

(4.72)

22.4

(0.88)

8.9

10.1

(20.0)

(22.3)

155

(6.10)

297.5

(11.71)

18

(0.71)

120

(4.72)

10.6

(23.4)

19

(0.75)

(6.00)

(11.66)

(23.6)

BA1
BS1

152.4

296.2

19.1

(0.75)

120.7
(4.75)

10.7

165.1
(6.50)

302.5

(11.91)

(0.88)

(5.00)

(26.9)

BA2
BS2 BJ1 BJ2

185

(7.28)

(7.87)

319.5

(12.58)

(12.87)

22.4

18

(0.71)

150

(5.91)

19

(0.75)

13.7

(30.2)

(0.87)

(6.30)

(0.91)

16.3

(36.0)

127

12.2

200

327

22

160

23

BA1
BS1

190.5

(7.50)

322.5

(12.70)

23.9

(0.94)

152.4

(6.00)

19

(0.75)

16.3

(36.0)

BA2
BS2 BJ1 BJ2

209.6

210

(8.25)

(8.27)

331.8

354

(13.06)

(13.94)

28.4

18

(1.11)

(0.71)

168.2

175

(6.62)

(6.89)

22.4

19

(0.88)

(0.75)

20.1

21

(44.3)

(46.3)

225

(8.86)

361.5

(14.23)

24

(0.94)

185

(7.28)

23

(0.91)

25

(55.1)

BA1
BS1

228.6

(9.00)

363.3

(14.30)

23.9

(0.94)

190.5
(7.50)

19

(0.75)

25.6

(56.4)

BA2
BS2 BJ1 BJ2

254

280

(10.00)

(11.02)

376

406

(14.80)

(15.98)

31.8

22

(1.25)

(0.87)

200.2

240

(7.88)

(9.45)

22.4

23

(0.88)

(0.91)

34.1

40.4

(75.2)

(89.1)

305

(12.01)

418.5

(16.48)

28

(1.10)

260

(10.24)

25

(0.98)

50.4

(111.1)

BA1
BS1

279.4

(11.00)

405.7

(15.97)

25.4

(1.00)

241.3
(9.50)

22.4

(0.88)

43.4

(95.7)

BA2
BS2 BJ1 BJ2

317.5

(12.50)

(12.99)

424.5

(16.71)

(17.56)

36.6

(1.44)

(0.87)

269.7

(10.62)

(11.42)

22.4

(0.88)

(0.91)

61.4

(135.4)

(136.7)

330

446

22

290

23

62

350

(13.78)

456

(17.95)

30

(1.18)

305

(12.01)

25

(0.98)

69

(152.1)

BA1
BS1

342.9

(13.50)

452.5

(17.82)

28.4

(1.11)

298.5

(11.75)

22.4

(0.88)

72

(158.7)

øD

BA2
BS2

381

(15.00)

471.5

(18.56)

41.1

(1.62)

330.2

(13.00)

25.4

(1.00)

97

(213.8)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation

GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

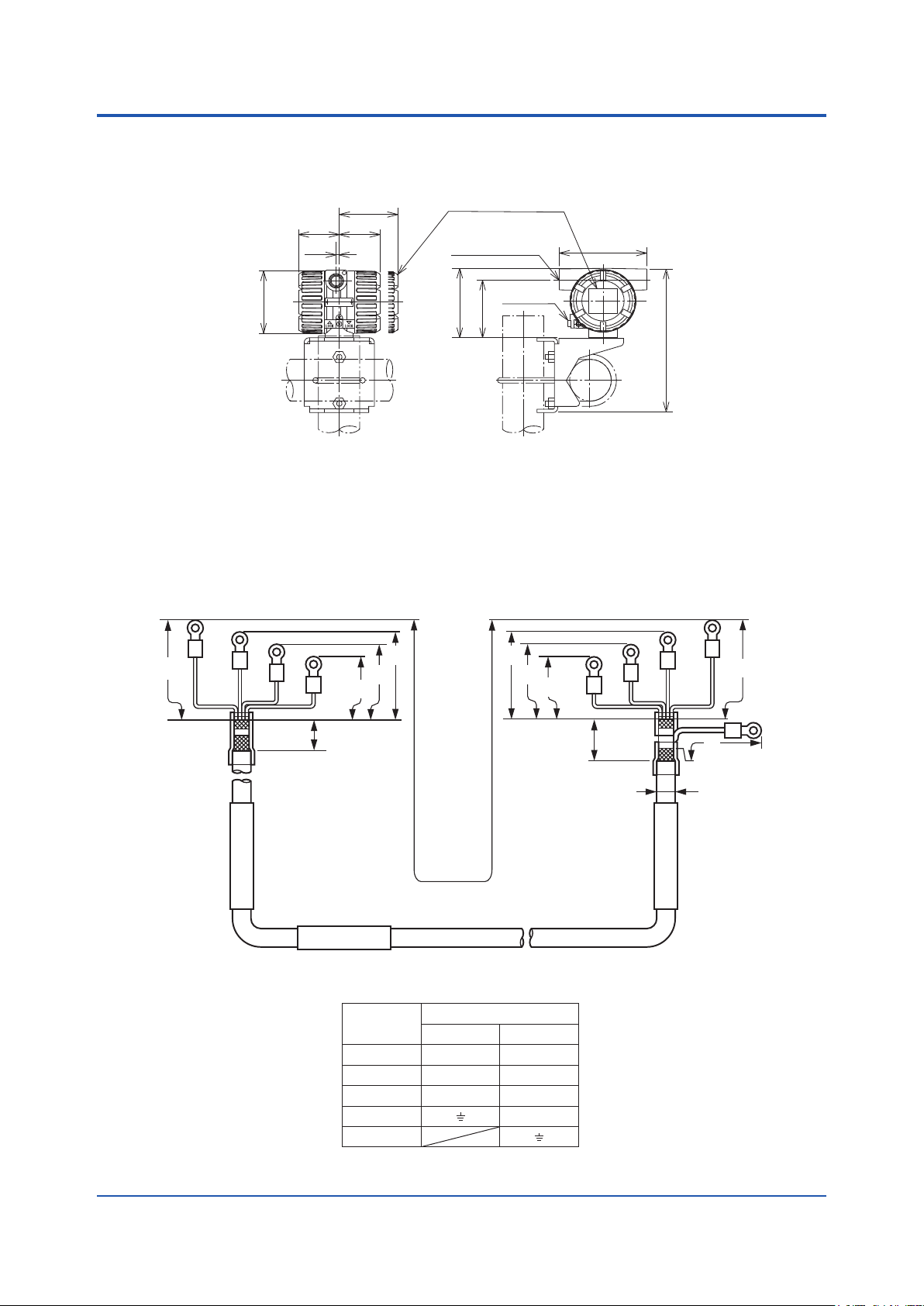

n Remote Type Converter (DYA)

ø94 (3.70)

Weight: 1.9 kg (4.19lb), 4.1 kg (9.04lb) for /E1.
Note: For flowmeters with indicator, add 0.2 kg.(0.44lb), 0.3 kg (0.66lb) for /E1.

74 (2.91)

59 (2.32) 59 (2.32)

(0.18)

4.5

WITH INDICATOR

ELECTRICAL
CONNECTION
(both sides)

EARTH
TERMINAL

103.5 (4.07)

87.5 (3.44)

43

Unit : mm

(approx. inch)

125 (4.92)

208.5 (8.21)

n Signal Cable for Remote Type (DYC)

80

(3.15)

(Black)

(White) (Red)

(1.97)

(Yellow)*

20

(0.79)

Flowmeter

DYC

Cable Color and Terminal

(*1) Only for /MV

70

(2.76)

60

(2.36)

50

1

Sepcified
Length (L)

30m (max.)

Color

Yellow

Red A A

White B B

Black

Blue

Flow meter Converter

(*1)

T T

70

(2.76)

Terminal

60

(2.36)

(1.97)

C

50

(Yellow)*

25

(0.98)

(Red) (White)

1

(Black)

95

(3.74)

ø9.2

(0.36)

Converter

80

(3.15)

(Blue)

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation GS 01F06A00-01EN

Jan. 31, 2014-00

<<Contents>> <<Index>>

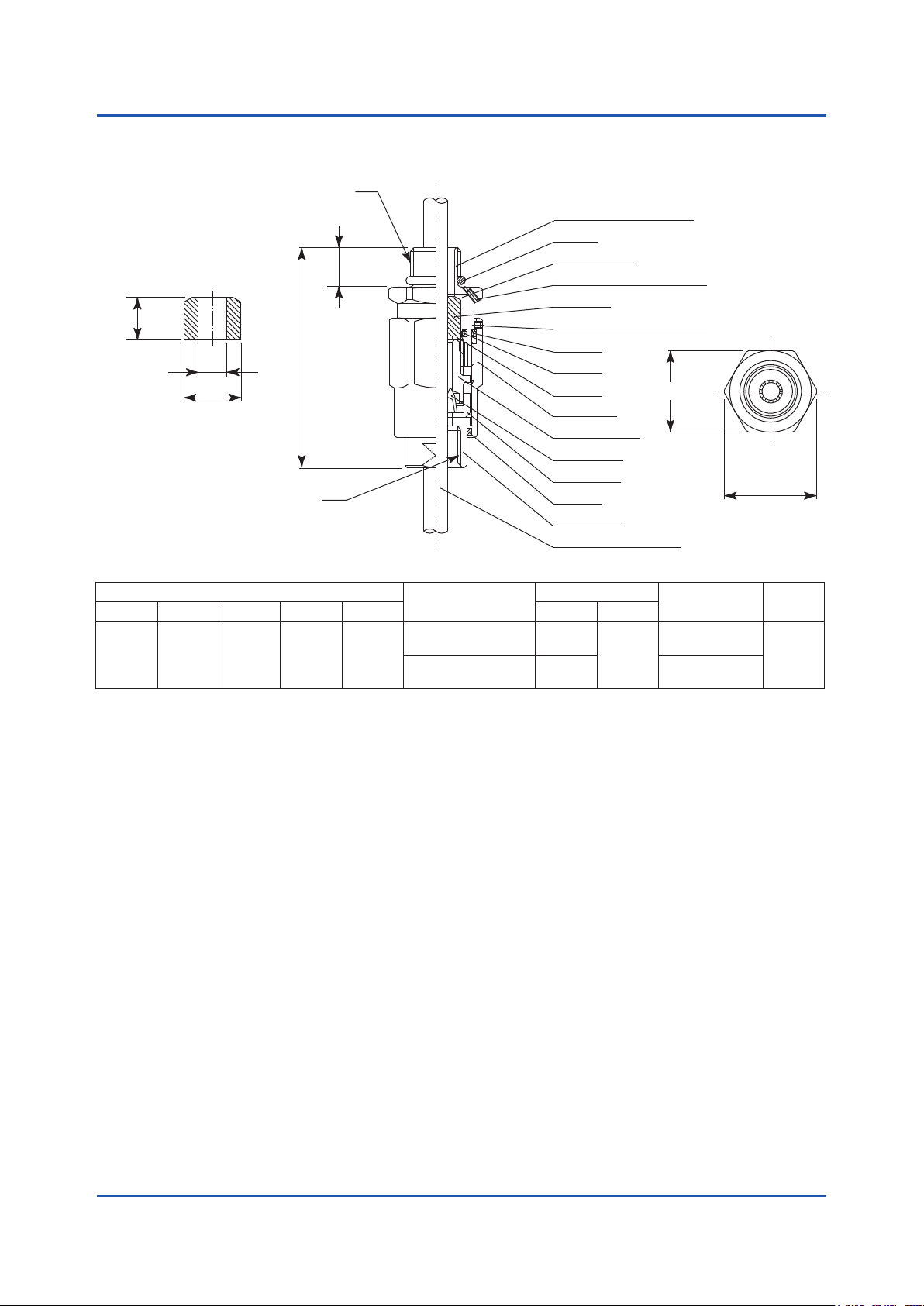

n Flameproof Packing Adapter (/G11, /G12)

44

T1

Adapter body (M. Screw)

O-Ring

16.5
(0.65)

18

(0.71)

Size

35

(1.38)

L

39

(1.54)

T2

94.5

(3.72)

Cable outer diameter

ø8.0 to ø10.0

(ø0.31 to ø0.39)

ø10.0 to ø12.0

(ø0.39 to ø0.47)

F

G

*Packing
(Choose from the table below
depend on cable outside diameter)

T1 T2 C D L F G

G 1/2 G 1/2

Packing case

Hexagon socket set screw

Packing *

Hexagon socket set screw

O-Ring

O-Ring

Washer

Union nut

Packing gland

Clamp ring

Clamp nut

O-Ring

B.coupling

Cable (user’s scope)

Packing dimensions

ø10.0

(ø0.39)

ø12.0

(ø0.47)

ø20.0

(ø0.79)

C

Identication

mark

16 8-10

16 10-12

Unit : mm

(approx. inch)

D

Weight

kg (lb)

0.26

(0.57)

n OPERATING INSTRUCTIONS

Specify the following when ordering :

a) Model and sufx codes.

b) Sizing data: Mandatory for ordering.

Create the sizing data by using the latest
digitalYEWFLO Sizing Program.

c) Selection of UPPER DISP. FLOWRATE

Except: the Remote Type Detector (-N)

d) Tag No.:

Tag plate on the converter: up to 16 characters
Stainless Steel Tag Plate (/SCT): up to 30
characters
Software Tag:
BRAIN (-D): up to 16 characters
HART (-E or -J [HART 5]): up to 8 characters
HART (-J [HART 7]): up to 32 characters

Fieldbus (-F): up to 32 characters
e) Multi-Variable Type Selection
f) Final Destination Selection
g) TIIS Flameproof Type for Inspection Carry-in

Code.
h) HART Protocol Revision:

For Output signal/Communication (Code: -J),

specify HART 5 or HART 7.

All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
Subject to change without notice.

= = = = = = RELATED INSTRUMENTS = = = = = =

SDBT Distributor ......................... Refer to 01B04T01-E

Refer to 01B04T02-E

= = = = = = = RELATED MATERIAL = = = = = = =

Model DY Vortex Flowmeter ...................TI 1F6A0-01E

Model DY, DYA
F

OUNDATION Fieldbus

Communication Type

Vortex Flowmeter ..........................GS 01F06F01-01EN

= = = = = = = = = REFERENCE = = = = = = = = =

‘digitalYEWFLO’, ‘DY’, ‘DYA’ and ‘DYC’ are registered
trademarks of Yokogawa Electric Corporation.

Product names and company names in this document
are trademarks or registered trademarks of the
respective companies

In this document, trademarks or registered trademarks
are not marked with “™” or “

®

”.

GS 01F06A00-01EN

Jan. 31, 2014-00
