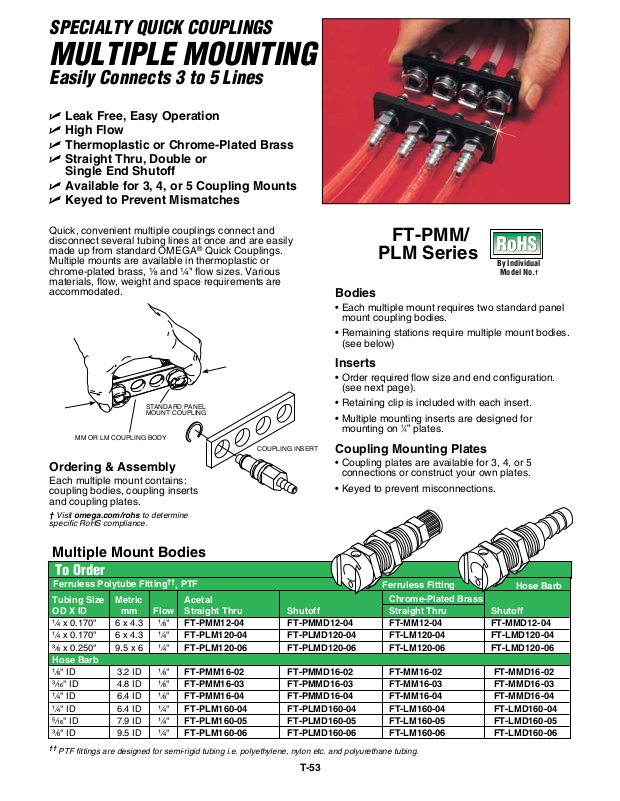

SPECIALTY QUICK COUPLINGS
MULTIPLE MOUNTING
Easily Connects 3 to 5 Lines
U Leak Free, Easy Operation
U High Flow
U Thermoplastic or Chrome-Plated Brass
U Straight Thru, Double or
Single End Shutoff
U Available for 3, 4, or 5 Coupling Mounts
U Keyed to Prevent Mismatches
®
¹⁄₈¹⁄₄
Ordering & Assembly
† Visit omega.com/rohs to determine
specific RoHS compliance.
FT-PMM/
PLM Series
Bodies
Inserts
Coupling Mounting Plates
1
⁄4
By Individual
Model No.
†
Multiple Mount Bodies
To Order
Ferruless Polytube Fitting
Tubing Size Metric Acetal
OD X ID mm Flow Straight Thru Shutoff Straight Thru Shutoff
¹⁄₄ ¹⁄₈ FT-PMM12-04 FT-PMMD12-04 FT-MM12-04 FT-MMD12-04
¹⁄₄ ¹⁄₄ FT-PLM120-04 FT-PLMD120-04 FT-LM120-04 FT-LMD120-04
³⁄₈ ¹⁄₄ FT-PLM120-06 FT-PLMD120-06 FT-LM120-06 FT-LMD120-06
Hose Barb
¹⁄₈ ¹⁄₈ FT-PMM16-02 FT-PMMD16-02 FT-MM16-02 FT-MMD16-02
³⁄₁₆ ¹⁄₈ FT-PMM16-03 FT-PMMD16-03 FT-MM16-03 FT-MMD16-03
¹⁄₄ ¹⁄₈ FT-PMM16-04 FT-PMMD16-04 FT-MM16-04 FT-MMD16-04
¹⁄₄ ¹⁄₄ FT-PLM160-04 FT-PLMD160-04 FT-LM160-04 FT-LMD160-04
⁵⁄₁₆ ¹⁄₄ FT-PLM160-05 FT-PLMD160-05 FT-LM160-05 FT-LMD160-05
³⁄₈ ¹⁄₄ FT-PLM160-06 FT-PLMD160-06 FT-LM160-06 FT-LMD160-06
††
PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon etc. and polyurethane tubing.
††
PTF
,
T-53
Ferruless Fitting
Chrome-Plated Brass
Hose Barb
Page 2
SPECIFICATIONS
Working Pressure:
Minimum:
Maximum:
Brass: Acetal:
Mounting Plate:
Materials:
Coupling Bodies:
Valves:
Valve Spring:
External Springs, Pin, Latch:
Seals:
Operating Temperature:
Tubing Sizes:
1
⁄⁄⁄⁄
Multiple mount
ruggedness and
quick change
capability meet
machinery needs.
FT-PMM SERIES ¹⁄₈" Flow
Multiple Mount
minimum coupling
spacing --
0.750
0.850
1
⁄
"
HOLE
2
FT-PLM SERIES ¹⁄₄" Flow
0.950
1.050
11
⁄
16
HOLE
"
Multiple Mount Plates
Length Rings
Retaining
Stations ¹⁄₈" Flow Size (inch) ¹⁄₄" Flow Size Length (inch) Coupling Series
FT-CP103 FT-LCP103 FT-MC/PMC
1.00"
FT-CP104 FT-LCP104 FT-LC/PLC
FT-CP105 FT-LCP105
0.25"
Black Anodized
Aluminum
Multiple Mount Inserts
AFerruless Polytube Fitting††, PTF
A
B
Chrome-Plated
Tubing Size Metric Acetal Straight Shutoff Brass Straight Shutoff
OD X ID mm Flow Thru Model No. Model No. Thru Model No. Model No.
⁵⁄₃₂ ¹⁄₈ FT-PMM20-025 FT-PMMD20-025 FT-MM20-025 FT-MMD20-025
¹⁄₄ ¹⁄₄ FT-PMM20-04 FT-PMMD20-04 FT-MM20-04 FT-MMD20-04
¹⁄₄ ¹⁄₄ FT-PLM200-04 FT-PLMD200-04 FT-LM200-04 FT-LMD200-04
³⁄₈ ¹⁄₄ FT-PLM200-06 FT-PLMD200-06 FT-LM200-06 FT-LMD200-06
B Hose Barb
¹⁄₈ ¹⁄₈ FT-PMM22-02 FT-PMMD22-02 FT-MM22-02 FT-MMD22-02
³⁄₁₆ ¹⁄₈ FT-PMM22-03 FT-PMMD22-03 FT-MM22-03 FT-MMD22-03
¹⁄₄ ¹⁄₈ FT-PMM22-04 FT-PMMD22-04 FT-MM22-04 FT-MMD22-04
¹⁄₄ ¹⁄₄ FT-PLM220-04 FT-PLMD220-04 FT-LM220-04 FT-LMD220-04
⁵⁄₁₆ ¹⁄₄ FT-PLM220-05 FT-PLMD220-05 FT-LM220-05 FT-LMD220-05
³⁄₈ ¹⁄₄ FT-PLM220-06 FT-PLMD220-06 FT-LM220-06 FT-LMD220-06
C Hose Barb Elbow
¹⁄₄ ¹⁄₈ FT-PMM21-04 FT-PMMD21-04 FT-MM21-04 FT-MMD21-04
††
PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon etc. and polyurethane tubing.
Ordering Examples: FT-PMM16-03, acetal straight thru hose barb for
FT-PLMD120-04, ferruless polytube fitting
1
" flow and FT-PLMD160-05, hose barb for
⁄
4
3
" ID tubing, FT-PMM22-03, acetal insert for
⁄
16
1
" ID tubing.
⁄
4
T-54
C
3
" ID tubing.
⁄
16
