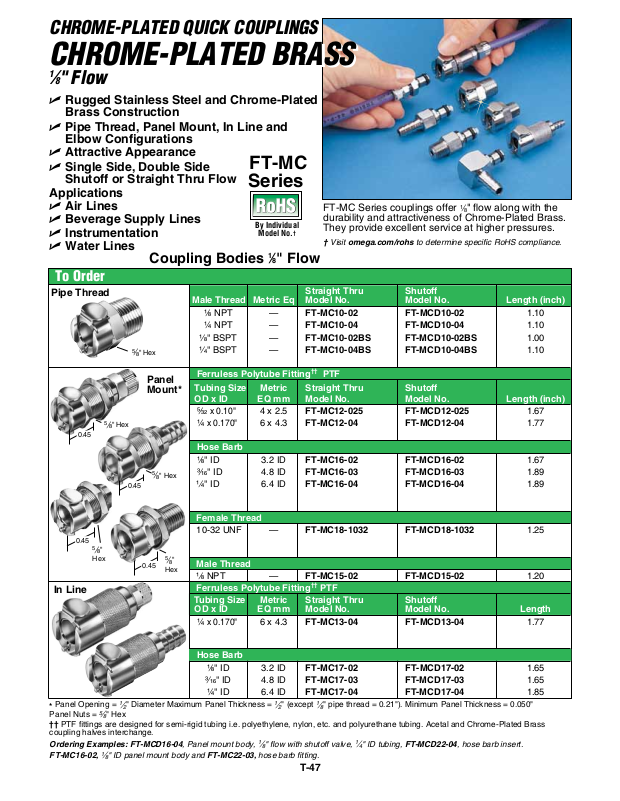

CHROME-PLATED QUICK COUPLINGS
CHROME-PLATED QUICK COUPLINGS
CHROME-PLATED BRASS
CHROME-PLATED BRASS
1
⁄8" Flow
1/8” Flow, FT-MC Series
U Rugged Stainless Steel and Chrome-Plated
Brass Construction
U Pipe Thread, Panel Mount, In Line and
Elbow Configurations
U Attractive Appearance
U Single Side, Double Side
Shutoff or Straight Thru Flow
FT-MC
Series
Applications
U Air Lines
U Beverage Supply Lines
U Instrumentation
U Water Lines
By Individual
Model No.
FT-MC Series couplings offer
durability and attractiveness of Chrome-Plated Brass.
They provide excellent service at higher pressures.
†
† Visit omega.com/rohs to determine specific RoHS compliance.
1
" flow along with the
⁄
8
Coupling Bodies 1⁄8" Flow
To Order
Pipe Thread
5
" Hex
⁄
8
Panel
Mount*
5
" Hex
⁄
5
⁄
8
Hex
8
5
⁄
8
0.45
"
0.45
0.45
0.45
In Line
Panel Opening =
*
Panel Nuts =
†† PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon, etc. and polyurethane tubing. Acetal and Chrome-Plated Brass
coupling halves interchange.
Ordering Examples: FT-MCD16-04, Panel mount body,
FT-MC16-02,
1
" Diameter Maximum Panel Thickness =
⁄
2
5
" Hex
⁄
8
1
" ID panel mount body and FT-MC22-03, hose barb fitting.
⁄
8
Male Thread Metric Eq Model No. Model No. Length (inch)
¹⁄₈ NPT — FT-MC10-02 FT-MCD10-02 1.10
¹⁄₄ NPT — FT-MC10-04 FT-MCD10-04 1.10
¹⁄₈" BSPT — FT-MC10-02BS FT-MCD10-02BS 1.00
¹⁄₄" BSPT — FT-MC10-04BS FT-MCD10-04BS 1.10
Ferruless Polytube Fitting
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length (inch)
⁵⁄₃₂
x 0.10"
¹⁄₄
x 0.170"
Hose Barb
¹⁄₈" ID 3.2 ID FT-MC16-02 FT-MCD16-02 1.67
³⁄₁₆" ID 4.8 ID FT-MC16-03 FT-MCD16-03 1.89
" Hex
¹⁄₄" ID 6.4 ID FT-MC16-04 FT-MCD16-04 1.89
Female Thread
10-32 UNF — FT-MC18-1032 FT-MCD18-1032 1.25
5
"
⁄
8
Male Thread
Hex
¹⁄₈ NPT — FT-MC15-02 FT-MCD15-02 1.20
Ferruless Polytube Fitting†† PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length
¹⁄₄
x 0.170"
Hose Barb
¹⁄₈" ID 3.2 ID FT-MC17-02 FT-MCD17-02 1.65
³⁄₁₆" ID 4.8 ID FT-MC17-03 FT-MCD17-03 1.65
¹⁄₄" ID 6.4 ID FT-MC17-04 FT-MCD17-04 1.85
4 x 2.5 FT-MC12-025 FT-MCD12-025 1.67
6 x 4.3 FT-MC12-04 FT-MCD12-04 1.77
6 x 4.3 FT-MC13-04 FT-MCD13-04 1.77
1
1
" flow with shutoff valve,
⁄
8
Straight Thru Shutoff
††
PTF
" (except
⁄
2
1
" pipe thread = 0.21"). Minimum Panel Thickness = 0.050"
⁄
8
1
" ID tubing, FT-MCD22-04, hose barb insert.
⁄
4
T-47
Page 2
SPECIFICATIONS
Working Pressure: Vacuum to 17.3 bar (250 psi)
Operating Temperature: -40 to 82°C
(-40 to 180°F) continuous
Materials:
Bodies: Chrome-Plated Brass
Valves: Acetal
Valve Spring: 316 Stainless Steel
External Springs, Pin, Latch: Stainless Steel
Seals: Buna, others available
Tubing Sizes:
5
⁄32, 1⁄4 and 3⁄8" OD 5 thru 10 x 6.5 mm (OD x ID)
1
⁄8 thru 1⁄4" ID
Inserts 1⁄8" Flow
To Order
Thread Model No. Model No. MC MCD
¹⁄₈ NPT FT-MC24-02 FT-MCD24-02 1.03 1.33
¹⁄₄ NPT FT-MC24-04 FT-MCD24-04 1.13 1.30
Panel
Mount*
Straights
0.45
5
⁄
8
" Hex
0.45
0.45
0.62
5
" Hex
⁄
8
Elbows
0.45
0.45
0.45
¹⁄₈ NPT Female FT-MC26-02 FT-MCD26-02 0.95 1.55
0.45
¹⁄₄ NPT Female FT-MC26-04 FT-MCD26-04 1.15 1.72
Ferruless Polytube Fitting†† PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length (inch)
¹⁄₄
" x 0.170"
Hose Barb
¹⁄₈" ID 3.2 ID FT-MC42-02 FT-MCD42-02 1.20
³⁄₁₆" ID 4.8 ID FT-MC42-03 FT-MCD42-03 1.87
0.45
¹⁄₄" ID 6.4 ID FT-MC42-04 FT-MCD42-04 1.87
Ferruless Polytube Fitting†† PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model Number Model Number MC MCD
⁵⁄₃₂
x 0.10"
¹⁄₄
x 0.170"
³⁄₈
x 0.250"
Hose Barb
¹⁄₈" ID 3.2 ID FT-MC22-02 FT-MCD22-02 1.05 1.55
³⁄₁₆" ID 4.8 ID FT-MC22-03 FT-MCD22-03 1.25 1.75
¹⁄₄" ID 6.4 ID FT-MC22-04 FT-MCD22-04 1.25 1.58
Female Thread
10-32 UNF
Ferruless Polytube Fitting†† PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length (inch)
⁵⁄₃₂
x 0.10"
¹⁄₄
x 0 .170"
Hose Barb
¹⁄₈" ID 3.2 ID FT-MC23-02 FT-MCD23-02 1.18
¹⁄₄" ID 6.4 ID FT-MC23-04 FT-MCD23-04 1.18
* Panel Opening =
††
PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon, etc. and polyurethane
tubing. Acetal and Chrome-Plated Brass coupling halves interchange.
Chrome-Plated Brass Couplings
for high temperatures and pressures.
Straight Thru Shutoff
Length (inch)
6 x 4.3 FT-MC40-04 FT-MCD40-04 1.75
Length (inch)
4 x 2.5 FT-MC20-025 FT-MCD20-025 1.13 1.53
6 x 4 FT-MC20-04 FT-MCD20-04 1.30 1.45
9.5 x 6 FT-MC20-06 FT-MCD20-06 1.30 1.40
FT-MC28-1032
FT-MCD28-1032
0.63 1.20
4 x 2.5 FT-MC21-025 FT-MCD21-025 1.18
6 x 4.3 FT-MC21-04 FT-MCD21-04 1.18
1
" Panel Nut=
⁄
2
5
" Hex Panel Thickness = 0.32" Maximum and 0.050" Minimum.
⁄
8
T
