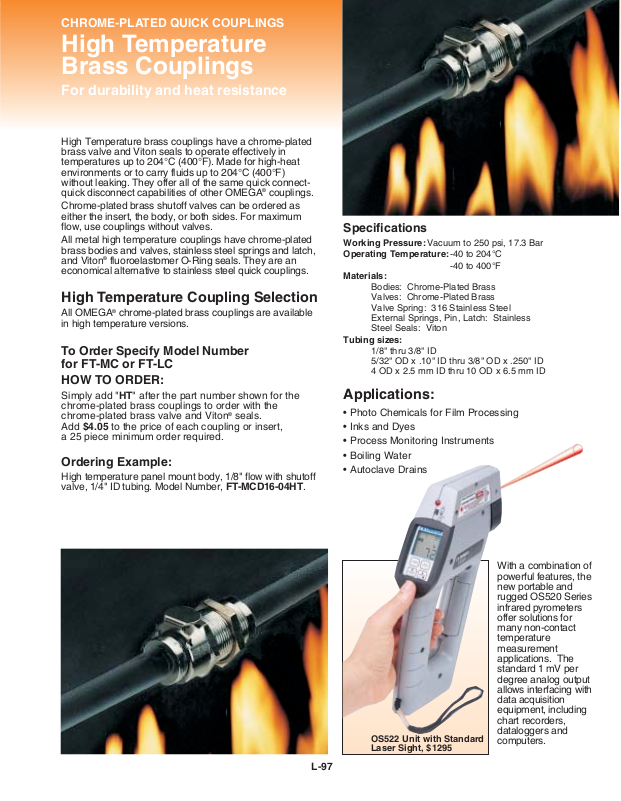

CHROME-PLATED QUICK COUPLINGS
High Temperature
Brass Couplings
For durability and heat resistance
High Temperature brass couplings have a chrome-plated
brass valve and Viton seals to operate effectively in
temperatures up to 204°C (400°F). Made for high-heat
environments or to carry fluids up to 204°C (400°F)
without leaking. They offer all of the same quick connectquick disconnect capabilities of other OMEGA®couplings.
Chrome-plated brass shutoff valves can be ordered as
either the insert, the body, or both sides. For maximum
flow, use couplings without valves.
All metal high temperature couplings have chrome-plated
brass bodies and valves, stainless steel springs and latch,
and Viton®fluoroelastomer O-Ring seals. They are an
economical alternative to stainless steel quick couplings.
High Temperature Coupling Selection
All OMEGA®chrome-plated brass couplings are available
in high temperature versions.
To Order Specify Model Number
for FT-MC or FT-LC
HOW TO ORDER:
Simply add "HT" after the part number shown for the
chrome-plated brass couplings to order with the
chrome-plated brass valve and Viton®seals.
Add $4.05 to the price of each coupling or insert,
a 25 piece minimum order required.
Ordering Example:
High temperature panel mount body, 1/8" flow with shutoff
valve, 1/4" ID tubing. Model Number, FT-MCD16-04HT.
Specifications
Working Pressure:Vacuum to 250 psi, 17.3 Bar
Operating Temperature:-40 to 204°C
-40 to 400°F
Materials:
Bodies: Chrome-Plated Brass
Valves: Chrome-Plated Brass
Valve Spring: 316 Stainless Steel
External Springs, Pin, Latch: Stainless
Steel Seals: Viton
Tubing sizes:
1/8" thru 3/8" ID
5/32" OD x .10" ID thru 3/8" OD x .250" ID
4 OD x 2.5 mm ID thru 10 OD x 6.5 mm ID
Applications:
• Photo Chemicals for Film Processing
• Inks and Dyes
• Process Monitoring Instruments
• Boiling Water
• Autoclave Drains
With a combination of
powerful features, the
new portable and
rugged OS520 Series
infrared pyrometers
offer solutions for
many non-contact
temperature
measurement
applications. The
standard 1 mV per
degree analog output
allows interfacing with
data acquisition
equipment, including
chart recorders,
dataloggers and
computers.
OS522 Unit with Standard
Laser Sight, $1295
L-97
Page 2
CHROME-PLATED QUICK COUPLINGS
Keyed, Color-Coded
Brass Quick Couplings
1/8" Flow, FT-MC Series
Keyed OMEGA®quick couplings are specifically designed for
small flexible hose and plastic tubing applications which require
positive mechanical connections and non-interchangeable
lines. They provide economical, keyed, high reliability,
fool proof connections that are compatible with lower pressure
and size requirements for instrumentation applications.
Features:
• Available in Chrome-Plated Brass
• Three Keyed, Non-Interchangeable Combinations
• Keyed Combinations Have Same Color-Code
• Available in Panel Mount and Pipe Thread Bodies
• Straight Through or Single End Shutoff, 1/8" Flow Size
Warning: Standard thermoplastic and chrome-plated
brass quick disconnects cannot be interchanged with keyed
quick disconnect couplings because they will leak.
*Color Coding: K1= Orange
K2= Yellow
K3= Blue
Ordering: All couplings have consistent color coding
(i.e., K1-Orange, K2-Yellow, K3-Blue). Order body and
insert separately to make tubing connection.
For example, MC10-02K1 and MC22-02K1.
Specifications
Working Pressure: Vacuum to 250 psi, 17.3 Bar
Operating Temperature: -40 to 82°C continuous
-40 to 180°F continuous
Materials: Bodies: Chrome-Plated Brass|
Valves: Delrin Acetal
Valve Spring: 316 Stainless Steel
External Springs, Pin,
Latch: Stainless Steel
Seals: Buna-N
1/8" Flow
COUPLING BODIES
Pipe Thread
STRAIGHT THRU SHUTOFF
MALE THREAD MODEL NUMBER PRICE MODEL NUMBER PRICE
1/8" NPT FT-MC10-02-K* $12.69 FT-MCD10-02-K* $14.99
1/4" NPT FT-MC10-04-K* 12.69 FT-MCD10-04-K* 14.99
Panel Mount with Hose Barb
STRAIGHT THRU SHUTOFF
TUBING MODEL NUMBER PRICE MODEL NUMBER PRICE
1/8" ID FT-MC16-02-K* $18.59 FT-MCD16-02-K* $20.26
1/4" ID FT-MC16-04-K* 19.14 FT-MCD16-04-K* 20.83
Panel Mount Ferruless Polytube Fitting†, PTF
STRAIGHT THRU SHUTOFF
TUBING MODEL NUMBER PRICE MODEL NUMBER PRICE
1/4" OD x .170" ID FT-MC12-04-K* $20.10 FT-MCD12-04-K* $22.26
INSERTS
Pipe Thread
STRAIGHT THRU
MALE THREAD MODEL NUMBER PRICE
1/8" NPT FT-MC24-02-K* $7.51
Hose Barb
STRAIGHT THRU
TUBING MODEL NUMBER PRICE
1/8" ID FT-MC22-02-K* $6.83
1/4" ID FT-MC22-04-K* 6.83
Ferruless Polytube Fitting†, PTF
STRAIGHT THRU
TUBING MODEL NUMBER PRICE
1/4" OD x .170" ID FT-MC20-04-K* $9.56
For body and insert
dimensions, refer to MC
Series listings.
†
PTF fittings are designed
for semi-rigid tubing
i.e. polyethylene, nylon, etc.,
and polyurethane tubing.
L-98
L
Page 3
