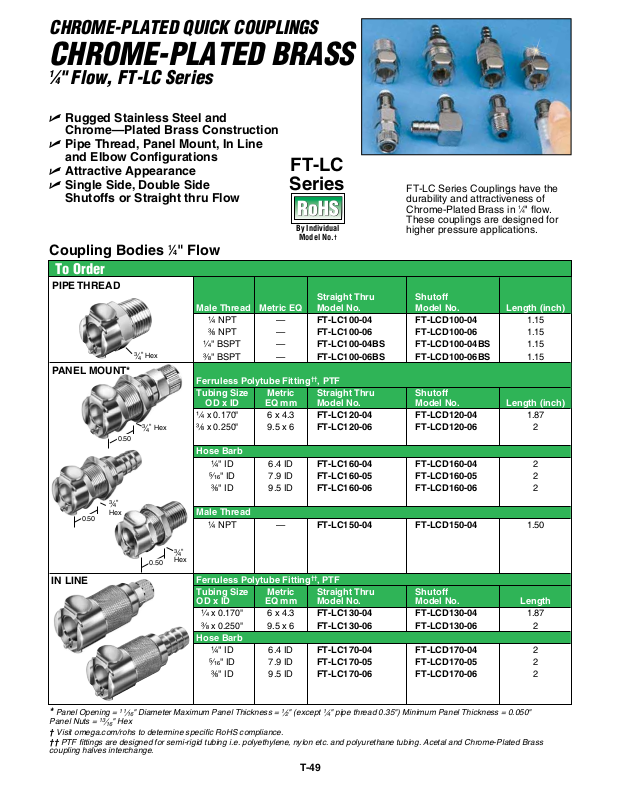

CHROME-PLATED QUICK COUPLINGS
CHROME-PLATED BRASS
1
⁄4" Flow, FT-LC Series
U Rugged Stainless Steel and
Chrome—Plated Brass Construction
U Pipe Thread, Panel Mount, In Line
and Elbow Configurations
U Attractive Appearance
U Single Side, Double Side
Shutoffs or Straight thru Flow

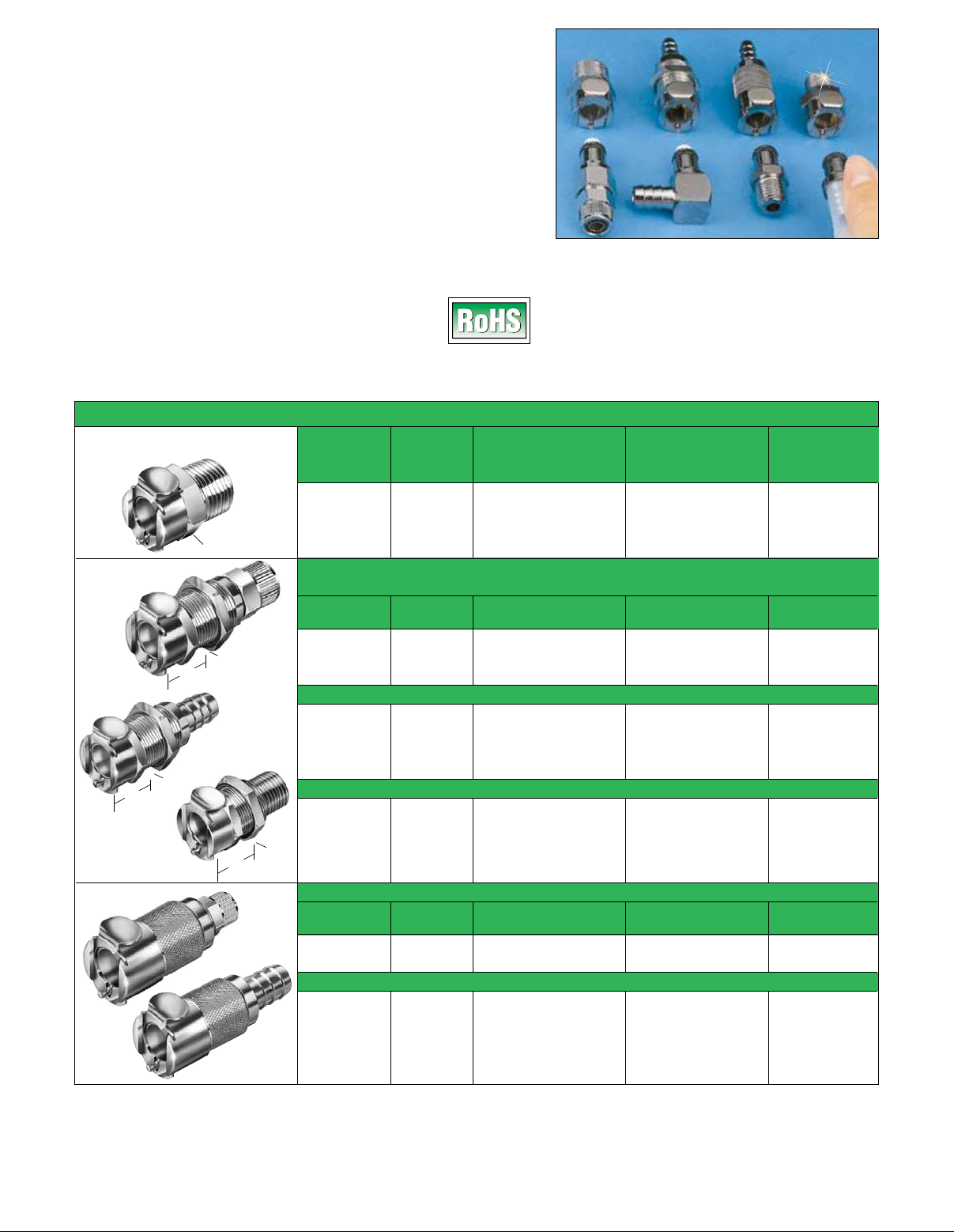

Coupling Bodies 1⁄4" Flow
To Order
PIPE THREAD
Male Thread Metric EQ Model No. Model No. Length (inch)
¹⁄₄ NPT — FT-LC100-04 FT-LCD100-04 1.15
³⁄₈ NPT — FT-LC100-06 FT-LCD100-06 1.15
¹⁄₄" BSPT — FT-LC100-04BS FT-LCD100-04BS 1.15
³⁄₈" BSPT — FT-LC100-06BS FT-LCD100-06BS 1.15
PANEL MOUNT*
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length (inch)
¹⁄₄
³⁄₈
Hose Barb
¹⁄₄" ID 6.4 ID FT-LC160-04 FT-LCD160-04 2
⁵⁄₁₆" ID 7.9 ID FT-LC160-05 FT-LCD160-05 2
³⁄₈" ID 9.5 ID FT-LC160-06 FT-LCD160-06 2
Male Thread
¹⁄₄ NPT — FT-LC150-04 FT-LCD150-04 1.50
0.50
3
⁄
4
Hex
0.50
"
3
"
Hex
⁄
4
Ferruless Polytube Fitting
x 0.170"
3
"
Hex
⁄
4
x 0.250"
9.5 x 6 FT-LC120-06 FT-LCD120-06 2
3
"
⁄
4
Hex
0.50
FT-LC
Series
By Individual
Model No.
6 x 4.3 FT-LC120-04 FT-LCD120-04 1.87
†
Straight Thru Shutoff
††
, PTF
FT-LC Series Couplings have the
durability and attractiveness of
Chrome-Plated Brass in 1⁄4" flow.
These couplings are designed for
higher pressure applications.
Ferruless Polytube Fitting††, PTF
IN LINE
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length
¹⁄₄
³⁄₈
x 0.170"
x 0.250"
6 x 4.3 FT-LC130-04 FT-LCD130-04 1.87
9.5 x 6 FT-LC130-06 FT-LCD130-06 2
Hose Barb
¹⁄₄" ID 6.4 ID FT-LC170-04 FT-LCD170-04 2
⁵⁄₁₆" ID 7.9 ID FT-LC170-05 FT-LCD170-05 2
³⁄₈" ID 9.5 ID FT-LC170-06 FT-LCD170-06 2
* Panel Opening =
Panel Nuts =
† Visit omega.com/rohs to determine specific RoHS compliance.
†† PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon etc. and polyurethane tubing. Acetal and Chrome-Plated Brass
coupling halves interchange.
11
" Diameter Maximum Panel Thickness =
⁄
16
13
" Hex
⁄
16
1
" (except
⁄
2
1
" pipe thread 0.35") Minimum Panel Thickness = 0.050"
⁄
4
T-49
Page 2
SPECIFICATIONS
Working Pressure: Vacuum to 17.3 bar (250 psi)
Operating Temperature: -40 to 82°C (-40 to 180°F) continuous
Materials:
Bodies: Chrome-Plated Brass
Valves: Acetal
Valve Spring: 316 Stainless Steel
External Springs, Pin, Latch: Stainless Steel
Seals: Buna, others available
Tubing Sizes:
1
⁄4 thru 3⁄8" ID
1
⁄4 and 3⁄8" OD
6 x 4 mm thru 12 x 10 mm (OD x ID)

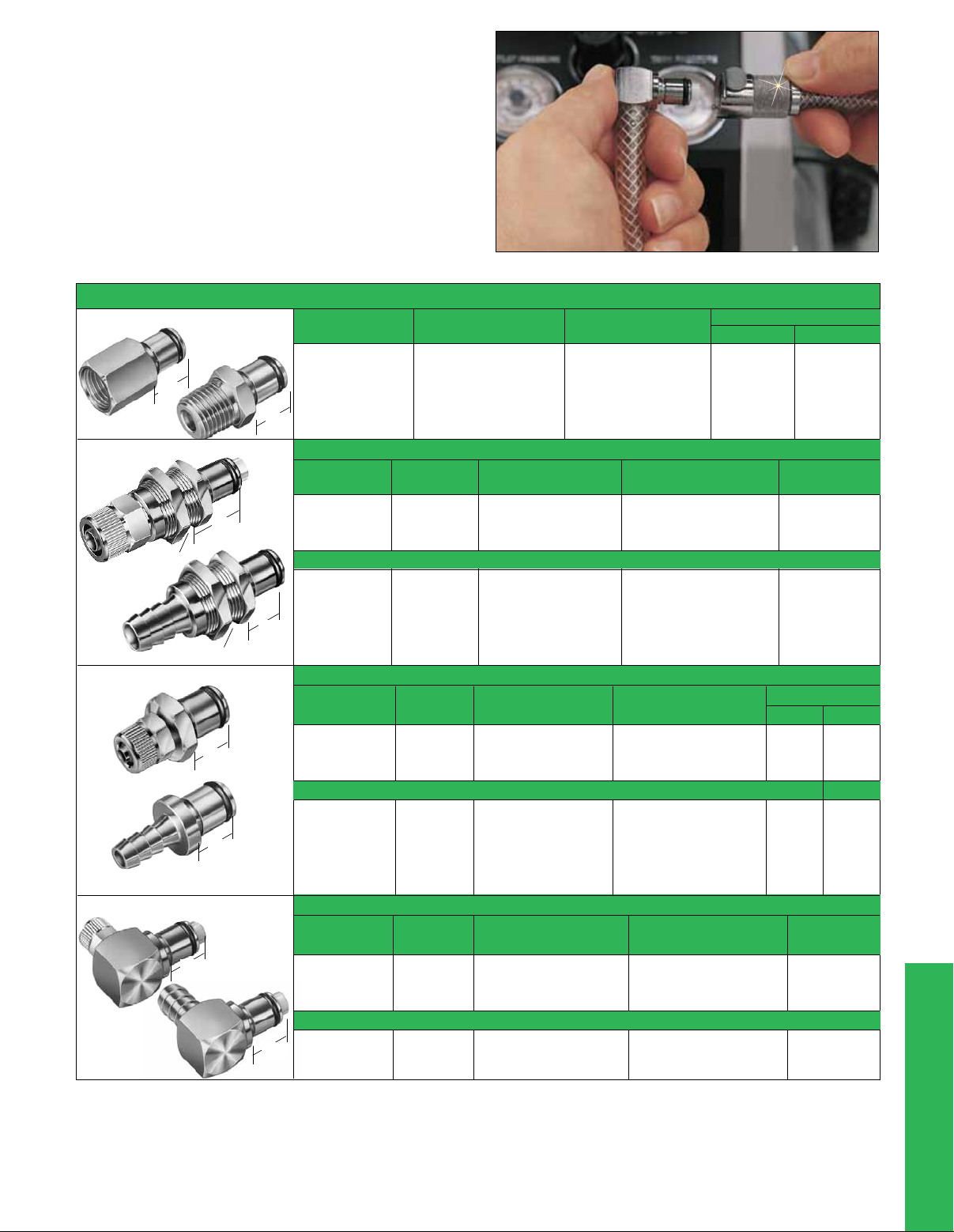

Inserts 1⁄4" Flow
To Order
PIPE THREAD
Thread Model No. Model No. MC MCD
Straight Thru Shutoff
¹⁄₄ NPT FT-LC240-04 FT-LCD240-04 1.25" 1.53"
³⁄₈ NPT FT-LC240-06 FT-LCD240-06 1.25" 1.40"
¹⁄₄ NPT Female FT-LC260-04 FT-LCD260-04 1.25" 1.75"
0.55
Length
PANEL MOUNT*
0.55
Ferruless Polytube Fitting††, PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length
¹⁄₄
³⁄₈
3
⁄
Hose Barb
¹⁄₄" ID 6.4 ID FT-LC420-04 FT-LCD420-04 1.96"
4
Hex
0.70
"
⁵⁄₁₆" ID 7.9 ID FT-LC420-05 FT-LCD420-05 1.96"
³⁄₈" ID 9.5 ID FT-LC420-06 FT-LCD420-06 1.96"
STRAIGHTS
3
" Hex
⁄
4
0.55
x 0.170"
x 0.250"
6 x 4.3 FT-LC400-04 FT-LCD400-04 1.83"
9.5 x 6 FT-LC400-06 FT-LCD400-06 1.96"
Ferruless Polytube Fitting††, PTF
Tubing Size Metric Straight Thru Shutoff
Length
OD x ID EQ mm Model No. Model No. LC LCD
¹⁄₄
³⁄₈
0.55
Hose Barb
¹⁄₄" ID 6.4 ID FT-LC220-04 FT-LCD220-04 1.35" 1.85"
⁵⁄₁₆" ID 7.9 ID FT-LC220-05 FT-LCD220-05 1.35" 1.85"
³⁄₈" ID 9.5 ID FT-LC220-06 FT-LCD220-06 1.35" 1.68"
0.55
x 0.170"
x 0.250"
6 x 4.3 FT-LC200-04 FT-LCD200-04 1.25" 1.72"
9.5 x 6 FT-LC200-06 FT-LCD200-06 1.38" 1.68"
ELBOWS
Ferruless Polytube Fitting††, PTF
Tubing Size Metric Straight Thru Shutoff
OD x ID EQ mm Model No. Model No. Length
¹⁄₄
0.55
³⁄₈
x 0.170"
x 0.250"
6 x 4.3 FT-LC210-04 FT-LCD210-04 1.28"
9.5 x 6 FT-LC210-06 FT-LCD210-06 1.28"
Hose Barb
¹⁄₄" ID 6.4 ID FT-LC230-04 FT-LCD230-04 1.28"
³⁄₈" ID 9.5 ID FT-LC230-06 FT-LCD230-06 1.28"
Panel Opening =
*
††
PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon etc. and polyurethane tubing. Acetal and Chrome-Plated Brass coupling
halves interchange.
Ordering Examples: FT-LCD160-04, hose barb coupling with shutoff for
and shutoff.
FT-LCD100-04,
11
" Panel Nut =
⁄
16
1
MNPT shutoff coupling body and FT-LCD240-04,
⁄
4
0.55
13
" Hex Panel Thickness = 0.32" maximum and 0.050" minimum.
⁄
16
1
" ID tubing, FT-LCD220-04, insert with barb for
⁄
4
1
NPT insert.
⁄
4
1
" ID tubing
⁄
4
T-50
