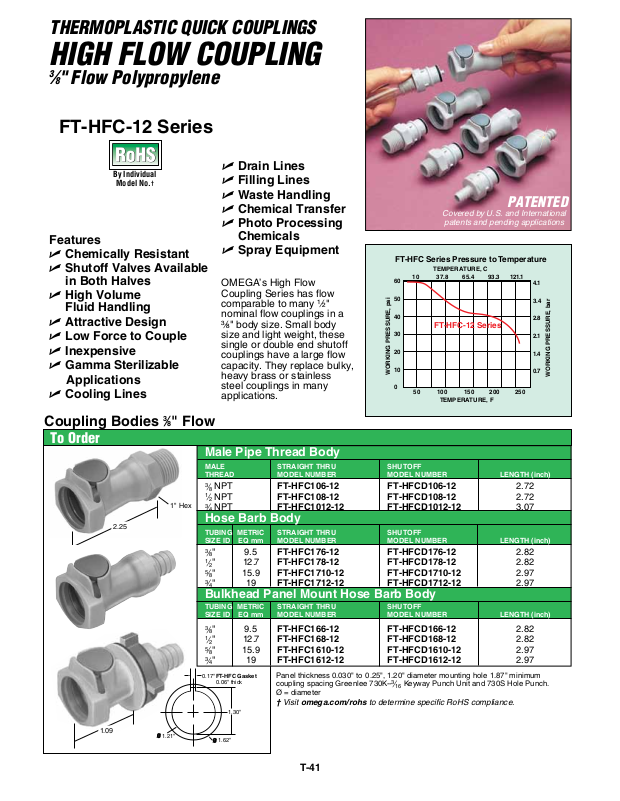

Page 1
THERMOPLASTIC QUICK COUPLINGS
.14"
.82"
FT-EFC Gasket
.06" thick
0 1.25"
0 .14"
HIGH FLOW COUPLING
3
⁄8" Flow Polypropylene
FT-HFC-12 Series
By Individual
Model No.
†
Features
U Chemically Resistant
U Shutoff Valves Available
in Both Halves
U High Volume
Fluid Handling
U Attractive Design
U Low Force to Couple
U Inexpensive
U Gamma Sterilizable
Applications
U Cooling Lines
Coupling Bodies 3⁄8" Flow
To Order
Male Pipe Thread Body
MALE STRAIGHT THRU SHUTOFF
THREAD MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
1
3
Hose Barb Body
TUBING METRIC STRAIGHT THRU SHUTOFF
SIZE ID EQ mm MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
1
5
3
Bulkhead Panel Mount Hose Barb Body
TUBING METRIC STRAIGHT THRU SHUTOFF
SIZE ID EQ mm MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
1
5
3
0.17"
1" Hex
2.25
U Drain Lines
U Filling Lines
U Waste Handling
U Chemical Transfer
U Photo Processing
Covered by U.S. and International
patents and pending applications
PATENTED
Chemicals
U Spray Equipment
OMEGA’s High Flow
Coupling Series has flow
comparable to many ¹⁄₂"
nominal flow couplings in a
³⁄₈" body size. Small body
size and light weight, these
single or double end shutoff
couplings have a large flow
capacity. They replace bulky,
heavy brass or stainless
steel couplings in many
applications.
NPT FT-HFC106-12 FT-HFCD106-12 2.72
⁄
8
NPT FT-HFC108-12 FT-HFCD108-12 2.72
⁄
2
NPT FT-HFC1012-12 FT-HFCD1012-12 3.07
⁄
4
" 9.5 FT-HFC176-12 FT-HFCD176-12 2.82
⁄
8
" 12.7 FT-HFC178-12 FT-HFCD178-12 2.82
⁄
2
" 15.9 FT-HFC1710-12 FT-HFCD1710-12 2.97
⁄
8
" 19 FT-HFC1712-12 FT-HFCD1712-12 2.97
⁄
4
" 9.5 FT-HFC166-12 FT-HFCD166-12 2.82
⁄
8
" 12.7 FT-HFC168-12 FT-HFCD168-12 2.82
⁄
2
" 15.9 FT-HFC1610-12 FT-HFCD1610-12 2.97
⁄
8
" 19 FT-HFC1612-12 FT-HFCD1612-12 2.97
⁄
4
FT-HFC Gasket
0.06" thick
1.30"
Panel thickness 0.030" to 0.25", 1.20" diameter mounting hole 1.87" minimum
coupling spacing Greenlee 730K-Ø = diameter
† Visit omega.com/rohs to determine specific RoHS compliance.
FT-HFC Series Pressure to Temperature
60
50
40
30
20
10
WORKING PRESSURE, psi
0
3
Keyway Punch Unit and 730S Hole Punch.
⁄
16
TEMPERATURE, C
10 37.8 65.4 93.3 121.1
FT-HFC-12 Series
50 100 150 200 250
TEMPERATURE, F
4.1
3.4
2.8
2.1
1.4
0.7
WORKING PRESSURE, bar
1.09
1.21"
0
0 1.62"
T-41
Page 2
SPECIFICATIONS
FT-HFC Series Flow, Body & Insert Connected
Working Pressure: Vacuum to 60 psi (4.2 bar) (see graph)
Operating Temperature: Maximum 110°C (230°F),
Minimum 0°C (32°F), (see graph)
Materials:
Coupling: Polypropylene
Seals: EPR, others available
Color: Light Gray with Charcoal Gray latch
Valve Spring: 316 Stainless Steel
Latch Spring: 316 Stainless Steel
Suggested Tubing:
PVC, Silicone, Reinforced PVC, Polyurethane
Flow Information:
3
⁄8" Hose Barb: 0.281" flow
1
⁄2" Hose Barb: 0.375" flow
FLOW, liters per minute, water
7.5 15.1 22.7 30.2 37.8 45.4 53
60
4.1
Bulkhead Panel
Mount Body
Integral fittings
eliminate leak
paths
Quick threading
nut holds the
bulkhead panel
Shrouded thumb latch
prevents accidental
disconnects
High efficiency
valves for
minimal ΔP
Gasket seals
bulkhead leak tight
Elbow Hose
Barb Insert
Easy one hand
connection of
insert half
50
40
30
20
10
PRESSURE DROP, P, psi
0
Double side shutoff
FT-HFCD 108-12 &
FT-HFCD 248-12
Single side
shutoff
FT-HFCD 108-12 &
FT-HFCD 248-12
2 4 6 8 10 12 14
FLOW, gallons per minute, water
Coupling Inserts 3⁄8" Flow
To Order
Male Pipe Thread Insert
MALE STRAIGHT THRU SHUTOFF
THREAD MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
⁄8 NPT FT-HFC246-12 FT-HFCD246-12 1.76
1
⁄2 NPT FT-HFC248-12 FT-HFCD248-12 1.76
3
0.95
1.29
1" Hex
0.95
⁄4 NPT FT-HFC2412-12 FT-HFCD2412-12 2.14
Hose Barb Insert
TUBING METRIC STRAIGHT THRU SHUTOFF
SIZE ID EQ mm MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
⁄8" 9.5 FT-HFC226-12 FT-HFCD226-12 1.86
1
⁄2" 12.7 FT-HFC228-12 FT-HFCD228-12 1.86
5
⁄8" 15.9 FT-HFC2210-12 FT-HFCD2210-12 2.03
3
⁄4" 19 FT-HFC2212-12 FT-HFCD2212-12 2.01
3.4
2.8
2.1
1.4
0.7
PRESSURE DROP, P, bar
Built-in elbow fitting
saves space.
0.95
Elbow Hose Barb Insert
TUBING METRIC STRAIGHT THRU SHUTOFF
SIZE ID EQ mm MODEL NUMBER MODEL NUMBER LENGTH (inch)
3
⁄8" 9.5 FT-HFC236-12 FT-HFCD236-12 1.94
1
⁄2" 12.7 FT-HFC238-12 FT-HFCD238-12 1.94
Polypropylene coupling halves do not interchange with other materials.
Ordering Examples: FT-HFCD176-12,
FT-HFC106-12,
3
MNPT body and FT-HFC246-12,
⁄
8
T-42
3
" ID hose barb body, and FT-HFC226-12
⁄
8
3
MNPT insert.
⁄
8
3
" ID hose barb insert.
⁄
8
