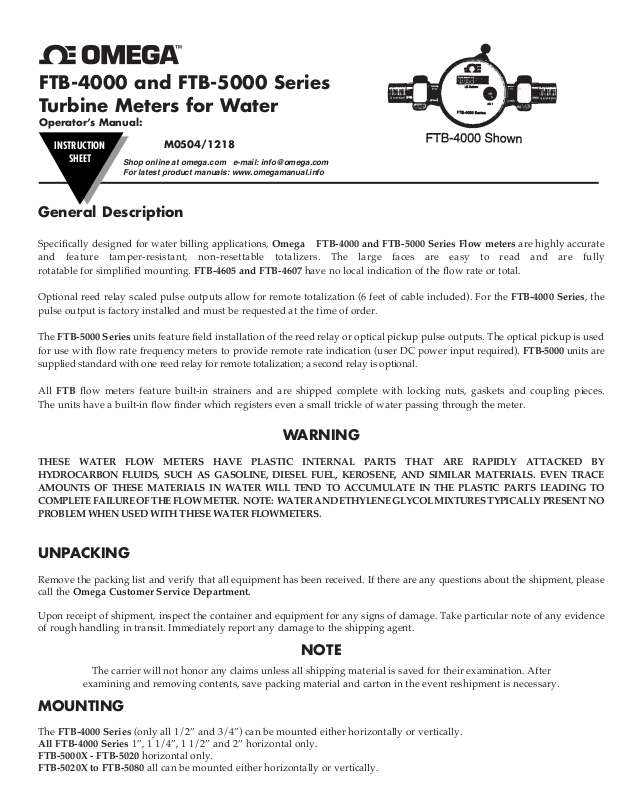

FTB-4000 and FTB-5000 Series
Turbine Meters for Water
Operator’s Manual:
INSTRUCTION
SHEET
M0504/12
Shop online at omega.com e-mail: [email protected]
For latest product manuals: www.omegamanual.info
18
General Description
Specifically designed for water billing applications, Omega FTB-4000 and FTB-5000 Series Flow meters are highly accurate
and feature tamper-resistant, non-resettable totalizers. The large faces are easy to read and are fully
rotatable for simplified mounting. FTB-4605 and FTB-4607 have no local indication of the flow rate or total.
Optional reed relay scaled pulse outputs allow for remote totalization (6 feet of cable included). For the FTB-4000 Series, the
pulse output is factory installed and must be requested at the time of order.
The FTB-5000 Series units feature field installation of the reed relay or optical pickup pulse outputs. The optical pickup is used
for use with flow rate frequency meters to provide remote rate indication (user DC power input required). FTB-5000 units are
supplied standard with one reed relay for remote totalization; a second relay is optional.
All FTB flow meters feature built-in strainers and are shipped complete with locking nuts, gaskets and coupling pieces.
The units have a built-in flow finder which registers even a small trickle of water passing through the meter.
WARNING
THESE WATER FLOW METERS HAVE PLASTIC INTERNAL PARTS THAT ARE RAPIDLY ATTACKED BY
HYDROCARBON FLUIDS, SUCH AS GASOLINE, DIESEL FUEL, KEROSENE, AND SIMILAR MATERIALS. EVEN TRACE
AMOUNTS OF THESE MATERIALS IN WATER WILL TEND TO ACCUMULATE IN THE PLASTIC PARTS LEADING TO
COMPLETE FAILURE OF THE FLOW METER. NOTE: WATER AND ETHYLENE GLYCOL MIXTURES TYPICALLY PRESENT NO
PROBLEM WHEN USED WITH THESE WATER FLOWMETERS.
UNPACKING
Remove the packing list and verify that all equipment has been received. If there are any questions about the shipment, please
call the Omega Customer Service Department.
Upon receipt of shipment, inspect the container and equipment for any signs of damage. Take particular note of any evidence
of rough handling in transit. Immediately report any damage to the shipping agent.
NOTE
The carrier will not honor any claims unless all shipping material is saved for their examination. After
examining and removing contents, save packing material and carton in the event reshipment is necessary.
MOUNTING
The FTB-4000 Series (only all 1/2” and 3/4”) can be mounted either horizontally or vertically.
All FTB-4000 Series 1”, 1 1/4”, 1 1/2” and 2” horizontal only.
FTB-5000X - FTB-5020 horizontal only.
FTB-5020X to FTB-5080 all can be mounted either horizontally or vertically.
Page 2
February 2001
Page 3
SPECIFICATIONS (CONT’D)
ACCURACY:
4600 Series: From 10% of cont. to max. flow: ± 1.5% of reading
Below 10% of cont. flow: ± 2% of reading
4000, 5000 Series: From 20% of cont. to max. flow: ± 1% of reading
Below 20% of cont. flow: ± 3% of reading
MAX. TEMPERATURE:
4000 Series: 122°F (50°C)
4100 Series: 190°F (87.7°C)
4600 Series: 190°F (87.7°C)
5000 Series: 248°F (120°C)
MAX. PRESSURE:
4000, 4600 Series: 150 PSI
5000 Series: 250 PSI
PULSE OUTPUTS: Reed relay
4100P Series: 1 gal./pulse
5010 - 5020: 1 or 10 gal./pulse
5020X - 5040: 10 gal./pulse
5060 & 5080: 100 gal./pulse
FTB4600 HIGH RESOLUTION PULSE OUTPUT:
FTB4605: 151.4 pulses/gal.
FTB4607: 75.7 pulses/gal. Requires 6-16 VDC @ 10mA max power;
output requires pull-up to positive DC voltage.
(OPTICAL PICKUP (= MIN. INCREMENT):
5010 -5020X: 0.5 gal./pulse
5030 & 5040: 1 gal./pulse
5060 & 5080: 5 gal./pulse
MAX. READING (GAL.):
4000 Series: 100,000,000
5010 - 5040: 10,000,000
5060 - 5080: 100,000,000
HOUSING:
4000, 4100, 5005 - 5015: Cast brass
5020 - 5080: Cast iron
4600 Series: Brass
BEARING: Ceramic/sapphire
TURBINE: High temperature thermoplastic/fiberglass (polyimide)
FLOW TRANSFER: Ceramic magnet
OTHER WETTED PARTS: Stainless steel, polypropylene, EPDM O-ring
Page 4
NEW MODEL
Hall Effect (New), rev 12/01
INSTALLATION INSTRUCTIONS
Of Hall Effect Flow Meter
FLOW METER INSTALLATION
1. Make sure that the inside of the pipes are totally clean.
2. Install Water Meter with union connection.
3. Make sure flow direction of water corresponds with flow indicator arrow on flow meter housing.

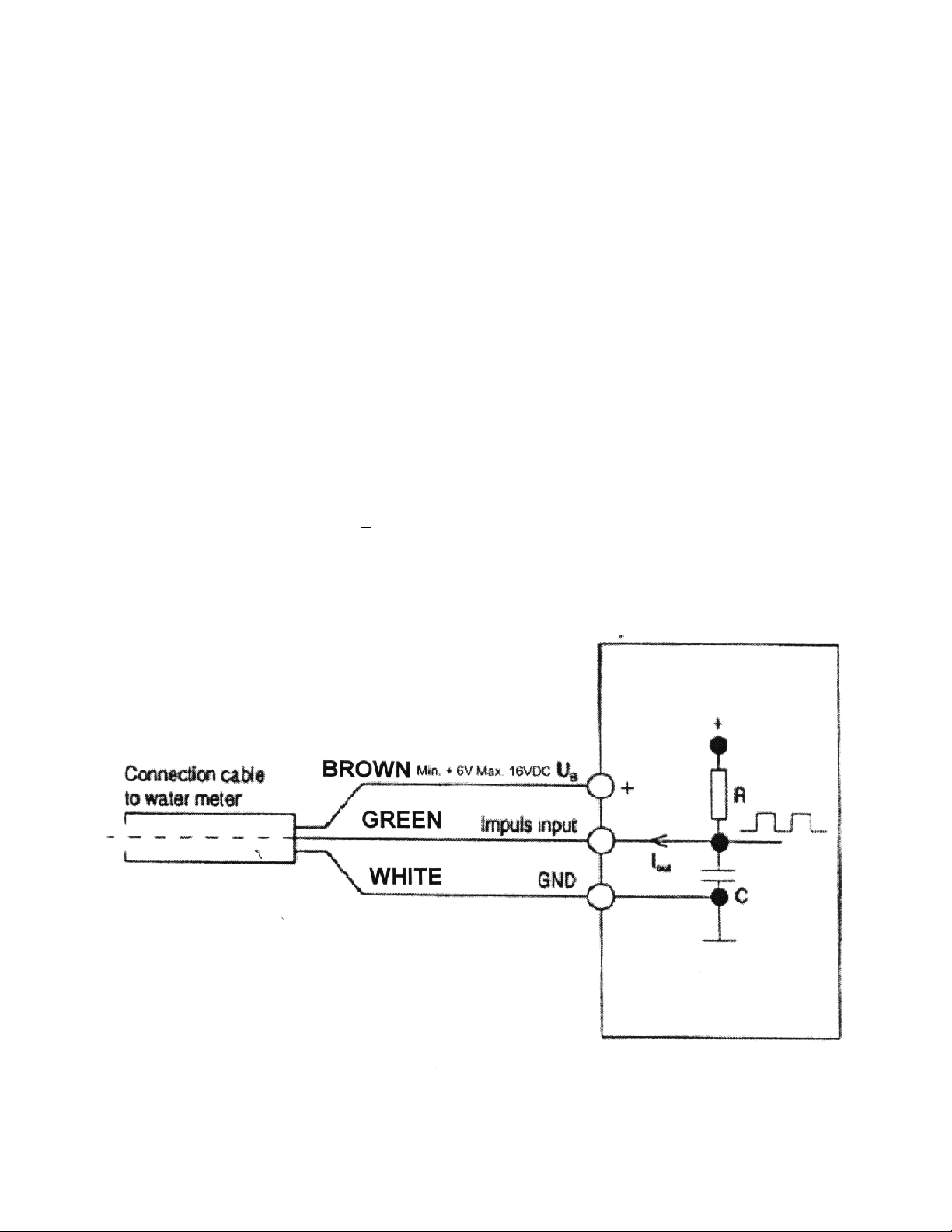

ELECTRICAL CONNECTION TO HALL EFFECT
1. Make wiring connection as indicated on diagram below.
2. Please note: 3,5 V < U8 < 20 V I
3. The pull-up-resistor R should be a min. of 1 k ohms. On installation without C a value of 10 k ohms is
recommended. In case of clicking disturbances due to the contactor (e.g. radiowave receivers being in the
area) a wiring with C= 4,7 nF and R > 1 k ohms should be used.
max. = 20 mA
out
Electrical Connection Diagram Impulse Counter
Eletrical Connection Diagram Impulse Counter
Page 5
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
