FTB-14XX-AMP
Magnetic Pick-up
with Preamplier
Page 2
e-mail: [email protected]
OMEGAnet
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
®
Online Service Internet e-mail
omega.com [email protected]
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certified
Stamford, CT 06907-0047
Toll-Free: 1-800-826-6342 Tel: (203) 359-1660
FAX: (203) 359-7700 e-mail: [email protected]
Canada: 976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: (514) 856-6928
FAX: (514) 856-6886 e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada:Sales Service: 1-800-826-6342/1-800-TC-OMEGA
Customer Service: 1-800-622-2378/1-800-622-BEST
Engineering Service: 1-800-872-9436/1-800-USA-WHEN
®
®
®
Mexico: En Español: 001 (203) 359-7803 FAX: (001) 203-359-7807
Servicing Europe:
Benelux: Managed by the United Kingdom Office
Czech Republic: Frystatska 184
France: Managed by the United Kingdom Office
Germany/Austria: Daimlerstrasse 26
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certified
733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: +420-59-6311899
FAX: +420-59-6311114 e-mail: [email protected]
Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00
FAX: +33 (0) 130 57 54 27 e-mail: [email protected]
D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0
FAX: +49 (0) 7056 9398-29 e-mail: [email protected]
One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: +44 (0)161 777-6611
FAX: +44 (0)161 777-6622 e-mail: [email protected]
2
Page 3
INTRODUCTION
The Omega FTB-14XX-AMP Magnetic Pick-up with Preamplier was
designed to directly replace a standard pick-up within a turbine ow
meter when signal amplication is required. The pick-up is a combination of a standard Omega magnetic pick-up and a solid state electronic
preamplier in a single stainless steel housing.
OPERATING PRINCIPLE
As uid ows through the meter the turbine rotates at a speed proportional to the uid velocity. As each turbine blade passes through the
magnetic eld at the base of the pickup, an AC voltage pulse is generated in the pick-up coil. The voltage signal generated by these pulses
becomes amplied within the pick-up. The output signal generated
from the pick-up is now in the form of a square wave. The frequency of
this amplied signal is used to represent the ow rate of uid passing
through the turbine ow meter.

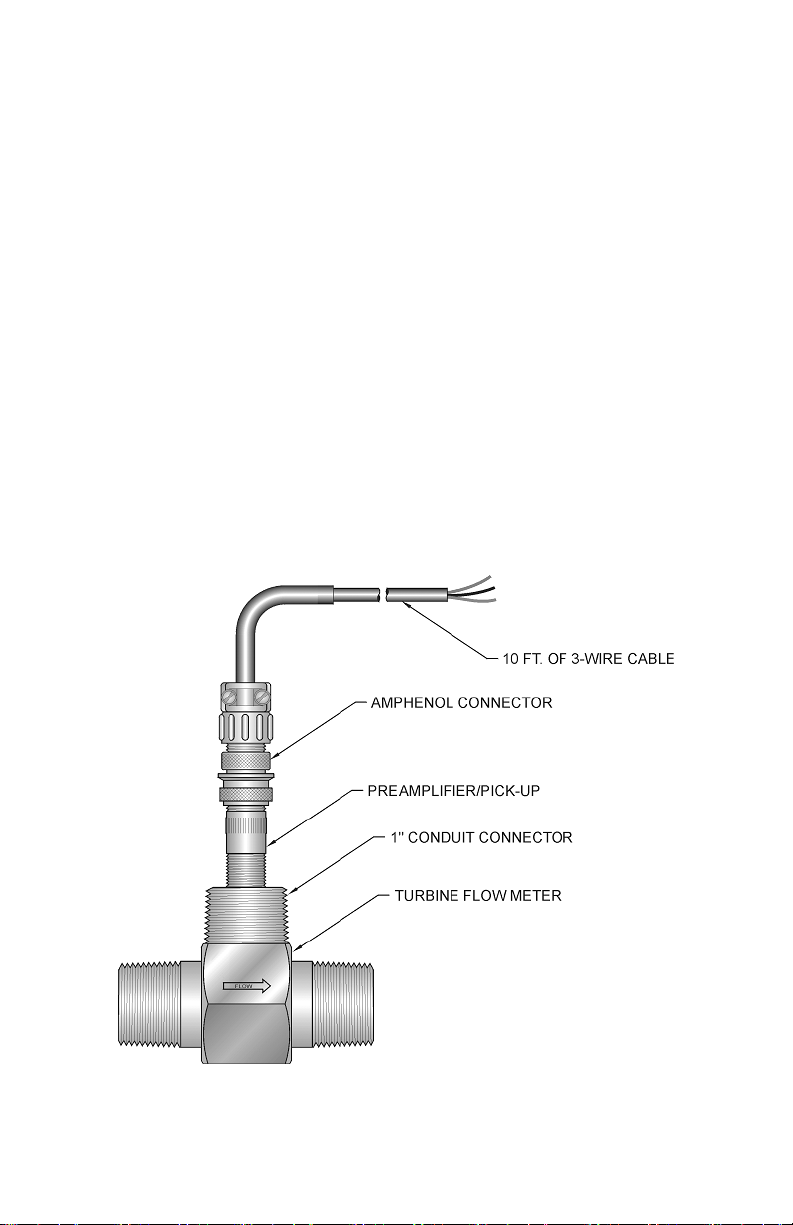

Figure 1
Model FTB-1400 ow meter
with preamplier pick-up and connecting cable
3
Page 4
SPECIFICATIONS
Supply Voltage: +5 to 30 VDC
Input Current: 15 mA
Current Sinking: 25 mA maximum
Pulse Out: 0 to 10 V peak-to-peak
Frequency Range: 5Hz to 10kHz
Transmit Distance: 1500 feet maximum
Temperature: -20 °F to +160 °F (-29 °C to +71 °C)
Housing: Stainless steel and epoxy encapsulated
Electrical
Connection: 3-pin straight Amphenol connector supplied with
10 feet of cable standard. (Sold separately.
Contact Omega.)
4
Page 5
INSTALLATION AND WIRING INSTRUCTIONS
The FTB-14XX-AMP is simply threaded into the hole (⁄”-18UNF) in the
turbine meter until the pick-up bottoms out. Tighten the pick-up nger
tight. Do not over tighten.
Install the 3-pin connector in the proper orientation and connect the
wire ends of the cable using appropriate common wiring practices.
Refer to Table 1 and Figure 2 for wiring specications.
Pin Description Wire Color
A Power: +5 to 30 VDC @ 15 mA Red
B Common: Power return Black
C Output Signal: 0 to 10 V (Square Wave) Green or Clear
Table 1

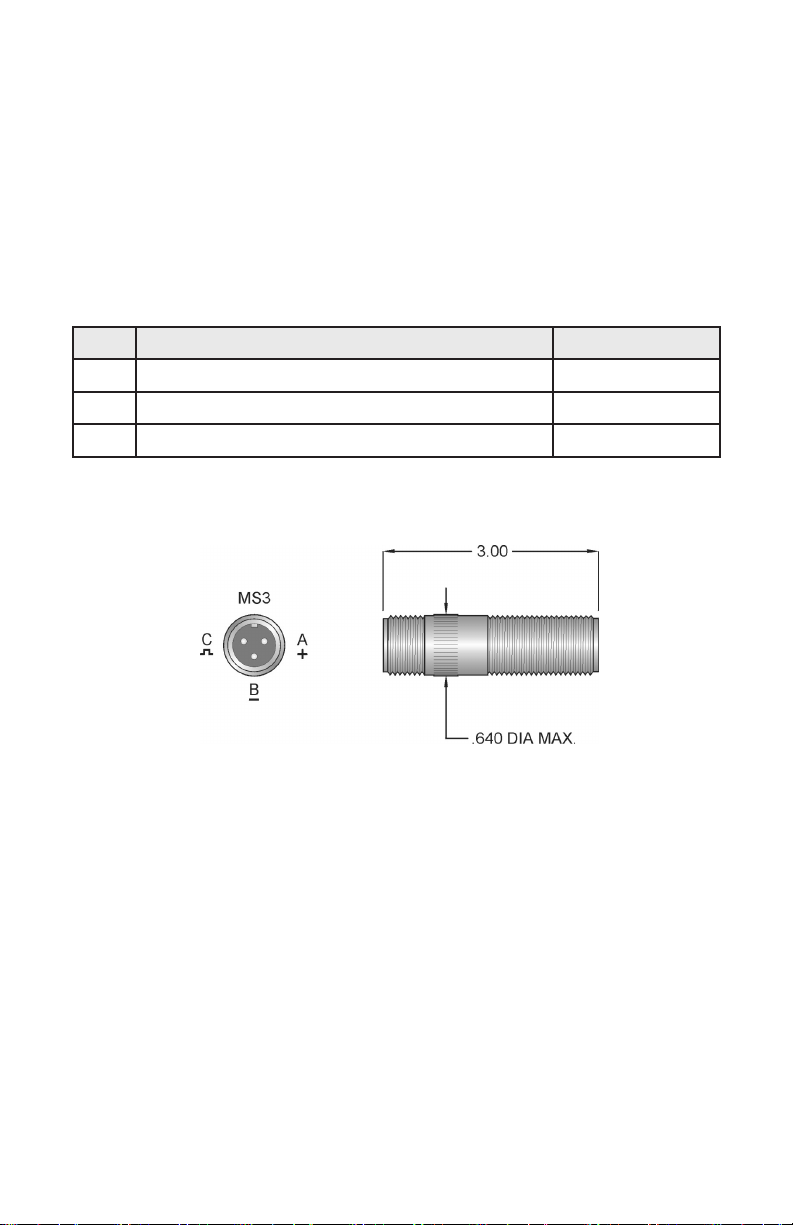

Figure 2
Pin conguration
5
